    HPE ProLiant DL160 Gen10 Server

    The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers – from SMB to Service Providers running wide range of workloads - at a compelling price point.

image 1

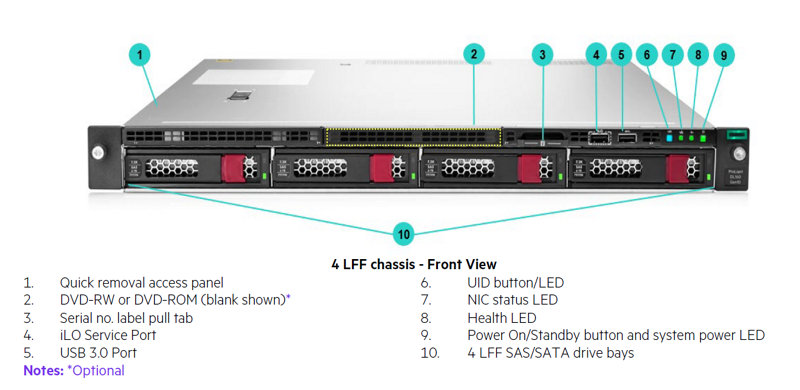

image 2

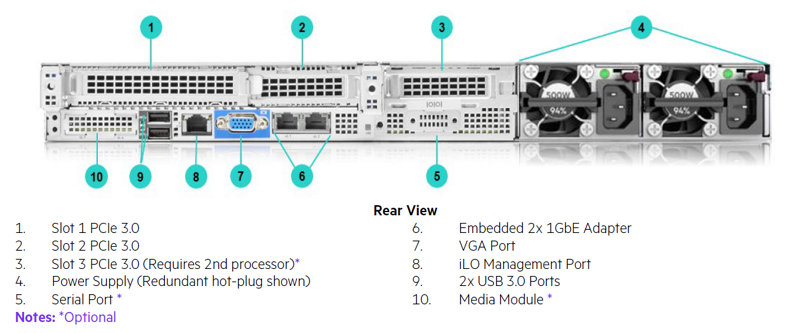

image 3
image 4

What's New

  • 800GB, 1.6/3.2/6.4TB Mixed Use SAS SFF PM6 SSDs
  • 960GB, 1.92/3.84/7.68TB Read Intensive SAS SFF PM6 SSDs
  • 400/800GB, 1.6TB Write Intensive SAS SFF PM6 SSDs

Platform Information

Form Factor

  • 1U rack

Chassis Types

  • 8 SFF with optional support for additional 2 SFF SAS/SATA HDD/SSD
  • 4 LFF

System Fans

  • Single rotor hot plug fans will be included

For 4 LFF and 8 SFF chassis

  • 1 CPU – Includes 3standard fans, 4 fans with addition of redundant fan kit
  • 2 CPUs – Includes 6standard fans, 7 fans with addition of redundant fan kit

Notes: Optional redundant fan kit (866438-B21) includes 1 fan for redundancy

  • Standard Features

    Processors – Up to 2 of the following depending on model.

    Notes:

    − The 2nd digit of the processor model number “x1xx” and “x2xx” is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

    − Field upgrades from 1st generation processors (x1xx) to 2nd generation processors (x2xx) not supported.

    − “U” processors (i.e. 6210U) only supported in single socket configurations

    − This table covers the public Intel offering only.

    − For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon .

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Platinum 8256 Processor

3.8 GHz

4

16.50 MB

105 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8253 Processor

2.2 GHz

16

22.00 MB

125 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Notes:

− 6-Channel DDR4 @ 2933 MT/s with 1TB memory capacity per socket

− 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.

− Support for: Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA), advanced RAS

− 48 lanes PCIe 3.0

1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Platinum 8164 Processor

2.0 GHz

26

35.75 MB

150 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Notes:

− 6-Channel 1DPC DDR4 @ 2666 MT/s. with 768GB memory capacity per socket

− 2 and 4 socket capable, 2S - 2UPI, 2S-3UPI, 4S-2UPI, 4S - 3UPI, 8S - 3UPI @ 10.4 GT/s.

− Support for: Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA), advanced RAS

− 48 lanes PCIe 3.0

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Gold 6252 Processor

2.1 GHz

24

35.75 MB

150 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6248 Processor

2.5 GHz

20

27.5 MB

150 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6244 Processor

3.6 GHz

8

24.75 MB

150 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6242 Processor

2.8 GHz

16

22 MB

150 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6240 Processor

2.6 GHz

18

24.75 MB

150 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6238 Processor

2.1 GHz

22

30.25 MB

140 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6234 Processor

3.3 GHz

8

24.75 MB

130 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6230R Processor

2.1 GHz

26

35.75 MB

150 W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6230 Processor

2.1 GHz

20

27.5 MB

125 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6226R Processor

2.9 GHz

16

22 MB

150 W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6226 Processor

2.7 GHz

12

19.25 MB

125 W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6210U Processor

2.5 GHz

20

27.50 MB

150 W

N/A

2933 MT/s

1 TB

Gold 6209U Processor

2.1 GHz

20

27.50 MB

125 W

N/A

2933 MT/s

1 TB

Gold 6208U Processor

2.9 GHz

16

22 MB

150 W

N/A

2933 MT/s

1 TB

Gold 5222 Processor

3.8 GHz

4

16.5 MB

105 W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 5220R Processor

2.2 GHz

24

35.75 MB

150 W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 5220 Processor

2.2 GHz

18

24.75 MB

125 W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Gold 5218R Processor

2.1 GHz

20

27.50 MB

125 W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Gold 5218 Processor

2.3 GHz

16

22 MB

125 W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Gold 5217 Processor

3.0 GHz

8

11 MB

115 W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Gold 5215 Processor

2.5 GHz

10

13.75 MB

85 W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Notes:

− 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 skus only), 2666 MT/s on all Gold 5200 skus (except 5222 @ 2933 MT/s) with 1TB memory capacity per socket

− 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S-2UPI, 4S - 3UPI @ 10.4 GT/s.

− Support for: Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (Gold 6200 and SKU 5222 - supports 2x 512 bit FMA), advanced AS

− 48 lanes PCIe 3.0

1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Gold 6152 Processor

2.1 GHz

22

30.25 MB

140 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6148 Processor

2.4 GHz

20

27.50 MB

150 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6144 Processor

3.5 GHz

8

24.75 MB

150 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6142 Processor

2.6 GHz

16

22.00 MB

150 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6140 Processor

2.3 GHz

18

24.75 MB

140 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6138 Processor

2.0 GHz

20

27.50 MB

125 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6136 Processor

3.0 GHz

12

24.75 MB

150 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6134 Processor

3.2 GHz

8

24.75 MB

130 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6132 Processor

2.6 GHz

14

19.25 MB

140 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6130 Processor

2.1 GHz

16

22.00 MB

125 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6128 Processor

3.4 GHz

6

19.25 MB

115 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6126 Processor

2.6 GHz

12

19.25 MB

125 W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5122 Processor

3.6 GHz

4

16.50 MB

105 W

2 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5120 Processor

2.2 GHz

14

19.25 MB

105 W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5118 Processor

2.3 GHz

12

16.50 MB

105 W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5115 Processor

2.4 GHz

10

13.75 MB

85 W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Notes:

− 6-Channel 1DPC DDR4 @ 2666 MT/s (Gold 6100 skus), 2400 MT/s on all Gold 5100 skus (SKU 5122 - supports 2666 MT/s), with 768GB memory capacity per socket

− 2 and 4 socket capable, 2S - 2UPI, 2S-3UPI, 4S - 3UPI @ 10.4 GT/s.

− Support for: Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (Gold 6100 and SKU 5122 - supports 2x 512 bit FMA), advanced RAS

48 lanes PCIe 3.0

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Silver 4216 Processor

2.1 GHz

16

22 MB

100 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4215R Processor

2.4 GHz

8

11 MB

130 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4215 Processor

3.2 GHz

8

11 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4214R Processor

2.5 GHz

12

16.5 MB

100 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4214 Processor

2.2 GHz

12

16.5 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4210R Processor

2.4 GHz

10

13.75 MB

100 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4210 Processor

2.2 GHz

10

13.75 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4208 Processor

2.1 GHz

8

11 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Notes:

− 6-Channel DDR4 @ 2400 MT/s with 1TB memory capacity per socket

− 2 socket supports 2UPI @ 9.6 GT/s.

− Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA), standard RAS

− 48 lanes PCIe 3.0

1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Silver 4116 Processor

2.1 GHz

12

16.50 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4114 Processor

2.2 GHz

10

13.75 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4112 Processor

2.6 GHz

4

8.25 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4110 Processor

2.1 GHz

8

11.00 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4108 Processor

1.8 GHz

8

11.00 MB

85 W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Notes:

− 6-Channel DDR4 @ 2400 MT/s providing with 768GB memory capcity per socket

− 2 Socket supports 2UPI @ 9.6 GT/s

− Support for: Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), standard RAS

− 48 lanes PCIe 3.0

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Bronze 3206R

1.9 GHz

8

11 MB

85 W

2 @ 9.6 GT/s

2133 MT/s

1 TB

Bronze 3204 Processor

1.9 GHz

6

8.25 MB

85 W

2 @ 9.6 GT/s

2133 MT/s

1 TB

Notes:

− 6-Channel DDR4 @ 2133 MT/s with 1TB memory capacity per socket

− 2 Socket supports 2UPI @ 9.6 GT/s

− Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration., Intel AVX-512 (1x 512-bit FMA), standard RAS

− 48 lanes PCIe 3.0

1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Bronze 3106 Processor

1.7 GHz

8

11.00 MB

85 W

2 @ 9.6 GT/s

2133 MT/s

768 GB

Bronze 3104 Processor

1.7 GHz

6

8.25 MB

85 W

2 @ 9.6 GT/s

2133 MT/s

768 GB

Notes:

− 6-Channel DDR4 @ 2133 MT/s with 768GB memory capacity per socket

− 2 Socket supports 2UPI @ 9.6 GT/s

− Support for: Intel AVX-512(1x 512-bit FMA), standard RAS

− 48 lanes PCIe 3.0

Chipset

Intel C622 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html


On System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs .

Memory

Type

HPE DDR4 Smart Memory

Registered (RDIMM), Load Reduced (LRDIMM)

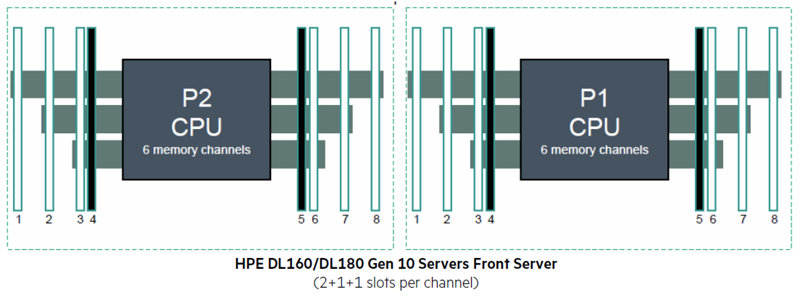

DIMM Slots Available

16

8 DIMM slots per processor, 6 channels per processor, 2 channels @ 2 DIMMs per channel, 4 channels @ 1 DIMM per channel

Maximum capacity (LRDIMM)

1.0 TB

16 x 64 GB LRDIMM @ 2933 MT/s

Maximum capacity (RDIMM)

1.0 TB

16 x 64 GB RDIMM @ 2933 MT/s

Notes:

− Mixing of RDIMM and LRDIMM memory is not supported.

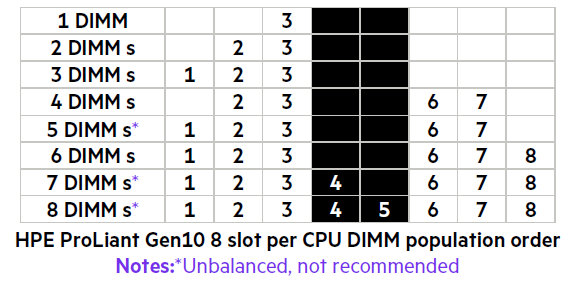

− For General Server Memory Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.


Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes:

For more information see our Memory RAS feature technical whitepaper


Expansion Slots

Primary Riser

Expansion Slots #

Technology

Bus Width

Connector Width

Processor

Slot Form Factor

1

PCIe 3.0

x16

x16

CPU1

Full-height, half-length

2

PCIe 3.0

x8

x8

CPU1

Low Profile

Flexible LOM Riser

Slots #

Technology

Bus Width

Connector Width

Processor

Slot Form Factor

1

PCIe 3.0

X8

X8

CPU1

Flexible LOM

2

PCIe 3.0

X8

X8

CPU1

Low Profile

Notes:

− Bus Width Indicates the number of physical electrical lanes running to the connector.

− This riser is mandatory for installing FlexibleLOMs.

− FlexibleLOM riser will replace standard CPU1 X16/X8 riser.

CPU2 Riser

Slots #

Technology

Bus Width

Connector Width

Processor

Slot Form Factor

1

PCIe 3.0

X16

X16

CPU2

Low Profile

Notes:

− Bus Width Indicates the number of physical electrical lanes running to the connector.

− When populating the second optional riser slot, the second processor must be installed.

− Cannot be installed if type-a modular smart array controller is installed.

− Max 3-PCIe slots are available on the DL160 Gen10.

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

Notes:

− HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed.

− HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

− HPE Smart Array S100i SR Gen10 SW RAID only supports Windows and does not support Linux. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/


Essential RAID Controller

  • HPE Smart Array E208i-a SR G10 LH Controller
  • HPE Smart Array E208i-p SR Gen10 Controller
  • HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

  • HPE Smart Array P408i-a SR G10 LH Controller
  • HPE Smart Array P408i-p SR Gen10 Controller
  • HPE Smart Array P408e-p SR Gen10 Controller

Notes:

− Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.

− For additional details, please see https://www.hpe.com/psnow/doc/a00047736enw


Internal Storage Devices

  • Optical Drive
  • Optional: DVD-ROM or DVD-RW
  • Hard Drives
  • None ship standard

Maximum Internal Storage

Drive

Capacity

Configuration

Hot Plug SFF SAS HDD

24 TB

8+2 X 2.4 TB

Hot Plug LFF SAS HDD

48 TB

4 X 12 TB

Hot Plug SFF SATA HDD

20 TB

8+2 X 2 TB

Hot Plug LFF SATA HDD

48 TB

4 X 12 TB

Hot Plug SFF SAS SSD

76.8 TB

8+2 X 7.68 TB

Hot Plug LFF SAS SSD

6.4 TB

4 X 1.6 TB

Hot Plug SFF SATA SSD

76.8 TB

8+2 X 7.68 TB

Hot Plug LFF SATA SSD

30.72 TB

4 X 7.68 TB

Power Supply

  • HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • Notes: Available in 94% efficiency.
  • HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • Notes:
    • − Available in 94% and 96% efficiency.
    • − Also available in -48VDC power input.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

For information on power specifications and technical content visit HPE Server power supplies

Interfaces

Video

1 rear – VGA Port (standard ), 1 Serial Port (optional)

Network Ports

2 x 1 GbE ports embedded on board with optional Media Module, FlexibleLOM or stand up card

HPE iLO Remote Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard

Micro SD Slot

1 Micro SD

Notes: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0

Up to 4 total: 1 front, 2 rear, 1 internal

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices


Industry Standard Compliance

  • ACPI 6.1 Compliant
  • PCIe 3.0 Compliant
  • WOL Support
  • Microsoft® Logo certifications
  • PXE Support
  • USB 3.0 Compliant (internal)
  • SMBIOS 3.1
  • UEFI 2.6
  • Redfish API
  • IPMI 2.0
  • Secure Digital 2.0
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP v3
  • TLS 1.2
  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
  • Active Directory v1.0
  • ASHRAE A3/A4
  • Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: https://support.hpe.com/hpesc/public/docDisplay?docId=a00026969en_us&page=index.html
  • UEFI (Unified Extensible Firmware Interface Forum)
  • Notes: UEFI is the default for the HPE ProLiant DL160 Gen10. Legacy mode can be selected in the field.

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements.


Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.


HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html


Graphics

Integrated Video Standard

  • Video modes up to 1920 x 1200@60Hz (32 bpp)
  • 16MB Video Memory

HPE iLO 5 on system management memory

  • 32 MB Flash
  • 4 Gbit DDR 3 with ECC protection

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi .

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure Boot and Secure Start enable for enhanced security
  • Operatingsystem specific functionality
  • Supportfor > 2.2 TB (using GPT) boot drives
  • USB 3.0 Stack
  • EmbeddedUEFI Shell
  • Mass ConfigurationDeployment Tool using iLO RESTful API that is Redfish API Conformant
  • PXE bootsupport for IPv6 networks
  • Workload Profiles for simple performance optimization

UEFI Boot Mode only:

  • NVMe Boot Support
  • iSCSI Software Initiator Support.
  • HTTP/HTTPs Boot support as a PXE alternative.
  • Boot support for option cards that only support a UEFI option ROM

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.


Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo .


UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi .


Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning .


iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi .

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs .


Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv .


Service Pack for ProLiant (SPP)

The Service Pack for ProLiant (SPP) is a comprehensive collection of server firmware, drivers, and system software tested as a single solution stack, which is delivered as a single ISO image. Learn more at http://www.hpe.com/servers/spp


iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack .


HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp .


RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool .


Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at or http://www.hpe.com/servers/powershell .


HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview


HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim .

Security

  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • iLO Security Modes
  • Granular control over iLO interfaces
  • Tamper-free updates – components digitally signed and verified
  • Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND/User data
  • TPM (Trusted Platform Module) 2.0 option
  • Bezel Locking Kit
  • Chassis Intrusion detection option

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.


Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://www.hpe.com/support/ProLiantServers-Warranties

  • Optional Features

    Server Management

    HPE iLO Advanced

    HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.


    HPE Compute Ops Management

    Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.


    HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in HPE GreenLake cloud (access via https://common.cloud.hpe.com ) and leverages the HPE GreenLake architecture, security, and unified operations.

    For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

    For information on supported HPE servers, the complete list can be found here: https://www.hpe.com/info/com-supported-servers


    PE OneView Advanced

    HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview


    HPE InfoSight for Servers

    HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

    Learn more at https://www.hpe.com/servers/infosight


    HPE Insight Cluster Management Utility (CMU)

    HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu .

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.


HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.


HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.


HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.


Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure


One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

  • Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.hpe.com/services


    Consulting Services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.hpe.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.hpe.com/services/operational


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • A complete coverage approach -- edge to cloud
    • An assigned HPE team
    • Modular and fully personalized engagement
    • Enhanced Incident Management experience with priority access
    • Digitally enabled and AI driven customer experience

    https://www.hpe.com/services/completecare


    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.hpe.com/services/techcare


    HPE Lifecycle Services

    HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

    • Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
    • HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
    • HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
    • Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
    • HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

    Notes: To review the list of Lifecycle Services available for your product go to:

    https://www.hpe.com/services/lifecycle


    For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training


Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

  • Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
  • Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience


Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin


Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

  • Get faster time to market
  • Save on TCO, align costs to business
  • Scale quickly, meet unpredictable demand
  • Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

  • Pre-Configured Models

    • Pre- Configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
    • Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
    • If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.

    European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

    https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Powered by 2nd Generation Intel Xeon Processors

SKU Number- WW

P35514-B21

P35515-B21

P35516-B21

P35518-B21

SKU Number- Japan

P35514-291

P35515-291

P35516-291

P35518-291

Model Name

HPE ProLiant DL160 Gen10 3206R 1.9GHz 8-core 1P 16GB-R S100i 4LFF 500W PS Server

HPE ProLiant DL160 Gen10 4210R 2.4GHz 10-core 1P 16GB-R S100i 4LFF 500W PS Server

HPE ProLiant DL160 Gen10 4210R 2.4GHz 10-core 1P 16GB-R S100i 8SFF 500W PS Server

HPE ProLiant DL160 Gen10 4214R 2.4GHz 12-core 1P 16GB-R S100i 8SFF 500W PS Server

Chassis

4LFF

4LFF

8SFF

8SFF

Processor

3206R (1.9GHz/8-core/85W)

4210R (2.4GHz/10-core/100W)

4210R (2.4GHz/10-core/100W)

4214R (2.4GHz/12-core/100W)

Number of Processors

One processor

With standard heatsink

One processor

With standard heatsink

One processor

With standard heatsink

One processor

With standard heatsink

Memory

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

Network Controller

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Storage Controller

Embedded 14-port S100i

Notes: SATA only.

Embedded 14-port S100i

Notes: SATA only.

Embedded 14-port S100i

Notes: SATA only.

Embedded 14-port S100i

Notes: SATA only.

HardDrive

None included

None included

None included

None included

Optical Drive

None included

None included

None included

None included

PCIe Slots

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

Power Supply

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

Fans

3 - Standard

3 - Standard

3 - Standard

3 - Standard

Management

HPE iLO 5

HPE iLO 5

HPE iLO 5

HPE iLO 5

Rail Kit

1U Easy Install

1U Easy Install

1U Easy Install

1U Easy Install

Energy Star

Energy Star 2.1

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Country Code Key

  • B21 = Worldwide except Japan & PRC
  • 291 = Japan
  • 421 = EMEA

Powered by 2nd Generation Intel Xeon Processors

SKU Number- WW

P19559-B21

P19561-B21

P19560-B21

P19560-421

SKU Number- Japan

P19559-291

P19561-291

P19560-291

Model Name

HPE ProLiant DL160 Gen10 3204 1.9GHz 6-core 1P 16GB-R 4LFF 500W PS Server

HPE ProLiant DL160 Gen10 4208 2.1GHz 8-core 1P 16GB-R 4LFF 500W PS Server

HPE ProLiant DL160 Gen10 4208 2.1GHz 8-core 1P 16GB-R 4LFF 500W PS Server

HPE ProLiant DL160 Gen10 4208 2.1GHz 8-core 1P 16GB-R 4LFF 500W PS Server

Chassis

4LFF

4LFF

8SFF

8SFF

Processor

3204 (1.9GHz/6-core/85W)

4208 (2.1GHz/8-core/85W)

4208 (2.1GHz/8-core/85W)

4208 (2.1GHz/8-core/85W)

Number of Processors

One processor

With standard heatsink

One processor

With standard heatsink

One processor

With standard heatsink

One processor

With standard heatsink

Memory

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2133 MT/s due to processor limitation

Network Controller

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Storage Controller

Embedded 14-port S100i

Notes: SATA only.

Embedded 14-port S100i

Notes: SATA only.

Embedded 14-port S100i

Notes: SATA only.

Embedded 14-port S100i

Notes: SATA only.

Hard Drive

None included

None included

None included

None included

Optical Drive

None included

None included

None included

None included

PCIe Slots

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

Power Supply

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

Fans

3 - Standard

3 - Standard

3 - Standard

3 - Standard

Management

HPE iLO 5

HPE iLO 5

HPE iLO 5

HPE iLO 5

Rail Kit

1U Easy Install

1U Easy Install

1U Easy Install

1U Easy Install

Energy Star

Energy Star 2.1

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Powered by 2nd Generation Intel Xeon Processors

SKU Number- WW

P35517-B21

SKU Number- Japan

P35517-291

Model Name

HPE ProLiant DL160 Gen10 5218 2.3GHz 16-core 1P 16GB-R S100i 8SFF 500W PS Server

Chassis

8SFF

Processor

5218 (2.3GHz/16-core/125W)

Number of Processors

One processor

With standard heatsink

Memory

16 GB RDIMM 1R 2933 MT/s

(1x 16 GB)

Notes: Runs at 2666 MT/s due to processor limitation.

Network Controller

Embedded 2-port 1GbE

Storage Controller

Embedded 14-port S100i

Notes: SATA only.

Hard Drive

None included

Optical Drive

None included

PCIe Slots

2 PCIe: 1 x16 FH / 1 x8 LP

Power Supply

1x 500W Hot Plug; RPS ready

Fans

3 - Standard

Management

HPE iLO 5

Rail Kit

1U Easy Install

Energy Star

Energy Star 2.1

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Notes: UEFI is the standard default for all Pre-configured models.


  • Configuration Information

    This section lists some of the steps required to configure a Factory Integrated Model.

    To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

    • Factory Integrated Models must start with a CTO Server.
    • FIO indicates that this option is only available as a factory installable option.
    • All Factory Integrated Models will be populated with sufficient hard drive blanks based on number of drives ordered with server.
    • Some options may not be integrated at the factory. Contact your local sales representative for additional information

    European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

    https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Step 1: Base Configuration (choose one of the following configurable models)

CTO Server

HPE ProLiant DL160 Gen10 4 LFF CTO Server

HPE ProLiant DL160 Gen10 8 SFF CTO Server

SKU Number

878972-B21

878973-B21

Processor

Not included as standard

DIMM Slots

16-DIMM slots

Storage Controller

Embedded SW RAID with 14 SATA ports, choice of HPE modular Smart Array and PCIe plug-in controller

PCIe

None standard. Risers need to be added

Drive Cage - included

4 LFF SAS/SATA

8 SFF SAS/SATA

Network Controller

Embedded 2x1GbE with optional, Media Module, HPE

FlexibleLOM on riser and optional Standup card

Fans

1 CPU- 3 Standard Fans

2 CPU- 6 Standard Fans

Management

HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)

USB

Front: 1 USB 3.0 + iLO service port

Rear: 2 USB 3.0

Internal: 1 USB 3.0

Step 2: Choose Required Options

Please select one –L21 processor required below.

For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section.

For example: first processor, select 878947-L21 then for second processor, select 878947-B21.

Notes:

− Mixing of 2 different processor models is not supported.

− For first processor, -L21 will include 3 fans, For second processor, -B21 will add 3 additional fans

− When 2 nd Generation Intel Xeon Scalable Processor is slected, then only DDR4-2933 Memory Kit can be selected; When 1 st Generation Intel Xeon Scalable Processor is selected, then only DDR4-2666 Memory Kit can be selected

Step 2a: Choose Processor

Processor Option Kits (Required Processor)

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules

For Gen10 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature .

Notes:

− Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.

− DDR4-2933 Memory Kits are only supported with 2 nd Generation Intel Xeon Scalable Series Processors and DDR4-2666 Memory Kits are only supported with 1 st Generation Intel Xeon Scalable Series Processors.

Registered DIMMs (RDIMMs) for 2nd Generation Intel Xeon Scalable Series

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-B21

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-B21

Notes:

− Mixing of 2 different power supplies is NOT supported.

− HPE DL160/180 Gen10 Redundant Power Supply Enablement Kit (866442-B21) required with selection of power supply.

HPE Flex Slot Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Hot Plug Universal Low Halogen High Voltage AC/DC Power Supply Kit

865428-B21

Notes: This enablement kit is required with the selection of a Flex Slot power supply

Step 3: Choose Additional (FIO) Factory Integratable Options

Each of the following may be selected if desired at time of factory integration

HPE Legacy FIO Mode Setting

HPE FIO Enable Smart Array SW RAID

758959-B22

HPE Gen10 TPM 1.2 FIO Setting

784308-B21

HPE Unique Options

872108-B21

HPE Unique Options

HPE Server Security Optimized Service for HPE ProLiant (R9S59A) is an optional security upgrade intended for agencies and regulated industries with enhanced security and compliance needs. Applying this option to a DL3XX Gen10/Gen10 Plus CTO server ensures it is hardened by turning on advanced safeguards in place against cyber-exploits throughout the server lifecycle. An iLO Advanced License required for High Security Mode and compatible intrusion detection device option kits are prerequisites for the full optimization service.


Step 4: Choose Additional Options for Factory Integration from Core and Additional Option sections below

  • Core Options

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

Optical Drive Options

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

Notes: The ODD Enablement kit (873961-B21) is required for this option on a SFF model.


HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

Notes: The ODD Enablement kit (873961-B21) is required for this option on a SFF model.


HPE Mobile USB DVD-RW Optical Drive

701498-B21

Notes: This option is only supported on USB 3.0 ports.


Security

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

HPE 1U Gen10 Bezel Kit

867998-B21

HPE Bezel Lock Kit

875519-B21

Notes:

− This provides a physical connection from the chassis board and hood and detects any physical intrusion into the chassis, providing security during the entire supply chain process of shipping, receiving, distribution, and operation.

− The 1U Gen10 Bezel Kit above requires a Quick Release Ear Kit. Installation of the Bezel Kit requires adding the HPE DL160 Gen10 FIO Quick Release Ear Kit (872987-B21) which can only be added at the time of factory configuration. The Quick Release Kit is not available as a field upgradable option.


HPE Processors

Please select one –L21 processor required above.

For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section below.

For example: first processor, select 878947-L21 then for second processor, select 878947-B21.

Notes:

− Field upgrades from 1st generation processors (x1xx) to 2nd generation processors (x2xx) not supported.

− Mixing of 2 different processor models is not supported.

− For first processor, -L21 will include 3 fans, For second processor, -B21 will add 3 additional fans

− When 2 nd Generation Intel Xeon Scalable Processor is slected, then only DDR4-2933 Memory Kit can be selected; When 1 st Generation Intel Xeon Scalable Processor is selected, then only DDR4-2666 Memory Kit can be selected


HPE Memory

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to: https://www.hpe.com/docs/memory-population-rules

For Gen10 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature

Notes:

− Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.

− DDR4-2933 Memory Kits are only supported with 2nd Generation Intel Xeon Scalable Series Processors and DDR4-2666 Memory Kits are only supported with 1st Generation Intel Xeon Scalable Series Processors.

HPE DDR4 Memory

Registered DIMMs (RDIMMs) for 2nd Generation Intel Xeon Scalable Series

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-B21

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-B21

HPE Smart Array Controllers

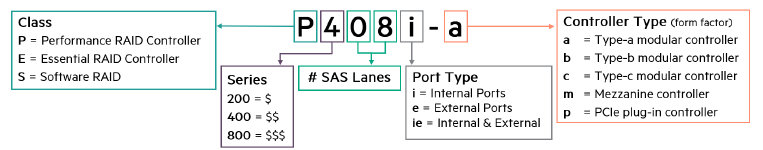

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the

https://www.hpe.com/psnow/doc/a00047736enw?jumpid=in_hpesitesearch

image 5

HPE Flexible Smart Array Controllers

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular LH Controller

869081-B21

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular LH Controller

869079-B21

Notes:

− Must also select either 4LFF or 8SFF Smart Array SAS Cable Kit (866452-B21; 866448-B21), depending on chassis

− All performance RAID controllers are supported by the HPE Smart Storage Battery (P01366-B21 ), which supports multiple devices and is sold separately.

− Does not occupy a PCIe expansion slot.

HPE Smart Array Controllers

HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller

830824-B21

HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller

804405-B21

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE Cable Options

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

Notes: Supports up to 6 P-class Smart Array controllers


HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

Notes: Supports up to 3 P-class Smart Array controllers


Optional Software

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

Notes: SmartCache is offered on HPE Smart Array performance RAID controllers


HPE Drives

Mission Critical (Enterprise) - 12G SAS - SFF Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

881457-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-B21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-B21

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-B21

Business Critical (Midline) - 12G SAS - LFF Drives

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 6TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

861746-B21

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 2TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833926-B21

Business Critical (Midline) - 6G SATA - LFF Drives

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 6TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

861742-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49039-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49034-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37001-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49030-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36999-B21

HPE 960GB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49028-B21

Mixed Use - 12G SAS - LFF - Solid State Drives

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49056-B21

HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49052-B21

HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37011-B21

HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49048-B21

HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49046-B21

Read Intensive - SATA - SFF - Solid State Drives

HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18428-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18426-B21

HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18424-B21

HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18422-B21

HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18420-B21

Mixed Use - SATA - SFF - Solid State Drives

HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18438-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18436-B21

HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18434-B21

HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18432-B21

Read Intensive - SATA - LFF - Solid State Drives

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Internal Dual M.2 Kit

HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit

878783-B21

Notes: The Universal SATA M.2 Kit above will require a PCIe slot and support up to two of the same M.2 cards below.


Read Intensive - M.2 - Solid State Drives (2280 type)

HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD

P47818-B21

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Networking

25 Gigabit Ethernet adapters

HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

817753-B21

10 Gigabit Ethernet adapters

Notes: Can be installed only in Slot 2 and Slot 3


HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

Notes: Can be installed only in Slot 1 and Slot 3


FlexibleLOM adapters

HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter

HPE Ethernet 10/25Gb 2-port FLR-SFP28 BCM57414 Adapter

HPE Ethernet 10Gb 2-port FLR-T X550-AT2 Adapter

HPE Ethernet 10Gb 2-port FLR-T BCM57416 Adapter

HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter

HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter

Notes:

− The HPE ProLiant DL160 Gen10 chassis ships with 2x 1 Gb embedded.

− Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.

− FlexibleLOM Riser Kit (875748-B21) is required to install these adapters

HPE InfiniBand

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

HPE Power Supplies

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.


HPE Flex Slot Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

HPE 800W Flex Slot Hot Plug Universal Low Halogen High Voltage AC/DC Power Supply Kit

Notes: This enablement kit is required with the selection of a Flex Slot power supply


  • Additional Options

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Embedded Management

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

Software as a Service Management

HPE Compute Ops Management

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

Additional Options

HPE Compute Ops Management Standard 1-year Upfront ProLiant SaaS

R7A10AAE

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

Notes: For customers purchasing HPE Compute Ops Management, without a hardware purchase or a BTO purchase, use this base SKU within ASQ order:


HPE Compute Ops Management Base SaaS

R6Z73AAE

HPE iLO Common Password Setting

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

− Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

− Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services


HPE Converged Infrastructure Management Software

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Notes:

− Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: https://www.hpe.com/us/en/integrated-systems/software.html

− Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

− Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: https://www.hpe.com/us/en/integrated-systems/software.html

HPE Storage Options

Emulex Fibre Channel HBAs

HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

QLogic Fibre Channel HBAs

HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

Rail Kits

Notes: HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE 1U Cable Management Arm for Rail Kit

734811-B21

HPE USB and SD Options

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 32GB microSD Flash Memory Card

700139-B21

HPE 32GB microSD RAID 1 USB Boot Drive

P21868-B21

Notes: In vSphere 7.0, VMware made changes that impact the use of an SD Card/USB media as a standalone boot device and will be removing support for them after version 7.x.

SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory Usage of SD Card/USB Devices As Standalone Boot Devices Has Changed Due to System Storage Changes For VMware ESXi 7.0 (Or Later).

For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.

HPE Support Services

Tech Care

HPE 5 Year Tech Care Essential DL160 Gen10 Service

HV6S6E

HPE 5 Year Tech Care Essential wDMR DL160 Gen10 Service

HV6S9E

HPE 3 Year Tech Care Essential DL160 Gen10 Service

HV6S4E

HPE 3 Year Tech Care Essential wDMR DL160 Gen10 Service

HV6S7E

Notes: For a full listing of support services available for this server, please visit http://www.hpe.com/services .


HPE Racks

  • Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks
  • Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Rack Options


HPE Power Distribution Units (PDUs)


HPE Uninterruptible Power Systems (UPS)

  • Memory

    Memory Population Guidelines

image 6
image 7

General Memory Population Rules and Guidelines:

  • Install DIMMs only if the corresponding processor is installed.
  • If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
  • To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
  • When two processors are installed, balance the DIMMs across the two processors.
  • White DIMM slots denote the first slot to be populated in a channel.
  • Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
  • The maximum memory speed is a function of the memory type, memory configuration, and processor model.
  • The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
  • For details on the HPE Server Memory Options Population Rules, visit: http://www.hpe.com/docs/memory-population-rules
  • To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs .

Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

  • Technical Specifications

    System Unit

    Dimensions

    (Height X Width X Depth)

    • 4.29 x 43.46 x 61.49 cm
    • 1.69 x 17.11 x 24.21 in

    Weight (approximate)

    • SFF Minimum
    • 8 SFF chassis with 1x SFF HDD, 1 X Memory DIMM, 3 Fans, 1 Processor with heatsink, 1 power supply
      • − 24.19lb
      • 10.97kg
    • SFF Maximum
    • 8SFF chassis with 8 SFF HDD, 1 X Memory DIMM, 6 Fans, 2 Processors with heatsink, 2 power supplies
      • − 30.69 lb
      • 13.92 kg
    • LFF Minimum
    • 4 LFF chassis with 1X LFF Hard Drive, 1X Memory DIMM, 3 Fans, 1 Processor with heatsink, 1 power supply
      • − 25.69 lb
      • 11.65 kg
    • LFF Maximum
    • 4 LFF chassis with 4X LFF Hard Drive, 1X Memory DIMM, 6 Fans, 2 Processors with heatsink, 2 power supplies
      • − 34.69 lb
      • 15.74kg

    Input Requirements(per power supply)

    Rated Line Voltage

    • 100 to 120 VAC
    • 200 to 240 VAC

    BTU Rating

    • Maximum
      • For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only

    Power Supply Output (per power supply)

    • Rated Steady-State Power
      • For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only
    • Maximum Peak Power
      • For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only

    Altitude

    • Operating
      • 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
    • Non-operating
      • 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

System Inlet Temperature

  • Standard Operating Temperature
    • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
    • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
  • Extended Ambient Operating Temperature
    • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: https://support.hpe.com/hpesc/public/docDisplay?docId=a00026969en_us&page=index.html
    • For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: https://support.hpe.com/hpesc/public/docDisplay?docId=a00026969en_us&page=index.html
    • System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
  • Non-operating
    • -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

  • Operating
    • 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
  • Non-operating
    • 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Configuration SKU

LFF Config

SFF Config

Idle

LWAd

4.5 B

4.5 B

LpAm

28.1 dBA

27.8 dBA

Operating

LWAd

5.1 B

5.1 B

LpAm

34.0 dBA

33.0 dBA

Notes:

− Acoustics levels will vary depending on system configuration. Values are based on below configurations and are for reference only.

− Additional options may result in increased sound levels.

Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Emissions Classification (EMC) – Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts


HPE Smart Array

For latest information on HPE Smart Array Gen10 Controllers for HPE ProLiant DL, ML and Apollo Servers please refer to their QuickSpecs. (E208i-a, E208i-p, E208e-p, P408i-a, P408i-p, P408e-p, P816i-a)

https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00047736enw


Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs , in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.


The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.


European Union Erp Lot 9 Regulation

Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.


HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

  • Summary of Changes

Date

Version History

Action

Description of Change

18-Aug-2025

Version 32

Changed

Standard Features section was updated.

16-Sep-2024

Version 31

Changed

Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) section was updated.

18-Mar-2024

Version 30

Changed

Standard Features and Additional Options sections were updated.

Obsolete SKUs were removed.

05-Feb-2024

Version 29

Changed

Standard Features and Core Options sections were updated.

Obsolete SKUs were removed.

20-Nov-2023

Version 28

Changed

HPE Services Rebranding

05-Sep-2023

Version 27

Changed

Standard Features and Core Options sections were updated.

Obsolete SKUs were removed

21-Aug-2023

Version 26

Changed

Technical Specification section was updated.

01-May-2023

Version 25

Changed

Optional Features and Additional Options sections were updated.

05-Dec-2022

Version 24

Changed

Core Options section was updated.

07-Nov-2022

Version 23

Changed

Optional Features, Pre-Configured and Additional Options section were updated.

Obsolete SKUs were removed.

01-Aug-2022

Version 22

Changed

Configuration Information section was updated.

05-Jul-2022

Version 21

Changed

Core Options section was updated.

Obsolete SKUs were removed.

06-Dec-2021

Version 20

Changed

Core Options and Additional Options sections were updated.

01-Nov-2021

Version 19

Changed

Core Options section was updated.

Obsolete SKUs were removed.

02-Aug-2021

Version 18

Changed

Core Options section was updated.

Obsolete SKUs were removed.

04-May-2021

Version 17

Changed

Core Options section was updated.

Obsolete SKUs were removed.

06-Apr-2021

Version 16

Changed

Core Options, Service and Support and Additional Options sections were updated.

Obsolete SKUs were removed.

01-Feb-2021

Version 15

Changed

Overview and Core Options sections were updated.

Obsolete SKUs were removed.

07-Dec-2020

Version 14

Changed

Overview and Standard Features sections were updated.

Obsolete SKUs were removed.

05-Oct-2020

Version 13

Changed

Pre-Configured Models and Configuration Information sections were updated.

Obsolete SKUs were removed.

08-Sep-2020

Version 12

Changed

Overview, Standard Features, Pre-Configured Models, Configuration Information, Core Options and Additional Options sections were updated.

01-Jun-2020

Version 11

Changed

Overview, Configuration Information, Core Options and Additional Options sections were updated

06-Apr-2020

Version 10

Changed

Service and Support and Core Options sections were updated.

03-Feb-2020

Version 9

Changed

Overview, Standard Features, Pre-Configured Models, Configuration Information and Core Options sections were updated.

02-Dec-2019

Version 8

Changed

Overview, Standard Features, Core Options, Additional Options and Technical Specifications sections were updated.

04-Nov-2019

Version 7

Changed

Image corrected in Overview section.

07-Oct-2019

Version 6

Changed

All sections were updated.

12-Aug-2019

Version 5

Changed

Overview, Standard Features, Additional Options and Memory sections were updated.

05-Aug-2019

Version 4

Changed

Overview, Standard Features, Optional Features, Additional Options and Memory sections were updated.

03-Jun-2019

Version 3

Changed

Overview, Additional Options and Pre-configured Models sections were updated.

15-Apr-2019

Version 2

Changed

Overview, Standard Features, Optional Features and Pre-configured Models sections were updated.

04-Feb-2019

Version 1

New

New QuickSpecs

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein

Intel and Xeon are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft, Windows, and Windows Server are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00021860enw, 16057 - Worldwide - V32 - 18-August-2025

Recommended for you
