HPE ProLiant ML350 Gen10 Server

RETIRED: This document has been officially retired, and the base products listed herein are now considered obsolete and are no longer available for sale. Consequently, the information contained within may no longer be current. This document is provided exclusively for reference and informational purposes.

  • Overview

    Shape the Future of QuickSpecs - Your Input Matters

    HPE ProLiant ML350 Gen10 Server

    Driving a wide range of workloads with a flexible, shorter and rackable chassis design that can fit in different physical environments, the secure 2P HPE ProLiant ML350 Gen10 Server delivers the ideal set of performance and expandability for changing business needs making it the choice for growing SMBs, remote/branch offices of large enterprises and data centers. Choose this 2P tower that grows with you in the digital economy.

Figure 1
TAP IMAGE TO ZOOM IN

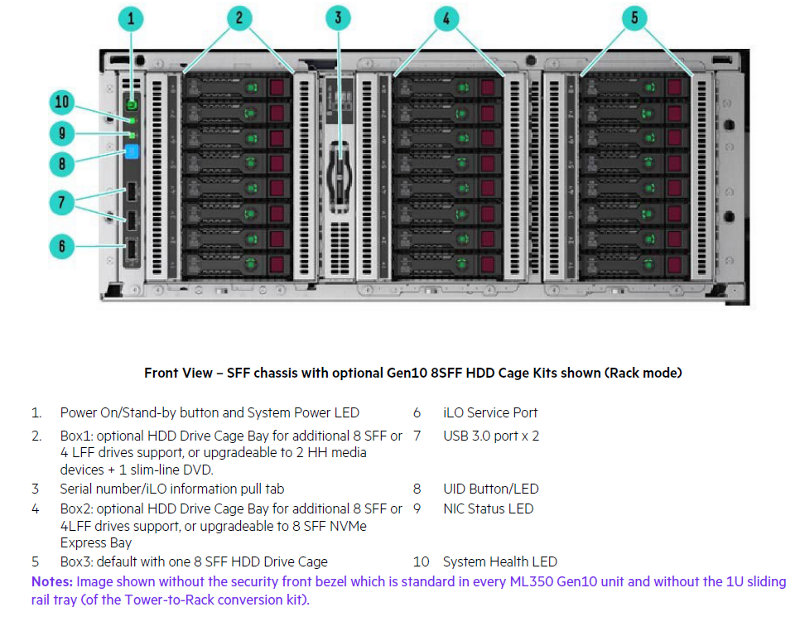

Front View – SFF chassis with optional Gen10 8SFF HDD Cage Kits shown (Rack mode)

Figure 2
TAP IMAGE TO ZOOM IN

Front View – LFF chassis with optional Gen10 4LFF HDD Cage Kits shown (Tower mode)

Figure 3
TAP IMAGE TO ZOOM IN

Internal View – with optional 2nd CPU, Smart Array Modular Controller and Redundant Fan Kit shown

Figure 4
TAP IMAGE TO ZOOM IN

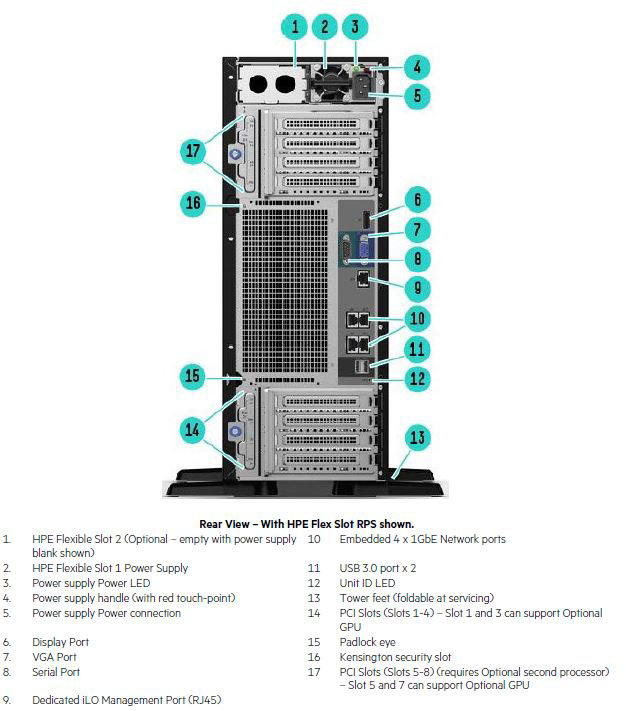

Rear View – With HPE Flex Slot RPS shown.

What’s New

  • Supports additional Intel® Second Generation Xeon® Scalable processors with exceptional performance gains.
  • Supports the new 20 TB LFF SATA / SAS HDDs boosting internal storage capacity up to 240 TB in LFF configuration.
  • Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and One Button Secure Erase
  • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
  • Supports the new HPE NVidia Quadro P1000 and P2200 GPU modules for low end graphics. HPE NVidia Tesla T4 (16GB) universal GPU module which supports multiple types of workloads including ML (Machine Learning) / DL (Deep Learning) Training and Inference, HPC, Rendering and Graphics.

Platform Information

Form Factor

  • 4U tower with rack conversion capability

Notes: When deployed as a Rack model, this system will take up 5U-height space in a standard data center rack facility.


Chassis Types

  • 8 SFF chassis with optional SFF or LFF HDD cage kit (s), NVMe Express Bay, half-height (5.25”) media bay up to 2, and 1 slim-line DVD bay kit options
  • 4 LFF chassis with optional LFF or SFF HDD cage kit (s), half-height (5.25”) media bay up to 2, and 1 slim-line DVD bay kit options
  • 4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), half-height (5.25”) media bay up to 2, and 1 slim-line DVD bay kit options

Notes:

  • The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF. Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21).
  • The 8 SFF NVMe Express Bay option (874569-B21) can only be leveraged in the SFF chassis and installed in Box 2. Maximum of 8 SFF NVMe PCIe drives are supported when two ML350 Gen10 NVMe Riser boards (shipped in 874569-B21) are populated. When only one Riser board is populated, then 4 NVMe drives are supported. Note a field upgrade to NVMe Express Bay will require redundant fan kit (874572-B21).
  • The 4 LFF HP or NHP chassis can be upgraded with LFF HDD cage kit (s) or LFF NHP HDD cage kit (s) to 8 or 12 LFF. Note a field upgrade to 12 LFF either in LFF hot-plug or LFF non-hot-plug chassis will require redundant fan kit (874572-B21).
  • The 8 SFF or 4 LFF or 4 LFF NHP chassis can be upgraded to add half-height media bay up to 2, and/or 1 slim-line DVD in Box1. Note a field upgrade to fully populate front storage bays (Box1, 2 and 3 fully loaded) will require redundant fan kit (874572-B21).
  • Now the system can support mixed SFF and LFF HDD cages in one system, for example, 4LFF + 8SFF + 4LFF based on a 4 LFF chassis. If the max. number of drives are installed in all three drive boxes, the redundant fan cage kit (874572-B21) is required.

System Fans

  • Standard – fan types included

Notes:

  • 1P models typically ship with 2 standard fans located at system rear. These two fans are default inside every ML350 Gen10 unit and do NOT support hot-plug operations.
  • 2P models typically ship with 6 standard fans which provides N+1 redundant fan feature in most of the situations. For support detail or restriction, refer to ML350 Gen10 User Guide.
  • Optional redundant fan kit (874572-B21) provides advanced cooling and redundancy functionality in heavier configurations. Configurations that require this kit are provided in later sections. Refer to the User Guide for special configuration scenarios where this kit is required but does not provide redundancy feature.

Intel Xeon® Scalable Processors – Naming Decoder

Processor Suffix

Description

Offering

No suffix

-

Up to 1.0 TB addressable memory per socket

L

Large memory tier

Up to 4.5 TB addressable memory per socket

M

Medium memory tier

Up to 2.0 TB addressable memory per socket (up to 1.5TB for 1st generation Intel Xeon Scalable Processors denoted with the ‘‘M’’ suffix)

N

NFV Optimized

Targeted at Network Function Virtualization (NFV) workloads. Intel®

SST-BF improves performance by directing base frequency to high priority/bottleneck cores. Other workloads may see throttling, more details to be provided in upcoming documentation.

R

Refresh

Refreshed SKUs based on existing Intel® 2nd Generation Xeon® Scalable Processor models

U

1 Socket Optimized

Focused on single socket (1P) configurations, delivering performance at competitive price points. Does not support two socket (2P) arrangements.

V

VM Optimized

Fosters enhanced VM density, allowing to support more/larger virtual machines per host.

Y

Speed Select

Intel® SST-PP increases base frequency when fewer cores are enabled.

Allows greater flexibility, deployment options and platform longevity.

Intel Second Generation Xeon® Scalable Processors – Refresh

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Gold Processors

Gold 6258R Processor

2.7 GHz

28

38.5 MB

205W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6256 Processor*

3.6 GHz

12

33.00 MB

205W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6250L Processor*

3.9 GHz

8

35.75 MB

185W

2 @ 10.4 GT/s

2933 MT/s

4.5 TB

Gold 6250 Processor*

3.9 GHz

8

35.75 MB

185W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6248R Processor

3.0 GHz

24

35.75 MB

205W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6246R Processor

3.4 GHz

16

35.75 MB

205W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6242R Processor

3.1 GHz

20

35.75 MB

205W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6240R Processor

2.4 GHz

24

35.75 MB

165W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6238R Processor

2.2 GHz

28

38.5 MB

165W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6230R Processor

2.1 GHz

26

35.75 MB

150W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6226R Processor

2.9 GHz

16

22.00 MB

150W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6208U Processor

2.9 GHz

16

22.00 MB

150W

0

2933 MT/s

1 TB

Gold 5220R Processor

2.2 GHz

24

35.75 MB

150W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Gold 5218R Processor

2.1 GHz

20

27.50 MB

125W

2 @ 10.4 GT/s

2666 MT/s

1 TB

Silver Processors

Silver 4215R Processor

3.2 GHz

8

11.00 MB

130W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4214R Processor

2.4 GHz

12

16.50 MB

100W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4210R Processor

2.4 GHz

10

13.75 MB

100W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Bronze Processors

Bronze 3206R Processor

1.9 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

1 TB

Notes:

  • Refreshing Intel Second Generation Xeon® Scalable Processors Gold 6 & 5, Silver and Bronze segments.
  • Gold – 6200 Series – 2 Socket supports 3 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2933 MT/s at 1DPC and 2666 MT/s at 2DPC, providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor SKUs and if DCPMM is selected). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, Node Controller Support, advanced RAS, VNNI/DL Boost.
  • For 6256 & 6250/6250L, there are specific ambient temp. requirements per system thermal configuration setting. Refer to the Thermal Configuration table below for detail.

Processor

Thermal Configuration & Ambient Temp. Requirement

Optimal Cooling

Increased Cooling

Maximum Cooling

Enhanced CPU Cooling

Gold 6256

Not supported

25C

30C

25C

Gold 6250

Not supported

24C

29C

24C

Gold 6250L

Not supported

24C

29C

24C

Remark: The thermal configuration setting can be adjusted via the RBSU tool.

  • Gold – 5200 Series – 2 Socket supports 2 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2666 MT/s providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor SKUs and if DCPMM is selected). Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (SKU 5222 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported, VNNI/DL Boost.
  • Silver – 4200 Series – 2 Socket supports 2 UPI links @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MT/s providing up to 1 TB memory capacity per socket. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported, VNNI/DL Boost.
  • Bronze – 3200 Series – 2 Socket supports 2 UPI links @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MT/s providing up to 1 TB memory capacity per socket. Intel AVX-512 (1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported, VNNI/DL Boost.
  • The “memory per socket” info shown in the table above is the processor specification. Max. memory capacity supported in ML350 at Gen10 Intel Second Generation Intel Xeon® Scalable Processor launch is 3 TB – 2 sockets populated with select processors and 128GB DDR4 DIMMs, which counts with DDR4 memory only. Support of larger than 3 TB will be at post launch.

Intel Second Generation Xeon® Scalable Processors

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Platinum Processors

Platinum 8280L Processor

2.7 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2933 MT/s

4.5 TB

Platinum 8280M Processor

2.7 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2933 MT/s

2 TB

Platinum 8280 Processor

2.7 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8276L Processor

2.2 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2933 MT/s

4.5 TB

Platinum 8276M Processor

2.2 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2933 MT/s

2 TB

Platinum 8276 Processor

2.2 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8270 Processor

2.6 GHz

26

35.75 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8268 Processor

2.9 GHz

24

35.75 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8260L Processor

2.4 GHz

24

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

4.5 TB

Platinum 8260M Processor

2.4 GHz

24

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

2 TB

Platinum 8260Y Processor

2.4 GHz

24/20/16

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8260 Processor

2.4 GHz

24

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8256 Processor

3.8 GHz

4

16.50 MB

105W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8253 Processor

2.2 GHz

16

22.00 MB

125W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Notes:

  • Platinum – 8200 Series –2 Socket supports 3 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2933 MT/s at 1DPC and 2666 MT/s at 2DPC, providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor SKUs and if DCPMM is selected.). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x512-bit FMA), 48 lanes PCIe 3.0, Node Controller Support, advanced RAS, VNNI/DL Boost.
  • Gold – 6200 Series – 2 Socket supports 3 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2933 MT/s at 1DPC and 2666 MT/s at 2DPC, providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor SKUs and if DCPMM is selected). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, Node Controller Support, advanced RAS, VNNI/DL Boost.
  • Gold – 5200 Series – 2 Socket supports 2 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2666 MT/s (SKU 5222=supports 2933 @1DPC) providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor SKUs and if DCPMM is selected). Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x512-bit FMA) (SKU 5222 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported, VNNI/DL Boost.
  • Silver – 4200 Series – 2 Socket supports 2 UPI links @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MT/s providing up to 1 TB memory capacity per socket. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported, VNNI/DL Boost.
  • Bronze – 3200 Series – 2 Socket supports 2 UPI links @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MT/s providing up to 1 TB memory capacity per socket. Intel AVX-512 (1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported, VNNI/DL Boost.
  • The “memory per socket” info shown in the table above is the processor specification. Max. memory capacity supported in ML350 at Gen10 Intel Second Generation Intel Xeon® Scalable Processor launch is 3 TB – 2 sockets populated with select processors and 128GB DDR4 DIMMs, which counts with DDR4 memory only. Support of larger than 3 TB will be at post launch.

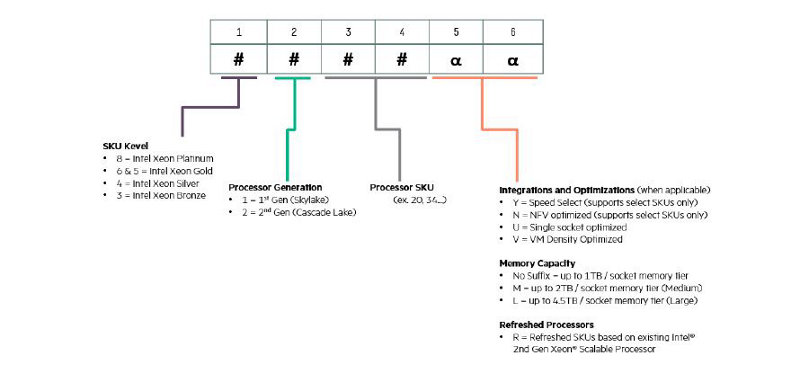

Figure 5
TAP IMAGE TO ZOOM IN

Figure 5

Chipset

Intel C622 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/


On System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs .


Memory

One of the following depending on model.

Type:

HPE DDR4 Smart Memory, Registered (RDIMM)

Load Reduced (LRDIMM)

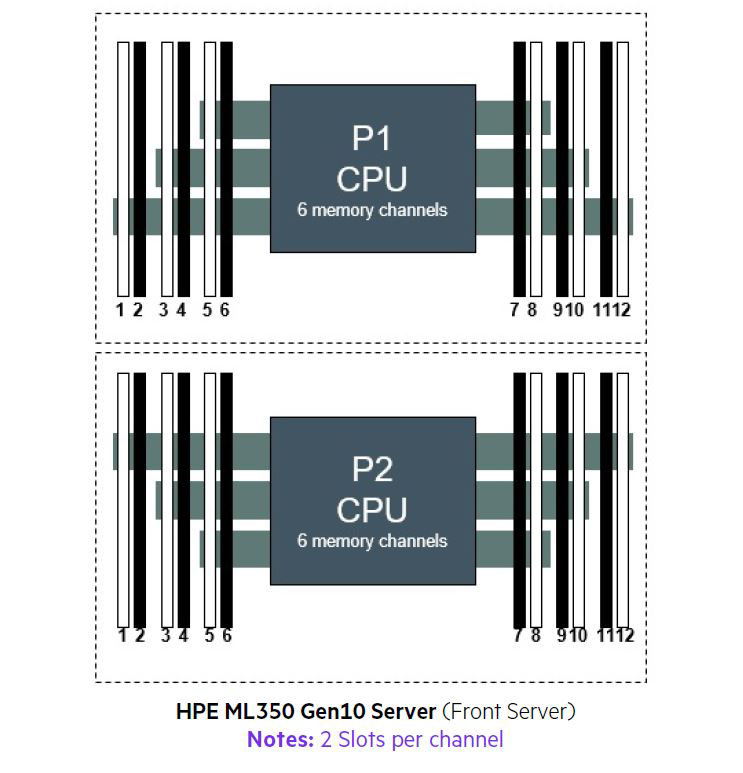

DIMM Slots Available

24

12 DIMM slots per processor, 6 channels

per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM)

3 TB

24 x 128 GB LRDIMM @ 2933 MT/s

Maximum capacity (RDIMM)

1.5 TB

24 x 64 GB RDIMM @ 2933 MT/s

Notes:

  • The maximum memory by socket is limited by the processor selection.
  • Mixing of RDIMM and LRDIMM memory is not supported.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: https://www.hpe.com/psnow/doc/a50004620enw .


Expansion Slots

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1

PCIe 3.0

X16

X16

Full-height, full-length slot

Proc 1

2

PCIe 3.0

X4

X8

Full-height, full-length slot

Proc 1

3

PCIe 3.0

X16

X16

Full-height, full-length slot

Proc 1

4

PCIe 3.0

X4

X8

Full-height, full-length slot

Proc 1

Notes:

  • Bus Width Indicates the number of physical electrical lanes running to the connector.
  • Slot 4 is routed from the PCH.

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

5

PCIe 3.0

X16

X16

Full-height, full-length slot

Proc 2

6

PCIe 3.0

X8

X8

Full-height, full-length slot

Proc 2

7

PCIe 3.0

X16

X16

Full-height, full-length slot

Proc 2

8

PCIe 3.0

X8

X8

Full-height, full-length slot

Proc 2

Notes:

  • Bus Width Indicates the number of physical electrical lanes running to the connector.
  • Max. 8 PCIe slots are available on the ML350 Gen10.

Storage Controllers

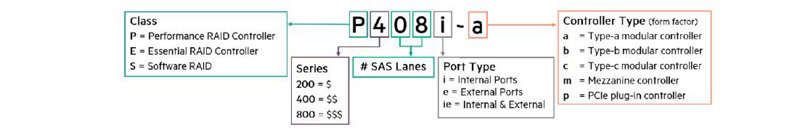

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet . One of the following depending on model.


Software RAID

  • HPE Smart Array S100i SR Gen10 SW RAID

Notes:

  • HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.
  • HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.
  • HPE Smart Array S100i SR Gen10 Software RAID, supporting 6Gb/s SATA, is an entry-level solution for supporting RAID 0, 1, 5, and 10 on SATA drives connected to the embedded SATA ports on the system board.
  • Customers using Linux and VMware can use the embedded SATA ports in AHCI mode. In AHCI mode S100i Software RAID is not enabled.
  • The S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controller

  • HPE Smart Array E208i-a SR Gen10 Controller
  • HPE Smart Array E208i-p SR Gen10 Controller
  • HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

  • HPE Smart Array P408i-a SR Gen10 Controller
  • HPE Smart Array P408i-p SR Gen10 Controller
  • HPE Smart Array P408e-p SR Gen10 Controller
  • HPE Smart Array P816i-a SR Gen10 Controller
  • HPE Smart Array P824i-p MR Gen10 Controller

Notes:

  • Performance RAID Controllers require the HPE Smart Storage Battery (P01367-B21) or HPE Smart Storage Hybrid Capacitor (P02381-B21) which is sold separately.
  • Separate cable kit will be required depending on configuration requirement. Refer to the later section for more information

Internal Storage Devices

One of the following depending on model


Optical Drive

  • Optional slim-line DVD-ROM/DVD-RW up to 1
  • Optional half-height (5.25”) RDX or tape/LTO devices up to 2

Hard Drive Cages

  • 8 SFF Hot-Plug SAS/SATA HDD cages; upgradeable to 24 SFF drives

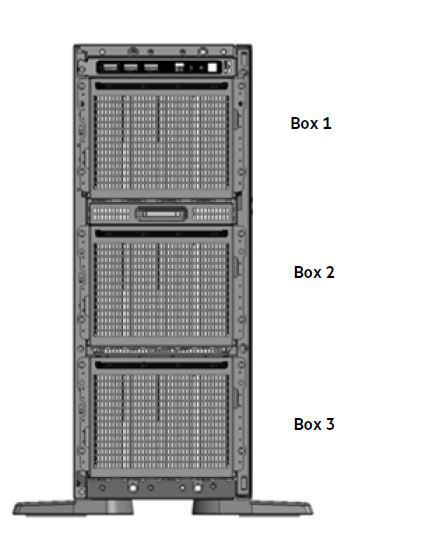

  • 4 LFF Hot-Plug SAS/SATA HDD cages; upgradeable to 12 LFF drives

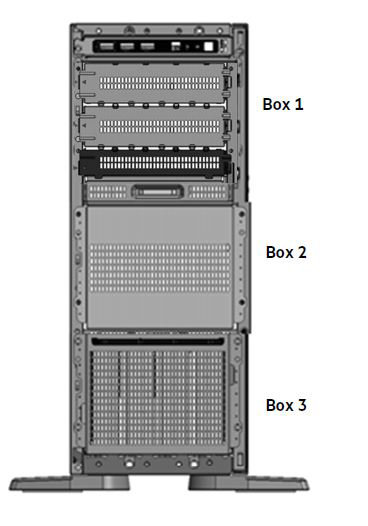

  • 4 LFF Non-Hot-Plug SATA HDD cages; upgradeable to 12 LFF drives
  • 8 SFF PCIe NVMe Express Bay; upgradeable to 8 SFF NVMe SSDs

Notes: All Pre-Configured Models come with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD Blank Kit or P/N 807878-B21: HPE LFF HDD Spade Blank Gen9 Kit. HDD blanks are not needed in the NHP LFF system.


Hard Drives

  • None ship standard

Maximum Internal Storage


Internal Storage

Capacity

Configuration

Hot Plug SFF SAS

57.6 TB

24 x 2.4 TB

Hot Plug SFF SATA

48.0 TB

24 x 2 TB

Hot Plug LFF SAS

240.0 TB

12 x 20 TB

Hot Plug LFF SATA

240.0 TB

12 x 20 TB

Hot Plug SFF SAS SSD

368.64 TB

24 x 15.36 TB

Hot Plug SFF SATA SSD

92.16 TB

24 x 3.84 TB

Hot Plug LFF SAS SSD

92.16 TB

12 x 7.68 TB

Hot Plug LFF SATA SSD

92.16 TB

12 x 7.68 TB

Non Hot Plug LFF SATA

48.0 TB

12 x 4 TB

Hot Plug SFF NVMe PCIe SSD

61.44 TB NVMe

8 x 7.68 TB NVMe

Notes: NHP LFF SKU supports SATA hard disk drives only.

Interfaces

Serial

1 standard (at system rear)

VGA Port

1 standard (at system rear)

Display Port

1 standard (at system rear)

Notes: The system can support dual monitors on duplication mode thru these standard ports of VGA and Display Port without adding additional graphic cards.

Embedded Network Ports

4 x 1 Gb ports shipping standard, with optional stand up card

HPE iLO Remote Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard

Micro SD Slot

1 Micro SD (internal)

Notes: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0/2.0

6 total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 & 1 x USB 2.0)

Power Supply

  • HPE 500W Standard Non-Hot-Plug Power Supply Kit
  • Notes:
  • − Non Redundant Power Supply
  • − Available in 92% efficiency and supported in pre-configured models only. This power supply is available in one of the pre-built system SKUs. Customers can still choose to upgrade to HPE Flex Slot RPS later by installing the ML350 Gen10 RPS enablement kit (874571-B21).
  • − Starting from March 1, 2020, this power supply and the pre-configured server model that carries it inside is not orderable in EMEA region due to the new ErP Lot 9 requirement. Please visit:
  • https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information.
  • HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • Notes: Available in 94% efficiency.
  • HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • Notes: Available in 94% efficiency.
  • HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
  • Notes: Available in 96% efficiency and also available in -48VDC and 227VAC/380VDC power inputs.
  • HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • Notes: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple output power options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.


All pre-configured servers ship with a country-specific AC power cord in Tower models; while in the Rack model, a standard 6-foot IEC C-13/C-14 jumper cord (416151-B21) is included. If a different power cord is required, please check the ProLiant Power Cables web page.


To review the power requirements for your selected system, please use the HPE Power Advisor Tool .


For information on power specifications and technical content visit HPE Server power supplies .


Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating

closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.


Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & CertificationMatrices


The HPE Software RAID S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume.


For more information visit: https


For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server. http://www.hpe.com/info/ossupport


Industry Standard Compliance

  • ACPI 6.1 Compliant
  • PCIe 3.0 Compliant
  • WOL Support
  • Microsoft® Logo certifications
  • PXE Support
  • VGA Display Port
  • USB 3.0 Compliant
  • USB 2.0 Compliant
  • Energy Star
  • SMBIOS 3.1
  • UEFI 2.6
  • Redfish API
  • IPMI 2.0
  • Secure Digital 2.0
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP v3
  • TLS 1.2
  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
  • Active Directory v1.0
  • ASHRAE A3/A4
  • Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: https://support.hpe.com/hpesc/public/docDisplay?docId=a00026969en_us&page=index.html .
  • UEFI (Unified Extensible Firmware Interface Forum)
  • Notes: UEFI is the default setting for the ML350 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22).
  • European Union (EU) eco-design regulations for server and storage products, known as ErP Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.
  • Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.
  • HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Graphics

Integrated Video Standard

  • Video modes up to 1920 x 1200@60Hz (32 bpp)
  • 16MB Video Memory

HPE iLO 5 on system management memory

  • 32 MB Flash
  • 4 Gbit DDR 3 with ECC protection

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.


Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS.


For more information, please visit http://www.hpe.com/servers/uefi .


UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure Boot and Secure Start enable for enhanced security
  • Operating system specific functionality
  • Support for > 2.2 TB (using GPT) boot drives
  • USB 3.0 Stack
  • Embedded UEFI Shell
  • Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
  • PXE boot support for IPv6 networks
  • Workload Profiles for simple performance optimization

UEFI Boot Mode only:

  • TPM 2.0 Support
  • NVMe Boot Support
  • Platform Trust Technology (PTT) can be enabled.
  • iSCSI Software Initiator Support.
  • HTTP/HTTPs Boot support as a PXE alternative.
  • Boot support for option cards that only support a UEFI option ROM

Notes:

  • For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
  • UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo .


UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi


Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning


iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi


Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs


Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http


Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).


Learn more at https://buy.hpe.com/b2c/us/en/software/infrastructure-management-software/system-servermanagement-software/hpe-system-server-software-management-software/smart-update-manager-%28sum%29/p/5182020 .


iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.


Learn more at http://www.hpe.com/servers/iLOamplifierpack


HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp .


RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool


Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell


HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview .


HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim .


Security

  • Server Configuration Lock – protect systems in transit (new iLO security feature thru iLO Advanced)
  • Security Dashboard (new), standard
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates – components digitally signed and verified
  • Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • One Button Secure Erase – secure erase of NAND/User data back to factory defaults
  • TPM (Trusted Platform Module) 1.2 option
  • TPM (Trusted Platform Module) 2.0 option
  • Front bezel key-lock feature – standard, available in both Tower and Rack models
  • Padlock slot, standard
  • Kensington Lock slot, standard

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.


Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

  • Optional Features

    Server Management

    HPE iLO Advanced

    HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.


    HPE GreenLake for Compute Ops Management

    HPE is intelligently transforming compute management with an intuitive cloud operating experience through HPE GreenLake cloud platform to streamline and secure operations from edge-to-cloud. Automated key lifecycle tasks, for onboarding, updating, managing, and monitoring HPE servers, brings agility and greater efficiencies to wherever compute devices reside via a unified single browser-based interface. Manage single locations or multiple, distributed sites. Keep tens to thousands of servers secure with batch policy controls and automated updates.


    Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and fixes. The management application resides in the HPE GreenLake cloud platform (access via https://console.greenlake.hpe.com ) and leverages the HPE GreenLake architecture, security, and unified operations.


    For a complete list of software as-a-service subscription SKUs and more information, visit the HPE GreenLake for Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw


    For information on supported HPE servers, the complete list can be found here:

    https://www.hpe.com/info/com-supported-servers


    HPE OneView Advanced-

    HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview .


    HPE InfoSight for Servers

    HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

    Learn more at https://www.hpe.com/servers/infosight


    HPE Insight Cluster Management Utility (CMU)

    HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu .


    Accelerator and GPGPU Information

    Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.


    Rack and Power Infrastructure

    The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.


    HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.


    HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments. HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so your critical dense data center is covered in power outages.


    HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.


    Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure .


    One Config Simple (SCE)

    SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

    https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

  • Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.hpe.com/services


    Consulting Services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.hpe.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.hpe.com/services/operational


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • A complete coverage approach -- edge to cloud
    • An assigned HPE team
    • Modular and fully personalized engagement
    • Enhanced Incident Management experience with priority access
    • Digitally enabled and AI driven customer experience

    https://www.hpe.com/services/completecare


    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.hpe.com/services/techcare


    HPE Lifecycle Services

    HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

    • Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
    • HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
    • HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
    • Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
    • HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

    Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle


    For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu


    Other Related Services from HPE Services:

    HPE Education Services

    Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

    https://www.hpe.com/services/training


    Defective Media Retention

    An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.


    Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


    Parts and Materials

    HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


    Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


    How to Purchase Services

    Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

    • Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
    • Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/


    AI Powered and Digitally Enabled Support Experience

    Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience


    Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

    https://support.hpe.com/hpesc/public/home/signin


    Consume IT On Your Terms

    HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

    • Get faster time to market
    • Save on TCO, align costs to business
    • Scale quickly, meet unpredictable demand
    • Simplify IT operations across your data centers and clouds

    To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html


    For more information

    http://www.hpe.com/services

  • Pre-configured Models

    For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

    • Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
    • Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
    • If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs

    Notes: Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.


    HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.


The Second Generation Intel Xeon® Scalable Processor-based WW BTO SKUs – Refresh

Entry LFF Model

Base LFF Model

SMB Offer – BASE

Performance 1

Performance 2

[SKU Number]

P21786-001 (AMS)

P21786-291 (Japan)

P21786-371 (APAC)

P21786-AA1 (China)

P11050-001 (AMS)

P11050-291 (Japan)

P11050-371 (APAC)

P11050-AA1 (China)

Model Name

HPE ML350 Gen10 3206R 1P 16G 4LFF S100i 500W FS RPS Entry Tower Server

HPE ML350 Gen10 4208 1P 16G 4LFF E208i-a 500W FS RPS Base Tower Server

Processor

3206R (8-Core, 1.9 GHz, 85W)

4208 (8-Core, 2.1 GHz, 85W)

Number of Processors

One processor

Notes: Add HPE ML350 Gen10 Xeon-B 3206R Kit (P19789-B21) for 2nd processor upgrade.

Notes: Add HPE ML350 Gen10 Xeon-S 4208 Kit (P10938-B21) for 2nd processor upgrade.

Memory

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2133 MT/s per processor support

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s per processor support

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

Embedded 14-Port S100i

Notes:

  • SATA only.
  • The HPE ML350 Gen10 LFF Embedded SATA Cable Kit (877578-B21) is required when upgrading to add the 2 nd and 3 rd HDD cage kit, using S100i controller.
  • Field upgradeable to SAS by selecting HPE modular Smart Array controller.

E208i-a

Notes: 8-Port Modular Smart Array. Supports SAS/SATA with essential RAID.

Hard Drive

None ship as standard

Internal Storage

4 LFF HP Chassis with optional 4 LFF HDD Cage Kit (874566-B21) to be selected. Upgradeable to 12 LFF max.

Notes:

  • The HPE ML350 Gen10 LFF Embedded SATA Cable Kit (877578-B21) is required when upgrading to add the 2 nd and 3 rd HDD cage kits, using S100i controller.
  • Now the system can support mixed LFF and SFF HDD cages in one system. The optional SFF HDD Cage Kit part number is 874568-B21. If the max. number of drives are installed in all three drive boxes, the redundant fan cage kit (874572-B21) is required.

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

Notes: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 500W HPE FlexSlot Power Supply

Notes: Add a second 500W FlexSlot power supply to get 1+1 power redundancy feature.

Fans

2 standard fans;

Optional redundant fan cage kit (874572-B21, add’l 4 fans)

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, and HPE OneView Advanced (require licenses)

Energy Star

2.1 certified

ErP Lot 9*

ErP Lot 9 Compliant

Form Factor

4U Tower

Notes: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response

The Second Generation Intel Xeon® Scalable Processor-based WW BTO SKUs

Base SFF Model

Base SFF Model

Base SFF Model

SMB Offer – BASE

Performance 2

Performance 3

Performance 2

[SKU Number]

P22094-001 (AMS)

P22094-291 (Japan)

P22094-371 (APAC)

P22094-AA1 (China)

P21788-001 (AMS)

P21788-291 (Japan)

P21788-371 (APAC)

P21788-AA1 (China)

P54671-001 (AMS)

P54671-291 (Japan)

P54671-371 (APAC)

P54671-AA1 (China)

Model Name

HPE ML350 Gen10 4208 1P 16G 8SFF P408i-a 800W FS RPS Base Tower Server

HPE ML350 Gen10 4210R 1P 16G 8SFF P408i-a 800W FS RPS Base Tower Server

HPE ML350 Gen10 4210R 1P 16G 8SFF S100i 800W FS RPS Base Tower Server

Processor

4208 (8-Core, 2.1 GHz, 85W)

4210R (10-Core, 2.4 GHz, 100W)

4210R (10-Core, 2.4 GHz, 100W)

Number of Processors

One processor

Notes: Add HPE ML350 Gen10 Xeon-S 4208 Kit (P10938-B21) for 2 nd processor upgrade.

Notes: Add HPE ML350 Gen10 Xeon-S 4210R Kit (P19791-B21) for 2 nd processor upgrade.

Notes: Add HPE ML350 Gen10 Xeon-S 4210R Kit (P19791-B21) for 2 nd processor upgrade.

Memory

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s per processor support

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s

per processor support

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s per processor support

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

P408i-a

Notes:

  • 8-Port Modular Smart Array. Supports SAS/SATA with performance RAID
  • Smart Storage battery included.

Embedded 14-Port S100i

Notes:

  • SATA only.
  • The HPE ML350 Gen10 LFF Embedded SATA Cable Kit (877578-B21) is required when upgrading to add the 2 nd and 3 rd HDD cage kit, using S100i controller.
  • Field upgradeable to SAS by selecting HPE modular Smart Array controller.

Hard Drive

None ship as standard

Internal Storage

8 SFF chassis with optional SFF HDD Cage Kit (874568-B21), upgradeable to 24 SFF.

Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Notes: Now the system can support mixed SFF and LFF HDD cages in one system. The 4 LFF HDD Cage Kit part number is 874566-B21.

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

Notes: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 800W HPE FlexSlot Power Supply

Notes: Add a second 800W FlexSlot power supply to get 1+1 power redundancy feature.

Fans

6 standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)

Energy Star

2.1 certified

ErP Lot 9*

ErP Lot 9 compliant

Form Factor

4U Tower

Notes: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

The Second Generation Intel Xeon® Scalable Processor-based WW BTO SKUs

Performance SFF Tower Model

High Performance Tower Model

SMB Offer – BASE

Performance 4

Performance 5

[SKU Number]

P21789-001 (AMS)

P21789-291 (Japan)

P21789-371 (APAC)

P25008-001 (AMS)

P25008-291 (Japan)

P25008-371 (APAC)

Model Name

HPE ML350 Gen10 4214R 1P 32G 8SFF P408i-a 1x800W FS RPS Performance SFF Tower Server

HPE ML350 Gen10 5218R 1P 32G 8SFF P408i-a 2x800W FS RPS High Performance SFF Tower Server

Processor

4214R (12-Core, 2.4 GHz, 100W)

5218R (20-Core, 2.1 GHz, 125W)

Number of Processors

One processor

Notes: Add HPE ML350 Gen10 Xeon-S 4214R Kit (P19792-B21) for 2nd processor

upgrade.

Notes: Add HPE ML350 Gen10 Xeon-G 5218R Kit (P24169-B21) for 2nd processor

upgrade.

Memory

32 GB RDIMM DR 2933 MT/s (1x 32 GB)

Notes: running at 2400 MT/s per processor support

32 GB RDIMM DR 2933 MT/s (1x 32 GB)

Notes: running at 2666 MT/s per processor

support

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

P408i-a

Notes:

  • 8-Port Modular Smart Array. Supports SAS/SATA with performance RAID
  • Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

8 SFF chassis with optional SFF HDD Cage Kit (874568-B21), upgradeable to 24 SFF.

Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Notes: Now the system can support mixed SFF and LFF HDD cages in one system. The 4 LFF HDD Cage Kit part number is 874566-B21.

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

Notes: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 800W HPE FlexSlot Power Supply

Notes: Add a second 800W FlexSlot power supply to get 1+1 power redundancy feature.

2x 800W HPE FlexSlot power supply (1+1)

Fans

6 standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, and HPE OneView Advanced (require licenses)

Energy Star

2.1 certified

ErP Lot 9*

ErP Lot 9 Compliant

Form Factor

4U Tower

Notes: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response

The Second Generation Intel Xeon® Scalable Processor-based EMEA BTO SKUs

Base LFF Model

Base SFF Model

Base SFF Model

SMB Offer – BASE

Performance 2

Performance 2

Performance 3

[SKU Number]

P59546-421 (EMEA)

P59547-421 (EMEA)

P59548-421 (EMEA)

Model Name

HPE ML350 Gen10 4208 1P 16G 4LFF E208i-a 500W FS RPS Base Tower Server

HPE ML350 Gen10 4208 1P 16G 8SFF P408i-a 800W FS RPS Base Tower Server

HPE ML350 Gen10 4210R 1P 16G 8SFF P408i-a 800W FS RPS Base Tower Server

Processor

4208 (8-Core, 2.1 GHz, 85W)

4208 (8-Core, 2.1 GHz, 85W)

4210R (10-Core, 2.4 GHz, 100W)

Number of Processors

One processor

Notes: Add HPE ML350

Gen10 Xeon-S 4208 Kit (P10938-B21) for 2 nd processor upgrade.

Notes: Add HPE ML350 Gen10

Xeon-S 4208 Kit (P10938-B21)

for 2 nd processor upgrade.

Notes: Add HPE ML350

Gen10 Xeon-S 4210R Kit (P19791-B21) for 2 nd processor upgrade.

Memory

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s per processor support

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s

per processor support

16 GB RDIMM SR 2933 MT/s (1x 16 GB)

Notes: running at 2400 MT/s per processor support

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

E208i-a

Notes: 8-Port Modular

Smart Array. Supports SAS/SATA with essential RAID.

P408i-a

Notes: 8-Port Modular Smart Array. Supports SAS/SATA with performance RAID Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

4 LFF HP Chassis with optional 4 LFF HDD Cage Kit (874566-B21) to be selected. Upgradeable to 12 LFF max.

Notes:

  • The HPE ML350 Gen10 LFF Embedded SATA Cable Kit (877578-B21) is required when upgrading to add the 2 nd and 3 rd HDD cage kits, using S100i controller.
  • Now the system can support mixed LFF and SFF HDD cages in one system. The optional SFF HDD Cage Kit part number is 874568-B21. If the max. number of drives are installed in all three drive boxes, the redundant fan cage kit (874572-B21) is required.

8 SFF chassis with optional SFF HDD Cage Kit (874568-B21), upgradeable to 24 SFF. Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Notes: Now the system can support mixed SFF and LFF HDD cages in one system. The 4 LFF HDD Cage Kit part number is 874566-B21.

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

Notes: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 800W HPE FlexSlot Titanium Power Supply

Notes: Add a second 800W FlexSlot power supply (865438-B21) to get 1+1 power redundancy feature.

Fans

6 standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)

Energy Star

2.1 certified

ErP Lot 9*

ErP Lot 9 compliant

Form Factor

4U Tower

Notes: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

The Second Generation Intel Xeon® Scalable Processor-based EMEA BTO SKUs

Performance SFF Tower Model

High Performance Tower Model

SMB Offer – BASE

Performance 4

Performance 5

[SKU Number]

P59549-421 (EMEA)

P59550-421 (EMEA)

Model Name

HPE ML350 Gen10 4214R 1P 32G 8SFF P408i-a 1x800W FS RPS Performance SFF

Tower Server

HPE ML350 Gen10 5218R 1P 32G 8SFF

P408i-a 2x800W FS RPS High Performance SFF Tower Server

Processor

4214R (12-Core, 2.4 GHz, 100W)

5218R (20-Core, 2.1 GHz, 125W)

Number of Processors

One processor

Notes: Add HPE ML350 Gen10 Xeon-S 4214R Kit (P19792-B21) for 2 nd processor upgrade.

Notes: Add HPE ML350 Gen10 Xeon-G5218R Kit (P24169-B21) for 2 nd processor upgrade.

Memory

32 GB RDIMM DR 2933 MT/s (1x 32 GB)

Notes: running at 2400 MT/s per processor support

32 GB RDIMM DR 2933 MT/s (1x 32 GB)

Notes: running at 2666 MT/s per processor

support

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

P408i-a

Notes:

  • 8-Port Modular Smart Array. Supports SAS/SATA with performance RAID
  • Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

8 SFF chassis with optional SFF HDD Cage Kit (874568-B21), upgradeable to 24 SFF. Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Notes: Now the system can support mixed SFF and LFF HDD cages in one system. The 4 LFF HDD Cage Kit part number is 874566-B21.

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

Notes: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 800W HPE FlexSlot Titanium Power Supply

Notes: Add a second 800W FlexSlot power

supply (865438-B21) to get 1+1 power redundancy feature.

2x 800W HPE FlexSlot Titanium power supply (1+1)

Fans

6 standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, and HPE OneView Advanced (require licenses)

Energy Star

2.1 certified

ErP Lot 9*

ErP Lot 9 Compliant

Form Factor

4U Tower

Notes: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response

Notes:

  • Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.
  • Important information for EU/EMEA: P11048-421 (EU/UK SKU) went obsolete on February 29, 2020 to cope with the regional regulatory changes per the new ErP Lot 9 requirements in EU (European Union) countries. Rest of the P11048-xx1 will continue to ship in their pre-defined regions or countries outside of EMEA. Refer to the country code key summary above.
  • For HPE channel partners / distributors, OEM partners, or any customers that have the need to re ship these server units into EU after March 1, 2020, please review relevant regulatory requirements to ensure your solutions are Lot 9 compliant and meet all local / regional requirements.
  • *Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.
  • HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

  • Configuration Information

    This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

    • Factory Integrated Models must start with a CTO Server.
    • FIO indicates that this option is only available as a factory installable option.
    • All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
    • Some options may not be integrated at the factory. Contact your local sales representative for additional information.
    • Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.
    • HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

    Step 1: Base Configuration (choose one of the following configurable models)


CTO Server

HPE ML350 Gen10 4 LFF CTO Server

HPE ML350 Gen10 8 SFF CTO Server

HPE ML350 Gen10 8 SFF Rack CTO Server

SKU Number

877625-B21

877626-B21

877627-B21

Processor Sockets

Two as standard

Two as standard

Two as standard

Processor

Not included as standard

Not included as standard

Not included as standard

DIMM Slots

24-DIMM slots

24-DIMM slots

24-DIMM slots

Storage Controller

Embedded SW RAID S100i with 14 SATA ports, choice of HPE modular Smart Array (AROC) and/or PCIe Standup controller card (s)

PCIe

8 PCIe Gen3 slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard

Notes: PCIe slots 5 – 8 require the second processor to enable.

Drive Cage - included

4 LFF

8 SFF

8 SFF

Network Controller

Embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter with optional 1/10/25Gb Standup card

Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Fans

2-Standard

2-Standard

6-Standard

Power Supply Cage included

HPE Flex Slot RPS cage and PDB included

HPE Flex Slot RPS cage and

PDB included

HPE Flex Slot RPS cage and

PDB included

Management

HPE iLO with Intelligent Provisioning (standard), iLO Advances and OneView (optional)

USB

6x 3.0/2.0 standard plus front iLO Service Port

6x 3.0/2.0 standard plus front iLO Service Port

6x 3.0/2.0 standard plus front iLO Service Port

Tower-to-Rack conversion kit

Optional

Notes: Please select 874578-B21 (Tower-to-Rack Conversion kit) under the Ad-Hoc category.

Optional

Notes: Please select 874578-B21 (Tower-to-Rack Conversion kit) under the Ad-Hoc category.

Easy Install rack-rail tray (1U) with CMA included as mandatory (must-select)

accessories

Notes: Refer to HPE Power Advisor Tool to review the power requirement for your selected configuration and determine what power supply module(s) to select.

Additional drive cages

Optional 4xLFF HDD Cage kit, up to 2 (total of 3)

Notes: For mixed SFF and LFF HDD configuration, please select 4 LFF CTO Server as the base configuration.

Optional 8xSFF HDD Cage kit, up to 2 (total of 3)

Optional 8xSFF HDD Cage kit, up to 2 (total of 3)

Half-Height Media Bay

2 Optional

2 Optional

2 Optional

ODD

1 Optional

1 Optional

1 Optional

Redundant Fan Cage Kit

Optional

Optional

Included as standard – total 6

fans included

8 SFF NVMe Express Bay

Not available

Optional, up to 1

Optional, up to 1

Notes:

  • This applies to CTO configurations; field upgrades may differ depending on field configuration.
  • The HH Media Bay (2) and slim ODD Bay together takes up the space of one 4 LFF or 8 SFF drive cage, which means when media bay, ODD or both is selected, the max. drive cage installation will be 2.
  • To get advanced cooling in richer configurations and/or under certain ambient environmental conditions, the Redundant Fan Cage Kit (874572-B21) which consists of one fan cage with 4 additional fans, is REQUIRED. This kit is automatically selected when the Rack CTO SKU is selected. Refer to the Redundant Fan Kit section or ML350 Gen10 User Guide for detail.
  • When the 8SFF Rack CTO Server (877627-B21) is selected, the Redundant Fan Cage Kit (874572-B21) and ML350 Gen10 T/R Conversion Kit (874578-B21) will be automatically selected.
  • Now the system can support mixed SFF and LFF HDD cages in one system. Please select the 4 LFF CTO Server (877625-B21) as the base configuration to start with.

Step 2: Choose Required Options (only one of the following unless otherwise noted)


Please select one –L21 processor required below.


For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section.


For example: first processor, select 874752-L21 then for second processor, select 874752-B21.


Notes:

  • Field upgrades from 1st generation processors (x1xx) to 2nd generation processors (x2xx) not supported.
  • Upgrades to two processors must be performed by HPE Services or an approved Service Delivery Partner.
  • Mixing of 2 different processor models is not supported.
  • 1P models typically ship with 2 standard fans. 2P models will require selection of the Redundant Fan Cage kit (874572-B21) which contains one fan cage along with 4 additional fans – total number of fans required in the system will be 6.
  • Maximum memory capacity per processor is dependent on processor models. All processors support up to 768 GB max memory per processor except “M” model processors will support up to 1.5 TB max memory per processor.
  • Mixing of 2 different processor models are NOT allowed.
  • DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
  • Processors higher than 85W will ship with the Performance heat sink. All other processors will ship with the Standard heat sink.

Step 2a: Choose Processors

Processor Option Kits – Intel Second Generation Xeon® Scalable Processors – Refresh

Thermal Configuration & Ambient Temp. Requirement

Processor

Optimal Cooling

Increased Cooling

Maximum Cooling

Enhanced CPU Cooling

Gold 6256

Not supported

25C

30C

25C

Gold 6250

Not supported

24C

29C

24C

Gold 6250L

Not supported

24C

29C

24C

Notes: The thermal configuration setting can be adjusted via the RBSU tool.

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant ML350 Gen10

P19792-L21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant ML350 Gen10

P19791-L21

Processor Option Kits – Intel Second Generation Xeon® Scalable Processors


Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules


For Gen10 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table


For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: https://www.hpe.com/psnow/doc/a50004620enw


Notes:

  • Memory DIMM availability with a server platform is dependent upon completion of certification testing.
  • The maximum memory speed is a function of the memory type, memory configuration, and processor model.
  • The new HPE 2933 DIMMs are for the Second generation Intel Xeon® Scalable Processors; while the 2666 DIMMs for the 1 st generation.
  • The 8GB DIMM is identified as non-Lot 9 compliant component and is not orderable in EU/EMEA starting from March 1, 2020. For exceptional deal support, please contact HPE product management team. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html .

Memory – for the Second Generation Intel Xeon® Scalable Processors

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

Notes: The 8GB DIMM is identified as non-Lot 9 compliant component and is not orderable in EU/EMEA starting from March 1, 2020. For exceptional deal support, please contact HPE product management team.

For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html .

P00918-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-B21

Step 2c: Choose Power Supplies

Notes:

  • Mixing of 2 different power supplies is NOT allowed.
  • Selection of two HPE Flex Slot power supplies provides 1+1 power redundancy.
  • To review the power requirements for your selected configuration, please use the HPE Power Advisor Tool.

Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Hot Plug Universal Low Halogen High Voltage AC/DC Power Supply Kit

865428-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration.


Notes: Mechanical converter with supporting cable.

HPE Factory Configuration Setting

HPE Legacy FIO Mode Setting

Notes: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

758959-B22

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

HPE iLO Common Password FIO Setting

Notes: For customers who want to choose their own custom default password from the HPE Factory Express Integration Services to replace iLO (default) randomized password.

P08040-B21

HPE Converged Infrastructure Management Software

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

  • Core Options

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.


    Note the User Guide (UG) can help to explain the cable routing for each option.


    Processor Option Kits – Intel Second Generation Xeon® Scalable Processors – Refresh HPE Processors

    Notes:

    • High frequency/low core count model for latency sensitive workloads.
    • *: For 6256, 6250 & 6250L, there are specific ambient temp. requirements per system thermal configuration setting. Refer to the Thermal Configuration table below for detail.

Thermal Configuration & Ambient Temp. Requirement

Processor

Optimal Cooling

Increased Cooling

Maximum Cooling

Enhanced CPU Cooling

Gold 6256

Not supported

25C

30C

25C

Gold 6250

Not supported

24C

29C

24C

Gold 6250L

Not supported

24C

29C

24C

Notes: The thermal configuration setting can be adjusted via the RBSU tool.

Silver Processors

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) Processor Kit for HPE ProLiant ML350 Gen10

P19792-B21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) Processor Kit for HPE ProLiant ML350 Gen10

P19791-B21

Bronze Processors

Processor Option Kits – the Intel Second Generation Xeon® Processors

Silver Processors

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) Processor Kit for HPE ProLiant ML350 Gen10

P10938-B21

Memory Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability.


Best product availability is limited to US, Canada, and Latin America at this time.

HPE Memory – for the Second Generation Intel Xeon® Scalable Processors

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

Notes: The 8GB DIMM is not orderable in EU/EMEA starting from March 1, 2020. For exceptional deal support, please contact HPE product management team. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specsmore.html .

P00918-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-B21

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

Notes: The HPE ML350 Gen10 Slimline ODD Bay Kit (874577-B21) is required for this option.

726536-B21

HPE 9.5mm SATA DVD-RW Optical Drive

Notes: The HPE ML350 Gen10 Slimline ODD Bay Kit (874577-B21) is required for this option.

726537-B21

HPE Mobile USB DVD-RW Optical Drive

Notes:

  • This is only supported on USB 3.0 ports.
  • When front drive cages are fully populated (Box 1 – 3) and there is still the requirement for DVD-RW support, this external USB DVD-RW option will meet that need.

701498-B21

HPE Drives

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for 10K, 15K or higher RPM SAS drives.

Description

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-B21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for 10K, 15K or higher RPM SAS drives.

881457-B21

Midline - 12G SAS - SFF Drives

Midline - 12G SAS - LFF Drives

HPE 2TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833926-B21

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 6TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

861746-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 6TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

861742-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

6G SATA - LFF NHP/Raw Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD

801882-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD

801888-B21

SSD Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability. Best product availability is limited to US, Canada, and Latin America at this time.


To further assist with configuration, HPE also offers an SSD Selector Tool located here: http://ssd.hpe.com .

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36999-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37001-B21

HPE 960GB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49028-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49030-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49034-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49039-B21

HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49044-B21

Read Intensive & Very Read Optimized - 6G SATA - LFF - Solid State Drives

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37011-B21

HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49046-B21

HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49048-B21

HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49052-B21

HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49056-B21

Mixed Use - 12G SAS - LFF - Solid State Drives

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18432-B21

HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18434-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18436-B21

HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18438-B21

Read Intensive - 6G SATA - M.2 - Solid State Drives

HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD

Notes:

  • HPE Universal SATA HHHL 3yr Wty M.2 Kit (878783-B21) and use S100i SATA controller only.
  • M.2 supports Software RAID only.
  • HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for M.2 drives. HPE has qualified the M.2 drive portfolio using the Operating System inbox drivers, full detail on the HPE Solid State Drive QuickSpecs .

P47818-B21

NVMe - SFF - Solid State Drives

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735a SSD

P50225-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN U.2 P5620 SSD

P51458-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN U.2 P5620 SSD

Notes:

  • HPE ML350 Gen10 8SFF NVMe SSD Express Bay Enablement Kit with 2x4NVMe Risers and Support Cables (874569-B21) is required to support installation of these drives.
  • Max. support is one Gen10 ML350 NVMe 8SFF Exp Bay Kit (874569-B21) which can support up to 8 NVMe solid state drives.
  • NVMe drives require the addition of HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21).
  • When used to run high-performance workloads, NVMe SSDs can cause the fans to operate at high speeds to maintain optimum system cooling. This high-speed fan operation leads to a sound pressure level of between 50 dB(A) to 55 dB(A). Hewlett Packard Enterprise recommends taking this possible acoustic condition into consideration when selecting a site for a server that has NVMe SSDs installed.
  • Not supported by HPE Smart Array controllers.
  • HPE has qualified the NVMe drive portfolio using the Operating System inbox drivers, full detail on the HPE Solid State Drive QuickSpecs .
  • Alternatively, customers can choose the NVMe SSDs in PCIe adapter cards form factor. Refer to the next session for option support detail.

P51460-B21

HPE NVMe x8 Lanes Mixed Use HHHL

E 1.6TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

P26934-B

PE 3.2TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

P26936-B2

HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit

Notes:

  • HPE M.2 universal enablement card kit (878783-B21), which is required for SATA M.2 support.
  • Installation of this M.2 enablement card kit is limited to PCIe slot 1, 2, 3 or 4. Max. in ML350 Gen10 is one M.2 enablement card kit.
  • HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required when this card kit is selected/installed for M.2 SSD support.

878783-B21

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Gen9 LFF HDD Spade Blank Kit

807878-B21

HPE Networking

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

811546-B21

10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required when this SKU is selected.

813661-B21

HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter

727055-B21

25 Gigabit Ethernet adapters

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required when this SKU is selected.

P08458-B21

100 Gigabit Ethernet adapters

HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required when this SKU is selected.

874253-B21

HPE InfiniBand

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.

829335-B21

HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter

Notes: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.

874253-B21

HPE Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Notes: Flex Slot Titanium power supplies support power efficiency of up to 96% and include a standard C-14 power inlet connector.

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

Notes: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

865434-B21

HPE 800W Flex Slot Hot Plug Universal Low Halogen High Voltage AC/DC Power Supply Kit

Notes: Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.

865428-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

830272-B21

GPGPU Information

Part Number

Card

TDP

Max. Qty. Support

PCIe Speed

ML350 Gen10 Configuration

8SFF

16SFF

16SFF+8NVMe

24SFF

4LFF

8LFF

12LFF

Q0V77A

HPE NVIDIA Quadro P2000 GPU Module

75W

4

Gen3

35C

35C

35C *

35C ***

35C

35C

35C

Q0V78A

HPE NVIDIA Quadro P4000 GPU Module

105W

3

Gen3

35C

35C

35C *

35C ***

35C

35C

35C

Q0V76A

HPE NVIDIA Quadro P6000 GPU Module

250W

3

Gen3

35C

35C

35C *

35C ***

35C

35C

35C

Q0J62C

HPE NVIDIA Tesla M10 Quad GPU Module

225W

2

Gen3

35C

30C

30C

30C

35C

30C

30C

Q0V80C

HPE NVIDIA Tesla P40 24 GB Module

250W

2

Gen3

25C

20C

20C *

20C ***

25C

20C

20C

Q1K34A

HPE NVIDIA Quadro GV100 GPU Module

250W

3

Gen3

20C/30C **

20C/30C **

20C *

20C ***

20C/30C **

20C/30C **

20C

Q2N67A

HPE NVIDIA GV100 Nvlink Bridge Kit

N/A

2

NVLink

N/A

N/A

N/A

N/A

N/A

N/A

N/A

R0Z45C

HPE NVIDIA Quadro RTX6000 GPU Module

260W

2

Gen3

35C

35C

35C *

35C ***

35C

35C

35C

R1F97C

HPE NVIDIA Quadro RTX8000 GPU Module

260W

2

Gen3

35C

35C

35C *

35C ***

35C

35C

35C

R1F96C

HPE NVIDIA Quadro RTX NVLink Bridge

N/A

2

NVLink

N/A

N/A

N/A

N/A

N/A

N/A

N/A

R0W29C

HPE NVIDIA Tesla T4 16GB Module

70W

4

Gen3

25C/28C **

20C/25C **

35C *

25C/28C ** & ***

30C/35C **

25C/35C **

25C/35C **

R1F95C

HPE NVIDIA Quadro RTX4000 GPU Module

125W

4

Gen3

35C

35C

35C *

35C ***

35C

35C

35C

R3K70C

HPE NVIDIA Quadro P1000 GPU Module

47W

4

Gen3

35C

35C

35C

35C

35C

35C

35C

R2U55C

HPE NVIDIA Quadro P2200 GPU Module

75W

4

Gen3

35C

35C

35C

35C

35C

35C

35C

R9H23C

NVIDIA A2 16GB GPU Module

60W

4

Gen3

35C

35C

35C

35C

35C

35C

35C

Notes:

  • The 1600W RPS is recommended when the system is configured with high power GPU. The 800W RPS will work too (per GPU) – depending on configuration. Please do check the total power requirement of your selected configuration with the GPU(s) supported in this platform with the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor .
  • The ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for ALL GPU installations. (Note, the redundant fan kit ships as standard with the two 2P Performance models and the Rack CTO).
  • Mixing of GPUs is not supported.
  • These GPUs are not recommended for use in office environment especially under stress mode when system fans are running at full speed.
  • HPE ML350 Gen10 GPU Ext Power Cable Kit (877628-B21) is required for GPU TDP larger than 75W – that is, this GPU external power cable kit is required except for HPE NVIDIA Quadro P2000 (Q0V77A), HPE NVIDIA Tesla T4 (R0W29C), HPE NVIDIA Quadro P1000 (R3K70C) or HPE NVIDIA Quadro P2200 (R2U55C).
  • For 16SFF + 8 NVMe configuration, the two PCIe NVMe Riser Boards are required to install in PCIe slot 1 and 3. Therefore, the max. GPU quantity to be supported will vary.
  • ** Higher ambient temps are supported with “increased cooling” statically set in the RBSU.
  • *** For 24SFF configuration, requires the SAS Expander be installed in PCIe slot 4. Therefore, the max. GPU quantity to be supported will vary.

HPE Computation and Graphics Accelerators

NVIDIA A2 16GB PCIe Non-CEC Accelerator for HPE

Notes:

  • HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required.
  • This GPU model is supported with the 2 nd generation of Intel Xeon® Scalable Processors only. It was tested with the 1 st generation of Intel Xeon® Scalable Processors also but support is limited to LVO and private only.

R9H23C

Notes:

  • This kit is required for elevated Ambient temperature environments.
  • Add add’l 4x hot-plug fans which are installed in the fan cage to get N+1 fan redundancy and advanced cooling.
  • The performance 2P BTO models and the Rack CTO model will already include this kit to include 6 fans total.
  • The ML350 Gen10 Redundant Fan Kit (874572-B21) is required for one of the following configurations or situations: 2P configuration.
    • When the unit is configured to use in Rack mode.
    • When front storage is fully populated with (3) 4LFF or (3) 8SFF drive cages or (2) LFF or SFF drive cages along with (2) media bays and (1) DVD.
    • When ML350 Gen10 is used in ASHRAE 3 or 4 environment.
    • When the unit is configured with higher RPM SAS HDDs (10K, 15K or higher).
    • When the unit is configured with NVMe Express Bay for NVMe SSD support.
    • When M.2 is selected.
  • The ML350 Gen10 Redundant Fan Cage Kit is also needed to support certain higher end PCIe expansion cards for example, GPU (Graphic Processing Unit), advanced PCIe accelerators, InfiniBand cards, higher-end network adapters and storage controllers P816i-a and P824i-pcontroller.
  • Please refer to the User Guide for special configuration scenarios where the redundant fan option is required but does not provide redundancy function.

  • Additional Options

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.


    Embedded Management

HPE iLO Advanced

Description

SKU

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

Software as a Service Management

HPE GreenLake for Compute Ops Management

HPE Compute Ops Management Enhanced 3-year Upfront ProLiant SaaS

R7A11AAE

Additional Options

HPE Compute Ops Management Enhanced 1-year Upfront ProLiant SaaS

R7A10AAE

HPE Compute Ops Management Enhanced 5-year Upfront ProLiant SaaS

Notes: For customers purchasing HPE GreenLake for Compute Ops Management, without a hardware purchase or a BTO purchase, use this base SKU within ASQ order:

R7A12AAE

HPE Compute Ops Management Base SaaS

R6Z73AAE

HPE Converged Infrastructure Management Software

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

Notes: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded .

HPE Security

HPE Trusted Platform Module 2.0 Gen10 Option

Notes:

  • HPE Trusted Platform Module 2.0 option works with Gen10 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants.
  • HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.
  • There is a FIO setting to allow this TPM module to operate in a TPM 1.2 mode (872108-B21).

864279-B21

HPE Gen10 TPM 1.2 FIO Setting

872108-B21

HPE Smart Array Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet .

Performance RAID Controllers

Notes: All performance RAID controllers are supported by the HPE Smart Storage Battery (P01367-B21), or HPE Smart Storage Hybrid Capacitor (P02381-B21) which supports multiple devices and is sold separately.

HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller

Notes:

  • Does not occupy a PCIe expansion slot and includes SmartCache license.
  • HPE ML350 Gen10 SFF AROC Cable Kit (877575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF AROC Cable Kit (874573-B21) for LFF chassis configuration is required.
  • HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for P816i-a.
  • For information on the HPE Smart Array P816i-a SR Gen10 Controller please refer to their QuickSpecs .

804338-B21

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

Notes:

  • Does not occupy a PCIe expansion slot.
  • HPE ML350 Gen10 SFF AROC Cable Kit (877575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF AROC Cable Kit (874573-B21) for LFF chassis configuration is required.
  • For information on the HPE Smart Array P408i-a SR Gen10 Controller please refer to their QuickSpecs .

804331-B21

HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller

Notes:

  • HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration (874575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF SA/HBA Cable Kit (874574-B21) for LFF chassis configuration is required.
  • For information on the HPE Smart Array P408i-p SR Gen10 Controller please refer to their QuickSpecs .

830824-B21

HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller

Notes: For information on the HPE Smart Array P408e-p SR Gen10 Controller please refer to their QuickSpecs .

804405-B21

Essential RAID Controllers

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

Notes:

  • HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration (874575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF SA/HBA Cable Kit (874574-B21) for LFF chassis configuration is required.
  • For information on the HPE Smart Array E208i-p SR Gen10 Controller please refer to their QuickSpecs .

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

Notes: For information on the HPE Smart Array E208e-p SR Gen10 Controller please refer to their QuickSpecs .

804398-B21

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

Notes:

  • Does not occupy a PCIe expansion slot.
  • HPE ML350 Gen10 SFF AROC Cable Kit (877575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF AROC Cable Kit (874573-B21) for LFF chassis configuration is required.
  • For information on the HPE Smart Array E208i-a SR Gen10 Controller please refer to their QuickSpecs

804326-B21

HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device

Notes: This boot device only support UEFI mode.

P12965-B21

Optional Upgrades

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

Notes: Provides backup power for multiple HPE Smart Array controllers or other devices. Is required with performance RAID controllers. This product replaces 875242-B21.

P01367-B21

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

Notes: The HPE Smart Storage Hybrid Capacitor is only supported on Gen10 servers or newer. Before installing the hybrid capacitor module, please verify that the system BIOS meets the minimum firmware requirements to support the capacitor pack. Not for use with servers that use NVDIMMs.

P02381-B21

HPE Tape Backup

  • Internal half-height (5.25”) tape devices are supported in ML350 Gen10 and require the HPE ML350 Gen10 Media Drive Support Kit (874570-B21).
  • In the case when LTO Internal Tape is selected along with the Fan Redundant Kit, Fan#1 will need to be removed and the Fan Blank provided in this option kit will need to be installed in Fan#1 location.
  • This configuration will run without fan redundancy. Refer to ML350 Gen10 User Guide for more detail.
  • Installation of the internal LTO tape drive is limited in media bay 1.
  • Change the Thermal Configuration to Increased Cooling mode in BIOS/Platform Configuration (RBSU) menu when internal LTO tape is installed
  • For the complete range of tape drives, autoloaders, libraries and media see: https://www.hpe.com/us/en/storage/storeever-tape-storage.html .
  • For hardware and software compatibility of Hewlett Packard Enterprise tape backup products http://www.hpe.com/storage/BURAcompatibility .

HPE Tape Drives

HPE StoreEver LTO-9 Ultrium 45000 Internal Tape Drive

BC040A

HPE StoreEver LTO-9 Ultrium 45000 Internal TAA-compliant Tape Drive

BC041A

HPE StoreEver LTO-8 Ultrium 30750 Internal Tape Drive

BC022A

HPE StoreEver LTO-8 Ultrium 30750 External Tape Drive

BC023A

HPE LTO-7 Ultrium 15000 Internal Tape Drive

BB873A

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE Tape Drives Cartridge

HPE LTO-9 Ultrium 45TB RW Data Cartridge

Q2079A

HPE LTO-8 Ultrium 30TB RW Data Cartridge

Q2078A

HPE LTO-7 Ultrium 15TB RW Data Cartridge

C7977A

HPE LTO-6 Ultrium 6.25TB RW Data Cartridge

C7976A

HPE Tape Backup Products

HPE StoreEver MSL LTO-8 Ultrium 30750 FC Drive Upgrade Kit

Q6Q67A

HPE StoreEver MSL LTO-8 Ultrium 30750 SAS Drive Upgrade Kit

Q6Q68A

HPE StoreEver MSL LTO-7 Ultrium 15000 FC Drive Upgrade Kit

N7P36A

HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit

N7P37A

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE StoreEver Mini-SAS High Density to 4-lane Mini-SAS External Fanout 2m Cable

K2R09A

HPE StoreEver Mini-SAS High Density to 4-lane Mini-SAS External Fanout 4m Cable

K2R10A

HPE RDX Products

HPE RDX External Docking Station

C8S07B

HPE RDX Internal Docking Station

C8S06A

HPE RDX 4TB Removable Disk Cartridge

Q2048A

HPE RDX 2TB Removable Disk Cartridge

Q2046A

HPE RDX 500GB Removable Disk Cartridge

Q2042A

HPE RDX 1TB Removable Disk Cartridge

Q2044A

HPE Storage Options

Emulex Fibre Channel HBAs

HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter

R2J62A

HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter

R2J63A

QLogic Fibre Channel HBAs

HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

Converged Network Adapters

HPE CN1200R 10GBASE-T Converged Network Adapter

Q0F26A

HPE CN1300R 10/25Gb Dual Port Converged Network Adapter

Notes: For the complete listing of Fibre Channel Converged Network Adapters please see:

https://www.hpe.com/us/en/product-catalog/servers/adapters

Q0F09A

HPE Racks

  • Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks
  • Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)


HPE Uninterruptible Power Systems (UPS)

HPE T750 Gen5 NA/JP UPS with Management Card Slot

Q1F47A

HPE T750 Gen5 INTL UPS with Management Card Slot

Q1F48A

HPE T1000 Gen5 NA/JP UPS with Management Card Slot

Q1F49A

HPE T1000 Gen5 INTL UPS with Management Card Slot

Q1F50A

HPE T1500 Gen5 NA/JP UPS with Management Card Slot

Q1F51A

HPE T1500 Gen5 INTL UPS with Management Card Slot

Q1F52A

HPE Rack Options

Please see the HPE KVM Switches web page for information on these products and their specifications.


Rail Kits

HPE ML Gen10 Tower to Rack Conversion Kit with Sliding Rail Rack Shelf and Cable Management Arm 874578-B21


Notes: Easy install rack rail tray which takes up 1U height in a standard rack facility. This kit is supported in both ML350 and ML110 Gen10 for tower to rack conversion. This kit includes CMA and is shipped as standard in the 2P Performance Rack SKU and SFF Rack CTO.


HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE USB and SD Options

HPE 32GB microSD Flash Memory Card

700139-B21

HPE 32GB microSD RAID 1 USB Boot Drive

P21868-B21

Notes: In vSphere 7.0, VMware made changes that impact the use of an SD Card/USB media as a standalone boot device and will be removing support for them after version 7.x.

SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory.

Usage of SD Card/USB Devices As Standalone Boot Devices Has Changed Due to System Storage Changes For VMware ESX7.0 (Or Later) .

For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.

  • Memory

    Memory Population guidelines

Figure 1
TAP IMAGE TO ZOOM IN

HPE ML350 Gen10 Server (Front Server)

1 DIMM







8




2 DIMM s







8

10


3 DIMM s







8

10

12

4 DIMM s


3

5


8

10


5 DIMM s*


3

5


8

10

12

6 DIMM s

1

3

5


8

10

12

7 DIMM s*

1

3

5

7

8

10

12

8 DIMM s


3

4

5

6

7

8

9

10


9 DIMM s*

1

3

5

7

8

9

10

11

12

10 DIMM s*

1

3

4

5

6

7

8

9

10

12

11 DIMM s*

1

3

4

5

6

7

8

9

10

11

12

12 DIMM s

1

2

3

4

5

6

7

8

9

10

11

12

HPE ProLiant Gen10 12 slot per CPU DIMM Population Order

Notes: *Unbalanced, not recommended

General Memory Population Rules and Guidelines:

  • Install DIMMs only if the corresponding processor is installed.
  • If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
  • To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
  • When two processors are installed, balance the DIMMs across the two processors.
  • White DIMM slots denote the first slot to be populated in a channel.
  • Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
  • The maximum memory speed is a function of the memory type, memory configuration, and processor model.
  • The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
  • For details on the HPE Server Memory Options Population Rules, visit: http://www.hpe.com/docs/memory-population-rules .
  • To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required.
  • For additional information, please see the HPE DDR4 Smart Memory QuickSpecs .

Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model.


For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table .


Standard and Maximum Memory Capacity (Pre-configured Models)


For the Second Generation of Intel Xeon® Scalable Processors – Refresh

Pre-Configured Models

Standard Memory

Maximum Memory Plus Optional Memory

Standard Memory Replaced with Optional Memory

3206R

16 GB (1x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

4210R

16 GB (1x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

4214R

32 GB (1x32 GB RDIMM DR)

768 GB (24x 32 GB

3072 GB (24x 128 GB)

5218R

32 GB (1x32 GB RDIMM DR)

768 GB (24x 32 GB

3072 GB (24x 128 GB)

For the Second Generation of Intel Xeon® Scalable Processors

Pre-Configured Models

Standard Memory

Maximum Memory Plus Optional Memory

Standard Memory Replaced with Optional Memory

3204

8GB (1x8 GB RDIMM SR)

192 GB (24x 8 GB)

3072 GB (24x 128 GB)

4208

16 GB (1x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

4210

16 GB (1x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

4214

32 GB (1x32 GB RDIMM DR)

768 GB (24x 32 GB)

3072 GB (24x 128 GB)

5218

32 GB (1x32 GB RDIMM DR)

768 GB (24x 32 GB)

3072 GB (24x 128 GB)

Notes: The 13th – 24th DIMM support requires installation of the second processor.

DDR4 memory options part number decoder

Notes:

  • Capacity references are rounded to the common gigabyte (GB) values. 8GB = 8,192 MB
    • 16GB = 16,384 MB
    • 32GB = 32,768 MB
    • 64GB = 65,536 MB
    • 128 GB = 131,072 MB

For more information on memory, please see the Memory QuickSpecs: HPE DDR4 Smart Memory .

  • Storage

4 LFF non-hot-plug drive model:

Tower – shown with the tower

feet.

  • 1 x 4 LFF SAS/SATA nonhot-pluggable HDD/SSD Cage Kit in Box 3.
  • HDD Cage Blank in Box 2.
  • Media Bay Blanks (2) and DVD blank (1) in Box 1.

8 LFF non-hot-plug drive + media bay (2) and DVD (1) model:

Tower – shown with the tower feet.

  • 1 – 2 4 LFF SAS/SATA nonhot-pluggable HDD/SSD Cage Kit
  • HH Media Bay up to 2 and/or 1 DVD in Box 1

12 LFF non-hot-plug drive model:

Tower – shown with the tower feet.

  • 1 – 3 4 LFF SAS/SATA non-hot-pluggable HDD/SSD Cage Kit (s)

4 LFF hot-plug drive model:

Tower – shown without the tower feet.

  • 1 x 4 LFF SAS/SATA hot-pluggable HDD/SSD Cage Kit in Box 3.
  • HDD Cage Blank in Box 2.
  • Media Bay Blanks (2) and DVD blank (1) in Box 1.

8 LFF hot-plug drives + media bay (2) and DVD (1) model:

Tower – shown with the tower feet.

  • 1 – 2 4 LFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (2)
  • HH Media Bay up to 2 and/or 1 DVD in Box 1.

12 LFF hot-plug drive model:

Tower – shown with the tower feet.

  • 1 – 3 4 LFF SAS/SATA hot-pluggable HDD/SSD Cage Kit(s)

8 SFF hot-plug drive model:

Tower – shown without the tower feet.

  • 1 x 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit in Box 3.
  • HDD Cage Blank in Box 2.
  • Media Bay Blanks (2) and DVD blank (1) in Box 1.

16 SFF hot-plug drives + media bay (2) and DVD (1) model:

Tower – shown without the tower feet.

  • 1 – 2 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (2)
  • HH Media Bay up to 2 and/or 1 DVD in Box 1.

24 SFF hot-plug drive model:

Tower – shown without the tower feet.

  • 1 – 3 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (s).

16 SFF hot-plug drive + 8 NVMe SSD model:

Tower – shown without the tower feet.

  • 1 – 2 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (s)
  • 1x 8 SFF NVMe Express Bay Kit in Box 2 for optional NVMe PCIe SSD, up to 8.

8 SFF hot-plug drive + 8 NVMe SSD + media bay (2) and DVD (1) model:

Tower – shown without the tower feet.

  • 1x 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit
  • 1x 8 SFF NVMe Express Bay Kit in Box 2 for optional NVMe PCIe SSD, up to 8
  • HH Media Bay up to 2 and/or 1 DVD in Box 1.

  • Technical Specifications

    System Unit

    Dimensions

    • Tower
    • 46.25 (H) x 64.8 (D) x 17.4 (W) cm
    • 18.2 (H) x 25.51 (D) x 6.85 (W) in

    • Rack – System only
    • 17.4 (H/4U) x 64.8 (D) x 44.5 (W) cm
    • 6.85 (H) x 25.51 (D) x 17.52 (W) in

    • Tower-to-Rack Conversion Kit (1U)
    • 4.445 (H/1U) x 69.2 (D/without CMA. Depth with CMA: 83.5) x 45.2 (W) cm
    • 1.75 (H/1U) x 27.23 (D/without CMA. Depth with CMA: 32.89) x 17.795 (W) in

    Weight (approximate)

    • Minimum:
    • 8 SFF or 4LFF chassis with 1x SFF or LFF HDD and HDD blanks, 1x HDD Drive Cage blank, 2x Media Bay blanks, 1x DVD bay blank, 1x processor including standard heatsink, 2 DIMMs, 1x power supply (plus blank), 1x Modular Smart Array (AROC), Cables for the above.
    • 21 kg
    • 46.30 lb.

    • Maximum
    • Fully loaded system: 24 SFF or 12 LFF hard drives, 4 DW GPUs (or 8 standard PCIe expansion cards), 2x processors including 2 performance heatsinks, 24 DIMMs, 2x power supplies, 1x Modular Smart Array (AROC), Cables for the above.
    • 42 kg
    • 92.59 lb.

    Input Requirements (per power supply)

    • Rated Line Voltage
    • 100 to 120 VAC
    • 200 to 240 VAC

    BTU Rating

    Maximum

    • For 800W Power Supply: 3067 BTU/hr. (at 100 VAC), 2958 BTU/hr. (at 200 VAC), 2949 BTU/hr. (at 240 VAC)
    • For 500W Power Supply: 1902 BTU/hr. (at 100 VAC), 1840 BTU/hr. (at 200 VAC), 1832 BTU/hr. (at 240 VAC)
    • For 1600W Power Supply: 5918 BTU/hr. (at 200 VAC), 5884 BTU/hr. (at 240 VAC)

    Power Supply Output (per power supply)

    Rated Steady-State Power

    • For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VAC)
    • For 800W Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VAC)
    • For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC)

    Maximum Peak Power

    • For 1600W Power Supply: 1600W (at 200 to 240 VAC), 1600W (at 240 VAC)
    • For 800W Power Supply: 800W (at 100 to 127 VAC), 800W (at 200 to 240 1VAC), 800W (at 240 VAC)
    • For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC)

    System Inlet Temperature

    • Standard Operating Temperature
    • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

    • Extended Ambient Operating Temperature
    • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://support.hpe.com/hpesc/public/docDisplay?docId=a00026969en_us&page=index.html

    • For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://support.hpe.com/hpesc/public/docDisplay?docId=a00026969en_us&page=index.html System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

    • Non-operating
    • -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.).

    Relative Humidity (non-condensing)

    • Operating

    8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

    • Non-operating

    5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.


Altitude

  • Operating

3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft./min).

  • Non-operating

9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).


Emissions Classification (EMC) Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts


Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs , in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.


The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.


Acoustic Noise

Listed are the declared A-Weighted sound power levels (L WAd ) and declared average bystander position A-Weighted sound pressure levels (L pAm ) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels, for example, higher-end graphic processing units (GPU), NVMe SSD or NVMe M.2. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Acoustic Noise

Idle

LWAd

4.0 B Entry

3.9 B Base

4.4 B Perf

LpAm

28 dBA Entry

27 dBA Base

31 dBA Perf

Operating

LWAd

4.2 B Entry

4.3 B Baase

4.4 B Perf

LpAm

29 dBA Entry

30 dBA Base

32 dBA Perf

Notes:

  • Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.
  • Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
  • The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels, for example, higher-end graphic processing units (GPU), NVMe SSD or NVMe M.2.

  • Summary of Changes

Date

Version History

Action

Description of Change

28-Jul-2025

Version 44

Changed

Update survey link.

18-Feb-2025

Version 43

Changed

Survey added.

26-Sep-2024

Version 42

Changed

Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) section was updated.

18-Mar-2024

Version 41

Changed

Additional Options and Standard Features sections were updated.

26-Feb-2024

Version 40

Changed

Removed non-Lot9 compliant EMEA Pre-configured SKUs

04-Dec-2023

Version 39

Changed

HPE Services Rebranding

23-Oct-2023

Version 38

Changed

Update new drive options.

Service and Support and Core Options sections were updated.

05-Sep-2023

Version 37

Changed

Standard Features, Pre-configured Models and Configuration Information sections were updated.

Update Lot 9 requirements.

Update new drive options.

01-May-2023

Version 36

Changed

Optional Features and Additional Options sections were updated.

05-Dec-2022

Version 35

Changed

Standard Features and Core Options sections were updated.

07-Nov-2022

Version 34

Changed

Overview, Standard Features, and Support, Pre-configured Models and Core Options sections were updated.

Obsolete SKUs were removed.

01-Aug-2022

Version 33

Changed

Core Options section was updated.

Obsolete SKUs were removed.

05-Jul-2022

Version 32

Changed

Pre-configured Models and Core Options sections were updated.

Obsolete SKUs were removed.

06-Jun-2022

Version 31

Changed

Additional Options and Core Options sections were updated.

Obsolete SKUs were removed.

06-Dec-2021

Version 30

Changed

Core Options and Additional Options sections were updated.

Obsolete SKUs were removed.

01-Nov-2021

Version 29

Changed

Core Options and Service and Support sections were updated.

Obsolete SKUs were removed.

07-Sep-2021

Version 28

Changed

Core Options section was updated.

Obsolete SKUs were removed.

02-Aug-2021

Version 27

Changed

Service and Support, Configuration Information, Core Options and Additional Options sections were updated.

Obsolete SKUs were removed.

01-Feb-2021

Version 26

Changed

Core Options section was updated.

Obsolete SKUs were removed.

07-Dec-2020

Version 25

Changed

Pre-configured Models section was updated.

Obsolete SKUs were removed

05-Oct-2020

Version 24

Changed

Core Options and Additional Options sections were updated.

Obsolete SKUs were removed.

03-Aug-2020

Version 23

Changed

Standard Features and Core Options sections were updated.

01-Jun-2020

Version 22

Changed

Standard Features, Core Options and Additional Options sections were updated.

06-Apr-2020

Version 21

Changed

Overview, Standard Features, Pre-configured Models, Configuration Information, Core Options and Memory sections were updated.

Added new Cascade Lake Refresh CPUs and WW BTO SKUs Overview, Standard Features, Configuration Information and Memory

sections were updated accordingly

Added new SSDs incl. SATA M.2 SSDs

02-Mar-2020

Version 20

Changed

Added more Lot 9 relevant info incl. Industry Standards compliance section, 8GB DIMM reminder, PS, etc.

Removed the 500W standard NHP PS FIO kit and added a Lot 9 reminder in this PS section.

Removed Skylake processor kits for CTO and 2933 DIMMs.

Revised the GPU ambient temp. table and added a remark in the GPU section regarding no. of GPU support of P40 & RTX6000/8000.

03-Feb-2020

Version 19

Changed

New 16TB LFF SATA/SAS HDD

New remark relevant to the upcoming ErP Lot 9 for EU/EMEA region

Obsolete SKUs were removed

Skylake-based BTO removed – reaching OBS

02-Dec-2019

Version 18

Changed

Overview, Configuration Information, Core Options and Additional Options sections were updated.

Updated the GPU thermal information table with the new GPU modules

Added new option kits incl. HPE NVIDIA P1000 and P2200 GPU modules, new 32Gb FC HBAs, 32GB micro-SD RAID1 USB boot drive and the new iLO FIO setting part

04-Nov-2019

Version 17

Changed

Core Options section was updated

Added NVMe SSD PCIe adapter cards session

07-Oct-2019

Version 16

Changed

Added two new FC HBAs

Core Options and Additional Options sections were updated.

Obsolete SKUs were removed from the QuickSpecs.

05-Aug-2019

Version 15

Changed

Added new NVIDIA Quadro RTX8000 GPU support

Added a new note under SAS expander kit - not supported w/ LFF Spade carriers

Added new SSD options

Updated 6226 CPU frequency in the proc table

Updated GPU ambient temp. requirement table

Removed extension -031 from CLX BTO offering

Obsolete SKU was removed.

03-Jun-2019

Version 14

Changed

New Intel Cascade Lake wave-2 processors

New GPU RTX4000

New NVMe SSD, new NIC options, OneView options, RDX devices, UPS options OBS-ed HDD/SSD, etc.

5215L & 5215M GHz info in page#8 updated

The U.S. version of QuickSpecs is no longer being updated, please reference the Worldwide QuickSpecs for latest information.

02-Apr-2019

Version 13

Changed

Intel Cascade Lake added with new 2933 DIMMs

New GPU incl. RTX6000, RTX NVlink bridge and Tesla T4 support

Max. internal storage capacity updated w/ the 14TB drives OS support updated

Updated or added notes here and there to provide more config. requirements

05-Feb-2019

Version 12

Changed

Added NVIDIA Quadro P4000 GPU support.

Added 12TB SAS LFF HDD.

Added new LTO-8 tape drive support.

Added PCIe Accelerator option category, new StoreFabric CNA, etc.

Added notes in embedded NIC support.

Added notes in Smart Array controller/s to select cables.

Removed hyperlink to Cable Matrix but directed to User Guide.

03-Dec-2018

Version 11

Changed

New SSD options, new storage CNAs, RDX cartridges in the newly added RDX option category.

TPM1.2 FIO part added.

15-Oct-2018

Version 10

Changed

Core Options and Additional Options were Updated.

SKU descriptions updated.

Obsolete SKUs were removed from the QuickSpecs.

01-Oct-2018

Version 9

Changed

Added new NVIDIA Quadro GV100 and NVLink Bridge support

Added new SFF and LFF SSD models

Added S100i OS limitation under the OS section

Updated OS support section

Updated header on page#18, 19 & 67 to ML350 Gen10

Updated the pre-configured SKU model section, removing the note in the sub-entry SKU

Updated the note related to internal media drive support kit & RDX

06-Aug-2018

Version 8

Changed

Added new NVIDIA Quadro P2000 GPU support.

Added new SFF SATA SSD models.

Added new 100Gb adapter.

Added cabling requirement for S100i/embedded SATA controller config.

Configuration Information – Factory Integrated Models, Core Options, Additional Options were revised.

04-Jun-2018

Version 7

Changed

Added the new P824i-p info in the controller section.

Added new RI SFF SSD in the SSD section.

Added 4TB NVMs SSD and revise the max. NVMe capacity

supported.

Configuration Information – Factory Integrated Models, Core Options, Additional Options, and Memory were revised.

Obsolete SKUs were removed from the QuickSpecs

02-Apr-2018

Version 6

Changed

Added one new Solution SKU to pre-configured models.

Added new supported SSDs.

Added IST support in the what’s new section.

Removed discontinued NHP/raw HDDs.

Power cord support in pre-config models was revised.

CTO Rack model support was revised.

Internal LTO/RDX along with fan redundant kit support was revised.

05-Feb-2018

Version 5

Changed

Added NVIDIA Quadro P4000 GPU support.

Added 12TB SAS LFF HDD.

Added new LTO-8 tape drive support.

Added PCIe Accelerator option category, new StoreFabric CNA, etc.

Added notes in embedded NIC support.

Added notes in Smart Array controller/s to select cables.

Removed hyperlink to Cable Matrix but directed to User Guide.

04-Dec-2017

Version 4

Changed

Added 128GB DDR4 LRDIMM support.

Added new 12TB SATA LFF HDD support – max. 144TB in LFF config.

Updated the Smart Storage Battery with the new part number.

Updated SW RAID S100i Linux OS support note.

Removed the old Smart Storage Battery part.

23-Oct-2017

Version 3

Changed

Memory speed table was updated to display the 61XX processors running at 2666MT/s.

16-Oct-2017

Version 2

Changed

Added HPE Support Services.

25-Sep-2017

Version 1

New

New QuickSpecs.

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries. Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.


For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00021852enw, 16055 - Worldwide - V44 - 28-July-2025

Recommended for you
