QuickSpecs
HPE Networking CW 2150 Switch Series QuickSpecs
Table of Contents
The HPE Networking CW 2150 Switch Series is a family of stackable L3 access switches purposely built for enterprise branch offices and SMB networks.
Fully managed, stackable, supporting up to 176Gbps of switching capacity and 770W of PoE power, the CW 2150 family delivers enterprise-grade performance at the SMB price point. With
8, 16, 24, and 48 gigabit access ports and 802.3at compliant PoE ports, this flexible series is ready to connect your wireless access points, security cameras, and IoT devices. Four built-in 10G SFP+ uplinks and nine (9) switch Intelligent Resilient Fabric (IRF) stacking add scale, resiliency, and simplicity for your access network. The switch family supports dynamic routing protocols including PBR (Policy based routing), RIP (Routing Information Protocol), and OSPF (Open Shortest Path First).
Overview
Network visibility, management, and operation tools for this series include Web GUI, standard CLI and the switch embedded Smart Management Center (SmartMC) at no additional cost. Other management options include HPE Intelligent Management Center (IMC), SNMP manager, Aruba Airwave, and REST API for seamless integration into third party dashboards.
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a50009251enw_block1img?$crimg$ "[IMAGE1]")

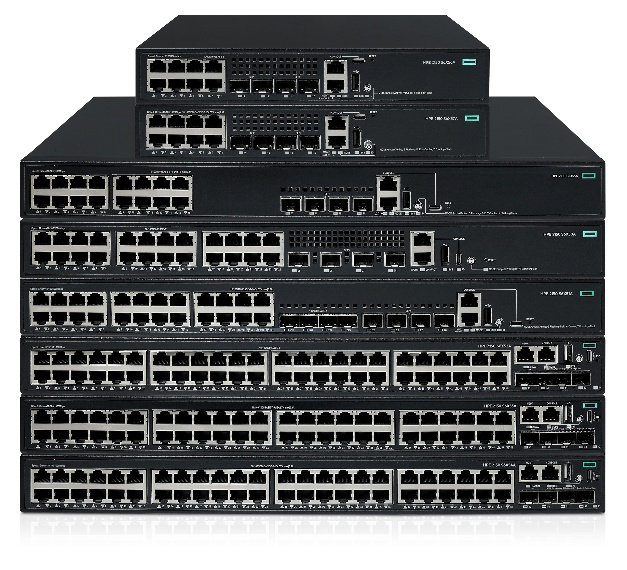

HPE Networking CW 2150 Switch Series
Key features
- – Enterprise-grade access switches with 8, 16, 24 and 48 built-in 1 GbE access ports and four 1/10G SFP+ uplinks
- – Deliver up to 176 Gbps in nonblocking bandwidth and 131 Mpps in forwarding
- – Up to 9-member Intelligent Resilient Fabric (IRF) stacking for reliable connectivity and simplified management
- – Class 4 PoE (802.3at) provides 30W per port and up to 770W per system
- – Fast PoE and Perpetual PoE for continued power delivery during equipment power cycle
- – 24-port model adds 4 fiber copper combo ports for flexible connectivity options
- – 8-port model has two 1G SFP and two 1G/10G SFP+ uplinks
- – Fanless design in the 8‑port and 24‑/48‑ port non‑PoE models
- – Comprehensive security support including multi-layer access protection with granular ACLs, secure boot, encrypted access, and threat prevention features
- – Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
- – Simplified management with Web GUI, CLI and embedded SmartMC web manager included free of charge
- – Additional management choices include HPE Intelligent Management Center (IMC), Airwave, SNMP, and REST APIs
- – Built-in 6 kV surge protection reduces the risk of power strikes in demanding environments such as construction sites
Standard Features
Enterprise-class Access Connectivity
The HPE Networking CW 2150 Switch Series delivers up to 176 Gbps of non-blocking bandwidth and up to 131 Mpps in forwarding. It supports nine (9) switch Intelligent Resilient Fabric (IRF) stacking for resilient and availability.
The 1U switch family supports 8 models, with four (4) 1G/10G SFP+ uplinks in the 16, 24 and 48 port models, and additional two (2) 1G SFP and two (2) 1G/10G SFP+ uplinks in the 8 port models. The 24-port model adds four SFP combo ports for flexible connectivity options.
Fanless design on the 8 , 24 , and 48 port non PoE models for noise sensitive environments.
Built in 6 kV surge protection reduces the risk of power strikes in demanding settings such as construction sites.
Powerful PoE Capabilities
The CW 2150 switch series deliver 125W, 248W, 405W, 390W, and 770W Class 4 PoE across the 8, 16, 24, and 48‑portmodels. It supports advanced PoE features including fast PoE to deliver power within seconds of system startup, perpetual PoE to maintain power during a power‑source reboot, and PoE watchdog function to automatically remove power when the connected device is no longer active.
Comprehensive Security Control
The switch family provides comprehensive security features to protect your business data and keep unauthorized access for modern SMB environments:
- – Secure boot verifies digital signatures to prevent unauthorized or malicious software from loading at startup
- – Multi‑layer access protection with granular ACLs (IPv4/IPv6, VLAN, port‑based), identity‑driven policies, and authentication options including 802.1X, MAC, Web, RADIUS, TACACS+
- – Encrypted access using SSHv2, SSL, SNMPv3, and TLS, along with role‑based privileges and audit logging
- – Threat‑prevention features include Control Plane Policing (DoS protection), ARP and DHCP protection, ICMP throttling, port security, and source‑port filtering.
Advanced Layer 2 and Layer 3 Traffic Management
The CW 2150 series support advanced Layer 2 and Layer 3 features for SMB, enterprise branch offices, as well as service provider managed services. Highlights including:
- – Dynamic routing protocols including PBR, RIP and OSPF
- – Multi-VRF Customer Edge (MCE or VRF-Lite) to support multiple virtual routing and forwarding (VRF) tables, separating traffic for different customers or internal departments over a single physical link to a provider edge (PE) router
- – IPv4 and IPv6 dual stack
- – Rapid Ring Protection Protocol (RRPP) for rapid ring topology convergence
- – Provider Backbone Bridges (PBB) allowing service provider to separate customer MAC addresses from the provider’s backbone (MAC-in-MAC)
- – Ethernet OAM (IEEE 802.3ah) for monitoring the status of the link between two devices
- – Dying Gasp notifies network management systems of an impending and unexpected power loss
Performance
Nonblocking architecture
Up to 176 Gbps of nonblocking wire speed switching with up to 130.9 Mpps throughput
Hardware-based wire speed access control lists (ACLs)
Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation
Resiliency and High Availability
Separate Data and Control Paths
Separate control from services and keeps service processing isolated; increases security and performance
Intelligent Resilient Fabric (IRF)
Creates virtual resilient switching fabrics where up to nine (9) switches perform as a single logical device; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol or VRRP, thereby simplifying network operation.
Smart Link
Provides easy-to-configure link redundancy of active and standby links allowing 100ms failover between links, supports 48 groups and 64 instances
Quality of Service
Broadcast control
Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Advanced classifier-based QoS
Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; apply QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch
Powerful Queuing and Scheduling
Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR hybrid scheduling for latency-sensitive traffic
Traffic policing
Supports Committed Access Rate (CAR) and line rate
ACL Logging
Enables detailed monitoring of packet flows that match QoS-related ACL entries, improving traffic visibility and assisting in troubleshooting and policy validation
Buffer Configuration
Supports flexible queue buffer allocation to accommodate bursty traffic patterns, enhance congestion management and improve overall forwarding performance
Connectivity
Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Flow Control
Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
High-density Connectivity
Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch
IEEE 802.3at Power over Ethernet (PoE+)
Simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location
Ethernet Operations, Administration and Maintenance (OAM)
Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices
Provider Backbone Bridges (PBB)
IEEE 802.1ah-2008, or Provider Backbone Bridges (PBB), is a networking standard that enhances network scalability by encapsulating customer Ethernet frames (MAC-in-MAC) inside a provider-specific header; it allows service providers to scale up services, separating customer MAC addresses from the provider backbone.
3rd Party Transceiver support
Allows to enable non-HPE 1G and 10G transceivers and cables. Note that there is no warranty nor support for the transceiver/cable when this feature is used
Layer 2 Switching
16K MAC Address Table
Provides access to many Layer 2 devices
10GbE Port Aggregation
Allows grouping of ports to increase overall data throughput to a remote device
VLAN Support and Tagging
Supports IEEE 802.1Q with 4,094 VLAN IDs and 512 VLANs simultaneously
Jumbo Frame Support
Improves the performance of large data transfers; supports frame size of up to 9 KB
IEEE 802.1ad QinQ and Selective QinQ
Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network
STP, MSTP, RSTP, PVST+, RPVST+, MVRP
Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), Per-VLAN Spanning Tree (PVST+), Rapid Per-VLAN Spanning Tree (RPVST+) for improved bandwidth and faster convergence. MVRP allows automatic learning and dynamic assignment of VLANs
Rapid Ring Protection Protocol (RRPP)
Ethernet ring-specific protocol designed to prevent broadcast storms and provide rapid topology convergence, typically under 50ms, supports 8 instances and 16 rings.
Bridge Protocol Data Unit (BPDU) Tunneling
Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
Port Mirroring and RSPAN
Duplicates port traffic (ingress and egress) to a monitoring port; supports 4 mirroring groups; RSPAN mirrors traffic from source ports or VLANs across multiple, physically distributed switches to a centralized destination device remotely
Internet Group Management Protocol (IGMP)
Controls and manages the flooding of multicast packets in a Layer 2 network
Layer 3 Services
Address Resolution Protocol (ARP)
Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
Domain Name System (DNS)
Provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server
Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks; supports DHCP Server, DHCP Client, DHCP Relay, DHCP Rogue Server Check
Virtual Router Redundancy Protocol (VRRP) and VRRPe
An open-standard IETF protocol that provides network redundancy by allowing multiple routers to act as a single virtual default gateway
Loopback Interface Address
Defines an address that can always be reachable, improving diagnostic capability
User Datagram Protocol (UDP) Helper Function
Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP
Layer 3 Routing
IPv4 and IPv6 Static IP Routing
Provides manually configured routing for both IPv4 and IPv6 networks
IPv4 and IPv6 Policy Based Routing
Route packets based on custom policies (source IP, application, port) rather than just the destination IP address; it enables granular control for steering specific traffic, such as directing sensitive data over secure links or managing Quality of Service (QoS)
Open Shortest Path First (OSPF)
An Interior Gateway Protocol (IGP) that uses a link state routing algorithm; supports OSPFv1/v2 and OSPFv3
Routing Information Protocol (RIP)
Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 and RIPng routing; includes loop protection
Multi-VRF Customer Edge (MCE or VRF-Lite) to support multiple virtual routing and forwarding (VRF) tables, separating traffic for different customers or internal departments over a single physical link to a provider edge (PE) router and significantly reducing hardware costs. Supports up to 32 VPN instances.
Multicast
Internet Group Management Protocol (IGMP)
Utilizes Any-Source Multicast (ASM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3
IGMP Snooping and PIM snooping
Allow multiple VLANs to receive the same IPv4 multicast traffic and prevent unnecessary flooding between host and switch as well as between the switches
Multicast Listener Discovery (MLD)
Enables discovery of IPv6 multicast listeners; support MLD v1 and v2
Multicast VLAN Registration (MVR), MVR+, MVRP
Used to efficiently manage and distribute multicast traffic—typically IPTV or video services—across a network without needing complex Layer 3 routing. MVR+ allows for advanced or enhanced implementations of MVR, which provides improved control over how multicast traffic is delivered, filtered, and managed
IPv6
IPv6 Host
Enables switches to be managed in an IPv6 network
Dual Stack (IPv4 and IPv6)
Transitions from IPv4 to IPv6, supporting connectivity for both protocols
MLD Snooping
Forwards IPv6 multicast traffic to the appropriate interface
IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic
IPv6 static routing, Policy Based Routing and Dynamic Routing
Supports static, IPv6 PBR, RIPng and OSPFv3
Management
Secure Web GUI
Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
Industry-standard CLI
With a hierarchical structure for reduced training time and expense. Delivers increased productivity in multivendor environments
Remote Configuration and Management
Enables configuration and management through a secure Web browser or a CLI located on a remote device
Smart Management Center (SmartMC)
Embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It is made available at no additional cost and offers centralized configuration backup, software version management and seamless switch replacement.
HPE Intelligent Management Center (IMC)
Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more
Network Management
SNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access
REST API interface
Programmable interface for seamless integration into 3rd party dashboards
sFlow (RFC 3176)
Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
TFTP and SFTP
support offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/IP network; Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Manager and Operator Privilege Levels
Provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
Command Authorization
Leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail
Multiple Configuration Files
Stores easily to the flash image
Session Logging
Provides detailed information for problem identification and resolution
Remote Monitoring (RMON)
Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group; supports RMON1 and RMON2
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
Management VLAN
Segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and SNMP
Remote Intelligent Mirroring
Mirrors ingress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network
Device Link Detection Protocol (DLDP)
Monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loops
IPv6 Management
Provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6
Troubleshooting
Ingress and egress port monitoring enables network problem-solving; Virtual Cable Tests (VTC) provide visibility into cable problems
Security
Secure Boot
Verifies digital signatures to help prevent unauthorized or malicious software from loading at startup
Access Control Lists (ACLs)
Provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL
IEEE 802.1X
Industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server
Remote Authentication Dial-In User Service (RADIUS)/HWTACACS
Eases switch management security administration by using a password authentication server
MAC-based Authentication
Client is authenticated with the RADIUS server based on the client's MAC address
Identity-driven Security and Access Control
- – Per-user ACLs
- Permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data
- – Automatic VLAN assignment
- Automatically assigns users to the appropriate VLAN based on their identities
Secure Management Access
Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS, TLS, and/or SNMPv3
Secure FTP/ SCP
Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
Guest VLAN
Provides a browser-based environment to authenticated clients similar to IEEE 802.1X
Private VLAN (PVLAN)
Improves network security by allowing virtual organization of devices regardless of their physical location and enhances performance by reducing traffic congestion
Port Security
Allows access only to specified MAC addresses, which can be learned or specified by the administrator
Port Isolation
Secures and adds privacy, and prevents malicious attackers from obtaining user information
STP BPDU Port Protection
Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
STP Root Guard
Protects the root bridge from malicious attacks or configuration mistakes
Dynamic ARP Protection and Rate Limiting
Blocks ARP broadcasts from unauthorized hosts and preventing eavesdropping or theft of network data
DHCP Snooping and DHCP Relay Option 82
Prevent malicious denial-of-service attacks by acting as a firewall between untrusted hosts and trusted DHCP servers. Support DHCP snooping option 82, DHCP Relay option 82, DHCP snooping trust, DHCP snooping item backup
IP Source Guard
Prevent IP spoofing attacks
Device support
Prestandard PoE Support
Detects and provides power to prestandard PoE devices such as wireless LAN access points and IP phones
Convergence
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Facilitates easy mapping using network management applications with LLDP automated device discovery protocol
LLDP-MED
Is a standard extension that automatically configures network devices, including LLDP-capable IP phones
LLDP-CDP compatibility
Receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation
Bidirectional Forwarding Detection (BFD)
Allows rapid failure detection (often in milliseconds) between adjacent network devices
IEEE 802.3at Power over Ethernet (PoE+)
Provides up to 30 W per port for devices such as IP phones, wireless access points, and security cameras, as well as IEEE 802.3af-compliant IoT end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary
Auto PoE Power Configuration and Allocations
Assigns the required power to a port for a PD device based on Link Layer Discovery Protocol (LLDP); supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power
Voice VLAN
Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
IP Multicast Snooping (data-driven IGMP)
Prevents flooding of IP multicast traffic
Additional Information
Energy Efficient Ethernet (EEE)
Reduces power consumption in accordance with IEEE 802.3az
Green initiative support
Provides support for RoHS and WEEE regulations
Built-in 6 kV surge protection technology
Reduce the risk of power strikes in demanding environments such as construction sites
Warranty and Support
Limited Lifetime Warranty
See the HPE Aruba Networking Product Warranty Quick Reference Guide for warranty information included with your product purchase.
Software Releases
To find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html
Configuration Information
BTO Models | |
| Switch Chassis | |
| Description | SKU |
| HPE Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch | S6X52A |
| HPE Networking CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 390W Switch | S6X53A |
| HPE Networking CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 770W Switch | S6X54A |
| HPE Networking CW 2150 24p 10M/100M/1G 4p SFP+ 1G/10G Switch | S6X50A |
| HPE Networking CW 2150 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 405W Switch | S6X51A |
| HPE Networking CW 2150 16p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 248W Switch | S6X55A |
| HPE Networking CW 2150 8p 10M/100M/1G 2p SFP 1G 2p SFP+ 1G/10G Switch | S6X56A |
| HPE Networking CW 2150 8p 10M/100M/1G PoE+ 2p SFP 1G 2p SFP+ 1G/10G 125W Switch | S6X57A |
TransceiversSFP Transceivers | |
| Description | SKU |
| HPE Networking X120 1G SFP LC SX Transceiver | JD118B |
| HPE Networking X120 1G SFP LC LX Transceiver | JD119B |
| HPE Networking X120 1G SFP RJ45 T Transceiver | JD089B |
| HPE Networking X120 1G SFP LC BX 10-U Transceiver | JD098B |
| HPE Networking X120 1G SFP LC BX 10-D Transceiver | JD099B |
| HPE Networking X120 1G SFP LC LH100 Transceiver | JD103A |
| SFP+ Transceivers | |
| Description | SKU |
| HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver | JL740A |
| HPE Networking X130 10G SFP+ LC ER 40km Transceiver | JG234A |
| HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver | JL739A |
| HPE Networking X130 10G SFP+ LC LH 80km Transceiver | JG915A |
| HPE Networking X130 10G SFP+ LC SR Transceiver | JD092B |
| HPE Networking X130 10G SFP+ LC LR Transceiver | JD094B |
| HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver | JL737A |
| HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver | JL738A |
Cables | |
| Description | SKU |
| HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable | JD097C |
| HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable | JG081C |
| HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable | JD095C |
| HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable | JD096C |
| HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable | JL290A |
| HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable | JL291A |
| HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable | JL292A |
| Switch Rack Mount Kits | |
| Description | SKU |
| HPE Networking Comware 5140 Rack Mount Kit | R8M91A |
Technical Specifications
HPE Networking CW 2150 Switch Series | |||
|---|---|---|---|
| Specifications | S6X52A | S6X53A | S6X54A |
| Description | HPE NW CW 2150 48G 4P Sw | HPE NW CW 2150 48G PoE+ 4P 390W Sw | HPE NW CW 2150 48G PoE+ 4P 770W Sw |
| Fixed Ports | 48x10/100/1000BASE-T 4*1G/10GBASE-X SFP+ | 48x10/100/1000BASE-T PoE+ 4x1G/10GBASE-X SFP+ | 48x10/100/1000BASE-T PoE+ 4x1G/10GBASE-X SFP+ |
| Additional Ports | 1xRJ45 Console 1xOOBM 1 xUSB Type C | 1xRJ45 Console 1xOOBM 1 xUSB Type C | 1xRJ45 Console 1xOOBM 1 xUSB Type C |
| Power supplies | Fixed | Fixed | Fixed |
| Fans | Fanless | 2 | 2 |
| Physical Characteristics | |||
| Dimensions | 440mm×260mm×44mm | 440mm×260mm×44mm | 440mm×260mm×44mm |
| Weight | ≤ 3.6kg | ≤ 4.1kg | ≤ 4.2kg |
| CPU | ARM 1.2GHz @ Dual Core | ARM 1.2GHz @ Dual Core | ARM 1.2GHz @ Dual Core |
| Memory and Flash | 1GB SDRAM 512MB Flash | 1GB SDRAM 512MB Flash | 1GB SDRAM 512MB Flash |
| Packet Buffer | 1.5MB | 1.5MB | 1.5MB |
| Performance | |||
| Forwarding Capacity | 176Gbps | 176Gbps | 176Gbps |
| Throughput | 131Mpps | 131Mpps | 131Mpps |
| Average Latency | GE: <5us 10GE:<3us | GE: <5us 10GE:<3us | GE: <5us 10GE:<3us |
| Stacking Members | 9 | 9 | 9 |
| Switched virtual interface | 32 | 32 | 32 |
| Mac address table | 16K | 16K | 16K |
| IPv4 Routes | 1500 | 1500 | 1500 |
| IPv4 host table (ARP) | 1024 | 1024 | 1024 |
| IPv6 Routes | 512 | 512 | 512 |
| IPv6 Host Table (ND) | 512 | 512 | 512 |
| IGMP groups | 500 | 500 | 500 |
| MLD groups | 500 | 500 | 500 |
| ACL (Ingress/Egress) | 1024 | 1024 | 1024 |
| VRF | 32 | 32 | 32 |
| SmartMC Management | |||
| SmartMC Management Role | Topology Master (TM) and Topology Client (TC) | Topology Master (TM) and Topology Client (TC) | Topology Master (TM) and Topology Client (TC) |
| Environment | |||
| Operating Temperature | 23°F to 122°F (–5°C to 50°C) | 23°F to 122°F (–5°C to 50°C) | 23°F to 122°F (–5°C to 50°C) |
| Operating Relative Humidity | 5% to 95%, noncondensing | 5% to 95%, noncondensing | 5% to 95%, noncondensing |
| Non-operating Temperature | –40°F to 158°F (–40°C to 70°C) | –40°F to 158°F (–40°C to 70°C) | –40°F to 158°F (–40°C to 70°C) |
| Non-operating storage humidity | 5% to 95%, noncondensing | 5% to 95%, noncondensing | 5% to 95%, noncondensing |
| Acoustic (ISO7779) | - | 37.6/45.5dB | 32.9/60.0dB |
| Electric Characteristics | |||
| Power Rating | A C: 90V to 264V | AC: 90 to 290V | AC: 90 to 290V |
| Power Consumption | Idle: 13W Typical: 31W Full Load: 42W | Idle: 29W Typical: 54W Full Load: 512W (POE 390W) | Idle: 35W Typical: 56W Full Load: 969W (POE 770W) |
| PoE Power | Non-PoE | 390W | 770W |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance | ||
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A | ||
| Immunity | EN 55024 EN 300 386 | ||
| Mounting and Enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) | ||
| Management | Web GUI, Command-line interface (CLI), SmartMC Web, IMC - Intelligent Management Center (IMC), Airwave, SNMP manager and Rest AP | ||
| Warranty | Limited lifetime warranty. See the warranty duration guide | ||
| Services | See the HPE website at http://www.hpe.com/networking/servicesfor details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office. | ||
HPE Networking CW 2150 Switch Series | |||
|---|---|---|---|
| Specifications | S6X50A | S6X51A | S6X55A |
| Description | HPE NW CW 2150 24G 4P Sw | HPE NW CW 2150 24G PoE+ 4F 4P 405W Sw | HPE NW CW 2150 16G PoE+ 4P 248W Sw |
| Fixed Prts | 24x10/100/1000BASE-T 4x 1G/10GBASE-X SFP+ | 24x10/100/1000BASE-T PoE+ 4x100/1000BASE-X SFP Combo 4x1G/10GBASE-X SFP+ | 16x10/100/1000BASE-T PoE+ 4x1G/10GBASE-X SFP+ |
| Additional Ports | 1xRJ45 Console 1xOOBM 1 xUSB Type C | 1xRJ45 Console 1xOOBM 1 xUSB Type C | 1xRJ45 Console 1xOOBM 1 xUSB Type C |
| Power supplies | Fixed | Fixed | Fixed |
| Fans | Fanless | 2 | 1 |
| Physical Characteristics | |||
| Dimensions | 440mm×160mm×44mm | 440mm×260mm×44mm | 440mm×260mm×44mm |
| Weight | ≤2.0kg | ≤3.6kg | ≤3.6kg |
| CPU | ARM 1.2 GHz @ Dual Core | ARM 1.2 GHz @ Dual Core | ARM 1.2 GHz @ Dual Core |
| Memory and Flash | 1GB SDRAM 512MB Flash | 1GB SDRAM 512MB Flash | 1GB SDRAM 512MB Flash |
| Packet Buffer | 1.5MB | 1.5MB | 1.5MB |
| Performance | |||
| Forwarding Capacity | 128Gbps | 128Gbps | 176Gbps |
| Throughput | 95.2Mpps | 95.2Mpps | 83.3Mpps |
| Average Latency | GE: <5us 10GE:<3us | GE: <5us 10GE:<3us | GE: <5us 10GE:<3us |
| Stacking Members | 9 | 9 | 9 |
| Switched virtual interface | 32 | 32 | 32 |
| Mac Address Table | 16K | 16K | 16K |
| IPv4 Routes | 1500 | 1500 | 1500 |
| IPv4 host table (ARP) | 1024 | 1024 | 1024 |
| IPv6 Routes | 512 | 512 | 512 |
| IPv6 Host Table (ND) | 512 | 512 | 512 |
| IGMP groups | 500 | 500 | 500 |
| MLD groups | 500 | 500 | 500 |
| ACL (Ingress/Egress) | 1024 | 1024 | 1024 |
| VRF | 32 | 32 | 32 |
| Smart MC Management | |||
| SmartMC Role | Topology Master (TM) and Topology Client (TC) | Topology Master (TM) and Topology Client (TC) | Topology Master (TM) and Topology Client (TC) |
| Environment | |||
| Operating Temperature | 23°F to 122°F (–5°C to 50°C) | 23°F to 122°F (–5°C to 50°C) | 23°F to 122°F (–5°C to 50°C) |
| Operating Relative Humidity | 5% to 95%, non-condensing | 5% to 95%, non-condensing | 5% to 95%, non-condensing |
| Non-operating Temperature | –40°F to 158°F (–40°C to 70°C) | –40°F to 158°F (–40°C to 70°C) | –40°F to 158°F (–40°C to 70°C) |
| Non-operating storage humidity | 5% to 95%, non-condensing | 5% to 95%, non-condensing | 5% to 95%, non-condensing |
| Acoustic (ISO7779) | - | 37.6/45.5dB | 37.6/45.5dB |
| Electric Characteristics | |||
| Power Rating | A C: 90V to 264V | AC: 90 to 290V | AC: 90 to 290V |
| Power Consumption | Idle: 6W Typical: 16W F ull Load: 21W | Idle: 23W Typical: 35W Full Load: 465W (POE 405W) | Idle: 25W Typical: 38W Full Load: 317W (POE 248W) |
| PoE Power | Non-PoE | 405W | 248W |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance | ||
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A | ||
| Immunity | EN 55024 EN 300 386 | ||
| Mounting and Enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) | ||
| Management | Web GUI, Command-line interface (CLI), SmartMC Web, IMC - Intelligent Management Center (IMC), Airwave, SNMP manager and Rest AP | ||
| Warranty | Limited lifetime warranty. See the warranty duration guide | ||
| Services | See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office. | ||
HPE Networking CW 2150 Switch Series | ||
|---|---|---|
| Specifications | S6X56A | S6X57A |
| Description | HPE NW CW 2150 8G 2F 2P Sw | HPE NW CW 2150 8G PoE+ 2F 2P 125W Sw |
| Fixed Ports | 8x10/100/1000BASE-T 2x1000BASE-X SFP 2x1G/10G BASE-X SFP+ | 8x10/100/1000BASE-T PoE+ 2x1000BASE-X SFP 2x1G/10G BASE-X SFP+ |
| Additional Ports | 1xRJ45 Console 1xOOBM 1 xUSB Type C | 1xRJ45 Console 1xOOBM 1 xUSB Type C |
| Power supplies | Fixed | Fixed |
| Fans | Fanless | Fanless |
| Physical Characteristics | ||
| Dimensions | 266mm×161mm×44mm | 266mm×161mm×44mm |
| Weight | ≤1.1kg | ≤1.5kg |
| CPU | ARM 1.2GHz @ Dual Core | ARM 1.2GHz @ Dual Core |
| Memory and Flash | 1GB SDRAM 512MB Flash | 1GB SDRAM 512MB Flash |
| Packet Buffer | 1.5MB | 1.5MB |
| Performance | ||
| Forwarding Capacity | 60Gbps | 60Gbps |
| Throughput | 44.6Mpps | 44.6Mpps |
| Average Latency | GE: <5us 10GE:<3us | GE: <5us 10GE:<3us |
| Stacking Members | 9 | 9 |
| Switched virtual interface | 32 | 32 |
| Mac Address Table | 16K | 16K |
| IPv4 Routes | 1500 | 1500 |
| IPv4 host table (ARP) | 1024 | 1024 |
| IPv6 Routes | 512 | 512 |
| IPv6 Host Table (ND) | 512 | 512 |
| IGMP groups | 500 | 500 |
| MLD groups | 500 | 500 |
| ACL (Ingress/Egress) | 1024 | 1024 |
| VRF | 32 | 32 |
| Smart MC Management | ||
| SmartMC Role | Topology Master (TM) and Topology Client (TC) | Topology Master (TM) and Topology Client (TC) |
| Environment | ||
| Operating Temperature | 23°F to 122°F (–5°C to 50°C) | 23°F to 122°F (–5°C to 50°C) |
| Operating Relative Humidity | 5% to 95%, noncondensing | 5% to 95%, noncondensing |
| Non-operating Temperature | –40°F to 158°F (–40°C to 70°C) | –40°F to 158°F (–40°C to 70°C) |
| Non-operating storage humidity | 5% to 95%, noncondensing | 5% to 95%, noncondensing |
| Acoustic (ISO7779) | - | - |
| Electric Characteristics | ||
| Power Rating | A C: 90V to 264V | AC: 90 to 264V |
| Power Consumption | Idle: 5W Typical: 8W F ull Load: 16W | Idle: 8W Typical: 10W Full Load: 152W (POE 125W) |
| PoE Power | Non-PoE | 125W |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance | |
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A | |
| Immunity | EN 55024 EN 300 386 | |
| Mounting and Enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) | |
| Management | Web GUI, Command-line interface (CLI), SmartMC Web GUI, IMC - Intelligent Management Center (IMC), Airwave, SNMP manager and Rest AP | |
| Warranty | Limited lifetime warranty. See the warranty duration guide | |
| Services | See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office. | |
Summary of Changes
| Date | Version History | Action | Description of Change: |
|---|---|---|---|
| 06-Apr-2026 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Products within this series are IPv6 Ready certified. See the Specifications section of this series for more information.
To learn more, visit: http://www.hpe.com/networking
a50009251enw, 17283 - Worldwide - V1 - 06-April-2026
