The HPE SR Gen10 Plus Controllers supporting 12Gb/s SAS and PCIe 4.0, are ideal for maximizing performance while supporting advanced RAID levels with up to 8 GB flash-backed write cache (FBWC).

These tri-mode (SAS/SATA/NVMe) controllers operate in Mixed Mode which combines RAID and HBA operations simultaneously. The SR Gen10 Plus controller portfolio provides the ability to support internally attached drives. The HPE SR Gen10 Plus Controllers also offer encryption for data-at-rest on any drive with Secure Encryption. These controllers provide enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.

The HPE SR932i-p Gen10 Plus is the industry's most versatile, highest performing and secure PCIe RAID Adapter for applications ranging from SMB to Enterprise and Mission-Critical applications. The HPE SR932i-p Gen10 Plus adapter offers 16-lanes of PCIe Gen 4 host bandwidth with 32 Tri-Mode (SAS/SATA/NVME) lanes supporting up to 32 direct-connected storage devices. The HPE SR932i-p Gen10 Plus adapter is tailored for maximum performance for RAID and HBA applications, enabling up to 46GB/s bi-directional throughput and up to 3.5M IOPs, giving the adapter the necessary capabilities and flexibility to meet the needs of the most demanding applications.

The HPE SR416i-a Gen10 Plus is a versatile, high performance and secure HPE SR Gen10 Plus Controllers for applications ranging from SMB to Enterprise and Mission-Critical applications. The HPE SR416i-a Gen10 Plus is built around the trusted SmartArray (SR) storage stack and offers 8-lanes of PCIe Gen 4 host bandwidth with 16 Tri-Mode (SAS/SATA/NVME) lanes supporting up to 16 direct-connected storage devices. The HPE SR416i-a Gen10 Plus adapter is tailored for best-in-class performance and bandwidth for RAID and HBA applications, enabling up to 24GB/s of bi-directional throughput and up to 3.5M IOPs. This Type-a flexible/modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.

Additional benefits include:

• − (SR932) Unparalleled RAID 5 Write Performance: Up to 12GB/s throughput and up to 850K IOPs
• − (SR932)high-speed 144b DDR4 8GB cache with integrated cache protection to accelerate RAID and cache performance
• − (SR416) Industry leading RAID5 Write Performance: Up to 6.5GB/s throughput and 550K IOPS
• − (SR416) 4GB high-speed DDR4-3200 cache with integrated cache protection to accelerate RAID and cache performance
• − Integrated Switchtec™ PCIe switch enabling the highest performance and lowest latency access to NVMe storage devices for HBA and RAID modes

Kit Contents

Includes controller, documentation information card, warranty statement, and battery required card.

Notes: The HPE Smart Storage Battery is not included in the kit and is required with RAID controllers that include cache.

Operating System Support

• – Microsoft Windows Server
• – Red Hat Enterprise Linux (RHEL)
• – SUSE Linux Enterprise Server (SLES)
• – VMware ESXi
• – Canonical Ubuntu

Notes: HPE SR Gen10 Plus Controllers are supported by the server operating system. For more information on

HPE's server operating systems and virtualization software, please visit: http://www.hpe.com/info/ossupport

Storage Management Software Suite

HPE SR Gen10 Plus Controllers

• – Smart Storage Administrator (SSA) GUI
• – Smart Storage Administrator (SSA) CLI
• – Smart Storage Administrator (SSA) Scripting
• – HPE Intelligent Provisioning
• – UEFI System Utilities (storage configuration)
• – UEFI Storage RESTful

Notes: For additional information see the HPE SR Gen10 Plus Controllers Guide at:

https://www.hpe.com/info/SRGen10PlusControllers

Additional Information

HPE SR Gen10 Plus Controllers

For additional information on the features for HPE SR Gen10 Plus Controllers, please see the HPE SR Gen10 Plus User Guide, and HPE SR Secure Encryption Installation and User Guide at:

http://www.hpe.com/info/SmartArrayGen10PLUS-docs

GUI Management Tool

Smart Storage Administrator

The Smart Storage Administrator is a web-based application that enables you to monitor, maintain, troubleshoot, and configure HPE SR Gen10 Plus Controllers. The Smart Storage Administrator graphical user interface (GUI) helps you to view, create, and manage storage configurations.

• − Monitoring and Configuring: Smart Storage Administrator enables you to monitor the controllers and configure the drives on the controller. It displays the status of the controller cards, logical drives, and drives on the controller. The device status icons are displayed on their respective pages to notify you in case of drive failures and other events that require your immediate attention. Real-time email notifications on the status of the server are sent based on your alert settings. The system errors and events are recorded and displayed in an event log file. Additionally, you can also import or clear foreign configurations.

  • Notes: Limited alerting and monitoring is available via iLO when HPE Agentless Management Service is installed
• − Maintaining: Using Smart Storage Administrator, you can perform system maintenance tasks, such as updating the controller firmware
• − Troubleshooting: Smart Storage Administrator displays information related to drive failures, device failures, and so on. It also provides recommendations and displays contextual links, helping you to easily locate the drives/devices that have issues and troubleshoot them. You can also download a complete report of the all the devices and their configurations, properties, and settings and send it to the Support Teams for further troubleshooting.

Please refer to the Smart Storage Administrator User Guide for more detailed information.

Notes: The HPE SR Gen10 Plus Controllers is managed through the HPE Smart Storage Administrator only.

CLI Management Tool

The Smart Storage Administrator Command Line Interface (SSACLI) tool is the command line management software designed for the HPE SR Gen10+ product line. The SSACLI tool is a command line interface that is designed to be easy to use, consistent, and easy to script. This chapter provides information on how to install and use the SSACLI tool and explains the various features of the SSACLI tool.

Please refer to the HPE Support Centerfor more detailed information.

Know your choices when it comes to HPE ProLiant and data storage

Key Features

• − 16-lane (x16) (SR932i-p) or 8-lane (x8) (SR416i-a) PCIe Gen4 host interface
• − SR932i-p: 32 Internal Tri-Mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 32 direct-connected SAS/SATA/NVMe devices
• − SR416i-a: 16 Internal Tri-Mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 16 direct-connected SAS/SATA/NVMe devices
• − Hardware RAID: RAID 0, 1, 1 TP, 10, 10 TP, 5, 6, 50, 60
• − Universal Backplane Management (UBM) support – SAS/SATA and NVMe
• − SR932i-p: 144b DDR4-3200 8GB high speed DRAM cache with integrated cache protection using HPE Smart Storage Battery solution
• − SR416i-a: 4GB 72b DDR4-3200 cache with integrated cache protection using HPE Smart Storage Battery solution
• − SR:932i-p: Performance: Up to 46GB/s bi-directional throughput and up to 3.5M IOPs
• − SR416i-a: Up to 24GB/s of bi-directional throughput and up to 3.5M IOPs
• − Enclosure Management Support – SAS/SATA: SES (SAS expander-based backplanes), SGPIO (direct attached SAS/SATA backplanes)
• − Secure boot, secure update, secure debug and attestation
• − Data-At-Rest Encryption support using Controller-Based Encryption(CBE) for SAS, SATA and NVMe devices
• − SmartCache SSD caching
• − Mixed mode and HBA mode support
• − Support for up to 238 SSDs/HDDs
• − Support for NVMe target devices with Gen 3/4 interfaces (x1, x2, x4, and x8 wide interfaces)
• − Support for 64 logical drives/RAID arrays
• − Support for 512-byte SAS/SATA/NVMe devices
• − Integrated cache protection using HPE Smart Storage Battery solution

Warranty

The warranty for this device is 3 years parts only.

Warranty Upgrade Options

• – Response - Upgrade on-site response from next business day to same day 4 hours.
• – Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days.
• – Duration - Select duration of coverage for a period of 1, 3, or 5 years.

Warranty upgrade options can come in the form of HPE Services operational, which are sold at the HPE System level to which this product attaches.

Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

Predictive drive failure detects possible drive failure before it occurs, allowing replacement of the component before failure occurs.

Background surface scan checks drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.

HPE SmartSSD Wear Gauge reports the amount of lifetime remaining on your SSDs.

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating.

On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically. DRAM ECC detects and corrects data bit errors.

HPE SSD Smart Path

The HPE SSD Smart Path feature included in the HPE SR Gen10+ software stack improves Solid State Disk (SSD) read performance by up to 4x. HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes.

SmartCache

The SmartCache feature is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The SmartCache architecture is flexible and supports any HPE ProLiant Gen10 or Gen10 Plus HDD for bulk storage and SSD as an accelerator. SmartCache is deployed and managed using the Smart Storage Administrator (SSA). SmartCache requires an optional license (see Related Options section below for more information on the license).

For additional information please visit: http://www.hpe.com/servers/smartcache .

Secure Encryption (optional license)

Secure Encryption is an SR controller-based data encryption solution that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data-at-rest on any drives attached to the HPE SR controllers including data on the controller cache. Secure Encryption requires an optional license per server (see Related Options for more information on the license).

The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Primary key per controller that is managed by the user. Remote Key Management Mode is for enterprise-wide deployments from just a few servers to thousands of servers.

For more information on please visit: http://www.hpe.com/servers/secureencryption

Naming Framework

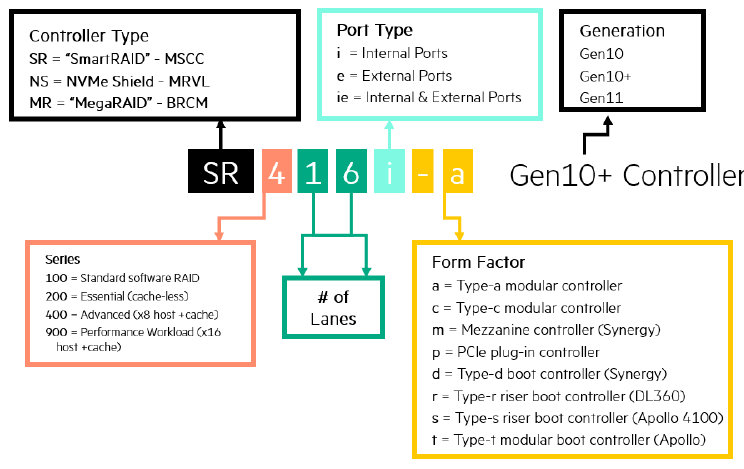

The Gen10 controller naming framework is illustrated below to help simplify controller identification.
