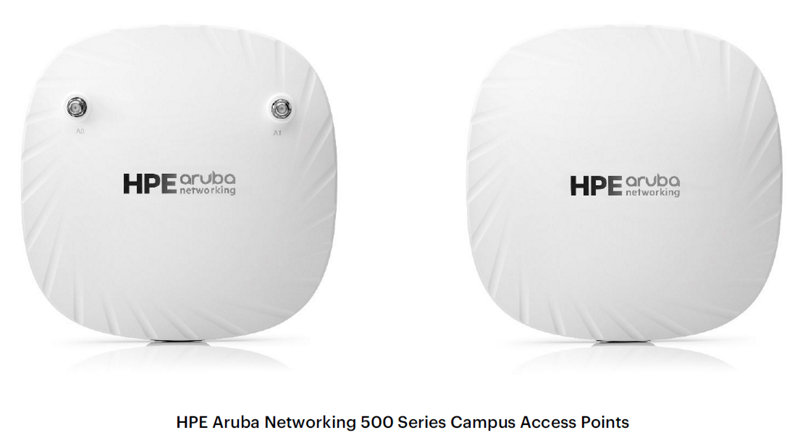

HPE Aruba Networking 500 Series Campus Access Points QuickSpecs
Table of Contents
Cost-Effective Wi-Fi 6 (802.11ax) For Medium-Density Indoor Environments
These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum real‑world aggregate data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.
Overview
Key Features
- – 1.49 Gbps maximum real-world speed (HE80/HE20)
- – WPA3 and Enhanced Open security
- – Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
- – OFDMA and MU-MIMO for enhanced multi-user efficiency
- – IoT-ready Bluetooth 5 and Zigbee support
- – Flexible management choices
Standard Features
Incredible Efficiency
The HPE Aruba Networking 500Series Campus Access Points are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 500 series provides groundbreaking wireless capabilities for budget-conscious deployments.
Advantages of OFDMA
This capability allows HPE Aruba Networking’s access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.
Client Optimization
HPE Aruba Networking’s patented AI-powered ClientMatch technology eliminates sticky client issues by placing client devices on the best available access point. Session metrics are used to steer mobile devices to the best access point based on available bandwidth, types of applications being used and traffic type – even as users roam.
Reduce Interference
Unique to HPE Aruba Networking, Advanced Cellular Coexistence (ACC) uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.
Intelligent Power Monitoring (IPM)
HPE Aruba Networking access points continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power — ideal when wired switches have exhausted their power budget.
IoT Platform Capabilities
Like other HPE Aruba Networking Wi-Fi 6 access points, the 500 series includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors. This allows organizations to leverage the 500 series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
Target Wake Time (TWT)
Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an access point. This helps improve client power savings and reduces airtime contention with other clients.
WPA3 and Enhanced Open
Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise protected networks.
Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks.
WPA2-MPSK
MPSK enables simpler passkey management for WPA2 devices – should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. Requires ClearPass Policy Manager.
VPN Tunnels
In Remote access point (RAP) and IAP-VPN deployments, the 500 series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator.
Trusted Platform Module (TPM)
For enhanced device assurance, all HPE Aruba Networking access points have an installed TPM for secure storage of credentials and keys, and boot code.
Simple and Secure Access
To simplify policy enforcement, the HPE Aruba Networking 500 series uses HPE Aruba Networking’s policy enforcement firewall (PEF) feature to encapsulate all traffic from the access point to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs.
High-Density Connectivity
Each 500 series access point provides connectivity for a maximum of 256 associated clients per radio (512 in total). In real-world scenarios, the maximum recommended client density is dependent on environmental conditions.
Flexible Operation and Management
Our unified access points can operate as standalone access points or with a gateway for greater scalability, security, and manageability. Access points can be deployed using Zero Touch Provisioning — without on-site technical expertise — for ease of implementation in branch offices and for remote work.
HPE Aruba Networking access points can be managed using cloud-based or on-premises solutions for any campus, branch, or remote work environment. HPE Aruba Networking Central provides a single pane of glass for overseeing every aspect of wired and wireless LANs, WANs, and VPNs.
AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built
natively into the solution.
Configuration Information
BTO Models | ||
| Remarks | Description | SKU |
| | 505 Internal Antenna Access Points | |
| Notes: | Add Mount Kit | |
| 3 | HPE Aruba Networking AP-505 (EG) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H25A |
| 4 | HPE Aruba Networking AP-505 (IL) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H26A |
| 5 | HPE Aruba Networking AP-505 (JP) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H27A |
| 1, 8 | HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H28A |
| 2, 9 | HPE Aruba Networking AP-505 (US) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H29A |
| 6 | HPE Aruba Networking AP-505 (ID) Dual Radio 2x2 802.11ax Internal Antennas Campus Access Point | S5D85A |
| | 505 Internal Antenna Access Points - 10-Pack Eco-Friendly Bundle | |
| Notes: | Add 10 mount kits; eco-pack includes one JY728A console adapter cable | |
| 1 | HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 Wi-Fi 6 10-pack Campus Access Point | S3J27A |
| 2 | HPE Aruba Networking AP-505 (US) Dual Radio 2x2 Wi-Fi 6 10-pack Campus Access Point | S3J28A |
| | 504 External Antenna Access Points | |
| Notes: | Add Mount Kit, Antennas | |
| 3 | HPE Aruba Networking AP-504 (EG) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H19A |
| 4 | HPE Aruba Networking AP-504 (IL) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H20A |
| 5 | HPE Aruba Networking AP-504 (JP) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H21A |
| 1 | HPE Aruba Networking AP-504 (RW) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H22A |
| 2 | HPE Aruba Networking AP-504 (US) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H23A |
| | 505 Internal Antenna Access Points - TAA Models | |
| Notes: | Add Mount Kit | |
| 3 | HPE Aruba Networking AP-505 (EG) TAA Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H35A |
| 4 | HPE Aruba Networking AP-505 (IL) TAA Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H36A |
| 5 | HPE Aruba Networking AP-505 (JP) TAA Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H37A |
| 1 | HPE Aruba Networking AP-505 (RW) TAA Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H38A |
| 2 | HPE Aruba Networking AP-505 (US) TAA Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP | R2H39A |
| | 504 External Antenna Access Points - TAA Models | |
| Notes: | Add Mount Kit, Antennas | |
| 3 | HPE Aruba Networking AP-504 (EG) TAA Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H30A |
| 4 | HPE Aruba Networking AP-504 (IL) TAA Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H31A |
| 5 | HPE Aruba Networking AP-504 (JP) TAA Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H32A |
| 1 | HPE Aruba Networking AP-504 (RW) TAA Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H33A |
| 2 | HPE Aruba Networking AP-504 (US) TAA Dual Radio 2x2 802.11ax External Antennas Unified Campus AP | R2H34A |
| | Configuration Rules | |
| Rule# | Description | SKU |
| 1 | Available everywhere except US, Israel, Egypt, Indonesia and Japan. Partners must have an SOT (Cross border agreement). | |
| 2 | Available in US only. Partners must have an SOT (Cross border agreement). | |
| 3 | Available in Egypt only. Partners must have an SOT (Cross border agreement). | |
| 4 | Available in Israel only. Partners must have an SOT (Cross border agreement). | |
| 5 | Available in Japan only. Partners must have an SOT (Cross border agreement). | |
| 6 | Available in Indonesia only. Partners must have an SOT (Cross border agreement). | |
| 8 | If the ordered qty of this AP is greater than or equal to 10, then the default will be the following Eco-Friendly 10-Pack(s) with the remainder as individual packs. Allow user to change the full quantity easily back to individual packs; | |
| | HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 Wi-Fi 6 10-pack Campus Access Point | S3J27A |
| | If ordering greater than or equal to qty10 of this AP, consider ordering the Eco-Friendly 10-Packs(S3J27A). Please revert back to single pack if individual sale is desired. | |
| 9 | If the ordered qty of this AP is greater than or equal to 10, then the default will be the following Eco-Friendly 10-Pack(s) with the remainder as individual packs. Allow user to change the full quantity easily back to individual packs; | |
| | HPE Aruba Networking AP-505 (US) Dual Radio 2x2 Wi-Fi 6 10-pack Campus Access Point | S3J28A |
| | If ordering greater than or equal to qty10 of this AP, consider ordering the Eco-Friendly 10-Packs(S3J28A). Please revert back to single pack if individual sale is desired. | |
| Notes: | OCA Only Model Selection Form - HPE Aruba Networking > Wireless > Access Points > Campus: HPE Aruba Networking 500 Series Campus Access Points | |
Mount Accessories | ||
| Notes: | For 504, 505 Series Std (Min 0 // max 99) User Selection (min 0 // max 99) | |
| Remarks | Description | SKU |
| | AP Mount Kits | |
| | HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit | R3J15A |
| * | HPE Aruba Networking AP-MNT-MP10-A Campus AP 10-Pack 9/16 Flat Ceiling Rail Mount Bracket Kit | JZ370A |
| | HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit | R3J16A |
| * | HPE Aruba Networking AP-MNT-MP10-B Campus AP 10-Pack 15/16 Flat Ceiling Rail Mount Bracket Kit | Q9G69A |
| | HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit | R3J17A |
| * | HPE Aruba Networking AP-MNT-MP10-C Campus AP 10-Pack Profile 9/16 Ceiling Rail Mount Bracket Kit | Q9G70A |
| | HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit | R3J18A |
| * | HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit | Q9G71A |
| | HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit | R3J19A |
| * | HPE Aruba Networking AP-MNT-MP10-E Campus AP 10-Pack Wall-box Mount Bracket Kit | R1C72A |
| | HPE Aruba Networking AP-MNT-U Campus Access Point Type U Universal Mount Bracket Kit | S4K79A |
| * | HPE Aruba Networking AP-MNT-MP10-U Campus AP Universal 10-pack Mount Bracket Kit | S0J40A |
| * | HPE Aruba Networking AP-MNT-MP10-X Campus AP 10-Pack Mount Adapter Kit | R3T20A |
| Notes: | − *Kit contains mounts for 10 access points − Access Points do not include a Mount. Qty 1 Mount kits should be selected | |
AntennasFor 504 Std (Min 0 // max 1) User Selection (min 0 // max 1) | ||
| * | HPE Aruba Networking AP-ANT-311 Direct-Mount RP-SMA Tri-Band 1x1 Omni Dipole Antenna | S1F79A |
| * | HPE Aruba Networking AP-ANT-312 Direct-Mount RP-SMA Tri-Band 1x1 Low-Profile Omni Dipole Antenna | S1F80A |
| * | HPE Aruba Networking AP-ANT-313 Cabled RP-SMA Tri-Band 1x1 Omni Dipole Antenna | S1F81A |
| | HPE Aruba Networking AP-ANT-320 Cabled RP-SMA Tri-Band 2x2 Downtilt Omni Ceiling Antenna | S1F85A |
| | HPE Aruba Networking AP-ANT-325 Cabled RP-SMA Tri-Band 2x2 Medium Gain Directional Panel Antenna | S1F86A |
| | HPE Aruba Networking AP-ANT-328 Cabled RP-SMA Tri-Band 2x2 High Gain Directional Panel Antenna | S1F87A |
| Notes: | − *Must select Qty 0 or Qty 2 − AP-ANT-1W, and AP-ANT-20W are usually direct connect to the chassis − AP-ANT-25A,AP-ANT-28 ship with hardware for flush mount to a flat surface − AP-504 has 2x RPSMA female, concurrent dual-band connections | |
| | Antenna Mount Kits For 504 Series Std (Min 0 // max 1) User Selection (min 0 // max 1) | |
| 2 | HPE Aruba Networking AP-ANT-MNT-4 AZ/EL Adjustable Antennas Pole/Wall Mount Kit | JW021A |
| 3 | HPE Aruba Networking AP-ANT-MNT-U Universal AZ/EL Adjustable Antenna Pole Wall Mount Kit | S1J09A |
| | Configuration Rules | |
| Rule# | Description | SKU |
| 1 | Compatible with JW012A | |
| 2 | Compatible with S0A66A | |
| 3 | Compatible with S1F86A and S1F87A | |
| Notes: | – AP-ANT-MNT-3 compatible with AP-ANT-25A and AP-ANT-28 – AP-ANT-MNT-4 compatible with AP-ANT-28a – AP-ANT-MNT-U compatible with AP-ANT-325 and AP-ANT-328 | |
Power OptionsFor 504, 505 Series Std (Min 0 // max 1) User Selection (min 0 // max 1) | ||
| | HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector | R3K00A |
| | HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector | R6P68A |
| | HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector | R6P67A |
| Notes: | – If this Power Supply is selected, bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu – Most devices are PoE powered from switch so these are optional | |
Accessories | ||
| | Snap-on Covers For 505 Series Std (Min 0 // max 99) User Selection (min 0 // max 99) | |
| | HPE Aruba Networking AP-MNT-MP10-B1 Campus AP 10-Pack 15/16 Adj Flat Ceiling Rail Mount Bracket Kit | R6T34A |
| | HPE Aruba Networking AP-505-CVR-20 20pk for AP-505 White Non-glossy Snap-On Covers | R2H24A |
| Notes: | Kit contains 20 optional snap-on covers | |
| | Other Accessories For 504, 505 Series Std (Min 0 // max 99) User Selection (min 0 // max 99) | |
| | HPE Aruba Networking AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module | R6Q99A |
| | HPE Aruba Networking AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable | JY728A |
Software | ||
| | Central | |
| | Cloud Services / Access Point Foundation Subscriptions | |
| 2, 8 | HPE Aruba Networking Central AP Foundation 1-year Subscription E-STU | Q9Y58AAE |
| 2, 8 | HPE Aruba Networking Central AP Foundation 3 year Subscription E-STU | Q9Y59AAE |
| 2, 8 | HPE Aruba Networking Central AP Foundation 5 year Subscription E-STU | Q9Y60AAE |
| 2, 8 | HPE Aruba Networking Central AP Foundation 7 year Subscription E-STU | Q9Y61AAE |
| 2, 8 | HPE Aruba Networking Central AP Foundation 10 year Subscription E-STU | Q9Y62AAE |
| | Cloud Services / Access Point Advanced Subscriptions | |
| 2, 8 | HPE Aruba Networking Central AP Advanced 1 year Subscription E-STU | Q9Y63AAE |
| 2, 8 | HPE Aruba Networking Central AP Advanced 3 year Subscription E-STU | Q9Y64AAE |
| 2, 8 | HPE Aruba Networking Central AP Advanced 5 year Subscription E-STU | Q9Y65AAE |
| 2, 8 | HPE Aruba Networking Central AP Advanced 7 year Subscription E-STU | Q9Y66AAE |
| 2, 8 | HPE Aruba Networking Central AP Advanced 10 year Subscription E-STU | Q9Y67AAE |
| | On-Prem Services / Access Point Foundation Subscriptions | |
| 3, 8 | HPE Aruba Networking Central on Prem AP Foundation 1 year Subscription E-STU | R6U63AAE |
| 3, 8 | HPE Aruba Networking Central on Prem AP Foundation 3 year Subscription E-STU | R6U64AAE |
| 3, 8 | HPE Aruba Networking Central on Prem AP Foundation 5 year Subscription E-STU | R6U65AAE |
| 3, 8 | HPE Aruba Networking Central on Prem AP Foundation 7 year Subscription E-STU | R6U66AAE |
| 3, 8 | HPE Aruba Networking Central on Prem AP Foundation 10 year Subscription E-STU | R6U67AAE |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 2 | Add the Central Cloud Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services | |
| 3 | Add the Central On-Prem Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services | |
| 6 | Add the Central FedRAMP Service Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > FedRAMP | |
| 8 | For OCA: When configuring the following AP 10-Pack, selection condition for this Subscription should be 0(default) or 10 | |
| | HPE Aruba Networking AP-503 (RW) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point | S1E83A |
| | HPE Aruba Networking AP-503 (US) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point | S1E84A |
As-a-Service | ||
| | Cloud Services / Access Point Foundation Subscriptions | |
| 7 | HPE Aruba Networking Central AP Foundation 1 year Subscription SaaS | Q9Y58AAS |
| 7 | HPE Aruba Networking Central AP Foundation 3 year Subscription SaaS | Q9Y59AAS |
| 7 | HPE Aruba Networking Central AP Foundation 5 year Subscription SaaS | Q9Y60AAS |
| 7 | HPE Aruba Networking Central AP Foundation 7 year Subscription SaaS | Q9Y61AAS |
| 7 | HPE Aruba Networking Central AP Foundation 10 year Subscription SaaS | Q9Y62AAS |
| | Cloud Services / Access Point Advanced Subscriptions | |
| 7 | HPE Aruba Networking Central AP Advanced 1 year Subscription SaaS | Q9Y63AAS |
| 7 | HPE Aruba Networking Central AP Advanced 3 year Subscription SaaS | Q9Y64AAS |
| 7 | HPE Aruba Networking Central AP Advanced 5 year Subscription SaaS | Q9Y65AAS |
| 7 | HPE Aruba Networking Central AP Advanced 7 year Subscription SaaS | Q9Y66AAS |
| 7 | HPE Aruba Networking Central AP Advanced 10 year Subscription SaaS | Q9Y67AAS |
| | Configuration Rules | |
| Rule# | Description | SKU |
| 7 | For IRIS reference only. No action required for OCX and Clic | |
Technical Specifications
Additional Wi-Fi features
Each access point also includes the following standards-based technologies:
| Transmit beamforming (TxBF) | Increased signal reliability and range |
| Passpoint Wi-Fi (release 2) (hotspot 2.0) | Seamless cellular-to-Wi-Fi carryover for guests |
| Dynamic frequency selection (DFS) | Optimized use of available RF spectrum |
| Maximum ratio combining (MRC) | Improved receiver performance |
| Cyclic delay/shift diversity (CDD/CSD) | Greater downlink RF performance |
| Space-time block coding | Increased range and improved reception |
| Low-density parity check (LDPC) | High-efficiency error correction for increased throughput |
| 802.11mc fine timing measurement (FTM) | For precision distance ranging |
Technical Specifications | ||
|---|---|---|
| Model | AP-504 | AP-505 |
| Access point type | Indoor, dual radio, 5 GHz and 2.4 GHz 802.11ax 2x2 MIMO | |
| 5 GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices | |
| 2.4 GHz radio | Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices | |
| Maximum number of associated client devices | Up to 256 associated client devices per radio | |
| Maximum number of BSSIDs | 16 BSSIDs per radio | |
| Supported frequency bands (country-specific restrictions apply) | – 2.4 GHz and 5 GHz – 2.400 to 2.4835 GHz – 5.150 to 5.250 GHz – 5.250 to 5.350 GHz – 5.470 to 5.725 GHz – 5.725 to 5.850 GHz – 5.850 to 5.895 GHz | – ISM – U-NII-1 – U-NII-2A – U-NII-2C – U-NII-3/ISM – U-NII-4 |
| Available channels | Dependent on configured regulatory domain | |
| Supported radio technologies | – 802.11b: Direct-sequence spread-spectrum (DSSS) – 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) – 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units | |
| Supported modulation types: | – 802.11b: BPSK, QPSK, CCK – 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) – 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) – 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | |
| 802.11n high-throughput (HT) support: | HT20/40 | |
| 802.11ac very high throughput (VHT) support: | VHT20/40/80 | |
| 802.11ax high efficiency (HE) support: | HE20/40/80 | |
| Supported data rates (Mbps): | – 802.11b: 1, 2, 5.5, 11 – 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 – 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM – 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM – 802.11ax (2.4 GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) – 802.11ax (5 GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) | |
| 802.11n/ac/ax packet aggregation: | A-MPDU, A-MSDU | |
| Transmit power: | Configurable in increments of 0.5 dBm | |
| Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): | 2.4 GHz band: +21 dBm (18 dBm per chain) 5 GHz band: +21 dBm (18 dBm per chain) Notes: Conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain. | |
Wi-Fi Antennas | |
|---|---|
| AP-504 | AP-505 |
| Two (female) RP-SMA connectors for external dual band antennas (A0 and A1, corresponding with radio chains 0 and 1). Worst-case internal loss between radio interface and external antenna connectors: 0.7 dB in 2.4 GHz and 1.3 dB in 5 GHz. | Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9 dBi in 2.4 GHz and 5.7 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the access point. The downtilt angle for maximum gain is roughly 30 degrees. – Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 4.3 dBi in 2.4 GHz and 5.6 dBi in 5 GHz. |
Other Interfaces | ||
|---|---|---|
| Model | AP-504 | AP-505 |
| E0: Ethernet wired network port (RJ-45) | – Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDIX – PoE-PD: 48Vdc (nominal) 802.3af/at PoE (class 3 or 4) – 802.3az Energy Efficient Ethernet (EEE) | |
| DC power interface | 12 Vdc (nominal, +/- 5%), accepts 2.1 mm/5.5 mm center-positive circular plug with 9.5mm length | |
| USB 2.0 host interface (type A connector) | Capable of sourcing up to 1A / 5W to an attached device | |
| Bluetooth low energy (BLE5.0) and Zigbee (802.15.4) radio | – BLE: up to 7 dBm transmit power (class 1) and -93 dBm receive sensitivity (1 Mbps) – Zigbee: up to 6 dBm transmit power and -96 dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.3 dBi | |
| Visual indicators (two multi-color LEDs): | For system and radio status | |
| Reset button: | Factory reset, LED mode control (normal/off) | |
| Serial console interface | Proprietary, micro-B USB physical jack | |
| Security slot | Kensington security slot | |
Power Sources and Power Consumption | ||
|---|---|---|
| Model | AP-504 | AP-505 |
| Power sources: The AP supports direct DC power and Power over Ethernet | – The access point supports direct DC power and Power over Ethernet – When both DC and PoE power sources are available, DC power takes priority over PoE – Power sources are sold separately; see the 500 Series Ordering Guide for details – When powered by DC or 802.3at (class 4) PoE, the access point will operate without restrictions – When powered by 802.3af (class 3) PoE and with the IPM feature disabled, the access point will disable the USB port. In the same configuration but with IPM enabled, the access point will start up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. The feature restrictions and order can be programmed. | |
| Maximum (worst-case) power consumption (without/with a USB device attached): | – DC powered: 8.9W / 14.2W – PoE powered (802.3at): 11.0W / 16.5W – PoE powered (802.3af): 11.0W / 13.5W – This assumes that up to 5W is supplied to the attached USB device | |
| Maximum (worst-case) power consumption in idle mode: | 4.3W (DC) or 6.2W (PoE) | |
| Maximum (worst-case) power consumption in deep-sleep mode: | 1.7W (DC) or 3.7W (PoE) | |
Mechanical Specifications | |
|---|---|
| Model | AP-505 |
| Dimensions/weight (AP-505; unit, excluding mount bracket): | 160 mm (W) x 161 mm (D) x 37 mm (H)/500g |
| Dimensions/weight (AP-505; shipping): | 193 mm (W) x 183 mm (D) x 63 mm (H)/645g |
| Mounting details | A mounting bracket has been pre-installed on the back of the access point. This bracket is used to secure the access point to any of the mount kits (sold separately); see the 500 Series Ordering Guide for details. |
Environmental Specifications | ||
|---|---|---|
| Model | AP-504 | AP-505 |
| Operating conditions | – Temperature: 0°C to +50°C / +32°F to +122°F – Humidity: 5% to 93% non-condensing – AP is plenum rated for use in air-handling spaces – ETS 300 019 class 3.2 environments | |
| Storage and transportation conditions | – Temperature: -40°C to +70°C / -40°F to +158°F – Humidity: 5% to 93% non-condensing – ETS 300 019 classes 1.2 and 2.3 environments | |
Reliability | ||
|---|---|---|
| Model | AP-504 | AP-505 |
| Mean time between failure (MTBF): | 1.3 Mhrs (148yrs) at +25°C operating temperature | |
Regulatory and Safety Compliance | ||
|---|---|---|
| Model | AP-504 | AP-505 |
| Regulatory model numbers | APIN0504 | APIN0505 |
| Minimum OS release | – HPE Aruba Networking Wireless Operating System and HPE Aruba Networking InstantOS 8.6.0.0 – HPE Aruba Networking Wireless Operating System 10.1.0.0 | |
| Regulatory compliance (For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative.) | – FCC/ISED – CE Marked – RED Directive 2014/53/EU – EMC Directive 2014/30/EU – Low Voltage Directive 2014/35/EU – UL/IEC/EN 62368-1 – EN 60601-1-1, EN60601-1-2 | – Railway Certs (AP-505 only):
|
| Certifications | – UL2043 plenum rating – Wi-Fi Alliance:
– Bluetooth SIG – Ethernet Alliance (PoE, PD device, class 4) | |
RF performance table | ||
|---|---|---|
| Band, rate | Maximum transmit power (dBm) per transmit chain | Receiver sensitivity (dBm) per receive chain |
| 2.4GHz, 802.11b | ||
| 1Mbps | 18 | -98 |
| 11Mbps | 18 | -90 |
| 2.4GHz, 802.11g | ||
| 6Mbps | 18 | -93 |
| 54Mbps | 18 | -76 |
| 2.4GHz, 802.11n HT20 | ||
| MCS0 | 18 | -93 |
| MCS7 | 16 | -75 |
| 2.4GHz, 802.11ax HE20 | ||
| MCS0 | 18 | -93 |
| MCS11 | 14 | -62 |
| 5GHz, 802.11a | ||
| 6Mbps | 18 | -92 |
| 54Mbps | 18 | -75 |
| 5GHz, 802.11n HT20 | ||
| MCS0 | 18 | -92 |
| MCS7 | 16 | -74 |
| 5GHz, 802.11n HT40 | ||
| MCS0 | 18 | -90 |
| MCS7 | 16 | -71 |
| 5GHz, 802.11ac VHT20 | ||
| MCS0 | 18 | -92 |
| MCS9 | 16 | -69 |
| 5GHz, 802.11ac VHT40 | ||
| MCS0 | 18 | -90 |
| MCS9 | 16 | -65 |
| 5GHz, 802.11ac VHT80 | ||
| MCS0 | 18 | -87 |
| MCS9 | 16 | -62 |
| 5GHz, 802.11ax HE20 | ||
| MCS0 | 18 | -93 |
| MCS11 | 14 | -62 |
| 5GHz, 802.11ax HE40 | ||
| MCS0 | 18 | -90 |
| MCS11 | 14 | -59 |
| 5GHz, 802.11ax HE80 | ||
| MCS0 | 18 | -87 |
| MCS11 | 14 | -56 |
Antenna Patterns
Horizontal planes (top view)
Showing azimuth (0 degrees) and 30 degrees downtilt patterns (averaged patterns for all applicable antennas)
Vertical (elevation) planes (side view, accesspoint facing down)
Showing side view with access point rotated 0 and 90 degrees (averaged patterns for all applicable antennas)
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 27-Feb-2026 | Changed | New branding applied to document | |
| 28-Jul-2025 | Changed | Update survey link. | |
| 07-Apr-2025 | Changed | Standard Features, Configuration Information, and Technical Specifications sections were updated. | |
| 03-Feb-2025 | Changed | Configuration Information section was updated | |
| 16-Dec-2024 | Changed | Configuration Information section was updated | |
| 02-Dec-2024 | Changed | Overview and Standard Features sections were updated. | |
| 01-Jul-2024 | Changed | Configuration Information section was updated | |
| 04-Dec-2023 | Changed | Series name was updated. | |
| 05-Sep-2023 | Changed | Configuration Information section was updated | |
| 07-Aug-2023 | Changed | Configuration Information section was updated. | |
| 01-May-2023 | Changed | Configuration Information section was updated, new SKU added. | |
| 01-Aug-2022 | Changed | Configuration Information was updated. | |
| 05-Jul-2022 | Changed | Configuration Information was updated and new SKU were added. | |
| 15-Mar-2021 | Changed | SKUs were added in Configuration Information section. | |
| 08-Sep-2020 | Changed | Configuration Information was updated. SKU description were updated New SKU was added. | |
| 01-Jun-2020 | Changed | Configuration Information was updated. SKU description were updated New SKU was added. | |
| 04-Nov-2019 | Changed | Configuration Information section was updated. New SKUs were added. | |
| 14-Oct-2019 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a00067744enw, - 16430 - Worldwide - V18 - 27-February-2026
