QuickSpecs
HPE Synergy 50Gb Interconnect Link Module QuickSpecs
Table of Contents
The HPE Synergy 50Gb Interconnect Link Module, satellite module is designed for Composable Infrastructure.
Based on disaggregated, rack-scale design, it uses a primary/satellite architecture to consolidate data center network connections, reduce hardware and scale network bandwidth across multiple HPE Synergy Frames. This module extends HPE composable fabric up to four additional satellite frames with 25/50Gb connectivity to Synergy Compute Modules and replaces a fixed ratio of interconnects in each frame by extending the fluid pool of network resources.
Overview
The primary module contains intelligent networking capabilities that extend connectivity to frames equipped with satellite modules. This reduces the need for top of rack switches and substantially decreases cost. The reduction in components simplifies fabric management at scale while consuming fewer ports at the data center aggregation layer.
Standard Features
Product Features
Performance
- – 12 x 25Gb or 12 x 50Gb (2 lanes of 25Gb) Ethernet downlinks (traversing the midplane) to compute module Converged Network Adapters
- – The FlexHBA can be configured to transport either Fibre Channel over Ethernet/CEE or Accelerated iSCSI protocol.
- – Each FlexNIC and FlexHBA is recognized by the compute module as a PCIe physical function device with adjustable speeds from 250Mb to 25Gb in 250Mb increments when connected to a 2-port Converged Network Adapter or any Flex-25/50 NIC and from 500Mb to 50Gb in 500Mb increments when connected to a Dual-Port 25/50Gb Converged Network Adapter
Management
- – Integrated composer based HPE OneView included with every frame, providing out-of-the-box Virtual Connect configuration and management.
- – Pre-configure compute modules I/O configurations prior to their installation for easy deployment
- – Move, add, or change compute module network connections on the fly without impacting LAN and SAN administrator
- – Provisioned storage resource is associated directly to a specific virtual machine - even if the virtual server is re-allocated within a frame
- – Compute module-side NPIV removes storage management constraint of a single physical HBA on a compute module does not add to SAN switch domains or require traditional SAN management
- – Licensing support for native Fibre Channel through Composer powered by OneView

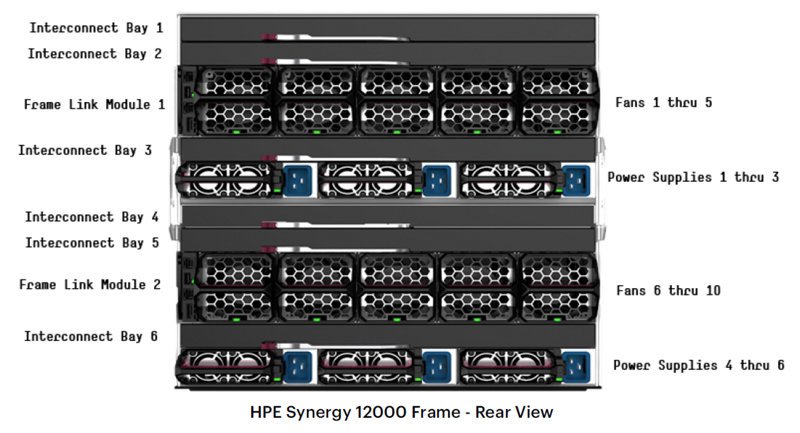

Supported Configurations
| Interconnect Module Configurations | Compute Module Network Adapters Used | ||||
| Frame 1 | |||||
| [ICB 1] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 4] | Empty/Adapter |
| [ICB 2] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 5] | Empty/Adapter |
| [ICB 3] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 2 | |||||
| [ICB 1] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 4] | Empty/Adapter |
| [ICB 2] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 5] | Empty/Adapter |
| [ICB 3] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 1 | |||||
| [ICB 1] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 4] | Empty/Adapter |
| [ICB 2] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 6] | Empty/Adapter |
| Frame 2 | |||||
| [ICB 1] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 4] | Empty/Adapter |
| [ICB 2] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 6] | Empty/Adapter |
| Frame 1 | |||||
| [ICB 1] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 5] | Empty/Adapter |
| [ICB 3] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 6] | Empty/Adapter |
| Frame 2 | |||||
| [ICB 1] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 5] | Empty/Adapter |
| [ICB 3] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 6] | Empty/Adapter |
| Frame 1 | |||||
| [ICB 1] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 6] | Empty/Adapter |
| Frame 2 | |||||
| [ICB 1] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 6] | Empty/Adapter |
| Interconnect Module Configurations | Compute Module Network Adapters Used | ||||
| Frame 1 | |||||
| [ICB 1] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 5] | Empty/Adapter |
| [ICB 3] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 2 | |||||
| [ICB 1] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 5] | Empty/Adapter |
| [ICB 3] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 1 | |||||
| [ICB 1] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 4] | Empty/Adapter |
| [ICB 2] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 2 | |||||
| [ICB 1] | Empty/Interconnect | -> | Empty/Interconnect | [ICB 4] | Empty/Adapter |
| [ICB 2] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 1 | |||||
| [ICB 1] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | HPE VC SE 100Gb F32 | -> | HPE 50Gb ILM | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| Frame 2 | |||||
| [ICB 1] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 4] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 2] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 5] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
| [ICB 3] | HPE 50Gb ILM | -> | HPE VC SE 100Gb F32 | [ICB 6] | HPE 6820C 25Gb/50Gb CNA or HPE 6310C 25/50Gb Ethernet Adapter |
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- – A complete coverage approach -- edge to cloud
- – An assigned HPE team
- – Modular and fully personalized engagement
- – Enhanced Incident Management experience with priority access
- – Digitally enabled and AI-driven customer experience
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.hpe.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- – Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- – Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data-driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
Consume IT On Your Terms
HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
- – Get faster time to market
- – Save on TCO, align costs to business
- – Scale quickly, meet unpredictable demand
- – Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information
Configuration Information
Models | ||
| Spare Part Numbers | SKU Description | Orderable SKU Number |
| 879437-001 | HPE Synergy 50Gb Interconnect Link Module | 867793-B21 |
| P57815-001 | | |
| P02747-001 | HPE Synergy 50Gb TAA-compliant Interconnect Link Module | 867793-B22 |
| P57838-001 | | |
| Notes: – All SKUs of the HPE Synergy 50Gb Interconnect Link Module are functionally equivalent to each other and operate and behave as expected on all versions of HPE OneView for Synergy until it is time for a firmware upgrade. To update firmware on Spare Part Numbers P57815-001 and P57838-001 you must have HPE OneView for Synergy version 6.60.01 or HPE OneView for Synergy version 7.2 or later. – HPE Synergy 50Gb Interconnect Link Modules with different Spare Part Numbers can operate together within the same environment. An upgrade is not required for this support. To differentiate between the new and old HPE Synergy 50Gb Interconnect Link Modules, refer to the spare part number on the module or firmware version on each module. Spare Part Numbers P57815-001 and P57838-001 will contain the 2.x firmware and the Spare Part Numbers 879437-001 and P02747-001 will contain the 1.x firmware. – For future firmware updates:
| ||
Compatibility | |
| HPE Synergy 50Gb Interconnect Link Module interoperates with the following HPE Synergy hardware housed in the Synergy Frames. | |
| HPE Synergy Compute Modules | |
| HPE Synergy 480 Gen11 Configure-to-order Compute Module | P39531-B21 |
| HPE Synergy 480 Gen11 TAA-compliant Configure-to-order Compute Module | P39531-B22 |
| HPE Synergy 480 Gen12 Configure-to-order Compute Module | P68217-B21 |
| HPE Virtual Connect Module | |
| HPE Virtual Connect SE 100Gb F32 Module for Synergy | 867796-B21 |
| HPE Virtual Connect SE 100Gb F32 TAA-compliant Module for Synergy | 867796-B22 |
| HPE Network Adapters | |
| HPE Synergy 4820C 10/20/25Gb Converged Network Adapter | 876449-B21 |
| HPE Synergy 6820C 25/50Gb Converged Network Adapter | P02054-B21 |
| HPE Synergy 6310C 25/50Gb Ethernet Adapter | P64724-B21 |
CXP28 Cables | |
| HPE Synergy 300Gb Interconnect Link 2.1m Direct Attach Copper Cable | 876680-B21 |
| The following 3 SKUs all comply with the Low Smoke Zero Halogen (LSZH) standard and refer to the behavior of chemical compounds when combusted - specifically the quantity of smoke generated and the toxicity of the emissions. | |
| HPE Synergy 300Gb Interconnect Link 3m Active Optical Cable | 876689-B21 |
| HPE Synergy 300Gb Interconnect Link 5m Active Optical Cable | 876692-B21 |
| HPE Synergy 300Gb Interconnect Link 5m Active Optical Cable | 876692-B21 |
| The following 3 SKUs are all Plenum-Rated referring to its special insulation that has low smoke and low flame characteristics. | |
| HPE Synergy 300Gb Interconnect Link 3m Plenum Rated Active Optical Cable | P64635-B21 |
| HPE Synergy 300Gb Interconnect Link 5m Plenum Rated Active Optical Cable | P64638-B21 |
| HPE Synergy 300Gb Interconnect Link 15m Plenum Rated Active Optical Cable | P64641-B21 |
| Notes: – Mixing LSZH and Plenum-Rated cables in the same Logical Enclosure (LE) is not supported. – Since the Plenum-Rated cables are newer, they require a minimum version of OneView and a minimum firmware version on the modules that they are connecting --- VC 100Gb F32 Switch module and the 50G ICM Satellite module.
Warning: If non-supported firmware is used with Plenum cables, creation of the Logical Enclosure will fail. Customers must upgrade all firmware on connecting modules before installing the Plenum-Rated cables. Ensure that OneView and the modules that these cables are connecting have supported firmware before starting any replacement or growth operations with Plenum-Rated cables.Check the HPE OneView for Synergy version number. If you are not running HPE OneView for Synergy version 9.0 or later, update the software. See the HPE OneView for Synergy User Guide Document - HPE OneView for HPE Synergy Firmware and Driver Update Guide | HPE Support for details on updating the software. Update the firmware on the connecting modules. See the HPE OneView for Synergy User Guide Document – HPE OneView for HPE Synergy Firmware and Driver Update Guide | HPE Support for details on updating the firmware. | |
Related Options
HPE Synergy Services | |
| Preferred Support Services | |
| HPE 5 Year Tech Care Essential SY IC Link Module Service | H35F3E |
| HPE Installation Synergy Node Service | H0YW6E |
| HPE 5 Year Tech Care Critical SY IC Link Module Service | H35E5E |
| HPE 1 Year Post Warranty Tech Care Essential SY IC Link Module Service | H35F4PE |
| Support Recommended | |
| HPE 5 Year Tech Care Essential SY IC Link Module Service | H35F3E |
| HPE 5 Year Tech Care Critical SY IC Link Module Service | H35E5E |
| Deployment/Installation & Start-up Services | |
| HPE Factory Express Synergy Initial Frame Package 4 Service | HA454A1-300 |
| HPE Factory Express Synergy Add-on Frame Package 4 Service | HA454A1-301 |
| HPE Synergy First Frame Startup Service | U8JM3E |
| HPE Synergy Additional Frame Startup Service | U8JM4E |
| HPE Installation Non Standard Hours Synergy Node Service | H0YW7E |
| Tech Care Critical | |
| HPE 5 Year Tech Care Critical with CDMR SY IC Link Module Service | H35E9E |
| HPE 4 Year Tech Care Critical SY IC Link Module Service | H35E4E |
| HPE 4 Year Tech Care Critical with CDMR SY IC Link Module Service | H35E8E |
| HPE 3 Year Tech Care Critical SY IC Link Module Service | H35E3E |
| HPE 3 Year Tech Care Critical with CDMR SY IC Link Module Service | H35E7E |
| HPE 1 Year Post Warranty Tech Care Critical with CDMR SY IC Link Service | H35F0PE |
| HPE 1 Year Post Warranty Tech Care Critical SY IC Link Module Service | H35E6PE |
| Tech Care Essential | |
| HPE 5 Year Tech Care Essential with CDMR SY IC Link Module Service | H35F8E |
| HPE 4 Year Tech Care Essential SY IC Link Module Service | H35F2E |
| HPE 4 Year Tech Care Essential with CDMR SY IC Link Module Service | H35F7E |
| HPE 3 Year Tech Care Essential SY IC Link Module Service | H35F1E |
| HPE 3 Year Tech Care Essential with CDMR SY IC Link Module Service | H35F6E |
| HPE 2 Year Post Warranty Tech Care Essential SY IC Link Module Service | H35F5PE |
| HPE 1 Year Post Warranty Tech Care Essential with CDMR SY IC LinkModule Service | H35F9PE |
| Tech Care Basic | |
| HPE 5 Year Tech Care Basic SY IC Link Module Service | H35G2E |
| HPE 5 Year Tech Care Basic with CDMR SY IC Link Module Service | H35G7E |
| HPE 4 Year Tech Care Basic SY IC Link Module Service | H35G1E |
| HPE 4 Year Tech Care Basic with CDMR SY IC Link Module Service | H35G6E |
| HPE 3 Year Tech Care Basic SY IC Link Module Service | H35G0E |
| HPE 3 Year Tech Care Basic with CDMR SY IC Link Module Service | H35G5E |
| HPE 2 Year Post Warranty Tech Care Basic SY IC Link Module Service | H35G4PE |
| HPE 1 Year Post Warranty Tech Care Basic with CDMR SY IC LinkModule Service | H35G8PE |
| HPE 1 Year Post Warranty Tech Care Basic SY IC Link Module Service | H35G3PE |
| Notes: – Service levels and response times for Hewlett Packard Enterprise Support Services may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. HPE Support Services are governed by the applicable HPE terms and conditions of service provided or indicated to customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HPE terms and conditions of service or the HPE Limited Warranty provided with your HPE Product. – Learn more at http://www.hpe.com/services/ssc – Extended Services Plans enable customers to extend service coverage beyond the base warranty period and are available in one-year increments for durations of one to five years. – See Hewlett Packard Enterprise Support Services Data Sheet and terms and conditions for complete details. | |
Technical Specifications
System Unit | ||
|---|---|---|
| Shipping Dimensions | ||
| Length | 19.53 in (496 mm) | |
| Width | 15.67 in (398 mm) | |
| Height | 5.88 in (149.5 mm) | |
| Shipping Weight | Approximately 3.0 kg (6.2 Lbs) | |
| Product Specifications Hardware | ||
| Performance | Non-blocking architecture | |
| Connectors and Cabling | 12 x 50Gb downlinks through the midplane | |
| 2 x 300Gb interconnect link ports | ||
| Indicators | Health LED | |
| UID LED | ||
| Link cable port LEDs | ||
| Compute Module Link LEDs | ||
| Weight | 2.81 kg (6.2 Lbs) | |
| Latency | Low-latency design (<5 ns round trip) | |
| Environmental Ranges | Temperature Range | |
| Specification | 10° to 35°C (50° to 95°F)* | |
| Temperature Range | ||
| Operating | 10° to 35°C (50° to 95°F) | |
| Shipping | Shipping -40°C to 60°C (-40°F to 140°F) | |
| Storage | -20°C to 60°C (-4F to 140°F) | |
| Maximum wet bulb temperature | 30°C (80°F) | |
| Relative Humidity (non-condensing) | ||
| Operating | 10% to 90% | |
| Shipping | 10% to 90% | |
| Notes: – All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. – Storage maximum humidity of 90% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa. | ||
| Power Specification | 12V @ 3.58A (43 W max) | |
| Safety and Compliance | ||
| Safety Certifications |
| |
| Electromagnetic Emissions Certifications FCC Part 15 Class A |
| |
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycleor contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/info/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 27-Feb-2026 | Changed | New branding applied to document. | |
| 05-May-2025 | Changed | Added Gen12 compatibility information. Standard Features and Configuration Information sections were updated. | |
| 05-Aug-2024 | Changed | Added the CXP28 Plenum Cable SKUs Configuration Information section was updated. | |
| 08-Jan-2024 | Changed | Service and Support Section was updated. | |
| 01-May-2023 | Changed | Service and Support and Configuration Information sections were updated Updating for Gen11 compatibility | |
| 15-Aug-2022 | Changed | Configuration information and Related Options sections were updated. Added Gen10Plus SKUs and added information about new hardware design that is the same SKU number but differs by spare FRU number. | |
| 15-Sep-2021 | Changed | Obsolete SKUs were removed Service and Support Pointnext Tech Care and Complete Care Information added | |
| 11-Jan-2021 | Changed | Overview section was updated. | |
| 05-Oct-2020 | Changed | Configuration Information section was updated. | |
| 24-Aug-2020 | Changed | Corrected TAA description. Configuration Information and Related Options sections were updated. Rebranding applied to document. | |
| 02-Dec-2019 | Changed | Standard Features and Configuration Information sections were updated. | |
| 03-Sep-2019 | Created | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a00067743enw, - 16429 - Worldwide - V12 - 27-February-2026
