The HPE ProLiant DX380a Gen11 server is a GPU server built for the growing demands of enterprise AI, with the support for 4 double- wide or 8 single-wide accelerators in a standard 2U 2P form factor.
The "a" stands for accelerator optimized, which provides excellent cooling performance for dense GPUs. Powered by the 4th Generation Intel® Xeon® Scalable Processors and cutting-edge GPUs, the HPE ProLiant DX380a Gen11 server can accelerate machine learning, deep learning, AI training and inference workloads, as well as advanced engineering applications or graphics-intensive workloads.
Overview

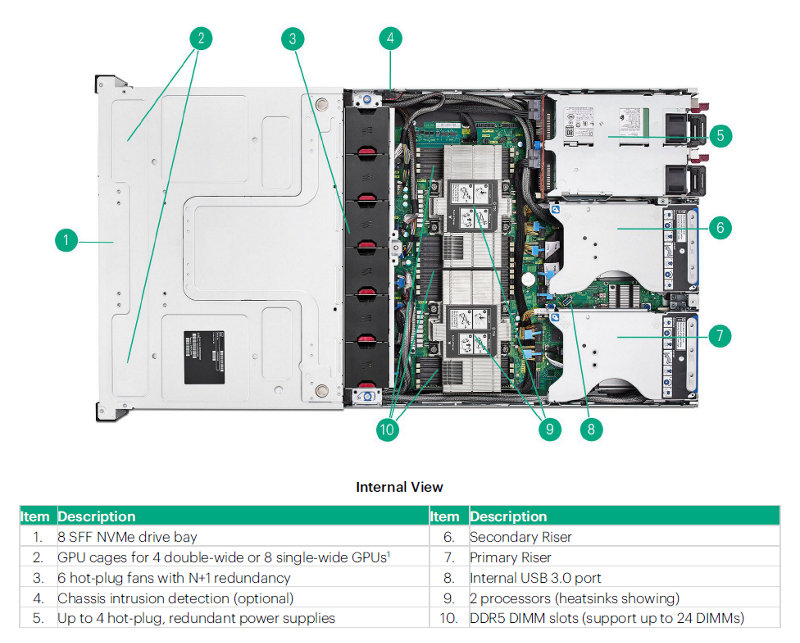

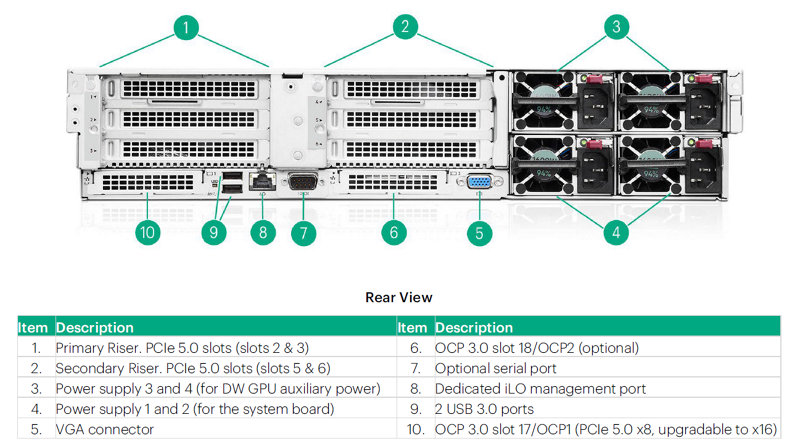

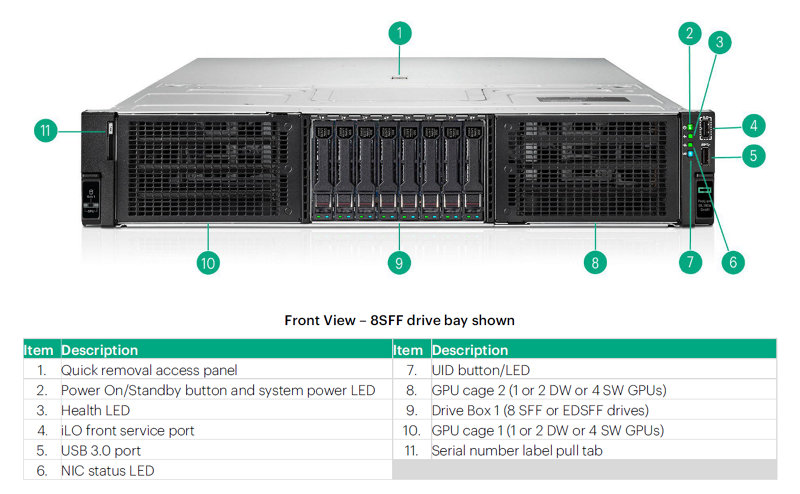

HPE ProLiant DX380a Gen11
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a50007024enw_block1img?$crimg$ "[IMAGE1]")
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/a50007024enw_block1img2?$crimg$ "[IMAGE2]")
What’s New
- – New DX GPU based platform.
- – Supports 4th Generation Intel® Xeon® Scalable Processors.
- – Up to 4 double-wide or 8 single-wide GPUs in a 2U server for intensive compute acceleration.
- – PCIe 5.0 support for improved bandwidth and throughput.
- – Well-balanced I/O performance across processors.
- – HPE DDR5 Smart Memory support.
Platform Information
Form Factor
- – 2U rack
Chassis Types

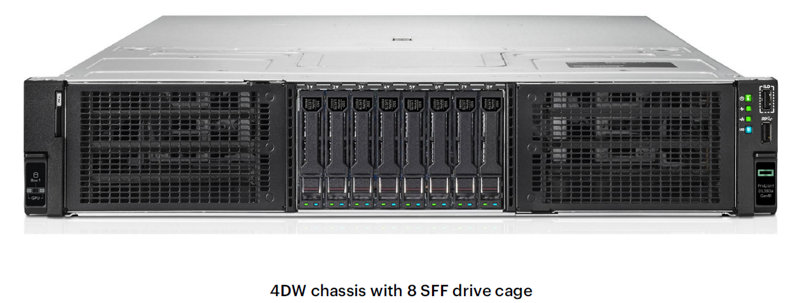

- – 4DW (double-wide GPU) chassis with one drive bay for drive cage options.
- Notes: The DX380a Gen11 comes with an 8SFF x4 U.3 NVMe drive bay by default.
System Fans
- – 6 dual-rotor hot-plug fans with N+1 redundancy by default
Standard Features
Processors – 2 of the following depending on model.
The 2nd digit of the processor model number “x4xx” is used to denote the processor generation (i.e. 4=4th generation Intel® Scalable Series Processors)
For more information regarding Intel® Xeon® processors, refer to the following http://www.intel.com/xeon.
This table covers the public Intel® offering only.
| Intel® Xeon® processors | ||
|---|---|---|
| Processor Suffix | Description | Offering |
| P | IaaS Optimized | Optimized for high performance IaaS for orchestration efficiency. Higher frequency for VM environments. |
| S | Storage Workload Optimized | Designed to provide maximum inter-socket bandwidth with lower core counts and TDPs. Data Movement and Transformation Operations Offload with DSA, free up CPU cycles to enable efficient core utilization. |
| V | VM Optimized | Fosters enhanced VM density, allowing to support more/larger virtual machines per host and lower power VM environment. |
| Y | Speed Select | Intel® SST-PP increases base frequency when fewer cores are enabled. Allows greater flexibility, deployment options and platform longevity. |
| 4th Generation Intel® Xeon® Scalable Processor Family | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache (MB) | Power | UPI | DDR5 | SGX Enclave size |
| Platinum 8480+ Processor | 2.0 GHz | 56 | 105 | 350 W | 4 @ 16 GT/s | 4800 MT/s | 512 GB |
| Platinum 8470 Processor | 2.0 GHz | 52 | 105 | 350 W | 4 @ 16 GT/s | 4800 MT/s | 512 GB |
| Platinum 8468 Processor | 2.1 GHz | 48 | 105 | 350 W | 4 @ 16 GT/s | 4800 MT/s | 512 GB |
| Platinum 8468V Processor2 | 2.4 GHz1, 3 2.1 GHz1 1.8 GHz1 | 483 48 48 | 97.5 | 330 W3 300 W 270 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Platinum 8460Y+ Processor | 2.0 GHz 2.1 GHz 2.3 GHz | 403 36 32 | 105 | 300 W3 300 W 300 W | 4 @ 16 GT/s | 4800 MT/s | 128 GB |
| Platinum 8458P Processor2 | 2.7 GHz1, 3 2.7 GHz1 3.0 GHz1 | 443 40 32 | 82.5 | 350 W3 330 W 330 W | 3 @ 16 GT/s | 4800 MT/s | 512 GB |
| Platinum 8452Y Processor | 2.0 GHz3 1.9 GHz 2.1 GHz | 363 32 24 | 67.5 | 300 W3 270 W 250 W | 4 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6454S Processor2 | 2.2 GHz3 2.4 GHz 2.6 GHz | 323 24 16 | 60 | 270 W3 250 W 225 W | 4 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6430 Processor | 2.1 GHz | 32 | 60 | 270 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 6426Y Processor | 2.5 GHz | 16 | 37.5 | 185 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6442Y Processor | 2.6 GHz | 24 | 60 | 225 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6448Y Processor | 2.1 GHz | 32 | 60 | 225 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6434 Processor | 3.7 GHz | 8 | 22.5 | 195 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6444Y Processor | 3.6 GHz | 16 | 45 | 270 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Platinum 8462Y+ Processor | 2.8 GHz | 32 | 60 | 300 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache (MB) | Power | UPI | DDR5 | SGX Enclave size |
|---|---|---|---|---|---|---|---|
| Silver 4416+ Processor | 2 GHz | 20 | 37.5 | 165 W | 2 @ 16 GT/s | 4000 MT/s | 64 GB |
| Gold 5418Y Processor | 2 GHz | 24 | 45 | 185 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 5420+ Processor | 2 GHz | 28 | 52.5 | 205 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 6438Y+ Processor | 2 GHz | 32 | 60 | 205 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6438M Processor | 2.2 GHz | 32 | 60 | 205 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
Chipset
Intel® C741 Chipset
Notes: For more information regarding Intel® chipsets, refer to the following URL:
https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html
On System Management Chipset
HPE iLO 6 ASIC
Read and learn more in the iLO QuickSpecs.
Memory | |
|---|---|
| Type | HPE DDR5 Smart Memory, Registered (RDIMM) |

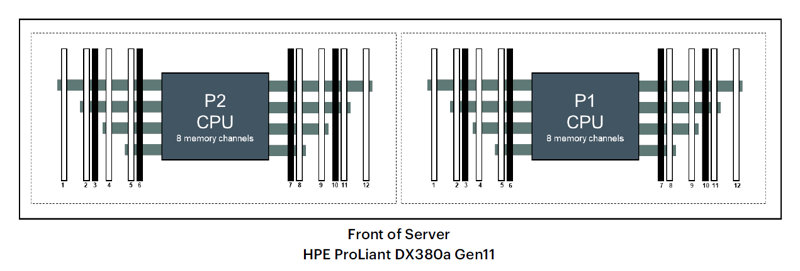

| DIMM Slots Available | 24 DIMM slots (12 DIMM slots per processor), Each processor supports 8 memory channels: 4 channels with 2 DIMM slots and 4 channels with 1 DIMM slot. |
| Maximum capacity (RDIMM) | 3.0 TB (24 x 128 GB RDIMM @4400 MT/s, 2DPC) 2.0 TB (16 x 128 GB RDIMM @4800 MT/s, 1DPC) |
Expansion Slots
Primary Riser
Notes: Bus width indicates the number of physical electrical lanes running to the connector.
| Primary Riser | |||||
|---|---|---|---|---|---|
| Slots # | Technology | Bus Width | Connector Width | Slot Form Factor | Notes |
| 1 | N/A | N/A | N/A | N/A | N/A |
| 2* | PCIe 5.0 | x16 | x16 | Full height, half length | Processor 1 |
| 3 | PCIe 5.0 | x16 | x16 | Full height, half length | Processor 1 |
Secondary Riser
Notes: Bus Width Indicates the number of physical electrical lanes running to the connector.
| Secondary Riser | |||||
|---|---|---|---|---|---|
| Slots # | Technology | Bus Width | Connector Width | Slot Form Factor | Notes |
| 4 | N/A | N/A | N/A | N/A | N/A |
| 5* | PCIe 5.0 | x16 | x16 | Full height, half length | Processor 2 |
| 6 | PCIe 5.0 | x16 | x16 | Full height, half length | Processor 2 |
Graphics
Integrated Video Standard
- – Video modes up to 1920 x 1200@60Hz (32 bpp)
- – 16MB Video Memory
HPE iLO 6 on system management memory
- – 32 MB Flash
- – 8 Gbit DDR 3 with ECC protection
Maximum Internal Storage
| Drive | Capacity | Configuration |
|---|---|---|
| Hot Plug SFF NVMe PCIe SSD | 122.88 TB | 8 x 15.36 TB |
| Hot Plug E3.S NVMe PCIe SSD | 61.44 TB | 8 x 7.68 TB |
Power Supply
- – HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- Notes: 1 available in 94% efficiency.
- – HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit
- Notes: 1 available in 96% efficiency.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high- efficiency operation and offer multiple power output options, allowing users to choose the right-size a power supply for any specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
The standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please use the HPE Power Advisor Tool.
For information on power specifications and technical content visit HPE Server power supplies
European Union ErP Lot 9 Regulation
Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.
HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.
Storage Controllers
NVMe Boot Devices
- – HPE DX NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
- Notes:
- – Bus Width Indicates the number of physical electrical lanes running to the connector.
- – Two 480GB M.2 NVMe SSDs are included for RAID 1 OS boot.
- – Can be configured to be rear accessible or internal accessible.
- – Does not occupy PCIe slots on the DX380a Gen11 server.
Interfaces | |
|---|---|
| Serial Port | 1 optional (rear) |
| VGA Port | 1 standard (rear) |
| Network Ports | None standard. Choice of OCP networking card or stand-up networking card required. |
| HPE iLO Remote Management Network Port | 1 Gb dedicated (rear) |
| Front iLO Service Port | 1 standard (front) |
| USB 3.0 | 4 (1 front, 2 rear, 1 internal) |
Operating Systems and Virtualization Software Support for ProLiant Servers
HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment. Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices
- − VMware ESXi: 7.0 U3, 8.0
HPE Server UEFI
Unified Extensible Firmware Interface (UEFI) is an industry-standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation and support UEFI Mode only.
Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as
- – Secure Boot and Secure Start enable for enhanced security
- – Embedded UEFI Shell
- – Operating system specific functionality
- – Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- – Support for greater than 2.2 TB (using GPT) boot drives
- – PXE boot support for IPv6 networks
- – USB 3.0 Stack
- – Workload Profiles for simple performance optimization
UEFI Boot Mode only
- – TPM 2.0 Support
- – iSCSI Software Initiator Support.
- – NVMe Boot Support
- – HTTP/HTTPs Boot support as a PXE alternative.
- – Platform Trust Technology (PTT) can be enabled.
- – Boot support for option cards that only support a UEFI option ROM
Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
For more information, visit the HPE Compute Ops Management QuickSpecs:
Industry Standard Compliance
- – ACPI 6.3 Compliant
- – Advanced Encryption Standard (AES)
- – Active Directory v1.0
- – ASHRAE A3/A4
- Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit https://www.hpe.com/support/ASHRAEGen11
- – DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
- – EU Lot9
- Notes:
- – Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.
- – HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.
- – Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.
- – IPMI 2.0
- – Microsoft® Logo certifications
- – PCIe 3.0 Compliant
- – PCIe 4.0 Compliant
- – PCIe 5.0 Compliant
- – PXE Support
- – Redfish API
- – Secure Digital 4.0
- – SMBIOS 3.2
- – SNMP v3
- – TLS 1.2
- – TPM 2.0 Support
- – Triple Data Encryption Standard (3DES)
- – UEFI (Unified Extensible Firmware Interface Forum) 2.6
- – USB 2.0 Compliant
- – USB 3.0 Compliant
- – VGA Port
Embedded Management
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo.
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Learn more at http://www.hpe.com/servers/uefi.
Intelligent Provisioning
Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.
Learn more at http://www.hpe.com/servers/intelligentprovisioning
iLO RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi
HPE iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.
RESTful Interface Tool
RESTful Interface tool (iLO REST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.
Security
- – UEFI Secure Boot and Secure Start support
- – Tamper-free updates, with components digitally signed and verified
- – Immutable Silicon Root of Trust
- – Ability to rollback firmware
- – FIPS 140-2 validation
- – Secure erase of NAND/User data
- – Common Criteria certification
- – iLO Security Modes
- – Granular control over iLO interfaces
- – Configurable for PCI DSS compliance
- – TPM (Trusted Platform Module) 2.0 option
- – Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- – Bezel Locking Kit option
- – Support for Commercial National Security Algorithms (CNSA)
- – Chassis Intrusion detection option
- – Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
Optional Features
Server Management
HPE iLO Advanced: Standard
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
One Config Simple (OCS/SCE)
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- – A complete coverage approach
- – An assigned HPE team
- – Modular and fully personalized engagement
- – Enhanced Incident Management experience with priority access
- – Digitally enabled and AI driven customer experience
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.
- – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.
- – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.hpe.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- – Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- – Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
GreenLake
GreenLake is the cloud to run and manage your entire hybrid landscape—private, public, and edge. It helps you to:
- − Streamline IT Operations across compute, storage, and networking without the chaos
- − Unify and secure data, as you move faster
- − Accelerate AI, from pilot to production
The result: greater operational efficiency, lower TCO, and faster AI delivery—all from one unified, intelligent platform built for today’s hybrid enterprise.
Configuration Information
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
- – Factory Integrated Models must start with a CTO Server.
- – FIO indicates that this option is only available as a factory installable option.
- – All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
- – Some options may not be integrated at the factory. Contact your local sales representative for additional information.
Step 1: Base Configuration
| CTO Server Models | HPE ProLiant DX380a Gen11 4 Double Wide Configure-to-order Server |
|---|---|
| SKU Number | P68997-B21 |
| Processor | Not included as standard |
| DIMM Slots | 24 DIMM slots |
| Storage Controller | N/A |
| PCIe | Two standard and two optional |
| Drive Cage | Not included as standard |
| Network Controller | Choice of OCP 3.0 or stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Choice of OCP 3.0 or stand-up network adapters Notes: No embedded networking |
| Fans | 6 dual-rotor redundant system fans |
| Management | HPE iLO Advanced (standard) |
| USB | 4 USB 3.0 (1 front, 2 rear, 1 internal) plus iLO front service port |
| Trusted Platform Module (TPM) | Embedded TPM Notes: Disabled on shipments to China |
Notes:
- – *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed into a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).
- – HPE DX ProLiant platforms are a Server Appliance: and Energy Star except. Server Appliance:
- A computer server that is bundled with a pre-installed OS and application software that is used to perform a dedicated function or set of tightly coupled functions. Server appliances deliver services through one or more networks (e.g., IP or SAN), and are typically managed through a web or command line interface. Server appliance hardware and software configurations are customized by the vendor to perform a specific task (e.g., name services, firewall services, authentication services, encryption services, and voice-over-IP(VoIP) services), and are not intended to execute user-supplied software.
Step 2: Choose Processors
Please select two processors from below.
Notes:
– DX380a Gen11 only supports dual processor configurations, not single processor configurations.
– Mixing of 2 different processor models is not supported.
– All SKUs below ship with processor only. Adequate heatsinks must be selected.
- • Processors with TDP equal to or greater than 270W require High Performance Heatsink (P68977-B21).
– DDR5 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
– Each processor feeds 2 x8 front NVMe connectors, supporting up to 4 drives. Sockets must be populated for NVMe connectors to be usable.
| 4th Generation Intel® Xeon® (Platinum, Gold, and Silver) | SKU |
| Intel® Xeon®-Platinum 8480+ 2.0GHz 56-core 350W FIO Processor for HPE DX | P62396-B21 |
| Intel® Xeon®-Platinum 8470 2.0GHz 52-core 350W FIO Processor for HPE DX | P62395-B21 |
| Intel® Xeon®-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX | P62394-B21 |
| Intel® Xeon®-Platinum 8468V 2.4GHz 48-core 330W FIO Processor for HPE DX | P62402-B21 |
| Intel® Xeon®-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX | P62393-B21 |
| Intel® Xeon®-Platinum 8458P 2.7GHz 44-core 350W FIO Processor for HPE DX | P62403-B21 |
| Intel® Xeon®-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX | P62398-B21 |
| Intel® Xeon®-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX | P62404-B21 |
| Intel® Xeon®-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX | P62397-B21 |
| Intel® Xeon®-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX | P62410-B21 |
| Notes: Above processors (270W or greater) require High Performance Heatsink (P51832-B21). | |
| Intel® Xeon®-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX | P62406-B21 |
| Intel® Xeon®-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX | P62407-B21 |
| Intel® Xeon®-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX | P62408-B21 |
| Intel® Xeon®-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX | P62409-B21 |
| Intel® Xeon®-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX | P62413-B21 |
| Intel® Xeon®-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX | P62414-B21 |
| Intel® Xeon®-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX | P62415-B21 |
| Intel® Xeon®-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX | P62416-B21 |
| Intel® Xeon®-Gold 6438M 2.2GHz 32-core 205W FIO Processor for HPE DX | P62425-B21 |
| Notes: Above processors (below 270W) are defaulted to High Performance Heatsink (P68977-B21) instead. | |
| 5th Generation Intel® Xeon®-Gold 6 | |
| Intel® Xeon®-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE | P67080-B21 |
| Intel® Xeon®-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE | P67081-B21 |
| Intel® Xeon®-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE | P67082-B21 |
| Intel® Xeon®-Gold 6534 3.9GHz 8-core 195W Processor for HPE | P67083-B21 |
| Intel® Xeon®-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE | P67084-B21 |
| Intel® Xeon®-Gold 6530 2.1GHz 32-core 270W Processor for HPE | P67095-B21 |
| Intel® Xeon®-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE | P67096-B21 |
| 5th Generation Intel® Xeon®-Gold 5 | |
| Intel® Xeon®-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE | P67079-B21 |
| Intel® Xeon®-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE | P67094-B21 |
| 5th Generation Intel® Xeon®-Platinum | |
| Intel® Xeon®-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE | P67085-B21 |
| Intel® Xeon®-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE | P67086-B21 |
| Intel® Xeon®-Platinum 8570 2.1GHz 56-core 350W Processor for HPE | P67087-B21 |
| Intel® Xeon®-Platinum 8580 2.0GHz 60-core 350W Processor for HPE | P67088-B21 |
| Intel® Xeon®-Platinum 8592+ 1.9GHz 64-core 350W Processor for HPE | P67089-B21 |
| Intel® Xeon®-Platinum 8558 2.1GHz 48-core 330W Processor for HPE | P67097-B21 |
| 5th Generation Intel® Xeon®-Silver | |
| Intel® Xeon®-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE | P67090-B21 |
| Intel® Xeon®-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE | P67092-B21 |
| Intel® Xeon®-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE | P67093-B21 |
Step 3: Choose GPUs
Please select the GPU from the options below.
For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to: HPE Memory Population Rules
Notes:
Double Wide GPU can be selected in multiples of 2 only (i.e. Qty2 or Qty4).
– Mixing of different GPU models is not supported.
– System memory capacity is recommended to be 2x GPU memory capacity.
| Computation and Graphics Accelerators | |
| DX NVIDIA L40 48GB PCIe FIO Accelerator for HPE | P61598-B21 |
| NVIDIA L40S 48GB PCIe FIO Accelerator for HPE ProLiant DX | P68953-B21 |
| Notes: Standalone: S2L70C | |
| HPE ProLiant DL380a Gen11 GPU 16-pin FIO Power Cable Kit | P59578-B21 |
| Notes: − This GPU power cable kit is used to support up to four (4) pcs of NVIDA H100 or L40(s) GPU. − If Graphics option is selected then HPE DL380a Gen11 GPU 16p FIO Power Cable Kit must be selected and defaulted. − Mixing of Graphics Power Cable is not allowed. | |
GPU Information
| Part Number | Card | TDP | PCIe Speed | Qty. Support | DL380a Gen11 Configuration | |
|---|---|---|---|---|---|---|
| | | | | | Intel® XCC | Intel® MCC |
| P62021-B21 | NVIDIA H100 80 GB PCIe Accelerator for HPE | 350 W | Gen5 | 2 or 4 | PCIe or OCP cards, QSFP28 or lower (DAC cables only): 25 °C | PCIe or OCP cards, QSFP28 or lower (DAC cables only): 25 °C |
| P61598-B21 | NVIDIA L40 48 GB PCIe Accelerator for HPE | 300 W | Gen4 | 2 or 4 | PCIe or OCP cards, QSFP28 or lower: 25 °C | PCIe or OCP cards, QSFP28 or lower: QuickSpecs Compliant |
| S2L70C | NVIDIA L40S 48 GB PCIe Accelerator for HPE | 350 W | Gen4 | 2 or 4 | PCIe or OCP cards, QSFP28 or lower (DAC cables only): 25 °C | PCIe or OCP cards, QSFP28 or lower (DAC cables only): 25 °C |
Step 4: Choose Memory Options
Please select two or more memory kits from below.
For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to: HPE Memory Population Rules
Notes:
– Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, or 12. For DL380a Gen11, select 2, 4, 8, 12, 16, or 24 DIMMs.
– Mixing of 3DS memory and non-3DS memory is not supported.
– Rank mixing is not allowed.
– No x4 mixing with x8 across a socket.
– 4800 MT/s memory SKUs offer a transfer rate of up to 4800 MT/s at 1 DIMM per channel and up to 4400 MT/s at 2 DIMMs per channel, depending on CPU selection. The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.
– HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for an HPE server model or familyand yet occasionally not be supported with some configurations within that server family.
| Registered DIMMs (RDIMMs) | |
| HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62601-B21 |
| HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62603-B21 |
| HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62604-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit | P66675-B21 |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Ki | P64705-B21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64706-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64707-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64708-B21 |
Step 5: Choose Storage Options
Please select one drive cage from below.
DX380a Gen11 supports balanced storage configuration via direct connection or dual controllers, delivering consistent high performance across two processors
Notes:
– DX380a Gen11 only supports NVMe SSDs – U.3, E3.S
– Mixing of storage controllers is not supported.
| Drive Cage | |
| HPE ProLiant DX380a Gen11 8SFF x4 U.3 NVMe BC Drive Cage Kit | P68998-B21 |
| Notes: – Requires selection of Direct Attach Cable – Supports up to 8 U.3 NVMe drives balanced across two processors. – Maximum quantity = 1 – Balanced direct NVMe config: Requires selection of Direct Connected Cable Kit (P55704-B21) to support 8 drives balanced across two processors. | |
| HPE Boot Controller | |
| HPE ProLiant DL380a Gen11 NS204i-u Internal Enablement Kit | P58716-B21 |
Step 6: Choose Power Supplies
Notes:
– DX380a Gen11 4DW CTO Server requires 4 power supplies to be selected.
– Select 2 identical power supplies for power domain 1 (PSU 1 & 2).
– Select 2 identical power supplies for power domain 2 (PSU 3 & 4).
– Mixing of 2 different power supplies in the same power domain is not supported.
– Prior to making a power supply selection it is highly recommended that the HPE Power
Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: https://poweradvisorext.it.hpe.com/?Page=Index.
| HPE Flex Slot Power Supplies | |
| HPE DX 1600W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit | P18222-B21 |
| HPE DX 1800W-2200W Flex Slot Titanium Hot Plug Power Supply FIO Kit | P56724-B21 |
Core Options
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.
Step 7: Choose additional options for Factory Integration from Core and Additional Options sections below
HPE Cooling Options | |
| HPE Alletra Storage Server 4120 Standard Heat Sink Kit | P51833-B21 |
| HPE Alletra Storage Server 4120 High Performance Heat Sink Kit | P51832-B21 |
| Notes: High performance heat sink required for processors with TDP equal to or greater than 270W. | |
HPE I/O Expansion Options | |
| Notes: The Primary Riser with PCIe slot 3 and the Secondary Riser with PCIe slot 6 are included in the server by default. | |
| HPE ProLiant DL380a Gen11 Stacking Riser Kit | P54305-B21 |
| Notes: − Quantity of one is used to enable either PCIe slot 2 or PCIe slot 5. − Maximum quantity = 2 | |
OCP 3.0 Enablement | |
| HPE Alletra Storage Server 4120 OCP1 Upgrade Cable Kit | P51942-B21 |
| Notes: Quantity of one is used to upgrade OCP1 from PCIe 5.0 x8 to x16. | |
| HPE Alletra Storage Server 4120 OCP2 Upgrade Cable Kit | P51943-B21 |
| Notes: Quantity of one is used to enable OCP2 PCIe 5.0 x16. | |
HPE Solid State DrivesFor SSD selection guidance, please visit https://ssd.hpe.com/ | |
| Read Intensive - NVMe - SFF - Solid State Drives | |
| HPE DX 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD | P57771-B21 |
| HPE DX 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57759-B21 |
| HPE DX 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57758-B21 |
| HPE DX 1.9TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57757-B21 |
| Mixed Use - NVMe - SFF - Solid State Drives | |
| HPE DX 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a FIO SSD | P57764-B21 |
| HPE DX 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a FIO SSD | P57762-B21 |
HPE NetworkingThe DX380a Gen11 CTO server does not come with embedded networking, hence the requirement to configure with either a PCIe or OCP networking adapter. | |
| 10 Gigabit Ethernet adapters | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T FIO Adapter for HPE DX | P43271-B21 |
| 25 Gigabit Ethernet adapters | |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 FIO Adapter for HPE DX | P53862-B21 |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 FIO Adapter for HPE DX | P60340-B21 |
| 100 Gigabit Ethernet Adapters | |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX | P43273-B21 |
| OCP 3.0 Adapters | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 FIO Adapter for HPE DX | P43272-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for HPE DX | P53861-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for HPE DX | P60339-B21 |
Additional Options
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.
Embedded ManagementHPE iLO Common Password FIO Setting | |
| HPE iLO Common Password FIO Setting | P08040-B21 |
| Notes: − Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process. − Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services | |
| HPE iLO Advanced | |
| HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features | BD505A |
HPE Rail KitsBall bearing rail kits contain telescoping rails which allow for in-rack serviceability. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative. Notes: − Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation. − HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits. | |
| HPE ProLiant DX Gen11 Ball Bearing Rail 8 Kit | P68994-B21 |
| Notes: This rail kit does not include the cable management arm (P28726-B21). | |
| HPE Apollo 4200 Gen10 Plus Cable Management Arm | P28726-B21 |
HPE Support ServicesTech Care | |
| HPE 3 Year Tech Care Essential DL380a Gen11 HW Service | H38YKE |
| HPE 3 Year Tech Care Essential wDMR DL380a Gen11 HW Service | H38YLE |
| HPE 5 Year Tech Care Essential DL380a Gen11 HW Service | H38ZQE |
| HPE 5 Year Tech Care Essential wDMR DL380a Gen11 HW Service | H38ZRE |
| Notes: For a full listing of support services available for this server, please visit http://www.hpe.com/services. | |
Memory
Memory Population guidelines
![[IMAGE5]](https://assets.ext.hpe.com/is/image/hpedam/a50007024enw_block8img?$crimg$ "[IMAGE5]")
| HPE ProLiant DX380a Gen11 per CPU DIMM population order | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMM population order | ||||||||||||
| DIMM slot | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1 DIMM | | | | | | | | 8 | | | | |
| 2 DIMMs2 | | 2 | | | | | | 8 | | | | |
| 4 DIMMs2 | | 2 | | | 5 | | | 8 | | | 11 | |
| 6 DIMMs | | 2 | | 4 | 5 | | | 8 | | | 11 | 12 |
| 8 DIMMs1,2 | 1 | 2 | | 4 | 5 | | | 8 | 9 | | 11 | 12 |
| 12 DIMMs | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Notes:
– Cells without entries represent configurations not supported, and if populated, the server may result in non-optimal memory performance or other unexpected behavior.
– 1 Support SGX (Software Guard Extensions).
– 2 Support Hemi (hemisphere mode).
General Memory Population Rules and Guidelines:
- – Install DIMMs only if the corresponding processor is installed.
- – If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
- – To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
- – When two processors are installed, balance the DIMMs across the two processors.
- – White DIMM slots denote the first slot to be populated in a channel.
- – Mixing of RDIMM types is not supported.
- – The maximum memory speed is a function of the memory type, memory configuration, and processor model.
- – The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, and the number and model of installed processors qualified on the platform.
- – For details on the HPE Server Memory Options Population Rules, visit:
- – To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.
- – For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs.
| Registered DIMM (RDIMM) | ||||
|---|---|---|---|---|
| HPE SKU P/N | P43322-B21 | P43328-B21 | P43331-B21 | |
| SKU Description | HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit | HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit | HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit | |
| DIMM Capacity | 16 GB | 32 GB | 64 GB | |
| DIMM Rank | Single Rank (1R) | Dual Rank (2R) | Dual Rank (2R) | |
| Voltage | 1.1V | 1.1V | 1.1V | |
| DRAM Depth [bit] | 2G | 2G | 4G | |
| DRAM Width [bit] | x8 | x8 | x4 | |
| DRAM Density | 16 Gb | 16 Gb | 16 Gb | |
| CAS Latency | 40-39-39 | 40-39-39 | 40-39-39 | |
| DIMM Native Speed | 4800 MT/s | 4800 MT/s | 4800 MT/s | |
Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model.
For details on the HPE Server Memory speed, visit:
https://hpe.seismic.com/Link/Content/DCjjRTHfP6C8HGFRbjWJ7B37H43d
DDR5 memory options part number decoder
Notes:
- – Capacity references are rounded to the common gigabyte (GB) values.
- • 16 GB = 16,384 MB
- • 32 GB = 32,768 MB
- • 64 GB = 65,536 MB
- • 128 GB = 131072 MB
For more information on memory, refer to the Memory QuickSpecs: HPE DDR5 Smart Memory
Memory Speed Table for HPE ProLiantDX380a Gen11
For details on the HPE Server Memory speed, please visit:
https://hpe.seismic.com/Link/Content/DCjjRTHfP6C8HGFRbjWJ7B37H43d
Storage
Technical Specifications
System Unit
Dimensions (Height x Width x Depth)
- – Server
- 8.75 x 44.8 x 81.6 cm
- 3.44 x 17.64 x 32.13 in
- – Package
- 27.3 x 60 x 106 cm
- 10.75 x 23.6 x 41.73 in
Weight (approximate)
- – Server
- 35.96 kg (79.11 lb.) 1
- – With Package:
- 48.33 kg (106.33 lb.) 2
Notes:
– 1 4 Double Wide chassis with 1x drive cage, 4x double-wide GPUs, 2x processors and heatsinks, 24x DIMMs, 8x SSDs, 4x power supplies, 1x NS204i-u, 2x Stacking Risers, 4x PCIe cards, 2x OCP cards, 1x storage battery.
– 2 Server plus rail kit, CMA, power cords.
Input Requirements (per power supply)
Rated Line Voltage
- – For 1600W (Platinum) Power Supply: 200-240 VAC
- – For 1800W-2200W (Titanium) Power Supply: 200-240 VAC
BTU Rating
Maximum
- – For 1600W Power Supply: 5918 BTU/hr. (at 200 VAC), 5888 BTU/hr. (at 220 VAC), 5884 BTU/hr. (at 240 VAC)
- – For 1800W-2200W Power Supply: 6497 BTU/hr. (at 200 VAC), 7230 BTU/hr. (at 220 VAC), 7962 BTU/hr. (at 240 VAC)
Relative Humidity (non-condensing)
- – Operating
- 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
- – Non-operating
- 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Power Supply Output (per power supply)
Rated Steady-State Power
- – For 1600W (Platinum) Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only
- – For 1800W-2200W (Titanium) Power Supply: 1800W-2200W (at 200-240 VAC), 2200W (at 240 VDC) for China only
Maximum Peak Power
- – For 1600W(Platinum) Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only
- – For 1800W-2200W (Titanium) Power Supply: 1800W-2200W (at 200-240 VAC), 2200W (at 240 VDC) for China only
System Inlet Temperature
- – Standard Operating Temperature
- 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.
- System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
- – Extended Ambient Operating Temperature
- For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen11
- For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:
- System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
- – Non-operating
- -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.).
Altitude
- – Operating
- 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
- – Non-operating
- 9 144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm) and the statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
| Acoustic Noise | |
|---|---|
| Idle | |
| LWA,m | 6.3 B Entry 6.3 B Base 6.2 B Perf |
| LpAm | 49 dBA Entry 48 dBA Base 48 dBA Perf |
| Kv | 0.4 B Entry 0.4 B Base 0.4 B Perf |
| Operating | |
| LWA,m | 6.9 B Entry 7.2 B Base 6.9 B Perf |
| LpAm | 52 dBA Entry 58 dBA Base 53 dBA Perf |
| Kv | 0.4 B Entry 0.4 B Base 0.4 B Perf |
Notes:
– Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.
– Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
– The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.
– The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.
– A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0.1 B.
– The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.
Emissions Classification (EMC) – Regulatory Information
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:
http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts
Environment-friendly Products and Approach End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 06-Apr-2026 | Changed | Service and Support and Configuration Information sections were updated. | |
| Added | Updated GreenLake statement. | ||
| Removed | Registered DIMMs (RDIMMs) obsolete SKUs. | ||
| 17-Nov-2025 | Changed | Document was modified to comply with HPE Rebranding strategy. | |
| 18-Aug-2025 | Changed | Standard Features section was updated. | |
| 21-Oct-2024 | Changed | Configuration Information section was updated. (New SKUs for memories and processors were added). | |
| 16-Sep-2024 | Changed | Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) section was updated. | |
| 01-Jul-2024 | Changed | Configuration Information and Additional Options sections were updated. | |
| 18-Mar-2024 | Changed | Standard features and Configuration Information sections were updated. | |
| 08-Jan-2023 | New | New QuickSpecs |
© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries. Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.
a50007024enw, 17134 - Worldwide - V8 - 06-April-2026
