HPE ProLiant DX360 Gen11 QuickSpecs
Adaptive infrastructure engineered for peak efficiency.
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DX360 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DX360 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
-
HPE ProLiant DX360 Gen11
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DX360 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DX360 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DX360 Gen11 supports the 4th Generation Intel® Xeon® Scalable Processors with up to 56 cores, plus 4800 MT/s HPE DDR5 Smart Memory up to 4.0 TB per socket. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DX360 Gen11 complements Gen10 Plus reach by delivering premium compute, memory, networking communication, discrete graphic, I/O, and security capabilities for customers focused on performance at any cost. DX360 Gen11 server is an execellent choice of daily business and workloads in General Compute, Database Management, Virtual Desktop Infrastructure, Content Delivery Network, Edge Acceleration and Intelligent Video Analytics.
What’s New
- – All new DX360 Gen11 server
- – Qualified platforms /configurations recognized by both HPE & Nutanix
- – Factory tuned & optimized HW settings for Nutanix environments
- – Factory pre-installed Nutanix AHV & AOS
- – New 4th Generation Intel® Xeon® Scalable Processors
- – New PCIe 5.0 support
- – New HPE DDR5 SmartMemeory – Registered (RDIMM), 4800MT/s
- – New HPE Gen11 Storage Controllers
- – New HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
- – New HPE Storage SSD support
- – New HPE iLO6 support
Platform Information
Form Factor
- – 1U rack
Chassis Types

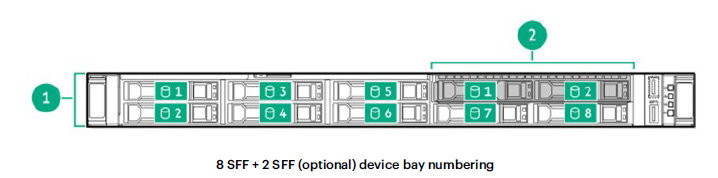

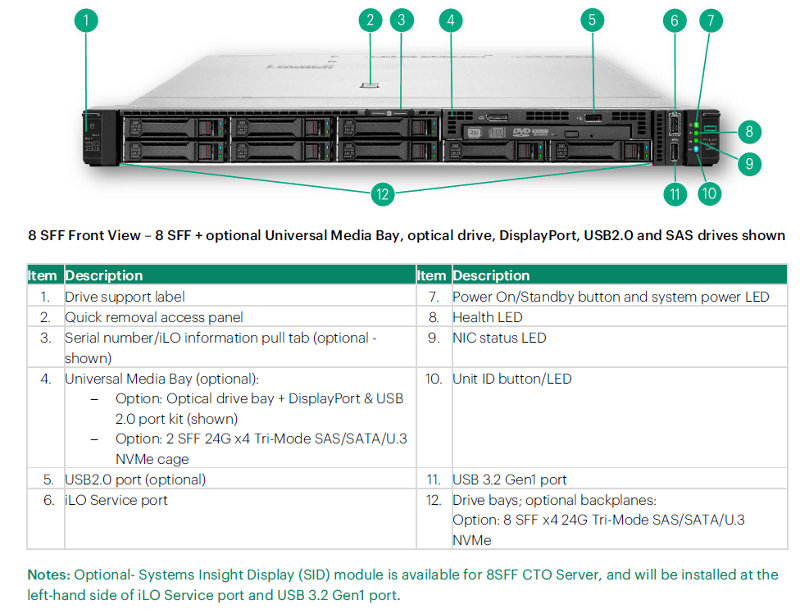

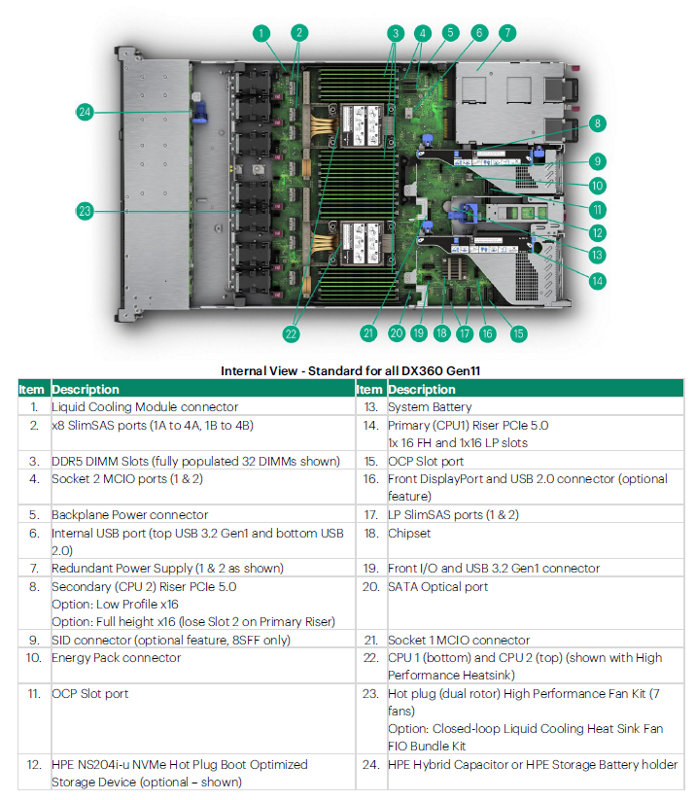

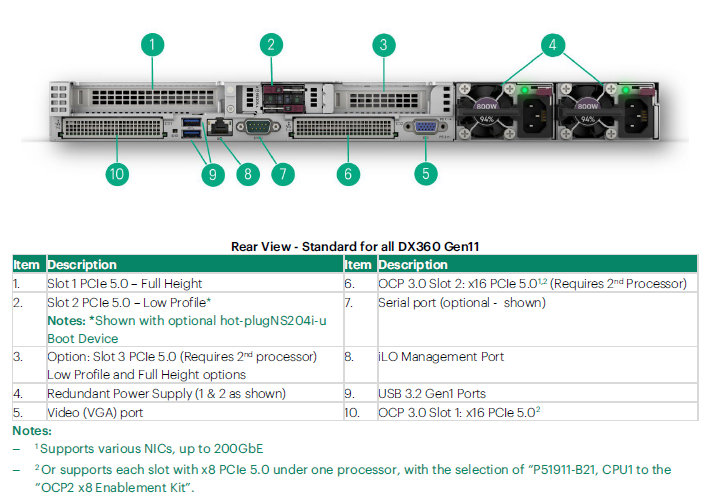

- – 8 SFF drive bays: SAS/SATA
- – With options for additional 2 SFF drive bays: NVMe
- – 10 SFF drive bays: NVMe
System Fans
- – Performance Fan Kit Standard
Notes:
– Dual rotor hot plug High Performance Fan Kit available (includes 7 fans), for one or two processors from 186W to 270W TDP.
– The DX360 Gen11 will support up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown.
-
Processors – Up to 2 of the following, depending on model.
- – The 2nd digit of the processor model number “x4xx” is used to denote the processor generation (i.e. 4 = New 4th Generation Intel® Xeon® Scalable Processors
Notes:
– All information provided here is subject to change without notice. Intel may make changes to specifications and product descriptions at any time, without notice. Please contact your Intel representative to obtain the latest Intel product specifications and roadmaps.
– For more information regarding Intel® Xeon® Scalable Processors, please see the following http://www.intel.com/xeon.
New 4th Generation Intel® Xeon® Scalable Processors numbering convention Workload
| New 4th Generation Intel® Xeon® Scalable Processors | ||
|---|---|---|
| Processor Suffix | Description | Offering |
| H | DB and Analytics | Highest core counts. Database and Analytics usages benefit from DSA and IAA accelerators. |
| M | Media Transcode | Optimized around AVX frequencies to deliver better performance/watt around Media, AI, and HPC workloads. |
| N | Network/5G/Edge (Hight TPT/Low latency) | Designed for NFV and networking workloads, such as: L3 forwarding, 5G UPF, OVS DPDK, VPP FIB router, VPP IPsec, web server/NGINX, vEPC, vBNG, and vCMTS. |
| S | Storage and HCI | Optimized for Storage UMA use cases with increased UPI Bandwidth for vs Mainline SKUs. |
| P | Cloud - IaaS | Designed for cloud IaaS environments to deliver higher frequencies at constrained TDPs. |
| Q | Liquid Cooling | Liquid cooled processors with higher frequency and performance at same TDP. |
| U | One Socket Optimized | Optimized for targeted platforms adequately served by the cores, memory bandwidth and IO capacity. Available from a single processor configuration. |
| V | Cloud- SaaS | Optimized for orchestration efficiency that delivers higher core counts and VMs per rack. |
| Y | Speed Select1 | Intel® SST-Performance Profile (PP) increases base frequency when fewer cores are enabled. Allows greater flexibility, deployment options and platform longevity. |
Notes:
– Covers the Intel public offering only.
– New Built-in Accelerators.
- 1 to 8 socket support
- Intel® Data Streaming Accelerator (DSA)
- Intel® Dynamic Load Balancer (DLB)
- Intel® Quick Assist Technology (QAT)
- Intel® In-Memory Analytics Accelerator (IAA)
– Increased memory bandwidth with 8 channels DDR5, up to 4800 MT/s, 4.0TB maximum RAM per socket.
– Increased I/O bandwidth up to 80 PCIe 5.0 lanes per socket, and new Compute Express Link (CXL).
– Built-in AI Acceleration: Intel® Advanced Matrix Extension (AMX)
– Hardware-enhanced Security: Enhanced Intel® Software Guard Extensions (SGX)
– with new cryptographic memory integrity
– Increaed Multi-Socket Bandwidth with new UPI2.0 (up to 16GT/s) with maximum 4 UPI Links
– New FlexBus I/O Interface PCIe5.0 + CXL
– 1 The 4th Generation Intel® Xeon® Scalable Processors are featured with Intel Speed Select Technology (SST) for Infrastructure as Service, Networking and Virtualized environments worklaods. The SST includes,
- SST- Perfromace Profile
- SST- Base Frequency
- SST- Core Power
- SST- Turo Frequency
– Default setting in ROM-Based Setp Utility (RBSU) as shown.
| Intel® SST Features | RBSU Options | Granular Control over CPU Performance | Default Setting |
|---|---|---|---|
| SST- Performance Profile | Dynamic Intel® Speed Select Technology – Performance Profile | Alllows the CPU to run in one of three performance profiles | CPU hardware- based. Enabled by default |
| SST-Base Frequency | Intel® Speed Select Technology – Base Frequency | Enables some CPU cores to run at a higher base frequency in return for other cores running at a lower base frequency | Disabled by default |
| SST-Core Power | Intel® Speed Select Technology – Core Power | Allows software to prioritize with cores will receive excess power after satisfying minimum requirements | Disabled by default |
| Intel SST Turbo Frequency | Intel® Turbo Boost Technology | Allows software-selected cores to achieve a higher max turbo frequency by reducing other cores’ max turbo frequency | Enabled by default |
| 5th Generation Intel® Xeon® Scalable Processor Family (Platinum) | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Intel Xeon-Platinum 8562Y+ Processor for HPE | 2.8 GHz | 32 | 60.0MB | 300W | 3 | 5600 MT/s | 512 GB |
| Intel Xeon-Platinum 8568Y Processor for HPE | 2.3 GHz | 48 | 300 MB | 350W | 4 | 5600 MT/s | 512 GB |
| Intel Xeon-Platinum 8570 Processor for HPE | 2.1 GHz | 56 | 300 MB | 350W | 4 | 5600 MT/s | 512 GB |
| Intel Xeon-Platinum 8580 Processor for HPE | 2.0 GHz | 60 | 300 MB | 350W | 4 | 5600 MT/s | 512 GB |
| Intel Xeon-Platinum 8592+ Processor for HPE | 1.9 GHz | 64 | 320 MB | 350W | 4 | 5600 MT/s | 512 GB |
| Intel Xeon-Platinum 8558 Processor for HPE | 2.1 GHz | 48 | 260 MB | 330W | 4 | 5200 MT/s | 512 GB |
| Intel Xeon-Platinum 8558U Processor for HPE | 2.0 GHz | 48 | 260 MB | 300W | 0 | 4800 MT/s | 512 GB |
| Intel Xeon-Platinum 8592V Processor for HPE | 2.0 GHz | 64 | 320 MB | 330W | 3 | 4800 MT/s | 512 GB |
| Intel Xeon-Platinum 8558P Processor for HPE | 2.7 GHz | 48 | 260 MB | 350W | 3 | 5600 MT/s | 512 GB |
| Intel Xeon-Platinum 8581V Processor for HPE | 2.0 GHz | 60 | 300 MB | 270W | 0 | 4800 MT/s | 512 GB |
| 5th Generation Intel® Xeon® Scalable Processor Family (Gold 6) | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Intel Xeon-Gold 6526Y Processor for HPE | 2.8 GHz | 16 | 37.5 MB | 195W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6542Y Processor for HPE | 2.9 GHz | 24 | 600 MB | 250W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6548Y+ Processor for HPE | 2.5 GHz | 32 | 600 MB | 250W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6534 Processor for HPE | 3.9 GHz | 8 | 22.5 MB | 195W | 3 | 4800 MT/s | 128 GB |
| Intel Xeon-Gold 6544Y Processor for HPE | 3.6 GHz | 16 | 45.0 MB | 270W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6530 Processor for HPE | 2.1 GHz | 32 | 130 MB | 270W | 3 | 4800 MT/s | 128 GB |
| Intel Xeon-Gold 6538Y+ Processor for HPE | 2.2 GHz | 32 | 60.0 MB | 225W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6538N Processor for HPE | 2.1 GHz | 32 | 60.0 MB | 205W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6548N Processor for HPE | 2.8 GHz | 32 | 60.0 MB | 250W | 3 | 5200 MT/s | 128 GB |
| Intel Xeon-Gold 6554S Processor for HPE | 2.2 GHz | 36 | 180 MB | 270W | 4 | 5200 MT/s | 128 GB |
| 4th Generation Intel® Xeon® Scalable Processor Family (Platinum) | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Platinum 8480+ Processor | 2.0 GHz | 56 | 105 MB | 350W | 4 | 4800 MT/s | 512 GB |
| Platinum 8470 Processor | 2.0 GHz | 52 | 105 MB | 350W | 4 | 4800 MT/s | 512 GB |
| Platinum 8470Q Processor | 2.1 GHz | 52 | 105 MB | 350W | 4 | 4800 MT/s | 512 GB |
| Platinum 8470N Processor | 1.7 GHz | 52 | 105 MB | 300W | 3 | 4800 MT/s | 128 GB |
| Platinum 8468 Processor | 2.1 GHz | 48 | 105 MB | 350W | 4 | 4800 MT/s | 512 GB |
| Platinum 8468V Processor | 2.4 GHz | 48 | 97.5 MB | 330W | 3 | 4800 MT/s | 128 GB |
| Platinum 8462Y+ Processor | 2.8 GHz | 32 | 60.0 MB | 300W | 3 | 4800 MT/s | 128 GB |
| Platinum 8460Y1+2 Processor | 2.0 GHz | 40 | 105 MB | 300W | 4 | 4800 MT/s | 128 GB |
| Platinum 8458P Processor | 2.7 GHz | 44 | 82.5 MB | 350W | 3 | 4800 MT/s | 512 GB |
| Platinum 8452Y1 Processor | 2.0 GHz | 36 | 67.5 MB | 300W | 4 | 4800 MT/s | 128 GB |
| Platinum 8444H Processor | 2.9GHz | 16 | 45 MB | 270W | 4 | 4800 MT/s | 512 GB |
| Platinum 8490H Processor | 1.9GHz | 60 | 112.5 MB | 350W | 3 | 4800 MT/s | 512 GB |
Notes:
– One or two processor(s) with TDP equal to or greater than 186W through 270W require High Performance Heatsink Kit (P48905-B21) and High Performance Fan Kit (P48908-B21)
– Two processors with TDP equal or greater than 271W require Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit (P48906-B21)
– Intel® Speed Select enabled processors: Platinum 8468V, 8460Y+, 8458P and 8452Y
| 4th Generation Intel® Xeon® Scalable Processor Family (Gold 6) | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Gold 6458Q Processor | 3.1 GHz | 32 | 60 MB | 350W | 3 | 4800 MT/s | 128 GB |
| Gold 6454S Processor | 2.2 GHz | 32 | 60 MB | 270W | 4 | 4800 MT/s | 128 GB |
| Gold 6430 Processor | 2.1 GHz | 32 | 60 MB | 270W | 3 | 4400 MT/s | 128 GB |
| Gold 6414U Processor1 | 2.0 GHz | 32 | 60 MB | 250W | - | 4800 MT/s | 128 GB |
| Gold 6426Y Processor | 2.5 GHz | 16 | 37.5 MB | 185W | 3 | 4800 MT/s | 128 GB |
| Gold 6421N Processor | 1.8 GHz | 32 | 60.0 MB | 185W | - | - | - |
| Gold 6442Y Processor | 2.6 GHz | 24 | 60.0 MB | 225W | 3 | 4800 MT/s | 128 GB |
| Gold 6448Y Processor | 2.1 GHz | 32 | 600 MB | 225W | 3 | 4800 MT/s | 128 GB |
| Gold 6434 Processor | 3.7 GHz | 8 | 22.5 MB | 195W | 3 | 4800 MT/s | 128 GB |
| Gold 6444Y Processor | 3.6 GHz | 16 | 45.0 MB | 270W | 3 | 4800 MT/s | 128 GB |
| Gold 6438Y+ Processor | 2.0 GHz | 32 | 60.0 MB | 205W | 3 | 4800 MT/s | 128 GB |
| Gold 6438N Processor | 3.0 GHz | 32 | 60.0 MB | 205W | 3 | 4800 MT/s | 128 GB |
| Gold 6416H Processor | 2.2GHz | 18 | 45 MB | 165W | 3 | 4800 MT/s | 512 GB |
| Gold 6418H Processor | 2.1GHz | 24 | 60 MB | 185W | 3 | 4800 MT/s | 512 GB |
| Gold 6448H Processor | 2.4GHz | 32 | 60 MB | 250W | 3 | 4800 MT/s | 512 GB |
| 4th Generation Intel® Xeon® Scalable Processor Family (Gold 5) | |||||||
|---|---|---|---|---|---|---|---|
| Gold 5415+Processor | 2.9 GHz | 8 | 22.5 MB | 150W | 3 | 4400 MT/s | 128 GB |
| Gold 5418Y Processor | 2.0 GHz | 24 | 45.0 MB | 185W | 3 | 4400 MT/s | 128 GB |
| Gold 5418N Processor | 1.8 GHz | 224 | 45.0 MB | 165W | 3 | 4000 MT/s | 128 GB |
| Gold 5420+ Processor | 2.0 GHz | 28 | 52.5 MB | 205W | 3 | 4400 MT/s | 128 GB |
| Gold 5418N Processor | 1.8 GHz | 24 | 45.0 MB | 165W | 3 | 4000 MT/s | 128 GB |
| Gold 5411N Processor | 1.9 GHz | 24 | 45.0 MB | 165W | - | 4400 MT/s | 128 GB |
| 4th Generation Intel® Xeon® Scalable Processor Family (Silver) | |||||||
|---|---|---|---|---|---|---|---|
| Silver 4410Y Processor | 2.0 GHz | 12 | 30.0 MB | 150W | 2 | 4000 MT/s | 64 GB |
| Silver 4416+ Processor | 3.0 GHz | 20 | 37.5 MB | 165W | 2 | 4000 MT/s | 64 GB |
Notes:
– 1Single socket capable, no dual socket support
– One or two processor(s) with TDP equal to or greater than 186W through 270W require High Performance Heatsink Kit (P48905-B21) and High Performance Fan Kit (P48908-B21)
– Two processors with TDP equal or greater than 271W require Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit (P48906-B21)
Chipset
Intel® C741 Chipset (Code Name: Product formerly Emmitsburg)
Notes: For more information regarding Intel® chipsets, please see the following URL:
https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html
System Management Chipset
HPE iLO 6 ASIC
Notes: Read and learn more in the iLO QuickSpecs.
Memory
| Type | HPE DDR5 Smart Memory | Registered (RDIMM) |
|---|---|---|

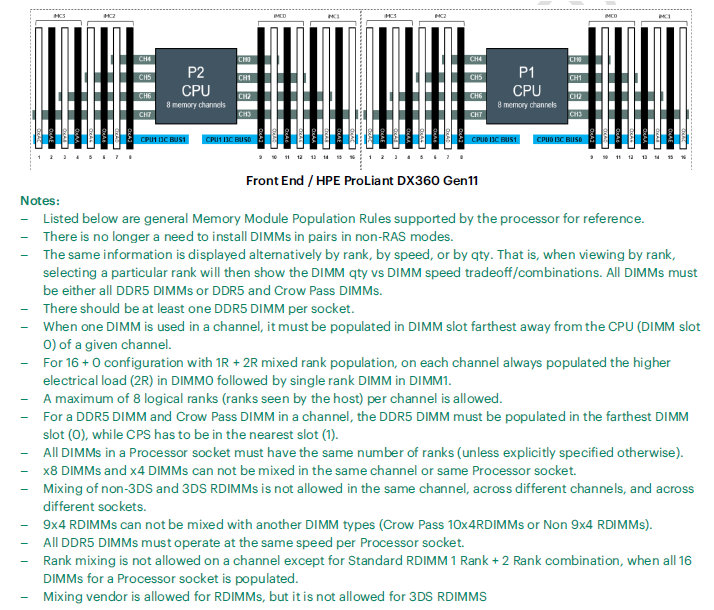

| DIMM Slots Available | 32 | 16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel |
| Maximum capacity (RDIMM) | 8.0 TB | 32 x 256 GB RDIMM @ 4800 MT/s |
Notes:
– All processors support up to 4TB memory per socket.
– The maximum memory speed is limited by the processor selection.
– To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.
– For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs.
Memory Protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online Spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
Notes: For more information see our Memory RAS feature technical whitepaper.
PCIe Expansion Slots
| Primary Riser (default in chassis) | |||||
|---|---|---|---|---|---|
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
| 1 | PCIe 5.0 | x16 | x16 | CPU 1 | Full-height, half-length, up to 9.5” length |
| 2 | PCIe 5.0 | x16 | x16 | CPU 1 | Half-height (Low-profile), up to 9.5” length |
Notes: The specifications above correspond with the default primary butterfly riser, which comes with CTO chassis
| Secondary Riser* | |||||
|---|---|---|---|---|---|
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor (two options) |
| 3 | PCIe 5.0 | x16 | x16 | CPU 2 | -Half-height (Low-profile), up to 9.5” or -Full-height, half-length, up to 9.5” length |
Notes:
– If Secondary riser is selected, then 2 Processor must be selected.
– If secondary FH riser is installed, then primary PCIe Slot #2 cannot be used, maximum 2 quantity of PCIe cards can be selected.
– If secondary FH riser is not selected, then maximum 1 quantity of FH PCIe cards can be selected.
– If secondary riser is not selected and "NS204i-u Rear Cable Kit" is not selected, then maximum 2 quantity of PCIe cards can selected.
– If secondary riser is not selected and "NS204i-u Rear Cable Kit" is selected, then maximum 1 quantity of PCIe cards can selected.
– If Secondary LP riser and "NS204i-u Rear Cable Kit" are selected, then maximum 2 quantity of PCIe cards can selected.
– If Secondary LP riser is selected and "NS204i-u Rear Cable Kit" is not selected, then maximum 3 quantity of PCIe cards can selected.
– All PCIe Slots support Wake-on-Lane (WoL) feature.
OCP Expansion Slots
| OCP3.0 Slot Priority Support Matrix | ||||||
|---|---|---|---|---|---|---|
| Rear wall | Selected OCP cards (Qty & type) | |||||
| 2 | 1 | 1 | 1 | 2 | ||
| OCP Slots # | Share NIC Feature | 1xOROC1 + 1x NIC2 | 1xNIC | 2xNICs | 1xOROC | 2x OROCs |
| 1 | N/A | OROC | (Secondary) | NIC | OROC (Primary) | OROC4 (Primary) |
| 2 | Available (Incl. Wake-on-Lane) | NIC | NIC (Primary) | NIC (Primary) | N/A3 | OROC4 |
Notes:
– 1 OCP form factor internal controller.
– 2 OCP Networking card.
– 3f only 1 OROC card is selected, by default connected from 8SFF backplane to OCP Slot1. And there is no controller cable can connect from 8SFF Backplane to OCP Slot 2.
– 4If 2 OROC cards are selected, by default the 8SFF controller cable is connected to OCP Slot1 (the comparably higher-end OROC card to be selected by default) and the 2SFF backplane is connected to OCP Slot2 with another OROC card selected (comparably less high-end one) with 2FF controller cable.
Internal Storage Devices
- – Hard Drives
- None ship standard
Storage Controllers
NVMe Boot Devices
- – HPE DX NS204i-u NVMe Hot Plug Boot Optimized Storage Device (P60454-B21) 1
- – HPE ProLiant DX360 Gen11 NS204i-u Rear Cable Kit (P54702-B21)
- – HPE ProLiant DX360 Gen11 NS204i-u Internal Cable Kit (P48920-B21)
| DX360 Gen11 NS204i-u Enablement Kit Support Matrix | ||||
|---|---|---|---|---|
| Enablement Kit | Description | Field Inst. | NS204i-u Location | Hot-plug Capability |
| P54702-B21 | HPE ProLiant DX360 Gen11 NS204i-u Rear Cable Kit | Yes | PCIe Slot 2 | Yes |
| P48920-B21 | HPE ProLiant DX360 Gen11 NS204i-u Internal Cable Kit | Yes | Internal | N/A |
Performance RAID Controllers
- – HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller
Maximum Storage
| Storage | Capacity | Configuration |
|---|---|---|
| Hot Plug SFF SAS HDD | 24.0 TB | 8+2 x 2.4 TB (with optional 2 SFF cage on UMB) |
| Hot Plug SFF SAS SSD | 153.6 TB | 8+2 x 15.36 TB (with optional 2 SFF cage on UMB) |
| Hot Plug SFF U.3 NVMe PCIe SSD | 153.6 TB | 8+2 x 15.36 TB (with optional 2 SFF cage on UMB) |
| NVMe M.2 SSD - Standard | 960 GB | 2 x 480 GB (shipped with HPE DX NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device ) |
Graphics
Integrated video standard
- – Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
- – 16 MB Video Memory
HPE iLO 6 on system management memory
- – 32 MB Flash
- – 8 Gbit DDR4 with ECC protection
Power Supply
- – HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- Notes: Available in 94% and 96% efficiency.
- – HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
- Notes: Available in 96% efficiency.
- – HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- Notes:
- – Available in 94% efficiency.
- – 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please visit the HPE Power Advisor located at: HPE Power Advisor
For information on power specifications and technical content visit HPE Server power supplies.
Interfaces | |
|---|---|
| Serial | 1 port - Optional |
| Video | 1 Front - DisplayPort (optional) 1 Rear - VGA port (standard on all models) Notes: Both ports are not active simultaneously. |
| Network Ports | None. Choice of OCP or stand up card, supporting a wide arrange of NIC adapters. BTO models will come pre-selected with a primary networking card. |
| HPE iLO Remote Mgmt Port at rear | 1 GbE Dedicated |
| Front iLO Service Port | 1 standard |
| USB | 5 standard on all models: 1 front, 2 rear, 2 internal +1 optional at the front
|
Operating Systems and Virtualization Software
HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.
Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices
- – VMware ESXi: 7.0 U3, 8.0
Industry Standard Compliance
- – ACPI 6.4 Compliant
- – PCIe 5.0 Compliant
- – WOL Support
- – Microsoft® Logo certifications
- – PXE Support
- – VGA
- – DisplayPort
- Notes: This support is on the optional Universal Media Bay.
- – USB 3.2 Gen1 Compliant
- – USB 2.0 Compliant (only on optional Universal Media Bay and embedded internal USB)
- – SMBIOS 3.4
- – Redfish API
- – IPMI 2.0
- – Secure Digital 4.0
- – Embedded TPM 2.0 support
- – Advanced Encryption Standard (AES)
- – Triple Data Encryption Standard (3DES)
- – SNMP v3
- – TLS 1.2
- – DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)
- – Active Directory v1.0
- – ASHRAE A3/A4
- Notes:
- – For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae
- – At Standard Operating Support conditions, there is no time limitation for operating the servers in ASHRAE Class A2 conditions, unless otherwise specified in the applicable product information.
- – EU Lot9
- Notes: European Union (EU) eco-design regulations for server and storage products, known as Lot 9, establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen11 servers are compliant with Lot9 requirements. Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance
- – UEFI (Unified Extensible Firmware Interface Forum) 2.7
- Notes: UEFI is the default for the DX360 Gen11.
HPE Server UEFI
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 2 implementation to support UEFI Mode.
Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as
- – Secure Boot and Secure Start enable for enhanced security
- – Embedded UEFI Shell
- – Operating system specific functionality
- – Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- – Support for > 2.2 TB (using GPT) boot drives
- – PXE boot support for IPv6 networks
- – USB 3.0 Stack
- – Workload Profiles for simple performance optimization
UEFI Boot Mode only
- – TPM 2.0 Support
- – iSCSI Software Initiator Support.
- – NVMe Boot Support
- – HTTP/HTTPs Boot support as a PXE alternative.
- – Platform Trust Technology (PTT) can be enabled.
- – Boot support for option cards that only support a UEFI option ROM
Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
Embedded Management
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo.
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Learn more at http://www.hpe.com/servers/uefi.
Security
- – UEFI Secure Boot and Secure Start support
- – Immutable Silicon Root of Trust
- – FIPS 140-2 validation
- – Common Criteria certification
- – Configurable for PCI DSS compliance
- – Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- – Support for Commercial National Security Algorithms (CNSA)
- – iLO Security Modes
- – Granular control over iLO interfaces
- – Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
- – Tamper-free updates – components digitally signed and verified
- – Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
- – Ability to rollback firmware
- – Secure erase of NAND/User Data
- – TPM 2.0 (Trusted Platform Module 2.0)
- – Chassis Intrusion detection option
HPE Trusted Platform Module
HPE Trusted Platform Module 2.0 is included on Pre-Configured models and can be enabled and disabled using the BIOS.
Notes:
The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates, and encryption keys
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
-
Server Management
HPE iLO Advanced: Standard
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
-
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- – A complete coverage approach
- – An assigned HPE team
- – Modular and fully personalized engagement
- – Enhanced Incident Management experience with priority access
- – Digitally enabled and AI driven customer experience
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.hpe.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- – Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- – Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin
Consume IT On Your Terms
GreenLake is the cloud delivering a unified platform experience that allows enterprises to simplify IT, reduce costs, and transform faster.
- – Get faster time to market
- – Save on TCO, align costs to business
- – Scale quickly, meet unpredictable demand
- – Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information refer to: http://www.hpe.com/services
-
This section lists some of the steps required to configure a Factory Integrated Model.
To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
- – Factory Integrated Models must start with a CTO Server.
- – FIO indicates that this option is only available as a factory installable option.
- – Some options may not be integrated at the factory. Contact your local sales representative for additional information
Step 1: Base Configuration (choose one of the following configurable models)
CTO Server models do not include embedded LOM. To enable networking capability please select a validated alternative NIC -OCP or PCIe- from the Core Options section.
| CTO Server | HPE DX360 Gen11 8SFF CTO Server | HPE DX360 Gen11 10SFF NVMeCTO Server | |
|---|---|---|---|
| SKU Number | P52498-B21 | P52499-B21 | |
| HPE Trusted Supply Chain | Standard: P36394-B21 | ||
| Processor | Not included as standard | ||
| DIMM Slots | 32-DIMM slots | ||
| DIMM Blanks | DIMM Blanks are required, embedded and shipped as default in all CTO Servers. | ||
| Storage Controller | HPE ProLiant Gen11 MR216i-o controler | ||
| PCIe Slots | PCIe 5.0. One standard primary/butterfly riser: 2 slots as Slot 1 & Slot 2 (1 x16 FH / 1 x16 LP) and 4 x8 front NVMe connectors Optional: Slot 3 in 1 x16 FH or LP slot | ||
| OCP3.0 Slots | PCIe 5.0: 2 slots (1x16/ 1x16) | ||
| CTO Server | HPE DX360 Gen11 8SFF CTO Server | HPE DX360 Gen11 10 SFF NVMe CTO Server | |
| Drive Cage – included | 8SFF – x1 TriMode 24G SAS/SATA/U.3 NVMe | 10SFF NVMe – default NVMe backplane | |
| Network Controller | Customer is allowed to remove and select other cards (PCIe of OCP) from Networking category. Choice of OCP3.0 or stand-up cards for primary networking selection plus additional/optional stand-up networking adapters. Notes: – No embedded networking from motherboard. – 1 In 1 Processor configuration, “CPU1 to OCP2 x8 Enablement Kit” will be selected as default as OCP NIC is pre-selected at OCP Slot 2, to be defaulted in the configurator if 1 Processor is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU1 to OCP2 x8 Enablement Kit” will be removed. – 1 “CPU2 to OCP2 x8 Enablement Kit” or “CPU2 to OCP2 x16 Enablement Kit” must be selected if OCP NIC is selected in 2 Processors configuration. “CPU2 to OCP2 x8 Enablement Kit” to be defaulted in the configurator if 2 Processors are selected. User should be allowed to remove “CPU2 to OCP2 x8 Enablement Kit” and should be forced select “CPU2 to OCP2 x16 Enablement Kit” if OCP NIC is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU2 to OCP2 x8 Enablement Kit” will be removed. | ||
| Fans | Choice of
| ||
| Management | HPE iLO Advanced (standard) | ||
| Video Output | Rear: 1 VGA Optional:
| ||
| USB | Front: 1 USB 3.2 Gen1 + iLO service port Rear: 2 USB 3.2 Gen1 Internal: 1 USB 3.2 Gen1 + 1 USB2.0 Optional: 1 Front USB 2.0 | ||
| Security | TPM2.0 (Trusted Platform Module) embedded Notes: Disabled on shipments to China | ||
| Rail Kit | Optional Easy Install rails and CMA Notes: Server does not support shelf mounted rail kits (“L” brackets). | ||
| Form Factor | 1U Rack | ||
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | ||
Notes:
– All DX360 Gen11 CTO Server models require a networking selection of a network adapters in the “HPE Networking” section.
– Minimum One card (PCIe or OCP) must be selected from Networking
– HPE DX ProLiant platforms are a Server Appliance: and Energy Star except.
– Server Appliance:
– A computer server that is bundled with a pre-installed OS and application
– software that is used to perform a dedicated function or set of tightly coupled functions.
– Server appliances deliver services through one or more networks (e.g., IP or SAN), and are
– typically managed through a web or command line interface. Server appliance hardware and
– software configurations are customized by the vendor to perform a specific task (e.g., name
– services, firewall services, authentication services, encryption services, and voice-over-IP
– (VoIP) services), and are not intended to execute user-supplied software.
Step 2: Choose Core Options
- – Mixing of 2 different processor models is not supported.
- – CTO server will populate necessary heatsink and fan kits per system thermal requirements and processor models
- – DIMM Blanks are pre-selected as default, minimum Q’ty 1 of memory need to be selected in 1 Processor configuration, and minimum Q’ty 2 of memory need to be selected in 2 Processor configuration
- – Factory Configuration Settings
- – Choice of riser card for PCIe5.0 slots enablement
- – Choice of Networking solution
Step 3: Choose Additional Options
- – Choice of Accessories
- – Choice of GPGPU
Choose Core Options | |
ProcessorPlease select one or two matching processors. For example: for a single Xeon-Platinum 8470 processor configuration select 1x P49606-B21. If dual Xeon-Platinum 8470 processor configuration, select 2x P49606-B21. Notes: – Mixing of 2 different processor models is not supported. – CTO server will populate necessary fan kits per system thermal requirements and processor models, mnimum as 5 standard fans. Dual processor configurations require 7 fans, either standard or high performance. – Processors with Wattage equal to or greater than 186W require High Performance Heatsink (P48905-B21). – Processors with Wattage equal to or greater than 186W require High Performance Fan Kit (P48908-B21). – If Processor Wattage is more than 271W, then Closed-loop LC Heat Sink Fan Bundle FIO Kit must be selected (P48906-B21). – If 8470Q Processor is selected, then SAS drive/ NVMe drive cannot be selected in the server. Only 8xSATA HDD can be selected. | |
| 4th Generation Intel Xeon-Platinum | |
| Notes: All SKUs below ship with processor only. Adequate fans and heatsinks must be selected. | |
| Intel Xeon-Platinum 8480+ 2.0GHz 56-core 350W FIO Processor for HPE DX | P62396-B21 |
| Intel Xeon-Platinum 8470 2.0GHz 52-core 350W FIO Processor for HPE DX | P62395-B21 |
| Intel Xeon-Platinum 8470Q 2.1GHz 52-core 350W FIO Processor for HPE DX | P62399-B21 |
| Intel Xeon-Platinum 8470N 1.7GHz 52-core 300W FIO Processor for HPE DX | P62401-B21 |
| Intel Xeon-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX | P62394-B21 |
| Intel Xeon-Platinum 8468V 2.4GHz 48-core 330W FIO Processor for HPE DX | P62402-B21 |
| Intel Xeon-Platinum 8462Y+ 2.8GHz 32-core 300W FIO Processor for HPE DX | P62411-B21 |
| Intel Xeon-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX | P62393-B21 |
| Intel Xeon-Platinum 8458P 2.7GHz 44-core 350W FIO Processor for HPE DX | P62403-B21 |
| Intel Xeon-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX | P62398-B21 |
| Intel Xeon-Platinum 8444H 2.9GHz 16-core 270W Processor for HPE | P49625-B21 |
| Intel Xeon-Platinum 8490H 1.9GHz 60-core 350W Processor for HPE | P49630-B21 |
| 5th Generation Intel Xeon-Platinum | |
| Intel Xeon-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE | P67085-B21 |
| Intel Xeon-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE | P67086-B21 |
| Intel Xeon-Platinum 8570 2.1GHz 56-core 350W Processor for HPE | P67087-B21 |
| Intel Xeon-Platinum 8580 2.0GHz 60-core 350W Processor for HPE | P67088-B21 |
| Intel Xeon-Platinum 8592+ 1.9GHz 64-core 350W Processor for HPE | P67089-B21 |
| Intel Xeon-Platinum 8558 2.1GHz 48-core 330W Processor for HPE | P67097-B21 |
| Intel Xeon-Platinum 8558U 2.0GHz 48-core 300W Processor for HPE | P67102-B21 |
| Intel Xeon-Platinum 8592V 2.0GHz 64-core 330W Processor for HPE | P67107-B21 |
| Intel Xeon-Platinum 8558P 2.7GHz 48-core 350W Processor for HPE | P67108-B21 |
| Intel Xeon-Platinum 8581V 2.0GHz 60-core 270W Processor for HPE | P67109-B21 |
| 4th Generation Intel Xeon-Gold 6 | |
| Notes: All SKUs below ship with processor only. Adequate fans and heatsinks must be selected. | |
| Intel Xeon-Gold 6458Q 3.1GHz 32-core 350W FIO Processor for HPE DX | P62417-B21 |
| Intel Xeon-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX | P62404-B21 |
| Intel Xeon-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX | P62408-B21 |
| Intel Xeon-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX | P62410-B21 |
| Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX | P62416-B21 |
| Intel Xeon-Gold 6438N 2.0GHz 32-core 205W FIO Processor for HPE DX | P62420-B21 |
| Intel Xeon-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX | P62409-B21 |
| Intel Xeon-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX | P62397-B21 |
| Intel Xeon-Gold 6421N 1.8GHz 32-core 185W FIO Processor for HPE DX | P62423-B21 |
| Intel Xeon-Gold 6414U 2.0GHz 32-core 250W FIO Processor for HPE DX | P62400-B21 |
| Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX | P62406-B21 |
| Intel Xeon-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX | P62407-B21 |
| Intel Xeon-Gold 6416H 2.2GHz 18-core 165W Processor for HPE | P49620-B21 |
| Intel Xeon-Gold 6418H 2.1GHz 24-core 185W Processor for HPE | P49621-B21 |
| Intel Xeon-Gold 6448H 2.4GHz 32-core 250W Processor for HPE | P49622-B21 |
| 5th Generation Intel Xeon-Gold 6 | |
| Intel Xeon-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE | P67080-B21 |
| Intel Xeon-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE | P67081-B21 |
| Intel Xeon-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE | P67082-B21 |
| Intel Xeon-Gold 6534 3.9GHz 8-core 195W Processor for HPE | P67083-B21 |
| Intel Xeon-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE | P67084-B21 |
| Intel Xeon-Gold 6530 2.1GHz 32-core 270W Processor for HPE | P67095-B21 |
| Intel Xeon-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE | P67096-B21 |
| Intel Xeon-Gold 6538N 2.1GHz 32-core 205W Processor for HPE | P67104-B21 |
| Intel Xeon-Gold 6548N 2.8GHz 32-core 250W Processor for HPE | P67105-B21 |
| Intel Xeon-Gold 6554S 2.2GHz 36-core 270W Processor for HPE | P67110-B21 |
| 4th Generation Intel Xeon-Gold 5 | |
| Intel Xeon-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX | P62415-B21 |
| Intel Xeon-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX | P62414-B21 |
| Intel Xeon-Gold 5418N 1.8GHz 24-core 165W FIO Processor for HPE DX | P62422-B21 |
| Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor for HPE DX | P62426-B21 |
| Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W FIO Processor for HPE DX | P62405-B21 |
| Intel Xeon-Gold 5411N 1.9GHz 24-core 165W FIO Processor for HPE DX | P62421-B21 |
| 5th Generation Intel Xeon-Gold 5 | |
| Intel Xeon-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE | P67079-B21 |
| Intel Xeon-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE | P67094-B21 |
| 4th Generation Intel Xeon-Silver | |
| Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX | P62413-B21 |
| Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W FIO Processor for HPE DX | P62412-B21 |
| 5th Generation Intel Xeon-Silver | |
| Intel Xeon-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE | P67090-B21 |
| Intel Xeon-Silver 4510 2.4GHz 12-core 150W Processor for HPE | P67091-B21 |
| Intel Xeon-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE | P67092-B21 |
| Intel Xeon-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE | P67093-B21 |
| Heatsinks | |
| For more details, please refer to the support matrix in Power and Cooling solutions (Additional Option section) | |
| HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit | P48905-B21 |
| Notes: – If Processor Wattage is more than 185W and less than or equal to 270W, then "Performance Heatsink" and "Performance Fan" must be selected. – Quantity of Processor and Quantity of Heatsink must match. | |
Memory | |
| Please select one or more memory DIMMs from below. For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to: http://www.hpe.com/docs/memory-population-rules Server memory population rules for HPE Gen11 servers with 4th Gen Intel Xeon Scalable processors For more information, please see the HPE DDR5 Smart Memory QuickSpecs Notes: – The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model. – Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, 12 or 16. – x8 and x4 cannot be mixed. – 3DS and non-3DS Memory cannot be mixed. – Mixing of different Rank Memory is not allowed if less than 16 quantity of Memory is selected for 1 Processor configuration. – Mixing of different Rank Memory is not allowed if less than 32 quantity of Memory is selected for 2 Processor configuration. – If different Rank Memory are mixed, then quantity of each Memory part number must be same. – If 256GB Memory is selected, will be limited to 1P1D, thus Maximum of 8 can be selected per Processor. – If 256GB Memory is selected, then high speed Networking/InfiniBand card (PCIe and OCP), that is 100G or more, cannot be selected. – Long boot time may be introduced because of DDR5 initialization takes much longer than last generation DDR4, as an industry impact. HPE ProLiant server boot times will go through multiple reboots during POST for default restore. – If 256GB Memory is selected, will be limited using 7x performance fan or CLC fan (not allow standard fan), and limit at 25C. | |
| Registered DIMMs DDR5 (RDIMMs) | |
| HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62601-B21 |
| HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62603-B21 |
| HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62604-B21 |
| HPE DX 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit | P62605-B21 |
| HPE DX 256GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit | P62606-B21 |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64705-B21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64706-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64707-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64708-B21 |
| HPE 128GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit | P64709-B21 |
| Notes: If 256GB DIMM is selected, then high speed Networking/InfiniBand card (PCIe and OCP) that is 100G or more cannot be selected. | |
| HPE DIMM blanks | |
| HPE DDR4 DIMM Blank Kit | P07818-B21 |
| Notes: Required, embedded and shipped as default in all CTO Servers. Leverage thesame from, DL360 Gen10 Plus DIMM Blank. | |
Storage Devices | |
| Hardware Storage Controller | |
| HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller | P47789-B21 |
| SSD – Read Intensive (max 8) | |
| Read Intensive - 12G SAS - SFF - Solid State Drives | |
| HPE DX 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor FIO SSD | P56767-B21 |
| HPE DX 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor FIO SSD | P56763-B21 |
| HPE DX 3.84TB SAS 24G Read Intensive SFF BC PM1653 FIO SSD | P56759-B21 |
| Read Intensive - 24G SAS - SFF - Solid State Drives | |
| HPE DX 3.84TB SAS Read Intensive SFF BC Multi Vendor FIO SSD | P75500-B21 |
| HPE DX 3.84TB SAS Read Intensive SFF BC Multi Vendor SSD | P75498-B21 |
| Read Intensive - 6G SATA - SFF - Solid State Drives | |
| HPE DX 3.84TB SATA 6G Read Intensive SFF BC S4520 FIO SSD | P60322-B21 |
| HPE DX 3.84TB SATA 6G Read Intensive SFF BC PM893 FIO SSD | P56743-B21 |
| HPE DX 1.92TB SATA 6G Read Intensive SFF BC S4520 FIO SSD | P56749-B21 |
| HPE DX 1.92TB SATA 6G Read Intensive SFF BC PM893 FIO SSD | P56739-B21 |
| HPE DX 1.92TB SATA Read Intensive SFF BC PM893a SSD | P75488-B21 |
| HPE DX 3.84TB SATA Read Intensive SFF BC PM893a SSD | P75482-B21 |
| HPE DX 1.92TB SATA Read Intensive SFF BC PM893a FIO SSD | P75486-B21 |
| HPE DX 3.84TB SATA Read Intensive SFF BC PM893a FIO SSD | P75480-B21 |
| SSD – Mixed Use (max 8) | |
| Mixed Use - 24G SAS - SFF - Solid State Drives | |
| HPE DX 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor FIO SSD | P57601-B21 |
| HPE DX 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor FIO SSD | P57589-B21 |
| Mixed Use - 6G SATA - SFF - Solid State Drives | |
| HPE DX 1.92TB SATA 6G Mixed Use SFF BC PM897 FIO SSD | P56731-B21 |
| HPE DX 1.92TB SATA 6G Mixed Use SFF BC Samsung PM897a SSD | P75491-B21 |
| HPE DX 1.92TB SATA 6G Mixed Use SFF BC Samsung PM897a FIO SSD | P75489-B21 |
| NVMe – SSD – Read Intensive (max 10) | |
| Read Intensive - NVMe - SFF - Solid State Drives | |
| HPE DX 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD | P57771-B21 |
| HPE DX 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD | P57769-B21 |
| HPE DX 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57759-B21 |
| HPE DX 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD | P57767-B21 |
| HPE DX 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57758-B21 |
| HPE DX 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD | P57765-B21 |
| HPE DX 1.9TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57757-B21 |
| NVMe – SSD Mixed Use (max 10) | |
| Mixed Use - NVMe - SFF - Solid State Drives | |
| HPE DX 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a FIO SSD | P57764-B21 |
| HPE DX 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a FIO SSD | P57762-B21 |
Factory Configuration Settings | |
| Each of the following may be selected if desired at time of factory integration | |
| iLO Common Password - Standard | |
| HPE iLO Common Password FIO Setting | P08040-B21 |
| Notes: – It is advisable to match the order quantity of this SKU matching the quantity of servers being ordered. – Below Warning message to be displayed in the configurators upon the selection of this SKU: – "Use of iLO Common Password SKU sets the initial iLO password to be a well-known string rather than a random password. It is advisable to match the order quantity of this SKU matching the quantity of servers being ordered.” – HPE highly recommends changing this password immediately after the initial onboarding process. – Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services | |
Riser Cards | |
| Standard Primary (Butterfly) Riser: (embedded in all CTO adn BTO Server)
| |
| Notes: If Hot-plug NS204i-u is installed, the Slot 2 cage need to be removed | |
| HPE ProLiant DL360 Gen11 x16 Full Height Riser Kit | P48901-B21 |
| Notes: – Referred as Secondary FH riser. – 2nd Processor is required. – Slot 3: 1x PCIe5.0 x 16 FHHL – If both 4P Networking (Base-T and Full-Height) and Half-Height Internal PCIe controller are selected, then Secondary FH riser cannot be selected. | |
| Riser Information*,** | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part number | Description | Riser position | Slot Bus width (Gen5 lanes) | GPU Support | NVMe Direct Connect | M.2 Connect | ||||
| Prim. | Sec | #1 | #2 | #3 | Connectors | Max SSDs | ||||
| (default in chassis) | HPE DL360 Gen11 x16/x16 Primary Riser | D | N/A | x16 | x16 | N/A | Y | N/A | N/A | N/A |
| P48901-B21 | HPE ProLiant DX360 Gen11 x16 Full Height Riser Kit1 | N/A | O | N/A | N/A1 | x16 | Y | N/A | N/A | N/A |
| P48903-B21 | HPE ProLiant DX360 Gen11 x16 LP Riser Kit | N/A | O | N/A | N/A | x16 | Y2 | N/A | N/A | N/A |
Notes:
– D = Default on server; O = Optional; N = not supported or slot/connector not present.
– Quantity of Processor and Quantity of Heatsink must match.
– 1When secondary full height kit is installed, then primary PCIe Slot 2 cannot be used. Only 2 full height slots are supported.
– 2GPU max 75W
– If Secondary riser is selected, then 2 Processor must be selected.
– If secondary riser is not selected and "NS204i-u Rear Cbl Kit" is not selected, then maximum 2 quantity of PCIe cards can selected.
– If secondary FH riser is not selected, then maximum 1 quantity of FH PCIe cards can selected.
– If secondary riser is not selected and "NS204i-u Rear Cbl Kit" is selected, then maximum 1 quantity of PCIe cards can selected.
– If Secondary FH riser is selected, then maximum 2 quantity of PCIe cards can be selected.
– If Secondary LP riser is selected and "NS204i-u Rear Cbl Kit" is not selected, then maximum 3 quantity of PCIe cards can selected.
– If Secondary LP riser and "NS204i-u Rear Cbl Kit" are selected, then maximum 2 quantity of PCIe cards can selected.
– 4 ports base-T Low Profile NIC adpaters are not allowed to be installed at Slot 2 (P51178-B21, P21106-B21)
– All DX360 Gen11 Riser cards are designed in x16 PCIe slot form factor (physical length) as well as in full x16 lanes of PCIe5.0 as electrical bandwidth.
PCIe Slotting
| Configuration 1: Primary Riser only (default in chassis) | ||
|---|---|---|
| Riser | (Primary as default) | |
| Slot Number | Slot 1 | Slot 2 |
| Bus Width | x16 | x16 |
| Form Factor | FHHL | HHHL (LP) |
| PCIe adapter | Slot Priority | |
| -PCIe x16 | 1 | 2 |
| -PCIe x8 | 1 | 2 |
| -PCIe x4 | 1 | 2 |
| -PCIe x1 | 1 | 2 |
| Configuration 2: Primary Riser (default in chassis) & Secondary FH Riser, 2 CPUs | |||
|---|---|---|---|
| Riser | (Primary as default) | | Secondary (P48901-B21) |
| Slot Number | Slot 1 | N/A | Slot 3 |
| Bus Width | x16 | x16 | |
| Form Factor | FHHL | FHHL | |
| PCIe adapter | Slot Priority | ||
| -PCIe x16 | 1 | N/A | 2 |
| -PCIe x8 | 1 | 2 | |
| -PCIe x4 | 1 | 2 | |
| -PCIe x1 | 1 | 2 | |
| Configuration 3: Primary Riser (default in chassis) & Secondary HH/LP Riser, 2 CPUs | |||
|---|---|---|---|
| Riser | (Primary riser as default) | | Secondary (P48903-B21) |
| Slot Number | Slot 1 | Slot 2 | Slot 3 |
| Bus Width | x16 | x16 | x16 |
| Form Factor | FHHL | HHHL (LP) | HHHL (LP) |
| PCIe adapter | Slot Priority | ||
| -PCIe x16 | 1 | 3 | 2 |
| -PCIe x8 | 1 | 3 | 2 |
| -PCIe x4 | 1 | 3 | 2 |
| -PCIe x1 | 1 | 3 | 2 |
| -2xControllers | 1 | 2 | N/A |
| Installation Rules | |
|---|---|
| Priority | Description & Rules |
| 1 | x16 electrical bandwidth card to x16 electric slot |
| 2 | x8 electricical card to x8 electric slot |
| 3 | x8 electrical card to x16 electric slot |
| Priority from Card Types | |
|---|---|
| Priority | Description & Rules |
| 2 | 4-Port Networking PCIe Adapter (restricted in Slot 2) |
| 4 | GPGPU Adapters |
| 5 | Others |
OS Boot Device - Standard | |
| HPE DX NS204i-u Gen11 NVMe Hot Plug Boot Optimized FIO Storage Device | P60454-B21 |
| HPE ProLiant DL360 Gen11 NS204i-u Internal Cable Kit | P48920-B21 |
| HPE ProLiant DL360 Gen11 NS204i-u Rear Cable Kit | P54702-B21 |
| DX360 Gen11 NS204i-u Enablement Kit Support Matrix | ||||
|---|---|---|---|---|
| Enablement Kit | Description | Field Inst. | NS204i-u Location | Hot-plug Capability |
| P54702-B21 | HPE ProLiant DX360 Gen11 NS204i-u Rear Cable Kit | Yes | PCIe Slot 22 | Yes |
| P48920-B21 | HPE ProLiant DX360 Gen11 NS204i-u Internal Cable Kit | Yes | Internal | N/A |
Notes:
– 1x4 PCIe Gen3.0 OS Boot device includes 2x 480GB M.2 NVMe SSDs, with preconfigured hardware RAID1.
– 2With removing the original PCIe Slot 2 cage and re-install the dedicated DX360 Gen11 NS204i- u cage, latch and cables in the P54702-B21. The NS204i-u will take up PCIe Slot 2 space only. The PCIe Slot 1 (FHHL) and PCIe Slot 3 (to be Low Profile) are available in the system with the selection of optional “HPE ProLiant DX360 Gen11 x16 LP Riser Kit (P48903-B21)”.
– If NS204i-u is selected, then either NS204i-u Internal or Rear cable must be selected and vice versa.
– Both NS204i-u Internal and Rear cable cannot be selected together.
– If Secondary FH riser is selected, then "NS204i-u Rear Cbl Kit" cannot be selected.
– If 2SFF U.3 drive cage is connected to Direct Attach (without internal controller & 2SFF controller cable), then SATA drive cannot be selected in 2SFF drive cage when "NS204i-u Gen11 Hot Plug Boot Opt Dev" is selected.
– For additional information, please see the HPE OS Boot Device QuickSpecs
Networking
The thermal conditions variate as a combination of types of Networking PCIe OR OCP adapter in different DX360 Gen11 CTO Servers. In general:
- – Standard Fan Kit cannot be selected when above 100GbE
- – 256GB DIMM is not allowed when above 100GbE
- – Ambient limitation will variate in the combination of Networking Adapter OR OCP bandwidth, DIMM capacity and cable type, incl. Direct Attach Copper (AOC) cable and Active Optical Cable (DAC)
A detailed ambient temperature recommendation upon high-speed networking adapters is described in later session.
Default settings in 8SFF CTO Server
- – In 1 Processor configuration, “CPU1 to OCP2 x8 Enablement Kit” will be selected as default as “BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter” is pre-selected at OCP Slot 2, to be defaulted in the configurator if 1 Processor is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU1 to OCP2 x8 Enablement Kit” will be removed.
“CPU2 to OCP2 x8 Enablement Kit” or “CPU2 to OCP2 x16 Enablement Kit” must be selected if OCP NIC is selected in 2 Processors configuration. “CPU2 to OCP2 x8 Enablement Kit” to be defaulted in the configurator if 2 Processors are selected. User should be allowed to remove “CPU2 to OCP2 x8 Enablement Kit” and should be forced select “CPU2 to OCP2 x16 Enablement Kit” if OCP NIC is selected. Customers are allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU2 to OCP2 x8 Enablement Kit” will be removed.
| Ethernet PCIe | |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX | P43273-B21 |
| Notes: – If 256GB Memory is selected, then high speed Networking/InfiniBand card (PCIe and OCP) that is 100G or more cannot be selected. – PCIe 4.0 x16// HL/ HH/ LP – If above 100GbE Networking PCIe adapter or OCP adapter is selected, Standard Fan Kit cannot be configured. – Minimum "1" capacity is not applicable when MLX MCX623106A 100G 2p QSFP56 FIO Adp DX Networking card is in the configuration. Minimum OCP can be 0 in this scenario. | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T FIO Adapter for HPE DX | P43271-B21 |
| Notes: PCIe 3.0 x8// HH/ HL/ LP | |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE DX | P53862-B21 |
| Notes: PCIe 4.0 x16// HH/ HL/ LP | |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 FIO Adapter for HPE DX | P60340-B21 |
| Notes: PCIe 4.0 x8// HH/ HL/ LP | |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P08443-B21 |
| Notes: PCIe 4.0 x8// HH/ HL/ LP | |
| Ethernet OCP | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 FIO Adapter for HPE DX | P43272-B21 |
| Notes: Minimum "1" capacity is not applicable when MLX MCX623106A 100G 2p QSFP56 FIO Adp DX Networking card is in the configuration. Minimum OCP can be 0 in this scenario. | |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE DX | P53861-B21 |
| Notes: Minimum "1" capacity is not applicable when MLX MCX623106A 100G 2p QSFP56 FIO Adp DX Networking card is in the configuration. Minimum OCP can be 0 in this scenario. | |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P26269-B21 |
| Notes: – Warning Message has to be displayed in the configurator any time this OCP card is selected: "CPU1 to OCP1 x16" or "CPU2 to OCP2 x16" OCP Upgrade kit can be selected with this OCP card if customer wants to have OCP x16 connectivity. With below restriction:
| |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for HPE DX | P60339-B21 |
| Notes: Minimum "1" capacity is not applicable when MLX MCX623106A 100G 2p QSFP56 FIO Adp DX Networking card is in the configuration. Minimum OCP can be 0 in this scenario. | |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Notes: Minimum "1" capacity is not applicable when MLX MCX623106A 100G 2p QSFP56 FIO Adp DX Networking card is in the configuration. Minimum OCP can be 0 in this scenario. | |
| OCP 3.0 Adapters | |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P41614-B21 |
| Notes: Minimum "1" capacity is not applicable when MLX MCX623106A 100G 2p QSFP56 FIO Adp DX Networking card is in the configuration. Minimum OCP can be 0 in this scenario. | |
Power and Cooling | |
| Power Supplies | |
| Please select one or two power supplies from below. | |
| Notes: Mixing of 2 different power supplies is NOT supported. | |
| HPE DX 1600W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit | P18222-B21 |
| HPE DX 800W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit | P18223-B21 |
| HPE DX 800W Flex Slot Titanium Hot Plug Low Halogen FIO Power Supply Kit | P18224-B21 |
| HPE DX 1000W Flex Slot Titanium Hot Plug FIO Power Supply Kit | P44807-B21 |
| HPE DX 1800-2200W FS Ti HtPlg FIO PS Kit | P56724-B21 |
| HPE DX 1600W Flex Slot -48VDC Hot Plug FIO Power Supply Kit | P60246-B21 |
| Notes: For EMEA Region: Commission Regulation (EU) 2019/424 laying down ecodesign requirements for servers and data-storage products applies from 1 March 2020. A more stringent (compared to the currently applicable values) value for the minimum power efficiency at 96% of PSUs will apply latest from, 1 January 2024, after defferal. For more details, please refer to Lot9 enforcement deferral notice “European Union law Document 52022XC1209 (01)” Only supports high line voltage (200 VAC to 240 VAC). | |
| HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: HPE Power Advisor HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords. The standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the HPE ProLiant Power Cables web page. For information on power specifications and technical content visit HPE Power Supplies page. | |
| Power Cooling Options | |
| Heatsinks | |
| HPE ProLiant DX360 Gen11 High Performance FIO Heat Sink Kit | P62372-B21 |
| Notes: – If Processor Wattage is equal to or greater than 186W and less than or equal to 270W, then "Performance Heatsink" and "Performance Fan" must be selected. – Quantity of Processor and Quantity of Heatsink must match. – If Liquid Cooling HeatSink is selected, then "High Perf Heat Sink" cannot be selected. | |
| Fan Kits - Standard | |
| HPE ProLiant DL3X0 Gen11 1U High Performance Fan Kit | P48908-B21 |
| Notes: – Includes 7 fans, required by – Two processors with a TDP equal or greater than 186W and below 270Watt | |
Security Options | |
| Serurity Hardware | |
| HPE Bezel Lock Kit | 875519-B21 |
| Notes: – Maximum 1 of each can be selected – If Bezel lock is selected, then "HPE DL3XX Gen11 1U Bezel Kit" or "HPE OEM Gen11 1U Bezel KIT" must be selected. | |
| HPE ProLiant DL3XX Gen11 Intrusion Cable Kit | P48922-B21 |
| Notes: – Maximum 1 of each can be selected. – If "HPE Trusted Supply Chain FIO Config" is selected then "Gen11 Intrusion Cable Kit" must be selected. – If HPE Trusted Supply Chain FIO Config is selected, then Configurator should default "Gen11 Intrusion Cable Kit". | |
| HPE ProLiant Gen11 1U Common Bezel Kit | P50450-B21 |
| Notes: – Maximum 1 of each can be selected. – If Bezel lock is selected, then "HPE DL3XX Gen11 1U Bezel Kit" or "HPE OEM Gen11 1U Bezel KIT" must be selected. – Both "HPE DL3XX Gen11 1U Bezel Kit" and "HPE OEM Gen11 1U Bezel KIT" cannot be selected together. | |
Software as a Service Management | |
| Accessories | |
| HPE Remove Standard Power Cords | 469774-409 |
| Notes: If "Remove Standard IEC-IEC Power Cords" is selected, then the following Warning message should be displayed: By selecting this option, you will not receive standard power cords with this server. Please verify that no power cords are needed for this server prior to proceeding with your order. If “Remove Standard Power Cords” is selected by mistake, then please make sure to de-select it. | |
| Rack Options | |
| HPE ProLiant DX Gen11 Easy Install FIO Rail 3 Kit | P62374-B21 |
| HPE ProLiant DX3XX Gen11 1U FIO Cable Management Arm for Rail Kit | P60633-B21 |
| Notes: – HPE rail kits contain telescoping rails which allow for in-rack serviceability. – Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation. – Maximum 1 of each can be selected. – If CMA is selected, then Rail kit must be selected. – 1Supported with 8SFF CTO Model only. – HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits. | |
Embedded Management | |
Software Skus | |
| Nutanix AOS FIO SW for HPE | R6T15A |
HPE Support Services | |
| Installation & Start-up Services | |
| Tech Care | |
| HPE 3 Year Tech Care Essential DL360 Gen11 HW Service | H93B6E |
| HPE 3 Year Tech Care Essential wDMR DL360 Gen11 HW Service | H93B7E |
| HPE 5 Year Tech Care Essential DL360 Gen11 HW Service | H93E0E |
| HPE 5 Year Tech Care Essential wDMR DL360 Gen11 HW Service | H93E1E |
| Notes:For a full listing of support services available for this server, please visit http://www.hpe.com/services. | |
General Memory Population Rules and Guidelines
- – Install DIMMs only if the corresponding processor is installed.
- – If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
- – To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
- – When two processors are installed, balance the DIMMs across the two processors.
- – White DIMM slots denote the first slot to be populated in a channel.
- – Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
- – The maximum memory speed is a function of the memory type, memory configuration, and processor model.
- – The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs.
Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model.
-
System Unit
Dimensions (Height x Width x Depth)
SFF Drives
- – 4.29 x 43.46 x 75.31 cm
- 1.69 x 17.11 x 29.65 in
LFF Drives
- – 4.29 x 43.46 x 77.31 cm
- – 1.69 x 17.11 x 30.43 in
Weight (approximate)
- – 14.56 kg (32.1 lb.)
- – SFF minimum: One drive, one processor, one power supply, two heatsinks, one Smart Array controller, and five fans.
- – 20.44 kg (45.07 lb.)
- – SFF maximum: 10 drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans.
- – 14.95 kg (32.96 lb.)
- – LFF minimum: one drive, one processor, one power supply, two heatsinks, one Smart Array controller and five fans.
- – 21.58 kg (47.58 lb.)
- – LFF maximum: Four drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans.
Input Requirements (per power supply)
Rated Line Voltage
- – For 1600W (Platinum): 200-240 VAC
- – For 1000W (Titanium): 100-240 VAC
- – 800W (Platinum): 100-240 VAC
British Thermal Unit (BTU) Rating
Maximum
- – For 1600W (Platinum) Power Supply: 5918 BTU/hr (at 200 VAC), 5888 BTU/hr (at 220 VAC), 5884 BTU/hr (at 240 VAC)
- – For 1000W (Titanium) Power Supply: 3741 BTU/hr (at 100 VAC), 3596 BTU/hr (at 200 VAC), 3582 BTU/hr (at 240 VAC)
- – For 800W (Platinum) Power Supply: 3067 BTU/hr (at 100 VAC), 2958 BTU/hr (at 200 VAC), 2949 BTU/hr (at 240 VAC)
Power Supply Output (per power supply)
Rated Steady-State Power
- – For 1600W (Platinum) Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) input for China only
- – For 1000W (Titanium) Power Supply: 1000W (at 100 VAC), 1000W (at 240 VAC), 1000W (at 240 VDC) input for China only
- – For 800W (Platinum) Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only
Maximum Peak Power
- – For 1600W (Platinum) Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) input for China only
- – For 1000W (Titanium) Power Supply: 1000W (at 100 VAC), 1000W (at 240 VAC), 1000W (at 240 VDC) for China only
- – For 800W (Platinum) Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only
Notes: For more information, please visit HPE Flexible Slot Power Supplies
System Inlet Temperature
- – Standard Operating Support
- 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
- System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F) or above 27°C (81°F) at 900M.
- 10° to 35°C (50° to 95°F) at 900M with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
- System performance during standard operating support may be reduced if operating with a fan fault or above 27°C (81°F) at 900M and 30°C (86°F) at sea level.
- The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae
- – Extended Ambient Operating Support
- For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
- For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
- The approved hardware configurations for this system require the High Performance Fan Kit (P26477-B21) and are listed at the URL: http://www.hpe.com/servers/ashrae
- System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
- – Non-operating
- -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity (non-condensing)
- – Operating
- 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
- – Non-operating
- 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Notes: Configuration with Nvidia A2 GPU would be addressed specifically as below.
- – Operating
- -12°C DP and 8% Rh to 21°C DP 80% - Relative humidity (Rh), 21°C maximum wet bulb temperature, non- condensing.
- – Non-Operating
- -12°C DP and 8% Rh to 21°C DP 80% - Relative humidity (Rh), 21°C maximum wet bulb temperature, non- condensing.
Altitude
- – Operating
- 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
- – Non-operating
- 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Emissions Classification (EMC)
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:
https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072
Acoustic Noise
Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm), and the statistical adder for verification (Kv) is a quantity to be added to the declared mean A-weighted sound power level. LWA,m when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
| Test case | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Idle | ||||||||
| LWA,m | 5.1 B | 4.7 B | 4.7 B | 5.0 B | 4.7 B | 4.7 B | 4.7 B | 5.2 B |
| LpAm | 37 dBA | 35 dBA | 36 dBA | 37 dBA | 36 dBA | 36 dBA | 36 dBA | 38 dBA |
| Kv | 0.4 B | 0.4 B | 0.4 B | 04 B | 0.4 B | 0.4 B | 0.4 B | 0.4 B |
| Operating | ||||||||
| LW,m | 5.3 B | 5.0 B | 5.2 B | 5.3 B | 5.1 B | 5.4 B | 5.5 B | 6.0 B |
| LpAm | 40 dBA | 37 dBA | 39 dBA | 41 dBA | 37 dBA | 41 dBA | 41 dBA | 49 dBA |
| Kv | 0.4 B | 0.4 B | 0.4 B | 0.4 B | 0.4 B | 0.4 B | 0.4 B | 0.4 B |
Notes:
– Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.
– The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.
– A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.
– The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.
– The statistical adder for verification, Kv, is a quantity to be added to the declared mean A- weighted sound power level, LWA,m, such that there will be a 95 % probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).
– The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.
– All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109.
– B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.
– The results in this declaration apply only to the model numbers listed above when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.
– System under abnormal conditions may increase the noise level, persons in the vicinity of the product [cabinet] for extended periods of time should consider wearing hearing protection or using other means to reduce noise exposure.
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the
Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 09-Feb-2026 | Changed | Configuration Information section was updated. | |
| 27-May-2025 | Changed | Standard Features, Core Options and Additional Options sections were updated. Added: 5th Generation Intel® Xeon® Scalable Processor Family (Platinum), 5th Generation Intel® Xeon® Scalable Processor Family (Gold 6), Ethernet PCIe SKUs. Removed: OBS HPE iLO Advanced - Standard SKU. | |
| 02-Dec-2024 | Changed | Core Options section was updated. (HDD SUKs were removed from storage devices). | |
| 21-Oct-2024 | Changed | Core Options section was updated. (New SKUs for memories, procesors and SSDs were added) | |
| 16-Sep-2024 | Changed | Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) section was updated. | |
| 03-Sep-2024 | Changed | Core Options Section was updated. (New capacity configuration for adps) | |
| 15-Jul-2024 | Changed | Overview and Standard Features sections were updated. | |
| 01-Jul-2024 | Changed | Standard Features and Core Options sections were updated. | |
| 11-Mar-2024 | Changed | Overview, Standard Features, Configuration Information, and Core Options sections were updated. | |
| 05-Jun-2023 | New | New QuickSpecs. |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a50006992enw, - 17102 - Worldwide - V10 - 09-February-2026
