Meeting enterprise data growth challenges head-on, Spectra T950 Tape Library delivers enormous scalability to keep pace with unpredictable data growth.
Choose from a range of base configurations and scale up to 10,020 LTO tape cartridges in increments of 10 slots for capacity on demand. Incorporating between 1 and 120 LTO tape drives you can consolidate and store up to 751.5 PB (compressed 2.5:1) using LTO-10 tape cartridges, of enterprise data.
Overview
Standard Features
Key Features
- – Scalability
- Capacity on Demand from 50 to 10,020 LTO Tape Cartridges and 1 to 120 LTO tape drives
- Scale capacity in 10 LTO tape slot increments
- Library frames/expansion modules add 8.71 ft2 per frame
- The T950 can be configured for LTO-6, LTO-7, LTO-8, LTO-9, or LTO-10 drives.
- – Availability
- Redundant power supplies
- Global Spare Drive option
- – Manageability – LumOS Library Management Software
- Management access on front panel of library or remotely via web-browser
- Easy to use web GUI
- LumOS library management software provides proactive hardware health monitoring
- LumOS library management provides advanced logs and reporting on media, drives, power consumption and performance
- Auto Support Logs (ASL) provide automatic e-mail alerts on monitored thresholds
- – Security
- Built-in BlueScale Standard and Professional Encryption
- Hardware Based Encryption through Spectra SKLM
- – Cost Effective
- Ideal for archiving cold or active data with a media shelf-life of up to 30 years
- Lowest cost per Gigabyte for longer term storage, no on-going power or energy requirement
- Portable, high-density storage, small footprint with up to 75 TB of compressed data (2.5:1) on a single LTO- 10 data cartridge
Customer Benefits
- – Capacity on demand
- Only buy what you need today and add storage capacity as you need it
- Upgrade capacity in intervals of 10 LTO slots at a time
- More storage capacity in less floor space
- The T950 can be configured for LTO-6, LTO-7, LTO-8 LTO-9 and LTO-10 drives
- – Continuous data protection
- Data Integrity Verification (DIV) examines media health before and after data writes, when enabled
- Integrated BlueScale Encryption provides automatic data protection
- – Reduced cost of ownership
- Most energy efficient tape library for its class
- Enhanced manageability from any location
- Proactive and predictive library maintenance supported by Lume OS management software
- – Enhanced data security
- Provides a high level of encryption security, with compression, for strong backup data privacy to secure confidential information and address compliance quickly
- Supports WORM media (using LTO-10, LTO-9, LTO-8, LTO-7, LTO-6)
- Provides a fail-safe method for permanently storing data records
Compatibility
Software Support
The Spectra T950 Tape Library is supported by the following ISVs for LTO drives:
- – Micro Focus
- – ARCserve Backup
- – Dell EMC Legato Networker
- – IBM Spectrum Protect
- – VERITAS Backup Exec
- – VERITAS NetBackup
- – Veeam Backup Software
- – Zmanda Backup Software
- – CommVault Simpana
- – Oracle Diva Archive
- – Quantum StorNext
- – HPE DMF
- – MassTech MassStore
- – MassTech Flashnet
- – Dell/Quest Software
- – IBM HPSS
- – Versity Storage Manager
Please contact sales for further details including current TS11x0* Technology Compatibility.
Encryption Support
- – BlueScale Standard Encryption: Included with Tape Library
- – BlueScale Professional Encryption The Spectra T950 Tape Library is supported on the following Encryption
- Key Servers:
- – HPE ESKM 5.0
- – Spectra SKLM
Family Comparison
| Spectra T950 | |
|---|---|
| Scalability | Scales horizontally with a linear robot from 1 to 8 frames, 1-120 drives with LTO or TS11x0 and 50 to 10,020 LTO slots. |
| Drive Technology* | LTO-6, LTO-7, LTO-8, LTO-9, or LTO-10 Tape Drives |
| Capacity range | 50 LTO slots minimum in a single frame 10,020 LTO slots in a max configuration of 8 frames |
| Maximum Drive Count | 1-24 in a base frame 1-24 in each Drive expansion frame 120 in maximum configuration |
| Maximum Capacity (compressed 2.5:1 LTO) | 7 51.5 PB using LTO-10 media (max 10,020 slots, 8 frames) |
| Maximum Native Throughput | 172.8 TB/hr maximum with LTO-10 technology. |
| Standard Form- factor | Free standing |
| Dual robotics | Not Supported |
| Data & library security | Encryption: BlueScale Standard Encryption BlueScale Professional Encryption Spectra SKLM |
| Notes: *The T950 can be configured either for LTO-6, LTO-7, LTO-8 and LTO-9 or LTO-10 Drives. Both the T950 and the T950V can support full-height LTO-6, 7, 8, 9 and 10 drives. | |
Scalability to meet uncertain data growth
Buy only what you need today for backup and archive and then expand the library for higher capacity and performance as your data grows.
The Spectra T950 Tape Library is capable of scaling capacity in as little as 10 LTO slots at a time. When frame capacity reaches a maximum slot count or more throughput is required, additional expansion frames may be installed to expand the libraries capacity and total drive count.
The Spectra T950 Tape Library provides a modular architecture allowing for capacity increases up to 9.21 PB / drive expansion shelf.
The library configuration can accommodate:
- – Up to 6 robotic interface modules
- – 0 to 7 expansion Frames (Media Expansion, Drive Expansion)
- – 50 to 10,020 possible cartridges slots maximum
- – 1 to 120 LTO Technology Drives
Notes: The T950 can be configured either for LTO-6, LTO-7, LTO-8, LTO9 and LTO-10 Technology Drives. Both the T950 and the T950V can support both full-height (LTO-6, 7, 8, 9 and 10) drives.
Spectra T950 Tape Library offer different expansion frames to best suit your data protection and/or archiving needs.
| Frame Types | Slots (Max) | Drives (Max) | Max Throughput (Compressed) | Max Capacity (Compressed) |
|---|---|---|---|---|
| Base Frame for Single or Multi Frame Library | LTO | LTO-10 | LTO-10 | |
| 1000 Slots | 4 Drives | 17.3 TB/hr | 75 PB | |
| 920 Slots | 12 Drives | 51.8 TB/hr | 69 PB | |
| 800 Slots | 24 Drives | 103.7 TB/hr | 60 PB | |
| Media Expansion | LTO | N/A | N/A | LTO-10 |
| 1,300 Slots | | | 97.5 PB | |
| Drive Expansion | LTO | LTO-10 | LTO-10 | |
| 1,070 Slots | 12 Drives | 51.8 TB/hr | 80.3 PB | |
| 890 Slots | 24 Drives | 103.7 TB/hr | 66.8 PB | |
Data Path Failover
With the addition of two Robotic Interface Modules (RIMs), the secondary RIM may be configured to serve as a data path failover.
Media Handling

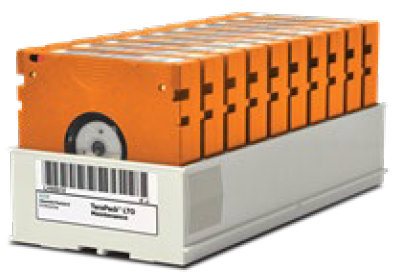

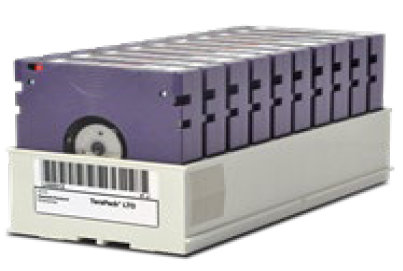

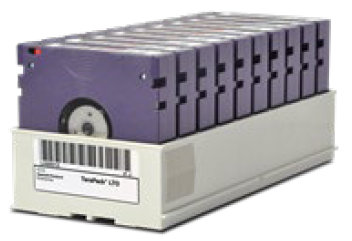

TeraPack® magazines are unique in how they are used in the library. TeraPacks increase library density beyond all competition. Multiple tape magazines are grouped in a single container that is used throughout the library and beyond. Library robotics can transport a TeraPack within the library and select a requested tape from the TeraPack case. In this unique architecture, each TeraPack magazines equals 10 x LTO media tape slots. A robot can move a bar-coded TeraPack case that contains 10 pieces of media in a single robotic move, while other tape libraries require 9 or 10 separate robotic moves to accomplish this task.
Traditional libraries organize tapes one-tape-deep along the library chassis wall. The T950 library uses TeraPack magazines to store tapes, with each TeraPack magazine extending into the library’s interior. This provides Spectra Tape Libraries with very high density, allowing more tapes in a given area than competitors’ libraries.
The library’s two TeraPack Access Ports (TAPs) provide a practical and efficient method for inserting and removing media. To simplify use and reduce time spent on data protection, Spectra Tape Libraries provides a configurable entry/exit pool, so all magazines to be exported are identified before the operator unloads media. The TeraPack cases can be swiftly unloaded through the two TAPs, 20 LTO tapes at a time. Because tapes are loaded in multiple quantities, bulk loads and unloads save significant time.
Notes: The T950V library has a single TAP handling 10 LTO tapes at a time.
LumOS Library Management Software
The Spectra T950 Tape Library provides a graphical interface that is extremely easy to use. You can monitor and manage the library from the tape library’s front panel or remotely. Reporting is also straightforward. The library, drive and media status can be viewed in a glance with complete reporting available if needed at the touch of a button. LumOS Software is included as a standard feature.
Thin Provisioning
Thin provisioning provides a method for optimizing the available storage in the partitions of a tape library. The benefit of this feature is that thin provisioning allows an administrator to change the size of a partition in a tape library without having to reconfigure the entire tape library. Thin provisioning is an easy-to-use offering that provides virtual storage capacity for simplified administration, minimized downtime and reduced cost when adding storage.
Library Lifecycle Management
Library Lifecycle Management (LLM) tracks the library and its components across the library’s lifecycle. Through Hardware Health Monitoring (HHM), LumOS tracks maintenance thresholds for key library components and notifies you when maintenance tasks are required to keep your library in optimum operating condition. When a component reaches its maintenance threshold, the status bar displays a Maintenance Notification icon and automatic e-mail alerts may be generated.
Library Lifecycle Management (LLM) collects or maintains the following information
- – Library serial number and name (if configured)
- – Information about key library components monitored by HHM including maintenance thresholds transporter moves including drive-to-drive moves, drive-to-slot moves, slot-to-slot moves, slot-to-drive moves, and importing/exporting media
Drive Lifecycle Management (DLM)
DLM gathers data each time a tape is unloaded from a drive. The data stored by the library includes the following information about the last 50 tapes unloaded:
- – Read/write errors, including soft and hard errors
- – Tape alerts
- – Flags generated while the tape was loaded in the drive
- – Recent errors or recent information posted through the drive’s single-character display
The library uses this data to generate a report on overall drive health as well as health reports for individual drives. These reports, along with LumOS drive clean, test, and resets, help you determine whether a problem exists with a drive, a tape, or another library component.
Drive Performance Monitoring
The Drive Performance Monitor lets you get the most out of your library by ensuring that drives are performing at the highest possible throughput rate. Performance monitoring graphically displays the read/write performance of the drives in the library. Metrics can be tracked per individual drive or by tracking overall library throughput.
EnergyAudit Power Monitoring
EnergyAudit, the LumOS power monitoring feature, tracks power use over time and by component. Customers can use this information to adjust and optimize power use. Tracking this data becomes increasingly important as energy prices continue to climb.
Auto Drive Clean
Auto Drive Clean provides library‐based cleaning of drives without user intervention. The Auto Drive Clean feature uses a dedicated cleaning partition with specially labeled Maintenance TeraPacks. The cleaning partition can be shared by multiple storage partitions and is used by the library to automatically clean drives whenever necessary.
Automated drive cleaning results in fewer failed tape read/write operations and is the recommended method for cleaning drives.
Advanced Reporting
Syslog
A Syslog server is used to easily monitor all system messages. Once configured, the library automatically sends all system messages to a designated Linux server that has been configured to support Syslog. Syslog is a standard for forwarding log messages over an Internet Protocol (IP) computer network. It provides separation of the software that generates log messages from the system that stores the messages.
AutoSupport Logs (ASL)
The Spectra T950 Tape Library had a Phone Home feature, AutoSupport, which can be configured to automatically create and send e-mail messages about issues or problems to designated e-mail users, including technical support. The data included in these e-mail messages include trace information, log data, a system description, and information about any message or issue. You can also elect to copy this same data to a USB device, if security concerns prevent the use of automatic outbound e-mail. You can set whether some or all messages are sent, per the severity level of the message. This easy-to-use and easy-to-administer feature helps identify issues before they turn into problems and speeds the resolution of problems. If the site is set up to use SSL, the Phone Home service uses a secure connection; otherwise, the service uses the network.
Best in class reliability
As data becomes more and more mission critical, and downtime becomes more costly to the enterprise, customers are requiring high availability consolidated storage solutions which offer hot-plug components and redundancies of key operating subsystems (tape drives, power supplies, control modules and filters).
Data Encryption for added security
ESKM: The Hewlett Packard Enterprise Secure Key Manager, using the industry-standard KMIP protocol, reduces your risk of a costly data breach and reputation damage while improving regulatory compliance with a secure centralized encryption key management solution for LTO-10, LTO-9, LTO-8, LTO-7 and LTO-6 Technology drives within the Spectra T950 Tape Library. In addition, the ESKM provides strong auditable security and reliable lifetime key archival. The ESKM with KMIP and LTO-10/LTO-9/LTO-8/LTO-7/LTO-6 Technology drive encryption in the Spectra T950 Tape Library provides a complete and secure privacy solution to protect customer’s confidential data.
BlueScale Professional Encryption
BlueScale Professional Encryption offers LTO users integrated encryption key management provided through the library’s user interface, and is the only truly integrated encryption key management option for data on tape. Secure and easy to use, BlueScale Professional Encryption provides powerful key management features for encryption and decryption, and is suitable for customers who desire more than one encryption key for all data stored by a single tape library. BlueScale Professional Encryption has the capability to manage up to 30 individual encryption keys on the tape library. The BlueScale user interface manages the encryption keys without any need for an external server, reducing operational complexity.
Spectra SKLM Encryption
For organizations with more complex and extensive encryption requirements, Spectra SKLM Encryption Key Management is time tested and proven across enterprise-level customers requiring the highest standard of encryption security. With Spectra SKLM, customers can deploy a centralized and redundant key management solution that meets the most complex key management requirements. Spectra SKLM allows multiple tape libraries to connect to a centralized key manager, giving all of the libraries access to the same encryption key store. Optional redundancy provided by Spectra SKLM provides high availability of the encryption keys.
Bulk media import/export for significant time savings
The T950 library Center TAP (TeraPack Access Point) allows for up to 20 LTO tape cartridges to be imported/exported into the library at one time.
Notes: The T950V library has a single TAP handling 10 LTO tapes at a time.
LTO Ultrium Technology
LTO (Linear Tape Open) Ultrium Tape Drives use best of breed technology. By taking the best features from other tape technologies and combining them into a single new technology, Ultrium tape drives are in a league of their own. LTO technology is an open industry standard format.
Data Rate Matching
Data Rate Matching combines sophisticated buffer management with variable tape drive motor speeds to match the tape drive transfer rate to the host output. This feature ensures that the tape drive continues to stream data regardless of the environment, and brings three big advantages:
- – It optimizes performance and maximizes overall efficiency, allowing the drive to respond immediately to any data speed changes from the host.
- – It minimizes rewinding and repositioning of the tape, significantly reducing physical wear and increasing reliability.
- – It minimizes the power requirements for the drive by reducing the number of repositions needed.
| LTO Ultrium & TS Technology Tape Drives | Data transfer rate range (native) |
|---|---|
|
|
WORM (Write-Once, Read-Many) Drive and Media Support
Critical to the success of data retention policies in highly regulated environments is the ability to store and manage data in an unalterable state. Following stringent guidelines set forth by regulatory agencies such as the SEC and HIPAA, IT organizations must now integrate new solutions and policies that can verify the integrity of stored data for periods that can extend well beyond seven years.
Every generation of LTO Ultrium since LTO-3 tape drives features the ability to archive and store data in a read-only, non-rewriteable format that meets the most stringent regulatory guidelines. Using a combination of integrated fail-safe features in the drive firmware, cartridge memory, and tape formatting, LTO Ultrium provides the ability to archive large amounts of data for periods of up to 30 years in a secure, untampered state. Ultrium tape drives include support for both rewritable and WORM media providing for a secure, long-term archiving solution into any data protection strategy. LTO Ultrium WORM provides the following advantages:
- – A single drive to support all backup and archiving needs
- – Two distinctive tape cartridges to easily distinguish and manage both rewriteable and WORM data cartridges
- – A specially designed WORM data cartridge with multiple integrated fail-safe features to prevent accidental or intentional overwriting of data
- – Support from many backup and archiving software vendors, providing the most comprehensive and mainstream support in the industry
Spectra Certified Media
Spectra Certified Media is designed to ensure that customers have the most reliable and automated tape storage available. No other supplier places as much emphasis on continual enhancements and features that simplify all aspects of the media management process. From manufacturer selection to testing and customer shipment, every step of the certified media process is designed to ensure you have the most reliable and automated tape storage available.
Quality
Hewlett Packard Enterprise believes that the test program for HPE Ultrium storage supplies is the most thorough and comprehensive in the industry. In order to carry the HPE Brand, designated cartridges must satisfy an exhaustive battery of additional procedures that relate directly to how the product is used in real life situations when real data and real businesses are at stake. Some of these procedures - e.g. "five corner" environmental interchange, load/unload for automation, ageing simulation and drop testing are not found in the standard logo test. These exhaustive tests on media and both HPE and non-HPE drives ensure that HPE LTO Ultrium storage supplies will always offer maximum reliability even in the most extreme conditions. Unique to Spectra Certified Media, an additional proprietary cleaning process gives further peace of mind for Spectra T950 library customers.
Intelligence
Media Lifecycle Management (MLM) reduces the most common media-related failures. MLM allows you to proactively manage your tape inventory through simple monitoring of over 40 health statistics and automatically identifies at-risk tapes ready for retirement.
Verification
Spectra Certified Media assures data integrity using an integrated, intelligent and comprehensive set of Data Integrity Verification (DIV) tools when integrated with your tape library. PreScan verifies your tapes are safe prior to usage and QuickScan and FullScan verify your data has been properly written to tape.
Protect
When combining Spectra Certified Media and our tape library family’s integrated BlueScale Encryption Key Management, your data is protected with a straightforward, easily installed solution.
Management
Media arrives on customer’s doorsteps, individual tapes unwrapped with pre-applied barcode labels bundled in TeraPack magazines and ready for bulk-loading into your tape library.
Warranty
Lifetime Guarantee warrants our tapes to be free from defects in materials and workmanship for the life of the media. All Spectra storage media products are supported by a worldwide network of resellers and service providers as well as toll-free 24 X 7 technical phone support during the warranty period.
Data Integrity Verification
Spectra Cube, T950 and TFinity PLlus Tape Libraries’ data integrity verification features a set of background processes that provide multiple levels of integrity verification for LTO data cartridges. These features help ensure that data stored over any length of time, including archived data stored for years, can be retrieved as needed. These processes include PreScan and PostScan (QuickScan or FullScan). PreScan checks newly imported tapes to make sure they are ready to use (for example, in good health and not write-protected.) FullScan verifies readability of all the data written on the tape. Quickscan verifies the readability of the data on a single pass of the tape.
PreScan:
Once configured, the library automatically inserts each newly imported LTO cartridge into a tape drive in the partition and checks the drive to determine the following about the cartridge:
- – Non-MLM-enabled tape
- – Broken or dislodged leader
- – Poor media health
- – Write-protected
- – Encrypted tape with a moniker not currently stored in the library
PostScan
After data is written to tape, a PostScan can be conducted to verify that the data written to the tape has no errors. Using either QuickScan or FullScan , the drive will scan each LTO cartridge and confirm that there are no media errors on the tape by reading either a single length of one wrap of tape or the entire length of the tape, up to the end of the recorded data (EOD).
The PostScan process is performed by the library independently of the backup application normally used to read and write data to the tape. The results of the scan are stored in the library’s media-health database. The user can set triggers to check the health of tapes over an interval of time, to ensure that the data is valid. You can also verify a specific tape’s data integrity manually/by request.
QuickScan Using Global Spare
A Global Spare drive can be used to verify the integrity of all the data on a tape in a single wrap, from the beginning of the tape up to the end of the first wrap or the end of recorded data (EOD), whichever comes first. Using a Global Spare drive avoids potential delays in normal operation while a QuickScan is being performed.
Service and Support
Warranty Included with the Product
The Spectra T950 has a standard warranty that extends one year from the date of shipment from the factory. This warranty includes a Next Business Day service contract. Additional years of warranty service can be purchased.
Service and Support
A comprehensive set of support options is offered by HPE via Spectra Logic directly. These options span a wide range of business requirements, from simple phone support and parts replacement, to custom add-ons and focused service account management. Professional Services are also available from Spectra Logic to enhance your service and support experience.
Recommended Support Services
Four-Hour On-Site Service
Four-Hour On-Site Service includes:
- – Telephone access to a Technical Support representative, 24 hours a day, 7 days a week, 365 days a year (including evenings, weekends, and holidays).
- – Upon verification that the unit has malfunctioned, and a part replacement is required, a service visit from a field service representative will be dispatched to arrive on-site within four hours, including evenings, weekends, and holidays. The customer may specify an arrival time after the four-hour window. The customer may be requested to replace the part if appropriate.
- – Remote troubleshooting 24 hours a day, 7 days a week, 365 days a year.
- – 24 x 7 x 365 access to the Support Web Portal, Knowledge base and online documentation.
Refer to https://support.spectralogic.com/ for Spectra Logic country-specific coverage of service options.
Four-Hour On-Site Library Hardware Service with Next Business Day On-Site Service for Tape Drives
Four-Hour On-Site Library Hardware Service with Next Business Day On-Site Service for Tape Drives includes:
- – Telephone access to a Technical Support representative, 24 hours a day, 7 days a week, 365 days a year (including evenings, weekends, and holidays).
- – Upon verification that the Library Hardware has malfunctioned, and a part replacement is required, a service visit from a field service representative will be dispatched to arrive on-site within four hours, including evenings, weekends, and holidays. The customer may specify an arrival time after the four-hour window. The customer may be requested to replace the part if appropriate.
- – A service visit from a field service representative, upon verification that a tape drive has malfunctioned and a part replacement is required. If Technical Support is notified by 5:00 p.m. (customer local time), a field service representative will be dispatched for arrival on the following business day between 8:00 a.m. and 5:00 p.m.
- – Remote troubleshooting 24 hours a day, 7 days a week, 365 days a year.
- – 24 x 7 x 365 access to the Support Web Portal, knowledge base and online documentation.
Refer to https://support.spectralogic.com/ for Spectra Logic country-specific coverage of service options.
Next Business Day On-Site Service
Next Business Day On-Site Service includes:
- – Access to a Technical Support representative on any business day (not including evenings, weekends, or holidays) from 8:00 a.m. to 5:00 p.m. (customer local time).
- – A service visit from a field service representative, upon verification that the unit has malfunctioned, and a part replacement is required. If Technical Support is notified by 5:00 p.m. (customer local time), a field service representative will be dispatched for arrival on the following business day between 8:00 a.m. and 5:00 p.m.
- – Remote troubleshooting between 8:00 a.m. and 5:00 p.m. (customer local time) during the standard business week, excluding nationally recognized holidays in the customer’s location.
- – 24 x 7 x 365 access to the Support Web Portal, knowledge base and online documentation.
- – A supplemental support option can be added to provide remote troubleshooting 24 hours a day, 7 days a week, 365 days a year.
Refer to https://support.spectralogic.com/ for Spectra Logic country-specific coverage of service options.
Configuration Information
LTO T950V Frames | |
| Select one | |
| Notes: All T950V Frames, ship with one Tape Access Port (TAP) and without a rear door. | |
| Please contact your local sales representative for more information. | |
| Description | SKU |
| LTO T950V Base Frame Single Frame Configuration – No Expansion Frames are being added | |
| Spectra T950V 1 Drive Bay Assembly Max 4 LTO Drives 1000 Slots Tape Library | Q2R71A |
| Spectra T950V 3 Drive Bay Assembly Maximum 12 LTO Drives 920 Slots Tape Library | Q2R72A |
| Spectra T950V 6 Drive Bay Assembly Maximum 24 LTO Drives 800 Slots Tape Library | Q2R74A |
| Notes: − Includes 10 Entry/Exit Slots, zero drives, and 50 slots enabled. − As drives and slots are added, additional Expansion Frames may be required. Please contact your local sales representative to ensure desired capacity is achieved. − Qty 5 Entry/Exit TeraPacks will be added to a new T950V single and T950V multi-frame configurations − This product is TAA (Trade Agreements Act) compliant. | |
| LTO T950V Base Frame Multi-Frame Configuration – Expansion Frames being added to Base Frame | |
| Spectra T950V 1 Drive Bay Assembly for Multi Frame Max 4 LTO Drives 1000 Slots Expansion Library | Q2R77A |
| Spectra T950V 3 Drive Bay Assembly for Multi Frame Maximum 12 LTO Drives 920 Slots Expansion Library | Q2R78A |
| Spectra T950V 6 Drive Bay Assembly for Multi Frame Maximum 24 LTO Drives 800 Slots Expansion Library | Q2R79A |
| Notes: − Includes 10 Entry/Exit Slots, zero drives, and 50 slots enabled. − As drives and slots are added, additional Expansion Frames may be required. T950 Expansion Frame kits are required. Please contact your local sales representative to ensure desired capacity is achieved. − Qty 5 Entry/Exit TeraPacks will be added to a new T950V single and T950V multi-frame configurations − These products are TAA (Trade Agreements Act) compliant. | |
| LTO T950V Expansion Frames | |
| Spectra T950V 3 Drive Bay Assembly Maximum 12 LTO Drives 1010 Slots Expansion Library | Q2R73A |
| Spectra T950V 6 Drive Bay Assembly Maximum 24 LTO Drives 890 Slots Expansion Library | Q2R75A |
| Spectra T950V LTO 1300 Slots Media Expansion Library | Q2R76A |
| TS11xx Technology T950V Frames | |
| Select one Base Frame: | |
| TS11xx Technology Base Frame Single Frame Configuration – No Expansion Frames are being added | |
| Spectra T950V 1 Drive Bay Assembly Maximum 4 TS Technology Drives 738 Slots Tape Library | Q2R80A |
| Spectra T950V 3 Drive Bay Assembly Maximum 12 TS Technology Drives 684 Slots Tape Library | Q2R81A |
| Spectra T950V 3 Drive Bay Assembly Maximum 12 TS Technology Drives 810 Slots Expansion Library | Q2R82A |
| Notes: − Includes 9 slot Entry/Exit Slots, zero drives, and 45 slots enabled − As drives and slots are added, additional Expansion Frames may be required. − Please contact your local sales representative to ensure desired capacity is achieved. − Five Entry/Exit TeraPacks will be added to a new T950V single and T950V multi-frame configurations − These products are TAA (Trade Agreements Act) compliant | |
| TS11xxTechnology Base Frame Multi-Frame Configuration – Expansion Frames being added to Base Frame | |
| Description | SKU |
| Spectra T950V 1 Drive Bay Assembly for Multi Frame Max 4 TS Tech Drives 738 Slots Expansion Library | Q2R86A |
| Spectra T950V 3 Drive Bay Assembly for Multi Frame Max 12 TS Tech Drives 684 Slots Expansion Library | Q2R87A |
| Spectra T950V 6 Drive Bay Assembly for Multi Frame Max 24 TS Tech Drives 594 Slots Expansion Library | Q2R88A |
| Notes: − Includes 9 Entry/Exit Slots, zero drives, and 45 slots enabled. − As drives and slots are added, additional Expansion Frames may be required. T950 Expansion Frame kits are required. Please contact your local sales representative to ensure desired capacity is achieved. − Five Entry/Exit TeraPacks will be added to a new T950 single and T950 multi-frame configurations − This product is TAA (Trade Agreements Act) compliant. | |
| TS11xx Technology T950V Expansion Frames | |
| Spectra T950V 3 Drive Bay Assembly Maximum 12 TS Technology Drives 810 Slots Expansion Library | Q2R82A |
| Spectra T950V 6 Drive Bay Assembly Maximum 24 TS Technology Drives 675 Slots Expansion Library | Q2R84A |
| Spectra T950V TS Technology 990 Slots Media Expansion Library | Q2R85A |
| LTO T950 Frames | |
| Select one: | |
| LTO Base Frame Single Frame Configuration – No Expansion Frames are being added | |
| Spectra T950 1 Drive Bay Assembly Maximum 4 LTO Drives 1000 Slots Tape Library | Q1G58A |
| Spectra T950 3 Drive Bay Assembly Maximum 12 LTO Drives 920 Slots Tape Library | Q1G59A |
| Spectra T950 6 Drive Bay Assembly Maximum 24 LTO Drives 800 Slots Tape Library | Q1G61A |
| Notes: – Includes 20 Entry/Exit Slots, zero drives, and 50 slots enabled. – As drives and slots are added, additional Expansion Frames may be required. Please contact your local sales representative to ensure desired capacity is achieved. – These products are TAA (Trade Agreements Act) compliant. | |
| LTO Base Frame Multi-Frame Configuration – Expansion Frames being added to Base Frame | |
| Spectra T950 1 Drive Bay Assembly Multi Frame Configuration Max 4 LTO Drives 1000 Slots Tape Library | Q1G64A |
| Spectra T950 3 Drive Bay Assembly Multi Frame Configuration Max 8 LTO Drives 920 Slots Tape Library | Q1G65A |
| Description | SKU |
| Spectra T950 6 Drive Bay Assembly Multi Frame Configuration Max 24 LTO Drives 800 Slots Tape Library | Q1G66A |
| Notes: – Includes 20 Entry/Exit Slots, zero drives, and 50 slots enabled. – As drives and slots are added, additional Expansion Frames may be required. Please contact your local sales representative to ensure desired capacity is achieved. – This product is TAA (Trade Agreements Act) compliant. | |
| LTO Base Frame Multi-Frame Configuration – Expansion Frames being added to Base Frame | |
| Spectra T950 1 Drive Bay Assembly Multi Frame Configuration Max 4 LTO Drives 1000 Slots Tape Library | Q1G64A |
| Spectra T950 3 Drive Bay Assembly Multi Frame Configuration Max 8 LTO Drives 920 Slots Tape Library | Q1G65A |
| Spectra T950 6 Drive Bay Assembly Multi Frame Configuration Max 24 LTO Drives 800 Slots Tape Library | Q1G66A |
| Notes: – Includes 20 Entry/Exit Slots, zero drives, and 50 slots enabled. – As drives and slots are added, additional Expansion Frames may be required. T950 Expansion Frame kits are required. Please contact your local sales representative to ensure desired capacity is achieved. – This product is TAA (Trade Agreements Act) compliant. | |
| LTO T950 Expansion Frames | |
| Spectra T950 3 Drive Bay Assembly Maximum 8 LTO Drives 920 Slots Tape Library | Q1G60A |
| Spectra T950 6 Drive Bay Assembly Maximum 12 LTO Drives 800 Slots Tape Library | Q1G62A |
| Spectra T950B Media Expansion | Q1G63A |
| Spectra TeraPack Entry/Exit LTO 10-slot No Media | Q0H10A |
| Notes: Five Entry/Exit TeraPacks will be added to a new T950 single and T950 multi-frame configurations | |
| TS11xx Technology T950 Frames | |
| Select one Base Frame: | |
| TS11xx Technology Base Frame Single Frame Configuration – No Expansion Frames are being added | |
| Spectra T950 1 Drive Bay Assembly Maximum 4 TS1150 Drives 738 Slots Tape Library | Q1G67A |
| Spectra T950 3 Drive Bay Assembly Maximum 12 TS11xx Drives 684 Slots Tape Library | Q1G68A |
| Spectra T950 6 Drive Bay Assembly Maximum 24 TS1150 Drives 594 Slots Tape Library | Q1G70A |
| Notes: – Includes 18 slot Entry/Exit Slots, zero drives, and 45 slots enabled. – As drives and slots are added, additional Expansion Frames may be required. Please contact your local sales representative to ensure desired capacity is achieved. – This product is TAA (Trade Agreements Act) compliant. | |
| TS11xxTechnology Base Frame Multi-Frame Configuration – Expansion Frames being added to Base Frame | |
| Description | SKU |
| Spectra T950 1 Drive Bay Assembly Multi Frame Config Maximum 4 TS11xx Drives 738 Slots Tape Library | Q1G74A |
| Spectra T950 3 Drive Bay Assembly Multi Frame Config Maximum 12 TS11xx Drives 684 Slots Tape Library | Q1G75A |
| Spectra T950 6 Drive Bay Assembly Multi Frame Config Max 24 TS11xx Drives 594 Slots Tape Drive | Q1G76A |
| Notes: – Includes 18-slot Entry Exit slots, zero drives, and 45 slots enabled. – As drives and slots are added, additional Expansion Frames may be required. T950 Expansion Frame kits are required. Please contact your local sales representative to ensure desired capacity is achieved. – This product is TAA (Trade Agreements Act) compliant. | |
| TS11xx Technology T950 Expansion Frames | |
| Spectra T950 3 Drive Bay Assembly Maximum 12 TS1150 Drives 684 Slots Tape Library | Q1G69A |
| Spectra T950 6 Drive Bay Assembly Maximum 24 TS1150 Drives 594 Slots Tape Library | Q1G71A |
| Spectra T950J 110 Chambers Media Expansion | Q1G72A |
| Spectra TeraPack Entry/Exit TS 9-slot No Media | Q0H14A |
| Notes : Qty 5 Entry/Exit TeraPacks will be added to a new T950 single and T950 multi-frame configurations. | |
| T950 Expansion Frames Kits – required for Multi-Frame T950 configurations | |
| Spectra T950 Multiple (2 Frames) Assembly Kit | Q1G52A |
| Spectra T950 Multiple (3 Frames) Assembly Kit | Q1G53A |
| Spectra T950 Multiple (4 Frames) Assembly Kit | Q1G54A |
| Spectra T950 Multiple (5 Frames) Assembly Kit | Q1G55A |
| Spectra T950 Multiple (6 Frames) Assembly Kit | Q1G56A |
| Spectra T950 Multiple (8 Frames) Assembly Kit | Q1G57A |
| Notes: – Customers may also be required to also purchase the necessary number of drives, Fibre Channel cables, tape media, power cords and software licenses in order to complete the library solution. – Installation and Support services will be quoted as a part of each library order. | |
| Tape Drives, Slot/Capacity Licenses, and Certified TeraPack Media | |
| LTO-10 Drive Options | |
| Spectra T950/TFinity LTO-10 Ultrium Fibre Channel Full Height Drive EDBA Sled | S6P52A |
| Spectra T950/TFinity LTO-10 Ultrium SAS Full Height Drive EDBA Sled | S6P53A |
| Spectra T950/TFinity LTO-10 Ultrium Fibre Channel Full Height Drive DBA Sled | S6P54A |
| Spectra T950/TFinity LTO-10 Ultrium SAS Full Height Drive DBA Sled | S6P55A |
| Notes: Quantity: 1 to 24 drives per drive frame; up to 144 drives maximum. | |
| LTO-9 Drive Options | |
| Description | SKU |
| Spectra T950/TFinity LTO-9 Ultrium Fibre Channel Full Height Drive EDBA Sled | R7E99A |
| Spectra T950/TFinity LTO-9 Ultrium Fibre Channel Full Height Drive Sled | R7F00A |
| Spectra T950/TFinity LTO-9 Ultrium SAS Full Height Drive EDBA Sled | R7F01A |
| Spectra T950/TFinity LTO-9 Ultrium SAS Full Height Drive Sled | R7F02A |
| Spectra T950/TFinity LTO-9 Ultrium Fibre Channel Full Height Reconditioned Drive EDBA Sled | S3H94A |
| Spectra T950/TFinity LTO-9 Ultrium SAS Full Height Reconditioned Drive EDBA Sled | S3H95A |
| Notes: Quantity: 1 to 24 drives per drive frame; up to 120 drives maximum. | |
| LTO-8 Drive Options | |
| Spectra T950/TFinity LTO-8 Ultrium Fibre Channel Full Height Drive EDBA Sled | Q2R67A |
| Spectra T950/TFinity LTO-8 Ultrium Fibre Channel Full Height Drive Sled | Q2R68A |
| Notes: Quantity: 1 to 24 drives per drive frame; up to 120 drives maximum. | |
| LTO-7 Drive Options | |
| Spectra T950/TFinity LTO-7 Ultrium Fibre Channel Full Height Drive EDBA Sled | Q0H09A |
| Spectra T950/TFinity LTO-7 Ultrium Fibre Channel Full Height Drive Sled | Q0H08A |
| Notes: Quantity: 1 to 24 drives per drive frame; up to 120 drives maximum. | |
| LTO-6 Drive Options | |
| Spectra T950/TFinity LTO-6 Ultrium Fibre Channel Full Height Reconditioned Drive EDBA Sled | S3H98A |
| Notes: Quantity: 1 to 24 drives per drive frame; up to 120 drives maximum. | |
| TS11xx Technology Drive Options | |
| Spectra T950/TFinity TS1170 Fibre Channel Full Height Drive DBA Sled | S3H36A |
| Spectra T950/TFinity TS1170 SAS Full Height Drive DBA Sled | S3H37A |
| Spectra T950/TFinity TS1170 Fibre Channel Full Height Drive EDBA Sled | S3H38A |
| Spectra T950/TFinity TS1170 SAS Full Height Drive EDBA Sled | S3H39A |
| Spectra T950/TFinity TS1160 Fibre Channel Drive EDBA Sled | R0R26A |
| Spectra T950/TFinity TS1160 Fibre Channel Drive DBA Sled | R0R27A |
| Spectra T950/TFinity TS1160 SAS Full Height Drive EDBA Sled | R7F03A |
| Spectra T950/TFinity TS1160 SAS Full Height Drive Sled | R7F04A |
| Spectra T950/TFinity TS1160 Fibre Channel Full Height Reconditioned Drive EDBA Sled | S3H96A |
| Spectra T950/TFinity TS1160 SAS Full Height Reconditioned Drive EDBA Sled | S3H97A |
| Notes: Quantity: 1 to 24 drives per drive frame; up to 120 drives maximum. | |
| LTO Slots/Capacity Licenses | |
| Description | SKU |
| Spectra T950/TFinity BlueScale Storage Chamber 10-slot LTU | Q0G86A |
| Spectra T950/TFinity BlueScale Storage Chamber 9-slot LTU | Q0H11A |
| Notes: LTO slots are purchased in 10 slot increments. | |
| TS11xx Technology Slots/Capacity Licenses | |
| Spectra T950/TFinity BlueScale Storage Chamber 9-slot LTU | Q0H11A |
| Notes: TS11xx Technology slots are purchased in 9 slot increments. | |
| Spectra LTO Ultrium TeraPack Media | |
| Non-Custom Labeled LTO Ultrium TeraPack Data Cartridges | |
| Spectra TeraPack LTO-6 Ultrium 6.25TB BaFe RW Non Custom Labeled 10 Data Cartridges | Q1G95A |
| Spectra TeraPack LTO-7 Ultrium 15TB RW Non Custom Labeled 10 Data Cartridges | Q1H01A |
| Spectra TeraPack LTO-8 Ultrium 30TB RW Non Custom Labeled 10 Data Cartridges | Q2R69A |
| Spectra TeraPack LTO-9 Ultrium 45TB RW Non Custom Labeled 10 Data Cartridges for Full Height Drives | R7C12A |
| Spectra TeraPack LTO-9 Ultrium 45TB RW Custom Labeled 10 Data Cartridges for Full Height Drives | R7C13A |
| Custom Labeled LTO Ultrium TeraPacks Data Cartridges | |
| Notes: Custom labeled products allow customers to choose their own specific label sequence to be printed on their label order. A custom barcode label order form must be completed. | |
| Spectra TeraPack LTO-6 Ultrium 6.25TB BaFe RW Custom Labeled 10 Data Cartridges | Q1G96A |
| Spectra TeraPack LTO-7 Ultrium 15TB RW Custom Labeled 10 Data Cartridges | Q1H02A |
| Spectra TeraPack LTO-8 Ultrium 30TB RW Custom Labeled 10 Data Cartridges | Q2R70A |
| Spectra TeraPack LTO-9 Ultrium 45TB RW Custom Labeled 10 Data Cartridges for Full Height Drives | R7C13A |
| Spectra TeraPack LTO-10 Ultrium 75TB RW Custom Labeled 10 Data Cartridges | S6P58A |
| Non-Custom Labeled Cleaning LTO Ultrium TeraPacks | |
| Spectra TeraPack LTO Ultrium Cleaning 10 Cartridges | Q1H03A |
| Empty TeraPack Trays and Dust Covers | |
| Spectra TeraPack LTO Dust Cover | Q1H05A |
| Spectra TeraPack LTO Empty Tray No Cover or Media | Q1J40A |
| Spectra TeraPack TS Series Empty Tray No Cover or Media | Q1J41A |
| Spectra TeraPack T10000 Empty Tray No Cover or Media | Q2P43A |
Spectra TS11xx Technology TeraPack Media | |
| Non-Custom Labeled TS11xx Technology TeraPack Data Cartridges | |
| Description | SKU |
| Spectra TeraPack TS1150/TS1155 JD Non Custom Labeled 9 Data Cartridges | Q1G99A |
| Spectra TeraPack TS1160 JE Non Custom Labeled 9 Data Cartridges | R0R28A |
| Spectra TeraPack TS1170 50TB RW Non Custom Labeled 9 Data Cartridges | S3H34A |
| Custom Labeled TS11xx Technology TeraPack Data Cartridges | |
| Notes: Custom labeled products allow customers to choose their own specific label sequence to be printed on their label order. A custom barcode label order form must be completed. | |
| Spectra TeraPack TS1170 50TB RW Custom Labeled 9 Data Cartridges | S3H35A |
| Spectra TeraPack TS1160 JE Custom Labeled 9 Data Cartridges | R0R29A |
| Spectra TeraPack TS1150/TS1155 JD Custom Labeled 9 Data Cartridges | Q1H00A |
| Non-Custom Labeled Cleaning TS11xx Technology TeraPacks | |
| Spectra TeraPack TS Series Cleaning 9 Cartridges | Q1H04A |
Additional Media Options | |
| Description | SKU |
| Spectra TeraPack LTO Empty Tray No Cover or Media | Q1J40A |
| Spectra TeraPack TS Series Empty Tray No Cover or Media | Q1J41A |
Spectra T950 Tape Library Licenses | |
| Description | SKU |
| Spectra T950/TFinity Tape Library Shared Services Direct Connect Software | Q0G94A |
| Spectra T950 Tape Library Shared Services QIP RIM Connect Software | Q0H03A |
| Spectra Path Failover 1 Unit Co-term Support | S6Q19A |
| Spectra T950 Tape Library SKLM Encryption per Library LTU | Q1J61A |
| Spectra T950/TFinity BlueScale Professional Encryption LTU | Q1J70A |
Additional Options
| Description | SKU |
| Spectra T950/TFinity Tape Library RIM2 Robot Interface Module | Q0H07A |
| Spectra BlueScale SD Card | Q0H06A |
| Spectra T950 Tape Library to T950B Expansion Frame Connector Kit | Q0G98A |
| Notes: Needed to connect T950 frame to a T950B Expansion Frame. | |
| Spectra Library Server Upgrade | Q0G97A |
| Spectra T950/TFinity 24V 8Amp Power Pack | Q0G89A |
| Spectra T950/TFinity Adjustable Shipping Crate | Q0G85A |
| Spectra T950/TFinity 5-12V 8Amp Power Pack | R0R72A |
| Spectra T950/TFinity Dual AC 2 Power Supply | R0R71A |
| Spectra T950/TFinity Drive Expansion Frame for BlueScale Vision Camera | Q1J37A |
| Spectra T950/TFinity Media Expansion Frame for BlueScale Vision Camera | Q1J38A |
| Spectra T950/TFinity Per Frame Stability Kit | S3H40A |
| Notes: T950V frames do no support the BlueScale Vision Camera | |
| Spectra Secure Site Accessory Kit | Q1J39A |
| Spectra T950 Tape Library Ethernet Drive Bay Assembly | Q0H00A |
| Notes: Each Drive Bay Assembly can hold up to 4 LTO Technology Drives and 1 Robotic Interface Module. | |
| Spectra T950 Tape Library VAX Bumper | Q0G91A |
| Spectra TFinity ExaScale Tape Library LumOS 1x Robot PLC Upgrade Kit | S6Q34A |
| Spectra TFinity ExaScale Tape Library LumOS 2x Robot PLC Upgrade Kit | S6Q35A |
| Spectra T950 Tape Library LumOS Environment Temperature and Humidity Sensor Upgrade Kit | S6Q36A |
SWARM | |
| Description | SKU |
| Spectra T950/TFinity Swarm Ethernet to SAS Bridge Controller | R7F09A |
| Spectra T950/TFinity Swarm Ethernet 50Gb PCIe Adapter | R7F08A |
| Spectra T950/TFinity Swarm QSFP Transceiver | R7F07A |
| Spectra T950/TFinity Multi-mode OM4 10m Trunk Cable | R7F06A |
| Spectra T950/TFinity Swarm Bracket | R7F05A |
Fibre Channel to SAS Switch | |
| Description | SKU |
| ATTO XstreamCORE 7600 Fibre Channel to SAS Bridge for Spectra | S6Q37A |
| Notes: Can support up to 16 SAS Tape Drives. | |
Spectra OSW-2400 Optical SAS Switch | |
| Description | SKU |
| Spectra OSW-2400 Additional 9-port x36 Lanes Enablement Upgrade E-LTU | S6Q57A |
| Notes: – Additional 9-port 36-lane enablement – SAS Gen2-3-4 compatible, up to 22.5 Gb/s per lane | |
| Spectra OSW-2400 Additional 6-port x24 Lanes Enablement Upgrade E-LTU | S6Q58A |
| Notes: – Additional 6-port 24-lane enablement – SAS Gen2-3-4 compatible, up to 22.5 Gb/s per lane | |
| Spectra OSW-2400 Additional 3-port x12 Lanes Enablement Upgrade E-LTU | S6Q59A |
| Notes: – Additional 3-port 12-lane enablement – SAS Gen2-3-4 compatible, up to 22.5 Gb/s per lane | |
Fibre Channel Cables | |
| Description | SKU |
| Spectra 10m Duplex Multi-mode 50u LC/LC Optical Cable | Q0G67A |
| Spectra 20m Duplex Multi-mode 50u LC/LC Optical Cable | Q0G68A |
| Spectra 50m Duplex Multi-mode 50u LC/LC Optical Cable | Q0G69A |
| Spectra T950/TFinity Mini SAS 3m Cable | R7F74A |
| Spectra T950/TFinity Tape Library Mini SAS HD 3m Cable | R8S08A |
| Spectra Mini SAS to Mini SAS High Density 10m Active Optical Cable | S6Q52A |
| Spectra Mini SAS to Mini SAS High Density 30m Active Optical Cable | S6Q53A |
| Spectra Mini SAS to Mini SAS High Density 50m Active Optical Cable | S6Q54A |
| Spectra Mini SAS to Mini SAS High Density 100m Active Optical Cable | S6Q55A |
Power Cord | |
| Description | SKU |
| Spectra 220-240V 2.5m AU Power Cord | Q0G56A |
| Spectra 220-240V 2.5m ZA/IN Power Cord | Q0G57A |
| Spectra 220-240V 2.5m UK Power Cord | Q0G58A |
| Spectra 220-240V 2.5m IL Power Cord | Q0G59A |
| Spectra 220-240V 2.5m JP Power Cord | Q0G60A |
| Spectra 220-240V 2.5m EU Power Cord | Q0G61A |
| Spectra NEMA L6-30P 220-240V 4.5m US Power Cord | Q0G62A |
| Spectra C19 IEC ZA Power Cord | Q0G63A |
| Spectra C19 IEC - NEMA 5-15P 110-120V 2.5m Power Cord | Q0G64A |
| Spectra C19 IEC309 220-240V 4.6m 12AWG Power Cord | Q0G66A |
| Spectra C19 L6-20P 220-240V 20Amp 4.5m US Locking Power Cord | Q0G70A |
T950 Support Options | |
| Description | SKU |
| Spectra T950 Tape Library 5-year 24x7 4hr Onsite Support | R8S02A |
| Spectra T950 Tape Library 4-year 24x7 4hr Onsite Support | R8S01A |
| Spectra T950 Tape Library 3-year 24x7 4hr Onsite Support | R8S00A |
| Spectra T950 Tape Library 2-year 24x7 4hr Onsite Support | R8R99A |
| Spectra T950 Tape Library 1-year 24x7 4hr Onsite Support | R8R98A |
| Spectra T950 Tape Library 5-year Next Business Day Onsite Support | R8R92A |
| Spectra T950 Tape Library 4-year Next Business Day Onsite Support | R8R91A |
| Spectra T950 Tape Library 3-year Next Business Day Onsite Support | R8R90A |
| Spectra T950 Tape Library 2-year Next Business Day Onsite Support | R8R89A |
| Spectra T950 Tape Library 1-year Next Business Day Onsite Support | R8R88A |
| Spectra T950 Tape Library 5-year 24x7 4hr Onsite and Next Business Day Onsite Drive Support | R8R82A |
| Spectra T950 Tape Library 4-year 24x7 4hr Onsite and Next Business Day Onsite Drive Support | R8R81A |
| Spectra T950 Tape Library 3-year 24x7 4hr Onsite and Next Business Day Onsite Drive Support | R8R80A |
| Spectra T950 Tape Library 2-year 24x7 4hr Onsite and Next Business Day Onsite Drive Support | R8R79A |
| Spectra T950 Tape Library 1-year 24x7 4hr Onsite and Next Business Day Onsite Drive Support | R8R78A |
| Spectra T950 Tape Library LTO-8/9 Drive 1-year 4-hour Next Business Day Support | S3G78A |
| Spectra T950 Tape Library LTO-8/9 Drive 2-year 4-hour Next Business Day Zone 2 Support | S3G79A |
| Spectra T950 Tape Library 1-year 4-hour Next Business Day Drive Support | S3G80A |
| Spectra T950 Tape Library 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G81A |
| Spectra T950 TS11X0 Drive 1-year 4-hour Next Business Day Support | S3G82A |
| Spectra T950 TS11X0 Drive 2-year 4-hour Next Business Day Support | S3G83A |
| Spectra T950 Base Tape Library 1-year 4-hour Next Business Day Drive Support | S3G90A |
| Spectra T950 Base Tape Library 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G91A |
| Spectra T950 Base Tape Library Additional 2-year 4-hour Next Business Day Drive Support | S3G92A |
| Spectra T950 Base Tape Library Additional 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G93A |
| Spectra T950 Tape Library BlueScale Software 1-year 4-hour Next Business Day Drive Support | S3G94A |
| Spectra T950 Tape Library BlueScale Software 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G95A |
| Spectra T950 Tape Library BlueScale Software Additional 2-year 4-hour NBD Drive Support | S3G96A |
| Spectra T950 Tape Library BlueScale Software Additional 2-year 4-hour NBD Zone 2 Drive Support | S3G97A |
| Spectra T950 Tape Library LTO-8/9 Drive Additional 2-year 4-hour Next Business Day Drive Support | S3G98A |
| Spectra T950 Tape Library LTO-8/9 Drive Additional 2-year 4-hour NBD Zone 2 Drive Support | S3G99A |
| Spectra T950 Tape Library Additional 2-year 4-hour Next Business Day Drive Support | S3H00A |
| Spectra T950 Tape Library Additional 2-year 4-hour Next Business Day Zone 2 Drive Support | S3H01A |
| Spectra T950 Tape Library Drive Expansion Frame 1-year 4-hour Next Business Day Support | S3H02A |
| Spectra T950 Tape Library Drive Expansion Frame 1-year 4-hour Next Business Day Zone 2 Support | S3H03A |
| Spectra T950 Tape Library Drive Expansion Frame Additional 2-year 4-hour Next Business Day Support | S3H04A |
| Spectra T950 Tape Library Drive Expansion Frame Additional 2-year 4-hour NBD Zone 2 Support | S3H05A |
| Spectra T950 TS11X0 Drive Additional 2-year 4-hour Next Business Day Support | S3H06A |
| Spectra T950 TS11X0 Drive Additional 2-year 4-hour Next Business Day Zone 2 Support | S3H07A |
| Spectra T950/TFinity Tape Library RIM 1-year 4-hour Next Business Day Drive Support | S3H08A |
| Spectra T950/TFinity Tape Library RIM 1-year 4-hour Next Business Day Zone 2 Drive Support | S3H09A |
| Spectra T950/TFinity Tape Library RIM Additional 2-year 4-hour Next Business Day Drive Support | S3H10A |
| Spectra T950/TFinity Tape Library RIM Additional 2-year 4-hour NBD Zone 2 Drive Support | S3H11A |
| Spectra T950 Tape Library 1 Unit Co-term Support | Q0H39A |
| Spectra T950/TFinity Swarm 1-year 24x7 Phone Support | R7F10A |
| Spectra T950/TFinity Swarm 1-year 24x7 Zone 2 Phone Support | R7F11A |
| Spectra T950/TFinity Swarm 2-year Additional Uplift 24x7 Phone Support | R7F12A |
| Spectra T950/TFinity Swarm 2-year Additional Uplift 24x7 Zone 2 Phone Support | R7F13A |
| Spectra T950/TFinity Swarm 1-year 9x5 Phone Support | R7F14A |
| Spectra T950/TFinity Swarm 1-year 9x5 Zone 2 Phone Support | R7F15A |
| Spectra T950/TFinity Swarm 2-year Additional Uplift 9x5 Phone Support | R7F16A |
| Spectra T950/TFinity Swarm 2-year Additional Uplift 9x5 Zone 2 Phone Support | R7F17A |
| Spectra T950 Tape Library 3-year 24x7 Phone Uplift Renewal Support | R8S10A |
| Spectra T950 Tape Library 1-year 24x7 Phone Uplift Renewal Support | R8S09A |
| Spectra T950 Tape Library 3-year 24x7 4hr Onsite Renewal Support | R8S14A |
| Spectra T950 Tape Library 1-year 24x7 4hr Onsite Renewal Support | R8S13A |
| Spectra T950 Tape Library 3-year Next Business Day Onsite Renewal Support | R8S18A |
| Spectra T950 Tape Library 1-year Next Business Day Onsite Renewal Support | R8S17A |
| Spectra T950 Tape Library 3-year 24x7 4hr Onsite and Next Business Day Onsite Drives Renewal Support | R8S22A |
| Spectra T950 Tape Library 1-year 24x7 4hr Onsite and Next Business Day Onsite Drives Renewal Support | R8S21A |
| Spectra T950 ServiceGuard LTO-10 Drive 1-year 4-hour Onsite Support | S6P71A |
| Spectra T950 ServiceGuard LTO-10 Drive 1-year 4-hour Onsite Zone 2 Support | S6P72A |
| Spectra T950 ServiceGuard LTO-10 Drive 1-year 4-hour Next Business Day Onsite Support | S6P73A |
| Spectra T950 ServiceGuard LTO-10 Drive 1-year 4-hour Next Business Day Onsite Zone 2 Support | S6P74A |
| Spectra T950 ServiceGuard LTO-10 Drive Additional 2-year 4-hour Onsite Support | S6P75A |
| Spectra T950 ServiceGuard LTO-10 Drive Additional 2-year 4-hour Onsite Zone 2 Support | S6P76A |
| Spectra T950 ServiceGuard LTO-10 Drive Additional 2-year 4-hour Next Business Day Onsite Support | S6P77A |
| Spectra T950 ServiceGuard LTO-10 Drive Additional 2-year 4-hour NBD Onsite Zone 2 Support | S6P78A |
| Spectra T950 ServiceGuard LTO-10 Drive Additional 2-year NBD Onsite and 5x9 Phone/email Support | S6P79A |
| Spectra T950 ServiceGuard LTO-10 Drive Additional 2yr NBD Onsite Zone 2 and 5x9 Phone/email Support | S6P80A |
| Spectra T950 Tape Library LTO-8/9 Drive 1-year 4-hour Next Business Day Support | S3G78A |
| Spectra T950 Tape Library LTO-8/9 Drive 2-year 4-hour Next Business Day Zone 2 Support | S3G79A |
| Spectra T950 Tape Library 1-year 4-hour Next Business Day Drive Support | S3G80A |
| Spectra T950 Tape Library 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G81A |
| Spectra T950 TS11X0 Drive 1-year 4-hour Next Business Day Support | S3G82A |
| Spectra T950 TS11X0 Drive 2-year 4-hour Next Business Day Support | S3G83A |
| Spectra T950 Base Tape Library 1-year 4-hour Next Business Day Drive Support | S3G90A |
| Spectra T950 Base Tape Library 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G91A |
| Spectra T950 Base Tape Library Additional 2-year 4-hour Next Business Day Drive Support | S3G92A |
| Spectra T950 Base Tape Library Additional 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G93A |
| Spectra T950 Tape Library BlueScale Software 1-year 4-hour Next Business Day Drive Support | S3G94A |
| Spectra T950 Tape Library BlueScale Software 2-year 4-hour Next Business Day Zone 2 Drive Support | S3G95A |
| Spectra T950 Tape Library BlueScale Software Additional 2-year 4-hour NBD Drive Support | S3G96A |
| Spectra T950 Tape Library BlueScale Software Additional 2-year 4-hour NBD Zone 2 Drive Support | S3G97A |
| Spectra T950 Tape Library LTO-8/9 Drive Additional 2-year 4-hour Next Business Day Drive Support | S3G98A |
| Spectra T950 Tape Library LTO-8/9 Drive Additional 2-year 4-hour NBD Zone 2 Drive Support | S3G99A |
| Spectra T950 Tape Library Additional 2-year 4-hour Next Business Day Drive Support | S3H00A |
| Spectra T950 Tape Library Additional 2-year 4-hour Next Business Day Zone 2 Drive Support | S3H01A |
| Spectra T950 Tape Library Drive Expansion Frame 1-year 4-hour Next Business Day Support | S3H02A |
| Spectra T950 Tape Library Drive Expansion Frame 1-year 4-hour Next Business Day Zone 2 Support | S3H03A |
| Spectra T950 Tape Library Drive Expansion Frame Additional 2-year 4-hour Next Business Day Support | S3H04A |
| Spectra T950 Tape Library Drive Expansion Frame Additional 2-year 4-hour NBD Zone 2 Support | S3H05A |
| Spectra T950 TS11X0 Drive Additional 2-year 4-hour Next Business Day Support | S3H06A |
| Spectra T950 TS11X0 Drive Additional 2-year 4-hour Next Business Day Zone 2 Support | S3H07A |
| Spectra T950/TFinity Tape Library RIM 1-year 4-hour Next Business Day Drive Support | S3H08A |
| Spectra T950/TFinity Tape Library RIM 1-year 4-hour Next Business Day Zone 2 Drive Support | S3H09A |
| Spectra T950/TFinity Tape Library RIM Additional 2-year 4-hour Next Business Day Drive Support | S3H10A |
| Spectra T950/TFinity Tape Library RIM Additional 2-year 4-hour NBD Zone 2 Drive Support | S3H11A |
| Spectra Path Failover Driver 1-year Zone 1 Support | S6Q03A |
| Spectra Path Failover Driver 1-year Zone 2 Support | S6Q04A |
| Spectra OSW-2400 Next Business Day Onsite Zone 1 Support | S6P92A |
| Spectra OSW-2400 Next Business Day Onsite Zone 2 Support | S6P93A |
| Spectra OSW-2400 4-hour Onsite Zone 1 Support | S6P94A |
| Spectra OSW-2400 4-hour Onsite Zone 2 Support | S6P95A |
| Spectra OSW-2400 1 Unit Co-term Support | S6P96A |
| Spectra Fibre Channel to SAS Bridge SpectraGuard 1yr Additional Uplift 24-hour Zone 1 Phone Support | S6P97A |
| Spectra Fibre Channel to SAS Bridge SpectraGuard 1yr Additional Uplift 24-hour Zone 2 Phone Support | S6P98A |
| Spectra Fibre Channel to SAS Bridge SpectraGuard 1-year Additional Uplift 9x5 Zone 1 Phone Support | S6P99A |
| Spectra Fibre Channel to SAS Bridge SpectraGuard 1-year Additional Uplift 9x5 Zone 2 Phone Support | S6Q00A |
T950 Professional Services Options | |
| Description | SKU |
| Spectra T950/TFinity Tape Library Professional Services Onsite Installation Base | Q0G77A |
| Spectra T950/TFinity Tape Library Professional Services Expansion Frame Installation Base | Q0G78A |
| Spectra T950/TFinity Tape Library Professional Services Expansion Frame Installation Upgrade | Q0G79A |
| Spectra T950/TFinity Tape Library Professional Services Onsite (per Day) Consult and Training | Q0G80A |
| Spectra T950/TFinity Tape Library Professional Services Annual Preventive Maintenance | Q0G76A |
| Spectra T950 Tape Library Professional Services Individual Preventive Maintenance | Q0G83A |
| Spectra SKLM Basic Software Installation with up to 5-day Professional Service | Q1J60A |
| Spectra T950/TFinity Per Frame Stability Kit Installation Professional Service | S3G77A |
| Spectra T950/TFinity Remote Consulting Professional Service | Q2R40A |
| Spectra T950 Dedicated Technical Account Manager Advanced Service | S6Q07A |
| Notes: Dedicated named technical account manager, expedited access to senior technical expertise, detailed reporting, technical reviews, key metric analysis | |
Technical Specifications
Family Information
| | LTO-6 BaFe | LTO-7 | LTO-8 | LTO-9 | LTO-10 | LTO |
|---|---|---|---|---|---|---|
| | Non Custom/Custom | Non Custom/Custom | Non Custom/Custom | Non Custom/Custom | Non Custom/Custom | Maintenance |
| TeraPack | TeraPack | TeraPack | TeraPack | TeraPack | TeraPack | |
| Part Number | Q1G95A/ Q1G96A | Q 1H01A/ Q1H02A | Q2R69A/Q2R70A | R7C12A/R7C13A | S6P57A/S6P58A | Q1H03A |
| Format | LTO-6 BaFe | LTO-7 | LTO-8 | LTO-9 | LTO-10 | LTO Cleaning Tapes |
| Media Format | Re-Writable | Re-Writable | Re-Writable | Re-Writable | Re-Writable | - |
| Quantity per Package | 10 | 10 | 10 | 10 | 10 | 10 |
| Capacity | 2.5 TB Uncompressed | 6.0 TB LTO-7 Uncompressed | 12.0 TB Uncompressed | 18.0 TB Uncompressed | 30.0 TB Uncompressed | - |
| 6.25 TB Compressed | 15 TB LTO-7 Compressed | 30 TB Compressed | 45 TB Compressed | 75 TB Compressed | - | |
| Tape Length | 846 m | 960 m | 960 m | 1035 m | 1035 m | 319 m |
| Tape Width (Metric) | 12.65 mm | 12.65 mm | 12.65 mm | 12.65 mm | 12.65 mm | 12.65 mm |
| Tape Thickness | 6.1 um | 5.6 um | 5.6 um | 5.2 um | 5.2 um | 8.9 um |
| Particle Type | BaFe | BaFe | BaFe | BaFe | SrFe | MP |
| Bit Density | 343 kbits/inch | 485 kbits/inch | 525 kbit/inch | 545 kbit/inch | 545 kbit/inch | - |
| Number of Data Tracks | 2176 | 3 584 LTO-7 | 6,656 | 8960 | 8960 | - |
| Magnetic Layer Coercivity | 2280 Oe | 2850 Oe | 2,300 Oe | Between 1,600 and 3,000 Oe | Between 1,600 and 3,000 Oe | - |
| Archival Storage Life | 30 years | 30 years | 30 years | 30 years | 30 years | - |
| Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty |
| Temperature | 10 to 45°C | 10 to 45°C | 10 to 45°C | 15 to 35°C | 15 to 35°C | 10 to 45°C |
| (50 to 113°F) | (50 to 113°F) | (50 to 113°F) | (68 to 95°F) | (68 to 95°F) | (50 to 113°F) | |
| Relative Humidity | 10-80% | 10-80% | 10-80% | 20-80% | 20-80% | 10-80% |
| Maximum wet bulb temperature | 26°C (79°F) | 26°C (79°F) | 26°C | 22°C | 22°C | 26°C |
| Temperature | 16 to 32°C | 16 to 32°C | 16 to 32°C | 16 to 32°C | 16 to 32°C | 16 to 32°C |
| (61 to 90°F) | (61 to 90°F) | (61 to 90°F) | (61 to 90°F) | (61 to 90°F) | (60 to 89°F) | |
| Relative Humidity | 20-80% | 20-80% | 20-80% | 20-80% | 20-80% | 20-60% |
| Maximum wet bulb temperature | 26°C (79°F) | 26°C (79°F) | 26°C (79°F) | 26°C (79°F) | 26°C (79°F) | 26°C (79°F) |
System Architecture
| Dimensions | Form Factor | Free standing |
|---|---|---|
| | Frames (Base, Drive Expansion, Media Expansion)- Physical (HxWxD) | 79.125-82 x 29.0 x 43.25 inches (201.0-208.3 x 73.7 x 109.9 cm) |
| Frames (Base, Drive Expansion, Media Expansion)- Shipping (HxWxD) | 86.4 x 42.0 x 55.2 inches (220.0 x 110.0 x 140.0 cm) | |
| Weight | ||
| Base Frame | Out of box | 876-895 lbs (397-406 kg) |
| Shipping | 1,200-1,300 lbs (544-590 kg) | |
| Drive Expansion Frame | Out of box | 720-750 lbs (327-340 kg) |
| Shipping | 1,045-1,155 lbs (474-524 kg) | |
| Media Expansion Frame | Out of box | 538 lbs (244 kg) |
| Shipping | 862 lbs (391 kg) | |
| Robotic and Host Interface | Fibre Channel, 8Gb/2Gb/1Gb Multi-mode optical, LC connector and optional Robotic Interface Module | |
| Library Management Interface | One RJ-45 Ethernet port, 10/100Base-T. | |
| | LTO-10 Ultrium | LTO-9 Ultrium | LTO-8 Ultrium | LTO-7 Ultrium | LTO-6 Ultrium | |
|---|---|---|---|---|---|---|
| Drive Performance (1Kb = 1,000 bytes) | Native Data transfer rate | 400 MB/s with LTO-10 media | 400 MB/s with LTO-9 media | 360 MB/s with LTO-8 media | 300 MB/s with LTO-7 media | 160 MB/s with LTO-6 media |
| Average load, thread, & initialize time | 15 seconds with pre- initialized media | 15 seconds with pre- initialized media | 15 seconds | 12 seconds | 12 seconds | |
| Average unload time | 24 seconds | 24 seconds | 24 seconds | 17 seconds | 17 seconds | |
| Average First File Access Time | 66 seconds | 66 seconds | 66 seconds | 60 seconds | 60 seconds | |
| Input Requirements | | |||||
| Input Requirements Power Consumption | | |||||
| Range Line Voltage | | 50 Hz / 60Hz | ||||
| Typical Input Current | | 200 VAC to 240 VAC | ||||
| VA max 183W (N+1) | | 13A max | ||||
| Connectors | | |||||
| Drives Supported | | LTO-9 Ultrium | LTO-8 Ultrium | LTO-7 Ultrium | LTO-6 Ultrium |
|---|---|---|---|---|---|
| | Native Fibre Drives: LTO- 10, LTO-9, LTO-8, LTO-7, LTO-6 Technology Drive SAS: LTO-10, LTO-9 | LC Connector, HD mini-SAS | |||
| Maximum Number of Drives | | ||||
| Reliability (Library Only) | MTBF | 3 Years | |||
| MTTR | 3 minutes for hot-swap components. 30 minutes for non-hot-swap components | ||||
| Reliability (Tape Drive) | MTBF | 250,000 power-on hours 100% duty cycle | |||
| Reliability (Tape Drive) | MSBF | 100,000 | |||
| Relative Humidity (non-condensing) | Operating | Operating: 20% to 80% non-condensing | |||
| Temperature Range | Operating | Dry Bulb: 16° to 32° C/65° to 90° F Wet Bulb: 22° C (72° F) maximum | |||
| Shipping | Dry Bulb: -23° to 49° C/-9° to 120° F Wet Bulb: 26° C (79° F) maximum | ||||
| Regulatory Compliance | EMC | UL 60950-1, 2nd ed. Including am1, am2 IEC 60950-1(ed.2); am1;am2 | |||
| Country Regulatory Compliance | CISPR 22/class A, CISPR 24, FCC/Class A | ||||
| Regulatory Model Number | For country specific compliance contact your local sales representative. T950 | ||||
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 06-Oct-2025 | Changed | Added LumOS Library Management Software Added LTO-10 Added Spectra OSW_2400 Optical SAS Switch Removed TS11xx tape drives and media | |
| 05-Feb-2024 | Changed | Overview, Standard Features, Service and Support, Configuration Information, Additional Options and Technical Specifications sections were updated. | |
| 05-Dec-2022 | Changed | Technical Specifications section was updated Obsolete SKU Q9D39A was removed | |
| 18-Apr-2022 | Changed | QS name was updated. | |
| 04-Oct-2021 | Changed | Added LTO-9 tape, SWARM, new SKUs and removed obsolete SKUs | |
| 17-Aug-2020 | Changed | QuickSpecs layout was updated and Branding Refresh was applied. | |
| 03-Feb-2020 | Changed | Standard Features, and Configuration Information sections were revised. | |
| 04-Nov-2019 | Changed | Standard Features and Configuration Information Sections were updated. | |
| 03-Sep-2019 | Changed | TS1160 tape technology technical specifications added Overview, Standard Features, Configuration Information and Technical Specifications sections were updated. | |
| 04-Feb-2019 | Changed | Standard Features, Compatibility, Technical Specifications sections were updated. | |
| 03-Dec-2019 | Changed | Overview, Service and Support and Technical Specifications sections were revised. SKU descriptions were updated. | |
| 06-Aug-2018 | Removed | SKU Q1J59A was removed. | |
| 02-Jul-2018 | Changed | New T950 Support Options were added. Service and Support section was revised. | |
| 07-May-2018 | Changed | Technical Specifications section was revised. SKU descriptions were updated. | |
| 02-Apr-2018 | Changed | Technical Specifications section was revised. SKU descriptions were updated. | |
| 12-Feb-2018 | Changed | Compatibility and Technical Specifications were revised. | |
| 05-Feb-2018 | Changed | Technical Specifications section was revised. | |
| 04-Dec-2017 | Changed | Overview, Compatibility, and Technical Specifications were revised. | |
| 06-Nov-2017 | Changed | Added SKU Q2R40A in the Technical Specifications Section. | |
| 05-Jun-2017 | Changed | Changes made throughout the QuickSpecs. | |
| 27-Mar-2017 | Changed | Changes made throughout the QuickSpecs. | |
| 17-Feb-2017 | Changed | Changes made throughout the QuickSpecs. | |
| 09-Dec-2016 | Changed | Changes made to the Overview section. | |
| 28-Nov-2016 | New | New QuickSpecs. |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
BlueScale, TeraPack, and TFinity are registered trademarks of Spectra Logic Corporation. All rights reserved worldwide. All library features and specifications listed are subject to change at any time without notice.
For tape drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.
c05269704, 15747 - Worldwide - V24 - 06-October-2025
