QuickSpecs
HPE Synergy 10Gb Pass-Thru Module QuickSpecs
The HPE Synergy 10Gb Pass-Thru Module is designed for the HPE Synergy 12000 Frame for customers requiring a non-blocking, one -to-one connection between each Synergy Compute Module and the network. The pass-thru module provides 12 uplink ports that can accept SFP+ connectors using a QSFP+ to SFP+ adapter.
The HPE Synergy 10Gb Pass-Thru Module can support 10Gb connections on a port by port basis. Optical as well as Direct Attach Copper (DAC) cables are also supported. Both standard Ethernet as well as Converged Enhanced Ethernet (CEE) traffic to an FCoE capable switch is possible when using the appropriate HPE Synergy Converged Network Adapter.
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/c04815108_block1img?$crimg$ "[IMAGE1]")

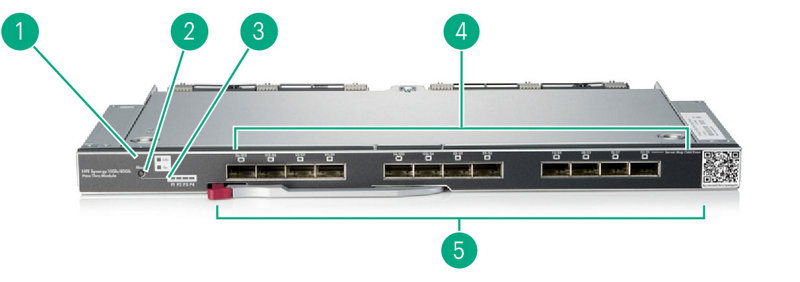

HPE Synergy 10Gb Pass-Thru Module
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | UID LED | 4. | Ethernet port link status and speed LEDs |
| 2. | Module Status/Health LED | 5. | Uplink ports that accept QSFP+ to SFP+ adapter to support SFP+ transceivers and Direct Attach Cables ( DAC) |
| 3. | M ode LED | | |
At A Glance
Performance:
- – 12 direct Synergy Compute Module to network connections
- – Auto-sense 10Gb operation on a port by port basis
- – Supports standard Ethernet as well as Converged Enhanced Ethernet
- – Supports HPE Synergy Ethernet Converged Network Adapters
Management:
- – No management required – automatic discovery be HPE Synergy Composer
- – Module performance monitored by the HPE Synergy Composer
- – Hardware diagnosis, error reporting, and firmware updates through HPE Synergy Composer
Compute Module to HPE 10Gb Pass-Thru Module Port Mapping | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Faceplate Port | Q1 | Q2 | Q3 | Q4 | Q5 | Q6 | Q7 | Q8 | Q9 | Q10 | Q11 | Q12 |
| PTM in Odd Bay (1,3,5) | CM6 | CM12 | CM5 | CM11 | CM4 | CM10 | CM3 | CM9 | CM2 | CM8 | CM1 | CM7 |
| PTM in Even Bay (2,4,6) | CM12 | CM6 | CM11 | CM5 | CM10 | CM4 | CM9 | CM3 | CM8 | CM2 | CM7 | CM1 |
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/c04815108_block1img6?$crimg$ "[IMAGE2]")

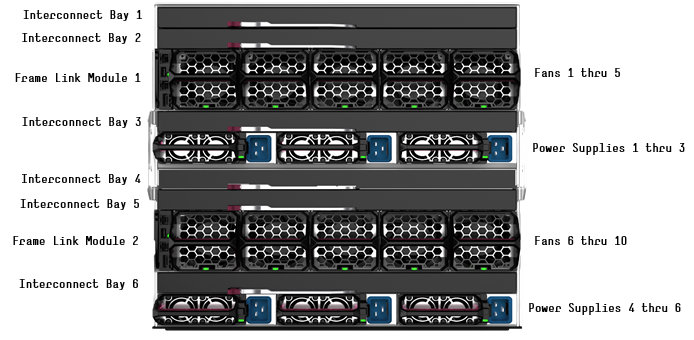

HPE Synergy 12000 Frame - Rear View
Models | |
| Description | SKU |
| HE Synergy 10Gb Pass-Thru Module | 799330-B21 |
| HPE Synergy 10Gb TAA-compliant Pass-Thru Module | 799330-B22 |
| Notes: − TAA in the name of this product provides that this product meets the US Trade Agreements Act (19 U.S.C & 2501-2581) and is compliant for resale on GSA (General Services Administration) agreements or contracts. − HPE now includes TAA products and options for the Synergy line of product solutions. TAA refers to the US Trade Agreements Act (19 U.S.C & 2501-2581). TAA compliance for HPE simply means that as a product manufacturer or reseller on GSA (General Services Administration), the “final products” that we sell through your GSA Schedule are manufactured or substantially transformed in a TAA-compliant country. HPE Synergy TAA products are aligned for the configuration of a complete TAA-compliant solution or subsets of the complete solution. − HPE Synergy 12000 TAA Configure-To-Order Frames may include TAA specific, naturally compliant, or standard product options and become a TAA approved solutions when substantially transformed/integrated at a designated HPE TAA Compliant Factory. Please look for TAA in the name when defining HPE Synergy Options or Solutions that may require TAA compliance. − The package ships with 12 quantities of HPE BladeSystem c-Class QSFP+ to SFP+ Adapter (Part Number - 720193-B21) | |
Compatibility
HPE Synergy 10Gb Pass-Thru Module supports the following hardware.
HPE Synergy Compute Modules
- – HPE Synergy 480 Gen9 Compute Module
- – HPE Synergy 620 Gen9 Compute Module
- – HPE Synergy 660 Gen9 Compute Module
- – HPE Synergy 680 Gen9 Compute Module
- – HPE Synergy 480 Gen10 Compute Module
- – HPE Synergy 660 Gen10 Compute Module
- – HPE Synergy 480 Gen10Plus Compute Module
- – HPE Synergy 480 Gen11 Compute Module
HPE Network Adapters
Converged Network Adapter:
- – HPE Synergy 2820C 10Gb Converged Network Adapter
- – HPE Synergy 3820C 10/20Gb Converged Network Adapter
- – HPE Synergy 4820C 10/20/25Gb Converged Network Adapter
- – HPE Synergy 4610C 10/25Gb Ethernet Adapter
Notes: Consult individual compute module TechSpecs for specific adapter support.

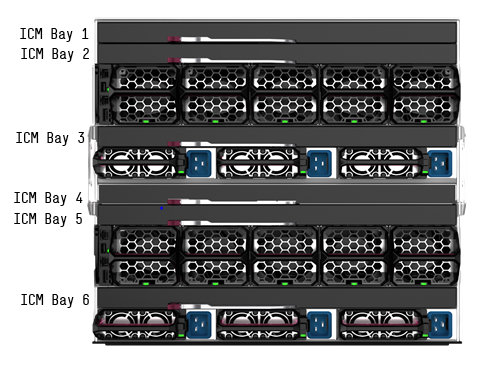

Supported Configurations
![[IMAGE3]](https://assets.ext.hpe.com/is/image/hpedam/c04815108_block2img3?$crimg$ "[IMAGE3]")
Cabling and Transceivers
SFP+ cables connected to QSFP+ to SFP+ Adapter:
- − HP BladeSystem c-Class QSFP+ to SFP+ Adapter
- Notes: One HP BladeSystem c-Class QSFP+ to SFP+ Adapter is required for each QSFP+ port to connect 10Gb DAC cables to the HPE Synergy 10Gb Pass-Thru Module.
- − HP BladeSystem c-Class Small Form-Factor Pluggable 3m 10GbE Copper Cable
- − HP BladeSystem c-Class Small Form-Factor Pluggable 5m 10GbE Copper Cable
Notes: The above cables have been tested and verified to work with the HPE 10Gb Pass-Thru Module. However, the module will accept cables from any vendor. Hewlett Packard Enterprise does not guarantee the performance of non HPE cables and users may receive a warning message via the CLI when a non-verified cable has been inserted.
Transceivers:
- − HPE BladeSystem c-Class QSFP+ to SFP+ Adapter
- − HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver
- − HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver
- − HPE 10GBase-T SFP+ Transceiver
Notes:
− One HPE QSFP+ to SFP+ adapter is required for each QSFP+ port to connect 10Gb transceivers to the HPE Synergy 10Gb Pass-Thru Module
− Only HPE transceivers listed above may be used in the HPE 10Gb Pass-Thru Module.
-
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- − A complete coverage approach -- edge to cloud
- − An assigned HPE team
- − Modular and fully personalized engagement
- − Enhanced Incident Management experience with priority access
- − Digitally enabled and AI driven customer experience
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see theHPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin
Consume IT On Your Terms
HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
- − Get faster time to market
- − Save on TCO, align costs to business
- − Scale quickly, meet unpredictable demand
- − Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information
Cables and Transceiver | |
| SFP+ Direct attached cables | |
| Description | SKU |
| HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| Notes: QSFP+ to SFP+ adapter required for each QSFP+ port to connect SFP+ cables/transceivers | |
| Transceivers | |
| Description | SKU |
| HPE BladeSystem c-Class QSFP+ to SFP+ Adapter | 720193-B21 |
| HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver | 455883-B21 |
| HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver | 455886-B21 |
| HPE 10GBase-T SFP+ Transceiver | 813874-B21 |
Product Specifications | ||
|---|---|---|
| Shipping Dimensions | ||
| Length | 19.45 in (494 mm) | |
| Width | 15.55 in (395 mm) | |
| Height | 5.75 in (145 mm) | |
| Shipping Weight | 3.2 kg (7.0 lbs) | |
| Product Specifications Hardware | ||
| Performance | 240 Gbps external port bandwidth per module at 10Gb | |
| Connectors and Cabling | Uplink Ports | 12 QSFP+/SFP+ Modules |
| Management | Mini-USB Management | |
| Network Transfer Rate | 10 Gbps port (20,000 Mbps full duplex) | |
| LED Indicators | UID LED | Blue light on module is activated. Blue light off module is deactivated. |
| Mode LED | Green lights | |
| Health LED | Solid Amber: The pass-thru module is powered off. Green: The pass-thru module is powered up, and all ports match. Flashing Amber: Fault exists. | |
| Ethernet port | Green Link is 10G Flashing blue QSFP+ indicator Red configuration error | |
| Product Dimensions | ||
| Length | 10.5 in (267.7 mm) | |
| Width | 7.5 in (192.79 mm) | |
| Height | 1.1 in (27.94mm) | |
| Product Weight | 1.6 kg (3.97 lbs) | |
| Environmental Ranges | ||
| Temperature Range 2 | ||
| Specification | 10°C to 40°C (50°F to 104°F) 1 | |
| Operating | 10°C to 40°C (50°F to 104°F) | |
| Shipping | Shipping -40°C to 70°C (-40°F to 158°F) | |
| Storage | -30°C to 60°C (-22°F to 140°F) | |
| Maximum wet bulb temperature | 38.7°C (101.66°F) | |
| Relative Humidity (noncondensing) 3 | ||
| Operating | 5% to 95% | |
| Shipping | 5% to 95% | |
| Notes: – 1,2 All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 KPa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. – 3 Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa. | ||
| Power Specification | 12V @ 10A (124 W max) | |
Safety and Compliance | |
|---|---|
| Safety Certifications | UL/CUL Recognition to UL/CSA 60950-1 |
| TUV to EN 60950-1 | |
| CB report and certificate to IEC 60950-1 with all country deviations | |
| CE Marking | |
Electromagnetic Information | |
|---|---|
| Electromagnetic Emissions Certifications FCC Part 15 Class A | FCC Part 15 Class A |
| EN 55022 Class A (CISPR22 Class A) | |
| VCCI Class A | |
| CE Marking | |
Environment-friendly Products and Approach
End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle . To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at:
http://www.hpe.com/info/recycle . These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
