HPE Networking Comware Router Series MSR4000 QuickSpecs

Shape the Future of QuickSpecs - Your Input Matters

The HPE Networking Comware Router Series MSR4000, the next generation of router from Hewlett Packard Enterprise (HPE), is a component of the HPE FlexBranch solution, which is a part of the comprehensive HPE Networking Comware architecture.

These routers feature a modular design that delivers unmatched application services for extra-large branch offices, headquarters, and campuses. This gives your IT personnel the benefit of reduced complexity, and simplified configuration, deployment, and management. The MSR4000 series leverages separated data and control planes, dual main processing units (MPUs), and support for up to four power supplies, which provides outstanding performance and reliability.

  • Overview

    The MSR4000 routers provide a full−featured, resilient routing platform with the latest multicore CPUs, offer 10 Gigabit SFP+ integrated, provide an enhanced PCI bus, and ship with the latest version of HPE Comware software to help ensure high performance with concurrent services. The MSR4000 series provides a full−featured, resilient routing platform, including IPv6 and MPLS, with up to 36 Mpps forwarding capacity and 28 Gbps of IPSec VPN encrypted throughput. These routers also support HPE Open Application Platform (OAP) modules to deliver integrated industry−leading HPE AllianceOne partner applications such as virtualization, unified communications and collaboration (UC&C), and application optimization capabilities.


    The MSR4000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to your changing business requirements while delivering integrated concurrent services on a single, easy−to−manage platform.

[IMAGE1]

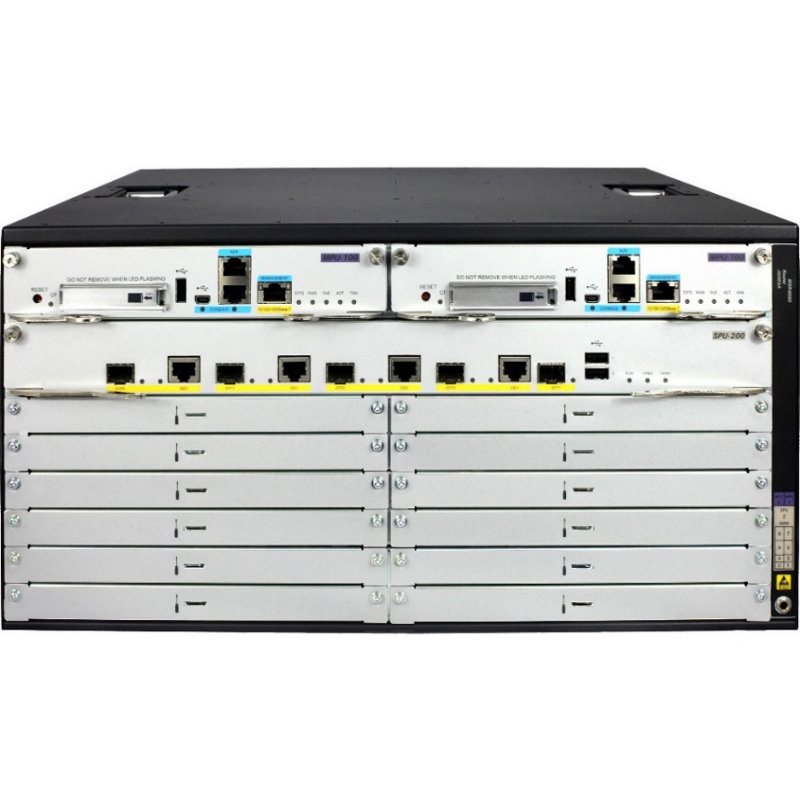

HPE Networking Comware MSR4080 Router Chassis (SPU−200) − Front View

[IMAGE2]

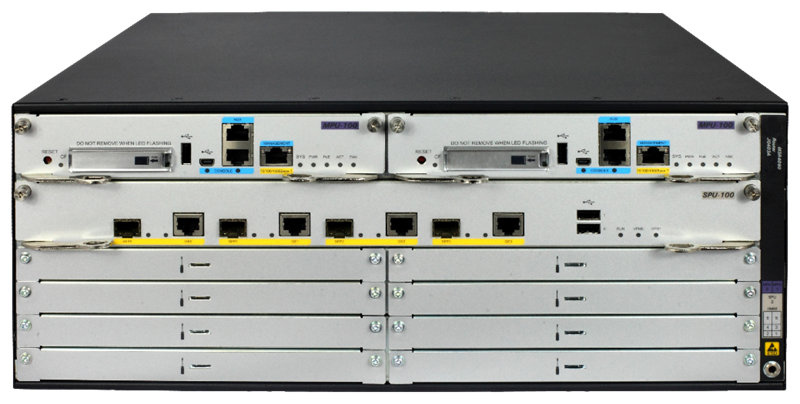

HPE Networking Comware MSR4060 Router Chassis (SPU−100) − Front View

Models

HPE Networking Comware MSR4060 Router Chassis

JG403A

HPE Networking Comware MSR4080 Router Chassis

JG402A

Key features

  • – Up to 36 Mpps forwarding performance; support for multiple concurrent services
  • – High reliability with separated hardware data and control planes, and dual MPUs
  • – Open Application Platform for HPE AllianceOne applications
  • – Powerful aggregation capacity; integrated 10GbE; support for up to 64 E1 or eight E3/T3 ports
  • – Zero−touch solution with single pane−of−glass management

  • Standard Features

    Performance

    Excellent forwarding performance

    Excellent full−service performance (NAT + QoS + ACL Performance by Platform, IMIX Traffic), 1Gbps for SPU−100, 3Gbps for SPU−200, 8Gbps for SPU−300.


    Powerful security capacity

    The MSR4000 series is available with standard or high encryption, an embedded hardware encryption accelerator to improve encryption performance; IPSec encryption throughput can be up to 28 Gb/s with a maximum of 10,000 IPSec VPN tunnels


    Product architecture

    • − SDN/OpenFlow
    • OpenFlow is the communications interface defined between the control and forwarding layers of a SDN (Software−Defined Networking ) architecture. OpenFlow separates the data forwarding and routing decision functions. It keeps the flow−based forwarding function and employs a separate controller to make routing decisions. OpenFlow matches packets against one or more flow tables. MSR support OpenFlow 1.3.1
    • − Ideal multiservice platform
    • provides WAN router, Ethernet switch, stateful firewall, VPN, and SIP/voice gateway all in one device
    • − Advanced hardware architecture
    • provides multicore processors, gigabit switching, and PCIE bus; dual Main Processing Units, four internal power supplies (N+1 configuration), and internal and external CF cards are offered; new high−performance MIM modules (HMIM) supported
    • − New operation system version
    • ships with new Comware v7 operating system delivering the latest in virtualization and routing
    • − Open Application Platform architecture
    • provides unmatched application and services flexibility, with the potential to deliver the functionality of multiple devices, creating capital and operational expense savings and lasting investment protection
    • − Distributed architecture with separation of data and control planes
    • delivers enhanced fault tolerance and facilitates near continuous operation and zero service disruption during planned or unplanned control−plane events; service processing units (SPUs) perform data forwarding, encryption/decryption, and analyzing/filtering of data packets; main processing units perform route calculation, forward table maintenance, and configure and monitor the SPU
    • − Field−programmable gate array (FPGA)
    • improves the bandwidth of I/O module slots from 100 Mb/s to 1000 Mb/s, and improves uplink performance from 1 Gb/s to 10 Gb/s
    • − Multi Gigabit Fabric (MGF)
    • eases utilization of the main processor by transmitting Layer 2 packets directly via the MGF
    • − Main processing unit (MPU)
    • provides 1 GbE management port; has default of 512 MB internal flash and 2 GB DDR3 memory
    • − Service processing units (SPU)
    • includes four 1000BASE−T and four SFP (Combo) slots, two voice processing module slots, and 2 GB DDR3 memory; SPU 200/300 also has one 10GbE SFP+ slot; Forwarding performance: 10Mpps (SPU−100), 20Mpps (SPU−200), 36Mpps (SPU−300)
    • SPU−100−X1 and SPU−400−X1 have ten 1000BASE−T or SFP (combo) ports.

Layer 2 switching

  • − Spanning Tree Protocol (STP)
  • supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • − Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping
  • controls and manages the flooding of multicast packets in a Layer 2 network
  • − Port mirroring
  • duplicates port traffic (ingress and egress) to a local or remote monitoring port
  • − VLANs
  • supports up to 4,094 VLANS or IEEE 802.1Q−based VLANs
  • − sFlow
  • allows traffic sampling

Connectivity

  • − Powerful aggregation capacity
  • supports integrated 10GbE LAN, and up to 64 E1 or eight T3 ports, and up to 148 Giga ports on one chassis.
  • − High−density port connectivity
  • provides up to eight interface module slots and up to four on−board Gigabit Ethernet and one 10GbE ports
  • − Multiple WAN interfaces
  • provides traditional links with E1, T1, Serial, ATM and ISDN; high−density Ethernet access with WAN Fast Ethernet and Gigabit Ethernet with POE/POE+; and high−speed T3, 155 Mb/s OC3 access options
  • − Ethernet Virtual Interconnect (EVI)
  • EVI is a MAC−in−IP technology that provides Layer 2 connectivity between distant Layer 2 network sites across an IP routed network. It is used for connecting geographically dispersed sites of a virtualized large−scale data center that requires Layer 2 adjacency.
  • − VXLAN (Virtual eXtensible LAN)
  • VXLAN (Virtual eXtensible LAN, scalable virtual local area network) is an IP−based network, using the "MAC in UDP" package of Layer VPN technology. VXLAN can be based on an existing ISP or enterprise IP networks for decentralized physical site provides Layer 2 communication, and can provide service isolation for different tenants.
  • − Virtual Private LAN Service (VPLS)
  • Virtual Private LAN Service (VPLS) delivers a point−to−multipoint L2VPN service over an MPLS or IP backbone. The backbone is transparent to the customer sites, which can communicate with each other as if they were on the same LAN. The following protocols support on MSRs, RFC4447, RFC4761 and RFC4762, BFD detection in VPLS, Support hierarchical HOPE(H−VPLS), MAC address recovery in H−VPLS to speed up convergence.
  • − NEMO (Network Mobility)
  • Network mobility (NEMO) enables a node to retain the same IP address and maintain application connectivity when the node travels across networks. It allows location−independent routing of IP datagrams on the Internet
  • − Packet storm protection
  • protects against broadcast, multicast, or unicast storms with user−defined thresholds
  • − Loopback
  • supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per−port or per−VLAN basis for added flexibility
  • − USB interface
  • uses USB memory disk to download and upload configuration/OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink
  • − Flexible port selection
  • provides a combination of fiber and copper interface modules, 100/1000BASE−X support, and 10/100/1000BASE−T auto−speed detection plus auto duplex and MDI/MDI−X

Quality of Service (QoS)

  • − Hierarchical quality of service (HQoS)/Nested QoS
  • manages traffic uniformly, and hierarchically schedules traffic by user, network service, and application; provides more granular traffic control and quality assurance services than traditional QoS
  • − Traffic policing
  • supports Committed Access Rate (CAR) and line rate
  • − Congestion management
  • supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
  • − Weighted random early detection (WRED)/random early detection (RED)
  • delivers congestion avoidance capabilities through the use of queue management algorithms
  • − Other QoS technologies
  • supports traffic shaping, MPLS QoS, MP QoS/LFI and Control Plane Policing (CoPP)

Layer 3 routing

  • − Static IPv4 routing
  • provides simple manually configured IPv4 routing
  • − Routing Information Protocol (RIP)
  • uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
  • − Open shortest path first (OSPF)
  • delivers faster convergence; uses this link−state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
  • − Border Gateway Protocol 4 (BGP−4)
  • delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
  • − Intermediate system to intermediate system (IS−IS)
  • uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS−IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS−IS)
  • − Static IPv6 routing
  • provides simple manually configured IPv6 routing
  • − Dual IP stack
  • maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4−only network to an IPv6−only network design
  • − Routing Information Protocol next generation (RIPng)
  • extends RIPv2 to support IPv6 addressing
  • − OSPFv3
  • provides OSPF support for IPv6
  • − BGP+
  • extends BGP−4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
  • − IS−IS for IPv6
  • extends IS−IS to support IPv6 addressing
  • − IPv6 tunneling
  • allows IPv6 packets to traverse IPv4−only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra−Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for the transition from IPv4 to IPv6
  • − Multiprotocol Label Switching (MPLS)
  • uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels to forward packets from any Layer 2 or Layer 3 protocol, which reduces complexity and increases performance; supports graceful restart for reduced failure impact; supports LSP tunneling and multilevel stacks
  • − Multiprotocol Label Switching (MPLS) Layer 3 VPN
  • allows Layer 3 VPNs across a provider network; uses Multiprotocol BGP (MP−BGP) to establish private routes for increased security; supports RFC 2547bis multiple autonomous system VPNs for added flexibility; supports IPv6 MPLS VPN
  • − Multiprotocol Label Switching (MPLS) Layer 2 VPN
  • establishes simple Layer 2 point−to−point VPNs across a provider network using only MPLS Label Distribution Protocol (LDP); requires no routing and therefore decreases complexity, increases performance, and allows VPNs of non−routable protocols; uses no routing information for increased security; supports Circuit Cross Connect (CCC), Static Virtual Circuits (SVCs), Martini draft, and Kompella−draft technologies
  • − Routing policy
  • allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies

Ease of deployment

  • − Zero−touch deployment
  • supports TR069, both USB disk auto deployment and 3G SMS auto deployment

Security

  • − IPS
  • Built−in Intrusion Prevention System (IPS) detects and protects the branch office from security threats. Optional HPE integration filters for client−side, branch protection from exploits and vulnerabilities
  • − Enhanced stateful firewall
  • Application layer protocol inspection, Transport layer protocol inspection, ICMP error message check, andTCP SYN check. Support more L4 and L7 protocols like TCP, UDP, UDP−Lite, ICMPv4/ICMPv6, SCTP, DCCP, RAWIP, HTTP, FTP, SMTP, DNS, SIP, H.323, SCCP.
  • − Zone based firewall
  • Zone−Based Policy Firewall changes the firewall configuration from the older interface−based model to a more flexible, more easily understood zone−based model. Interfaces are assigned to zones, and inspection policy is applied to traffic moving between the zones. Inter−zone policies offer considerable flexibility and granularity, so different inspection policies can be applied to multiple host groups connected to the same router interface.
  • − Auto Discover VPN (ADVPN)
  • collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, ADVPN technology is more flexible and has richer features, such as NAT traversal of ADVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains
  • − IPSec VPN
  • supports DES, 3DES, and AES 128/192/256 encryption, and MD5 and SHA−1 authentication
  • − Access control list (ACL)
  • supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times
  • − Terminal Access Controller Access−Control System (TACACS+)
  • delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
  • − Unicast Reverse Path Forwarding (URPF)
  • allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks
  • − Network login
  • allows authentication of multiple users per port
  • − RADIUS
  • eases security access administration by using a user/password authentication server
  • − Network address translation (NAT)
  • supports one−to−one NAT, many−to−many NAT, and NAT control, enabling NAPT to support multiple connections; supports deny list in NAT, a limit on the number of connections, session logs, and multi−instances
  • − Secure Shell (SSHv2)
  • uses external servers to securely log in into a remote device; with authentication and encryption, it protects against IP spoofing and plain text password interception; increases the security of SFTP transfers

Convergence

  • − Internet Group Management Protocol (IGMP)
  • utilizes Any−Source Multicast (ASM) or Source−Specific Multicast (SSM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3
  • − Protocol Independent Multicast (PIM)
  • defines modes of Internet IPv4 and IPv6 multicasting to allow one−to−many and many−to−many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source−Specific Multicast(SSM)
  • − Multicast Source Discovery Protocol (MSDP)
  • allows multiple PIM−SM domains to interoperate; is used for inter−domain multicast applications
  • − Multicast Border Gateway Protocol (MBGP)
  • allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic

  • Configuration Information

Build To Order

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Router Chassis

Remarks

Description

SKU

HPE Networking Comware MSR4080 Router Chassis

JG402A

  • – Must select 1 Main Processing Unit
  • – Must select 1 Service Processing Unit
  • – Must select 1 Power Supply
  • – 8-HMIM modules slot (4 Half Height + 4 Full Height Slots)
  • – 5U - Height


HPE Networking Comware MSR4060 Router Chassis

JG403A

  • – Must select 1 Main Processing Unit
  • – Must select 1 Service Processing Unit
  • – Must select 1 Power Supply
  • – 6-HMIM modules slot (4 Half Height + 2 Full Height Slots)
  • – 4U - Height

Rack Level Integration CTO Models

Router Chassis

HPE Networking Comware MSR4080 Router Chassis

JG402A

  • – Must select 1 Main Processing Unit
  • – Must select 1 Service Processing Unit
  • – Must select 1 Power Supply
  • – 8-HMIM modules slot (4 Half Height + 4 Full Height Slots)
  • – 5U - Height


HPE Networking Comware MSR4060 Router Chassis

JG403A

  • – Must select 1 Main Processing Unit
  • – Must select 1 Service Processing Unit
  • – Must select 1 Power Supply
  • – 6-HMIM modules slot (4 Half Height + 2 Full Height Slots)
  • – 4U - Height

Notes:

I f the CTO Router Chassis needs to be racked, Then the CTO Base Model needs to integrate (with #0D1) to the HPE Networking Rack.

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Main Processing Units

System (std 0 // max 2) User Selection (min 1 // max 2)

HPE Networking MSR4000 MPU-100-X1 Main Processing Unit

JM045A

Notes:

No mixing of any type of MPU. Must all be the same sku.

Service Processing Units

(std 0 // max 1) User Selection (min 1 // max 1) per router enclosure

Rule #

Description

SKU

1

HPE Networking Comware MSR4000 SPU-100-X1 Service Processing Unit

R8V30A

  • – 10 COMBO 1000M RJ45/SFP ports
  • – min=0 \ max=10 SFP Transceivers
  • – min=0 \ max=0 VPM Modules
  • – default=2GB \ max=2GB DDR SDRAM

1, 3

HPE Networking MSR4000 SPU-400-X1 Service Processing Unit

JM046A

  • – 10 COMBO 1000M RJ45/SFP ports
  • – Min=0 \ max=10 SFP Transceivers
  • – 4 - SFP+ Port
  • – Min=0 \ max=4 SFP+ Transceiver
  • – Default=4GB \ max=4GB DDR SDRAM


Configuration Rules

1

The following SFP Transceivers install into this SPU:


HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X115 100M SFP LC FX Transceiver

JD102B

HPE Networking X110 100M SFP LC LX Transceiver

JD120B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

3

The following SFP+ Transceivers install into this SPU:


HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HMIM Modules

System (std 0 // max 6 or 8) User Selection (min 0 // max 6 or 8) per Router Chassis (See Modules for Port information)

Rule #

Description

SKU

HPE Networking Comware MSR 4-Port Gig-T HMIM-V2 Module

S0W32A

  • – Half Height Module; Takes up 1 Half Height or 1 Full Height slot


HPE Networking Comware MSR 16-Port Enhanced Async Serial HMIM-V2 Module

S0W35A

  • – Full Height Module; Takes up 1 - Full Height slot or 2 - Half Height slots, vertically

2, 4

HPE Networking Comware MSR 8-port Gig-T HMIM Module

JG422A

  • – Half Height Module; Takes up 1 Half Height or 1 Full Height slot

2, 4, 14

HPE Networking ComwareMSR 8-port 1000BASE-X HMIM Module

JG425A

  • – Half Height Module; Takes up 1 Half Height or 1 Full Height slot
  • – min=0 \ max=8 SFP Modules

1, 3, 11

HPE Networking Comware MSR 24-port Gig-T Switch HMIM Module

JG426A

  • – (Full Height Module; Takes up 1 - Full Height slot or 2 - Half Height slots, vertically)

2, 4, 7, 14

HPE Networking Comware MSR 8-port 10/100/1000BASE-T/2-port 1000BASE-X (Combo) Switch HMIM Module

JG741A

  • – Half Height Module; Takes up 1 Half Height or 1 Full Height slot
  • – min=0 \ max=2 SFP Transceivers

2, 4, 10, 15, 16

HPE Networking Comware MSR 8-port E1/CE1/T1/CT1/PRI HMIM Module

JH169A

  • – Half Height Module; Takes up 1 Half Height or 1 Full Height slot
  • – min=0 \ max=8 E1/T1 Cable

2, 4, 10, 15, 16

HPE Networking Comware MSR 8-port E1/Fractional E1/T1/Fractional T1 HMIM Module

JH172A

  • – (Half Height Module; Takes up 1 Half Height or 1 Full Height slot)
  • – min=0 \ max=8 E1/T1 Cable

2, 4, 7, 14

HPE Networking Comware MSR 8-port 100BASE-FX/1000BASE-X/4-port 1000BASE-T (Combo) L2/L3 HMIM Module

JH238A

  • – (Half Height Module; Takes up 1 Half Height or 1 Full Height slot)
  • – min=0 \ max=8 SFP Modules


Configuration Rules

Rule #

Description

SKU

1

These Modules can install directly to the Router Chassis (JG402A)

min=0\ max=6 per enclosure (Full Height Module; Takes up 1 - Full Height slot or 2 - Half Height slots, vertically)

2

These Modules can install directly to the Router Chassis (JG402A)

min=0\ max=8 per enclosure

3

These Modules can install directly to the Router Chassis (JG403A)

min=0\ max=4 per enclosure (Full Height Module; Takes up 1 - Full Height slot or 2 - Half Height slots, vertically)

4

These Modules can install directly to the Router Chassis (JG403A)

min=0\ max=6 per enclosure

10

The following T1 Cables install into this Module:


HPE Networking Comware X260 T1 Router Cable

JD518A

11

Full Height Module; Takes up 1 - Full Height slot or 2 - Half Height slots, vertically

14

The following Transceivers install into this Module:


HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

15

The following E1 Cables install into this Module:


HPE Networking Comware X260 E1 RJ45 to 2xBNC 75ohm 3m Router Cable

JH294A

16

The following E1 Cables install into this Module:


HPE Networking Comware X260 E1 RJ45 120 ohm 2m Router Cable

JC156A

Notes:

PoE Module JG427A can be used a non-POE module on chassis without PoE power supplies.

Transceivers

Remarks

Description

SKU

SFP Transceivers


System (std 0 // max 4) User Selection (min 0 // max 4) per SPU


HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X115 100M SFP LC FX Transceiver

JD102B

HPE Networking X110 100M SFP LC LX Transceiver

JD120B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

SFP+ Transceivers


HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

Power Supplies

Rule #

Description

SKU

System (std 0// max 4) User Selection (min 1 // max 2 or max 4) per MSR4000 Router Chassis

4, 6

HPE Networking Comware X351 300W 48-60VDC to 12VDC Power Supply

JG528A

1, 2, 4, 6

HPE Networking Comware X351 300W 100-240VDC to 12VDC Power Supply

JG527A

HPE Networking Comware X351 300W 100-240VDC to 12VDC Power Supply PDU

JG527A#B2B

  • – C15 PDU Jumper Cord (NA/MEX/TW/JP)


HPE Networking Comware X351 300W 100-240VDC to 12VDC Power Supply PDU

JG527A#B2C

  • – C15 PDU Jumper Cord (ROW)


HPE Networking Comware X351 300W 100-240VDC to 12VDC Power Supply 220v

JG527A#B2E

  • – NEMA L6-20P Cord (NA/MEX/JP/TW)


Configuration Rules

1

Localization required on orders without #B2B, #B2C or #B2E options.

2

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch. (Offered only in NA, Mexico,, Taiwan, and Japan)

4

Maximum of 4 of this Power Supply for MSR4080 - JG402A and MSR4060 - JG403A.

min=0\ max=4

6

Power Supplies cannot be mixed in the same Router enclosure

Notes:

– Drop down under power supply should offer the following options and results:

– Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

– Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

– High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan)

– Configurator Blue Text:

– HPE 5800 750W AC PoE Power Supply (JC089A) is only supported in slot 1 and slot 3 in the MSR4000 Router Chassis

.

Cables

HPE Networking Comware X200 V.24 DTE 3m Serial Port Cable

JD519A

HPE Networking Comware X200 V.24 DCE 3m Serial Port Cable

JD521A

HPE Networking Comware X200 V.35 DTE 3m Serial Port Cable

JD523A

HPE Networking Comware X200 V.35 DCE 3m Serial Port Cable

JD525A

HPE Networking Comware X260 E1 (2) BNC 75 ohm 3m Router Cable

JD175A

HPE Networking Comware X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

HPE Networking Comware X260 T1 Router Cable

JD518A

HPE Networking Comware X260 T3/E3 Router Cable

JD531A

HPE Networking Comware X260 E1 RJ45 to 2xBNC 75ohm 3m Router Cable

JH294A

HPE Networking Comware X260 E1 RJ45 120 ohm 2m Router Cable

JC156A

Notes:

The following cable is used for RJ45 BNC Conversion JD511A


HPE Networking Comware X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

  • Technical Specifications

HPE FlexNetwork MSR4060 Router Chassis (JG403A)

I/O ports and slots

2 MPU (Main Processing Unit) slots

1 SPU (Service Processing Unit) slot

6 HMIM slots

4 Power Supply slots

AP characteristics

Radios (via optional modules)

3G, 4G LTE

Physical characteristics

Dimensions

17.32(w) x 18.9(d) x 6.89(h) in (44 x 48 x 17.50 cm) (4U height)

Weight

45.52 lb (20.65 kg)

Memory and processor

MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM

SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM

SPU-100-X1, 8 cores RISC @1.2GHz, 2GB DDR3 SDRAM

SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM

SPU-300, 32 cores RISC @ 1 GHz, 4 GB DDR3 SDRAM

SPU-400-X1, 16 cores RISC @1.5GHz, 4GB DDR3 SDRAM

Mounting and enclosure

Desktop or can be mounted in an EIA standard 19-inch telco rack when used with the rack-mount kit in the package.

Performance

Throughput

up to 60 Mpps in fast forwarding mode (64-byte packets)

Routing table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Forwarding table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Environment

Operating temperature

32ºF to 113ºF (0ºC to 45ºC)

Operating relative humidity

5% to 90%, noncondensing

Non-operating/Storage temperature

-40ºF to 158ºF (-40ºC to 70ºC)

Non-operating/Storage relative humidity

5% to 90%, noncondensing

Altitude

up to 16,404 ft (5 km)

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

285/347 BTU/hr (300.67/366.09 kJ/hr), lower number is with SPU-100 module installed; higher number is for SPU-200

Voltage

100 - 240 VAC, rated

-36 to -75 VDC, rated

(Depending on power supply chosen)

Maximum power rating

300 W

PoE power

450 W PoE+

Notes:

– Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of an External Power Supply (EPS).

– No default power supply is included in the chassis; a minimum of one/maximum of four power supplies should be ordered.

Reliability

MTBF (years)

178.66

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1

Emissions

EN 61000-4-11:2004; ANSI C63.4-2009; AS/NZS CISPR 22:2009; CISPR 22 Ed2.0 2008-09; EN 55022:2010; EN 61000-3-3:2008; GB 9254-2008; IEC 61000-3-2 Ed3.0 (2009-02); IEC 61000-3-3 Ed2.0 (2008-06); VCCI V-4/2012.04; CISPR 24 Ed2.0 2010-08; EN 55024:2010; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-2:2009; EN 61000-4-29:2000; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; ETSI EN 300 386 V1.6.1(2012-09); FCC 47 CFR Part 15 (latest current version); ICES-003 Issue 5; IEC 61000-4-11 Ed2.0 (2004-03); IEC 61000-4-2 Ed2.0 (2008-12); IEC 61000-4-29 Ed1.0 (2000-08); IEC 61000-4-3 Ed3.2 (2010-04); IEC 61000-4-4 Ed3.0 (2012-04); IEC 61000-4-5 Ed2.0 (2005-11); IEC 61000-4-6 Ed3.0 (2008-10); IEC 61000-4-8 Ed2.0 (2009-09); VCCI V-3/2013.04

Telecom

FCC part 68; CS-03

Management

IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE FlexNetwork MSR4080 Router Chassis (JG402A)

I/O ports and slots

2 MPU (Main Processing Unit) slots

1 SPU (Service Processing Unit) slot

8 HMIM slots

4 Power Supply slots

AP characteristics

Radios (via optional modules)

3G, 4G LTE

Physical characteristics

Dimensions

17.32(w) x 18.9(d) x 8.64(h) in (44 x 48 x 21.95 cm) (5U height)

Weight

49.93 lb (22.65 kg)

Memory and processor

MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM

SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM

SPU-100-X1, 8 cores RISC @1.2GHz, 2GB DDR3 SDRAM

SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM

SPU-300, 32 cores RISC @ 1 GHz, 4 GB DDR3 SDRAM

SPU-400-X1, 16 cores RISC @1.5GHz, 4GB DDR3 SDRAM

Mounting and enclosure

Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.

Performance

Throughput

up to 60 Mpps in fast forwarding mode (64-byte packets)

Routing table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Forwarding table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Environment

Operating temperature

32ºF to 113ºF (0ºC to 45ºC)

Operating relative humidity

5% to 90%, noncondensing

Non-operating/Storage temperature

-40ºF to 158ºF (-40ºC to 70ºC)

Non-operating/Storage relative humidity

5% to 90%, noncondensing

Altitude

up to 16,404 ft (5 km)

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

297/358 BTU/hr (313.33/377.69 kJ/hr), lower number is with SPU-100 module installed; higher number is for SPU-200

Voltage

100 - 240 VAC, rated

-36 to -75 VDC, rated

(depending on power supply chosen)

Maximum power rating

300 W

PoE power

450 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of an External Power Supply (EPS). No default power supply is included in the chassis; a minimum of one/maximum of our power supplies should be ordered.

Reliability

MTBF (years)

178.66

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1

Emissions

EN 61000-4-11:2004; ANSI C63.4-2009; AS/NZS CISPR 22:2009; CISPR 22 Ed2.0 2008-09; EN 55022:2010; EN 61000-3-3:2008; GB 9254-2008; IEC 61000-3-2 Ed3.0 (2009-02); IEC 61000-3-3 Ed2.0 (2008-06); VCCI V-4/2012.04; CISPR 24 Ed2.0 2010-08; EN 55024:2010; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-2:2009; EN 61000-4-29:2000; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; ETSI EN 300 386 V1.6.1(2012-09); FCC 47 CFR Part 15 (latest current version); ICES-003 Issue 5; IEC 61000-4-11 Ed2.0 (2004-03); IEC 61000-4-2 Ed2.0 (2008-12); IEC 61000-4-29 Ed1.0 (2000-08); IEC 61000-4-3 Ed3.2 (2010-04); IEC 61000-4-4 Ed3.0 (2012-04); IEC 61000-4-5 Ed2.0 (2005-11); IEC 61000-4-6 Ed3.0 (2008-10); IEC 61000-4-8 Ed2.0 (2009-09); VCCI V-3/2013.04

Telecom

FCC part 68; CS-03

Management

IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

  • Summary of Changes

Date

Version History

Action

Description of Change:

27-Feb-2026

Version 31

Changed

New branding applied to document.

04-Dec-2023

Version 30

Changed

Series name was updated.

06-Mar-2023

Version 29

Changed

Configuration Information section was updated.

04-Apr-2022

Version 28

Changed

Standard Features, Configuration Information, and Technical Specifications sections were updated.

16-Aug-2021

Version 27

Changed

Configuration Information section was updated, obsolete SKUs were deleted.

04-May-2021

Version 26

Changed

Configuration Information section was updated.

15-Feb-2021

Version 25

Changed

Rebranding applied to document.

18-Jan-2021

Version 24

Changed

Standard Features section was updated.

02-Dec-2019

Version 23

Change

Configuration Information section was updated.

Obsolete SKUs were removed.

07-Apr-2017

Version 22

Change

Updates made on Features and benefits and Accessories

03-Apr-2017

Version 21

Added

SKU added: JH449A

06-Feb-2017

Version 20

Changed

Adding MSR #A59 option on Configuration section

06-Jun-2016

Version 19

Changed

Document name changed to HPE Networking Comware Router Series MSR4000.

Product description updated.

29-Apr-2016

Version 18

Changed

SKU descriptions updated on all the document. Accessories updated

31-Mar-2016

Version 17

Changed

SKUs added: JH223AAE, JH227AAE

Features and benefits, Standards and protocols updated

01-Dec-2015

Version 16

Changed

Overview and Technical Specifications updated

28-Aug-2015

Version 15

Changed

Configuration section updated

17-Aug-2015

Version 14

Changed

SKUs added: JG445A, JH169A, JH172A, JH238A, JH294A

Updated Overview, Features and Benefits and Accessories

24-Feb-2015

Version 13

Changed

Minor change on Configuration section

06-Oct-2014

Version 12

Changed

Configuration section updated

18-Aug-2014

Version 11

Added

Added 4 new accessories: JG428A, JG432A, JG434A, JG741A

03-Jul-2014

Version 10

Changed

Configuration menu updated.

10-Jun-2014

Version 9

Added

Added two new Router Enclosure Options to Configuration as well as 10 new accessories: JG670A, JG420A, JG421A, JG422A, JG423A, JG424A, JG425A, JG426A, JG427A, JG528A.

10-Feb-2014

Version 8

Changed

Key features was revised.

31-Jan-2014

Version 7

Added

GRE tunnels was added to Technical Specifications.

22-Nov-2013

Version 6

Changed

HIMM Modules and Cables were revised in Configuration.

12-Nov-2013

Version 5

Changed

Power Supplies was revised in Configuration.

14-Oct-2013

Version 4

Added

Overview images were added.

30-Sep-2013

Version 3

Changed

Configuration was reorganized.

27-Sep-2013

Version 2

Added

Configuration was added.

19-Aug-2013

Version 1

New

New QuickSpecs

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking


c04315129, 14640 - Worldwide - V31 - 27-February-2026

Recommended for you
