QuickSpecs
HPE Networking Comware 5120 v3 Campus Switch Series QuickSpecs
Table of Contents
HPE Networking Comware 5120v3 Campus Switch Series offers cost-effective high-performance Gigabit Ethernet connectivity tailored for small organizations with limited IT personnel.
PoE+ ports seamlessly support voice, video, and wireless applications. Fanless design helps ensures silent operation while the compact size allows flexible placement options. Embedded power supplies help minimize heat dissipation, promoting a cool and reliable networking environment.
Overview
These switches offer advanced functionalities such as IRF stacking that enables higher redundancy and reliability, while access control lists (ACLs) empower network administrators to enforce security policies, manage traffic, and safeguard network resources.
This switch series also includes SmartMC at no additional cost, and when combined with HPE Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a50007006enw_block1img?$crimg$ "[IMAGE1]")

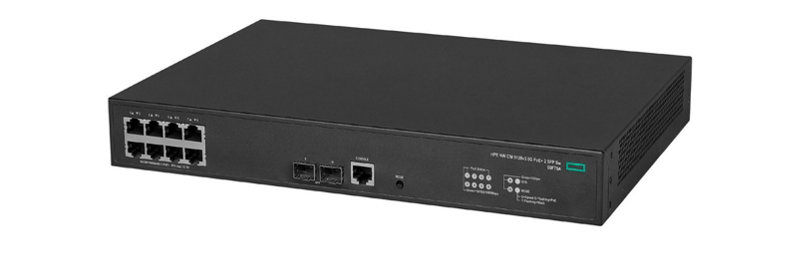

HPE Networking Comware 5120 v3 Campus Switch Series
Key features
- − Low cost, Gigabit Ethernet access switch for small- to medium-sized organizations with Layer 2 routing, RIP, and PoE+ models for voice, video, and wireless.
- − Fanless switch with embedded power supplies offers the advantages of low power consumption, noise-free operation, and reduced heat dissipation.
- − MAC address support of up to 16K enables greater scalability as more devices can be added into the network and access policies can be defined as per their MAC addresses leading to greater network security.
- − Supports HPE Intelligent Resilient Framework (IRF) technology that enables plug-and-play device aggregation and link aggregation of up to 9 devices, enhancing network redundancy and resource utilization.
- − Supports SNMP-based centralized network management with HPE Intelligent Management Center for consistent network manageability and CLI, Telnet, and web-based network management for easier device management.
- − Includes embedded network management capabilities at no additional cost with Smart Management Center (SmartMC)
- − Includes energy-saving green design features such as automatically switching off idle copper ports to energy-saving mode and powering down unused ports.
Standard Features
Features and Benefits
High-Performance Cost-Effective Switches
- − The HPE Networking Comware 5120v3 Campus Switch Series offers a combination of copper and fiber models with 10/100/1000 PoE+ connectivity and SFP ports at a cost-effective price.
- − Improved scalability with MAC address size of up to 16K enables a greater number of devices to be added to the network.
- − Supports Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler, flatter, and more agile networks.
- − 8 BASE-T ports with two fixed SFP ports offer flexibility and higher performance.
Comprehensive Security Control
- − The HPE Networking Comware 5120v3 Campus Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user ACLs provide identity-driven security and access control.
- − Dynamic ARP protection with functions such as ARP detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
- − Centralized security policy management and network protection with HPE IMC End User Admission Domination (EAD), which integrates security policies, network access control, and access right control policies to form a cooperative security system.
Simplified Management
- − The HPE Networking Comware 5120v3 Campus Switch Series can be seamlessly managed with HPE IMC to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
- − Supports SmartMC, an embedded network management tool, with a web-based GUI to simplify operations and facilitate centralized management at no additional cost. It offers features such as configuration backup, software version management, and seamless switch replacement
- − RMON and sFlow® provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Enhanced Quality of Service
- − The HPE Networking Comware 5120v3 Campus Switch Series supports ACLs for both inbound and outbound traffic enabling granular control over network security, access policies, traffic filtering, and other aspects of bidirectional network management.
- − Provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR) and SP+WRR.
- − Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.
Warranty and Support
- − Limited lifetime warranty
See hpe.com/networking/support for warranty and support information included with your product purchase
Configuration Information
BTO Models | ||
| Rule # | Description | SKU |
| 1, 2, 3 | HPE Networking Comware Campus Switch 8G PoE+ 2 SFP 5120v3 | S0F79A |
| | HPE Networking Comware Campus Switch 8G PoE+ 2 SFP 5120v3 | S0F79A |
| | HPE Networking Comware Campus Switch 8G PoE+ 2 SFP 5120v3 | S0F79A |
| | HPE Networking Comware Campus Switch 8G PoE+ 2 SFP 5120v3 | S0F79A |
| | HPE Networking Comware Campus Switch 8G PoE+ 2 SFP 5120v3 | S0F79A |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Module: JD118B - HPE X120 1G SFP LC SX Transceiver | |
| | HPE Networking X120 1G SFP RJ45 T Transceiver | JD089B |
| | HPE Networking X120 1G SFP LC SX Transceiver | JD118B |
| | HPE Networking X120 1G SFP LC LX Transceiver | JD119B |
| | HPE Networking X120 1G SFP LC BX 10-U Transceiver | JD098B |
| | HPE Networking X120 1G SFP LC BX 10-D Transceiver | JD099B |
| | HPE Networking X120 1G SFP LC LH100 Transceiver | JD103A |
| 2 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 3 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:
| |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| | HPE Networking 2.5m C19 to C20 PDU India Power Cord | JL673A |
| | – For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| Notes: |
| |
Transceivers | ||
| | SFP Transceivers | |
| Rule # | Description | SKU |
| | HPE Networking X120 1G SFP RJ45 T Transceiver | JD089B |
| | HPE Networking X120 1G SFP LC SX Transceiver | JD118B |
| | HPE Networking X120 1G SFP LC LX Transceiver | JD119B |
| | HPE Networking X120 1G SFP LC BX 10-U Transceiver | JD098B |
| | HPE Networking X120 1G SFP LC BX 10-D Transceiver | JD099B |
| | HPE Networking X120 1G SFP LC LH100 Transceiver | JD103A |
Switch Enclosure Options | ||
| | Rack Mount Kit | |
| Rule # | Description | SKU |
| | HPE Networking Comware 5120v3 Campus Rack Mount Kit | S0F80A |
Technical Specifications
HPE Networking Comware 5120v3 8G PoE+ 2 SFP Campus Switch (S0F79A) | ||
|---|---|---|
| I/O ports and slots | 8x10/100/1000BASE-T, 2x1000BASE-X SFP | |
| Additional ports and slots | 1 management interface | |
| Power supplies | Embedded | |
| Physical characteristics | Dimensions | 330(w) x 43.6(d) x 230 (h) mm |
| Weight | ≤ 3 kg | |
| Memory and processor | 512 MB SDRAM; Packet buffer size: 1.5 MB, 256 MB flash | |
| Mounting and enclosure | Mounts in an EIA standard 19 inch telco rack or equipment cabinet | |
| Performance | 1000 Mb latency | < 5 μs |
| Throughput | 15 Mpps | |
| Routing/switching capacity | 20 Gbps | |
| Static MAC table | 1K | |
| MAC address table size | Up to 16K | |
| Environment | Operating temperature | 23°F to 113°F (–5°C to 45°C) |
| Operating relative humidity | 5% to 95%, noncondensing | |
| Nonoperating / storage temperature | –40°F to 158°F (–40°C to 70°C) | |
| Nonoperating / storage relative humidity | 5% to 95%, noncondensing | |
| Acoustic | Fanless, so N/A | |
| Electrical characteristics | Frequency | 50/60 Hz |
| AC voltage | Min. AC 14W, Max. AC 125W (30W per PoE+ port) | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance | |
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3- 2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A | |
| Immunity | Generic | EN 55024 |
| ESD | EN 300 386 | |
| Management | IMC; SmartMC, command-line interface; SNMP manager | |
| Services | See the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office. | |
Standards and Protocols(applies to all products in the series) | |
|---|---|
| Device Management |
|
| General Protocols |
|
| IP multicast |
|
| IPv6 |
|
| MIBs |
|
| Network management |
|
| OSPF |
|
| QoS/CoS |
|
| Security |
|
