HPE InfiniBand NDR adapters are based on the NVIDIA ConnectX®-7 smart host channel technology.
The adapters support the InfiniBand and Ethernet functions for HPE servers. HPE InfiniBand NDR adapters are designed for customers that require ultra-low latency and high-bandwidth InfiniBand interconnector in their high-performance computing (HPC) systems.
Overview
The HPE NDR InfiniBand adapters include single-port and dual-port options. The single-port adapters are offered in InfiniBand NDR speeds (400Gb/s) and Ethernet (400GbE) with OSFP or QSFP112 connectors or NDR200 (200Gb/s) speeds and Ethernet (200GbE) with OSFP connectors. The dual-port adapters are offered in InfiniBand NDR200 (200Gb/s) and Ethernet (200GbE) enabled with QSFP112 connectors.

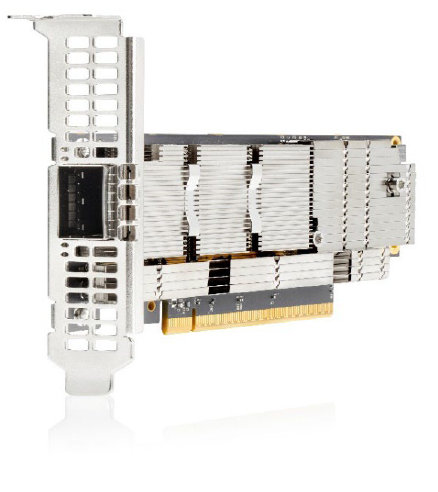

P/N P45642-H23

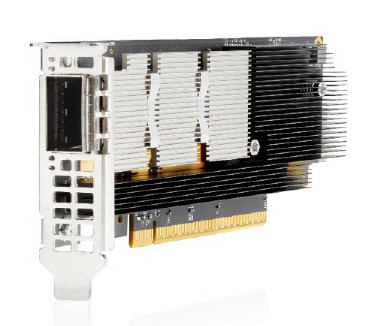

P/N P45641-H21/H23
Models | |
| HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter | P45642-H23 |
| HPE InfiniBand NDR 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter | P45641-H21 |
| HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter | P45641-H23 |
| HPE InfiniBand NDR200/Ethernet 200GbE 2-port QSFP112 PCIe5 x16 MCX755106AC-HEAT Adapter | P65333-H21 |
| HPE InfiniBand NDR/Ethernet 400Gb 1-port QSFP112 PCIe5 x16 MCX715105AS-WEAT Adapter | S5R60A |
Kit Contents
- − Low profile PCIe adapter with tall bracket and short bracket in the box.
- − Quick install card
- − Product warranty statement
Standard Features
Servers Supported
HPE IB NDR 200Gb / Ethernet 200GbE 1p OSFP Adapter
HPE ProLiant XL Servers (use –H2X part numbers):
- − HPE Apollo 2000 – XL220n Gen10Plus
- − HPE Apollo 2000 – XL290n Gen10Plus
- − HPE Apollo 2000 – XL225n Gen10Plus
- − HPE Apollo 4200 Gen10Plus
- − HPE Cray XD 2000 – XL220n Gen11
- − HPE Cray XD 2000 – XL225n Gen11
- − HPE Cray XD 2000 – XL295n Gen11
HPE ProLiant DL Servers (use –B2X part numbers):
- − HPE ProLiant DL360 Gen10Plus
- − HPE ProLiant DL365 Gen10Plus
- − HPE ProLiant DL380 Gen10Plus
- − HPE ProLiant DL385 Gen10Plus
- − HPE Alletra 4110 Gen11
- − HPE Alletra 4120 Gen11
- − HPE ProLiant DL360 Gen11
- − HPE ProLiant DL380 Gen11
- − HPE ProLiant DL380a Gen11
- − HPE ProLiant DL325 Gen11
- − HPE ProLiant DL345 Gen11
- − HPE ProLiant DL385 Gen11
HPE IB NDR 400Gb / Ethernet 400GbE 1p OSFP Adapter
- HPE Cray XD Servers (use –H2X part numbers):
- − HPE Cray XD2000 – XL220n Gen11
- − HPE Cray XD 2000 – XL225n Gen11
- − HPE Cray XD2000 – XL295n Gen11
- − HPE Alletra 4110 Gen11
- − HPE Alletra 4120 Gen11
HPE ProLiant DL Servers (use –B2X part numbers):
- − HPE ProLiant DL360 Gen11
- − HPE ProLiant DL380 Gen11
- − HPE ProLiant DL380a Gen11
- − HPE ProLiant DL325 Gen11
- − HPE ProLiant DL345 Gen11
- − HPE ProLiant DL365 Gen11
- − HPE ProLiant DL385 Gen11
- − HPE ProLiant DL560 Gen11
HPE IB NDR 200Gb / Ethernet 200GbE 2p QSFP Adapter
HPE Cray XD Servers (use –H2X part numbers):
- − HPE Cray XD2000 – XL220v Gen11
- − HPE Cray XD 2000 – XL225v Gen11
- − HPE Cray XD2000 – XL295v Gen11
- − HPE Cray XD670 Gen11
HPE ProLiant DL Servers (use –B2X part numbers):
- − HPE Alletra 4110 Gen11
- − HPE Alletra 4120 Gen11
- − HPE ProLiant DL325 Gen11
- − HPE ProLiant DL345 Gen11
- − HPE ProLiant DL380 Gen11
- − HPE ProLiant DL385 Gen11
- − HPE ProLiant DL380a Gen11
HPE InfiniBand NDR/Ethernet 400Gb 1-port QSFP112 WEAT Adapter
- − HPE ProLiant XD685
Product Features
- − Security features – secure boot with hardware root of trust, secure firmware update, flash encryption
- − PCIe Gen 5.0 compatible
- − Support for PCIe x1, x2, x4, x8 and x16 configurations
- − HPE Standard warranty, support, service
- − Remote boot features - Preboot Execution Environment (PXE), UEFI; Remote boot over InfiniBand and iSCSI
- − Hardware-based reliable transport
- − Extended Reliable Connected transport (XRC)
- − Dynamically Connected transport (DCT)
- − Enhanced Atomic operations
- − On-demand paging (ODP) – registration free RDMA memory access
- − Enhanced congestion control
- − 256 to 4Kbyte maximum transmission unit (MTU), 2Gbyte messages
- − Out-of-order RDMA supporting adaptive routing
InfiniBand Standards
The HPE NDR InfiniBand adapters are compliant with the IBTA 1.5 InfiniBand standard
Congestion Control
Hardware-based congestion control
Offloads
Collective Operation Offloads
The HPE NDR InfiniBand adapters support the following offloads:
- − Tag Matching and Rendezvous protocol offloads
- − Burst Buffer Offloads for Background Checkpointing
- − NVMe over Fabric (NVMe-of) Offloads
Transport
- − Hardware-based reliable transport
- − Extended Reliable Connected transport (XRC)
- − Dynamically Connected transport (DCT)
Atomic Operation
Enhanced Atomic operations
IEEE Standards
The HPE InfiniBand NDR adapters provide support for the following IEEE Standards:
- − IEEE 1149.1
- − IEEE 1149.6
- − IEEE 1588v2
Time Synchronization Implementations (PTP)
Synchronization of system clocks throughout a network, achieving clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems.
The HPE InfiniBand NDR adapters support Precision Time Protocol IEEE 1588v2.
Network Adapter Teaming
The HPE InfiniBand NDR adapters support NIC teaming on Linux and with tools from the Operating Systems.
Server Integration
The HPE InfiniBand NDR adapters are validated, tested, and qualified server options for the supported HPE ProLiant, HPE Cray, and HPE Apollo servers.
This approach provides a more robust and reliable networking solution than offerings from other vendors and provides users with a single point of contact for both their servers and their network adapters.
Service and Support
For the most up-to-date information on HPE Services, please refer to the HPE Services – Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.
Technical Specifications
General Specifications (HPE NDR 200G 1p/OSFP) | |
|---|---|
| Network Processor | NVIDIA ConnectX-7 |
| Data Rate | 200Gbps |
| Bus Type | PCIe Gen 4.0/5.0 x16 |
| Form Factor | HHHL |
Environmental Specifications | |
| Operating Temperature | 0° to 55°C (32° to 131°F) |
| Humidity | 5% to 95% non-condensing |
General Specifications (HPE NDR 400G 1p OSFP) | |
| Network Processor | NVIDIA ConnectX-7 |
| Data Rate | 400Gbps |
| Bus Type | PCIe Gen 4.0/5.0 x16 |
| Form Factor | HHHL |
Power and Environmental Specifications | |
| Operating Temperature | 0° to 55°C (32° to 131°F) |
| Humidity | 5% to 95% non-condensing |
General Specifications (HPE NDR 400G 1p QSFP112) | |
| Network Processor | NVIDIA ConnectX-7 |
| Data Rate | 400Gbps |
| Bus Type | PCIe Gen 4.0/5.0 x16 |
| Form Factor | HHHL |
Power and Environmental Specifications | |
| Operating Temperature | 0° to 55°C (32° to 131°F) |
| Humidity | 5% to 95% non-condensing |
Operating System Support
Operating System and Virtualization Support
The operating systems supported by CX7 adapters are based on the server OS support. Please refer to the OS Support Matrix at https://www.hpe.com/us/en/servers/server-operating-systems.html
VMware support for CX7 NICs starts with ESXi 7.0 U3 and 8.0 U2 Operating Systems and only support Ethernet mode of operation
HPE NDR InfiniBand adapters are supported from MLNX_OFED 5.8 on the following Linux operating systems:
- − RH and ROCKY 9.5
- − RH and ROCKY 9.4
- − RH and ROCKY 8.10
- − RH and ROCKY 8.9
- − SLES 15 SP6
- − SLES 15 SP5Ubuntu 24.04 (using inbox drivers)
- − Ubuntu 24.10 (using inbox drivers)
Notes: CentOS is replaced by ROCKY support for the newer kernels
HPE NDR InfiniBand adapters are supported from WIN OF 24.7 on the following Windows operating systems:
- − Windows server 2022
- − Windows server 2025
Please refer to the firmware/software download page of the device for the latest update.
https://docs.nvidia.com/networking/display/MLNXOFEDv581121LTS/General+Support
Environment-friendly Products and Approach End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website.
These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
