QuickSpecs
HPE Aruba Networking Operating System QuickSpecs
Table of Contents
Enhanced network operating system for today’s digital workplace
HPE Aruba Networking Operating System is the network operating system for HPE Aruba Networking Mobility Conductors, Mobility Controllers and controller-managed campus access points (APs). With industry-leading software innovation, AOS is engineered to deliver enterprise- grade performance and mission-critical reliability for enterprise deployments of all sizes.
HPE Aruba Networking supports the latest Wi-Fi Alliance standards such as Wi-Fi 6 (802.11ax) and 802.11ad, as well as WPA3 and Enhanced Open security protocols. Also supported are all previous standards and protocols such as 802.11a/b/g/n/ac, which enables your network to satisfy today’s and tomorrow’s use cases.
Overview
Key Features
- – Support for new Wi-Fi 6 (802.11ax), WPA3 and Enhanced Open – and all existing standards
- – Advanced AI-powered closed-loop wireless/RF optimization
- – Enhanced AP utilization and client roaming
- – SLA-grade application assurance with Air Slice (AOS 8.7+)
- – Automated deployment with ZTP and hierarchical configuration
- – Dynamic Segmentation enforces wired and wireless access policies to simplify and secure the network
- – Application awareness for 3,000+ applications without additional hardware
- – Live Upgrade and Seamless Failover.
Standard Features
Simple and Secure Access
HPE Aruba Networking Operating System also serves a key role in Dynamic Segmentation, enforcing policy based on user role, device type, application and location to simplify and secure wired and wireless network access. This feature can be enabled with the AOS Policy Enforcement Firewall (PEF) license and eliminates the need to manually configure SSIDs, VLANs or ACLs for each new client on the network. Refer to the AOS release notes for a list of detailed features.
HPE Aruba Networking Air Slice
HPE Aruba Networking Operating System provides complete orchestration for Air Slice, an SLA-grade application assurance technology unique to HPE Aruba Networking Wi-Fi 6 access points. By allocating radio resources, such as time, frequency, and spatial streams and combined with intelligence gathered by HPE Aruba Networking 's Policy Enforcement Firewall (PEF), AP's provide guaranteed bandwidth for specific users and applications.
24/7 Mission-Critical Networking
With the growth in cloud-based applications, services, IoT and mobile devices, end-users expect network resources to be available wherever and whenever they connect. Likewise, enterprise networks must extend beyond traditional security perimeters while delivering a seamless user experience. With the latest version of AOS, controller clustering boosts network performance and ultimately helps organizations improve productivity by upwards of hundreds or even thousands of hours every year.
Controller clustering, a unique capability managed by Mobility Conductor, enables up to 12 Mobility Controllers in a cluster to act as a single virtual instance. This improves network capabilities by decoupling network requirements from the limitations on individual hardware – dramatically scaling performance and reliability.
To mitigate disruption to the network, user session information is shared across a cluster to maintain active voice calls, video streams, data transfers, roaming clients, as well as network management. Features such as live and in-service upgrades are used to eliminate maintenance windows as well as plan for unscheduled outages. Mobility Controllers in standalone, campus, or branch mode can also be deployed in traditional 1:1 or 1:N VRRP-based redundant configurations (See Tables 2 and 3).
Management, configuration and troubleshooting are provided through a browser-based GUI (See Figure 1 and Table 4) or through CLI – familiar for any network manager. The Mobility Conductor can centrally configure and manage Mobility Controllers and APs in a large campus or distributed branch environments, and provide intuitive task-based wizards to ease configuration.
| Table 2 High-Availability Deployment Modes | |
|---|---|
| Active/Active (1:1) | Each Mobility Controller typically serves 50% of its rated capacity. The first acts as a standby for APs served by second controller and vice-versa. If a controller fails, its APs failover to the other controller, ensuring high-availability to all APs. |
| Active/Standby (1+1) | One Mobility Controller terminates all the APs, while the other controller acts as a standby. If the primary controller goes down, APs move to standby controller. |
| N+1 | Multiple active Mobility Controllers are backed-up by single standby controller. |
| Table 3 | |
|---|---|
| Feature | Benefit |
| AP establish simultaneous communication channel with both active and standby Mobility Controller. | Instantaneous failover to redundant Mobility Controller when first fails. |
| During a failover, the APs do not turn their radios off and on. | SSID always available. |
| The solution works across Layer 3 networks | No special topologies needed. |
| Client state sync | Credentials are cached, eliminating need to reauthenticate and overload RADIUS server. |
| N+1 oversubscription | Simplifies configuration and reduces number of Mobility Controllers needed. |
| Table 4 Wi-Fi Network Management and Configuration | |
|---|---|
| Web-based configuration | Allows any administrator with a standard web browser to manage the system |
| Command line | Console and SSH |
| Syslog | Supports multiple servers, multiple levels, and multiple facilities |
| SNMP v2c | Yes |
| SNMP v3 | Enhances standard SNMP with cryptographic security |
| Centralized configuration of Mobility Controllers | A designated conductor Mobility Controller can configure and manage several downstream local controllers |
| VRRP | Supports high availability between multiple Mobility Controllers |
| Redundant data center support | Yes – access devices can be configured with IP addresses for backup controllers |
| OSPF | Yes – stub mode support for learning default route or injecting local routes into an upstream router |
| Rapid spanning tree protocol | Yes – provides fast Layer 2 convergence |
Performance
Adaptive Radio Management (ARM)
ARM maximizes an AP’s Wi-Fi stability and predictability by dynamically choosing the best 802.11 channel and transmit power. This capability helps ensure optimal performance for all clients and applications, especially in environments with a large number of mobile users and performance-stringent applications that can cause network contention and interference. (See Table 5)
| Table 5 Adaptive Radio Management Benefits | |
|---|---|
| Adaptive Radio Management (ARM) | Automatically manages all RF parameters to achieve maximum performance. |
| 802.11ac VHT20, VHT40 and VHT80 support | Manages spectrum for all 802.11ac networks. |
| 802.11n HT20 and HT40 support | Manages spectrum for all 802.11n networks. |
| Client band steering | Keeps dual-band clients on optimal RF band. |
| Self-healing around failed APs | Automatically adjusts power levels to compensate for failed APs. |
| Airtime fairness | Manages client access to the air resources. Can be configured to provide fair access or to deliver preferred access to clients that connect using the latest 802.11 standard |
| RF spectrum load-balancing | Evenly distributes clients across available channels. |
| Single-channel coordinated access | Ensures optimal performance even with nearby APs on the same channel. |
| RF planning | Automatic predeployment modeling, planning and placement of APs and RF monitors based on capacity, coverage and security requirements. |
| Coverage hole and interference detection | Detects clients that cannot associate due to coverage gaps. |
| Timer-based AP access control | Shuts off APs outside of defined operating hours. |
| Remote wireless packet capture | Remotely captures raw 802.11 frames and streams to protocol analyzer. |
| Plug-ins for third-party analysis tools | Wireshark, OmniPeek, AirMagnet. |
| Rogue AP detection and containment | Detects unauthorized APs and automatically shuts them down. |
Centralized tunneling
To improve AP utilization (e.g. memory, processing and bandwidth) for networks with complex Layer 2 and Layer 3 requirements, AP licenses enable individual APs to forward all traffic, policy, management and control decisions to a controller. AOS 8 and later releases also allow HPE Aruba Networking access switches to mimic the role of an AP (e.g. wired AP) – switch configuration and management is delivered through HPE Aruba Networking Management Software (AirWave). (See Table 6)
| Table 6 Unified Access Framework | |
|---|---|
| User connectivity method | − Secure enterprise-grade Wi-Fi − Wired Ethernet − VPN remote access |
| AP connection method | − Private or public IP cloud − Ethernet − Wireless WAN (EVDO, HSDPA) − Wi-Fi mesh (point-to-point and point-to-multipoint) |
| Traffic forwarding | − Centralized – All user traffic flows to a Mobility Controller − Policy-routed – User traffic is selectively forwarded to a Mobility Controller or bridged locally, depending on the traffic type and policy |
| Wi-Fi encryption | − Centralized – Traffic is encrypted between devices and the Mobility Controller − Distributed – Traffic is encrypted between the device and AP − Open – No encryption |
| Integration with existing networks | − Layer 2 and Layer 3 integration – Mobility Controllers can switch or route traffic on a per-VLAN basis − Rapid Spanning Tree – Enables fast Layer 2 convergence − OSPF – Simple integration with existing routing topologies |
ClientMatch
A patented RF optimization technology, ClientMatch is a feature of ARM that boosts Wi-Fi client performance by alleviating sticky client issues. Client devices associate with the best-performing AP and can also be grouped based on its supported Wi-Fi standards (e.g. downlink or uplink MU-MIMO) to improve system capacity. This is ideal for environments with complex roaming requirements.
Context-aware controls
Support for 802.11e and Wi-Fi Multimedia (WMM) ensures wireless QoS for delay-sensitive applications with mapping between WMM tags and internal hardware queues. Mobility Controllers enable mapping of 802.1p and IP DiffServ tags to hardware queues for wired-side QoS and can be instructed to apply certain 802.1p and IP DiffServ tags to different applications on demand.
AOS also includes device fingerprinting, which allows network managers to assign policies based on device type and firmware (e.g. iPhone, Android, etc). This allows the network to regulate which devices are provided access to the network and how these devices can be used. (See Table 7)
| Table 7 Context-Aware Control Network | |
|---|---|
| T-SPEC/TCLAS | Yes |
| WMM | Yes |
| WMM priority mapping | Yes |
| U-APSD (Unscheduled Automatic Power-Save Delivery) | Yes |
| IGMP snooping for efficient multicast delivery | Yes |
| Application and device fingerprinting | Yes |
Seamless Layer 2 and Layer 3 roaming
AOS includes proxy mobile IP/DHCP functions to provide seamless connectivity as users move between floors, buildings or across the entire network – even while using video and voice applications. Roaming handoff times of just 2-3 milliseconds, without reauthentication, changes to IP addresses or loss of firewall state. When AOS runs on Mobility Conductor, roaming is enabled through Controller Clustering. (See Table 8)
| Table 8 Seamless Roaming Features | |
|---|---|
| Fast roaming | Yes |
| Roaming across subnets and VLANs | Yes |
| Proxy mobile IP | Yes |
| Proxy DHCP | Yes |
| VLAN pooling | Yes |
VLAN pooling
Instead of configuring VLANs on every network edge switch, something in AOS centralized in Mobility Controllers and tunneled to APs. Major advantages include reduced network configuration complexity and max spanning tree diameter. User membership of VLANs is load-balanced to maintain optimal network performance as large groups of users move about the network.
Security and Visibility
Dynamic Segmentation
For each wireless client, wired port or user on a wired port, traffic can be forwarded to a Mobility Controller or Gateway and then securely segmented based using the Policy Enforcement Firewall. Port-based Tunneling (PBT) can be used to forward all traffic from a wired port, while user-based tunneling (UBT) can forward role-specific traffic – completely eliminating the need for network administrators to locally configure ACLs, VLANs and subnets.
Policy Enforcement Firewall (PEF)
As a key component of Dynamic Segmentation, PEF is an AOS license that enables user and application visibility. It delivers full policy enforcement based on user role, application, device and location awareness over WLAN, LAN and remote VPN connections for Remote APs, Instant APs and VIA VPN client services. Policies can be manually created within AOS, or centrally managed by HPE Aruba Networking ClearPass Policy Manager and applied to multiple networks simultaneously.
Application visibility and control
Application visibility is a feature within PEF that provides extensive visibility and control into over 3,000 apps using Deep Packet Inspection (DPI) for classification. Optimizing and limiting traffic per application is simple, and intuitive via an easy-to-use dashboard. Unrecognized applications and categories can also be defined through application customization*. (See Figure 2 and Table 9)
| Table 9 Policy Enforcement Firewall with user and application visibility | |
|---|---|
| Feature | Benefit |
| Global or role-based policies | Simplicity to control all user traffic with a single command, flexibility to control exactly which users can run what apps. |
| Over 3,000 applications | Highly granular visibility and control. |
| 21+ application categories | Simplify control over different types of traffic. |
| Enforce quality-of-service (QoS) tags | Prioritize one application over another. |
| Block unwanted applications | Conserve bandwidth and stop unwanted activities. |
| Rate limits for applications or application categories | Permit non-essential traffic while preventing it from overwhelming mission critical applications. |
Remote Access Point (RAP) capabilities
With the same AOS AP license, HPE Aruba Networking RAPs can be deployed in disparate locations such as small offices/home offices (SOHO) or temporary work sites. Each builds a hybrid IPSec/SSL VPN connection to a Mobility Controller, which takes on a dual-role as a VPN concentrator (VPNC) as well. (See Figure 3 and Table 10)
| Table 10 Telecommuters with Remote Access Points | |
|---|---|
| Zero-touch provisioning | Administrators can deploy RAPs without any preconfiguration. Simply ship it to the end user. |
| Wired and wireless | Users connect to RAPs via wired Ethernet, Wi-Fi or both. |
| Flexible authentication | 802.1X, captive portal, MAC address authentication per-port and per-user. |
| Centralized management | No local configuration is performed on APs – Configuration and management are done by the Mobility Controller. |
| 3G/4G LTE WAN connection | RAPs support USB wireless WAN adapters (EV-DO, HSDPA) for primary or backup Internet connectivity. |
| FlexForward traffic forwarding | Centralized – all user traffic flows to a Mobility Controller. Locally bridged – All user traffic bridged by access device to local LAN segment. Policy-routed – User traffic selectively forwarded to Mobility Controller or bridged locally, depending on traffic type/policy (requires PEF license). |
| Enterprise-grade security | RAPs authenticate to Mobility Controllers using X.509 certificates and then establish secure IPsec tunnels. |
| Uplink bandwidth reservation | Defines reserved bandwidth for loss-sensitive application protocols such as voice. |
| Local diagnostics | In the event of a call to the help desk, local users can browse to a predefined URL to access full RAP diagnostics. |
| Remote mesh portal | A RAP may also act as a mesh portal, providing wireless links to downstream APs. |
| Supported APs | RAP-3, RAP-100 series, RAP-155, AP-105, AP-220 series, AP-130 series, AP-110 series, AP-100 series, AP-90 series, AP-175 series. |
| Minimum required link speed | 64 kbps per SSID. |
| Encryption protocol (RAP to Mobility Controller) | AES-CBC-256 (inside IPsec ESP). |
Virtual Intranet Access (VIA) VPN support
A VIA add-on license lets remote users securely connect to an HPE Aruba Networking network through a hybrid IPSec/SSL VPN client without the need for a dedicated VPNC in an enterprise DMZ. Users devices adhere to the same policies and service definitions used at headquarters or a branch. AOS supports Windows, Mac, iOS, Android, and Linux, using split- or full-tunnel connections. (See Table 11)
| Table 11 Telecommuters with Remote Access Points | |
|---|---|
| Tested client support | – HPE Aruba Networking VIA client on Windows, Mac OS, Android, iOS, Linux – Cisco and Nortel VPN clients – OpenVPN, Apple/Windows native client |
| VPN protocols | – L2TP/IPsec (RFC 3193) – XAUTH/IPsec – PPTP (RFC 2637) |
| Authentication | – Username/password – X.509 PKI – RSA SecurID – Smart Card – Multi-factor |
Advanced Cryptography (ACR)
Fully FIPS 140-2 validated and Common Criteria-certified, the ACR add-on license provides Suite B cryptography which enables secure access to remote users who handle controlled unclassified, confidential and classified information.
Enhanced Wi-Fi authentication security
The addition of WPA3 support brings stronger encryption and authentication methods, and Enhanced Open provides per user encryption on open networks. New MPSK feature enables simpler passkey management for WPA2 devices – should the Wi-Fi password on one device type needs to be changed; no key changes are needed for other types of devices on the network. (See Table 1)

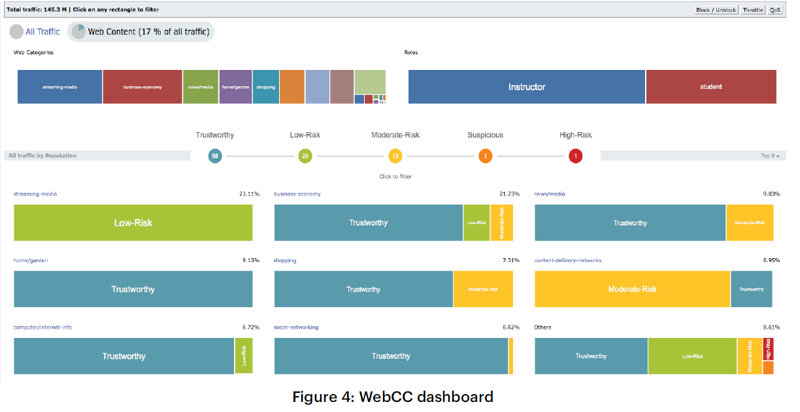

Web classification (WebCC)
With an optional subscription, AOS provides a cloud- based web content classification, policy and reputation service for URL filtering, IP reputation and geolocation filtering – which can be used to block and rate-limit connections based on HPE Aruba Networking’s identity-based controls. (See Figure 4 and Table 12)
| Table 12 WebCC features | |
|---|---|
| Categorize web traffic into 83 categories | Determine how network bandwidth is being used |
| Block websites by category | Enforce network acceptable use policies |
| QoS and bandwidth control by category | Enforce network acceptable use policies |
| Block websites by reputation | Reduce network usage of recreational applications Reduce the opportunity for malware to enter the network |
WIPS/WIDS and rogue AP protection
To protect against ad hoc networks, man-in-the-middle attacks, denial-of-service attacks and to distinguish between Wi-Fi and non-Wi-Fi sources, the AOS RFProtect module provides integrated WIPS/WIDS/rogue AP containment and classification without requiring a separate system of RF sensors and security appliances. HPE Aruba Networking’s rogue AP classifi ation algorithms accurately differentiate between rogue APs connected to the network versus nearby interfering APs.
Third-party integration
REST-based APIs allow for integration with security vendors such as Palo Alto Networks and Check Point Software to ensure end-to-end security. Policies can be pre-defined for specific types of traffic and forwarded to an on-premises security firewall for additional inspection.
Microsoft Features
HPE Aruba Networking’s integration with Microsoft enables unique application intelligence that detects Office 365, Teams and Skype for Business traffic and then prioritizes them over less critical applications. For Skype for Business/Lync traffic, IT can also prioritize specific media such as video, voice, and messaging.
Unified Communications and Collaboration

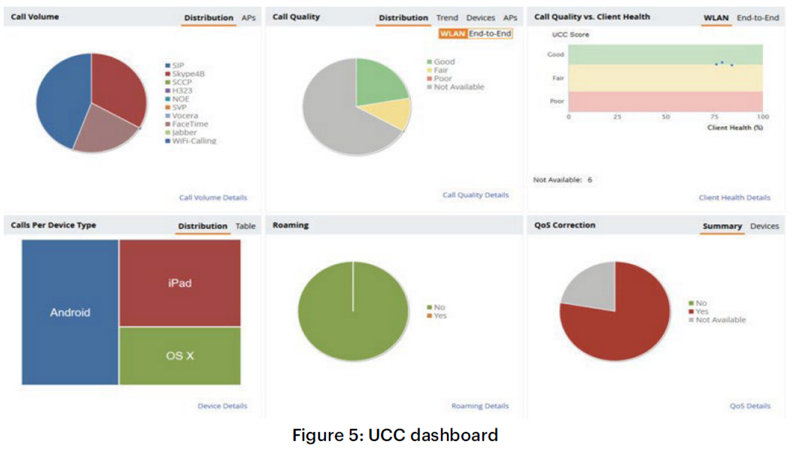

Integrated dashboards
With an integrated UCC dashboard, AOS provides call quality metrics (latency, jitter, packet loss) for Microsoft Skype for Business/Lync, Alcatel Lucent New Office Environment (NOE), Microsoft Teams*, Apple Facetime, Cisco Jabber, Cisco Spark, Cisco Skinny Call Control Protocol (SCCP), Spectralink Voice Priority (SVP), SIP, H.323, and Vocera. This provides network managers with enhanced application visibility, as well as key Wi-Fi troubleshooting capabilities. HPE Aruba Networking’s application fingerprinting technology also enables AOS to follow encrypted signaling protocols and postpone ARM scanning and ClientMatch roaming to optimize user experience during active call sessions. (See Figure 5)
Wi-Fi Calling support
Wi-Fi Calling is used by carriers to offload cellular voice traffic on Wi-Fi networks to improve their reach inside buildings and areas of poor cellular coverage. AOs treats Wi-Fi Calling as a UCC voice application and applies quality of service, blocks and throttles calls through an integrated UCC dashboard. HPE Aruba Networking also offers visibility on a per-user, per-device and a per-carrier basis.

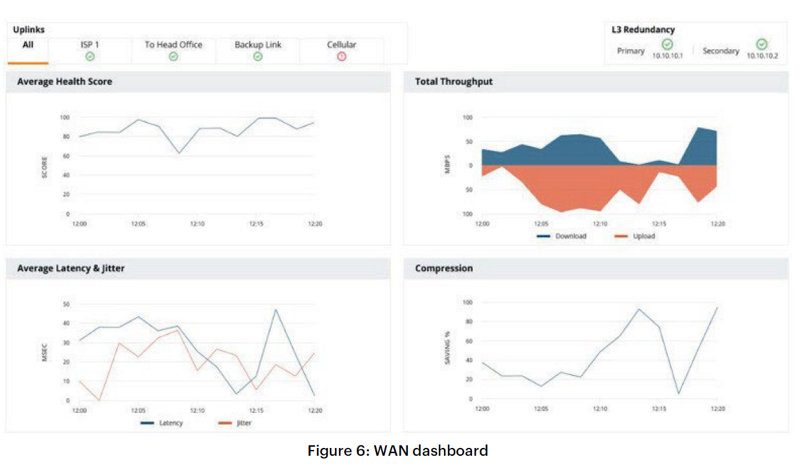

WAN Performance
Routing and metrics
AOS uses features such as Policy-based Routing, Dynamic Path Steering and compression to improve WAN health with intelligence that spans WLAN and WAN. An integrated dashboard also helps visualize key WAN metrics such as latency, jitter and packet loss across public and private uplinks. (Figure 6)
Operation
Integrated captive portal
For headless client devices or those without WPA, VPN or other security software, AOS supports a web browser-based captive portal that provides secure web-based authentication. Captive portal authentication is encrypted using SSL, and can support both registered users with a login and password or guest users who supply only an email address. For advanced guest access needs, refer to HPE Aruba Networking ClearPass Guest.
MDNS and DLNA support (AirGroup)
HPE Aruba Networking improves Apple, Google, and third-party services like AirPlay, AirPrint, and Google Cast through AirGroup, a unique capability that optimizes IP multicast video traffic, prioritizes services, and adds policy controls.
Simple configuration options ensure that these client devices can see each other, while advanced options limi access to certain devices based on physical location, time of day, and user/role based details.

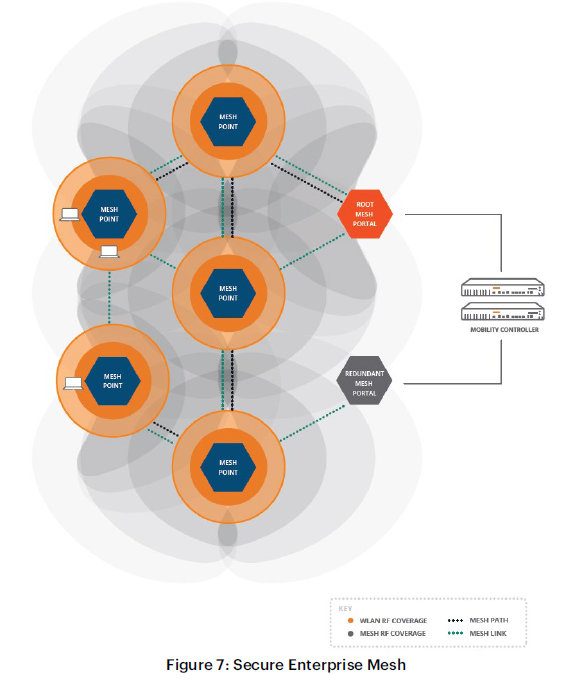

Point-to-point and mesh capabilities
AOS supports a flexible, wire-free design for AP uplinks in the absence of fiber or cable runs. Most commonly deployed for point-to-point wireless backhaul, security camera use cases and for network access in on-premises locations, wireless mesh provides the same enterprise network services as standard wire-based design. HPE Aruba Networking uses an intelligent link management algorithm between each AP to automatically adjust and optimize traffic paths and links. Network managers can repurpose any HPE Aruba Networking indoor or outdoor AP, or utilize new 802.11ad technology for high-performance and extended range requirements. (See Figure 7 and Table 13)
| Table 13 Secure Enterprise Mesh | |
|---|---|
| Broad application support | Wi-Fi access, concurrent wireless intrusion protection, wireless backhaul, LAN bridging, and point-to-multipoint connectivity. |
| Unified network access | Integrates mesh networks with campus and branch office WLANs. Users roam seamlessly between campus and branch Wi-Fi and mesh networks. |
| Cooperative control | Intelligent RF link management determines optimal performance path and allows the network to self-organize. |
| Self-healing | Resilient self-healing mesh overcomes a broken path or AP failure. |
| Mesh clustering | Supports scalability by allowing a large mesh to be segmented into highly-available clusters. |
| Centralized encryption | Data encrypted end-to-end, from client to core, protecting the network even if a mesh AP is stolen. |
| Centralized management | All mesh nodes are configured and controlled centrally by Mobility Controllers. No local management is required. |
| Extensive graphical support tools | Full network visualization includes coverage heat maps, automatic link budget calculation, floor plans, and maps with network topology. |
| Standards-based design | Secure enterprise mesh based on design principles from IEEE 802.11s. Smart Card Multi-factor |
IPv6 support
AOS supports IPv6 environments as well as dual-stack interoperability of IPv6 within an IPv4 network. This is ideal for organizations that have nearly depleted available IPv4 addresses and need to transition from IPv4 to IPv6 (which adds a much larger address space). (See Table 14)
| Table 14 IPV6 Support | |
|---|---|
| IPV6 IPsec | Yes |
| Management over IPv6 | GRE, SSH, Telnet, SCP, Web UI, FTP,TFTP, Syslog, SNMP |
| IPv6 DHCP server | Yes |
| Captive portal over IPv6 | Yes |
| Support IPv6 VLAN interface address on Mobility Controller | Yes |
| Support AP-Mobility Controller communication over IPv6 | Yes |
| USGv6 certified firewall | Yes |
Multivendor network management
HPE Aruba Networking Management Software (AirWave) provides unified network management for HPE Aruba Networking controller managed APs and multivendor wireless, wired and WAN environments. AirWave can be used for planning and deployment to monitoring, analysis and troubleshooting. It also provides long-term trending and reporting, helpdesk integration tools and customizable alerts.
Network analytics and assurance
AOS integration with HPE Aruba Networking NetInsight offers automated network optimization and performance enhancements. AI-powered machine learning algorithms gather data from AOS, benchmarks the network against similar peer networks and recommends configuration changes as needed for RF, authentication and DHCP request performance.
Advanced policy management
AOS integrates with HPE Aruba Networking ClearPass for policy management, AAA functions, advanced guest access and onboarding of devices across multivendor wired, wireless, and distributed remote networks. ClearPass addresses the security requirements for enterprises with increasing IoT, BYOD, and segmentation challenges. (See Table 1)
IoT and location-ready wireless support
AOS includes integration with HPE Aruba Networking Meridian, ALE, and third-party Wi-Fi, BLE, Zigbee and USB-based vendor solutions. Each HPE Aruba Networking AP serves as an IoT and location-ready gateway with no additional AS software required.
Enhanced Mobility Conductor Capabilities
AI-powered RF management (AirMatch)
An RF management innovation, AirMatch automates network-wide RF channels, channel width and radio power assignment. By utilizing machine learning algorithms, AirMatch proactively learns and acclimates the network based on changing environmental conditions and system capacity. (See Table 15)
| Table 15 AirMatch Benefits | |
|---|---|
| Even channel assignment | Provides even distribution of radios across available channels, interference mitigation and maximized system capacity. |
| Dynamic channel width adjustment | Dynamically adjusts between 20MHz, 40MHz and 80MHz to match the density of your environment. |
| Automatic transmit power adjustment | Examines the entire WLAN coverage and automatically adjusts the transmit power of APs to ensure the best coverage and user experience. |
Hierarchical configuration and improved visibility
AOS running on the Mobility Conductor, uses a centralized, multi-tiered architecture that consolidates all deployment models (e.g. all-conductor, single-conductor/multiple-local, and multiple-conductor/local) through a dedicated management console. Network configurations can be implemented and distributed from the Mobility Conductor through zero-touch provisioning (ZTP) to all Mobility Controllers. The Mobility Conductor also allows for licensing pools that can allocate licenses to individual controllers based on site requirements.
Hitless Failover and automated load balancing
Using controller clusters, user sessions and AP traffic are load balanced to optimize network utilization during peak periods and maximize availability during unplanned outages (Figure 1). This means that users will not notice any impact to voice calls, video streaming or data transfers in an unlikely event that a controller loses connectivity.
Live Upgrade and multiple version support
With Mobility Conductor, AOS can be upgraded while supporting active user sessions – eliminating the need for planned maintenance windows or downtime. Each Controller Cluster or individual service modules (AppRF, AirGroup, ARM, etc.) can be selectively upgraded without impacting the rest of the network.
Multi-tenancy Wi-Fi support (MultiZone)
Different controllers can be used with the same AP infrastructure to terminate different SSIDs on different HPE Aruba Networking controllers while maintaining complete segmentation and security for all networks, policies, management and visibility. This is ideal for multi-tenancy requirements where multiple organizations are housed in a single office space, or for a single organization that requires separate secure networks. For more information, refer to the MultiZone technical brief.
Northbound APIs (NBAPI)
The Mobility Conductor includes a full set of NBAPIs that enable deep visibility into the network. NBAPIs provide RF health metrics, app utilization, device type and user data in an easy-to-integrate format. 3rd party applications can receive this information for improved visibility and monitoring.
Configuration Information
Ordering Information* | ||
| Remarks | Description | SKU |
| | HPE Aruba Networking LIC-ENT Enterprise (LIC-AP LIC-PEF LIC-RFP and LIC-AW) License Bundle E-LTU | JW471AAE |
| | HPE Aruba Networking LIC-AP Controller per AP Capacity License E-LTU | JW472AAE |
| | HPE Aruba Networking LIC-PEF Controller Policy Enforcement Firewall Per AP License E-LTU | JW473AAE |
| | HPE Aruba Networking LIC-RFP Controller RFProtect Per AP License E-LTU | JW474AAE |
| | HPE Aruba Networking LIC-VIA Per VIA Client Controller VPN License E-LTU | JZ148AAE |
| Notes: | This license enables firewall services on a per session basis for VPN termination from HPE Aruba Networking VIA VPN client. | |
| | HPE Aruba Networking LIC-ACR Controller Advanced Cryptography 1 Session License E-LTU | Q9B90AAE |
| | HPE Aruba Networking Controller Web Content Classification 1-year Subscription E-STU | JY028AAE |
| | HPE Aruba Networking Controller Web Content Classification 3-year Subscription E-STU | JY029AAE |
| | HPE Aruba Networking Controller Web Content Classification 5-year Subscription E-STU | JY030AAE |
| | HPE Aruba Networking Controller Web Content Classification 7-year Subscription E-STU | JY031AAE |
| | HPE Aruba Networking Controller Web Content Classification 10-year Subscription E-STU | JY032AAE |
| | HPE Aruba Networking LIC-7005-PEFV Controller Policy Enforcement Firewall 7005 Cntrlr License E-LTU | JW495AAE |
| | HPE Aruba Networking LIC-7008-PEFV Controller Policy Enforcement Firewall 7008 Cntrlr License E-LTU | JY342AAE |
| | HPE Aruba Networking LIC-7010-PEFV Controller Policy Enforcement Firewall 7010 Cntrlr License E-LTU | JW496AAE |
| | HPE Aruba Networking LIC-7024-PEFV Controller Policy Enforcement Firewall 7024 Cntrlr License E-LTU | JW497AAE |
| | HPE Aruba Networking LIC-7030-PEFV Controller Policy Enforcement Firewall 7030 Cntrlr License E-LTU | JW498AAE |
| | HPE Aruba Networking LIC-7205-PEFV Controller Policy Enforcement Firewall 7205 Cntrlr License E-LTU | JW499AAE |
| | HPE Aruba Networking LIC-7210-PEFV Controller Policy Enforcement Firewall 7210 Cntrlr License E-LTU | JW500AAE |
| | HPE Aruba Networking LIC-7220-PEFV Controller Policy Enforcement Firewall 7220 Cntrlr License E-LTU | JW501AAE |
| | HPE Aruba Networking LIC-7240-PEFV Controller Policy Enforcement Firewall 7240 Cntrlr License E-LTU | JW502AAE |
| Notes: | * LIC-VIA license is per VIA user license and is not tied to any particular controller. It can be transferred from one controller to another. Unlike PEFV, LIC- VIA supports centralized licensing and can be managed by Mobility Conductor or a Conductor Controller in AOS 8.x deployment. Refer to the 7000 Series and 7200 Series ordering guides for more information. | |
Technical Specifications
Enterprise Security Framework
| Table 1 | |
|---|---|
| Authentication types | – IEEE 802.1X (EAP, LEAP, PEAP, EAP-TLS, EAP-TTLS, EAP-FAST, EAP-SIM, EAP-POTP, EAP-GTC, EAP-TLV, EAP-AKA, EAP-Experimental, EAP-MD5) – RFC 2548 Microsoft vendor-specific RADIUS attributes – RFC 2716 PPP EAP-TLS – RFC 2865 RADIUS authentication – RFC 3579 RADIUS support for EAP – RFC 3580 IEEE 802.1X RADIUS guidelines – RFC 3748 extensible authentication protocol – MAC address authentication – Web-based captive portal authentication |
| Authentication servers | – Internal database – LDAP/SSL secure LDAP – RADIUS – TACACS+ – Tested authentication server interoperability:
|
| Encryption protocols | – CCMP/AES – WEP 64- and 128-bit – TKIP – SSL and TLS:
|
| Programmable encryption engine | – Permits future encryption standards to be supported through software updates |
| Web-based captive portal (SSL) | – Allows flexibility in authentication methods |
| Integrated guest access management | – Provides secure guest access options |
| Site-to-site VPN | – IPsec tunnel is established between Mobility Controller and IPsec devices. – Authentication support for X.509 PKI, IKEv2, IKE PSK, IKE aggressive mode |
Certifications
- – Wi-Fi Alliance certified (802.11a/b/g/n/d/h/ac/ad, WPA™
- – Personal, WPA™ Enterprise, WPA2™ Personal, WPA2™
- – Enterprise, WPA3™ Enterprise, WPA3™ Personal, Enhanced Open™, WMM™, WMM Power Save)
- – FIPS 140-2 validated (when operated in FIPS mode)
- – Common Criteria EAL-2
- – RSA certified
- – Polycom/Spectralink VIEW certified
- – USGv6 firewall
Standards Supported
Management and traffic analysis
- – RFC 2030 SNTP, Simple Network Time Protocol v4
- – RFC 854 Telnet client and server
- – RFC 783 TFTP Protocol (Revision 2)
- – RFC 951 Bootstrap Protocol (BOOTP)
- – RFC-1542 Clarifications and Extensions for the Bootstrap Protocol
- – RFC 2131 Dynamic Host Configuration Protocol
- – RFC 1591 DNS (client operation)
- – RFC 1155 Structure of Management Information (SMIv1)
- – RFC 1157 SNMPv1
- – RFC 1212 Concise MIB definitions
- – RFC 1213 MIB Base for Network Management of TCP/IP-based internets – MIB-II
- – RFC 1215 Convention for defining traps for use with the SNMP
- – RFC 1286 Bridge MIB
- – RFC 3414 User-based Security Model (USM) for v.3 of the Simple Network Management
- – RFC 1573 Evolution of Interface
- – RFC 2011 SNMPv2 Management Information Base for the Internet Protocol using SMIv2
- – RFC 2012 SNMPv2 Management Information
- – RFC 2013 SNMPv2 Management Information
- – RFC 2578 Structure of Management Information Version 2 (SMIv2)
- – RFC 2579 Textual Conventions for SMIv2
- – RFC 2863 The Interfaces Group MIB
- – RFC 3418 Management Information Base (MIB) for SNMP
- – RFC 959 File Transfer Protocol (FTP)
- – RFC 2660 Secure HyperText Transfer Protocol (HTTPS)
- – RFC 1901 1908 SNMP v2c SMIv2 and Revised MIB-II
- – RFC 2570, 2575 SNMPv3 user based security, encryption and authentication
- – RFC 2576 Coexistence between SNMP Version 1, Version 2 and Version 3
- – RFC 2233 Interface MIB
- – RFC 2251 Lightweight Directory Access Protocol (v3)
- – RFC 1492 An Access Control Protocol, TACACS+
- – RFC 2865 Remote Access Dial In User Service (RADIUS)
- – RFC 2866 RADIUS Accounting
- – RFC 2869 RADIUS Extensions
- – RFC 3576 Dynamic Authorization Extensions to remote RADIUS
- – RFC 3579 RADUIS Support For Extensible Authentication Protocol (EAP)
- – RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS)
- – RFC 2548 Microsoft RADUIS Attributes
- – RFC 1350 The TFTP Protocol (Revision 2)
- – RFC 3164 BSD System Logging Protocol (syslog)
- – RFC 2819 Remote Network Monitoring (RMON) MIB
QoS and policies
- – IEEE 802.1D – 2004 (802.1p) Packet Priority
- – IEEE 802.11e – QoS Enhancements
- – RFC 2474 Differentiated Services
Security and encryption
- – IEEE 802.1X Port-Based Network Access Control
- – RFC 1661 The Point-to-Point Protocol (PPP)
- – RFC 2104 Keyed-Hashing for Message Authentication (HMAC)
- – RFC 2246 The TLS Protocol (SSL)
- – RFC 2401 Security Architecture for the Internet Protocol
- – RFC 2403 The Use of HMAC-MD5-96 within ESP and AH
- – RFC 2404 The Use of HMAC-SHA-1-96 within ESP and AH
- – RFC 2405 ESP DES-CBC cipher algorithm with explicit IV
- – RFC 2406 IP Encapsulating Security Payload (ESP)
- – RFC 2407 IP Security Domain of Interpretation for ISAKMP
- – RFC 2408 Internet Security Association and Key Management Protocol (ISAKMP)
- – RFC 2409 Internet Key Exchange (IKE) v1
- – RFC 2451 The ESP CBC-Mode Cipher Algorithms
- – RFC 2661 Layer Two Tunneling Protocol “L2TP”
- – RFC 2716 PPP EAP TLS Authentication Protocol
- – RFC 3079 Deriving Keys for use with Microsoft Point-to-Point Encryption (MPPE)
- – RFC 3162 Radius over IPv6
- – RFC 3193 Securing L2TP using IPsec
- – RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec
- – RFC 3706 Dead Peer Detection (DPD)
- – RFC 3736 DHCP Services for IPv6
- – RFC 3748, 5247 Extensible Authentication Protocol (EAP)
- – RFC 3947 Negotiation of NAT-Traversal in the IKE
- – RFC 3948 UDP encapsulation of IPsec packets
- – RFC 4017 EAP Method Requirements for Wireless LANs
- – RFC 4106 GCM for IPSEC
- – RFC 4137 State Machines for EAP Peer and Authenticator
- – RFC 4306 Internet Key Exchange (IKE) v2
- – RFC 4793 EAP-POTP
- – RFC 5246 TLS1.2
- – RFC 5247 EAP Key Management Framework
- – RFC 5281 EAP-TTLS v0
- – RFC 5430 Suite-B profile for TLS
- – RFC 6106 IPv6 Router Advertisement Options for DNS Configuration
- – IETF Draft RadSec – TLS encryption for RADIUS
Wireless
- – IEEE 802.11a/b/g/n/ac 5 GHz, 2.4 GHz
- – IEEE 802.11d Additional Regulatory Domains
- – IEEE 802.11e QoS
- – IEEE 802.11h Spectrum and TX Power Extensions for 5 GHz in Europe
- – IEEE 802.11i MAC Security Enhancements
- – IEEE 802.11k Radio Resource Management
- – IEEE 802.11ac Enhancements for Very High Throughput
- – IEEE 802.11n Enhancements for Higher Throughput
- – IEEE 802.11v Wireless Network Management (partial support)
General switching and routing
- – RFC 1812 Requirements for IP Version 4 Routers
- – RFC 1519 CIDR
- – RFC 1256 IPv4 ICMP Router Discovery (IRDP)
- – RFC 1122 Host Requirements
- – RFC 768 UDP
- – RFC 791 IP
- – RFC 792 ICMP
- – RFC 793 TCP
- – RFC 826 ARP
- – RFC 894 IP over Ethernet
- – RFC 1027 Proxy ARP
- – RFC 2236 IGMPv2
- – RFC 2328 OSPFv2
- – RFC 2338 VRRP
- – RFC 2460 Internet Protocol version 6 (IPv6)
- – RFC 2516 Point-to-Point Protocol over Ethernet (PPPoE)
- – RFC 3220 IP Mobility Support for IPv4 (partial support)
- – RFC 4541 IGMP and MLD Snooping
- – IEEE 802.1D-2004 – MAC Bridges
- – IEEE 802.1Q – 1998 Virtual Bridged Local Area Networks
- – IEEE 802.1w – Rapid Spanning Tree Protocol
Service and Warranty Information
- – Hardware: 1 year parts/ labor, can be extended with support contract
- – Software: 90 days, can be extended with support contract
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 27-Feb-2026 | Changed | Rebranding update applied to QuickSpecs | |
| 16-Dec-2024 | Changed | QuickSpecs was updated | |
| 18-Jan-2021 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 11-Jan-2021 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 08-Jun-2020 | New | New QuickSpecs. |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.
VMware is a registered trademark of VMware, Inc. in the United States and/or other jurisdictions.
a00094649enw, - 16611 - Worldwide - V5 - 27-February-2026
