HPE ProLiant DL110 Gen11

  • Overview

    Shape the Future of QuickSpecs – Your Input Matters

    HPE ProLiant DL110 Gen11

    Are you ready for 5G? Customized for edge applications requiring high bandwidth and low latency such as 5G cellular processing (vRAN), the HPE ProLiant DL110 Gen11 is based on open, standards-compliant infrastructure and offers dense I/O capabilities with PCIe Gen5 speed, acceleration, and powerful compute driven by 4th Generation Intel® Xeon® Scalable Processors and 4th Generation Intel® Xeon® Scalable Processors with Intel® vRAN Boost. The HPE ProLiant DL110 Gen11 provides a reduced footprint with a compact, short depth, 1U/1P front accessible chassis and ruggedized with NEBS Level 3 compliance* for harsh environments. Delivering the trusted HPE ProLiant experience with embedded HPE Integrated Lights-Out (iLO) management and security via HPE Silicon Root of Trust, the HPE ProLiant DL110 Gen11 is ready for Communication Service Provider's 5G deployments.


    Notes : *Typical NEBS certification is 90 days post-production manufacture

Notes:

  • 1 Enabled with x16 FHHL Secondary Riser (P54288-B21)

  • Default “L” shaped bracket ears shown. Optional HPE DL110 Gen11 Rail Compatible Ear Kit (P58197-B21) available for use with HPE 1U Short Friction Rail Kit (775612-B21)

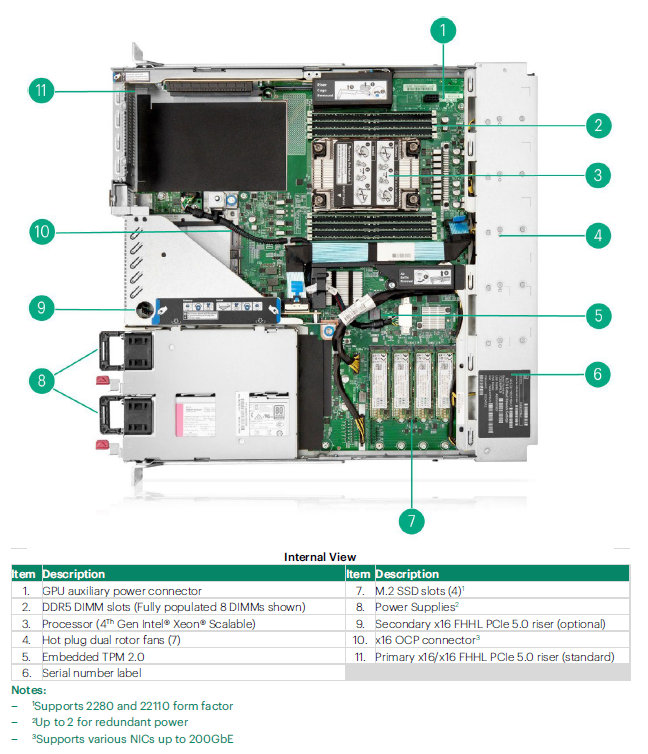

Notes:

  • 1 Supports 2280 and 22110 form factor

  • 2 Up to 2 for redundant power

  • 3 Supports various NICs up to 200GbE

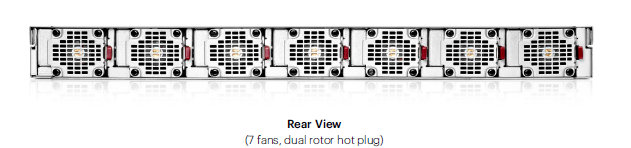

Rear View (7 fans, dual rotor hot plug)

What’s New

  • HPE ProLiant DL110 Gen11 Front Cabled CTO Server
  • 4th Generation Intel® Xeon® Scalable Processors and 4th Generation Intel® Xeon® Scalable Processors with Intel® vRAN Boost up to 32 Cores/205W
  • DDR5 Memory
  • Dense I/O with 3x PCIe 5.0 slots + 1x OCP 3.0 slot
  • Security features: iLO6 (Silicon Root of Trust)

Platform Information

Form Factor

  • 1U rack

Chassis Types

  • Front cabled chassis

System Fans

  • 7 dual rotor, hot plug fans included

  • Standard Features

    Processors – Up to 1 of the following

    The 2nd digit of the processor model number “x4xx” is used to denote the processor generation (i.e. 4=4th generation Intel Scalable Series Processors)


    For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon . This table covers the public Intel offering only.

Intel Xeon processors

Processor Suffix

Description

Offering

N

Network/5G/Edge (High TPT/Low latency)

SKUs specifically designed for 5G RANL3FWD, 5G User plane function (UPF), VPP Forwarding Information base, Network Security Gateway (VPP IPsec, NGINX TLS), Content delivery network, Virtual Broadband Network Gateway (vBNG), Virtual Cable Modem Termination System (vCMTS) and dynamic load balancing (NGINX) SKUs have higher base frequency with lower TDPs to enable best performance/Watt

U

1 Socket Optimized

Optimized for single socket (1P) configurations, delivering competitive system perf/$. Does not support two socket (2P) arrangements.

Y

Speed Select

Intel® SST-PP (performance profile) provides the ability to set a guaranteed base frequency for a specific number of cores, and assign this performance profile to a specific application/workload to guarantee performance requirements. Also enables configuration of settings during runtime and provides additional frequency profile configuration opportunities.

4th Generation Intel® Xeon® Scalable Processor with Intel® vRAN Boost

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

ENERGY STAR Certified

UPI

DDR5

Gold 5423N Processor

2.1GHz

20

37.5

145W

Yes

N/A

4000 MTs

Gold 6403N Processor

1.9GHz

24

45

185W

Yes

N/A

4000 MTs

Gold 6423N Processor

2.0GHz

28

52.5

195W

Yes

N/A

4000 MTs

Gold 6433N Processor

2.0GHz

32

60

205W

Yes

N/A

4000 MTs

Gold 6443N Processor

2.0GHz

32

60

195W

Yes

N/A

4000 MTs

Notes: If 5423N Processor is selected then secondary riser cannot be selected

4th Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

ENERGY STAR Certified

UPI

DDR5

Gold 6434 Processor

3.7GHz

8

22.5

195W

Yes

3

4800 MT/s

Gold 6426Y Processor

2.5GHz

16

37.5

185W

Yes

3

4800 MT/s

Gold 6421N Processor

1.8GHz

32

60

185W

Yes

N/A

4800 MT/s

Gold 6438N Processor

2GHz

32

60

205W

Yes

3

4800 MT/s

Gold 6438Y+ Processor

2GHz

32

60

205W

Yes

3

4800 MT/s

4th Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

ENERGY STAR

Certified

UPI

DDR5

Gold 5415+ Processor

2.9GHz

8

22.5

150W

Yes

3 @ 16 GT/s

4400 MTs

Gold 5418N Processor

1.8GHz

24

45

165W

Yes

3 @ 16 GT/s

4400 MTs

Gold 5411N Processor

1.9GHz

24

45

165W

Yes

N/A

4400 MTs

Gold 5412U Processor

2.1GHz

24

36

150W

Yes

N/A

4400 MTs

Gold 5420+ Processor

2GHz

28

52.5

205W

Yes

3 @ 16 GT/s

4400 MTs

4th Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

ENERGY STAR

Certified

UPI

DDR5

Silver 4410Y Processor

2GHz

12

30

150W

Yes

2 @ 16 GT/s

4000 MTs

Silver 4416+ Processor

2GHz

20

37.5

165W

Yes

2 @ 16 GT/s

4000 MTs

4th Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

ENERGY STAR

Certified

UPI


DDR5


Bronze 3408U Processor

1.8GHz

8

22.5

125W

No

N/A

4000 MTs

Chipset

  • Intel C741 Chipset

For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/


On System Management Chipset

  • HPE iLO 6 ASIC

Read and learn more in the iLO QuickSpecs.


Memory

One of the following depending on the model

Type

HPE DDR5 Smart Memory

HPE DDR5 Smart Memory, Registered (RDIMM)

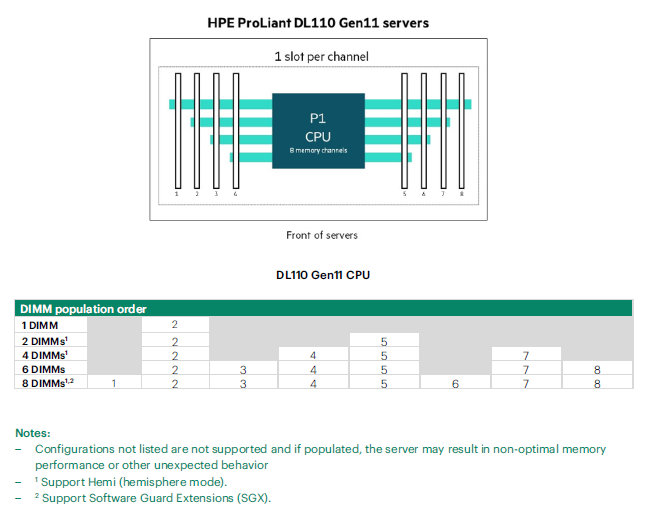

DIMM Slots Available

8

8 DIMM slots, 8 channels, 1 DIMM per channel

Maximum capacity (RDIMM)

1.0TB

8 x 128 GB RDIMM @ 4800 MT/s

Notes:

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: Memory RAS technologies for HPE ProLiant Gen11


Expansion Slots

Primary Riser – Ships standard with server

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

1

PCIe 5.0

X16

X16

Full-height, half-length slot

2

PCIe 5.0

X16

X16

Full-height, half-length slot

Notes: The specifications above correspond with the default primary riser.

Secondary Riser

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

3

PCIe 5.0

X16

X16

Full-height, half-length slot

HPE iLO 6 on system management memory

  • 32 MB Flash

  • 8 Gbit DDR4 with ECC protection

Maximum Internal Storage

Drive

Capacity

Configuration

SATA M.2 SSD

1.92 TB

4 x 480 GB

NVMe M.2 SSD

7.68 TB

4 x 1.92 TB

Notes:

  • 4x M.2 drives are supported on the Motherboard

  • 2280 or 22110 form factor supported


Internal Storage Devices

  • M.2 SSDs

None ship standard


Power Supply

  • HPE ProLiant DL110 700W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit
  • Notes: Available in 94%efficiency.
  • HPE ProLiant DL110 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit
  • Notes: Available in 94%efficiency.
  • HPE ProLiant DL110 900W-1000W Titanium Hot Plug AC Power Supply Kit
  • Notes:
  • − Available in 96% efficiency.
  • − All power supply kits have reverse airflow to support front cabled design of DL110

To review the power requirements for your selected system, please use the HPE Power Advisor Tool, and to review the power cord requirements please check the ProLiant Power Cables web page.


Storage Controllers

One of the following offerings


Software RAID

  • Intel VROC NVMe for HPE ProLiant Gen11

  • Notes:

  • Intel® VROC for HPE ProLiant Gen11 is an enterprise, hybrid Software RAID solution specifically designed for NVMe SSDs connected directly to the CPU. Intel® VROC is a software-based solution utilizing Intel® CPU to RAID or HBA direct connected drives.

  • Intel® Virtual RAID on CPU Standard for Premium SKU for RAID 0/1/5/10 (R7J57A/R7J59AAE) must be ordered to enable RAID support.

  • RAID 0/1/5/10, Linux OS

  • RIAD 1, VMware OS

  • Host Tools- Linux MDADM, VMware VMDRCLI.

  • UEFI Support- HII Utility, OBSE.

  • iLO Support- IML, Alert, SNMP, AHS.

  • iLO Redfish- Redfish (RDE).

  • Intel® VROC NVMe for HPE ProLiant Gen11 will operate in UEFI mode only.

  • For NVMe SSDs only, no PCIe card support.

  • Additional driver installation is required while using/enabling VROC.


  • Intel VROC SATA for HPE ProLiant Gen11

  • Notes:

  • Intel® VROC for HPE ProLiant Gen11 is an enterprise, hybrid Software RAID solution specifically designed for SSDs.

  • Intel® VROC is a software-based solution utilizing Intel® CPU to RAID or HBA direct connected drives.

  • RAID Support- 0/1/5/10.

  • Linux OS support.

  • Host Tools- Linux MDADM.

  • UEFI Support- HII Utility, OBSE.

  • iLO Support- IML, Alert, SNMP, AHS.

  • iLO Redfish- Redfish Read.

  • Intel® VROC SATA for HPE ProLiant Gen11 will operate in UEFI mode only.

  • Intel® VROC SATA is off by default and must be enabled.

  • Additional driver installation is required while using/enabling VROC.



Interfaces


HPE iLO Remote Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard (Hewlett Packard Enterprise recommends the HPE USB to Ethernet Adapter part number Q7Y55A when using the iLO service port).

Notes: There is no VGA port on DL110 Gen11. For local management of the server, users should connect to DL110 via the iLO service port with a USB-Ethernet adapter (HPE recommends Q7Y55A).


Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices


HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation.


UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure Boot and Secure Start enable for enhanced security

  • Embedded UEFI Shell

  • Operating system specific functionality

  • Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

  • Support for > 2.2 TB (using GPT) boot drives

  • PXE boot support for IPv4 and IPv6 networks

  • Workload Profiles for simple performance optimization

  • Embedded TPM support

UEFI Boot Mode only

  • iSCSI Software Initiator Support.

  • NVMe Boot Support

  • HTTP/HTTPs Boot support as a PXE alternative.

  • Platform Trust Technology (PTT) can be enabled.

  • Boot support for option cards that only support a UEFI option ROM

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.


Industry Standard Compliance

  • ACPI 6.4 Compliant

  • PCIe 5.0 Compliant

  • WOL Support

  • PXE Support

  • SMBIOS 3.4

  • Redfish API

  • IPMI 2.0

  • Secure Digital 4.0

  • TPM 2.0 Support

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP v3

  • TLS 1.2

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active Directory v1.0

  • ASHRAE A3/A4

  • Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit: Extended Ambient Temperature Guidelines for HPE Gen11 Servers

  • EU Lot9

  • Notes: European Union (EU) eco-design regulations for server and storage products, known as Lot 9, went into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen11 servers are compliant with Lot9 requirements.
  • Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo .


UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi .


Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning .


iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi


Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs .


Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://www.hpe.com/servers/smart-update.html


iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9, Gen10, Gen10 Plus, and Gen11 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack .

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp .


RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool .


Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell .

HPE OneView Standard

HPE OneView is an on premises, multi-generational server monitoring and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at: http://www.hpe.com/info/oneview .


HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim .


HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.


HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in HPE GreenLake cloud (access via https://common.cloud.hpe.com ) and leverages the HPE GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen11 rack, tower, or micro server.


For more information, visit the HPE Compute Ops Management QuickSpecs:

https://www.hpe.com/psnow/doc/a50004263enw


Security

  • UEFI Secure Boot and Secure Start support.

  • Tamper-free updates – components digitally signed and verified.

  • Immutable Silicon Root of Trust

  • Ability to rollback firmware

  • Secure erase of NAND/User data

  • Common Criteria certification

  • Configurable for PCI DSS compliance
  • Embedded TPM (Trusted Platform Module) 2.0
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is embedded on the server motherboard and can be enabled and disabled using the BIOS.


Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.



Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.


Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available https://www.hpe.com/support/ProLiantServers-Warranties

  • Optional Features

    Server Management

    HPE iLO Advanced

    HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.


    HPE OneView Advanced

    HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing multiple HPE server generations.

    To learn more visit http://www.hpe.com/info/oneview .


    HPE Insight Cluster Management Utility (CMU)

    HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at: http://www.hpe.com/info/cmu .


    One Config Simple (OCS/SCE)

    OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#


    Rack and Power Infrastructure

    The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access. HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing. HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments. HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.


    HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running. Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure .


  • Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting


HPE Managed Services  

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. 

HPE Managed Services | HPE


Operational services

Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational


HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

  • A complete coverage approach -- edge to cloud

  • An assigned HPE team

  • Modular and fully personalized engagement

  • Enhanced Incident Management experience with priority access

  • Digitally enabled and AI driven customer experience


https://www.hpe.com/services/completecare


HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare


HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

  • Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.

  • HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.

  • HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.

  • Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.

  • HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu


Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training


Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.


Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

  • Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.

  • Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/


AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience


Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. 

https://support.hpe.com/hpesc/public/home/signin


Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

  • Get faster time to market

  • Save on TCO, align costs to business

  • Scale quickly, meet unpredictable demand

  • Simplify IT operations across your data centers and clouds


To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html


For more information

http://www.hpe.com/services

  • Configuration Information

    This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

    • Factory Integrated Models must start with a CTO Server.

    • FIO indicates that this option is only available as a factory installable option.

    • Some options may not be integrated at the factory. Contact your local sales representative for additional information.


    Step 1: Base Configuration

CTO Server

HPE ProLiant DL110 Gen11 Front Cabled Configure-to-order Server

SKU Number

P54277-B21

Processor

Not included as standard; 1 supported

Heatsink

Included

DIMM Slots

8-DIMM slots

Storage Controller

Embedded SW RAID with Intel VROC SATA for HPE, choice of Intel VROC NVMe for HPE

PCIe

X16/x16 FHHL riser included

Fans

7- dual rotor hot plug

Management

HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)

USB

iLO Front Service Port

Mounting

Default: “L” shaped bracket ears- recommended for 2-post rack mounting (includes cage nuts for mounting in square-hole rack

Optional: Short Friction Rail Kit- recommended for 4-post rack mounting

Step 2: Choose Required Options

Step 2a: Choose Processors

Please select one processor required below.

Notes: Processors with 185W TDP or higher will require the DIMM Blank kit (P43725-B21) to be selected when all DIMM slots are not fully populated


Processor Options

4th Generation Intel Xeon-Gold

Notes: All SKUs below ship with processor only. Fans and heatsink are included in the CTO server.


Intel Xeon-Gold 5412U 2.1GHz 24-core 185W Processor for HPE

P49618-B21

Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W Processor for HPE

P49597-B21

Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W Processor for HPE

P49598-B21

Intel Xeon-Gold 6434 3.7GHz 8-core 195W Processor for HPE

P49601-B21

Intel Xeon-Gold 5420+ 2.0GHz 28-core 205W Processor for HPE

P49613-B21

Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W Processor for HPE

P49615-B21

Intel Xeon-Gold 6438N 2.0GHz 32-core 205W Processor for HPE

P49638-B21

Intel Xeon-Gold 5411N 1.9GHz 24-core 165W Processor for HPE

P49639-B21

Intel Xeon-Gold 5418N 1.8GHz 24-core 165W Processor for HPE

P49640-B21

Intel Xeon-Gold 6421N 1.8GHz 32-core 185W Processor for HPE

P49641-B21

Intel Xeon-Gold 5423N 2.1GHz 20-core 145W Processor for HPE

P66247-B21

Intel Xeon-Gold 6403N 1.9GHz 24-core 185W Processor for HPE

P66243-B21

Intel Xeon-Gold 6423N 2.0GHz 28-core 195W Processor for HPE

P66239-B21

Intel Xeon-Gold 6433N 2.0GHz 32-core 205W Processor for HPE

P66235-B21

Intel Xeon-Gold 6443N 2.0GHz 32-core 195W Processor for HPE

P66231-B21

Notes: If 5423N Processor is selected then secondary riser cannot be selected


4th Generation Intel Xeon-Silver

Notes: All SKUs below ship with processor only. Fans and heatsink are included in the CTO server.

Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W Processor for HPE

P49610-B21

Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W Processor for HPE

P49611-B21

4th Generation Intel Xeon-Bronze

Notes: All SKUs below ship with processor only. Fans and heatsink are included in the CTO server.

Intel Xeon-Bronze 3408U 1.8GHz 8-core 125W Processor for HPE

P49617-B21

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to: http://www.hpe.com/docs/memory-population-rules

Registered DIMMs (RDIMMs)

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-B21

HPE 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P43334-B21

Notes:

  • The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

  • Quantity of memory DIMMs selected must be 1, 2, 4, 6, or 8

  • Mixing of x4 / x8 / 3DS memory is not allowed

  • Mixing of Single Rank and Dual Rank DIMM is allowed only when total qty of DIMM selected is 8

  • If Single Rank and Dual Rank DIMMs are mixed then the Qty of Single Rank DIMM selected must be equal to quantity of Dual Rank DIMM

  • For more detailed information regarding memory population rules, please refer to

https://www.hpe.com/docs/server-memory

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

HPE Flex Slot Power Supplies

HPE ProLiant DL110 700W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

P43150-B21

HPE ProLiant DL110 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit

Notes: Available in 94% efficiency.

P44975-B21

HPE ProLiant DL110 900W-1000W Titanium Hot Plug Low Halogen AC Power Supply Kit

Notes:

− Available in 96% efficiency.

− All power supply kits have reverse airflow to support front cabled design of DL110

P54290-B21

Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multioutput and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.


HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Step 2d: Choose Accelerator Options

Qualcomm X100 5G RAN GNSS Accelerator for HPE

S1C90C

Qualcomm X100 5G RAN Accelerator for HPE

S1C91C

Nokia Cloud RAN SmartNIC Accelerator for HPE

S3M37C

Notes: When the Nokia Cloud RAN SmartNIC Accelerator is installed, the following system limitations exist:

  • ο Maximum of two Nokia SmartNIC Accelerators supported and must be placed in Slots 1 and 3
  • ο Use of QSFP-DD pluggable to DAC cables (0W)
  • ο Operating temperature will reduce from +55°C to +45°C
  • ο If active optical pluggables are required, the operating temperature will be reduced to +40°C

Step 3: Choose Additional Options

Rail/Ear Kits

Notes: HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E.  In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE 1U Short Friction Rail Kit

775612-B21

Notes: Requires selection of Rail Compatible Ear Kit


HPE ProLiant DL110 Gen11 Rail Compatible Ear Kit

P58197-B21

Notes: Rail kit and Ear kit must be selected when the server is selected with Racks


Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

  • Core Options

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Software as a Service Management

HPE Compute Ops Management

Base SKU

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

Upgrade SKU

HPE Compute Ops Management Standard 1-year Upfront ProLiant SaaS

R7A10AAE

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

Advanced SKUs

HPE Compute Ops Management Advanced 1-year Upfront ProLiant SaaS

S5E58AAE

HPE Compute Ops Management Advanced 3-year Upfront ProLiant SaaS

S5E59AAE

HPE Compute Ops Management Advanced 5-year Upfront ProLiant SaaS

S5E60AAE

HPE Compute Ops Management Advanced 7-year Upfront ProLiant SaaS

S5E61AAE

HPE Unique Options

Risers

HPE ProLiant DL110 Gen11 x16 FHHL PCIe Secondary Riser Kit

P54288-B21

DDR4 DIMM Blank

HPE ProLiant DL110 Gen10 Plus DDR4 DIMM FIO Blank Kit

P43725-B21

Notes: Required when processor with 185W or greater TDP is selected, and all DIMM slots are not fully populated. DIMM blank kit cannot be selected if Qty=8 of memory is selected.

Software RAID Controllers

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes: Requires selection of NVMe M.2 SSD


Intel Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Notes: Similar to Intel VROC NVMe FIO SW for HPE (R7J57A), but intended for field deployments

HPE Solid State Drives

For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - 6G SATA - M.2 - Solid State Media (2280 type)

HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD

P47818-B21

Read Intensive-PCIe/NVMe-M.2- Solid State Media (22110 and 2280 type)

HPE 480GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD

P40513-B21

HPE 960GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD

P40514-B21

HPE 1.92TB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD

P40515-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting Multi Vendor SSD

P80327-B21

HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 V2 Multi Vendor SSD

P80318-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 V2 Multi Vendor SSD

P80321-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 V2 Multi Vendor SSD

P80324-B21

Factory Configuration Setting

NEBS-Compliant Setting

HPE NEBS-compliant FIO Trigger System Setting P40010-B21

iLO Common Password

HPE iLO Common Password FIO Setting P08040-B21

Notes:

  • − Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.
  • − Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services

BIOS MODE

HPE ProLiant DL300 Gen10 Plus Platform RAS OS Control FIO Setting P27078-B21

Notes: OS First - RAS Setting Trigger.

RAID Settings

Notes Description SKU

1 HPE RAID 0 Drive 1 FIO Setting

339777-B21

1 HPE RAID 1 Drive 1 FIO Setting

339778-B21

1 HPE RAID 5 Drive 1 FIO Setting

339779-B21

1 HPE Raid 5 w/SP Drive 1 FIO Setting

339780-B21

2 HPE Customer Defined RAID Setting Service

389692-B21

Notes:

− 1General RAID rules:

  • ο (i) Only a single set of RAID will be offered and will only be applied to all applicable drives installed in a server.
  • ο (ii) RAID requires selection of VROC and a specific number of matching NVMe M.2 drives. (i.e. same part number)
  • ο (iii) RAID must be selected if both Factory Installed OS and VROC is present.
  • ο (vi) RAID 0 requires at least 1 drive.
  • ο (v) RAID 1 requires at least 2 or even number of drives.
  • ο (vi) RAID 1 with Spare requires at least 3 drives
  • ο (vii) RAID 5 requires at least 3 drives.
  • ο (viii) RAID 5 with Spare requires at least 4 drives.
  • ο -If VROC Premium is the primary controller, then the following RAID levels are allowed: 0, 1, 5
  • ο -Warning Message:
  • ο HPE Recommends to use below standard RAID Settings,
  • 339777-B21 - HPE RAID 0 Drive 1 FIO Setting
  • 339778-B21 - HPE RAID 1 Drive 1 FIO Setting
  • 339779-B21 - HPE RAID 5 Drive 1 FIO Setting
  • 339780-B21 - HPE RAID 5 w/SP Drive 1 FIO Setting
  • 339781-B21 - HPE Raid Adv Data Guarding FIO

− 2

ο (i) If this part number is selected then the following RAID rules do not apply:

  • Max of 1 RAID level per server.
  • All integrated hard drives must match.
  • Minimum drive quantity requirement for each RAID level.
  • RAID level must be selected if Factory Installed OS is present and VROC is the primary controller.

ο (ii) If this part number is selected, then at least 1 NVMe M.2 Drive must be on the order.

ο (iii) If this part number is selected, then preinstalled OS must be on the order.

HPE Networking

Notes: The DL110 Gen11 CTO chassis does not come with embedded networking. A PCIe or OCP networking adapter must be selected.

1 Gigabit Ethernet Adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P21106-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet Adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

10/25 Gigabit Ethernet Adapters

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

Intel E810-XXVDA4T Ethernet 10/25Gb 4-port SFP28 MCLK Adapter for HPE

P41636-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Notes: Includes GNSS module which provides 1pps signal without the need for an external GNSS appliance.

Integrated support for frequency, phase, and time-of-day synchronization with Global Navigation Satellite

Systems, including GPS, Galileo, GLONASS, BeiDou, and QZSS.

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 MCLK Non-GNSS Adapter for HPE

P75068-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Notes: BCM 57414 10/25GbE 2p SFP28 Adapter cannot be installed in Slot 1, Consider this restriction during the total selection of PCIe Cards.

100 Gigabit Ethernet Adapters

Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P41611-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

1 Gigabit Ethernet OCP Adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet OCP Adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

10/25 Gigabit Ethernet OCP Adapters

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

100 Gigabit Ethernet OCP Adapters

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE

P73111-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Notes:

− Max=1 OCP card can be selected. This is inclusive of all OCP categories and sub-categories.

− Does not consume PCIe slot

  • Additional Options

Embedded Management

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE Converged Infrastructure Management Software

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Notes: Licenses ship without media. The HPE OneView Media Kit can be ordered separately or can be downloaded

HPE Tech Care

HPE 3 Year Tech Care Essential DL110 Gen11 HW Service

H10RXE

HPE 3 Year Tech Care Essential wDMR DL110 Gen11 HW Service

H10RYE

HPE 5 Year Tech Care Essential DL110 Gen11 HW Service

H10TBE

HPE 5 Year Tech Care Essential wDMR DL110 Gen11 HW Service

H10TCE

HPE Racks


  • Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks

  • Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)

HPE Uninterruptible Power Systems (UPS)

HPE Rack Options

  • Memory

    Memory Population guidelines

DL110 Gen11 CPU

DIMM population order

1 DIMM

2






2 DIMMs 1

2


5



4 DIMMs 1

2

4

5

7

6 DIMMs

2

3

4

5

7

8

8 DIMMs 1,2

1

2

3

4

5

6

7

8

Notes:

  • Configurations not listed are not supported and if populated, the server may result in non-optimal memory performance or other unexpected behavior

  • 1 Support Hemi (hemisphere mode).

  • 2 Support Software Guard Extensions (SGX).


General Memory Population Rules and Guidelines:

  • Install DIMMs only if the corresponding processor is installed.

  • If only one processor is installed in a two-processor system, only half of the DIMM slots are available.

  • To maximize performance, it is recommended to balance the total memory capacity between all installed processors.

  • When two processors are installed, balance the DIMMs across the two processors.

  • White DIMM slots denote the first slot to be populated in a channel.

  • Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.

  • The maximum memory speed is a function of the memory type, memory configuration, and processor model.

  • The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, and the number and model of installed processors qualified on the platform.

  • For details on the HPE Server Memory Options Population Rules, visit: https://www.hpe.com/docs/server-memory

  • To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

For additional information, please see the HPE DDR5 Smart Memory QuickSpecs

  • Technical Specifications

    System Unit

    • Dimensions (Height x Width x Depth)
    • − 4.29 x 44.16 x 43.18 cm
    • − 1.69 x 17.39 x 17 in

    Weight (approximate)

    • Minimum : CTO server with 1x processor, 1x primary riser, 1x Memory DIMM, 1x M.2 SSD, and 1x Power Supply
    • −9.62 kg / 21.21 lbs.
    • Maximum : CTO server with all components installed: 1x processor, 2x risers, 8x Memory DIMMs, 4x M.2 SSDs, and 2x Power Supplies
    • −11.4 kg / 25.4 lbs.

    Input Requirements (per power supply)

    Rated Line Voltage

    • For 700W (-48VDC): -40 Vdc to -72 Vdc
    • For 700W (Platinum): 100-240 VAC
    • For 900W-1000W (Titanium): 100-240 VAC

    BTU Rating

    Maximum

    • For 700W (-48VDC) Power Supply: 2593 BTU/hr. at -40VDC, 2537 BTU/hr. at -72VDC

    • For 700W (Platinum) Power Supply: 2660 BTU/hr. at 100VAC, 2570 BTU/hr. at 200VAC, 2570 BTU/hr. at 240VAC

    • For 900W-1000W (Titanium) Power Supply: 3368 BTU/hr. at 100VAC, 3640 BTU/hr. at 200VAC, 3625 BTU/hr. at 240 VAC


    Power Supply Output (per power supply)

    Rated Steady-State Power

    • For 700W (-48VDC) Power Supply: 700W at -40VDC, 700W at -72VDC

    • For 700W (Platinum) Power Supply: 700W at 100VAC, 700W at 200VAC, 700W at 240VAC

    • For 900W-1000W (Titanium) Power Supply: 900W at 100VAC, 1000W at 200VAC, 1000W at 240 VAC


    Maximum Peak Power

    • For 700W (-48VDC) Power Supply: 700W at -40VDC, 700W at -72VDC

    • For 700W (Platinum) Power Supply: 700W at 100VAC, 700W at 200VAC, 700W at 240VAC

    • For 900W-1000W (Titanium) Power Supply: 900W at 100VAC, 1000W at 200VAC, 1000W at 240 VAC


    Relative Humidity (non-condensing)

    • Operating
    • 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

    • Non-operating

    • 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

  • Technical Specifications

    System Inlet Temperature

    • Standard Operating Temperature
    • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.

    • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

    • Extended Ambient Operating Temperature

    • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

    • For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae


    • System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

    • Non-operating

    • -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.).

    Altitude

    • Operating
    • 3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft./min).
    • Non-operating
    • 9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Emissions Classification (EMC) – Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072


Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs , in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.


The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment


Acoustic Noise

Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm), and the statistical adder for verification (Kv) is a quantity to be added to the declared mean A-weighted sound power level. LWA,m when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to mentioned configurations.  Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Entry

Typical

Heavy

Idle



LwA,m

5.1 B

5.2 B

5.2 B

LpA,m

38 dB

38 dB

38 dB

Kv

0.4 B

0.4 B

0.4 B

Operating



LwA,m

5.3 B

5.8 B

6.1 B

LpA,m

39 dB

44 dB

48 dB

Kv

0.4 B

0.4 B

0.4 B

Notes:

  • The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.

  • A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

  • The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

  • B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

  • The results in this declaration apply only to the configurations listed above when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

  • All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109

  • The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.

  • The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95 % probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).

  • Summary of Changes

Date

Version History

Action

Description of Change

28-Jul-2025

Version 16

Changed

Update survey link.

23-Jun-2025

Version 15

Changed

Summary of Changes section was updated.

Added: Version History with links.

19-May-2025

Version 14

Changed

Core Options section was updated.

Added: Read Intensive - M.2 - Solid State Drives. European Union ErP Lot 9

Regulation to include Turkey and Ireland.

28-Apr-2025

Version 13

Changed

Core Options section was updated.

Added COM Adv SKUs and QuickSpecs Survey.

17-Mar-2025

Version 12

Changed

Core Options section was updated.

06-Jan-2025

Version 11

Changed

Configuration Information and Additional Options sections were updated.

30-Sep-2024

Version 10

Changed

Configuration Information section was updated.

16-Sep-2024

Version 9

Changed

Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) section was updated.

06-May-2024

Version 8

Changed

Configuration Information and Core Options sections were updated.

01-Apr-2024

Version 7

Changed

Configuration Information section was updated.

04-Mar-2024

Version 6

Changed

Configuration Information section was updated

18-Dec-2023

Version 5

Changed

Configuration Information section was updated

04-Dec-2023

Version 4

Changed

Standard Features and Service and Support sections were updated.

20-Nov-2023

Version 3

Changed

Service and Support and Configuration Information sections were updated.

02-Oct-2023

Version 2

Changed

Overview, Standard Features and Configuration Information sections were updated.

18-Sep-2023

Version 1

New

New Quick Specs

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00053299enw,, 16301 - Worldwide - V16 - 28-July-2025

Recommended for you
