The HPE ProLiant Compute DL380a Gen12 is engineered with an ultra-scalable architecture to deliver next-gen AI performance for your enterprise needs.
The "a" stands for accelerator optimized. Powered by Intel® Xeon® 6 Processors and up to 10 cutting-edge double-wide GPUs, the 4U HPE ProLiant Compute DL380a Gen12 server is a cost-effective AI solution. It accelerates AI inferencing for large workloads with unprecedented performance, enterprise-grade reliability, and industry-leading security innovation.
Overview
HPE ProLiant Compute DL380a Gen12
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a00047453enw_block1img?$crimg$ "[IMAGE1]")

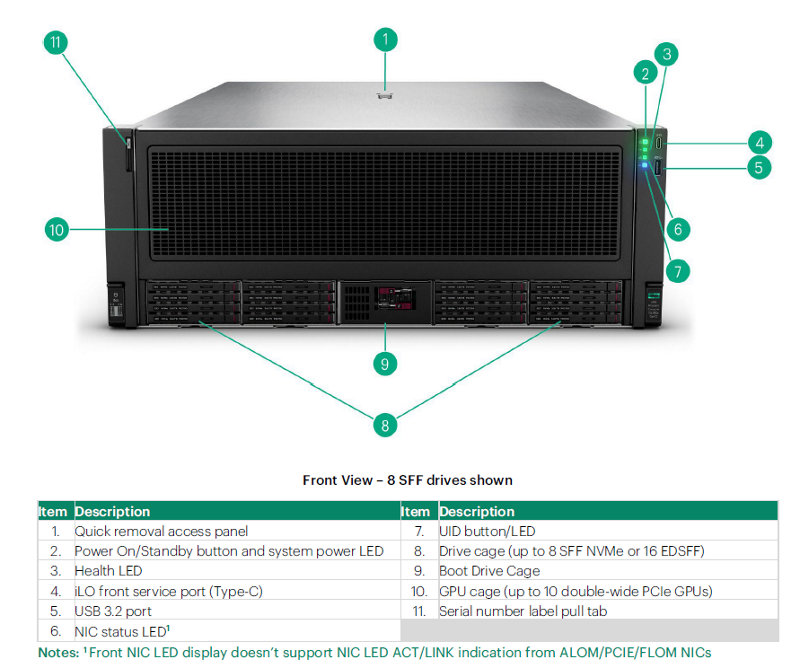

Front View – 8 SFF drives shown
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | Quick removal access panel | 7. | UID button/LED |
| 2. | Power On/Standby button and system power LED | 8. | Drive cage (up to 8 SFF NVMe or 16 EDSFF) |
| 3. | Health LED | 9. | Boot Drive Cage |
| 4. | iLO front service port (Type-C) | 10. | GPU cage (up to 10 double-wide PCIe GPUs) |
| 5. | USB 3.2 port | 11. | Serial number label pull tab |
| 6. | NIC status LED1 | | |
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/a00047453enw_block1img4?$crimg$ "[IMAGE2]")
Internal View
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | GPU cages for up to 10 double-wide GPUs | 4. | Quantity: 32 DDR5 DIMM Slots + CPU 1 and 2 |
| 2. | 4 hot-plug fan assemblies (Quantity: 4 92mm + Quantity: 8 40mm fans) | 5. | Power supplies – MCRPS type |
| 3. | Air baffle and heatsinks | 6. | PCIe Risers |
![[IMAGE3]](https://assets.ext.hpe.com/is/image/hpedam/a00047453enw_block1img7?$crimg$ "[IMAGE3]")
Rear View
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | Power Supplies (MCRPS) 1-8 | 8. | Dedicated iLO network port |
| 2. | Air ventilation wall | 9. | USB 3.2 Gen 1 ports |
| 3. | Slot 4 PCIe5 x162 | 10. | VGA port |
| 4. | Slot 5 PCIe5 x16 (optional captive riser) | 11. | Slot 3 PCIe5 x16 (default 1U CEM riser) |
| 5. | Slot 6 PCIe5 x16 (default 1U CEM riser) | 12. | Slot 2 PCIe5 x16 (optional captive riser) |
| 6. | OCP Slot B | 13. | Slot 1 PCIe5 x16 (optional captive riser)1 |
| 7. | OCP Slot A | | |
Notes:
− 1 Only available when HPE DL380a G12 4EDSFF Direct Cable for NVD (P74716-B21) is attached. Cannot be used with SFF NVMe drives.
− 2 Not for use with 4 and 8 DW GPU configurations
What’s New
- – Supports Intel® Xeon® 6 Processors.
- – Support for up to 10 double-wide GPUs in a 4U server for intensive compute acceleration.
- – Support for PCIe 5.0 for improved bandwidth and throughput.
- – Support for well-balanced I/O performance across processors.
- – Support for HPE DDR5 Smart Memory.
Platform Information
Form Factor
- – 4U rack
Chassis Types
- – 10 DW (double-wide GPU) chassis with one drive bay for drive cage options.
Notes: The DL380a Gen12 comes with Quantity: 1 4SFF x4 U.3 NVMe drive cage by default.
System Fans
- – 4 hot plug fan assemblies: Each assembly consists of 1 dual-rotor 92x56mm and 2 single-rotor 40x28 fans.
Standard Features
Processors – 2 of the following depending on model.
The 1ST digit of the processor model number is used to denote the processor generation (i.e. 6=6th generation Intel Scalable Series Processors).
For more information regarding Intel® Xeon® 6 processors, refer to the following https://www.intel.com/content/www/us/en/now/xeon-6.html.
This table covers the public Intel offering only.
| Intel® Xeon® 6 Processor Family | |||||||
|---|---|---|---|---|---|---|---|
| Intel Xeon Models | CPU Frequency | Cores | L3 Cache (MB) | Power | UPI | DDR5 | SGX Enclave size |
| 6710E Processor | 2.4 GHz | 64 | 96 | 205 W | 4 | 5600 MT/s | 512GB |
| 6740E Processor | 2.4 GHz | 96 | 96 | 250 W | 4 | 6400 MT/s | 512GB |
| 6746E Processor | 2.0 GHz | 112 | 96 | 250 W | 4 | 5600 MT/s | 512GB |
| 6756E Processor | 1.8 GHz | 128 | 96 | 225 W | 4 | 6400 MT/s | 512GB |
| 6766E Processor | 1.9 GHz | 144 | 108 | 250 W | 4 | 6400 MT/s | 512GB |
| 6780E Processor | 2.2 GHz | 144 | 108 | 330 W | 4 | 6400 MT/s | 512GB |
| 6505P Processor | 2.2 GHz | 12 | 48 | 150 W | 3 | 6400 MT/s | 128GB |
| 6507P Processor | 3.5 GHz | 8 | 48 | 150 W | 3 | 6400 MT/s | 512GB |
| 6515P Processor | 2.3 GHz | 16 | 72 | 150 W | 3 | 6400 MT/s | 128GB |
| 6517P Processor | 3.2 GHz | 16 | 72 | 190 W | 3 | 6400 MT/s | 512GB |
| 6520P Processor | 2.4 GHz | 24 | 144 | 210 W | 4 | 6400 MT/s | 128GB |
| 6527P Processor | 3.0 GHz | 24 | 144 | 255 W | 4 | 6400 MT/s | 512GB |
| 6530P Processor | 2.3 GHz | 32 | 144 | 225 W | 4 | 6400 MT/s | 128GB |
| 6714P Processor | 4.0 GHz | 8 | 48 | 195 W | 4 | 6400 MT/s | 512GB |
| 6724P Processor | 3.6 GHz | 16 | 72 | 210 W | 4 | 6400 MT/s | 512GB |
| 6728P Processor | 2.7 GHz | 24 | 144 | 210 W | 4 | 6400 MT/s | 512GB |
| 6730P Processor | 2.5 GHz | 32 | 288 | 250 W | 4 | 6400 MT/s | 512GB |
| 6736P Processor | 2.0 GHz | 36 | 144 | 205 W | 4 | 6400 MT/s | 512GB |
| 6737P Processor | 2.9 GHz | 32 | 144 | 270 W | 4 | 6400 MT/s | 512GB |
| 6738P Processor | 2.9 GHz | 32 | 144 | 270 W | 4 | 6400 MT/s | 512GB |
| 6740P Processor | 2.1 GHz | 48 | 288 | 270 W | 4 | 6400 MT/s | 128GB |
| 6745P Processor | 3.1 GHz | 32 | 336 | 300 W | 4 | 6400 MT/s | 512GB |
| 6747P Processor | 2.7 GHz | 48 | 288 | 330 W | 4 | 6400 MT/s | 512GB |
| 6732P Processor | 3.8 GHz | 32 | 144 | 350 W | 4 | 6400 MT/s | 512GB |
| 6748P Processor | 2.5 GHz | 48 | 192 | 300 W | 4 | 6400 MT/s | 512GB |
| 6760P Processor | 2.2 GHz | 64 | 320 | 330 W | 4 | 6400 MT/s | 128GB |
| 6767P Processor | 2.4 GHz | 64 | 336 | 350 W | 4 | 6400 MT/s | 512GB |
| 6768P Processor | 2.4 GHz | 64 | 336 | 330 W | 4 | 6400 MT/s | 512GB |
| 6787P Processor | 2.0 GHz | 86 | 336 | 350 W | 4 | 6400 MT/s | 512GB |
| 6788P Processor | 2.0 GHz | 86 | 336 | 350 W | 4 | 6400 MT/s | 512GB |
| 6776P Processor | 2.3 GHz | 64 | 336 | 350 W | 4 | 6400 MT/s | 512GB |
| 6725P Processor | 3.7 GHz | 16 | 192 | 235 W | 4 | 6400 MT/s | 512GB |
On System Management Chipset
HPE iLO 6 ASIC (ROM ID: U70) for HPE ProLiant Compute DL380a Gen12 8DW CTO Server – PN: P74461-B21
HPE iLO 7 ASIC (ROM ID: U72) for HPE ProLiant Compute DL380a Gen12 8DW/16SW CTO Server – PN: P76706-B21
Read and learn more in the iLO QuickSpecs.
Notes: P74461-B21 is not upgradable to iLO 7.
| Memory | |
|---|---|
| Type | HPE DDR5 Smart Memory, Registered (RDIMM) |
| DIMM Slots Available | 32 DIMM slots (16 DIMM slots per processor), 8 channels per processor with up to 2 DIMMs per channel |
| Maximum capacity (RDIMM) | 8.0 TB (32 x 256 GB RDIMM @ 5200 MT/s, 2DPC) 4.0 TB (16 x 256 GB RDIMM @ 6400 MT/s, 1DPC) |
Notes:
– The maximum memory speed is limited by the processor selection.
– The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For
each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated
memory DIMMs.
– Intel® Xeon® 6700-Series Processors with E Core limits DIMM quantities per CPU: 1, 2, 4, 8, and 16.
– Intel® Xeon® 6500/6700-Series Processors with P Core limits DIMM quantities per CPU: 1, 2, 4, 8, 12 and 16.
Expansion Slots
Risers
| Primary Riser | | | | | | | | | | | | | | | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Slots # | | | Technology | | | Bus Width | | | Connector Width | | | Slot Form Factor | | | Notes |
| | 1 | | | PCIe 5.0 | | | x16 | | | x16 | | | Full height, half length | | Processor 2 |
| | 2 | | | PCIe 5.0 | | | x16 | | | x16 | | | Full height, half length | | Processor 2 |
| | 3 | | | PCIe 5.0 | | | x16 | | | x16 | | | Full height, half length | | Processor 2 |
Notes:
– Slot 1 is only available when HPE DL380a G12 4EDSFF Direct Cable for NVD (P74716-B21) is attached. Cannot be
used with SFF NVMe drives.
– Slot 3 is available by default with a DL380a Gen12 configuration.
– Bus width indicates the number of physical electrical lanes running to the connector.
| Secondary Riser | | | | | | | | | | | | | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Slots # | Technology | | | Bus Width | | | Connector Width | | | Slot Form Factor | | | Notes |
| 4 | | PCIe 5.0 | | | x16 | | | x16 | | | Full height, half length | | Processor 1 |
| 5 | | PCIe 5.0 | | | x16 | | | x16 | | | Full height, half length | | Processor 1 |
| 6 | | PCIe 5.0 | | | x16 | | | x16 | | | Full height, half length | | Processor 1 |
Notes:
– Slot 4 is not available for 4 and 8 DW configurations.
– Slot 6 is available by default with a DL380a Gen12 configuration.
– Bus Width Indicates the number of physical electrical lanes running to the connector.
Graphics
Integrated Video Standard
– Video modes up to 1920 x 1200@60Hz (32 bpp)
– 16MB Video Memory
HPE iLO 6 on system management memory
– 32 MB Flash
– 8 Gbit DDR 3 with ECC protection
Maximum Internal Storage
| Drive | Capacity | Configuration |
|---|---|---|
| Hot-plug SFF NVMe PCIe SSD | 122.88 TB | 8 x 15.36 TB |
| Hot-plug E3.S NVMe PCIe SSD | 245.76 TB | 16 x 15.36 TB |
Modular Common Redundant Power Supply (M-CRPS)
– HPE 2400W M-CRPS Kit
– HPE 3200W M-CRPS Kit
Notes: Up to 96% efficiency.
HPE M-CRPS power supplies are certified for high-efficiency operation and offer multiple power output options, both
high-line and low-line, allowing users to "right-size" a power supply for specific server configurations. This flexibility
helps to reduce power waste, upgrade security firmware, lower overall energy costs, and avoid "trapped" power
capacity in the data center. HPE M-CRPS come in two different physical design options (73.5mm and 60mm width) that
allows for hot-plug, tool-less installation into HPE ProLiant Gen12 Performance Servers.
For DL380a Gen12 8DW/16SW Server (P76706-B21), power cords must be selected to match quantity of PSUs.
For DL380a Gen12 8DW Server (P74461-B21), the HPE C13-14 2m power cable (P67847-B21) comes with a 1500W supply.
The HPE C19-20 2m power cable (P67845-B21) comes with a 2400W supply. If a different power cord is required,
please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please use the HPE Power Advisor Tool.
For information on power specifications and technical content visit https://www.hpe.com/psnow/doc/4AA6-
6836ENW.
European Union ErP Lot 9 Regulation
Beginning on January 1st, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Switzerland, or
Turkey must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE M-CRPS
power supplies are single-output, and part numbers P67240-B21, P67244-B21, P67248-B21, and P67252-B21 are 96%
efficient, thus meeting requirements.
HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to
satisfy requests with the current power supplies by the set deadline.
Storage Controllers
NVMe Boot Devices
HPE NS204i-u v2 NVMe Hot Plug Boot Optimized Storage Device
Notes:
– Configured in front chassis slot
– Does not occupy PCIe slots on the DL380a Gen12 server
Hybrid RAID
– Intel® Hybrid RAID on CPU (Intel® VROC)
Notes:
– Supports up to 8 direct attach NVMe bays on the DL380a Gen12 server.
– Intel VROC NVMe is off by default and requires licensing, see options for details.
– RAID support – 0/1/5/10, depending on licensing options.
– Intel VROC for HPE ProLiant Gen12 is an enterprise, Hybrid RAID solution specifically designed for NVMe
SSDs connected directly to the CPU. Intel VROC is a solution utilizing Intel CPU to RAID or HBA direct
connected drives and supports both Intel® SFF SSDs and HPE SFF SSDs.
Tri-Mode Controller
– HPE MR416i-p Gen11 12G Controller
– HPE MR416i-o Gen11 12G Controller
| Interfaces | |
|---|---|
| Serial Port | Optional by connection of rear IX port with Serial Enablement Kit (P71432-B21) |
| VGA Port | 1 standard (rear) |
| Network Ports | Nonstandard. Choice of OCP networking card or stand-up networking card required. |
| HPE iLO Remote Management Network Port | 1 Gb dedicated (rear) |
| Front iLO Service Port | 1 standard (front) |
| USB 3.2 Gen1 Port | 4 (1 front, 2 rear, 1 internal) |
Operating Systems and Virtualization Software Support for HPE Servers
HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By
collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported
within your HPE server environment.
Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support &
Certification Matrices
HPE Server UEFI
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more
secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen12 servers
have a UEFI Class 3 implementation and support UEFI Mode only.
| Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For | |
|---|---|
| more information, please visit | http://www.hpe.com/servers/uefi. |
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as
– Secure Boot and Secure Start enable for enhanced security
– Embedded UEFI Shell
– Operating system specific functionality
– Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
– Support for > 2.2 TB (using GPT) boot drives
– PXE boot support for IPv6 networks
– USB 3.0 Stack
– Workload Profiles for simple performance optimization
UEFI Boot Mode only
– TPM 2.0 Support
– iSCSI Software Initiator Support.
– NVMe Boot Support
– HTTP/HTTPs Boot support as a PXE alternative.
– Platform Trust Technology (PTT) can be enabled.
– Boot support for option cards that only support a UEFI option ROM
Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to
support UEFI.
HPE Compute Ops Management
Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed
across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with
global visibility and intuitive management of server health, security and compliance status to help you easily identify
areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-
based firmware downloads and on-demand HPE iLO firmware updates.
HPE Compute Ops Management is cloud-native software that is continually updated with new services, features,
patches, and firmware packs. The management application resides in GreenLake cloud (access via
https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.
A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen12
rack, tower, or micro server.
For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops
Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw
For information on supported HPE servers, the complete list can be found here:
https://www.hpe.com/info/com-supported-servers
Industry Standard Compliance
– ACPI 6.5 Compliant
– Advanced Encryption Standard (AES)
– Active Directory v1.0
– ASHRAE A3/A4
Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature
support, please visit https://www.hpe.com/support/ASHRAEGen12
– DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
– ENERGY STAR®
– EU Lot9
Notes:
– Beginning on January 1st, 2024, units sold into the European Economic Area (EEA), the United Kingdom,
Switzerland, or Turkey must include more efficient AC power supplies: 94% for multi-output and 96%
for single-output. HPE M-CRPS power supplies are single-output, and part numbers P67240-B21,
P67244-B21, P67248-B21, and P67252-B21 are 96% efficient, thus meeting requirements.
– HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements
in advance to satisfy requests with the current power supplies by the set deadline.
– Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information
regarding HPE Lot 9 conformance.
– IPMI 2.0
– Microsoft® Logo certifications
– PCIe 3.0 Compliant
– PCIe 4.0 Compliant
– PCIe 5.0 Compliant
– PXE Support
– Redfish API
– Secure Digital 4.0
– SMBIOS 3.7
– SNMP v3
– TLS 1.3
– TPM 2.0 Support
– Triple Data Encryption Standard (3DES)
– UEFI (Unified Extensible Firmware Interface Forum) 2.10
– USB 2.0 Compliant
– USB 3.0 Compliant
– VGA Port
Embedded Management
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo.
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Learn more at http://www.hpe.com/servers/uefi.
Intelligent Provisioning
Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.
Learn more at http://www.hpe.com/servers/intelligentprovisioning
iLO RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as
configuration and maintenance tasks based on modern industry standards. Learn more at
http://www.hpe.com/info/restfulapi
Server Utilities
Active Health System
The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides
continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.
Active Health System Viewer
Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with
HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.
Smart Update
Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize
the firmware and driver updates of the Service Pack for ProLiant (SPP).
HPE iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and
mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.
RESTful Interface Tool
RESTful Interface tool (iLO REST) is a single scripting tool to provision using iLO RESTful API to discover and deploy
servers at scale. Learn more at http://www.hpe.com/info/resttool.
Scripting Tools
Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and
Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.
HPE OneView Standard
HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It
can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but
the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.
Security
Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your
infrastructure's security and performance. These servers come equipped with cutting-edge embedded security
features, ensuring robust protection for your critical data and applications. Key features include:
– HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for
monitoring, service alerting, reporting, and remote management.
– Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed
encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.
– Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for
media sanitization, ensuring the secure decommissioning of servers.
– Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST
SP 800-171, and NIST SP 800-88.
– HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and
highly secure operations.
– Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and
chassis intrusion detection switch.
– HPE Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for
organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect
and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle.
Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed
information at https://www.hpe.com/psnow/doc/a50009218enw
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of
Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Enhancements to warranty services are available through HPE Services operational services or customized
service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive
QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day
response. Warranty repairs may be accomplished using Customer Self Repair (CSR) parts. These parts fall into two
categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement
but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional
CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is
available at:
Optional Features
Server Management
HPE iLO Advanced
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The
license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user
collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also
activate the enhanced security and power management functionality.
HPE OneView Advanced
HPE OneView brings a new level of automation to infrastructure management by taking a template-driven approach to
provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured
licenses which can be purchased for managing multiple HPE servers.
To learn more visit http://www.hpe.com/info/oneview.
One Config Simple (OCS/SCE)
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in
3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering
processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact
Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.
https://h22174.www2.hpe.com/SimplifiedConfig/Welcome
Rack and Power Infrastructure
The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve
reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and
more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most
out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key
concerns of power, cooling, cable management and system access.
HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced
airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density
computing.
HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded
outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack
environments.
HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include
options for remote management and extended runtime modules so your critical dense data center is covered in power
outages.
HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve
got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and
security capabilities to keep your data center rack up and running.
Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise
you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our
experts can help you realize your digital ambitions.
Consulting Services
No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From
determining what workloads should live where, to handling governance and compliance, to managing costs, our
experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and
applications, delivered consistently and globally to give you unified control and let you focus on innovation.
HPE Managed Services | HPE
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up
valuable time and resources. Meet service-level targets and business objectives with features designed to drive better
business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment
and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an
assigned team of HPE Services experts. HPE Complete Care Service provides:
– A complete coverage approach
– An assigned HPE team
– Modular and fully personalized engagement
– Enhanced Incident Management experience with priority access
– Digitally enabled and AI driven customer experience
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond
traditional support by providing access to product specific experts, an AI driven digital experience, and general
technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service
delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE
Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour
response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and
Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1
incidents.
https://www.hpe.com/services/techcare
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the
product lifecycle. A few popular examples include:
– Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access
setup, installation and startup, and enhanced installation services with the operating system.
– HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE
products, taking into account the relevant revision dependencies within your IT environment.
– HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server,
storage, and solution products, taking into account the relevant revision dependencies within your IT
environment.
– Implementation assistance services: Highly trained technical service specialists to assist you with a variety of
activities, ranging from design, implementation, and platform deployment to consolidation, migration, project
management, and onsite technical forums.
– HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service
activities, including assessments, performance maintenance reviews, firmware management, professional
services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course
offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create
learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business
with flexible continuous learning options.
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible
SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and
service options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product
in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as
set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be
provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
– Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration
tools.
– Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data
driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management
capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful
troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support
agent.
https://support.hpe.com/hpesc/public/home/signin
GreenLake
GreenLake is the cloud to run and manage your entire hybrid landscape—private, public, and edge. It helps you to:
– Streamline IT Operations across compute, storage, and networking without the chaos
– Unify and secure data, as you move faster
– Accelerate AI, from pilot to production
The result: greater operational efficiency, lower TCO, and faster AI delivery—all from one unified, intelligent platform
built for today’s hybrid enterprise.
Configuration Information
Smart Templates from HPE
HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates
represent the CTO equivalents of the top-selling BTO configurations. They are intended to provide simple starting
points to assist you in easily creating and customizing your desired Server solutions. HPE Servers that have Platform
Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.
Workload Solutions Templates from HPE
The Workload Solutions Templates are built on the Smart Templates technology to easily develop working
configurations of the most compelling Workload Solutions. The templates complement the Reference Builds
developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it
easier for Sellers to get started and complete a differentiated server solution for your customer’s specific workload.
Mainstream SKUs
HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio
of our top selling options that meet the current and future market trends. HPE has committed to providing a more
predictable and faster experience for these options. Mainstream SKUs enjoy higher safety stock levels and have higher
fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream
orders, have fewer shortages and better recovery dates. This platform has Mainstream SKUs in the options portfolio
and is eligible for the improved Mainstream experience. Mainstream SKUs are designated with a Mainstream symbol in
our configurators.
Mainstream Configurations
HPE is using the new Smart Templates technology to present Mainstream configurations. All the options in a
Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability, and
fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid
configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator.
Contact your local sales representative for information on configurable product offerings and requirements.
– Factory Integrated Models must start with a CTO Server.
– FIO indicates that this option is only available as a factory installable option.
– All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial
hard drives ordered with the server.
– Some options may not be integrated at the factory. Contact your local sales representative for additional
information.
Step 1: Base Configuration
| CTO Server Models | HPE ProLiant Compute DL380a Gen12 8 Double Wide/16 Single-Wide Configure-to- | |
|---|---|---|
| | order Server | |
| SKU Number | P76706-B21 | |
| TAA SKU* | P76706-B21 | #GTA |
| Processor | Not included as standard | |
| DIMM Slots | 32 DIMM slots | |
| Storage Controller | Embedded Intel VROC NVMe RAID (requires licenses for non-Intel NVMe SSDs) | |
| Rear PCIe | Two standard and four optional | |
| Drive Cage | Defaulted to 4SFF Drive Cage | |
| Network Controller | Choice of OCP 3.0 or stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Choice of OCP 3.0 or stand-up network adapters Notes: No embedded networking | |
| | Notes: No embedded networking | |
| Fans | 4 hot-plug fan assemblies (Quantity: 4 92mm + Quantity: 8 40mm fans) | |
| Management (iLO 7) ROM ID: U72 | HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional) HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) | |
| | HPE iLO Standard with Intelligent Provisioning (embedded), | |
| | HPE OneView Standard (requires download), | |
| | HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView | |
| | Advanced (require licenses) | |
| USB | 4 USB 3.0 (1 front, 2 rear, 1 internal) plus iLO front service port | |
| Trusted Platform Module (TPM) | Embedded TPM | |
Notes:
– P74461-B21 ONLY is available with iLO6 and is NOT upgradable to iLO7.
– P74461-B21 does NOT support options listed below
| Not Supported Options | SKU - Description | |
|---|---|---|
| GPU | S6A73C - NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB PCIe Accelerator for HPE | |
| | | HPE |
| GPU Modes | | P75005-B21 - HPE DL380a Gen12 10DW FIO Config |
| | | P75011-B21 - HPE DL380a Gen12 8DW NIC FIO Config |
| Network Adapters | | P08458-B21 - INT E810 10/25GbE 4p SFP28 Adapter |
| | | P26253-B21 - BCM 57416 10GbE 2p BASE-T Adapter |
| | | P26259-B21 - BCM 57412 10GbE 2p SFP+ Adapter |
| | | P26264-B21 - BCM 57504 10/25GbE 4p SFP28 Adapter |
| | | P51178-B21 - BCM 5719 1Gb 4p BASE-T Adapter |
| | | P73111-B21 - BCM 57608 100GbE 2p QSFP112 Adapter |
| | | P10097-B21 - BCM 57416 10GbE 2p BASE-T OCP3 Adapter |
| | | P26256-B21 - BCM 57412 10GbE 2p SFP+ OCP3 Adapter |
| | | P26269-B21 - BCM 57504 10/25GbE 4p SFP28 OCP3 Adapter |
| | | P41614-B21 - INT E810 10/25GbE 4p SFP28 OCP3 Adapter |
| | | P51181-B21 - BCM 5719 1Gb 4p BASE-T OCP Adapter |
| | | P73114-B21 - BCM 57608 100GbE 2p QSFP112 OCP3 Adapter |
| Controller and battery | | P47777-B21 - HPE MR416i-p Gen11 SPDM Storage Controller |
| | | P47781-B21 - HPE MR416i-o Gen11 SPDM Storage Controller |
| | | P01367-B21 - HPE 96W Smart Storage Battery 260mm Cable |
| | | P02381-B21 - HPE Smart Hybrid Capacitor w/ 260mm Cable |
| FC HBA | | R2E08A - HPE SN1610Q 32Gb 1p FC HBA |
| | | R2E09A - HPE SN1610Q 32Gb 2p FC HBA |
| | | R7N86A - HPE SN1700Q 64Gb 1p FC HBA |
| | | R7N87A - HPE SN1700Q 64Gb 2p FC HBA |
| | | S4S01A - HPE SN1620E 2p FC SecureHBA |
| | | S4T09A - HPE SN1720E 2p FC SecureHBA |
– HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal
Government customers. These products are either manufactured or substantially transformed into a
designated country. TAA compliance is only provided when HPE options are included as part of factory
integrated orders (CTO).
– All CTO servers are ENERGY STAR® 3.0 compliant. After January 11, 2024, ENERGY STAR® 3.0 compliance is no
longer valid. ENERGY STAR® 4.0 certification will be valid upon publication.
| Step 2: Choose Processors Please select two processors from below. Intel® Xeon® 6700-Series Processors with E Core | |
|---|---|
| Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE | P71117-B21 |
| Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE | P71119-B21 |
| Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE | P71120-B21 |
| Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE | P71121-B21 |
| Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE | P71122-B21 |
| Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE | P71124-B21 |
| Intel® Xeon® 6500-Series Processors with P Core (HCC, LCC) | |
| Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE | P74504-B21 |
| Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE | P74506-B21 |
| Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE | P74507-B21 |
| Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE | P74568-B21 |
| Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE | P74570-B21 |
| Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE | P74571-B21 |
| Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE | P73829-B21 |
| Intel® Xeon® 6700-Series Processors with P Core (XCC) | |
| Intel Xeon 6714P 4.0GHz 8-core 165W Processor for HPE | P74508-B21 |
| Intel Xeon 6724P 3.6GHz 16-core 210W Processor for HPE | P74509-B21 |
| Intel Xeon 6728P 2.7GHz 24-core 210W Processor for HPE | P74572-B21 |
| Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE | P74573-B21 |
| Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE | P74576-B21 |
| Intel Xeon 6738P 2.9GHz 32-core 270W Processor for HPE | P74577-B21 |
| Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE | P74575-B21 |
| Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE | P73829-B21 |
| Intel Xeon 6732P 3.8GHz 32-core 350W Processor for HPE | P74578-B21 |
| Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE | P81591-B21 |
| Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE | P73831-B21 |
| Intel Xeon 6748P 2.5GHz 48-core 300W Processor for HPE | P74579-B21 |
| Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE | P73832-B21 |
| Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE | P73834-B21 |
| Intel Xeon 6768P 2.4GHz 64-core 330W Processor for HPE | P73835-B21 |
| Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE | P73837-B21 |
| Intel Xeon 6788P 2.0GHz 86-core 350W Processor for HPE | P73838-B21 |
| Intel Xeon 6776P 2.3GHz 64-core 350W Processor for HPE | P85241-B21 |
| Intel Xeon 6725P 3.7GHz 16-core 235W Processor for HPE | P87302-B21 |
| Notes: | |
– DL380a Gen12 only supports dual processor configurations, not single processor configurations.
– Mixing of 2 different processor models is NOT supported.
– DDR5 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type
of DIMMs installed.
– Intel® Xeon® 6500/6700-Series Processors with P Core not available on P74461-B21 server SKU.
| Step 3: Choose GPUs Please select the GPU from the options below. For memory population rule whitepaper and optimal memory performance guidelines, please go to: HPE Memory Population Rules | | | | | | | | | |
|---|---|---|---|---|---|---|---|---|---|
| Computational and Graphics Accelerators | | | | | | | | | |
| NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB PCIe Accelerator for HPE | | | | | | | | | S6A73C |
| NVIDIA RTX PRO 6000D 84GB PCIe Accelerator for HPE | | | | | | | | | S6W21C |
| NVIDIA H200 NVL 141GB PCIe Accelerator for HPE | | | | | | | | | S3U30C |
| NVIDIA L40S 48GB PCIe Accelerator | | | | | | | | | S2L70C |
| NVIDIA L20 48GB PCIe GPU Accelerator for HPE | | | | | | | | | S4A92C |
| NVIDIA L4 24GB PCIe Accelerator for HPE | | | | | | | | | S0K89C |
| NVIDIA 2-way NVLink Bridge for H200 NVL | | | | | | | | | S4A90C |
| NVIDIA 4-way NVLink Bridge for H200 NVL | | | | | | | | | S4A91C |
| HPE ProLiant Compute DL380a Gen12 GPU 16-pin FIO Cable Kit | | | | | | | | | P74700-B21 |
| HPE ProLiant DL380a Gen12 GPU 16-pin Cable Kit | | | | | | | | | P83526-B21 |
| Notes: | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 GPU Upgrade Kit | | | | | | | | | P81677-B21 |
| Notes: | | | | | | | | | |
| Step 4: Choose Memory Options Please select two or more memory kits from below. For new Gen12 memory population rule whitepaper and optimal memory performance guidelines, please go to: HPE Memory Population Rules Notes: – Note – The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs. – DIMMs quantity must be 4, 8, 16, or 32 when using Intel® Xeon® 6700-Series Processors with E Core. – DIMMs quantity must be 4, 8, 16, 24 or 32 when using Intel® Xeon® 6500/6700-Series Processors with P Core. – Rank mixing is not allowed. – 16GB DIMM is allowed in 4, 8, 16 quantities only and is not supported with Intel® Xeon® 6700-Series Processors with E Core. – 6400 MT/s memory SKUs offer a transfer rate of up to 6400 MT/s at 1 DIMM per channel and up to 5200 MT/s at 2 DIMMs per channel, depending on memory and CPU selection. The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model. – HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family. | | | | |
|---|---|---|---|---|
| Registered DIMMs (RDIMMs) | | | | |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | | | | P69726-B21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | | | | P69727-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | | | | P69728-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | | | | P69729-B21 |
| HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Ki | t | | | P69730-B21 |
| HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memor | | | P73447-B21 | P73447-B21 |
| Kit | | | | |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit | | | | P69726-F21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit | | | | P69727-F21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit | | | | P69728-F21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit | | | | P69729-F21 |
| HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Ki | | t | | P69730-F21 |
| HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart FIO | | | P73447-F21 | P73447-F21 |
| Memory Kit | | | | |
| Step 5: Choose Storage Options Please select one drive cage from below. Notes: DL380a Gen12 supports only NVMe SSDs – U.3 & E3.S | | | |
|---|---|---|---|
| Drive Cage | | | |
| HPE ProLiant Compute DL380a Gen12 4SFF FIO Drive Cage Kit | | | P74710-B21 |
| Notes: – Maximum quantity = 2 – Quantity 1 of 4SFF Cage is defaulted however customer is allowed to deselect and select 4EDSFF Cage. – If Quantity 1 of 4SFF Cage is selected, then Quantity 1 of HPE DL380a Gen12 4NVMe Direct Cable Kit must be selected. – If Quantity 2 of 4SFF Cage is selected, then Quantity 1 of HPE DL380a G12 8NVMe Rear Direct Cable Kit must be selected. – 4SFF Cage and HPE DL380a G12 4EDSFF Direct Cable for NVD cannot be selected together. – Mixing of Drive Cages is not allowed. | | | |
| HPE ProLiant Compute DL380a Gen12 4EDSFF FIO Drive Cage Kit | | P74712-B21 | |
| Notes: – Maximum quantity = 2 – If Quantity 1 of 4EDSFF Cage is selected, then Quantity 1 of HPE DL380a G12 4EDSFF Direct Cable for NVD (P74716-B21) or HPE DL380a Gen12 4EDSFF Cable Kit (P74704-B21) must be selected. – If Quantity 2 of 4EDSFF Cage is selected, then Quantity 1 of HPE DL380a G12 8NVMe Rear Direct Cable Kit or HPE DL380a Gen12 8NVMe/EDSFF Direct Attach 4 PCIe Kit must be selected. – Mixing of Drive Cages is not allowed. | | | |
| HPE Tri-Mode Controllers | | | |
| HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller | | P47777-B21 | |
| HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller | | P47781-B21 | |
| HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller | | P75697-B21 | |
| Notes: – Mixing controller models is not allowed. – Restricted to minimum and maximum Quantity 2 of controller. – If MR416i-p is selected, then Quantity 1 of P76700-B21 (HPE DL380a Gen12 NVMe/TM PCIe FIO Cable Kit) must be selected. – If MR416i-o is selected, then Quantity 1 of P76702-B21 (HPE DL380a Gen12 NVMe/TM OCP FIO Cable Kit) must be selected. – If Qty1 of MR932i-p is selected, then Qty1 of P80572-B21 (HPE DL380a Gen12 MR932 FIO Cbl Kit) and Qty1 of 4EDSFF Cage must be selected and defaulted. – If Qty2 of MR932i-p is selected, then Qty2 of P80572-B21 (HPE DL380a Gen12 MR932 FIO Cbl Kit) and Qty4 of 4EDSFF Cage must be selected and defaulted. – Quantity 2 of HPE DL380a Gen12 4SFF FIO Kit must be selected. – Cannot be selected if Quantity 1 of HPE DL380a Gen12 4SFF FIO Kit is selected. – 96W Smart Storage battery or Smart Hybrid Capacitor must be selected when controller is attached. | | | |
| HPE Energy Packs | | | | | | | | | |
|---|---|---|---|---|---|---|---|---|---|
| HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit | | | | | | | | | P01367-B21 |
| HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit | | | | | | | | P02381-B21 | |
| HPE 16W Smart Hybrid Capacitor with 260mm Cable | | | | | | | | P65042-B21 | |
| Notes: Can only be selected if MR416i-p/ MR416i-o controllers are selected. | | | | | | | | | |
| HPE Boot Controller | | | | | | | | | |
| HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device | | | | | | | | P81160-B21 | |
| HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device | | | | | | | | P81162-B21 | |
| HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device | | | | | | | | P78279-B21 | |
| HPE DL380a Gen12 NS204i-u Front Cage Kit | | | | | | | | P75284-B21 | |
| Notes: If NS204i-u v2 boot device is added, Front Cage Kit must be selected. | | | | | | | | | |
| Hybrid RAID Controllers | | | | | | | | | |
| Intel Virtual RAID on CPU Premium FIO Software for HPE | | | | | | | | R7J57A | |
| HPE DL380a Gen12 Storage Cables | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 4NVMe Direct Attach Cable Kit | | | | | | | P74702-B21 | | |
| Notes: – Requires Selection of 4SFF Drive Cage. – If Quantity 1 of 4SFF Cage is selected, then Quantity 1 of HPE DL380a Gen12 4NVMe Direct Cable Kit must be selected. – If 4NVMe Direct Attach Cable is selected, then max quantity of HPE DL380a Gen12 OCPA Cable Kit is limited to 1. – If 4NVMe Direct Attach Cable is selected, then HPE DL380a Gen12 OCPB Cable Kit cannot be selected. | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 4EDSFF Direct Attach Cable Kit | | | | | | | P74704-B21 | | |
| Notes: – Requires Selection of 4EDSFF Drive Cage. – Can not be selected with HPE DL380a Gen12 PCIe Rear FIO Kit (P74690-B21). | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 8NVMe Front Direct Attach Cable Kit | | | | | | | P74706-B21 | | |
| Notes: – Can only be selected with HPE DL380a Gen12 8DW/16SW CTO Server (P76706-B21). – Can only be selected with 2DW or 8SW GPU configurations only. – Can only be selected if a quantity of 2 4SFF Drive Cage is selected. – Cannot be selected if quantity 2 of DL380a Gen12 SWBD FIO Enable Kit (P74714-B21) is selected. | | | | | | | | | |
| | Can only be selected with HPE DL380a Gen12 8DW/16SW CTO Server (P76706-B21). | | | | | | | | |
| | Can only be selected with 2DW or 8SW GPU configurations only. | | | | | | | | |
| | Can only be selected if a quantity of 2 4SFF Drive Cage is selected. | | | | | | | | |
| | Cannot be selected if quantity 2 of DL380a Gen12 SWBD FIO Enable Kit (P74714-B21) | | | | | | | | |
| | is selected. | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 8NVMe Rear Direct Attach Cable Kit | | | | | | | P74708-B21 | | |
| Notes: – Allows for 8NVMe selection but limits configuration to 2 rear PCIe slots and 2OCP slots. – If Quantity 2 of 4SFF Cage is selected, then Quantity 1 of HPE DL380a G12 8NVMe Rear DA Cable Kit must be selected. | | | | | | | | | |
| – If 8NVMe Direct Attach Cable is selected, then HPE DL380a Gen12 PCIe Rear FIO Cable Kit cannot be selected and vice-versa (configuration limited to max 2 rear PCIe slots). – Cannot be selected if HPE DL380a G12 4EDSFF Direct Cable for NVD is selected. | | | | | | | | | |
|---|---|---|---|---|---|---|---|---|---|
| HPE ProLiant Compute DL380a Gen12 8NVMe/EDSFF Direct Attach 4 PCIe Cable Ki | | | | | | t | | | P78956-B21 |
| Notes: | | | | | | | | | |
| – – – – | If Quantity 2 of 4EDSFF Cage is selected, then Quantity 1 of HPE DL380a G12 | | | | | | | | |
| | 8NVMe/EDSFF DA 4 PCIe Kit must be selected. | | | | | | | | |
| | Cannot be selected if HPE DL380a G12 4EDSFF Direct Cable for NVD is selected. | | | | | | | | |
| | If HPE DL380a G12 8NVMe/EDSFF DA 4 PCIe Kit is selected, then HPE DL380a Gen12 | | | | | | | | |
| | OCPA Cable Kit and HPE DL380a Gen12 OCPB Cable Kit cannot be selected and | | | | | | | | |
| | vice versa. | | | | | | | | |
| | If HPE DL380a G12 8NVMe/EDSFF DA 4 PCIe Kit is selected, then no other OCP card | | | | | | | | |
| | can be selected. | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 4EDSFF Direct Attach Cable for NVIDIA | | | | | | | | | P74716-B21 |
| Notes: | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 NVMe to Tri-Mode PCIe FIO Cable Kit | | | | | | | | | P76700-B21 |
| HPE ProLiant Compute DL380a Gen12 NVMe to Tri-Mode OCP FIO Cable Kit | | | | | | | | | P76702-B21 |
| Notes: – Can only be selected with HPE DL380a Gen12 8DW/16SW CTO Server (P76706- B21). – P76700-B21 can be selected only if MR416i-p controller is selected. – P76702-B21 can be selected only if MR416i-o controller is selected. | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 MR932i-p FIO Cable Kit | | | | | | | P80572-B21 | | |
| Notes: – Can only be selected with HPE DL380a Gen12 8DW/16SW CTO Server (P76706-B21). – P80572-B21 can be selected only if MR932i-p controller is selected. | | | | | | | | | |
| HPE ProLiant Compute DL380a Gen12 16EDSFF x2 Direct Attach Cable Kit | | | | | | | P79347-B21 | | |
| Notes: – Quantity 4 of 4EDSFF Drive Cage must be selected. – Cannot be selected with HPE DL380a Gen12 PCIe Rear FIO Kit (P74690-B21). – Cannot be selected with HPE DL380a Gen12 PCIe Rear FIO Cable Kit. | | | | | | | | | |
| Step 6: Choose Power Supplies | | |
|---|---|---|
| HPE M-CRPS | | |
| HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit | | P67252-B21 |
| HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit | | P67248-B21 |
| Notes: – Mixing of power supplies is not allowed. – 2400W or 3200W supplies required for H100/H200 NVL GPUs. – Quantity 5 (2 for system board components and 3 for GPUs) power supplies required for 2 or 4DW GPU configurations. – Quantity of 8 power supplies required for 8 or 10 DW GPU configurations. – For HPE DL380a Gen12 8DW CTO Server (P74461-B21), if more than Quantity5 of Power Supply is selected, then Quantity 1 of PDB Kit must be selected. PDB selection not required on HPE DL380a Gen12 8DW/16SW CTO Server (P76706-B21). – 2400W and 3200W supplies support C19/ C19-C20 Power Cords only. – Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: https://poweradvisorext.it.hpe.com/. | | |
Core Options
| Step 7: Choose additional options for Factory Integration from Core and Additional Options | | |
|---|---|---|
| Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard | | |
| Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional | | |
| information. | | |
| Software as a Service Management | | |
| HPE Compute Ops Management | | |
| Base SKU | | |
| HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS | | R7A11AAE |
| Upgrade SKUS | | |
| HPE Compute Ops Management Standard 1-year Upfront ProLiant SaaS | | R7A10AAE |
| HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS | | R7A12AAE |
| HPE Compute Ops Management Advanced Flex with ProLiant Enablement | | S6C28AAE |
| For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw Supported Servers – CTO only. No OEM. – Complete list can be found here: Latest Supported Server List: https://www.hpe.com/info/com-supported-servers | | |
| | | |
| HPE Cooling Options | | | | | | |
|---|---|---|---|---|---|---|
| HPE ProLiant Compute DL380a Gen12 Front Chassis Fan Module Kit | | | | | | P79656-B21 |
| HPE ProLiant Compute DL380a Gen12 Front Panel Kit | | | | | | P79660-B21 |
| HPE ProLiant Compute DL380a Gen12 Upgrade Chassis Fan Module | | | | | | P80098-B21 |
| HPE ProLiant Compute DL380a Gen12 Front I/O Chassis 3x Fan Panel Kit | | | | | | P85517-B21 |
| HPE ProLiant Compute DL380a Gen12 Front I/O Chassis 3x Fan Module Kit | | | | | | P84311-B21 |
| Notes: For HPE DL380a Gen12 8DW CTO Server (P74461-B21) only. Fan upgrade recommended to effectively cool higher temperature 600W GPUs. Utilizes 110W fans to replace your installed 90W fans. | | | | | | |
| HPE ProLiant DL3XX Gen11 Direct Liquid Cooling 55cm Quick Disconnect Tube Set FIO Kit | | | | | | P62042-B21 |
| HPE ProLiant Compute DL380a Gen12 CPU Direct Liquid Cooling FIO Kit | | | | | | P82520-B21 |
| Notes: – Contains two cold plate modules and one quick disconnect module. – If selected, then Quantity 1 of 55cm Tube Kit (P62042-B21) must be selected. – If selected, then neither the 10DW FIO Config nor the Front Cage Fan Kit can be selected. – Occupies PCIe Slot 1 in rear chassis, thus restricting any PCIe card in Slot 1. | | | | | | |
| HPE I/O Expansion Options | | | | | | |
|---|---|---|---|---|---|---|
| Notes: The Primary Riser with PCIe slot 3 and the Secondary Riser with PCIe slot 6 are included in the server by default. | | | | | | |
| HPE ProLiant Compute DL380a Gen12 2DW Captive Riser FIO Kit | | | | | | P74685-B21 |
| Notes: | | | | | | |
| HPE ProLiant Compute DL380a Gen12 10 Double Wide Captive FIO Riser Kit | | | | | | P76929-B21 |
| Notes: | | | | | | |
| HPE ProLiant Compute DL380a Gen12 Rear PCIe 5-slot Cable Kit | | | | | | P74722-B21 |
| Notes: | | | | | | |
| HPE ProLiant Compute DL380a Gen12 PCIe Rear FIO Kit | | | | | | P74690-B21 |
| Notes: | | | | | | |
| HPE ProLiant Compute DL380a Gen12 Switchboard FIO Enablement Kit | | | | | | P74714-B21 |
| Notes: | | | | | | |
| – Maximum quantity = 2. Supports graphic options only. – HPE DL380a Gen12 2DW Cptv FIO Kit and HPE DL380a Gen12 SWBD FIO Enable Kit cannot be selected together. – Requires selection of HPE DL380a Gen12 8DW/16SW FIO Config. – If Quantity8 or 10 DW GPU is selected, then Quantity 2 of HPE DL380a Gen12 SWBD FIO Enable Kit must be selected. | | | | | | |
| HPE ProLiant Compute DL380a Front NIC FIO Enablement Kit | | | | | | P76927-B21 |
| Notes: | | | | | | |
| – Allows for Quantity: 4 front PCIe networking/InfiniBand cards only. Limits selection to 1 rear PCIe slot. – Does not occupy slots used by 8 Double Wide GPU configuration. – Must be selected with HPE DL380a Gen12 8DW NIC FIO Config (P75011-B21). | | | | | | |
| HPE ProLiant Compute DL380a Rear PCIe Slot1/4 FIO Cable Kit | | | | | | P76698-B21 |
| Notes: | | | | | | |
| – Enables rear PCIe Slot1 and Slot4. – Requires selection of HPE DL380a Gen12 PCIe Rear FIO Kit (P74690-B21). – Can be selected with 2 Double Wide or 8 Single Wide GPU configurations only. | | | | | | |
| OCP 3.0 Enablement | | |
|---|---|---|
| HPE ProLiant Compute DL380a Gen12 OCPA Cable Kit | | P74694-B21 |
| Notes: | | |
| HPE ProLiant Compute DL380a Gen12 OCPB Cable Kit | | P74696-B21 |
| Notes: | | |
| HPE Solid State Drives | | |
| | | |
| Mixed Use– NVMe – EDSFF – Solid State Drives | |
|---|---|
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70672-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD | P61191-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD | P78784-B21 |
| HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77262-B21 |
| HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77265-B21 |
| HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77267-B21 |
| HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD | P69245-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD | P78787-B21 |
| Read Intensive – NVMe – EDSFF – Solid State Drives | | |
|---|---|---|
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD | | P57799-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD | | P57807-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | | P61179-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | | P61183-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | | P61187-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | | P70674-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | | P79122-B21 |
| HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD | | P79965-B21 |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | | P77269-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | | P77271-B21 |
| HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | | P77275-B21 |
| HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD | | P79620-B21 |
| HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD | | P79623-B21 |
| Notes: | EDSFF drives can be selected with 4EDSFF Drive Cage only. | |
| Read Intensive - NVMe - SFF - Solid State Drives | | |
| HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD | | P63841-B21 |
| HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD | | P50224-B21 |
| HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD | | P70436-B21 |
| HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD | | P78810-B21 |
| HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD | | P84242-B21 |
| HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD | | P70434-B21 |
| HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD | | P63837-B21 |
| HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD | | P50222-B21 |
| HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD | | P78808-B21 |
| HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD | | P84244-B21 |
| HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD | | P63833-B21 |
| HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD | | P78806-B21 |
| HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD | | P50216-B21 |
| Mixed Use - NVMe - SFF - Solid State Drives | | |
| HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD | | P63853-B21 |
| HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD | | P70428-B21 |
| HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD | | P78804-B21 |
| HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD | | P63849-B21 |
| HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD | | P70426-B21 |
| HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD | | P78801-B21 |
| HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD | | P63845-B21 |
| HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD | | P50227-B21 |
| Self-Encrypting - NVMe - SFF – FIPS Solid State Drives | | | | |
|---|---|---|---|---|
| HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD | | | P61043-B21 | |
| HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD | | | P61019-B21 | |
| HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD | | | P61051-B21 | |
| HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD | | | P61027-B21 | |
| HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD | | | P61059-B21 | |
| HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD | | | P61035-B21 | |
| Notes: | SFF drives can be selected with 4SFF Drive Cage only. | | | |
| HPE Networking The DL380a Gen12 CTO server does not come with embedded networking, hence the requirement to configure with either a PCIe or OCP networking adapter. | | | | |
| DPU | | | | |
| HPE Data Processing Unit InfiniBand NDR200/Ethernet 200Gb 2-port QSFP112 FHHL B3220 Adapter | | | | P66386-H21 |
| HPE Data Processing Unit InfiniBand NDR/Ethernet 400Gb 1-port QSFP112 HHHL B3140H Adapter | | | | P66387-B21 |
| Notes: | | | | |
| PCIe Network adapters | | | | |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | | P26262-B21 | | |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | | P26264-B21 | | |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE | | P51178-B21 | | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE | | | | P26253-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | | | | P26259-B21 |
| Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE | | P73111-B21 | | |
| Intel E610-IT4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | | P79833-B21 | | |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | | P08443-B21 | | |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | | P08458-B21 | | |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | | P21112-B21 | | |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | | P42044-B21 | | |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE | | P25960-B21 | | |
| OCP 3.0 Network Adapters | | | | |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | | P10115-B21 | | |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | | P26269-B21 | | |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | | P51181-B21 | | |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | | P26256-B21 | | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | | P10097-B21 | | |
| Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE | | P73114-B21 | | |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | | P10106-B21 | | |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | | P41614-B21 | | |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | | P22767-B21 | | |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | | P42041-B21 | | |
| Notes: – OCP Adapters do not consume PCIe slots. – If Quantity 1 of this option is selected, then Quantity 1 of HPE DL380a Gen12 OCPB Cable Kit OR Quantity 2 of HPE DL380a Gen12 OCPA Cable Kit must be selected. – If Quantity 2 of this option is selected, then Quantity 1 of Quantity 1 of HPE DL380a Gen12 OCPB Cable Kit AND Quantity 2 of HPE DL380a Gen12 OCPA Cable Kit must be selected. – Cannot be selected if 4NVMe Direct attach cable is selected. | | | | |
| | | | | |
| | | | | |
| | | | | |
| HPE InfiniBand | |
|---|---|
| HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter | P45642-H23 |
| HPE InfiniBand NDR/Ethernet 400Gb 1-port QSFP112 PCIe5 x16 MCX715105AS-WEAT Adapter | S5R60A |
| HPE Omni-Path | |
| HPE InfiniBand XDR/Ethernet 2x400GbE 1-port OSFP PCIe6 x16 HHHL CX8 Crypto Adapter | P79114-H21 |
| HPE InfiniBand XDR400/Ethernet 400GbE 2-port QSFP112 PCIe6 x16 HHHL CX8 Crypto Adapter | P79115-H21 |
| HPE InfiniBand XDR PCIe Gen6 x16 Multi Host/Socket Direct Auxiliary Card with 250mm MCIO Cable Kit | P81264-H21 |
| HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter | 829335-B21 |
Additional Options
– Refer to the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their
specifications.
– Refer to the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and
their specifications. Refer to the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on
these products and their specifications.
HPE Uninterruptible Power Systems (UPS)
– To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.
– Refer to the HPE Direct Flow Three Phase Uninterruptible Power System QuickSpecs for information on these
products and their specifications.
– Refer to the HPE Line Interactive Single-Phase UPS QuickSpecs for information on these products and their
specifications.
| Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information. | |
|---|---|
| HPE Storage Options | |
| Emulex Fibre Channel HBAs | |
| HPE SN1620E 32Gb 2p FC SecureHBA | S4S01A |
| HPE SN1720E 64Gb 2p FC SecureHBA | S4T09A |
| QLogic Fibre Channel HBAs | |
| HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter | R2E08A |
| HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter | R2E09A |
| HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter | R7N86A |
| HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter | R7N87A |
| Notes: Can only be selected with HPE DL380a Gen12 8DW/16SW CTO Server (P76706-B21). | |
| HPE iLO Common Password FIO Setting | |
| HPE iLO Common Password FIO Setting | P08040-B21 |
| Notes: – Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process. – Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services | |
| HPE iLO Advanced | |
| HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features | E6U59ABE |
| HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features | 512485-B21 |
| HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features | 512487-B21 |
| HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features | E6U64ABE |
| HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features | BD505A |
| HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features | BD507A |
| HPE Converged Infrastructure Management Software | |
| HPE OneView Advanced (with HPE iLO Advanced) | |
| HPE OneView including 3yr 24x7 Support Track 1-server LTU | E5Y36A |
| HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU | E5Y43A |
| HPE OneView for ProLiant DL Server including 3yr 24x7 Support Bundle Track 1-server LTU | E5Y44A |
| HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU | E5Y35AAE |
| | |
| | |
| | |
| | |
| HPE OneView Advanced (without HPE iLO Advanced) | | | |
|---|---|---|---|
| HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU | | | P8B31A |
| HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU | | | P8B25A |
| HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU | | | P8B26AAE |
| Notes: Licenses ship without media. The HPE OneView Media Kit can be ordered separately or can be downloaded. | | | |
| HPE Security | | | |
| HPE ProLiant Compute DL380a Gen12 4U Bezel Kit | | | P74911-B21 |
| HPE ProLiant DL385 Gen11 Intrusion Cable Kit | | | P55713-B21 |
| Notes: This provides a physical connection from the chassis board and hood and detects any physical intrusion into the chassis, providing security during the entire supply chain process of shipping, receiving, distribution, and operation. | | | |
| HPE Cable Options | | | |
| HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit | | | P71432-B21 |
| HPE Racks | | | |
| – – | Refer to the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack | | |
| | specifications. | | |
| | Refer to the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack | | |
| | specifications. | | |
| HPE Power Distribution Units (PDUs) | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
HPE Rack Options
Refer to the HPE KVM Switches web page for information on these products and their specifications.
HPE Rail Kits
Ball bearing rail kits contain telescoping rails which allow for in-rack serviceability.
To assist in the installation of the server into the rack an optional installation tool is available by contacting your local
services representative.
Notes:
– Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server
installations. Please refer to your installation instructions for proper tools and number of people to use for any
installation.
– HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event
a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own
risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically
disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has
no obligation and assumes no liability for the materials, design, specifications, installation, safety, and
compatibility of any such third-party racks with any rail kits, including HPE rail kits.
| HPE ProLiant Compute DL380a Gen12 Ball Bearing Rail Kit | | | | | | P69770-B21 |
|---|---|---|---|---|---|---|
| Notes: | This rail kit does not include the cable management arm (P28726-B21). | | | | | |
| HPE Apollo 4200 Gen10 Plus Cable Management Arm | | | | | | P28726-B21 |
| HPE Support Services | | | | | | |
| Installation & Start-up Services | | | | | | |
| HPE ProLiant DL/ML Install Service | | | | | U4554E | |
| HPE ProLiant DL/ML Startup Service | | | | | U4555E | |
| Tech Care | | | | Flex SKU | Fixed SKU | |
| HPE 3 Year Tech Care Essential DL380a Gen12 HW Service | | | | HU4A6A30C4W | H47TXE | |
| HPE 3 Year Tech Care Essential wDMR DL380a Gen12 HW Service | | | | HU4A7A30C4W | H47TYE | |
| HPE 5 Year Tech Care Essential DL380a Gen12 HW Service | | | | HU4A6A50C4W | H47WCE | |
| HPE 5 Year Tech Care Essential wDMR DL380a Gen12 HW Service | | | | HU4A7A50C4W | H47WDE | |
| Notes: For a full listing of support services available for this server, please visit | | | | | | |
| http://www.hpe.com/services. | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Memory
Memory Population guidelines
![[IMAGE4]](https://assets.ext.hpe.com/is/image/hpedam/a00047453enw_block8img?$crimg$ "[IMAGE4]")
HPE ProLiant Compute DL380a Gen12
General Memory Population Rules and Guidelines:
– At least one DDR5 DIMM per socket is required. Only DDR5 DIMMs are allowed.
– To maximize performance, it is recommended to balance the total memory capacity between all installed
processors.
– All DIMMs in a channel in across of Processor socket must have the same number of ranks (unless explicitly
specified otherwise.
– A maximum of 8 logical ranks (ranks seen by the host) per channel is allowed.
– x8 DIMMs and x4 DIMMS cannot be mixed in the same channel or same processor socket
– Mixing of RDIMM types is not supported.
– All DDR5 DIMMs must be running the same speed per processor socket.
– The maximum memory speed is a function of the memory type, memory configuration, and processor model.
– The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM
capacity qualified on the platform, and the number and model of installed processors qualified on the platform.
– For details on the HPE Server Memory Options Population Rules, visit:
https://www.hpe.com/docs/server-memory
– For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs.
Technical Specifications
System Unit
Dimensions (Height x Width x Depth)
– Server
17.47 x 44.78 x 80.26 cm
6.88 x 17.63 x 31.60 in
– Package
57 x 62.5 x 110 cm
22.44 x 24.61 x 43.31 in
Weight (approximate)
– Server
Minimum: 37.5 kg (82.7 lbs.) 1
Maximum: 62.5 kg (137.79 lbs.)2
– With Package:
67.36 kg (148.51 lbs.) 3
Notes:
– 1 CTO chassis with 1x drive cage, 4x double-wide GPUs, 2x processors and heatsinks, 24x DIMMs, 8x SSDs, 4x
power supplies, 2x Risers, 4x PCIe cards, 2x OCP cards.
– 2 Max weight when front fan assembly is installed for 10DW configurations.
– 3 Server plus rail kit, CMA, power cords.
Input Requirements (per power supply)
Rated Line Voltage
– 200-240 VAC
BTU Rating
Maximum
– For 1500W Power Supply: 5560 BTU/hr. (at 200 VAC), 5539 BTU/hr. (at 220 VAC), 5531 BTU/hr. (at 240 VAC)
– For 2400W Power Supply: 8572 BTU/hr. (at 200 VAC), 8540 BTU/hr. (at 220 VAC), 8539 BTU/hr. (at 240 VAC)
– For 3200W Power Supply: 10577 BTU/hr. (at 200 VAC), 11713 BTU/hr. (at 220 VAC), 11699 BTU/hr. (at 240 VAC)
Relative Humidity (non-condensing)
– Operating
8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
– Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
System Inlet Temperature
– Standard Operating Temperature
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.)
above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. Maximum rate of change is
20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options
installed.
System performance during standard operating support may be reduced if operating with a fan fault or above
30°C (86°F).
– Extended Ambient Operating Temperature
For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to
50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per
every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware
configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen12
For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to
113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953
ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the
URL:
https://www.hpe.com/support/ASHRAEGen12
System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
– Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.).
Altitude
– Operating
3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable
altitude change rate is 457 m/min (1500 ft./min).
– Non-operating
9 144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).
Emissions Classification (EMC) – Regulatory Information
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage,
Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:
h ttp://www.hpe.com/support/Safety-Compliance-EnterpriseProducts
Environment-friendly Products and Approach End-of-life Management and
Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic
areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type
for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard
Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett
P ackard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 06-Apr-2026 | Version 15 | Changed | Standard Features and Configuration Information sections were updated. |
| | | Added | Memory F21 rules. RDIMMs, HPE Solid State Drives (Mixed Use– NVMe – EDSFF – Solid State Drives. Read Intensive – NVMe – EDSFF – Solid State Drives, Read Intensive - NVMe - SFF - Solid State Drives, and Mixed Use - NVMe - SFF - Solid State Drives) SKUs. |
| | | Removed | HPE M-CRPS obsolete SKU. |
| 02-Mar-2026 | Version 14 | Changed | Service and Support, Configuration Information and Core Options sections were updated. |
| | | Added | Intel® Xeon® 6700-Series Processors with P Core (XCC) and Computational and Graphics Accelerators SKUs. Updated GreenLake statement. |
| | | Removed | HPE InfiniBand obsolete SKUs. |
| 02-Feb-2026 | Version 13 | Changed | Core Options section was updated |
| | | Added | HPE InfiniBand SKU. |
| | | Removed | HPE InfiniBand obsolete SKUs. |
| 05-Jan-2026 | Version 12 | Changed | Configuration Information and Core Options sections were updated. |
| | | Added | Intel® Xeon® 6700-Series Processors with P Core (XCC), HPE Cooling Options, and HPE InfiniBand SKUs. |
| | | Removed | Read Intensive – NVMe – EDSFF – Solid State Drives |
| 03-Nov-2025 | Version 11 | Changed | Configuration Information section was updated. |
| | | Added | GPU Table |
| 02-Sep-2025 | Version 10 | Changed | Standard Features and Configuration Information sections were updated. |
| | | Added | HPE Boot Controller, HPE ProLiant Compute DL380a Gen12 GPU 16-pin FIO Cable Kit, HPE DL380a Gen12 Storage Cables, Mixed Use– NVMe – EDSFF – Solid State Drives, Read Intensive - NVMe - SFF - Solid State Drives and HPE InfiniBand SKUs. |
| 04-Aug-2025 | Version 9 | Changed | Configuration Information section was updated. |
| | | Added | EU Lot9 rules were added. NVIDIA accelerator was added. |
| | | Removed | HPE Insight sub-section. |
| 07-Jul-2025 | Version 8 | Changed | Configuration Information section was updated. Added: NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB PCIe Accelerator for HPE SKU S6A73C |
| 02-Jun-2025 | Version 7 | Changed | Standard Features and Additional Options sections were updated. Added: Intel® Xeon® 6 Processor Family SKUs and rules, HPE Cooling Options and HPE I/O Expansion Options. |
| 05-May-2025 | Version 6 | Changed | Standard Features and Additional Options sections were updated. Added: Software as a Service Management Enablement SKU (COM), European Union ErP Lot 9 Regulation section to include Turkey and Ireland and Embedded Security sub-section. |
| 03-Mar-2025 | Version 5 | Changed | Overview, Standard Features, Core Options, Additional Options and Technical Specifications sections were updated. |
| 03-Feb-2025 | Version 4 | Changed | Standard Features, Configuration Information, Core Options, |
| 06-Jan-2025 | Version 3 | Changed | Standard Features, Optional Features and Core Options sections were updated. |
| 02-Dec-2024 | Version 2 | Changed | Configuration Information section was updated (Graphics Accelerators). |
| 04-Nov-2024 | Version 1 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a00047453enw
