HPE Alletra Storage Server 4210 QuickSpecs
Are you looking for a balanced storage server among exceptional performance, data capacity, and thermal optimization to your AI-driven workloads?
The HPE Alletra Storage Server 4210 is specifically designed to run your most performance-demanding data storage-intensive workloads. Comes with configuration flexibility to optimize the thermal efficiency to power your data-driven initiatives to success.
-
The HPE Alletra Storage Server 4210 is specifically designed to run your most performance-demanding data storage-intensive workloads with configuration flexibility to optimize the thermal efficiency to power your data-driven initiatives to success. From data stores for real-time data analytics to distributed and NoSQL databases, performance sensitive Software-Defined Storage, and data-heavyhyperconverged infrastructure, it delivers the capabilities you need at ideal economics with trusted security and a cloud operating experience. This includes the option to consume as-a-service via HPE GreenLake enabling you to shift from owning and maintaining to simply utilizing it. HPE Alletra Storage Server 4000 systems provide the data infrastructure for any successful data driven organization.
What’s New
- − HPE NS204i-u v2 960 GB NVMe Hot Plug Boot Optimized Storage Device
- − HPE NS204i-u v2 960 GB NVMe SED Hot Plug Boot Optimized Storage Device
Platform Information
Form Factor
- − 1U rack
Chassis Types

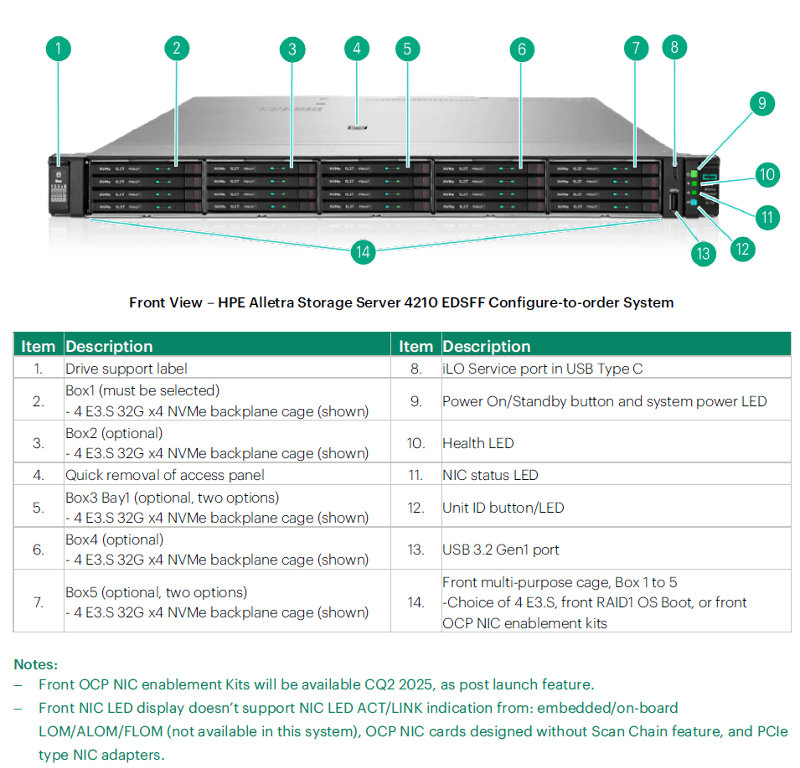

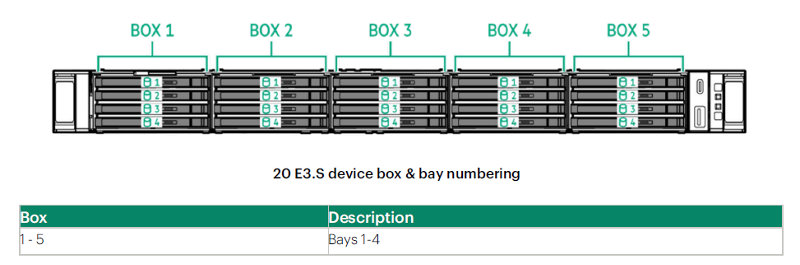

- − 20E3.S drive cage: 32G x4 NVMe
System Fans
- − Choice of Standard Fan Kit, Performance Fan Kits, and Closed-loop Liquid Cooling Heatsink Fan FIO Bundle Kit
Notes:
− Optional 2P standard Fan Kit: Dual rotor hot plug 2P Standard Fan Kit (includes 2 fans) for second processor.
− Performance Fan Kit: Dual rotor hot plug High Performance Fan Kit available (includes 7 fans), for one or two processors from 186 W to 270 W TDP. Or one processor with 300 W TDP.
− The Alletra Storage Server 4210 will support up to 7 fans with fan redundancy built in. One fan rotor failure will place the server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown.
− Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit supports one or two processors that go beyond 271 W TDP, as factory installation kit only. Customer self-repair or self-field upgrade is not allowed.
− Direct Liquid Cooling Heatsink Fan FIO Bundle Kit supports two processors that go beyond 271 W TDP, with enhanced thermal condition.
Notes:
− *CPU Series do not support on HPE Alletra Storage Server 42XX platforms.
− All information provided here is subject to change without notice. Intel may make changes to specifications and product descriptions at any time, without notice. Please contact your Intel representative to obtain the latest Intel product specifications and roadmaps.

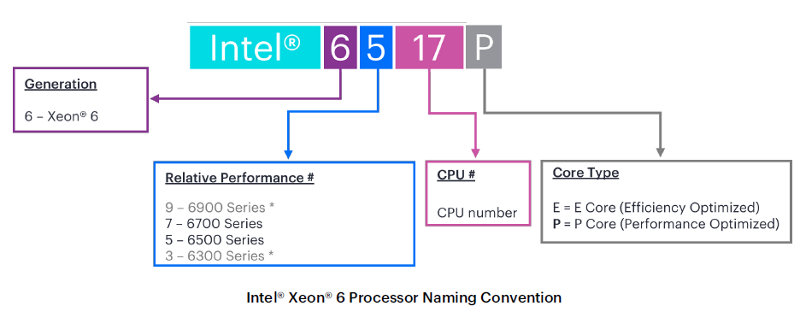

− For more information regarding Intel® Xeon® 6 processors, please see the following http://www.intel.com/xeon .
The HPE Alletra Storage Server 4210 supports Intel® Xeon 6® Processors
- − 2 of the following, depending on model.
- − Efficient Core (E-Core) and Performance-Core (P-Core) processors.
- − Public support SKUs as below.
| Intel® Xeon 6® Processors with Efficient-Cores (E-Cores) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Performance per Watt Processors | ||||||||
| Intel® Xeon® Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI | DDR5 (MT/s) | SGX Enclave size (GB) | Die |
| 6710E | 2.4 | 64 | 96 | 205 | 4 | 5600 | 512 | HDCC |
| 6731E | 2.2 | 96 | 96 | 250 | 0 | 5600 | 512 | HDCC |
| 6740E | 2.4 | 96 | 96 | 250 | 4 | 6400 | 512 | HDCC |
| 6746E | 2.0 | 112 | 96 | 250 | 4 | 5600 | 512 | HDCC |
| 6756E | 1.8 | 128 | 96 | 225 | 4 | 6400 | 512 | HDCC |
| 6766E | 1.9 | 144 | 108 | 250 | 4 | 6400 | 512 | HDCC |
| Performance Processors | ||||||||
| 6780E | 2.2 | 144 | 108 | 330 | 4 | 6400 | 512 | HDCC |
| Intel® Xeon 6® Processors with Performance-Cores (P-Cores) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Performance General Purpose Processors | ||||||||
| Intel® Xeon® Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI | DDR5 (MT/s)* | SGX Enclave size (GB) | Die |
| 6507P | 3.5 | 8 | 48 | 150 | 4 | 6400 | 512 | LCC |
| 6517P | 3.2 | 16 | 72 | 190 | 4 | 6400 | 512 | LCC |
| 6527P | 3.0 | 24 | 144 | 255 | 4 | 6400 | 512 | HCC |
| Intel® Xeon® Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI | DDR5 (MT/s)* | SGX Enclave size (GB) | Die |
| 6730P | 2.5 | 32 | 288 | 250 | 4 | 6400 | 512 | XCC |
| 6736P | 2.0 | 36 | 144 | 205 | 4 | 6400 | 512 | HCC |
| 6737P | 2.9 | 32 | 144 | 270 | 4 | 6400 | 512 | HCC |
| 6747P | 2.7 | 48 | 288 | 330 | 4 | 6400 | 512 | XCC |
| 6767P | 2.4 | 64 | 336 | 350 | 4 | 6400 | 512 | XCC |
| 6787P | 2.0 | 86 | 336 | 350 | 4 | 6400 | 512 | XCC |
| Mainline Processors | ||||||||
| Intel® Xeon® Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI | DDR5 (MT/s)* | SGX Enclave size (GB) | Die |
| 6505P | 2.2 | 12 | 48 | 150 | 4 | 6400 | 128 | LCC |
| 6515P | 2.3 | 16 | 72 | 150 | 4 | 6400 | 128 | LCC |
| 6520P | 2.4 | 24 | 144 | 210 | 4 | 6400 | 128 | HCC |
| 6730P | 2.3 | 32 | 144 | 225 | 4 | 6400 | 128 | HCC |
| 6740P | 2.1 | 48 | 288 | 270 | 4 | 6400 | 128 | XCC |
| 6760P | 2.2 | 64 | 320 | 330 | 4 | 6400 | 128 | XCC |
Cooling solution options Processor TDP
- − Qty 2
- − Thermal requirements.
| CPU TDP (Wattage) | Heatsink (HS) | Fan Kit | Availability |
|---|---|---|---|
| <=185 W | Standard HS | Standard Fan Kit (5/7ea) | At launch |
| 186 W - 270 W | Performance HS | Performance Fan Kit | At launch |
| 271 W – 350 W | Closed-loop HS | Closed-loop Fan Kit | At launch |
| <=350 W | DLC CPM | DLC Fan kit (=Perf. Fan Kit) | At launch |
Chipset
- − No PCH for Intel® Xeon 6® Processors
- − SATA signal is not available
- Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html
System Management Chipset
- − HPE iLO 7 ASIC
- Notes: Read and learn more in the iLO QuickSpecs .
Graphics
Integrated video standard
- − Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
- − 16 MB Video Memory
Memory Controller

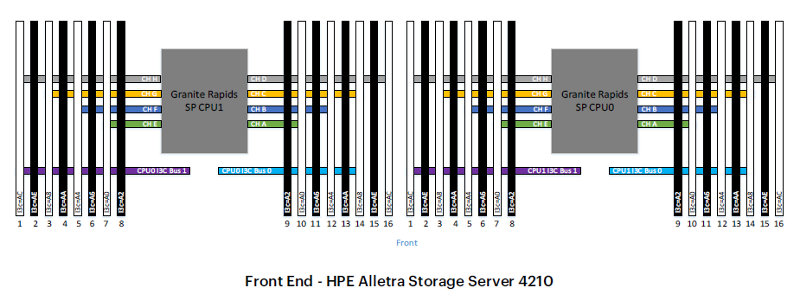

- − 8 channels DDR5 per socket
- − 2 DIMMs-per-channel (2DPC), 32 DIMMs in total
- − DDR5 – Up to 6400MTs 1DPC, 5200 2DPC
- − VR-on-DIMM Architecture
- − System board supports registered DIMM (RDIMM) with ECC, and Multiplexed Rank DIMM/Monument Creek (MRDIMM/MCR), up to 8000 1DPC (2 slots per channel). Yet MRDIMM/MCR kits are not publically available in HPE share option portfolio.
- − Supports single-rank (SR), dual-rank (DR), quad-rank (QR), and octal-rank (8R) DIMM modules
- − 4 TB max memory limit (2 TB per processor)
- − RAS – Advanced ECC, Mirroring, and ADDDC
Memory
| Type | HPE DDR5 Smart Memory | Registered (RDIMM) |
|---|---|---|
| DIMM Slots Available | 32 | 16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel |
| Maximum capacity (RDIMM) | 4.0 TB | 32 x 128 GB RDIMM 6400 MT/s @ 1DPC and 5200MT/s @ 2DPC |
PCIe Expansion Slots

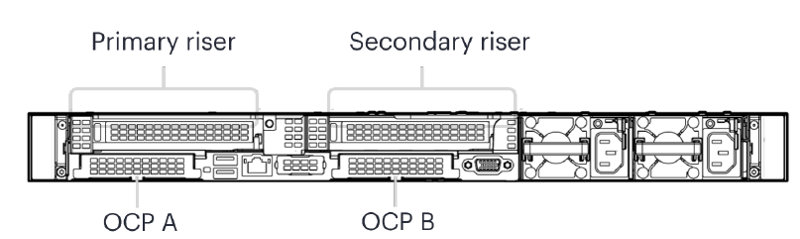

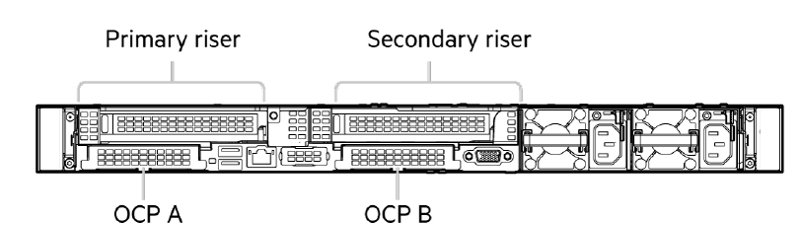

| Primary Riser (default in chassis) | |||||
|---|---|---|---|---|---|
| Slots # | Technology | Bus Width | Connector Width | CPU | Slot Form Factor |
| 1 | PCIe 5.0 | x16 | x16 | CPU 1 | Full-height, up to 9.5” length (or half-length card) |
| 2 | PCIe 5.0 | x16 | x16 | CPU 1 | Half-height (Low-profile), up to 9.5” length (or half-lengthcard) |
| Secondary Riser* | |||||
|---|---|---|---|---|---|
| Slots # | Technology | Bus Width | Connector Width | CPU | Slot Form Factor (two options) |
| 3 | PCIe 5.0 | x16 | x16 | CPU 2 | Full-height, up to 9.5” length (or half-length card). Slot 2 will not be available. |
| Half-height (Low-profile), up to 9.5” length (or up half-length card). Slot 2 is available. | |||||
Notes:
− All PCIe Slots support Wake-on-LAN (WoL) feature.
− If secondary riser is selected, then 2 Processors must be selected.
− If secondary riser is not selected and "NS204i-u Rear Cable Kit" is not selected, then maximum 2 quantity of PCIe cards can be selected at Slot1 & Slot2. If secondary riser is not selected and "NS204i-u Rear Cable Kit" is selected, then maximum 1 quantity of PCIe cards can be selected at Slot1.
− If secondary FH riser is installed, then primary PCIe Slot2 cannot be used, maximum 2 quantity of PCIe cards can be selected at Slot 1 & Slot3. If secondary FH riser is not selected, then maximum 1 quantity of FH PCIe cards can be selected at Slot1 & Slot3.
− If Secondary LP riser and "NS204i-u Rear Cable Kit" are selected, then maximum 2 quantity of PCIe cards can be selected at Slot 1 & Slot3. If Secondary LP riser is selected and "NS204i-u Rear Cable Kit" is not selected, then maximum 3 quantity of PCIe cards can be selected.
− Field upgrade kit for Primary riser cards setting (for Slot2) after factory installation and shipment is now available with P78863-B21 (HPE Alletra Storage Server 4210 x16 Primary Riser Kit).
OCP Expansion Slots
| Rear OCP3.0 Slot Priority Support Matrix | |||
|---|---|---|---|
| Rear wall | Selected OCP cards (Qty & type) | ||
| 1 | 2 | ||
| Slots # | Wake-on-LAN | 1xNIC | 2xNICs |
| 14 OCPA | Yes (incl. Share NIC) | NIC (Primary) | NIC (Primary) |
| 15 OCPB | Yes (Incl. Share NIC) | None | NIC |
Internal Network Controller
There is no embedded network controller included from system board. The HPE Alletra Storage Server 4210 server offers the customer a variety of networking options which are outlined in the Core Options selection in this document.
Storage Controllers options
HPE Boot Devices option
- − HPE NS204i-u V2 480 GB NVMe Hot Plug Boot Optimized Storage Device (P78279-B21) 1
- − HPE Alletra Storage Server 4210 1U NS204i-u Front Enablement Kit (P78870-B21)
- − HPE Alletra Storage Server 4210 NS204i-u Rear Enablement Kit (P78867-B21)
- − HPE Alletra Storage Server 4210 NS204i-u Internal Enablement Kit (P78866-B21)
| Alletra Storage Server 4210 Boot Device Enablement Kit options | ||||
|---|---|---|---|---|
| Enablement Kit | CTO Server competibility | Field Inst. | Location | Hot-plug Capability |
| P78870-B21 | HPE Alletra Storage Server 4210 EDSFF Configure-to-order System | Yes | Front Cage Box5 | Yes |
| P78867-B21 | HPE Alletra Storage Server 4210 EDSFF Configure-to-order System | Yes | PCIe Slot 2 2 | Yes |
| P78866-B21 | HPE Alletra Storage Server 4210 EDSFF Configure-to-order System | Yes | Internal | No support |
Notes:
− 1 x4 PCIe Gen3.0 OS Boot device includes 2x 480 GB M.2 NVMe SSDs, with preconfigured hardware RAID1.
− 2 For field update NS204i-u V2, removing the original PCIe Slot 2 cage and re-install the dedicated Alletra Storage Server 4210 NS204i-u cage, latch, and cables in the P78867-B21.
− 2 The NS204i-u will take up PCIe Slot 2 space only. The PCIe Slot 1 (FHHL) and PCIe Slot 3 (to be Low Profile) are available in the system with the selection of optional “HPE Alletra Storage Server 4210 x16 LP Riser Kit (P78865-B21)”.
− For additional information, please see the HPE OS Boot Device Options QuickSpecs or HPE NS204i Boot Device User Guide
Intel® Virtual RAID on CPU (VROC)
Maximum physical drive per array varies with platform maximum storage specification. More technical details are available at:
Intel Virtual RAID on CPU for HPE User Guide
- − Intel® Virtual RAID on CPU (VROC) for HPE
- Intel® Virtual RAID on CPU Premium E-RTU for HPE
- Intel® Virtual RAID on CPU RAID 1 E-RTU for HPE
Maximum Storage
| Storage | Capacity | Configuration |
|---|---|---|
| EDSFF NVMe SSD | 307.2 TB | 20 x 15.36 TB |
Power Supply
- − HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- Notes: Available in 94%efficiency.
- − HPE 1000 W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
- Notes: Available in 96% efficiency.
- − HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit
- − HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- Notes:
- Available in 94% efficiency.
- 1600 W Platinum Power supplies only support high line voltage (200 VAC to 240 VAC).
- − HPE 1800 W -2200 W Flex Slot Titanium Hot Plug Power Supply Kit
- Notes:
- Available in 96% efficiency.
- 1800-2200 W Titanium Power supply only supports high line voltage (200 VAC to 240 VAC).
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE Alletra Storage Server 4210 Performance Server. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please visit the HPE Power Advisor located at:
For information on power specifications and technical content visit HPE Flexible Slot Power Supplies.
For information regarding European Union Erp Lot 9 Regulation visit Industry Standard Compliance section.
Interfaces
| Serial | 1 port - Optional |
| Video | 1 Rear - VGA port (standard on all models) Notes: VGA port can support active simultaneously. |
| Network Ports | None. Choice of OCP or stand-up card, supporting a wide range of NIC adapters. Alletra Storage Server 4210 EDSFF CTO System in One Config Advanced will come with a pre-selected primary networking card, reselection is allowed. |
| HPE iLO Remote Mgmt Port at rear | 1 GbE Dedicated |
| Front iLO Service Port | 1 standard in USB Type C |
| USB | 5 standard on all models: 1 front, 2 rear, 2 internal +1 optional at the front
|
Operating Systems and Virtualization Software Support for HPE Servers
HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.
Access the certified and supported servers for each of the OS and Virtualization software:
HPE Servers Support & Certification Matrices
Industry Standard Compliance
- − ACPI 6.5 Compliant
- − PCIe 5.0 Compliant
- − WOL Support
- − Microsoft® Logo certifications
- − PXE Support
- − VGA
- Notes: Support from the optional Universal Media Bay.
- − USB 3.2 Gen1 Compliant
- − USB 2.0 Compliant (only on the embedded internal USB)
- − USB NIC Driver in UEFI for Factory
- − UEFI (Unified Extensible Firmware Interface Forum) Class 3 Support
- − UEFI (Unified Extensible Firmware Interface Forum) 2.7 support
- Notes: UEFI is the default for the Alletra Storage Server 4210 System.
- − OCP 3.0 SFF NIC Support
- − Embedded TPM Support
- − Energy Star 4.0
- − SMBIOS 3.7
- − UEFI 2.10 (Unfified Extensible Firmware Interface Forum)
- − UEFI Class 3
- − Redfish API
- − IPMI 2.0
- − Secure Digital 4.0
- − Advanced Encryption Standard (AES)
- − SNMP v3
- − TLS 1.2
- − DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)
- − Active Directory v1.0
HPE Server UEFI
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. HPE Alletra Storage Server 4210 has a UEFI Class 2 implementation to support UEFI Mode.
Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.HPE.com/servers/uefi .
UEFI enables numerous new capabilities specific to HPE Alletra Storage Sever 4210 such as:
- − Secure Boot and Secure Start enable enhanced security
- − Embedded UEFI Shell
- − Operating system specific functionality
- − Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- − Support for > 2.2 TB (using GPT) boot drives
- − PXE boot support for IPv6 networks
- − USB 3.2 Gen1 Stack
- − Workload Profiles for simple performance optimization
UEFI Boot Mode only
- − TPM 2.0 Support
- − iSCSI Software Initiator Support
- − NVMe Boot Support
- − HTTP/HTTPs Boot support as a PXE alternative
- − Platform Trust Technology (PTT) can be enabled
- − Boot support for option cards that only support a UEFI option ROM
Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. Enabling TPM 2.0 no longer requires TPM module option kit for Gen12. It is an embedded feature yet disabled for shipments to China.
HPE Compute Ops Management
HPE is intelligently transforming server management with an intuitive cloud operating experience through HPE GreenLake cloud platform to streamline and secure operations from edge-to-cloud. Automated key lifecycle tasks, for onboarding, updating, managing, and monitoring HPE servers, brings agility and greater efficiencies to wherever server devices reside via a unified single browser-based interface. Manage single locations or multiple, distributed sites. Keep tens to thousands of servers secure with batch policy controls and automated updates.
HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and fixes. The management application resides in the HPE GreenLake cloud platform (access via https://console.greenlake.HPE.com ) and leverages the HPE GreenLake architecture, security, and unified operations.
A 5-year subscription to HPE Compute Ops Management is added by default when ordering an HPE Alletra Storage Server 4210 System.
For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.HPE.com/psnow/doc/a50004263enw
Embedded Management
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.HPE.com/info/ilo .
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Learn more at http://www.HPE.com/servers/uefi .
OpenBMC Support
OpenBMC Capable through iLO7 Transfer of Ownership Process.
Learn more at OpenBMC Support
Intelligent Provisioning
Hassle-free server and OS provisioning for one or more servers with Intelligent Provisioning.
Learn more at http://www.HPE.com/servers/intelligentprovisioning .
iLO RESTful API
iLO RESTful API is DMTF Redfish API information and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at
http://www.HPE.com/info/restfulapi .
Server Utilities
Active Health System
The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.HPE.com/servers/ahs.
Active Health System Viewer
Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.HPE.com/servers/ahsv.
Smart Update
Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).
Learn more at: https://www.HPE.com/us/en/servers/smart-update.html .
HPE iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.HPE.com/info/ilo/mobileapp .
RESTful Interface Tool
RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at: http://www.HPE.com/info/resttool .
HPE OneView Standard
HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at: http://www.HPE.com/info/oneview.
HPE Systems Insight Manager (HPE SIM)
Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE Alletra Storage Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.
Learn more at: http://www.HPE.com/info/hpesim.
Security
Experience unparalleled security benefits with HPE Alletra Storage Servers 4210, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:
HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.
Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.
Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.
Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.
HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations from the edge to the cloud.
Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.
Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle.
Please refer to the HPE ProLiant Gen12 Embedded Security QuickSpecs document for more detailed information at: http://psnow.ext.HPE.com/doc/a50009218enw
- − UEFI Secure Boot and Secure Start support
- − Secure Enclave - Silicon Root of Trust 2.0
- − Quantum resistant (PQC) readiness for signing firmware – CNSA 2.0
- − FIPS 140-3 validation (Planned)
- − Common Criteria certification (Planned)
- − USGv6 ready (Section 508 – VPAT)
- − Secure Standard Mode – default security mode (equivalent of higher security mode in Gen 11)
- − Configurable for PCI DSS compliance
- − Advanced Encryption Standard (AES) on browser
- − Support for Commercial National Security Algorithms (CNSA)
- − Tamper-free updates – components digitally signed and verified
- − Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
- − Ability to rollback firmware
- − Secure erase of NAND
- − TPM (Trusted Platform Module) 2.0
- − Front bezel key-lock feature – standard, available in both Tower and Rack models
- − Padlock slot, standard
- − Kensington Lock slot, standard
- − Chassis Intrusion detection option
HPE Trusted Platform Module
Enabling HPE Trusted Platform Module (TPM) 2.0 no longer requires TPM module option kit for HPE Alletra Storage Server 4210. It is an embedded feature for global shipments. TPM2.0 can also be disabled from the BIOS setting.
Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates, and encryption keys.
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
-
Server Management
HPE iLO Advanced
HPE iLO Advanced licenses offer a smart remote functionality without compromise, for all HPE Alletra Storage Servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
HPE OneView Advanced
HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing multiple HPE server generations.
To learn more visit http://www.HPE.com/info/oneview.
HPE Insight Cluster Management Utility (CMU)
HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at
Accelerator and GPU Information
Hewlett Packard Enterprise supports various accelerators on selected HPE Alletra Storage Servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE Alletra Storage Servers for high-performance computing, large data center graphics, deep learning, and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.
Rack and Power Infrastructure
The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We have reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.
HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.
HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.
HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.
HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We have got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.
Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.
One Config Simple (SCE)
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance
-
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.HPE.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.HPE.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- − A complete coverage approach -- edge to cloud
- − An assigned HPE team
- − Modular and fully personalized engagement
- − Enhanced Incident Management experience with priority access
- − Digitally enabled and AI driven customer experience
https://www.HPE.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels: Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment, where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to: https://www.HPE.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.HPE.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- − Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
Consume IT On Your Terms
HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
- − Get faster time to market
- − Save on TCO, align costs to business
- − Scale quickly, meet unpredictable demand
- − Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html
For more information : http://www.HPE.com/services
-
Mainstream SKUs
HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meets the current and future market trends. HPE is committed to providing a more predictable and faster experience for these options. Mainstream SKUs enjoy higher safety stock levels and have higher fulfilment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream orders, have fewer shortages and better recovery dates. This platform has Mainstream SKUs in the options portfolio and is eligible for the improved Mainstream experience. Mainstream SKUs are designated with a Mainstream symbol in our configurators.
This section lists some of the steps required to configure a Factory Integrated Model.
To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
- − Factory Integrated Models must start with a CTO Server.
- − FIO indicates that this option is only available as a factory installable option.
- − Some options may not be integrated at the factory. Contact your local sales representative for additional information

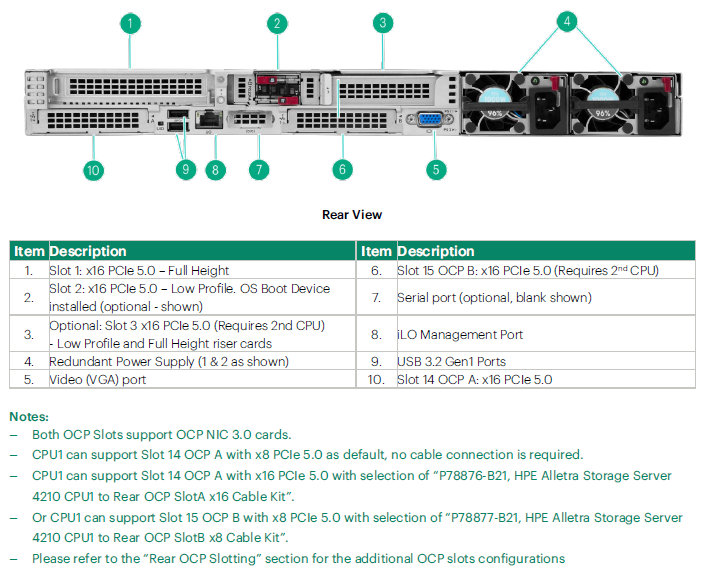

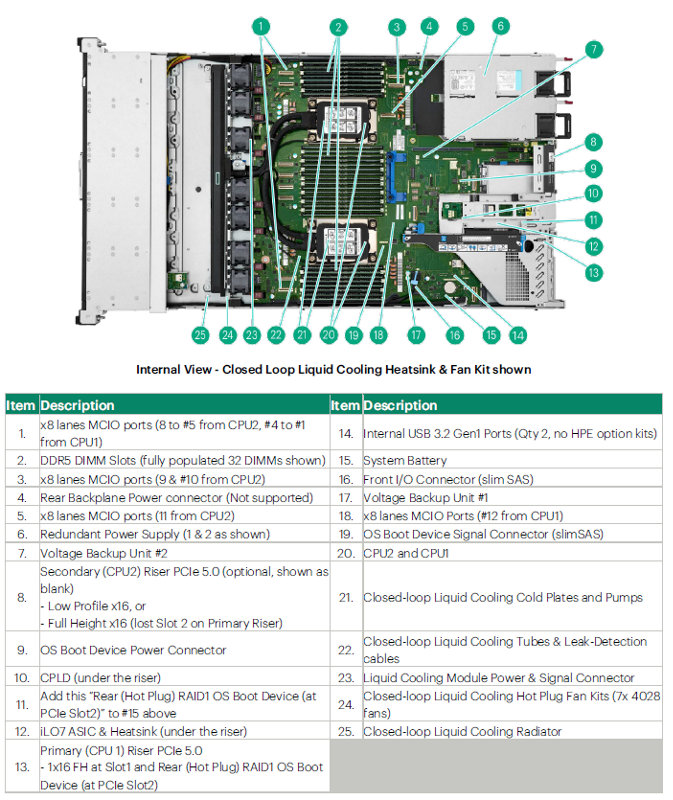

Step 1: Base Configuration (choose one of the following configurable models)
CTO Server models do not include embedded LOM. To enable networking capability please select a validated alternative NIC -OCP or PCIe- from the Core Options section.
| CTO Server | HPE Alletra Storage Server 4210 EDSFF Configure-to-order System | |||
|---|---|---|---|---|
| SKU Number | P78861-B21 | |||
| TAA SKU | P78861-B21#GTA | |||
| Processor vs Cooling solution (Heatsink & Fan kit) | Not included.
| |||
| CPU TDP (Wattage) | Heatsink (HS) | Fan Kit | Availability | |
| <=185 W | Standard HS | Standard Fan Kit (5/7ea) | At launch | |
| 186 W - 270 W | Performance HS | Performance Fan Kit | At launch | |
| 271 W – 350 W | Closed-loop HS | Closed-loop Fan Kit | At launch | |
| <=350 W | DLC CPM | DLC Fan kit (=Perf. Fan Kit) | At launch | |
| DIMM Slots | 32-DIMM slots in total | |||
| DIMM Blanks | Not included.
P07818-B21 contains 31 pcs DIMM blanks, and HPE factory will load adequate DIMM blanks per thermal rules and actual memory q’ty selected. | |||
| DIMM Blanks | Cooling solutions/DIMM types | |||
| Air Cooling | Yes | |||
| Liquid Cooling (Closed-loop LC or DLC) | No | |||
| DIMM (Blank) population | 2P | |||
| DIMM q’ty | Max 32 and min 2 | |||
| DIMM Blank q’ty | Fill out empty DIMM slots. Min 0 and max 30. | |||
| Storage Controller | Not included. Choice of
| |||
| Rear PCIe Slots | Up to 3 Slots PCIe 5.0 (Slot 1, 2 & 3). All PCIe Slots are in design with up to 9.5” length.
| |||
| Rear OCP3.0 Slots | Up to 2 Slots PCIe 5.0 (Slot 14 & 15). All OCP Slots are up to x16 PCIe5.0
| |||
| Front Drive Cage | Box1 (must be selected). Box2/3/4/5 (optional). Box/Cage Choices:
| |||
| Network Controller |
| |||
| Management | HPE iLO with Intelligent Provisioning (standard) HPE Compute Ops Management (a 5-year subscription included) Optional: iLO Advanced and OneView | |||
| Video Output | Rear: 1 VGA Optional:
| |||
| USB | Front: 1 USB 3.2 Gen1 + iLO service port in USB Type C Rear: 2 USB 3.2 Gen1 Internal: 2 USB 3.2 Gen1 (HPE Share option kit is not available) | |||
| Security | Trusted Platform Module (TPM) 2.0. It is an embedded feature globally and can be disabled in the BIOS setting. | |||
| Rail Kit | Optional Easy Install rails and CMA.
Notes: − Server does not support shelf mounted rail kits (“L” brackets). − If CMA is selected, then Rail Kit must be selected. | |||
| Form Factor | 1U Rack | |||
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | |||
Notes:
− Alletra Storage Server 4210 requires the selection of Processor, Memory, and Power Supply. Backplane to be further selected.
− *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).
− All CTO servers are Energy Star 4.0 compliant, excluding configuration with GPU.
− Supported Rail kit to be defaulted for CTO Model in the configurator. But the customer can deselect the Rail kit if the CTO Model is selected without Rack (Standalone server).
Step 2: Choose Datacenter operational Tracking SKU and Front cage/storage configuration
- − Recommend following the sequence for key component upfront selection.
- − The selection sequence: (each -B21 SKUs are listed in later section)
- a. Datacenter operational Tracking SKU.
- An extended thermal support capability will be provided based on the facts and preference selected from customers, include:
- i. Max System Inlet Temperature Tracking SKUs: Facts of customer server environment ambient temperature setting. Choose the maximum temperature setting from datacenter/operation environment. The higher System Inlet Temperature has higher thermal and cooling requirements.
- ii. Network Cable Tracking SKUs: Choose the networking card cable type going to be installed in the field.
- b. Front cage/storage configuration.
- Choices of front cage enablement kit, SKUs variates from CTO server.
- i. Storage backplane(s)
- ii. RAID1 OS Boot Enablement Kit
- iii. OCP(s) NIC Enablement Kit (available late CQ2 2025, post launch).
- − With the completion of the above steps, the user will be able to enter the Share Option menu with selection
Notes
− AOC cabling for high-performance networking cards has higher power and cooling requirements. It is necessary to select AOC or DAC preferences correctly.
− Without selection of high-performance Network cards, and with only 1 GB or 10/25 GB card(s) installed, please select P79633-B21 (HPE DAC ACC CAT Base-T Networking Cable Operating Configuration Tracking), which do not generate additional power/cooling restrictions.
Step 3: Choose Core Options
- − Energy Star 4.0: No restriction from processors while server shipment starts, yet the Platinum Power Supply (in 94% power efficiency in 800 W & 1600 W are not compatible.
- − Processor(s): Mixing of 2 different processor models is not supported.
- − Processor(s): CTO server will populate necessary heatsink and fan kits per system thermal requirements and processor models
- − Memory: DIMM Blanks are required to be selected as below thermal requirements as shown in previous CTO chassis (Base model) section.
- − Riser cards: Choice of riser card for PCIe5.0 slots enablement. Primary/standard riser cards are default in CTO Chassis (Base model). Selection for one of the secondary riser kits (FH or LP) is required if expecting a stand-up card in PCIe Slot.
- − OS Boot Device: Max one OS Boot device can be selected in a server. Selection of the OS Boot Device along with Enablement Cable Kit is required.
- − Networking: Choice of high-performance NIC, 1 GbE NIC, or 10/25 GbE NIC, available in stand-up and OCP3.0.
- − Power and Cooling: Choices of FlexSlot Power supply with redundancy, system fans, DLC extension tubes and power cords.
- − Choice of Security Options.
- − Graphic Options: Choice of compatible Single-wide GPU
- − Accessories: Choice of Management Hardware incl. Serial Port and SID Power module kit.
- − Rack Options: Choice of Rail kit and Cable Management Arm.
- − Software as a Service Management: Choice of HPE Compute Ops Management and Choice of HPE OneView
Step 4: Choose Additional Options
- − Choice of Manufacturing Service
- − Choice of Support Service
| Description | SKU |
| HPE ProLiant Compute 30C System Inlet Ambient Operating Temperature Configuration Tracking | P79552-B21 |
| HPE ProLiant Compute 27C System Inlet Ambient Operating Temperature Configuration Tracking | P79555-B21 |
| HPE ProLiant Compute 25C System Inlet Ambient Operating Temperature Configuration Tracking | P79558-B21 |
| HPE ProLiant Compute 23C System Inlet Ambient Operating Temperature Configuration Tracking | P79561-B21 |
| HPE ProLiant Compute 20C System Inlet Ambient Operating Temperature Configuration Tracking | P79564-B21 |
| HPE ProLiant Compute 18C System Inlet Ambient Operating Temperature Configuration Tracking | P79567-B21 |
| Notes: − Qty 1 − The higher System Inlet Temperature has higher thermal and cooling requirements. | |
| HPE ProLiant Compute AOC Networking Cable Operating Configuration Tracking | P79630-B21 |
| HPE ProLiant Compute DAC ACC Networking Cable Operating Configuration Tracking | P79633-B21 |
| Notes: − Qty 1 − AOC cabling for high-performance networking cards has higher power and cooling requirements. It is necessary to select AOC or DAC preferences correctly. − Without selection of high-performance Network cards, and with only 1 GB or 10/25 GB card(s) installed, please select P79633-B21 which do not generate additional power/cooling restrictions. | |
| Front Cage/Storage configuration | |
| Description | SKU |
| HPE Alletra Storage Server 4210 1U 4EDSFF NVMe Stacking Backplane Kit | P78862-B21 |
| HPE Alletra Storage Server 4210 1U NS204i-u Front Enablement Kit | P78870-B21 |
| Notes: − Total q’ty 1 – 5 − Box1 backplane needs to be selected, Box 2-5 are optional. − Front OCP NIC(s) Enablement Kit will be available late CQ2 2025 at Box3, max q’ty 2 | |
Processor
Intel Xeon 6 Processors Supports "HPE DDR5 Smart Memory - Registered (RDIMM), 6400MT/s". Intel® Xeon 6® Processors with Efficient-Cores (E-Cores) Intel® Xeon 6® Efficient – Performance per Watt | |
| Intel Xeon 6710E 2.4 GHz 64-core 205 W Processor for HPE Alletra Storage Server 42X0 | P79217-B21 |
| Intel Xeon 6731E 2.2 GHz 96-core 250 W Processor for HPE Alletra Storage Server 42X0 | P79218-B21 |
| Intel Xeon 6740E 2.4 GHz 96-core 250 W Processor for HPE Alletra Storage Server 42X0 | P79219-B21 |
| Intel Xeon 6746E 2.0 GHz 112-core 250 W Processor for HPE Alletra Storage Server 42X0 | P79220-B21 |
| Intel Xeon 6756E 1.8 GHz 128-core 225 W Processor for HPE Alletra Storage Server 42X0 | P79221-B21 |
| Intel Xeon 6766E 1.9 GHz 144-core 250 W Processor for HPE Alletra Storage Server 42X0 | P79222-B21 |
| Intel® Xeon 6® Efficient – Performance | |
| Intel Xeon 6780E 2.2 GHz 144-core 330 W Processor for HPE Alletra Storage Server 42X0 | P79223-B21 |
| Intel® Xeon 6® Processors with Performance-Cores (P-Cores) Intel® Xeon 6® Performance - General Purpose | |
| Description | SKU |
| Intel Xeon 6507P 3.5 GHz 8-core 150 W Processor for HPE Alletra Storage Server 42X0 | P79211-B21 |
| Intel Xeon 6517P 3.2 GHz 16-core 190 W Processor for HPE Alletra Storage Server 42X0 | P79214-B21 |
| Intel Xeon 6527P 3.0 GHz 24-core 255 W Processor for HPE Alletra Storage Server 42X0 | P79201-B21 |
| Intel Xeon 6730P 2.5 GHz 32-core 250 W Processor for HPE Alletra Storage Server 42X0 | P79198-B21 |
| Intel Xeon 6736P 2.0 GHz 36-core 205 W Processor for HPE Alletra Storage Server 42X0 | P79205-B21 |
| Intel Xeon 6737P 2.9 GHz 32-core 270 W Processor for HPE Alletra Storage Server 42X0 | P79206-B21 |
| Intel Xeon 6747P 2.7 GHz 48-core 330 W Processor for HPE Alletra Storage Server 42X0 | P79190-B21 |
| Intel Xeon 6767P 2.4 GHz 64-core 350 W Processor for HPE Alletra Storage Server 42X0 | P79193-B21 |
| Intel Xeon 6787P 2.0 GHz 86-core 350 W Processor for HPE Alletra Storage Server 42X0 | P79196-B21 |
| Intel® Xeon 6® Performance - Mainline | |
| Description | SKU |
| Intel Xeon 6505P 2.2 GHz 12-core 150 W Processor for HPE Alletra Storage Server 42X0 | P79210-B21 |
| Intel Xeon 6515P 2.3 GHz 16-core 150 W Processor for HPE Alletra Storage Server 42X0 | P79213-B21 |
| Intel Xeon 6520P 2.4 GHz 24-core 210 W Processor for HPE Alletra Storage Server 42X0 | P79199-B21 |
| Intel Xeon 6530P 2.3 GHz 32-core 225 W Processor for HPE Alletra Storage Server 42X0 | P79202-B21 |
| Intel Xeon 6740P 2.1 GHz 48-core 270 W Processor for HPE Alletra Storage Server 42X0 | P79188-B21 |
| Intel Xeon 6760P 2.2 GHz 64-core 330 W Processor for HPE Alletra Storage Server 42X0 | P79191-B21 |
Heatsinks (incl. Liquid Cooling module)
- − Choices of air-cooling and liquid cooling solution(s) combing heatsink & fans to enable higher thermal capability under different CPU TDP. Default setting is available in configurator per general thermal requirements listed below.
- − Higher thermal and cooling requirements will be triggered if high-performance NIC, drives, M.2 Boot Device, GPU or memory are selected.
- − Thermal requirements from CPU TDP.
| CPU TDP (Wattage) | Heatsink (HS) | Fan Kit | Availability |
|---|---|---|---|
| <=185 W | Standard HS | Standard Fan Kit (5/7ea) | At launch |
| 186 W - 270 W | Performance HS | Performance Fan Kit | At launch |
| 271 W – 350 W | Closed-loop HS | Closed-loop Fan Kit | At launch |
| <=350 W | DLC CPM | DLC Fan kit (=Perf. Fan Kit) | At launch |
- − Thermal requirements vs DIMM Blanks.
| Air Cooling | Yes |
| Liquid Cooling (Closed-loop LC or DLC) | No |
| DIMM (Blank) population | 2P |
|---|---|
| DIMM q’ty | Max 32 and min 2 |
| DIMM Blank q’ty | Fill out empty DIMM slots. Min 0 and max 30. |
| Description | SKU |
| HPE Alletra Storage Server 4210 1U Standard Heat Sink Kit | P78873-B21 |
| HPE Alletra Storage Server 4210 High Performance Heat Sink Kit | P78871-B21 |
| HPE Alletra Storage Server 4210 Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit | P78874-B21 |
| HPE Alletra Storage Server 4210 Cold Plate Module FIO Kit from PCIe | P78872-B21 |
| HPE ProLiant Direct Liquid Cooling 450 mm Female-Male Connection Quick Disconnect Tube Set FIO Kit | P62046-B21 |
| Notes: − Configuration with thermal consideration:
| |
| HPE Gen12 DLC Infrastructure
| |
| HPE Alletra Storage Server 4210 Closed-loop LC Module
| |
Memory
| |
| DDR5-6400 (applies to the Intel® Xeon 6 Processors) | |
| Description | SKU |
| HPE 16 GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69726-K21 |
| HPE 32 GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69727-K21 |
| HPE 64 GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69728-K21 |
| HPE 96 GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69729-K21 |
| HPE 128 GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69730-K21 |
| Notes:
| |
HPE DIMM blanks
Thermal requirements vs DIMM Blanks.
| Cooling solutions/DIMM types | |
|---|---|
| Air Cooling | Yes |
| Liquid Cooling (Closed-loop LC or DLC) | No |
| DIMM (Blank) population | 2P |
|---|---|
| DIMM q’ty | Max 32 and min 2 |
| DIMM Blank q’ty | Fill out empty DIMM slots. Min 0 and max 30. |
| Description | SKU |
| HPE DDR4 DIMM Blank Kit | P07818-B21 |
| Notes: Optional, need to be selected according to the thermal requirements below, to enhance thermal condition. | |
Storage Devices | |
| Description | SKU |
| HPE Alletra Storage Server 4210 EDSFF Backplane Power Cable Kit | P78880-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU1 Box 1 Signal Direct Attach Cable Kit | P78881-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU2 Box 1 Signal Direct Attach Cable Kit | P78882-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU1 Box 2 Signal Direct Attach Cable Kit | P78883-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU2 Box 2 Signal Direct Attach Cable Kit | P78884-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU1 Box 3 Signal Direct Attach Cable Kit | P78885-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU1 CPU2 Box 4 Signal Direct Attach Cable Kit | P78886-B21 |
| HPE Alletra Storage Server 4210 4EDSFF x4 CPU1 Box 5 Signal Direct Attach Cable Kit | P78887-B21 |
| HPE Alletra Storage Server 4210 Front Primary OCP NIC Box3 Bay3 Enablement Kit | P78868-B21 |
| HPE Alletra Storage Server 4210 Front Secondary OCP NIC Box3 Bay1 Enablement Kit | P78869-B21 |
Storage
| |
| Description | SKU |
| HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70674-K21 |
| HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | P61187-K21 |
| HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | P61183-K21 |
| HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | P61179-K21 |
| HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD | P57807-K21 |
| HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77275-K21 |
| HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD | P57803-K21 |
| HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD | P57799-K21 |
| HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD | P70397-K21 |
| HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD | P70395-K21 |
| HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77273-K21 |
| HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD | P70392-K21 |
| HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD | P69546-K21 |
| HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD | P69239-K21 |
| HPE 3.84 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD | P69237-K21 |
| HPE 3.84 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77271-K21 |
| HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD | P69234-K21 |
| HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77269-K21 |
| Mixed Use – NVMe – EDSFF - Solid State Drives | |
| Description | SKU |
| HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70672-K21 |
| HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD | P61195-K21 |
| HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70669-K21 |
| HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD | P61191-K21 |
| HPE 12.8 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD | P70403-K21 |
| HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD | P70401-K21 |
| HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77267-K21 |
| HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD | P70399-K21 |
| HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77265-K21 |
| HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD | P69245-K21 |
| HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD | P69243-K21 |
| HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD | P69241-K21 |
| HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77262-K21 |
| NVMe Gen4 – EDSFF (max 20) Very read Optimized – NVMe – EDSFF - Solid State Drives | |
| Description | SKU |
| HPE 30.72 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD | P79065-K21 |
| HPE 15.36 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD | P63938-K21 |
| HPE 7.68 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD | P63934-K21 |
| HPE 3.84 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD | P63930-K21 |
Riser Cards | |
| Standard/ Primary/ Butterfly Riser is embedded in all CTO Server. Additional selection is not required.
| |
| Notes: If rear hot-plug NS204i-u V2 is installed, the Slot 2 cage needs to be removed | |
| Description | SKU |
| HPE Alletra Storage Server 4210 x16 Primary Riser Kit | P78863-B21 |
| Notes: This is a SKU for field upgrade only. Order through Ad-hoc and will not be installed in the system but ship as a stand-alone item. Each CTO server has the Primary riser embedded, a separate order for P78863-B21 is not required. | |
| HPE Alletra Storage Server 4210 x16 Full Height Riser Kit | P78864-B21 |
| Notes: − Referred as Secondary FH riser. − 2 nd Processor is required. − Slot 3: 1x PCIe5.0 x 16 Full-length, up to 9.5’ length (or Half-length card) | |
| HPE Alletra Storage Server 4210 x16 LP Riser Kit | P78865-B21 |
| Notes: − Referred as Secondary Low Profile (LP) riser. − 2 nd Processor is required. − Slot 3: 1xPCIe5.0 x 16 Low-profile, up to 9.5” length (or Half-length card) | |
| Riser Information | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Riser Poistion | Part number & Description | Choices | Slot Bus width PCIe5 | GPU | NVMe Connect | M.2 Connec. | |||||
| Prim. | Sec. | #1 | #2 | #3 | |||||||
| Priminary (chasssis default) | Alletra 4210 x16/x16 Primary Riser | D | N/A | x16 | x16 | N/A | Y | N/A | N/A | ||
| Secondary | P78864-B21: Alletra 4210 x16 Full Height Riser Kit 1 | N/A | O | N/A | N/A | x16 | Y | N/A | N/A | ||
| Secondary | P78865-B21: Alletra 4210 x16 LP Riser Kit | N/A | O | N/A | N/A | x16 | Y 2 | N/A | N/A | ||
Notes:
− Prim. = Primary; Sec = Secondary; D = Default on server; O = Optional; N/A = not supported or slot/connector not present.
− Quantity of Processor and Quantity of Heatsink must match.
− All Alletra Storage Server 4210 Riser cards are designed in x16 PCIe slot form factor (physical length) as well as in full x16 lanes of PCIe5.0 as electrical bandwidth.
− If Secondary riser is selected, then 2 Processors must be selected.
− 1 If secondary FH riser is selected, then maximum q’ty 2 of PCIe FH cards can be selected, as primary PCIe Slot 2 cannot be used.
− 4 ports base-T Low Profile NIC adapters are not allowed to be installed at Slot 2 (P51178-B21)
− 2 GPU max 75 W.
PCIe Slotting (Factory Installation Rule)
| Configuration 1: Primary Riser only (default in chassis), no Secondary Riser installed | ||
|---|---|---|
| Riser | (Primary as default) | |
| Slot Number | Slot 1 | Slot 2 |
| Bus Width | x16 | x16 |
| Form Factor | FHHL | HHHL (LP) |
| PCIe adapter types | Slot Priority | |
| -PCIe x16 | 1 | 2 |
| -PCIe x8 | 1 | 2 |
| -PCIe x4 | 1 | 2 |
| Configuration 2: Primary Riser (default in chassis) & Secondary FH Riser, 2 CPUs | |||
|---|---|---|---|
| Riser | (Primary as default) | Secondary (P78864-B21) | |
| Slot Number | Slot 1 | No support | Slot 3 |
| Bus Width | x16 | x16 | |
| Form Factor | FHHL | FHHL | |
| PCIe adapter type | Slot Priority | ||
| -PCIe x16 | 1 | No support | 2 |
| -PCIe x8 | 1 | 2 | |
| -PCIe x4 | 1 | 2 | |
| Configuration 3: Primary Riser (default in chassis) & Secondary HH/LP Riser, 2 CPUs | |||
|---|---|---|---|
| Riser | (Primary riser as default) | Secondary (P78865-B21) | |
| Slot Number | Slot 1 | Slot 2 | Slot 3 |
| Bus Width | x16 | x16 | x16 |
| Form Factor | FHHL | HHHL (LP) | HHHL (LP) |
| PCIe adapter | Slot Priority | ||
| -PCIe x16 | 1 | 3 | 2 |
| -PCIe x8 | 1 | 3 | 2 |
| -PCIe x4 | 1 | 3 | 2 |
PCIe Adapters Slotting Rules
| General | |
|---|---|
| Priority | Description & Rules |
| 1 | HPE Alletra Storage Server 4210 x16 LP Riser Kit (P78865-B21) can only be slotted in HHHL (LP) PCIe Slot3 |
| 2 | HHHL (LP) GPGPU card should be slotted in PCIe Slot2. |
| 3 | PCIe Slot 2 supports HHHL (LP) cards only. |
| 4 | 4-Port Base-T NIC card is not available in Slot2 (Mechanical constraint from NIC bracket) 4-Port Base-T NIC card is defauting at Slot 1 or 3 |
| 5 | If NS204i-u V2 Rear Cbl Kit (P78867-B21) is ordered, Slot 2 will be unavailable. |
| Installation Rules | |
|---|---|
| Priority | Description & Rules |
| 1 | x16 electrical bandwidth card to x16 electric slot
|
| 2 | x8 electrical card to x16 electric slot |
| Priority from Card Types | |
|---|---|
| Priority | Description & Rules |
| 1 | 4-Port Networking PCIe Adapter (restricted from Slot 2 due to bracket interference) |
| 2 | HHHL (LP) Internal PCIe Controllers |
| 3 | Single-wide GPGPU Adapters |
| 4 | Others |
OS Boot Device
Please refer to the SKUs in the previous Smart Chassis section for Front OS Boot Device enablement Kit.
| Description | SKU |
| HPE Alletra Storage Server 4210 1U NS204i-u Front Enablement Kit | P78870-B21 |
| HPE NS204i-u v2 480 GB NVMe Hot Plug Boot Optimized Storage Device | P78279-B21 |
| HPE NS204i-u v2 960 GB NVMe Hot Plug Boot Optimized Storage Device | P81160-B21 |
| HPE NS204i-u v2 960 GB NVMe SED Hot Plug Boot Optimized Storage Device | P81162-B21 |
| HPE Alletra Storage Server 4210 NS204i-u Internal Enablement Kit | P78866-B21 |
| HPE Alletra Storage Server 4210 NS204i-u Rear Enablement Kit | P78867-B21 |
| Alletra Storage Server 4210 NS204i-u Enablement Kit Support Matrix | ||||
|---|---|---|---|---|
| Enablement Kit | Description | Field Inst. | NS204i-u Location | Hot-plug Capability |
| P78870-B21 | HPE Alletra Storage Server 4210 1U NS204i-u Front Enablement Kit | Yes | Front Cage Box5 | Yes |
| P78867-B21 | HPE Alletra Storage Server 4210 NS204i-u Rear Enablement Kit | Yes | PCIe Slot 2 1 | Yes |
| P78866-B21 | HPE Alletra Storage Server 4210 NS204i-u Internal Enablement Kit | Yes | Internal | No support |
Notes:
− NS204i-u V2 is a x4 PCIe Gen3.0 OS Boot device that includes 2x 480 GB or 960 GB or 960 GB SED M.2 NVMe SSDs, with preconfigured hardware RAID1.
− 1 With removing the original PCIe Slot 2 cage and re-install the dedicated Alletra Storage Server 4210 NS204i-u cage, latch and cables in the P78867-B21. The NS204i-u v2 will take up PCIe Slot 2 space only.
− If a secondary FH riser is selected, then "NS204i-u Rear Cable Kit" cannot be selected.
− If NS204i-u v2 is selected, only one of the three enablement kits.
− There will be a left-port interference in a low-profile 4-port SFP NIC Adapter (no issue for 4-port Base-T) at Slot3, if the Slot 2 is loaded with Primary Riser cage (default in CTO Server) or NS204i-u Rear cable (Enablement) kit. Please take one of the below recommendations for building a valid configuration.
- If Two quantity of 4-port SFP28 is selected, then Secondary FH riser must be selected.
- If One FH card or 4-port Base-T card is selected with 4-port SFP 28, then Secondary FH riser must be selected.
- Select an OCP type 4-port SFP card instead.
− For additional information, please see the HPE OS Boot Device QuickSpecs
| NS204i-u thermal matrix | ||||||
|---|---|---|---|---|---|---|
| Location | Qty | Cooling | 20 E3.S | 16 E3.S | 8 E3.S | 4 E3.S |
| Rear Hot-plug NS204i-u | 1 | High Perf. Fan | Up to 2x 270 W CPU, 32x 128 GB DIMM | |||
| 25C | 30C | 30C | 30C | |||
| 1 | Closed-loop LC | Up to 2x 350 W CPU, 32x128 GB | ||||
| 20 or NA | 20C or NA | 25C or 23C | 27 or 23C | |||
| NS204i-u thermal matrix | ||||||
|---|---|---|---|---|---|---|
| Location | Qty | Cooling | 20 E3.S | 4 E3.S | 4 E3.S | 20 E3.S |
| Rear Hot-plug NS204i-u | 1 | High Perf. Fan | Up to 2x 185 W , 32x 128 GB DIMM | |||
| 30C | | | | |||
| 1 | Liquid Cooling | Up to 2x 300 W , 32x128 GB, CL LC | Up to 2x 300 W , 32x 128 1 GB DIMM, CL LC | Up to 2x 350 W , 32x 128 1 GB DIMM, DLC | ||
| 23C | 30C | 25C | 30C | |||
Networking
The thermal conditions vary as a combination of types of Networking PCIe OR OCP adapter in different Alletra Storage Server 4210 CTO Systems. In general:
- − Ambient limitation will variate in the combination of Networking Adapter OR OCP bandwidth, DIMM capacity and cable type, incl. CAT, Direct Attach Copper (DAC) cable and Active Optical Cable (AOC).
- − Network Cable Tracking SKU type needs to be pre-selected in Smart Chassis session to enable an extended thermal capability in the Configurator.
- − Standard Fan Kit cannot be selected when above 100 GbE .
- − A detailed ambient temperature recommendation upon high-speed networking adapters is described in a later session.
Default settings in all NC CTO Server
“BCM5719 Ethernet 1 GB 4-port Base-T OCP3 Adapter” is defaulted in the configurator at rear Slot 14 OCPA if no H/W controller is selected.
- − Or default at Slot15 OCPB if a Hardware controller is pre-selected, in Smart Chassis.
- − Or a stand-up PCIe NIC adapter to be selected if there are two H/W controllers are pre-selected at both OCPA & OCPB, in Smart Chassis.
- − Customers are allowed to remove the NIC card default setting and re-select other cards (OCP3.0 or stand-up cards) from Networking & InfiniBand.
- Notes: Exception- Only x8 PCIe5.0 lanes each in the Slot14 OCPB in q’ty 20 E3.S drives configuration.
- − If above 100 GbE Networking PCIe adapter or OCP adapter is selected, Standard Fan Kit cannot be configured
| InfiniBand PCIe | |
| Description | SKU |
| HPE InfiniBand NDR200/Ethernet 200 GbE 2-port QSFP112 PCIe5 x16 MCX755106AC-HEAT Adapter | P65333-B21 |
| Notes: − The P45641-B21 & P45642-B21 support the transceivers: P49764-B21, HPE IB NDR/EN 400 GB OSFP MM 50 m HCA XCVR − The P65333-B21 supports the transceiver: P65334-B21, HPE IB NDR/EN 400G QSFP112 MM 50 m XCVR | |
| Ethernet PCIe 100 GB | |
| Description | SKU |
| Mellanox MCX623106AS-CDAT Ethernet 100 GB 2-port QSFP56 Adapter for HPE | P25960-B21 |
| Notes: − The P25960-B21 supports the transceivers as below.
| |
| Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 Adapter for HPE | P21112-B21 |
| NVIDIA Ethernet 100 GB 2-port NVMe-oF Offload Adapter for HPE | R8M41A |
| Notes: − The R8M41A supports the transceivers as below.
| |
| Ethernet PCIe 10/25 GB | |
| Description | SKU |
| Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE | P26264-B21 |
| Notes: − PCIe 4.0 x16// HH/ HL/ LP − The P21109-B21 supports the transceivers below.
| |
| Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE | P26262-B21 |
| Notes: − PCIe 3.0 x8// HH/ HL/ LP − The P26262-B21 supports the transceivers as below.
| |
| Description | SKU |
| NVIDIA Ethernet 10/25 GB 2-port SFP28 NVMe-oF Crypto Adapter for HPE | S2A69A |
| Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE | P08443-B21 |
| Notes: − PCIe 4.0 x8// HH or LP − The P08443-B21 supports the transceivers as below
| |
| Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE | P08458-B21 |
| Notes: − PCIe 4.0 x16// FH/ HL − Max 1 of 4 port cards can be selected if secondary riser is not selected. Cannot be installed in Slot# 2. − Max 2 of 4 port cards can be selected if secondary riser is selected. Cannot be installed in Slot# 2. − If both 4P Networking (Base-T and Full-Height) and Half-Height Internal PCIe controller are selected, then Secondary FH riser cannot be selected. | |
| Xilinx X2522-25G-PLUS Ethernet 10/25 GB 2-port SFP28 Adapter for HPE | P21109-B21 |
| Notes: − PCIe 3.0 x8// HH/ HL − The P21109-B21 supports the transceivers below.
| |
| Mellanox MCX631102AS-ADAT Ethernet 10/25 GB 2-port SFP28 Adapter for HPE | P42044-B21 |
| Notes: − PCIe 4.0 x8// HH/ HL/ LP − The P42044-B21 supports the transceivers below.
| |
| Ethernet PCIe 10 GB | |
| Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T Adapter for HPE | P26253-B21 |
| Notes: PCIe 3.0 x8// HH/ HL/ LP | |
| Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ Adapter for HPE | P26259-B21 |
| Notes: − PCIe 3.0 x8// HH/ HL/ LP − The P26259-B21 supports the transceivers as below.
| |
| Ethernet PCIe 1 GB | |
| Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T Adapter for HPE | P51178-B21 |
| Notes: − PCIe 2.0 x4// HH/ HL/ LP − Max 1 of 4 port cards can be selected if secondary riser is not selected. Cannot be installed in Slot# 2. − Max 2 of 4 port cards can be selected if secondary riser is selected. Cannot be installed in Slot# 2. − If both 4P Networking (Base-T and Full-Height) and Half-Height Internal PCIe controller are selected, then Secondary FH riser cannot be selected. | |
Cooling level for OCP NIC & cables with AOC
| Type | SKU# | Description | Cooling Level |
|---|---|---|---|
| 100G | P22767-B21 | Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 OCP3 Adapter for HPE | 9 |
| 10/25G | P26269-B21 | Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 OCP3 Adapter for HPE | 9 |
| P10115-B21 | Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE | 6 | |
| P41614-B21 | Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 OCP3 Adapter for HPE | 10 | |
| P10106-B21 | Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE | 7 | |
| P42041-B21 | Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE | 7 | |
| 10G | P10097-B21 | Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE | 5 |
| P26256-B21 | Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ OCP3 Adapter for HPE | 2 | |
| 1G | P51181-B21 | Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE | 3 |
| Networking OCP
| |
| Ethernet OCP 100G | |
| Description | SKU |
| Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 OCP3 Adapter for HPE | P22767-B21 |
| Notes: P22767-B21 provides x16 lanes and x16 lanes OCP enablement kit need to be selected. | |
| Ethernet OCP 10/25G | |
| Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 OCP3 Adapter for HPE | P26269-B21 |
| Notes: − P22769-B21 provides x16 lanes and x16 lanes OCP enablement kit need to be selected. − The P26269-B21 supports the transceivers as below.
| |
| Description | SKU |
| Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE | P10115-B21 |
| Notes: − The P10105-B21 supports the transceivers as below.
| |
| Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 OCP3 Adapter for HPE | P41614-B21 |
| Notes: − A x16 OCP enablement kit can be selected if customer wants to have OCP x16 connectivity. − The P41614-B21 supports the transceivers as below.
| |
| Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Notes: − The P10106-B21 supports the transceivers as below.
| |
| Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE | P42041-B21 |
| Notes: − The P42041-B21 supports the transceivers as below.
| |
| Ethernet OCP 10G | |
| Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE | P10097-B21 |
| Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ OCP3 Adapter for HPE | P26256-B21 |
| Notes: − The P26256-B21 supports the transceivers as below.
| |
| Ethernet OCP 1G | |
| Description | SKU |
| Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE | P51181-B21 |
| Notes: The P51181-B21 is defaulted in the configurator at rear Slot 14 OCPA if no H/W controller is selected. Use can de-select and re-select desired Networking cards with OCP enablement kit if required. | |
| Fibre Channel HBA | |
| HPE SN1610Q 32 GB 1-port Fibre Channel Host Bus Adapter | R2E08A |
| HPE SN1610Q 32 GB 2-port Fibre Channel Host Bus Adapter | R2E09A |
| Notes: PCIe 3.0 x8// FH or LP for SN1610Q/1610E | |
| HPE SN1700Q 64 GB 1-port Fibre Channel Host Bus Adapter | R7N86A |
| HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter | R7N87A |
| Notes: PCIe 4.0 x8// FH or LP for SN1700QE 1-port and 2-port | |
| OCP3.0 Enablement/ Upgrade Kit | |
| HPE Alletra Storage Server 4210 CPU1 to Rear OCP SlotA x16 Cable Kit | P78876-B21 |
| HPE Alletra Storage Server 4210 CPU1 to Rear OCP SlotB x8 Cable Kit | P78877-B21 |
| HPE Alletra Storage Server 4210 CPU2 to Rear OCP SlotB x8 Cable Kit | P78878-B21 |
| HPE Alletra Storage Server 4210 CPU2 to Rear OCP SlotB x16 Cable Kit | P78879-B21 |
| Notes: − Both OCP Slots provide Wake-on-Lane feature. − There is x8 lanes PCIe5.0 embedded from system board for Slot 14 OCPA. − In drive q’ty=20 E3.S configuration, Slot 14 OCPA cannot connect to any optional OCP enablement kit (P78876-B21). Only x8 lanes are available as embedded from system board. No limitation to Slot 15 OCPB with optional OCP x16 enablement kit. − Front OCP Enablement Kit(s) is a post launch feature, to be available in CQ2 2025. | |
| OCP3.0 Slot Priority Support Matrix | |||
|---|---|---|---|
| Alletra Storage Server 4210 Rear | Selected OCP cards (Qty & type) | ||
| 1 | 1 | ||
| OCP Slots | # Share NIC Feature | 1xNIC | 2xNICs |
| 1 | N/A | (Secondary) | NIC |
| 2 | Available (Incl. Wake-on-LAN) | NIC (Primary) | NIC (Primary) |
| Rear OCP3.0 Enablement Kits | ||||
|---|---|---|---|---|
| PCIe5.0 | Enablement Cable Kits | PCIe5.0 lanes availability | ||
| Orderable SKU | Description | Slot 14 OCPA | Slot 15 OCPB | |
| CPU1 & CPU2 | P78879-B21 | Alletra 4210 CPU2 to Rear OCP SlotB x16 Cable Kit | (embedded x8) | x16 |
| P78876-B21 1 and P78879-B21 | Alletra 4210 CPU1 to Rear OCP SlotA x16 Cable Kit and Alletra 4210 CPU2 to Rear OCP SlotB x16 Cable Kit | x16 1 | x16 | |
| P78878-B21 | Alletra 4210 CPU2 to Rear OCP SlotB x8 Cable Kit | (embedded x8) | x8 | |
| P78877-B21 | Alletra 4210 CPU1 to Rear OCP SlotB x8 Cable Kit | (embedded x8) | x8 | |
| P78876-B21 1 and P78878-B21 | Alletra 4210 CPU1 to Rear OCP SlotA x16 Cable Kit and Alletra 4210 CPU2 to Rear OCPB x8 Cable Kit | x16 1 | x8 | |
| Rear OCP Slotting | ||
|---|---|---|
| Configuration 1: No OCP enablement kit or only P78876-B21 is selected | ||
| Slot Number | Slot 1 | Slot 2 (Share NIC, incl. Wake-on-LAN) |
| OCP Enablement | N/A or P78876-B21 | No support |
| Bus Width | x8 (default) or x16 | No support |
| OCP adapter | Slot Priority | |
| -Controller | 1 | No support |
| -Networking | 1 | No support |
| Configuration 2: Only P78877-B21 is selected | ||
| Slot Number | Slot 1 | Slot 2 (Share NIC, incl. Wake-on-LAN) |
| OCP Enablement | N/A | P78877-B21 |
| Bus Width | x8 (default) | x8 |
| OCP adapter | Slot Priority | |
| -Controller | 1 | 2 |
| -Networking | 2 | 1 |
| Configuration 3: Only P78878-B21 is selected, or both P78876-B21 & P78878-B21 are selected | ||
| Slot Number | Slot 1 | Slot 2 (Share NIC, incl. Wake-on-LAN) |
| OCP Enablement | N/A or P78876-B21 | P78878-B21 |
| Bus Width | x8 (default) or x16 | x8 |
| OCP adapter | Slot Priority | |
| -Controller | 1 | 2 |
| -Networking | 2 | 1 |
| Configuration 4: Only P78879-B21 is selected, or both P78876-B21 & P78879-B21 are selected | ||
| Slot Number | Slot 1 | Slot 2 (Share NIC, incl. Wake-on-LAN) |
| OCP Enablement | N/A or P78876-B21 | P78879-B21 |
| Bus Width | x8 (default) or x16 | x16 |
| OCP adapter | Slot Priority | |
| -Controller | 1 | 2 |
| -Networking | 2 | 1 |
| Rear OCP Cards Slotting Rules | |
|---|---|
| General | |
| Priority | Description & Rules |
| 1 | OCP Networking card to be installed in Slot 2 as priority, as the Slot 2 supports ShareNIC (incl. Wake-on-LAN). |
| 2 | 2x OCP Networking cards: High Speed NIC is in higher priority to be installed in Slot 2. |
| 3 | If no OCP Slot 2 Enablement Kit is selected, the OCP Slot 2 is occupied. |
| 4 | If no OCP Slot 1 Enablement Kit is selected, the OCP Slot 1 is default in x8 electrical lanes (embedded from MLB) |
Power and Cooling | |
| Power Supplies Please select one or two power supplies from below in the system configuration. | |
| Notes: − Mixing 2 different power supplies is NOT supported. − In order to select the right size power supply for your HPE Alletra Storage Server, it is highly recommended to use "HPE Power Advisor" located at https://poweradvisorext.it.HPE.com/?Page=Index | |
| Description | SKU |
| HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | P38995-B21 |
| HPE 1000 W Flex Slot Titanium Hot Plug Power Supply Kit | P03178-B21 |
| Notes: Power efficiency at 96% single output. | |
| HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | P38997-B21 |
| HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit | P17023-B21 |
| Notes: If 1600 W DC Power supply is selected, then either "HPE 1600 W DC PSU Power Cable Kit" or "HPE 1600 W DC PSU Power Lug Option Kit" must be selected and quantity must match. vice versa | |
| HPE 1800 W -2200 W Flex Slot Titanium Hot Plug Power Supply Kit | P44712-B21 |
| Notes: − Power efficiency at 96% single output. − Supports high line voltage (200VAC to 240VAC) − The highest rating would vary from 1800-2200 W depending on input voltage of datacenter | |
| Notes: According to The Bureau of Indian Standards Act, 2016, BIS certification is required by every manufacturer (Indian or foreign) of those who are manufacturing products under Compulsory Certification. Alletra Storage Server 4210 manufactured in US, EMEA and Singapore with below Power Supplies are certified with BIS: P38995-B21, P03178-B21, P17023-B21, P38997-B21 and P44712-B21. For information on BIS Certification requirements visit: BIS Certification - BIS Certificate for Import (indianchemicalregulation.com) | |
| Accessory | |
| HPE 1600 W -48VDC Power Cable Lug Kit | P36877-B21 |
| Notes: Both "HPE 1600 W DC PSU Power Lug Option Kit" and "HPE 1600 W DC PSU Power Cable Kit" cannot be selected together. | |
| Power Cords For more Power Cords options, please refer to “HPE One Config Advance”. If any of these “Optional” Power Cords are ordered, then quantity must be equal to total number of Power Supplies on the order.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE Alletra Storage Server 4210. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: HPE Power Advisor HPE Alletra Storage Server 4210 is shipped with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords and cables for a full list of optional power cords. The standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. For information on power specifications and technical content visit HPE Flexible Slot power supplies | |
| Power Cooling Options Fan Kits For the fan and heatsinks combination, please refer to the previous section: Heatsinks (incl. Liquid Cooling module) (incl. Liquid Cooling module). | |
| Description | SKU |
| HPE Alletra Storage Server 4210 1U High Performance Fan Kit | P78890-B21 |
| Notes: − Dual rotor 4056 performance fans (q’ty 7)
| |
| HPE Alletra Storage Server 4210 1U Standard Fan Kit | P78889-B21 |
| Notes: Dual rotor 4056 standard fans (q’ty 5) | |
| HPE Alletra Storage Server 4210 1U 2P Standard Fan Kit | P78888-B21 |
| Notes: Dual rotor 4056 standard fans (q’ty 2) | |
| Accessories Management Hardware Maximum 1 of each can be selected. | |
| HPE ProLiant DL36X Gen11 Rear Serial Port Cable Kit | P48921-B21 |
| Rack Options | |
| HPE Easy Install Rail 5 Kit | P52343-B21 |
| HPE Cable Management Arm 4 for Friction Rail Kit | P70741-B21 |
| Notes: − HPE rail kits contain telescoping rails which allow for in-rack serviceability. − Rail Kit does not include Cable Management Arm. − Hewlett Packard Enterprise recommends that a minimum of two people is required for all Rack Server installations. − Please refer to your installation instructions for proper tools and number of people to use for any installation. − Maximum 1 of each can be selected. − If CMA is selected, then Rail kit must be selected. − HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at the customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits | |
| Serurity Hardware | |
| Description | SKU |
| HPE Bezel Lock Kit | 875519-B21 |
| Notes: − Maximum 1 of each can be selected. − If Bezel lock is selected, then "HPE Gen11 1U Storage Bezel Kit" or "HPE OEM Gen11 1U Bezel KIT" must be selected. | |
| HPE ProLiant DL3XX Gen11 Intrusion Cable Kit | P48922-B21 |
| Notes: − Maximum 1 of each can be selected. − If "HPE Trusted Supply Chain FIO Config" is selected, then "Gen11 Intrusion Cbl Kit" must be selected. − If HPE Trusted Supply Chain FIO Config is selected, then Configurator should default "Gen11 Intrusion Cbl Kit". | |
| HPE Gen11 1U Storage Bezel Kit | P52247-B21 |
| Notes: − Maximum 1 of each can be selected. − If Bezel lock is selected, then "HPE Gen11 1U Storage Bezel Kit" or "HPE OEM Gen11 1U Bezel KIT" must be selected. − Both "HPE Gen11 1U Storage Bezel Kit" and "HPE OEM Gen11 1U Bezel KIT" cannot be selected together. | |
| Graphic options (GPU) | |
| NVIDIA L4 24 GB PCIe Accelerator for HPE | S0K89C |
| GPGPU Configuration | ||||
|---|---|---|---|---|
| | | 20EDSFF CTO Server | ||
| SKU | FAN | 0 drive | 20 E3.S | 12 E3.S |
| NVIDIA® L4 (S0K89C), Q’ty 3 | Perf. Fan | Up to 2x270W CPU, 32x 128 GB DIMMs | Up to 2x225W, 32x 128 GB | |
| 30C | 28C | 30C | ||
| CL LC | Up to 2x350W CPU, 32x 128 GB DIMM | |||
| 25C | N/A | 23C | ||
Notes:
− Support the GPU adapter with length up to 9.5" (full length adapters are not supported) at PCIe Slot 1, 2 and 3 (with 2 nd CPU).
− Mixing of different Graphics Option is not allowed.
− Not compatible with Energy Star 4.0 under Graphic cards.
− Requires “Increased Cooling” to be selected in BIOS settings (default setting is “Optimal Cooling”).
− If GPU is selected, it requires high performance fans if air-cooling.
− If GPU is selected for best performance across common workloads, HPE recommends system main memory at least twice the memory of all GPU.
Software RAID | |
| Description | SKU |
| Intel Virtual RAID on CPU Premium FIO Software for HPE | R7J57A |
| Intel Virtual RAID on CPU RAID 1 FIO Software for HPE | S3Q19A |
Software as a Service ManagementHPE Compute Ops Management | |
| Default SKU | SKU |
| HPE Compute Ops Management Standard 5-year Upfront Alletra 4000 SaaS | S1E13AAE |
| Alternative SKUs | SKU |
| HPE Compute Ops Management Standard 3-year Upfront Alletra 4000 SaaS | S1E12AAE |
| HPE Compute Ops Management Advanced 3-year Upfront Alletra 4000 SaaS | S5E63AAE |
| HPE Compute Ops Management Advanced 5-year Upfront Alletra 4000 SaaS | S5E64AAE |
| Notes: HPE Compute Ops Management Advanced SKUs (S5E63AAE, S5E64AAE) include entitlement and support to both Compute Ops Management and iLO Advanced. Do not order iLO Advanced standalone with this option. At this time, these are not supported on GreenLake Flex orders. | |
| Tracking SKU for GreenLake orders – applies to “Enhanced” licenses only | |
| HPE Compute Ops Management Standard with Alletra 4000 Enablement | S4P39AAE |
| For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.HPE.com/psnow/doc/a50004263enw Supported Servers – CTO only. No OEM. – Complete list can be found here: Latest Supported Server List: https://www.HPE.com/info/com-supported-servers | |
HPE Converged Infrastructure Management SoftwareHPE OneView Advanced (with HPE iLO Advanced) HPE OneView Advanced (without HPE iLO Advanced) | |
| Notes:
| |
Choose Additional OptionsHPE Racks
HPEPower Distribution Units (PDUs)
HPE Uninterruptible Power Systems (UPS)
| |
HPE Support ServicesInstallation & Start-up Services | |
| Description | SKU |
| HPE Installation Service | HA113A1 |
| HPE Installation and Startup Service | HA114A1 |
| Tech Care Services | SKU |
| HPE 5Y Tech Care Essential Service | HU4A6A5 |
| HPE 5Y Tech Care Essential with Defective Media Retention Service | HU4A7A5 |
| HPE 3Y Tech Care Essential Service | HU4A6A3 |
| HPE 3Y Tech Care Essential with Defective Media Retention Service | HU4A7A3 |
| Notes: For a full listing of support services available for this server, please visit http://www.HPE.com/services . | |
| Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information. | |
General Memory Population Rules and Guidelines
- Listed below are general Memory Module Population Rules supported by the processor for reference.
- − All DIMMs must be DDR5.
- − All DDR5 DIMM must be running the same speed per CPU socket.
- − x8 and x4 cannot be mixed.
- − 3DS and non-3DS Memory cannot be mixed.
- − Mixing different Rank Memory is not allowed if less than q’ty 16 of Memory is selected for 1 CPU configuration.
- − Mixing different Rank Memory is not allowed if less than q’ty 32 Memory is selected for 2 CPUs configuration.
- − If different Rank Memory are mixed, then quantity of each Memory part number must be same.
- − 16 GB is allowed with 6xxxP CPU only.
- − In q’ty 1 Intel Xeon 6xxxP CPU configuration, then Maximum 8 quantity of 16 GB Memory can be selected.
- − In q’ty 2 Intel Xeon 6xxxP CPU configuration, then Maximum 16 quantity of 16 GB Memory can be selected.
- − 96 GB Memory cannot be mixed with any other Memory.
- − 128 GB Memory cannot be mixed with any other Memory.
- − To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
- − Balance the DIMMs across the two CPUs.
- − The maximum memory speed is a function of the memory type, memory configuration, and CPU model.
- − The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, and the number and model of installed CPUs qualified on the platform.
- − Q’ty of memory DIMMs selected per socket must be 1, 2, 4, 8, 12 or 16 for 6xxxP CPU
- − Q’ty of memory DIMMs selected per socket must be 1, 2, 4, 8 or 16 for 67xxE CPU
- − With Intel Xeon 67xxE CPU, DIMMs below are supported.
- HPE 32 GB 2Rx8 PC5-6400B-R Smart Kit
- HPE 64 GB 2Rx4 PC5-6400B-R Smart Kit
- HPE 96 GB 2Rx4 PC5-6400B-R Smart Kit
- HPE 128 GB 2Rx4 PC5-6400B-R Smart Kit
- − With Intel Xeon 6xxxP CPU, DIMMs below are supported.
- HPE 16 GB 1Rx8 PC5-6400B-R Smart Kit
- HPE 32 GB 2Rx8 PC5-6400B-R Smart Kit
- HPE 64 GB 2Rx4 PC5-6400B-R Smart Kit
- HPE 96 GB 2Rx4 PC5-6400B-R Smart Kit
- HPE 128 GB 2Rx4 PC5-6400B-R Smart Kit
- − Capacity references are rounded to the common gigabyte (GB) values.
- 8 GB = 8,192 MB
- 16 GB = 16,384 MB
- 32 GB = 32,768 MB
- 64 GB = 65,536 MB
- 128 GB = 131,072 MB
- − For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs .
-
System Unit
Dimensions (Height x Width x Depth)
EDSFF Model
- − 4.29 x 43.46 x 77.31 cm
- − 1.69 x 17.11 x 30.43 in
Weight (approximate)
- − 14.92 kg (32.82b)
- EDSFF minimum: One drive, two processors, one power supply, two heatsinks, one Smart Array controller, and seven fans
- − 21.38 kg (47.041lb)
- EDSFF maximum: Twenty drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans
Input Requirements (per power supply)
Rated Line Voltage
- − For 1800-2200 W (Titanium): 200 to 240 VAC
- − For 1600 W (Platinum): 200 to 240 VAC
- − For 1000 W (Titanium): 100 to240 VAC
- − For 800 W (Platinum): 100 to 240 VAC
- − For 1600 W (-48 VDC): -40 to -72 VdC
British Thermal Unit (BTU) Rating
Maximum
- − For 1800-2400 W (Titanium) Power Supply: 6497BTU/hr (at 200 VAC), 7230 BTU/hr (at 220 VAC), 7962 BTU/hr (at 240 VAC)
- − For 1600 W (Platinum) Power Supply: 5918 BTU/hr (at 200 VAC), 5888 BTU/ hr (at 220 VAC), 5884 BTU/hr (at 240 VAC)
- − For 1000 W (Titanium) Power Supply: 3741 BTU/hr (at 100 VAC), 3596 BTU/hr (at 200 VAC), 3582 BTU/hr (at 240 VAC)
- − For 800 W (Platinum) Power Supply: 3067 BTU/hr (at 100 VAC), 2958 BTU/hr (at 200 VAC), 2949 BTU/hr (at 240 VAC)
- − For 1600 W (48VDC) Power Supply: 6026 BTU/hr (at -40 VDC), 6000 BTU/hr (at -48 VDC), 5989 BTU/hr (at -72 VDC)
Power Supply Output (per power supply)
Rated Steady-State Power
- − For 1800 W -2200 W (Titanium) Power Supply: 1799 W (at 200 VAC), 2000 W (at 220 VAC), 2200 W (at 240 VAC), 2200 W (at 240 VDC) input for China only
- − For 1600 W (Platinum) Power Supply: 1600 W (at 240 VAC), 1600 W (at 240 VDC) input for China only
- − For 1000 W (Titanium) Power Supply: 1000 W (at 100 VAC), 1000 W (at 240 VAC), 1000 W (at 240 VDC) input for China only
- − For 800 W (Platinum) Power Supply: 800 W (at 100 VAC), 800 W (at 240 VAC), 800 W (at 240 VDC) input for China only
- − For 1600 W (-48VDC) Power Supply: 1600 W (at -40 Vdc), 1600 W (at -72Vdc)
Maximum Peak Power
- − For 1800 W -2200 W (Titanium) Power Supply: 2200 W (at 240 VAC). 2200 W (at 240 VDC) input for China only
- − For 1600 W (Platinum) Power Supply: 1600 W (at 240 VAC), 1600 W (at 240 VDC) input for China only
- − For 1000 W (Titanium) Power Supply: 1000 W (at 100 VAC), 1000 W (at 240 VAC), 1000 W (at 240 VDC) input for China only
- − For 800 W (Platinum) Power Supply: 800 W (at 100 VAC), 800 W (at 240 VAC), 800 W (at 240 VDC) input for China only
- − For 1600 W (-48VDC) Power Supply: 1600 W (at -40 Vdc), 1600 W (at -72Vdc)
Notes: For more information, please visit HPE Flexible Slot Power Supplies
System Inlet Temperature
- − Standard Operating Support (Level 2 support)
- 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
- System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F) or above 27°C (81°F) at 900 m .
- 10° to 35°C (50° to 95°F) at 900 m with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.
- System performance during standard operating support may be reduced if operating with a fan fault or above 27°C (81°F) at 900 m and 30°C (86°F) at sea level.
- With Standard Operating Support, there shall be no processor performance drop. The approved hardware configurations for this system are listed at the URL:
- − Extended Ambient Operating Support (Level 3 & Level 4 support)
- For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.).
- For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
- With Extended Ambient Operating Support, Processor performance drop would be expected. The approved hardware configurations for this system require the High Performance Fan Kit (P26477-B21) and are listed at the URL: http://www.HPE.com/servers/ashrae
- System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
- − Non-operating
- -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity (non-condensing)
- − Operating
- 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
- − Non-operating
- 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
- − Operating
- -12°C DP and 8% Rh to 21°C DP 80% - Relative humidity (Rh), 21°C maximum wet bulb temperature, non-condensing.
- − Non-Operating
- -12°C DP and 8% Rh to 21°C DP 80% - Relative humidity (Rh), 21°C maximum wet bulb temperature, non-condensing.
Altitude
- − Operating
- 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
- − Non-operating
- 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Emissions Classification (EMC)
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:
https://support.HPE.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072
http://www.HPE.com/support/Safety-Compliance-EnterpriseProducts
Acoustic Noise
Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm) and the statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power
level, LWA,m when the product is operating in a 23± 2°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
| Idle | |
|---|---|
| LWA,m | 6.1 B Performance |
| LpAm | 48 dBA Performance |
| Kv | 0.4 B Performance |
| Operating | |
|---|---|
| LWA,m | 6.8 B Performance |
| LpAm | 54 dBA Performance |
| Kv | 0.4 B Performance |
Notes:
− All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109. Operating mode is represented by 50% of CPU and GPU TDP.
− The results in this declaration apply only to the specific configuration listed below when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.
- Performance - EDSFF Configuration: 2x INTEL Xeon 6747P CPU, 16x NVMe RI E3S EC1 SSD, 16x 64 GB DIMM, 2x 1000 W PSU, 2x Liquid Cooling, 7x Fans, 2x INT E810 10/25 GbE 2p SFP28 OCP3 Adptr, 1x NS204i-u Gen12 960 GB Spl Boot Dev.
− The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.
− A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.
− The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.
− The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95% probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).
− The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.
− B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.
− System under abnormal conditions may increase the noise level, persons in the vicinity of the product [cabinet] for extended periods of time should consider wearing hearing protection or using other means to reduce noise exposure.
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site . These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 05-Jan-2026 | Removed | Deleted duplicate or obsolete entries in sections such as Chipset, Embedded Management, and Consulting Services for clarity. | |
| 13-Oct-2025 | Changed | Overview section was updated – Two new Boot optimize storage devices were added. Core options section was updated – New Storage devices, and Mixed Use – NVMe – EDSFF - Solid State Drives were added. | |
| Added | P78868-B21, P78869-B21, P79065-K21, P81160-B21, P81162-B21 | ||
| 28-Jul-2025 | Changed | SKUs Descriptions have been updated -R8M41A, S2A69A, S1E13AAE, S1E12AAE, P79213-B21, P69726-K21, P69727-K21, P69728-K21, P69729-K21, P69730-K21 | |
| 5-May-2025 | New | New QuickSpecs. |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries. Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.
a50009225enw, 17257 - Worldwide - V4 - 05-January-2026
