Processor

Intel® Xeon® 6300-series and Xeon® E Processor is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. This server also supports Intel® Pentium® processor.

Choose one of the following processors based on the model:

Chipset

Intel® C262 Chipset

For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 6 ASIC

Notes:

The HPE iLO remote server management support is now enabled through the shared iLO port default on-board. Customers can access HPE iLO from their browser, command line, or API without the need of the additional module/or activation key. For more information, please contact HPE local customer support. Read and learn more in the HPE iLO QuickSpecs.

Memory Protection

• − ECC

Network Controller

Embedded Broadcom BCM5719 Ethernet 1GbE 4-port BASE-T Adapter for HPE

The HPE ProLiant MicroServer Gen11 server offers the customer a 4-port NIC standard with the option to upgrade with a variety of networking options.

Notes: Support document and downloads including firmware and drivers for the Broadcom BCM5719 Ethernet 1GbE 4-port BASE-T LOM Adapter can be downloaded from the supplier’s support and services webpage.

Storage Controller

Intel® VROC SATA Hybrid RAID

Notes: The embedded Intel® Virtual RAID on CPU (Intel® VROC) is the SATA Hybrid RAID controller supported in this server.

− All models feature an embedded storage controller Intel® VROC SATA. Quick Install Guide

− BIOS Default is SATA AHCI. Embedded Intel® SATA VROC is disabled by default. Embedded Intel® SATA VROC can be enabled in BIOS/Platform Configuration (RBSU) for Hybrid RAID features.

− For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume.

− For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

− RAID support - 0/1/5/10.

− Intel® VROC SATA does not support RAID volume creation with different form factors of drives

− Intel® VROC SATA RAID supports Windows Server and Linux but does not support VMware.

− Intel® VROC SATA will operate in UEFI mode, Windows OS environment, and Linux OS environment.

− Required to install AMS tools in OS for supporting drives thermal sensor reading for thermal fan control, otherwise may experience acoustic noise impact. Download AMS from the following link.

https://support.hpe.com/hpesc/public/docDisplay?docId=sd00002007en_us&page=GUID-268BA5BF-9524-4D6E-85A5-A7A058A46342.html

− Both Intel® Xeon® E processors and Intel® Pentium® processors support Intel® VROC SATA RAID.

− See HPE Support Center for additional information regarding installation of Intel® VROC (SATA RAID): Enabling Intel® VROC (SATA RAID) for SATA or SATA on BIOS/Platform configuration (RBSU)

• Windows Edition
• Linux Edition

− Intel® VROC requires the server boot mode to be set to UEFI Mode.

− Obtain the Intel® VROC downloads (drivers, GUI) specific for your system OS. For direct download links, see the OS-specific

− VROC guide:

https://support.hpe.com/connect/s/product?language=en_US&cep=on&kmpmoid=1013158021&tab=manuals

− Intel® VROC supports RAID management though the following tools:

• non-OS specific: UEFI System Utilities
• Windows: Intel® VROC GUI, Intel® VROC CLI.

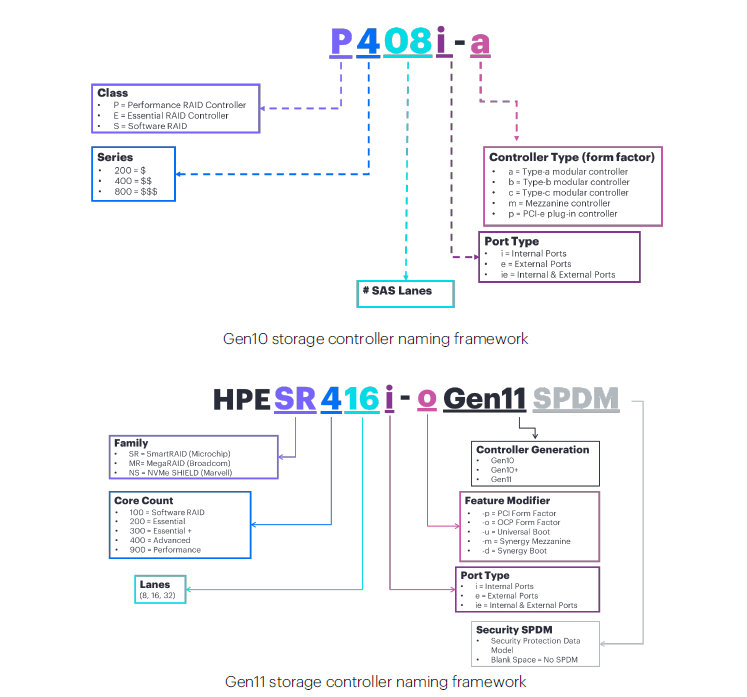

Essential RAID Controller

HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

HPE MR408i-p Gen11 SPDM Storage Controller

HPE MR216i-p Gen11 SPDM Storage Controller

Notes: For additional details, please visit:

− HPE Compute MR Gen11 Controllers QuickSpecs

− HPE Compute SR Gen11 Controllers QuickSpecs

Notes: MicroServer Gen11 supports NHP (non-hot-plug) operations only and hence some of the storage controller functionality may not be supported.

Internal Storage Devices

• − Hard Drives
• None shipped as standard
• − Solid State Drives
• None shipped as standard

Maximum Internal Storage

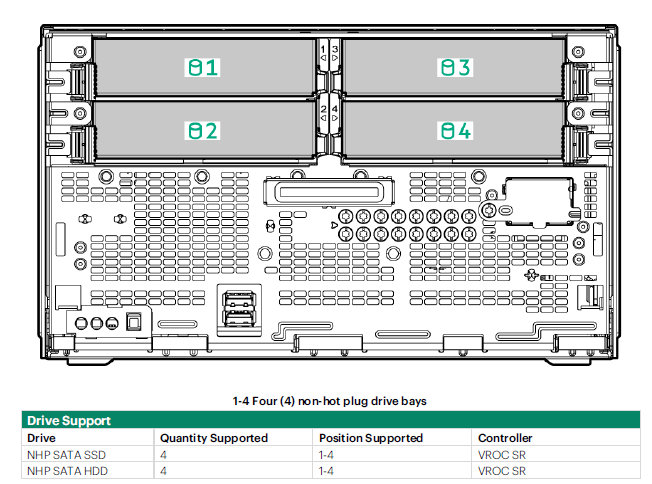

• − Non-hot plug SATA
• 16TB (4 x 4 TB) 3.5" SATA HDD
• 3.84 TB (4x 960 GB) 2.5” SATA SSD

Notes: The maximum storage indicated is aligned with the current HDD & SSD option list supported. Maximum internal storage supported would change with the server’s option support plan.

Graphics

Integrated Video Standard

1) Video modes up to 1920 x 1200 @85Hz (16 bpp)

2) 16 MB Video Memory

HPE iLO 6 On System Management Memory

3) 32 MB Flash

4) 8 Gbit DDR 4

Power Supply

One (1) 180 Watts, non-redundant External Power Adapter; or one (1) 330 Watts, non-redundant External Power Adapter.

Server Power Cords

All pre-configured or CTO server models ship standard with one or more country-specific 6 ft./1.83m C5 (supported with the 180W external power adapter) or C13 (supported with the 330W external power adapter) power cords depending on models. If a different power cord is required, please check the HPE Power Cords and Cables¹ web page or contact HPE local customer support.

Notes: ¹C5 power cords are not included in the standard HPE Power Cords and Cables specs.

Form Factor

• − Ultra Micro Tower

System Fans

• − One (1) non-redundant system fan shipped standard

Industry Standard Compliance

• − ACPI V6.3 Compliant
• − PCIe 5.0 and 4.0 Compliant
• − PXE Support
• − WOL Support
• − EMC Class B
• − Microsoft® Logo certifications
• − VGA Port
• − DP 1.1a
• − SMBIOS 3.2
• − UEFI 2.9
• − Redfish API
• − IPMI 2.0
• − TPM 2.0 Gen11 support
• Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.
• − Advanced Encryption Standard (AES)
• − Triple Data Encryption Standard (3DES) SNMP v3
• − TLS 1.2
• − DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• − Active Directory v1.0
• − ASHRAE A3/A4
• Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit MicroServer Gen11 Extended Ambient Temperature Guidelines
• − UEFI (Unified Extensible Firmware Interface Forum)
• − USB 3.2 Compliant
• − SATA 6 Gb/s

Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit URL: http://www.hpe.com/servers/ashrae for ASHRAE A3/A4 feature.

Operating Systems and Virtualization Software Support for ProLiant Servers

• − Microsoft Windows Server
• − VMware ESXi
• Notes: VMware supported only with Intel® Xeon® E processors, not supported with Intel® Pentium® processors. No Legacy Mode. Support on VMware. https://kb.vmware.com/s/article/84233
• − Red Hat Enterprise Linux (RHEL)
• − Canonical Ubuntu
• − XenServer

Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

https://www.hpe.com/us/en/servers/server-operating-systems.html

HPE Server UEFI ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI

Class 3 implementation to support UEFI mode.

Notes: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as

• − Secure Boot and Secure Start enabled for enhanced security
• − Operating system specific functionality
• − Support for larger than 2.2 TB (using GPT) boot drives
• − USB 3.0 Stack
• − Embedded UEFI Shell
• − Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
• − PXE boot support for IPv6 networks
• − Workload Profiles for simple performance optimization

UEFI Boot Mode only

• − TPM 2.0 Support
• Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.
• − iSCSI Software Initiator Support.
• − HTTP/HTTPS Boot support as a PXE alternative.
• − Boot support for option cards that only support a UEFI option ROM
• Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo

Notes:

The HPE iLO remote server management support is now enabled through the shared iLO port default on-board. Customers can access HPE iLO from their browser, command line, or API without the need of the additional module/or activation key. For more information, please contact HPE local customer support.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi..

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE selfrepair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/info/smartupdate.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack.

RESTful Interface Tool

RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 6 to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on premises, multi-generational server monitoring and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen11 rack, tower, or micro server.

For more information, visit the HPE Compute Ops Management QuickSpecs:

https://www.hpe.com/psnow/doc/a50004263enw

Security

• − UEFI Secure Boot and Secure Start support
• − Immutable Silicon Root of Trust
• − FIPS 140-2 validation
• − Common Criteria certification
• − Configurable for PCI DSS compliance
• − Ability to roll back firmware
• − Secure erase of NAND/User data
• − TPM (Trusted Platform Module) 2.0 Gen 11
• Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.
• − Front bezel lock feature, standard
• − Padlock slot, standard
• − Kensington Lock slot, standard
• − Power cord clip, standard

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: MicroServer Gen11 Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished by Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Non-CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

Notes: The HPE iLO remote server management support is now enabled through the shared iLO port default on-board (NIC port#1). Customers can access HPE iLO from their browser, or command line, or API without the need of the additional module/or activation key. This is made standard across HPE ProLiant Gen11 Xeon®-E servers. The HPE ML30 Gen11 iLO/NIC/M.2/COM Port Kit (P65741-B21) is now only needed when customers require a dedicated iLO port or if there is the need for additional M.2 slot or the serial port. For more information, please contact HPE local customer support.

iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OpenView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit https://www.hpe.com/info/oneview.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

• − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.
• − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.
• − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:

https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

GreenLake

GreenLake is the cloud to run and manage your entire hybrid landscape—private, public, and edge. It helps you to:

• − Streamline IT Operations across compute, storage, and networking without the chaos
• − Unify and secure data, as you move faster
• − Accelerate AI, from pilot to production

The result: greater operational efficiency, lower TCO, and faster AI delivery—all from one unified, intelligent platform built for today’s hybrid enterprise.

HPE Standard Memory

HPE Standard Memory offers the best combination of pricing, quality, reliability and compatibility for HPE ProLiant servers; designed to help your business achieve powerful results with right-sized affordable solutions. It delivers the ideal value that small businesses require to smoothly run a small network server environment and provides entry-level businesses while being affordable.

HPE Standard Memory UDIMMs has passed the rigorous Hewlett Packard Enterprise qualification and testing processes. The memory subsystem in this server supports UDIMMs. The server supports single-rank and dual-rank DDR5 UDIMMs operating at up to 4400 MT/s DIMM speeds

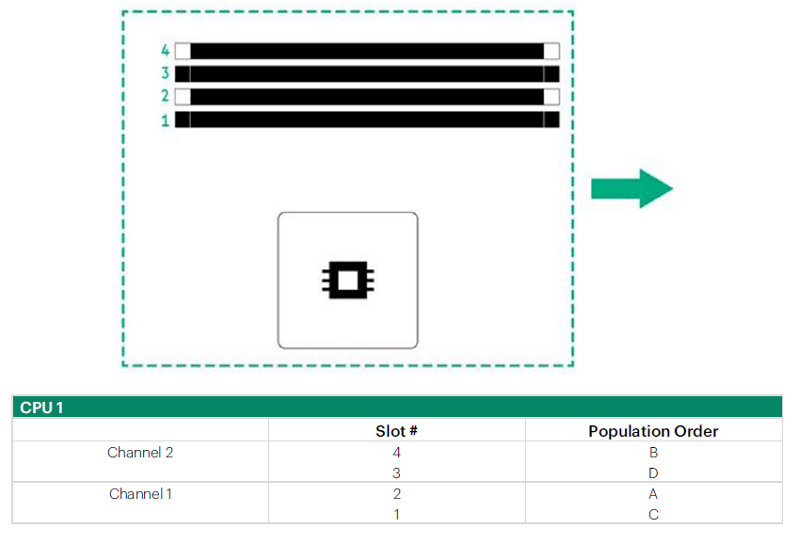

Memory Population Guidelines

The server supports two channels per processor with two DIMMs per channel for a total of four DIMMs per MicroServer Gen11 Server.

General Memory Population Rules and Guidelines:

− The HPE ProLiant MicroServer Gen11 Server has four memory slots.

− Only ECC UDIMMs are supported on MicroServer Gen11. No support for non-ECC UDIMMs.

− Memory speed support depends on the type of processor installed. For more information, see the technical specification of the installed processor.

− The server supports up to 4400 MT/s ECC UDIMMs (Unbuffered DIMMs).

− The server supports up to 128GB (4 x 32 GB) UDIMMs.

− Population order; start with "A" first, "B" second, "C" third, etc.

− The server does not support Non-ECC UDIMMs, RDIMMs, and LRDIMMs

− Mixing memory DIMMs of different capacities in the server is not recommended.

− Always use HPE qualified DIMMs.

− For Server Memory Population Rules for HPE ProLiant Servers with Intel® Xeon® 6300-series Processors or Intel® Xeon® E-2400 − − Processors see details here: http://www.hpe.com/docs/server-memory

− For details on the HPE Server Memory Options Population Rules, visit: http://www.hpe.com/docs/memory-population-rules

− To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required. For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

Notes:

− The maximum memory speed is a function of the memory type, memory configuration, and processor model.

− For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/server-memory

− HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family.

DDR5 memory options part number decoder

Capacity references are rounded to the common gigabyte (GB) values.

• − 16 GB = 16,384 MB
• − 32 GB = 32,768 MB
• − 64 GB = 65,536 MB
• − 128 GB = 131,072 MB

For more information on memory, please visit the HPE DDR5 Standard Memory web site.

Notes:

The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Notes:

− The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.

− A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

− The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

− The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95 % probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).

− The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.

− All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109.

− B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

− The results in this declaration apply only to the model numbers listed above when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

− The listed sound levels apply to standard shipping configurations defined as per the legacy WW BTO model plan.

Additional options may result in increased sound levels, for example, higher power processors (>65W), additional graphic processing units (GPU), SSDs or NVMe M.2.

− For more information, please refer to Acoustics Guidelines for HPE ProLiant MicroServer Gen11 Server or at https://support.hpe.com/hpesc/docDisplay?docId=dp00005840en_us

Emissions Classification (EMC)

• − FCC Rating
• Class B
• − Normative Standards
• CISPR32, EN55032, EN55024
• FCC CFR 47, Pt15; ICES-003; CNS13438; GB9254
• K32; K24; EN61000-3-2;
• EN61000-3-3;

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Environmentally friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Shape the Future of QuickSpecs - Your Input Matters
