Overview
HPE ProLiant DX4120 Gen11
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a50007025enw_block1img?$crimg$ "[IMAGE1]")

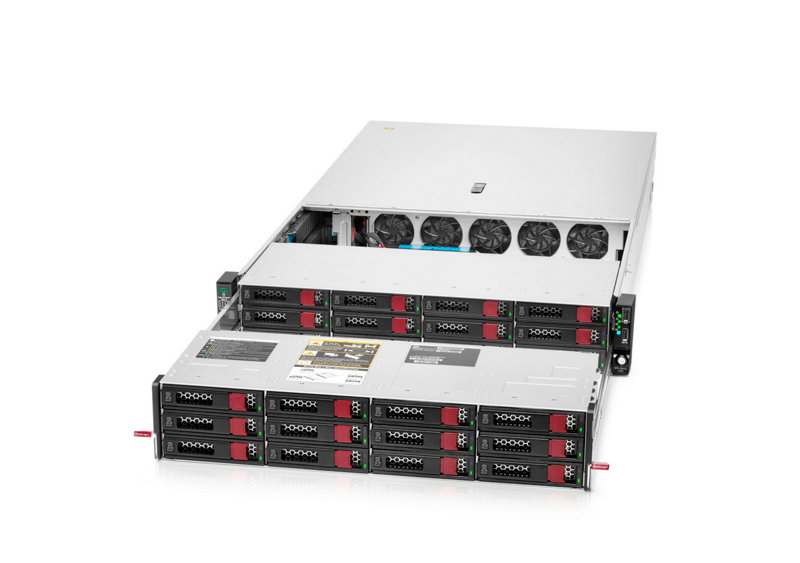

HPE ProLiant DX4120 Gen11 (24LFF SKU shown)
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/a50007025enw_block1img2?$crimg$ "[IMAGE2]")

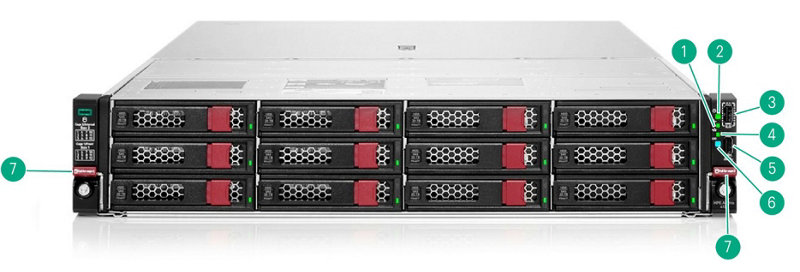

HPE ProLiant DX4120 Gen11 Configure-to-order System Front View (24LFF SKU shown)
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | Health LED | 5. | USB 3.0 port |
| 2. | Power On/Standby button and system power LED | 6. | UID button/LED |
| 3. | iLO Service Port | 7. | Drive cage 1 release latches |
| 4. | NIC status LED | | |
![[IMAGE3]](https://assets.ext.hpe.com/is/image/hpedam/a50007025enw_block1img7?$crimg$ "[IMAGE3]")

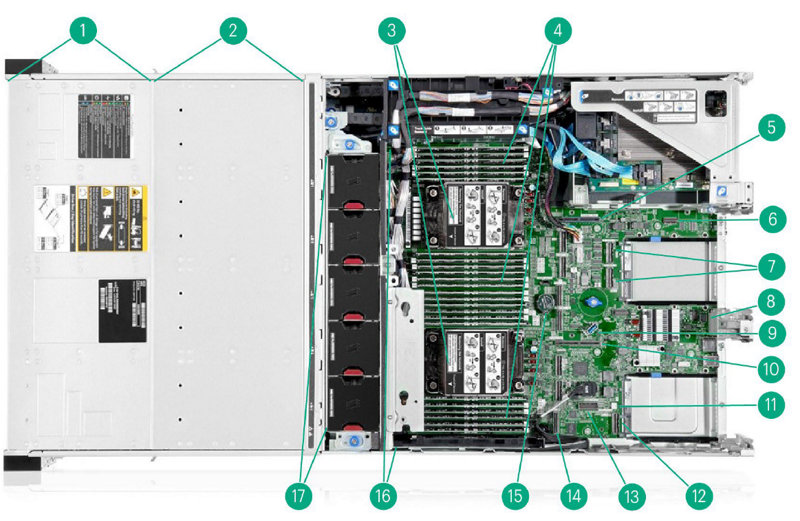

HPE ProLiant DX4120 Gen11 Configure-to-order System Internal View
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | Drive Cage 1 | 10. | Primary riser connector |
| 2. | Drive Cage 2 | 11. | VBU connector (OCP1) |
| 3. | Up to 2 processors (2 processors installed with standard heat sink shown) | 12. | OCP1 connector |
| 4. | DDR5 DIMM slots (Fully populated 24 DIMMs shown) | 13. | PCIe Gen3 connector |
| 5. | Secondary riser connector | 14. | MCIO connectors |
| 6. | System maintenance switch | 15. | System battery |
| 7. | OCP2 connectors | 16. | MCIO 1A connector |
| 8. | Serial port connector | 17. | System fans |
| 9. | Internal USB connector | | |
![[IMAGE4]](https://assets.ext.hpe.com/is/image/hpedam/a50007025enw_block1img10?$crimg$ "[IMAGE4]")

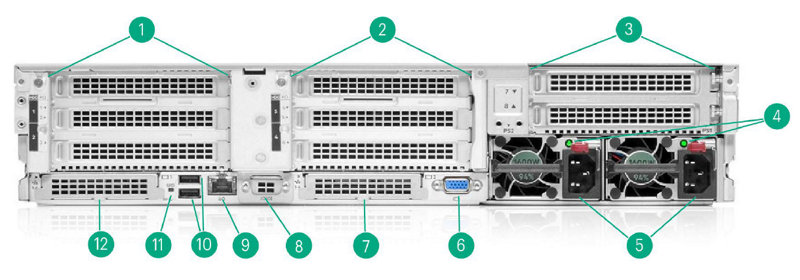

HPE ProLiant DX4120 Gen11 Configure-to-order System Rear View
| Item | Description | Item | Description |
|---|---|---|---|
| 1. | Primary riser or drive cage 4 (riser shown) | 7. | OCP NIC 3.0 slot 2 |
| 2. | Secondary riser or drive cage 5 (riser shown) | 8. | Serial port (optional) |
| 3. | Tertiary riser | 9. | iLO management port |
| 4. | Power supply LED (bay 1 & 2) | 10. | USB 3.0 ports |
| 5. | Flex Slot power supply bay 1 & 2 | 11. | UID LED |
| 6. | Video port | 12. | OCP NIC 3.0 slot 1 |
What’s New
- − Successor to the industry-leading HPE ProLiant DX4200 Gen10 server.
- − More data processing with the latest 4th generation Intel® Xeon® Scalable processors delivering more performance plus DDR5 memory with up to 50% more bandwidth.
- − Enhanced zero trust security from silicon to software and factory to cloud with HPE Integrated Lights Out 6, including added support for the DMTF Security Protection Data Model.
Platform Information
Form Factor
- – 2U rack
Chassis Types
- – 24 LFF SAS 24Gb/SATA 6Gb
Notes:
– Optional Rear Drive Cages:
- • 6 SFF SAS 24Gb/SATA 6Gb/NVMe U.3 x4 Tri-mode Drive Cage
System Fans
- – 5 system dual-fan modules shipped as standard
Standard Features
Processors
Up to 2 of the following depending on model.
Notes:
− The 2nd digit of the processor model number “x4xx” is used to denote the processor generation (i.e. 4 = 4th generation)
− This table covers the public Intel® offering only.
− For more information regarding Intel® Xeon® processors, please see the following http://www.intel.com/xeon.
| Platinum Processors | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Platinum 8468 Processor | 2.1 GHz | 48 | 105 MB | 350 W | 4 @ 16 GT/s | 4800 MT/s | 512 GB |
| Platinum 8462+ Processor | 2.8 GHz | 32 | 60 MB | 300 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Platinum 8460Y+ Processor | 2.0 GHz | 40 | 105 MB | 300 W | 4 @ 16 GT/s | 4800 MT/s | 128 GB |
| Platinum 8452Y Processor | 2.0 GHz | 36 | 67.5 MB | 300 W | 4 @ 16 GT/s | 4800 MT/s | 128 GB |
| Notes: − Supports up to two sockets, 2S – 4 or 3 UPI @ 16 GT/s. − 4th Generation: 8-Channel DDR5 @ 4800 MT/s (2DPC @ 4400 MT/s). − 80 lanes PCIe 5.0, advanced RAS. − Y Supports Intel® Speed Select Technology – Performance Profile 2.0 (Intel® SST-PP). | |||||||
| Gold Processors | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Gold 6454S Processor | 2.2 GHz | 32 | 60 MB | 270 W | 4 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6448Y Processor | 2.1 GHz | 32 | 60 MB | 225 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6444Y Processor | 3.6 GHz | 16 | 45 MB | 270 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6442Y Processor | 2.6 GHz | 24 | 60 MB | 225 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6438Y+ Processor | 2.0 GHz | 32 | 60 MB | 205 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6434 Processor | 3.7 GHz | 8 | 22.5 MB | 195 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 6430 Processor | 2.1 GHz | 32 | 60 MB | 270 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 6426Y Processor | 2.5 GHz | 16 | 37.5 MB | 185 W | 3 @ 16 GT/s | 4800 MT/s | 128 GB |
| Gold 5420+ Processor | 2.0 GHz | 28 | 52.5 MB | 205 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 5418Y Processor | 2.0 GHz | 24 | 45 MB | 185 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 5418N Processor | 1.8 GHz | 24 | 45 MB | 165 W | 3 @ 16 GT/s | 4000 MT/s | 128 GB |
| Gold 5416S Processor | 2.0 GHz | 16 | 30 MB | 150 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Gold 5415+ Processor | 2.9 GHz | 8 | 22.5 MB | 150 W | 3 @ 16 GT/s | 4400 MT/s | 128 GB |
| Notes: − Supports up to two sockets, 2S - 4 or 3 UPI @ 16 GT/s, except U SKUs − 4th Generation: 8-Channel DDR5 @ 4000-4800 MT/s (2DPC @ 4400 MT/s). − 80 lanes PCIe 5.0, advanced RAS. − Y Supports Intel® Speed Select Technology – Performance Profile 2.0 (Intel® SST-PP). − U Supported in one-socket configurations only. − S SKUs are storage & hyperconverged infrastructure (HCI) optimized SKUs | |||||||
| Silver Processors | |||||||
|---|---|---|---|---|---|---|---|
| Intel® Xeon® Models | CPU Frequency | Cores | L3 Cache | Power | UPI | DDR5 | SGX Enclave size |
| Silver 4416+ Processor | 2.0 GHz | 20 | 37.5 MB | 165 W | 2 @ 16 GT/s | 4000 MT/s | 64 GB |
| Silver 4410Y Processor | 2.0 GHz | 12 | 30 MB | 150 W | 2 @ 16 GT/s | 4000 MT/s | 64 GB |
Chipset
Intel® C741 Chipset
Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.
On System Management Chipset
HPE iLO 6 ASIC
Notes: Read and learn more in the iLO QuickSpecs.
Memory | |
|---|---|
| Type | HPE DDR5 Smart Memory Registered (RDIMM) |
| DIMM slots available | 24 12 DIMM slots per processor, 8 channels per processor, 2-2-1-1 deployment |
| Maximum capacity (RDIMM) | 6 TB 24 x 256 GB RDIMM @ 4800 MT/s |
Memory Protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and multi-bit errors that occur within a single DRAM chip.
Online Spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
Notes: For more information see our Memory RAS feature technical whitepaper.
Expansion Slots
Primary Riser
Notes: Bus width indicates the number of physical electrical lanes running to the connector.
| PCIe Primary Riser Kit | |||||
|---|---|---|---|---|---|
| Slot# | Technology | Bus Width | Connector Width | Slot Form Factor | Notes |
| 1 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc1 |
| 2 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc1 |
| 3 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc1 |
Secondary Riser
Notes:
– Bus width indicates the number of physical electrical lanes running to the connector.
– When 4th UPI enabled, Slot 4 is running PCIe 4.0 performance. The 4th UPI is disabled by default.
– Bus width indicates the number of physical electrical lanes running to the connector.
– When 4th UPI enabled, Slot 4 is running PCIe 4.0 performance. The 4th UPI is disabled by default.
| PCIe Secondary Riser Kit | |||||
|---|---|---|---|---|---|
| Slot# | Technology | Bus Width | Connector Width | Slot Form Factor | Notes |
| 4 | PCIe 5.0* | X16 | X16 | Full-height, half-length slot | Proc2 |
| 5 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc2 |
| 6 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc2 |
Primary and Secondary 1U Riser
Notes:
– Bus width indicates the number of physical electrical lanes running to the connector.
– Primary and secondary 1U riser is included in 6SFF x4 Tri-Mode U.3 BC Rear Drive Cage (P51784-B21) and 12EDSFF E3.S 1T x4 Rear Drive Cage (P50875-B21) Upgrade Kit.
– Bus width indicates the number of physical electrical lanes running to the connector.
– Primary and secondary 1U riser is included in 6SFF x4 Tri-Mode U.3 BC Rear Drive Cage (P51784-B21) and 12EDSFF E3.S 1T x4 Rear Drive Cage (P50875-B21) Upgrade Kit.
| PCIe Primary and Secondary 1U Riser Kit | |||||
|---|---|---|---|---|---|
| Slot# | Technology | Bus Width | Connector Width | Slot Form Factor | Notes |
| 3 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc1 |
| 6 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc2 |
Tertiary Riser
Notes:
– Tertiary riser is shipped as standard
– Bus width indicates the number of physical electrical lanes running to the connector.
– When 4th UPI enabled, Slot 8 is running PCIe 4.0 performance. The 4th UPI is disabled by default.
– Tertiary riser is shipped as standard
– Bus width indicates the number of physical electrical lanes running to the connector.
– When 4th UPI enabled, Slot 8 is running PCIe 4.0 performance. The 4th UPI is disabled by default.
| PCIe Tertiary Riser | |||||
|---|---|---|---|---|---|
| Slot# | Technology | Bus Width | Connector Width | Slot Form Factor | Notes |
| 7 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc2 |
| 8 | PCIe 5.0 | X16 | X16 | Full-height, half-length slot | Proc1 |
Internal Storage Devices
- − Hard Drives
- None ship standard
Storage Controllers
NVMe Boot Devices
- − HPE DX NS204i-u Gen11 NVMe Hot-Plug Boot FIO Optimized Storage Device
- Notes:
- − NS204i-u does not occupy a PCIe slot and internal only for HPE ProLiant DX 4120.
- − 2pcs of 480GB M.2 NVMe SSD are included in the DX NS204i-u Hot-Plug Boot Device
Smart Array Controller
- − HPE DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller
Maximum Internal Storage
| Maximum Storage | |||
|---|---|---|---|
| Storage | Capacity | Configuration | |
| Standard Cage 1/2 Hot-plug 24LFF SAS HDD | 480 TB | 24 x 20 TB | |
| Optional Cage 3 Hot-Plug 6SFF NVMe SSD | 92.16 TB | 6 x 15.36 TB | |
Internal Storage Devices
- − Hard Drives
- − None ship standard.
Graphics
- − Integrated video standard
- • Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
- • 16 MB Video Memory
- − HPE iLO 6 on system management memory
- • 32 MB Flash
- • 4 Gbit DDR3 with ECC protection
Power Supply
- − HPE 800W Flex Slot Platinum Hot-Plug Low Halogen Power Supply Kit
- Notes: Available in 94% efficiency.
- − HPE 1000W Flex Slot Titanium Hot-Plug Low Halogen Power Supply Kit
- Notes: Available in 96% efficiency.
- − HPE 1600W Flex Slot -48VDC Hot-Plug Power Supply Kit
- − HPE 1600W Flex Slot Platinum Hot-Plug Low Halogen Power Supply Kit
- Notes:
- − Available in 94% efficiency.
- − 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).
- − HPE 1800-2200W Flex Slot Titanium Hot-Plug Low Halogen Power Supply Kit
- Notes:
- − Available in 96% efficiency.
- − 1800-2200W Power supplies only support high line voltage (200 VAC to 240 VAC).
- − HPE 1600W ~48VDC Power Supply Kit
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for Hot-Plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please use the HPE Power Advisor Tool.
For information on power specifications and technical content visit HPE Server power supplies.
Interfaces | ||
|---|---|---|
| Serial | 1 port – Optional, rear | |
| VGA Port | 1 port – Standard, rear | |
| Network Ports | None. Choice of OCP or stand up card, supporting a wide range of NIC adapters | |
| HPE iLO Remote Management Network Port | 1 GbE Dedicated | |
| Front iLO Service Port | 1 standard | |
| USB 3.0 | 4 standard on all models: 1 front, 2 rear, 1 internal | |
Operating Systems and Virtualization Software
Industry Standard Compliance
- − ACPI 6.4 Compliant
- − PCIe 5.0 Compliant
- − WOL Support
- − Microsoft® Logo certifications
- − PXE Support
- − USB 3.2 Gen1Compliant
- − SMBIOS 3.4
- − Redfish API
- − IPMI 2.0
- − Secure Digital 4.0
- − TPM 2.0 support
- − Advanced Encryption Standard (AES)
- − Triple Data Encryption Standard (3DES)
- − SNMP v3
- − TLS 1.2
- − DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)
- − One Button Secure Erase Enhancements
Notes:
− For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae
− At Standard Operating Support conditions, there is no time limitation for operating the servers in ASHRAE Class A2 conditions, unless otherwise specified in the applicable product information.
Embedded Management
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo.
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Learn more at http://www.hpe.com/servers/uefi.
Intelligent Provisioning
Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning. Learn more at
http://www.hpe.com/servers/intelligentprovisioning.
iLO RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.
Server Utilities
Active Health System
The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.
Active Health System Viewer
Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.
Smart Update
Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at
https://www.hpe.com/us/en/servers/smart-update.html
HPE iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.
RESTful Interface Tool
RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.
Scripting Tools
Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.
Security
- − UEFI Secure Boot and Secure Start support
- − Immutable Silicon Root of Trust
- − FIPS 140-2 validation
- − Common Criteria certification
- − Configurable for PCI DSS compliance
- − Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- − Support for Commercial National Security Algorithms (CNSA)
- − iLO Security Modes
- − Granular control over iLO interfaces
- − Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
- − Tamper-free updates – components digitally signed and verified
- − Secure Recovery – recover critical firmware to known good state on detection of compromised FW
- − Ability to rollback firmware
- − Secure erase of NAND
- − TPM (Trusted Platform Module) 2.0 option
- − Bezel Locking Kit
- − Chassis Intrusion detection
HPE Trusted Platform Module
HPE Trusted Platform Module 2.0 is included on Pre-Configured models and can be enabled and disabled using the BIOS.
Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
https://www.hpe.com/us/en/search-results.html?page=1&q=servers%20warranty&autocomplete=0.
Server Management
HPE iLO Advanced: Standard
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
Accelerator and GPGPU Information
Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.
Service and Support
HPE Services
No matter where you are on your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- − A complete coverage approach -- edge to cloud
- − An assigned HPE team
- − Modular and fully personalized engagement
- − Enhanced Incident Management experience with priority access
- − Digitally enabled and AI driven customer experience
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise-level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.
- − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.
- − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin
Consume IT On Your Terms
HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
- − Get faster time to market.
- − Save on TCO, align costs to business.
- − Scale quickly, meet unpredictable demand.
- − Simplify IT operations across your data centers and clouds.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information: http://www.hpe.com/services
Configuration Information
This section lists some of the steps required to configure a Factory Integrated Model.
To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
- − Factory Integrated Models must start with a CTO Server.
- − FIO indicates that this option is only available as a factory installable option.
- − Some options may not be integrated at the factory. Contact your local sales representative for additional information
Step 1: Base Configuration (choose one of the following configurable models)
Network Choice (NC) Models
Network Choice models do not include embedded LOM. To enable networking capability please select a validated alternative NIC -OCP or PCIe- from the Core Options section.
| CTO Models | HPE ProLiant DX4120 Gen11 24LFF Configure-to-order System |
|---|---|
| SKU Number | P68690-B21 |
| Processor | Not included as standard |
| DIMM slots | 24-DIMM slots |
| Storage Controller | A storage Controller (DX MR216i-p) must be selected |
| PCIe | Up to 8 PCIe slots |
| Drive Cage - included | 24 LFF – SAS 20TB 6SFF - NVMe rear cage |
| Network Controller | Choice of OCP or stand up cards Notes: No embedded networking. |
| Fans | 5 dual-rotor fan modules |
| Management | Default: HPE iLO Standard |
| USB | Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 1 USB 3.0 |
| Form Factor | 2U Rack |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
| Notes: * HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. − HPE DX ProLiant platforms are a Server Appliance: and Energy Star except. Server Appliance: A computer server that is bundled with a pre-installed OS and application software that is used to perform a dedicated function or set of tightly coupled functions. Server appliances deliver services through one or more networks (e.g., IP or SAN), and are typically managed through a web or command line interface. Server appliance hardware and software configurations are customized by the vendor to perform a specific task (e.g., name services, firewall services, authentication services, encryption services, and voice-over-IP(VoIP) services), and are not intended to execute user-supplied software. | |
Step 2: Choose Required OptionsNotes: – Mixing of 2 different processor models is not supported. – Processors with TDP equal to or greater than 270W require High Performance Heat Sink Kit (P51832-B21). – Processors with TDP lower than 270W require Standard Heat Sink Kit (P51833-B21). | |
| Step 2a: Choose Processor Options Processor Option Kits 4th Generation Intel® Xeon®-Platinum Notes: – All SKUs below ship with processor only. Adequate heatsinks (standard or high performance) must be selected. – 4800 MT/s maximum memory speed unless otherwise noted. | |
| Description | SKU |
| Intel® Xeon®-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX | P62394-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 512GB SGX Enclave. | |
| Intel® Xeon®-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX | P62393-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX | P62398-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| 4th Generation Intel® Xeon®-Gold Notes: – All SKUs below ship with processor only. Adequate fans and heatsinks (standard or high performance) must be selected. – 4800 - 4400 MT/S maximum memory speed unless otherwise noted. | |
| Description | SKU |
| Intel® Xeon®-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX | P62404-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX | P62408-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX | P62410-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX | P62407-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX | P62416-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX | P62409-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX | P62397-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX | P62406-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX | P62415-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX | P62414-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Description | SKU |
| Intel® Xeon®-Gold 5418N 1.8GHz 24-core 165W FIO Processor for HPE DX | P62422-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5416S 2.0GHz 16-core 150W Processor for HPE DX | P62426-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5415+ 2.9GHz 8-core 150W FIO Processor for HPE DX | P62405-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| 4th Generation Intel® Xeon®-Silver | |
| Notes: – All SKUs below ship with processor only. Adequate fans and heatsinks (Standard or high performance) must be selected. – 4000 MT/s maximum memory speed unless otherwise noted. | |
| Intel® Xeon®-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX | P62413-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Silver 4410Y 2.0GHz 12-core 150W FIO Processor for HPE DX | P62412-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Step 2b: Choose Memory Options Please select one or more memory from below. For additional information, please see the HPE DDR5 Smart Memory QuickSpecs. Notes: − The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model. − Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, or 12. − If this SKU (Matera) is selected, Then Sapphire R SKUs (P62393-B21, P62394-B21, P62397-B21, P62398-B21, P62404-B21, P62405-B21, P62406-B21, P62407-B21, P62408-B21, P62409-B21, P62410-B21, P62411-B21, P62412-B21, P62413-B21, P62414-B21, P62415-B21, P62416-B21, P62426-B21, P62422-B21) cannot be selected. − If this SKU (non-Matera) is selected, Then Emerald R SKUs (P67083-B21, P67079-B21, P67090-B21, P67086-B21, P67097-B21, P67110-B21, P67085-B21, P67096-B21, P67082-B21, P67095-B21, P67104-B21, P67094-B21, P67081-B21, P67093-B21, P67084-B21, P67080-B21, P67092-B21, P67091-B21) cannot be selected. Registered DIMMs (RDIMMs) Notes: − Mixing of 3DS and non-3DS DIMMs is Not allowed. − Mixing of R-DIMMs and LR-DIMMs is Not allowed. | |
| Description | SKU |
| HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62601-B21 |
| HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62603-B21 |
| HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62604-B21 |
| HPE DX 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit | P62605-B21 |
| HPE DX 256GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit | P62606-B21 |
| Notes: Support limited to 25°C maximum inlet temperature. | |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64705-B21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64706-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64707-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64708-B21 |
| Notes: − If 96G memory SKU (P64708-B21) is selected, Then DIMM qty can only be 12, 16, 24. − If any of these SPR EE LCC CPUs (P67090-B21, P67091-B21) is selected, Then 96G memory (P64708-B21) cannot be selected | |
| HPE 128GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit | P64709-B21 |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit | P64705-B21 |
| Step 2c: Choose Power Supplies Please select one or two power supplies from below. Notes: Mixing of 2 different power supplies are NOT allowed. | |
| HPE Flex Slot Power Supplies | |
| HPE DX 800W Flex Slot Platinum Hot-Plug Low Halogen FIO Power Supply Kit | P18223-B21 |
| HPE DX 1000W Flex Slot Titanium Hot-Plug FIO Power Supply Kit | P44807-B21 |
| HPE DX 1600W Flex Slot Platinum Hot-Plug Low Halogen FIO Power Supply Kit | P18222-B21 |
| HPE DX 1800W-2200W Flex Slot Titanium Hot-Plug FIPOPower Supply Kit | P56724-B21 |
| Notes: Only supports high line voltage (200 VAC to 240 VAC). | |
| HPE DX 1600W Flex Slot -48VDC Hot-Plug FIO Power Supply Kit | P60246-B21 |
| HPE 1600W -48VDC Power Cable Lug Kit | P36877-B21 |
Step 3: Choose Additional (FIO) Factory Integratable OptionsEach of the following may be selected if desired at time of factory integration | |
| HPE Smart Memory Fast Fault Tolerance FIO Setting | 875293-B21 |
| Notes: − Enables Fast Fault Tolerance mode, an HPE Memory RAS feature introduced in HPE Gen10 servers that survives up to two DRAM failures. − This RAS feature combines Adaptive Double DRAM Device Correction (ADDC) with HPE Advanced Error Detection Technology, resulting in significantly better memory reliability and availability that what ADDDC provides on its own. For more information see our Memory RAS feature technical whitepaper. | |
Core Options
| Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information. HPE Unique Options | |
| Cooling Options | |
| Description | SKU |
| HPE ProLiant DX4120 High Performance FIO Heat Sink Kit | P68977-B21 |
| Notes: Required for processors with a TDP equal or greater than 270W. | |
| System FIO Storage Controllers | |
| HPE ProLiant DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller | P60333-B21 |
| System FIO Storage Controller Mode for 24LFF Cage2 System OCP Options | |
| Description | SKU |
| HPE Alletra Storage Server 4120 OCP2 Upgrade Cable Kit | P51943-B21 |
| Notes: This SKU can improve the OCP2 slot bandwidth from X8 to X16 PCIe Gen5, and the 2nd processor is required. | |
| System Racking Options | |
| HPE 2U Shelf-Mount Adjustable Rail Kit | 822731-B21 |
| HPE Apollo 4200 Gen9 FIO Strap Shipping Bracket | 822640-B21 |
| Notes: This SKU is used for shipping servers that are integrated into a rack. | |
| System NVMe Boot Device Enablement Options | |
| HPE Alletra Storage Server 4120 NVMe M.2 Enablement Kit | P50885-B21 |
| Notes: This SKU is required when HPE NS204i-u Gen11 NVMe Hot-Plug Boot Optimized Storage Device (P48183-B21) is installed. | |
HPE ProcessorsPlease select one or two matching processors. Notes: − Mixing of 2 different processor models is not supported. − Processors with TDP equal to or greater than 270W require High Performance Heat Sink Kit (P51832-B21). − Processors with TDP lower than 270W require Standard Heat Sink Kit (P51833-B21). − If any of these SKUs (Sapphire R) is selected, Then these memory SKUs (P64705-B21, P64706-B21, P64707-B21, P64708-B21, P64709-B21) can NOT be selected − If any of these SKUs (Emerald R) is selected, Then these memory SKUs (P62601-B21, P62603-B21, P62604-B21, P62605-B21, P62606-B21) can NOT be selected − If any of these SPR EE LCC CPUs (P67090-B21, P67091-B21) is selected, Then 96G memory (P64708-B21) can NOT be selected | |
| Processor Option Kits | |
| 4th Generation Intel® Xeon®-Platinum Notes: – All SKUs below ship with processor only. Adequate heatsinks (standard, or high performance) must be selected. – 4800 MT/S maximum memory speed unless otherwise noted. | |
| Description | SKU |
| Intel® Xeon®-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX | P62394-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 512GB SGX Enclave. | |
| Intel® Xeon®-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX | P62393-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX | P62398-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| 5th Generation Intel® Xeon®-Platinum | |
| Intel® Xeon®-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE | P67085-B21 |
| Intel® Xeon®-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE | P67086-B21 |
| Intel® Xeon®-Platinum 8558 2.1GHz 48-core 330W Processor for HPE | P67097-B21 |
| 4th Generation Intel® Xeon®-Gold | |
| Notes: – All SKUs below ship with processor only. Adequate fans and heatsinks (standard, or high performance) must be selected. – 44800 MT/S maximum memory speed unless otherwise noted. | |
| Intel® Xeon®-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX | P62404-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX | P62408-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX | P62410-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX | P62407-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX | P62416-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX | P62409-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX | P62397-B21 |
| Notes: – Requires High Performance Heat Sink Kit (P51832-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX | P62406-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX | P62415-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX | P62414-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5418N 1.8GHz 24-core 165W FIO Processor for HPE DX | P62422-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5416S 2.0GHz 16-core 150W Processor for HPE DX | P62426-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Gold 5415+ 2.9GHz 8-core 150W FIO Processor for HPE DX | P62405-B21 |
| Intel® Xeon®-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE | P67079-B21 |
| Intel® Xeon®-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE | P67094-B21 |
| 5th Generation Intel® Xeon®-Gold 6 | |
| Intel® Xeon®-Gold 6554S 2.2GHz 36-core 270W Processor for HPE | P67110-B21 |
| Intel® Xeon®-Gold 6538N 2.1GHz 32-core 205W Processor for HPE | P67104-B21 |
| Intel® Xeon®-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE | P67080-B21 |
| Intel® Xeon®-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE | P67081-B21 |
| Intel® Xeon®-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE | P67082-B21 |
| Intel® Xeon®-Gold 6534 3.9GHz 8-core 195W Processor for HPE | P67083-B21 |
| Intel® Xeon®-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE | P67084-B21 |
| Intel® Xeon®-Gold 6530 2.1GHz 32-core 270W Processor for HPE | P67095-B21 |
| Intel® Xeon®-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE | P67096-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| 4th Generation Intel® Xeon®-Silver | |
| Notes: – All SKUs below ship with processor only. Adequate fans and heatsinks (Standard or high performance) must be selected. – 4000 MT/s maximum memory speed unless otherwise noted. | |
| Intel® Xeon®-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX | P62413-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| Intel® Xeon®-Silver 4410Y 2.0GHz 12-core 150W FIO Processor for HPE DX | P62412-B21 |
| Notes: – Requires Standard Heat Sink Kit (P51833-B21). – 128GB SGX Enclave. | |
| 5th Generation Intel® Xeon®-Silver | |
| Intel® Xeon®-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE | P67090-B21 |
| Intel® Xeon®-Silver 4510 2.4GHz 12-core 150W Processor for HPE | P67091-B21 |
| Notes: If any of these SPR EE LCC CPUs (P67090-B21, P67091-B21) is selected, Then 96G memory (P64708-B21) can NOT be selected | |
| Intel® Xeon®-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE | P67092-B21 |
| Intel® Xeon®-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE | P67093-B21 |
HPE MemoryPlease select two or more memory DIMMs from below. For additional information, please see the HPE DDR5 Smart Memory QuickSpecs. Notes: − The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model. − Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, or 12. HPE DDR5 Memory Notes: DIMMs must be selected in quantities of 1, 2, 4, 6, 8, or 12 per socket. Registered DIMMs (RDIMMs) Notes: Mixing of 3DS and non-3DS DIMMs not allowed. | |
| HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62601-B21 |
| HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62603-B21 |
| HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit | P62604-B21 |
| HPE DX 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit | P62605-B21 |
| HPE DX 256GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit | P62606-B21 |
| Notes: Support limited to 25°C maximum inlet temperature. | |
HPE Boot Device | |
| HPE DX NS204i-u Gen11 NVMe Hot-Plug Boot Optimized FIO Storage Device | P60454-B21 |
| Notes: No NVMe M.2 SSD included and requires at least one NVMe SSD. | |
| HPE 480GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD | P40513-B21 |
| HPE 960GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD | P40514-B21 |
| HPE 1.92TB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD | P40515-B21 |
| HPE Alletra Storage Server 4120 NVMe M.2 Enablement Kit | P50885-B21 |
HPE Drives | |
| Midline - 12G SAS - LFF Drives | |
| Description | SKU |
| HPE DX 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE FIO HDD | P60324-B21 |
| HPE DX 16TB SAS 12G Business Critical 7.2K LFF (3.5in) LP 1yr Wty 512e ISE FIO HDD | P35152-B21 |
| HPE DX 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty HE 512e Digitally Signed Firmware FIO HDD | P17966-B21 |
| HPE DX 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware FIO HDD | P17965-B21 |
| Read Intensive - NVMe - SFF - Solid State Drives | |
| HPE DX 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57758-B21 |
| HPE DX 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD | P57759-B21 |
| HPE DX 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD | P57771-B21 |
HPE Networking | |
| 100 Gigabit Ethernet adapters | |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX | P43273-B21 |
| Notes: Not supported if processors equal or greater than 270W | |
| 25 Gigabit Ethernet adapters | |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 FIO Adapter for HPE DX | P53862-B21 |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX | P43273-B21 |
| 10 Gigabit Ethernet adapters | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T FIO Adapter for HPE DX | P43271-B21 |
| OCP 3.0 Adapters | |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 FIO Adapter for HPE DX | P43272-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for DX | P53861-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for HPE DX | P60339-B21 |
HPE Power SuppliesHPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for Hot-Plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE Power Cords web page. To review the power requirements for your selected system, please use the HPE Power Advisor Tool. For information on power specifications and technical content visit HPE Server power supplies | |
HPE Flex Slot Platinum Hot-plug Power supplies | |
| Description | SKU |
| HPE 800W Flex Slot Platinum Hot-Plug Low Halogen Power Supply Kit | P38995-B21 |
| HPE 1000W Flex Slot Titanium Hot-Plug Power Supply Kit | P03178-B21 |
| HPE 1600W Flex Slot Platinum Hot-Plug Low Halogen Power Supply Kit | P38997-B21 |
| Notes: Only supports high line voltage (200 VAC to 240 VAC). | |
| HPE 1800W-2200W Flex Slot Titanium Hot-Plug Power Supply Kit | P44712-B21 |
| Notes: Only supports high line voltage (200 VAC to 240 VAC). | |
| HPE 1600W Flex Slot -48VDC Hot-Plug Power Supply Kit | P17023-B21 |
Additional Options
Embedded ManagementNotes: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information. HPE iLO Advanced: Standard | |
| HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features | BD505A |
| HPE iLO Common Password: Standard | |
| HPE iLO Common Password FIO Setting | P08040-B21 |
| Notes: − Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process. − Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services. | |
HPE Security | |
| HPE Gen11 2U Storage Bezel Kit | P51688-B21 |
| HPE Bezel Lock Kit | 875519-B21 |
HPE Smart Array ControllersNotes: − MR (MegaRAID) series controllers are not supported with Intelligent Provisioning features − For more information on the HPE Gen11 Storage Controller, please refer to: HPE Compute MR Gen11 Controllers QuickSpecs | |
| HPE Tri-Mode Controllers | |
| HPE ProLiant DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller | P60333-B21 |
| HPE NVMe OS Boot Device: Defaulted | |
| HPE DX NS204i-u Gen11 NVMe Hot-Plug Boot Optimized FIO Storage Device | P60454-B21 |
HPE PCI-e AcceleratorsGPU Controllers | |
| DX NVIDIA L4 SW PCIe FIO Accelerator | P65461-B21 |
| DX NVIDIA A2 16GB PCIe NonCEC FIO Accel | P66211-B21 |
Technical Specifications
System Unit | ||
|---|---|---|
| Dimensions (Height x Width x Depth) | 87.5 x 448.0 x 812.80 mm 3.44 x 17.63 x 32.00 in | |
| Weight (approximate) | ||
| Minimum | 21.28 kg 46.91 lb. | |
| Maximum. | 42.84 kg 94.45 lb. | |
| | 42.84 kg | |
| | 94.45 lb. | |
| Input Requirements (per power supply) | ||
| Rated Line Voltage | 100 to 120 VAC 200 to 240 VAC | |
| BTU Rating | |
| Maximum | For 800W Power Supply: 3207 BTU/hr. (at 100 VAC), 3071 BTU/hr. (at 200 VAC), 3112 BTU/hr. (at 240 VAC) for China Only |
| Power Supply Output (per power supply) | |
| Rated Steady-State Power | For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only |
| For 800W Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only | |
| Maximum Peak Power | For 1600W Power Supply: 1600W (at 200 to 240 VAC), 1600W (at 240 VDC) input for China only |
| System Inlet Temperature | |
| Standard Operating Support | 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F). For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: |
| Extended Ambient Operating Support | For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae System performance may be reduced if operating in the extended ambient operating range or with a fan fault. |
| Relative Humidity (non-condensing) | |
| Operating | 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. |
| Non-operating | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. |
| Altitude | |
| Operating | 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
| Non-operating | 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
| Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below. | |
| Configuration SKU | Entry | Base | Performance |
| Idle | |||
| LWAd | 5.9 B | 6.4 B | 5.4 B |
| LpAm | 35 dBA | 35 dBA | 36 dBA |
| Operating | |||
| LWAd | 6.0 B | 7.1 B | 6.3 B |
| LpAm | 36 dBA | 38 dBA | 45 dBA |
Emissions Classification (EMC)
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:
http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts
Environmentally friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
TCO Certified
The HPE ProLiant DX4120 Gen11 has been TCO Certified. All HPE TCO Certified products can be found on TCO Certified Product Finder. More information on TCO Certified can be downloaded here: https://www.hpe.com/us/en/about/environment/eco-labels.html
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 17-Nov-2025 | Changed | Document was modified to comply with HPE Rebranding strategy. | |
| 21-Oct-2024 | Changed | Configuration Information and Core Options sections were updated. (New SKUs were added). | |
| 16-Sep-2024 | Changed | Overview and Standard Features sections were updated (Grammar). | |
| 08-Jan-2024 | New | New QuickSpecs |
© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Intel® and Xeon® are registered trademarks of Intel® Corporation in the U.S. and other countries.
Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.
a50007025enw, 17135 - Worldwide - V4 - 17-November-2025
