HPE ProLiant DX380 Gen11 QuickSpecs

Shape the Future of QuickSpecs – Your Input Matters

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DX380 Gen11 delivers world-class performance with the right balance of expandability and scalability.

Designed for supreme versatility and resiliency while being backed by a comprehensive warranty, it makes it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform. Now with all NVMe offerings providing faster data rate transfers and lower latency.

  • Overview

    HPE ProLiant DX380 Gen11

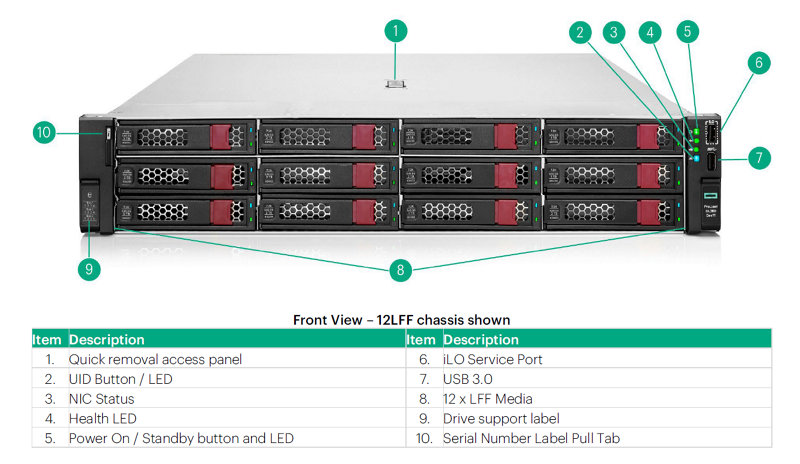

image 1

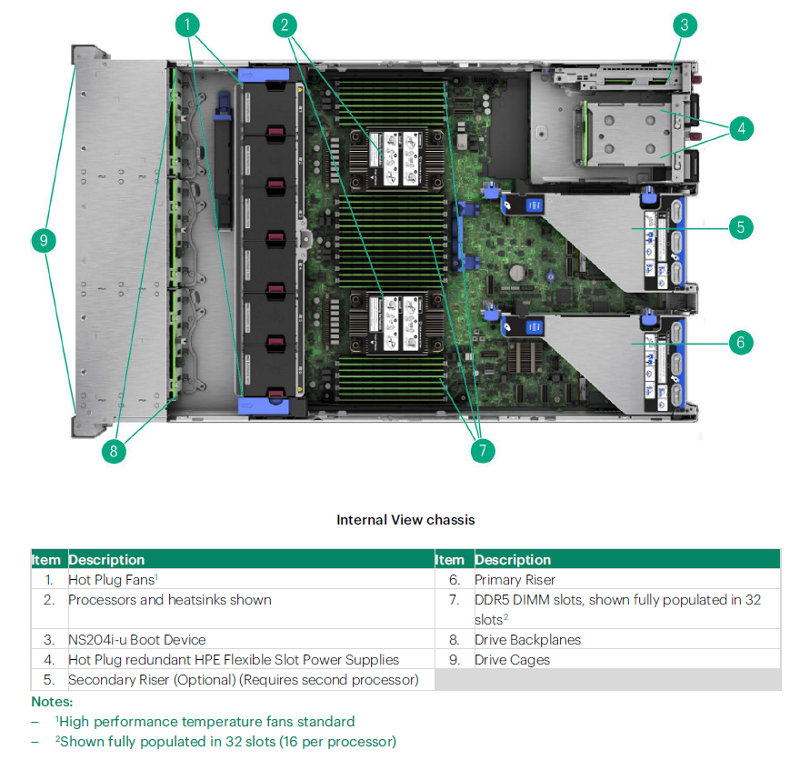

image 2
image 3

What’s New

  • − New 5th Generation Processors
  • − New DX380 24SFF NVME Gen11
  • − Qualified platforms/configurations recognized by both HPE & Nutanix
  • − Factory tuned & optimized HW settings for Nutanix environments
  • − Factory pre-installed Nutanix AHV & AOS
  • − New 4th Generation Intel® Scalable Processors
  • − New PCIe 5.0 support
  • − New DDR5 Smart Memory – 4800MT/s
  • − New Storage Controllers
  • − New NS204i-u Boot Device
  • − New SSDs and HDDs
  • − New HPE iLO6 support

Platform Information

Form Factor

  • − 2U rack

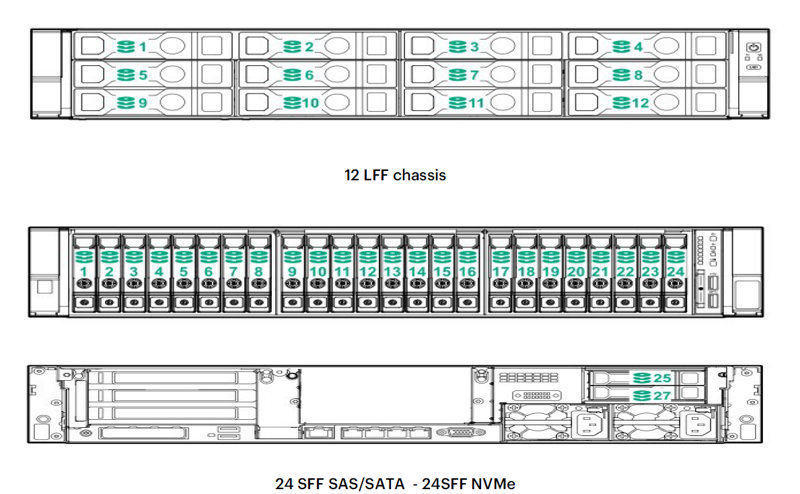

Chassis Types

  • − 24SFF bay (SAS/SATA)

12LFF System Fans

  • − High Performance Fan Kit – Standard

  • Standard Features

    Processors – Up to 2 of the following depending on model.

    The 2nd digit of the processor model number “x4xx” is used to denote the processor generation (i.e. 4=4th generation Intel® Scalable Series Processors)


    For more information regarding Intel® Xeon® processors, please see the following http://www.intel.com/xeon .


    This table covers the public Intel offering only.

Processor Suffix

Description

Offering

H

DB and Analytics

Highest core counts. Database and Analytics usages benefit from DSA and IAA accelerators.

M

Media Transcode

Optimized around AVX frequencies to deliver better performance/watt around Media, AI, and HPC workloads.

N

Network/5G/Edge (High TPT / Low Latency)

Designed for NFV and networking workloads, such as: L3 fwding, 5G UPF, OVS DPDK, VPP FIB router, VPP IPsec, web server/NGINX, vEPC, vBNG, and vCMTS.

S

Storage and HCI

Optimized for Storage UMA use cases with increased UPI Bandwidth for vs Mainline SKUs.

P

Cloud - IAAS

Designed for cloud IaaS environments to deliver higher frequencies at constrained TDPs.

Q

Liquid Cooling

Liquid cooled processors with higher frequency and performance at same TDP.

U

1 Socket Optimized

Optimized for targeted platforms adequately served by the cores, memory bandwidth and IO capacity available from a single processor

V

Cloud - SAAS

Optimized for orchestration efficiency that delivers higher core counts and VMs per rack.

Y

Speed Select

Intel® SST-PP increases base frequency when fewer cores are enabled. Allows greater flexibility, deployment options and platform longevity.

5th Generation Intel® Xeon® Scalable Processor Family (Platinum)

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR5

SGX Enclave size (GB)

Intel® Xeon®-Platinum

8562Y+ Processor for HPE

2.8 GHz

32

60.00

300 W

3

5600 MT/s

512

Intel® Xeon®-Platinum 8568Y Processor for HPE

2.3 GHz

48

300

350 W

4

5600 MT/s

512

Intel® Xeon®-Platinum 8570 Processor for HPE

2.1 GHz

56

300

350 W

4

5600 MT/s

512

Intel® Xeon®-Platinum 8580 Processor for HPE

2.0 GHz

60

300

350 W

4

5600 MT/s

512

Intel® Xeon®-Platinum 8592+ Processor for HPE

1.9 GHz

64

320

350 W

4

5600 MT/s

512

Intel® Xeon®-Platinum 8558 Processor for HPE

2.1 GHz

48

260

330 W

4

5600 MT/s

512

Intel® Xeon®-Platinum 8558U Processor for HPE

2.0 GHz

48

260

300 W

0

5600 MT/s

512

Intel® Xeon®-Platinum 8592V Processor for HPE

2.0 GHz

64

320

330 W

3

5600 MT/s

512

5th Generation Intel® Xeon® Scalable Processor Family (Gold)

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR5

SGX Enclave size (GB)

Intel® Xeon®-Gold 6526Y Processor for HPE

2.8 GHz

16

37.5

195 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6542Y Processor for HPE

2.9 GHz

24

60.0

250 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6548Y Processor for HPE

2.5 GHz

32

60.0

250 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6534 Processor for HPE

3.9 GHz

8

22.5

195 W

3

4800 MT/s

128

Intel® Xeon®-Gold 6544Y Processor for HPE

3.6 GHz

16

45.0

270 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6530 Processor for HPE

2.1 GHz

32

130

270 W

3

4800 MT/s

128

Intel® Xeon®-Gold 6538Y+ Processor for HPE

2.2 GHz

32

60.0

225 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6538N Processor for HPE

2.1 GHz

32

60.0

205 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6548N Processor for HPE

2.8 GHz

32

60.0

250 W

3

5200 MT/s

128

Intel® Xeon®-Gold 6554S Processor for HPE

2.2 GHz

36

180

270 W

4

5200 MT/s

128

Notes:

  • − Processors with TDP equal to or greater than 150W through 350W require High Performance Heatsink (P48818-B21)
  • − 8-Channel DDR5 @ 4800 MT/
  • − 2 socket capable, 4 UPI @ 16 GT/s.
  • − 1 Liquid cooled CPU. Requires Maximum Performance Heat Sink (P48817-B21). No dual socket support.

4th Generation Intel® Xeon® Scalable Processor Family (Gold)

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR4

SGX Enclave size

Gold 6458Q Processor

3.1 GHz

32

60 MB

350W

3

4800 MT/s

128 GB

Gold 6454S Processor

2 GHz

32

60 MB

270W

4

4800 MT/s

128 GB

Gold 6430 Processor

2.1 GHz

32

60 MB

270W

3

4800 MT/s

128 GB

Gold 6414U Processor 1

2 GHz

32

60 MB

250W

0

4800 MT/s

128 GB

Gold 6426Y Processor

2.5 GHz

16

37.5 MB

185W

3

4800 MT/s

128 GB

Gold 6421N Processor

1.8 GHz

32

60.0 MB

185W

0

4400 MT/s

128 GB

Gold 6442Y Processor

2.6 GHz

24

60.0 MB

225W

3

4800 MT/s

128 GB

Gold 6448Y Processor

2.1 GHz

32

600 MB

225W

3

4800 MT/s

128 GB

Gold 6434 Processor

3.7 GHz

8

22.5 MB

195W

3

4800 MT/s

128 GB

Gold 6444Y Processor

3.6 GHz

16

45.0 MB

270W

3

4800 MT/s

128 GB

Gold 6438Y+ Processor

2.0 GHz

32

60.0 MB

205W

3

4800 MT/s

128 GB

Gold 6438N Processor

2.0 GHz

32

60.0 MB

205W

3

4800 MT/s

128 GB

Gold 6416H Processor

2.2 GHz

18

45 MB

165W

3

4800 MT/s

512 GB

Gold 6418H Processor

2.1 GHz

24

60 MB

185W

3

4800 MT/s

512 GB

Gold 6448H Processor

2.4 GHz

32

60 MB

250W

3

4800 MT/s

512 GB

4th Generation Intel® Xeon® Scalable Processor Family (Gold 5)

Gold 5415+Processor

2.9 GHz

8

22.5 MB

150W

3

4400 MT/s

128 GB

Gold 5418Y Processor

2.0 GHz

24

45.0 MB

185W

3

4400 MT/s

128 GB

Gold 5418N Processor

1.8 GHz

224

45.0 MB

165W

3

4000 MT/s

128 GB

Gold 5420+ Processor

2.0 GHz

28

52.5 MB

205W

3

4400 MT/s

128 GB

Gold 5418N Processor

1.8 GHz

24

45.0 MB

165W

3

4000 MT/s

128 GB

Gold 5411N Processor

1.9 GHz

24

45.0 MB

165W

N/A

4400 MT/s

128 GB

4th Generation Intel® Xeon® Scalable Processor Family (Silver)

Silver 4410Y Processor

2.0 GHz

12

30.0 MB

150W

2

4000 MT/s

64 GB

Silver 4416+ Processor

3.0 GHz

20

37.5 MB

165W

2

4000 MT/s

64 GB

Notes: 8-Channel DDR5 @ 4800 MT/s

Chipset

Intel® C741 Chipset

Notes : For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html


On System Management Chipset

HPE iLO 6 ASIC

Read and learn more in the iLO QuickSpecs .

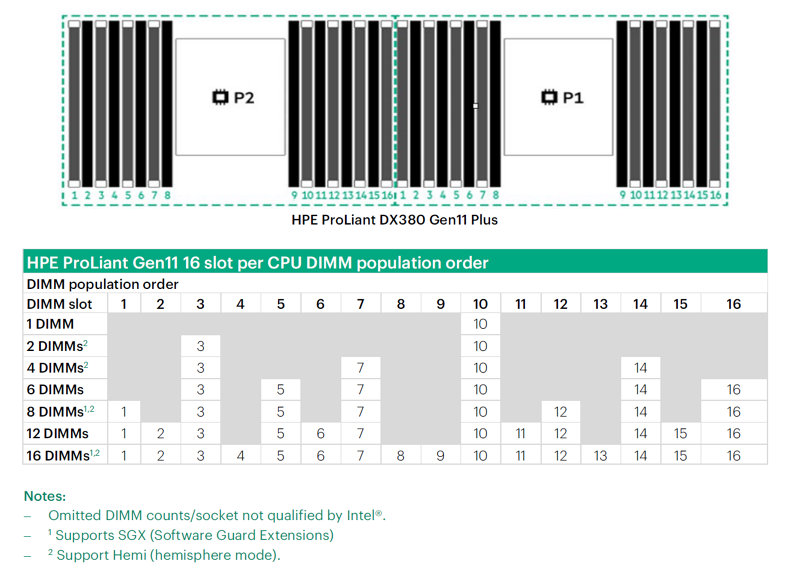

Memory

Type

HPE DDR5 Smart Memory,

Registered (RDIMM)

DIMM Slots Available

32

16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel

Maximum capacity

8.0 TB

32 x 256 GB RDIMM @ 4800 MT/s

Notes: The maximum memory speed is limited by the processor selection.

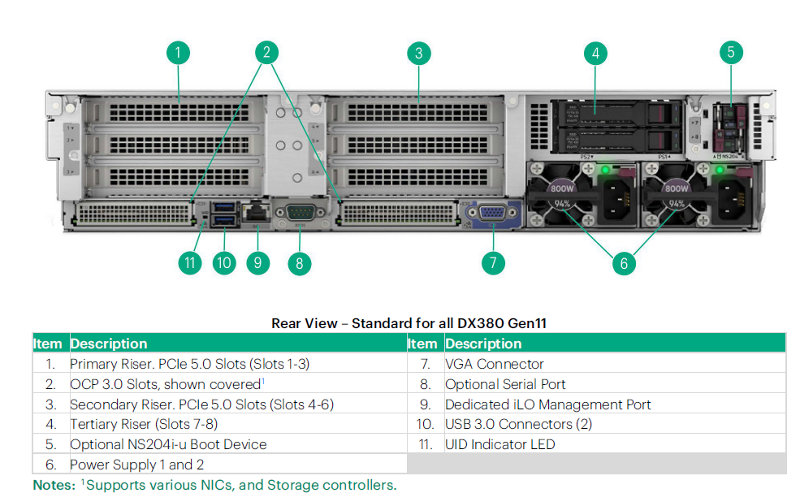

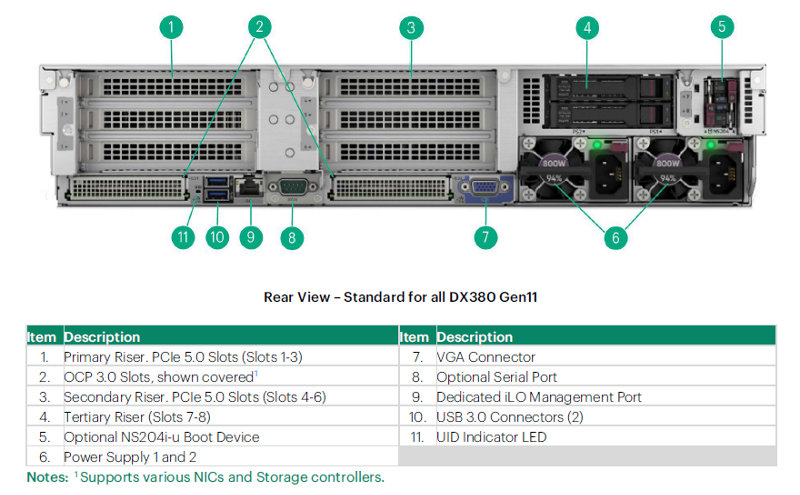

Expansion Slots

Primary Riser

Notes:

− Bus width indicates the number of physical electrical lanes running to the connector.

− There are 2 types of risers supported on Primary Slot

− x16 cards installed on x8 slots could observe sub-optimal performance.

Primary Riser1

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1

PCIe 5.0

X8

X16

Full-height, full-length slot

Proc 1

2

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 1

3

PCIe 5.0

X8

X16

Full-height, half-length slot

Proc 1

Primary Riser2

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1**

NA

NA

NA

NA

NA

1

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 1

2

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 1

3

PCIe 5.0

X16

X16

Full-height, half-length slot

Proc 1

Notes: **

  • − If Slot 1 of HPE DX380 Gen11 2U 3x16 Prim Riser Kit needs to be enabled then 3 x16 Primary Cable Kit (P56073-B21) must be selected.
  • − For 24SFF CTO Server, If 3 x16 Primary riser is selected along with PCIe Controller(MR216/MR416) then 3 x16 Pri cable Kit MUST be selected

Secondary Riser:

Notes:

  • − Bus Width Indicates the number of physical electrical lanes running to the connector.
  • − Thereare 2 types of risers support on Secondary Slot
  • − x16cards installed on x8 slots could observe sub-optimal performance.

Secondary Riser1

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

4

PCIe 5.0

X8

X16

Full-height, full-length slot

Proc 2

5

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

6

PCIe 5.0

X8

X16

Full-height, half-length slot

Proc 2

Secondary Riser2

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

4*

NA

NA

NA

NA

NA

4

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

5

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

6

PCIe 5.0

X16

X16

Full-height, half-length slot

Proc 2

Notes :

  • − * If Slot 4 of HPE DX380 Gen11 2U 3x16 Sec Riser Kit needs to be enabled then 3 x16 Secondary Cable Kit (P56074-B21) must be selected.
  • − If 24SFF NVMe CTO server is selected then Pri 3 x16 Cable OR Sec 3 x16 Cable cannot be selected.

Tertiary Riser

Notes:

  • − Bus Width Indicates the number of physical electrical lanes running to the connector.
  • − There is 1 type of riser supported on the Tertiary Slot
  • − x16 cards installed on x8 slots could observe sub-optimal performance.

Tertiary Riser1 (default)

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

7

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

8

PCIe 4.0

X16

X16

Full-height, full-length slot

Proc 2

Tertiary Riser1 (with Optional Tertiary Riser FIO x8 Enablement Kit P53632-B21)

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

7

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

8

PCIe 5.0

X8

X16

Full-height, full-length slot

Proc 2

Graphics

Integrated Video Standard

  • − Video modes up to 1920 x 1200@60Hz (32 bpp)
  • − 16MB Video Memory

Maximum Internal Storage

Drive

Capacity

Configuration

Hot Plug SFF SATA SSD

92.16 TB

24 x 3.84 TB

Hot Plug SFF SAS SSD

368.64 TB

24 x 15.36 TB

Hot Plug SFF NVMe SSD

368.64 TB

24 x 15.36 TB

Hot Plug LFF SATA SSD

46.08 TB

12 x 3.84 TB

Hot Plug LFF SAS SSD

184.32 TB

12x 15.36 TB

Hot Plug LFF SAS HDD

240 TB

12+4 20 TB

Internal Storage Devices

Hard Drives

  • − None ship standard

Power Supply

  • − HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    • Notes: 1 available in 94% efficiency.
  • − HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
    • Notes: 1 available in 96% efficiency.
  • − HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    • Notes: 1 available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.


The standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page to review the power requirements for your selected system, please use the Power Advisor link.


For information on power specifications and technical content visit the Power Supplies web page.

Storage Controllers

The available Gen11 controllers are depicted below.

Tri-Mode Controller

  • − HPE MR216i-p Gen11 Controller HPE MR216i-o Gen11 Controller

Interfaces

Serial

Optional, rear

Display Port

1 optional front display port via Universal Media Bay

VGA Port

1 standard, rear for all chassis.

1 Optional front display port (Via Universal Media Bay)

Notes: Both ports are not active simultaneously.

Network Ports

None standard. Choice of OCP networking card or stand-up networking card required.

HPE iLO Remote Management Network Port

1 Gb Dedicated, rear

Front iLO Service Port

1 standard (Not available when System Insight Display Kit is ordered)

USB 3.0

Up to 5 total: 1 front(3.0), 2 rear(3.0), 2 internal (secure – 1 – 3.0, 1 – 2.0), 1 optional USB 2.0 front via Universal Media Bay

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices .

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 2 implementation to support UEFI Mode.


Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi .


UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • − Secure Boot and Secure Start enable for enhanced security
  • − Embedded UEFI Shell
  • − Operating system specific functionality
  • − Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
  • − Support for > 2.2 TB (using GPT) boot drives
  • − PXE boot support for IPv6 networks
  • − USB 3.0 Stack
  • − Workload Profiles for simple performance optimization

UEFI Boot Mode only

  • − TPM 2.0 Support
  • − iSCSI Software Initiator Support.
  • − NVMe Boot Support
  • − HTTP/HTTPs Boot support as a PXE alternative.
  • − Platform Trust Technology (PTT) can be enabled.
  • − Boot support for option cards that only support a UEFI option ROM

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.


Industry Standard Compliance

  • − ACPI 6.3 Compliant
  • − PCIe 5.0 Compliant
  • − Wake on LAN (WoL) Support
  • − Microsoft® Logo certifications
  • − PXE Support
  • − VGA
  • − Display Port
    • Notes: This support is on the optional Universal Media Bay.
  • − USB 3.0 Compliant
  • − USB 2.0 Compliant (via Universal Media Bay)
    • Notes: This support is on the optional Universal Media Bay.
  • − SMBIOS 3.2
  • − Redfish API
  • − IPMI 2.0
  • − Secure Digital 4.0
  • − TPM 1.20 and 2.0 Support
  • − Advanced Encryption Standard (AES)
  • − Triple Data Encryption Standard (3DES)
  • − SNMP v3
  • − TLS 1.2
  • − DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
  • − Active Directory v1.0
  • − ASHRAE A3/A4
  • − EU Lot9
  • − UEFI (Unified Extensible Firmware Interface Forum) 2.7

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo .


UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers. Use with an iLO Advanced License to unlock full capabilities

Security

  • − UEFI Secure Boot and Secure Start support
  • − Tamper-free updates – components digitally signed and verified
  • − Immutable Silicon Root of Trust
  • − Ability to rollback firmware
  • − FIPS 140-2 validation
  • − Secure erase of NAND/User data
  • − Common Criteria certification
  • − TPM (Trusted Platform Module) 1.2 option
  • − Configurable for PCI DSS compliance
  • − TPM (Trusted Platform Module) 2.0 option
  • − Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • − Bezel Locking Kit option
  • − Support for Commercial National Security Algorithms (CNSA)
  • − Chassis Intrusion detection option
  • − Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.


Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

  • Optional Features

    Server Management

    HPE iLO Advanced: Standard

    HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality

  • Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.hpe.com/services


    Consulting Services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.hpe.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.hpe.com/services/operational


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • − A complete coverage approach -- edge to cloud
    • − An assigned HPE team
    • − Modular and fully personalized engagement
    • − Enhanced Incident Management experience with priority access
    • − Digitally enabled and AI driven customer experience

    https://www.hpe.com/services/completecare


    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.hpe.com/services/techcare


    HPE Lifecycle Services

    HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

    • − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
    • − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
    • − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
    • − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
    • − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

    Notes: To review the list of Lifecycle Services available for your product go to:

    https://www.hpe.com/services/lifecycle


    For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training


Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

  • − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
  • − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin


Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

  • − Get faster time to market
  • − Save on TCO, align costs to business
  • − Scale quickly, meet unpredictable demand
  • − Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html


For more information: http://www.hpe.com/services

  • Configuration Information

    This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

    − Factory Integrated Models must start with a CTO Server.

    − FIO indicates that this option is only available as a factory installable option.

    − All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

    − Some options may not be integrated at the factory. Contact your local sales representative for additional information.


    Step 1: Base Configuration (choose one (1) of the following four (4) configurable server models from the tables below)

    The below (4) CTO server models, denoted with “NC” in the SKU description, provide flexibility in the networking choice and require a network adapter from the “HPE Networking” section be selected.

Networking Choice CTO Server Models

HPE ProLiant DX380 Gen11 12LFF

CTO Server

HPE ProLiant DX380 Gen11 24SFF

CTO Server

HPE ProLiant DX380 Gen11 24SFF NVMe

CTO Server

SKU Number

P62746-B21

P62748-B21*

P74955-B21**

Processor

Not included as standard

Not included as standard

Not included as standard

DIMM Slots

32-DIMM slots

32-DIMM slots

Storage Controller

MR216i

N/A

PCIe

Three standard in primary riser

Drive Cage - included

12 LFF

24 SFF

24 SFF NVMe

Network Controller

Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters

Notes: No embedded networking

Fans

6-High Performance

6-High Performance

6-High Performance

Management

HPE iLO Advanced: Standard

USB

5x 3.0 standard plus iLO front service port

5x 3.0 standard plus iLO front service port

5x 3.0 standard plus iLO front service port

Notes:

− HPE DX ProLiant platforms are a Server Appliance: and Energy Star except.

− Server Appliance:

− A computer server that is bundled with a pre-installed OS and application

− Software that is used to perform a dedicated function or set of tightly coupled functions.

− Server appliances deliver services through one or more networks (e.g., IP or SAN), and are typically managed through a web or command line interface. Server appliance hardware and software configurations are customized by the vendor to perform a specific task (e.g., name services, firewall services, authentication services, encryption services, and voice-over-IP (VoIP) services), and are not intended to execute user-supplied software.

− * Base Model includes: 24SFF Drive Slots (1x 8SFF Drive Cage supporting SAS/SATA/NVMe drives and 2x8SFF drive cage supporting SAS/SATA drives)

  • High Perf Fan Kit (6 fans)
  • Primary Riser kit (3slots x 1x Gen5 PCIe x16 FH FL)

− ** If Server P74955-B21 is ordered with Rack then Rail kit must be selected.

Step 2: Choose Required Options

Please select up to two processors required below.

Notes:

− 12LFF CTO models ship with 6 High Performance fans.

− 24 SFF CTO Servers ship with 6 High performance fans included. Maximum Performance fan kit is available to meet ambient temperature environments.

− Maximum memory capacity per processor is dependent on processor models. All processors support up to 4TB max memory per processor.

− Mixing of 2 different processor models is not allowed.

− Processors with TDP greater than 150W require High Performance Heatsink

− Q series processors require Max Performance Heat Sink

− DDR5 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

Step 2a: Choose Processors

Processor Option Kits (Required Processor)

4th Generation Intel® Xeon®-Platinum

Notes: 8470Q processor is not supported with 12LFF CTO Server and 24SFF CTO Server.


Intel® Xeon®-Platinum 8480+ 2.0GHz 56-core 350W FIO Processor for HPE DX

P62396-B21

Intel® Xeon®-Platinum 8470Q 2.1GHz 52-core 350W FIO Processor for HPE DX

P62399-B21

Intel® Xeon®-Platinum 8470 2.0GHz 52-core 350W FIO Processor for HPE DX

P62395-B21

Intel® Xeon®-Platinum 8470N 1.7GHz 52-core 300W FIO Processor for HPE DX

P62401-B21

Intel® Xeon®-Platinum 8468V 2.4GHz 48-core 330W FIO Processor for HPE DX

P62402-B21

Intel® Xeon®-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX

P62394-B21

Intel® Xeon®-Platinum 8462Y+ 2.8GHz 32-core 300W FIO Processor for HPE DX

P62411-B21

Intel® Xeon®-Platinum 8458P 2.7GHz 44-core 350W FIO Processor for HPE DX

P62403-B21

Intel® Xeon®-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX

P62393-B21

Intel® Xeon®-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX

P62398-B21

Intel® Xeon®-Platinum 8444H 2.9GHz 16-core 270W Processor for HPE

P49625-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Platinum 8490H 1.9GHz 60-core 350W Processor for HPE

P49630-B21

5th Generation Intel® Xeon®-Platinum

Intel® Xeon®-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE

P67085-B21

Intel® Xeon®-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE

P67086-B21

Intel® Xeon®-Platinum 8570 2.1GHz 56-core 350W Processor for HPE

P67087-B21

Intel® Xeon®-Platinum 8580 2.0GHz 60-core 350W Processor for HPE

P67088-B21

Intel® Xeon®-Platinum 8592+ 1.9GHz 64-core 350W Processor for HPE

P67089-B21

Intel® Xeon®-Platinum 8558 2.1GHz 48-core 330W Processor for HPE

P67097-B21

Intel® Xeon®-Gold 6558Q 3.2GHz 32-core 350W Processor for HPE

P67098-B21

Intel® Xeon®-Platinum 8558U 2.0GHz 48-core 300W Processor for HPE

P67102-B21

Intel® Xeon®-Platinum 8592V 2.0GHz 64-core 330W Processor for HPE

P67107-B21

Intel® Xeon®-Platinum 8558P 2.7GHz 48-core 350W Processor for HPE

P67108-B21

Intel® Xeon®-Platinum 8581V 2.0GHz 60-core 270W Processor for HPE

P67109-B21

Intel® Xeon®-Platinum 8593Q 2.2GHz 64-core 385W Processor for HPE

P68449-B21

4th Generation Intel® Xeon®-Gold 6

Intel® Xeon®-Gold 6458Q 3.1GHz 32-core 350W FIO Processor for HPE DX

P62417-B21

Intel® Xeon®-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX

P62408-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX

P62410-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX

P62407-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX

P62416-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6438N 2.0GHz 32-core 205W FIO Processor for HPE DX

P62420-B21

Intel® Xeon®-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX

P62409-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX

P62397-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX

P62406-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6421N 1.8GHz 32-core 185W FIO Processor for HPE DX

P62423-B21

Notes:

− If this Processor is selected then Max Quantity of processor selection is limited to 1 and this Processor is Not supported with 24SFF NVMe CTO server

− For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W

Intel® Xeon®-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX

P62404-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6414U 2.0GHz 32-core 250W FIO Processor for HPE DX

P62400-B21

Notes: If this Processor is selected then Max Quantity of processor selection is limited to 1 and this Processor is Not supported with 24SFF NVMe CTO server


Intel® Xeon®-Gold 6416H 2.2GHz 18-core 165W Processor for HPE

P49620-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6418H 2.1GHz 24-core 185W Processor for HPE

P49621-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Gold 6448H 2.4GHz 32-core 250W Processor for HPE

P49622-B21

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


4th Generation Intel® Xeon®-Gold 5

Notes: For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W

Intel® Xeon®-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX

P62415-B21

Intel® Xeon®-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX

P62414-B21

Intel® Xeon®-Gold 5418N 1.8GHz 24-core 165W FIO Processor for HPE DX

P62422-B21

Intel® Xeon®-Gold 5416S 2.0GHz 16-core 150W Processor for HPE DX

P62426-B21

Intel® Xeon®-Gold 5415+ 2.9GHz 8-core 150W FIO Processor for HPE DX

P62405-B21

Intel® Xeon®-Gold 5411N 1.9GHz 24-core 165W FIO Processor for HPE DX

P62421-B21

Intel® Xeon®-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE

P67094-B21

5th Generation Intel® Xeon®-Gold 5

Intel® Xeon®-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE

P67079-B21

5th Generation Intel® Xeon®-Gold 6

Intel® Xeon®-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE

P67080-B21

Intel® Xeon®-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE

P67081-B21

Intel® Xeon®-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE

P67082-B21

Intel® Xeon®-Gold 6534 3.9GHz 8-core 195W Processor for HPE

P67083-B21

Intel® Xeon®-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE

P67084-B21

Intel® Xeon®-Gold 6530 2.1GHz 32-core 270W Processor for HPE

P67095-B21

Intel® Xeon®-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE

P67096-B21

Intel® Xeon®-Gold 6538N 2.1GHz 32-core 205W Processor for HPE

P67104-B21

Intel® Xeon®-Gold 6548N 2.8GHz 32-core 250W Processor for HPE

P67105-B21

Intel® Xeon®-Gold 6554S 2.2GHz 36-core 270W Processor for HPE

P67110-B21

Notes: If this Processor is selected then Max Quantity of processor selection is limited to 1 and this Processor is Not supported with 24SFF NVMe CTO server


4th Generation Intel® Xeon®-Silver

Notes : For 24SFF NVMe CTO server this 100GB NIC can be selected only with Processor <= 270W


Intel® Xeon®-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX

P62413-B21

Intel® Xeon®-Silver 4410Y 2.0GHz 12-core 150W FIO Processor for HPE DX

P62412-B21

5th Generation Intel® Xeon®-Silver

Intel® Xeon®-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE

P67090-B21

Intel® Xeon®-Silver 4510 2.4GHz 12-core 150W Processor for HPE

P67091-B21

Intel® Xeon®-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE

P67092-B21

Intel® Xeon®-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE

P67093-B21

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to:

HPE Memory Population Rules

For details on the HPE Server Memory Options Population Rules, please go to:

Memory population rules for HPE Gen11 servers with 4th Generation Intel Scalable Processors


Notes:

− HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family

− Memory should be installed in even quantity of DIMMs

− The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

− DDR5-4800 Memory Kits are only supported with 4th Generation Intel® Xeon® Scalable Series Processors.

− Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for a server model or family and yet occasionally not be supported with limited configurations within that server family.

− Please consult with the HPE server QuickSpecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE server configuration.

Registered DIMMs DDR5 (RDIMMs)

HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62601-B21

HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62603-B21

HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62604-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66675-B21

HPE DX 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit

P62605-B21

HPE DX 256GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered 3DS Smart FIO Memory Kit

P62606-B21

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-B21

HPE 128GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit

P64709-B21

Notes:

− 4800 MT/s memory SKUs offer a transfer rate of 4800 MT/s at 1 DIMM per channel and 4400 MT/s at 2 DIMMs per channel

− Mixing of 3DS memory and non-3DS memory is not supported

− limitation. 256GB DIMM will also need to limit the maximum front-end cage to two.

− For 12LFF/ 24SFF/24SFF NVMe CTO Server, Max quantity of 256GB memory is limited to 16 for 2 processors and limited to 8 for 1 processor.

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE DX 1800-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P56724-B21

HPE DX 1600W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18222-B21

HPE DX 1000W Flex Slot Titanium Hot Plug FIO Power Supply Kit

P44807-B21

HPE DX 800W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18223-B21

HPE DX 1600W Flex Slot -48VDC Hot Plug FIO Power Supply Kit

P60246-B21

Notes:

− Select a minimum (1), maximum (2) power supplies.

− 1600W Power supplies only support high line voltage (200VAC to 240VAC).

− Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration.

The HPE Power Advisor is located at:

https://poweradvisorext.it.hpe.com/ .

− All power supplies in a server should match. Mixing Power Supplies is not supported.

− HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords.


Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Security Options

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

− Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

− Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services

Factory Instructions and Server Settings

HPE iLO Common Password FIO Setting

P08040-B21

Notes: Sets common iLO password, instead of randomly generated password for each server during Factory Diagnostics.


  • Core Options

    Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Hard Disk Drives

Midline - 12G SAS - LFF Drives

HPE DX 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE FIO HDD

P60324-B21

HPE DX 16TB SAS 12G Business Critical 7.2K LFF (3.5in) LP 1yr Warranty 512e ISE FIO HDD

P35152-B21

HPE DX 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Warranty HE 512e Digitally Signed Firmware FIO HDD

P17966-B21

HPE DX 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Warranty 512e Digitally Signed Firmware FIO HDD

P17965-B21

HPE DX 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Warranty Digitally Signed Firmware FIO HDD

P17963-B21

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE DX 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor FIO SSD

P56767-B21

HPE DX 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor FIO SSD

P56763-B21

HPE DX 3.84TB SAS 24G Read Intensive SFF BC PM1653 FIO SSD

P56759-B21

Read Intensive - 24G SAS - SFF - Solid State Drives

HPE DX 3.84TB SAS Read Intensive SFF BC Multi Vendor SSD

P75498-B21

HPE DX 3.84TB SAS Read Intensive SFF BC Multi Vendor FIO SSD

P75500-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE DX 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor FIO SSD

P57601-B21

HPE DX 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor FIO SSD

P57589-B21

Read Intensive - SFF - NVMe

HPE DX 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD

P57765-B21

HPE DX 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD

P57767-B21

HPE DX 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD

P57769-B21

HPE DX 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD

P57771-B21

HPE DX 1.9TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD

P57757-B21

HPE DX 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD

P57758-B21

HPE DX 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD

P57759-B21

Mixed Use - SFF - NVMe

HPE DX 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a FIO SSD

P57762-B21

HPE DX 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a FIO SSD

P57764-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE DX 1.92TB SATA 6G Read Intensive SFF BC S4520 FIO SSD

P56749-B21

HPE DX 1.92TB SATA 6G Read Intensive SFF BC PM893 FIO SSD

P56739-B21

HPE DX 1.92TB SATA Read Intensive SFF BC PM893a SSD

P75488-B21

HPE DX 3.84TB SATA Read Intensive SFF BC PM893a SSD

P75482-B21

HPE DX 1.92TB SATA Read Intensive SFF BC PM893a FIO SSD

P75486-B21

HPE DX 3.84TB SATA Read Intensive SFF BC PM893a FIO SSD

P75480-B21

HPE DX 3.84TB SATA Read Intensive LFF LPC PM893a FIO SSD

P75483-B21

HPE DX 1.92TB SATA Read Intensive LFF LPC PM893a FIO SSD

P75492-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE DX 1.92TB SATA 6G Mixed Use SFF BC PM897 FIO SSD

P56731-B21

HPE DX 1.92TB SATA 6G Mixed Use SFF BC Samsung PM897a SSD

P75491-B21

HPE DX 1.92TB SATA 6G Mixed Use SFF BC Samsung PM897a FIO SSD

P75489-B21

Mixed Use - 6G SATA - LFF - Solid State Drives

HPE DX 1.92TB SATA 6G Mixed Use LFF LPC Samsung PM897a SSD

P75497-B21

Mixed Use - 6G SATA - LFF - Solid State Drives

HPE DX 1.92TB SATA 6G Mixed Use LFF LPC Samsung PM897a FIO SSD

P75495-B21

Read Intensive - 12G SAS - LFF –Solid State Drives

HPE DX 15.36TB SAS 24G Read Intensive LFF LPC Multi Vendor FIO SSD

P56768-B21

HPE DX 7.68TB SAS 24G Read Intensive LFF LPC Multi Vendor FIO SSD

P56766-B21

HPE DX 3.84TB SAS 24G Read Intensive LFF LPC PM1653 FIO SSD

P56762-B21

Mixed Use - 12G SAS - LFF –Solid State Drives

HPE DX 6.4TB SAS 24G Mixed Use LFF LPC Multi Vendor FIO SSD

P57609-B21

HPE DX 3.2TB SAS 24G Mixed Use LFF LPC Multi Vendor FIO SSD

P57597-B21

Read Intensive - 6G SATA - LFF - Solid State Drives

HPE DX 1.92TB SATA 6G Mixed Use LFF LPC PM897 FIO SSD

P56734-B21

HPE DX 1.92TB SATA 6G Mixed Use LFF LPC S4620 FIO SSD

P56738-B21

HPE DX 1.92TB SATA Read Intensive LFF LPC PM893a SSD

P75494-B21

HPE DX 3.84TB SATA Read Intensive LFF LPC PM893a SSD

P75485-B21

Read Intensive - 24G SAS - LFF - Solid State Drives

HPE DX 3.84TB SAS Read Intensive LFF LPC Multi Vendor SSD

P75479-B21

HPE DX 3.84TB SAS Read Intensive LFF LPC Multi Vendor FIO SSD

P75476-B21

HPE Networking

10 Gigabit Ethernet adapters

Notes:

− Unless otherwise noted, one of the below 10Gb networking adapters below can be selected as the primary networking choice when configuring a Networking Choice (NC) Configure-to-Order (CTO) chassis. The DL380 Gen11 NC CTO chassis does not come with embedded networking, hence the requirement to configure with either a FlexibleLOM or select PCIe networking adapter.

− For 24SFF NVMe CTO server Max=2 of Networking card can be selected.

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T FIO Adapter for HPE DX

P43271-B21

10/25 Gigabit Ethernet adapters

Notes:

− Unless otherwise noted, one of the below 10/25Gb networking adapters below can be selected as the primary networking choice when configuring a Networking Choice (NC) Configure-to-Order (CTO) chassis.

− The DL380 Gen11 NC CTO chassis does not come with embedded networking, hence the requirement to configure with either an OCP3 or select PCIe networking adapter.

− For 24SFF NVMe CTO server Max=2 of Networking card can be selected.

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE DX

P53862-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 FIO Adapter for HPE DX

P60340-B21

Intel® E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

OCP 3.0 Adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE DX

P53861-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for HPE DX

P60339-B21

Intel® E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

HPE I/O Expansion Options

Notes:

− The Primary Riser shipping default in the CTO server is a x8 FH, FL, x16 FH, FL and x8 FH, HL.

− For 12LFF/ 24SFF CTO Server, if this GPU is selected then Secondary or Tertiary riser must be selected.

− x16 cards installed on x8 slots could observe sub-optimal performance.

− For 24SFF CTO Server This PCIe cards can be populated in Slot 4, 5, 7 only. The “PCIe Card Capacity Limits” must account for this limitation.

− Cannot be populated on Primary Riser (including default primary riser).

− If this PCIe card is selected then Secondary Riser must be selected.

− If qty2 of this PCIe card is selected then either 3x16 Secondary riser MUST be selected OR x8/x16/x8 Secondary & Tertiary Riser MUST be selected

− This card cannot be populated on Half length (HL) slots.

HPE ProLiant DX380 Gen11 2U x16/x16/x16 Primary FIO Riser Kit

P62764-B21

Notes:

− Slot 1 - PCIe 5.0 x16 Full Height and Full Length

− Slot 2 - PCIe 5.0 x16 Full Height and Full Length

− Slot 3 - PCIe 5.0 x16 Full Height and Half Length

− If 24NVMe CTO server is selected then Qty 1 of HPE DL380 Gen11 3x16 Pri Riser must be selected and defaulted.

HPE ProLiant DX380 Gen11 2U x8/x16/x8 Secondary FIO Riser Kit

P62763-B21

Notes:

− Slot 4 - PCIe 5.0 x8 Full Height and Full Length

− Slot 5 - PCIe 5.0 x16 Full Height and Full Length

− Slot 6 - PCIe 5.0 x8 Full Height and Half Length

− This riser Not supported with 24SFF NVMe CTO Server

HPE ProLiant DX380 Gen11 2U x16/x16 Tertiary FIO Riser Kit

P62765-B21

Notes:

− This is the tertiary riser.

− Slot 7 - PCIe 5.0 x16 Full Height and Full Length

− Slot 8 - PCIe 4.0 x16 Full Height and Full Length

− This riser Not supported with 24SFF NVMe CTO Server

HPE ProLiant DX380 Gen11 2U x16/x16/x16 Secondary FIO Riser Kit

P62766-B21

Notes: If 24NVMe CTO server is selected then Qty 1 of HPE DL380 Gen11 3x16 SEC Riser must be selected and defaulted.


Risers

Riser Information*

Part number

Description

Riser position

Bus width (Gen5 lanes)

Primary

Secondary

Tertiary

Top slot

Middle Slot

Bottom slot

N/A

This is the default riser in the chassis

D

N

N

x8

x16

x8

P62764-B21

HPE DX380 Gen11 x16/x16/x16 Primary Riser Kit

O

N

N

x16

x16

x16 1

P62766-B21

HPE DX380 Gen11 x16/x16/x16 Secondary Riser Kit

N

O

N

x16

x16

x16 2

P62763-B21

HPE DX38X Gen11 x8/x16/x8 Sec Riser Kit

N

O

N

x8

x16

x8

P62765-B21

HPE DX38X Gen11 2x16 Tertiary Riser Kit

N

N

O

x16

x16 3

Notes:

− D = Default on chassis; O = Optional; N = not supported or slot/connector not present.

− 1 Requires HPE DL380 Gen11 x16/x16/x16 Primary Cable Kit (P56073-B21)

− 2 Requires HPE DL380 Gen11 x16/x16/x16 Secondary Cable Kit (P56074-B21)

− 3 x16 cards installed on x8 slots could observe sub-optimal performance.

− *If 24SFF NVMe CTO server is selected then Pri 3 x16 Cable OR Sec 3 x16 Cable (P56073-B21) or (P56074-B21) cannot be selected.

  • Additional Options

    Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Computation and Graphics Accelerators

DX NVIDIA A16 64GB PCIe NonCEC FIO Accel

P61596-B21

DX NVIDIA L40 48GB PCIe Non-CEC Accelerator for HPE

P61598-B21

Notes:

− For 12LFF /24SFF/24SFF NVMe CTO Server, Max of 1 GPU can be selected per Server

− For 24SFF NVMe CTO Server, DW GPU cannot be selected when 100GB NIC is in the configuration


DX NVIDIA L4 SW PCIe FIO Accelerator

P65461-B21

Notes:

− For 12LFF/ 24SFF CTO Server, If this GPU is selected then Secondary OR Tertiary Riser must be selected.

− For 24SFF NVMe CTO Server, Max of 2 SW GPU can be selected per Server


SKU

Description

Qty Supported

PCIe

24SFF/12LFF

P61596-B21

DX NVIDIA A16 64GB PCIe Non-CEC Accelerator for HPE

1

Gen4

Supported

Embedded Management

HPE iLO Common Password FIO Setting

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

− Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

− Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

Software Skus

Nutanix AOS FIO SW for HPE

R6T15A

HPE Security

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

− Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

− Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services

HPE Boot Controllers

HPE DX NS204i-u Gen11 NVMe Hot Plug Boot Optimized FIO Storage Device

P60454-B21

Notes:

− This is the NS204i-u hot pluggable boot device

− Default is NVMe are internal to system and not hot pluggable

− Max = 1

HPE Storage Controllers

The Gen11 storage controller portfolio has been updated to include new technology like OCP3.0 as well as PCIe adapters. For a more detailed breakout of the available Gen11 controllers visit the storage controllers QuickSpecs site:

HPE Tri-Mode Controllers

HPE ProLiant DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller

P60333-B21

HPE ProLiant DX MR216i-o Gen11 x16 Lanes without Cache OCP SPDM FIO Storage Controller

P60334-B21

Notes: Not Supported with 24SFF NVMe CTO Server


Easy Install Rail Kits

Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative.

Notes:

− Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

− HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE ProLiant DX Gen11 Easy Install FIO Rail 3 Kit

P62374-B21

Notes: Does not include Cable Management Arm (CMA) (P22020-B21).


HPE ProLiant DX300 Gen11 2U FIO Cable Management Arm for Rail Kit

P60222-B21

  • Memory

    Memory Population guidelines

Image 4

General Memory Population Rules and Guidelines:

  • − DIMMs should be installed in quantities of even numbers.
  • − Install DIMMs only if the corresponding processor is installed.
  • − If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
  • − To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
  • − When two processors are installed, balance the DIMMs across the two processors.
  • − White DIMM slots denote the first slot to be populated in a channel.
  • − Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
  • − The maximum memory speed is a function of the memory type, memory configuration, and processor model.
  • − The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, and the number and model of installed processors qualified on the platform.
  • − For details on the HPE Server Memory Options Population Rules, visit:
  • Server memory populations rules for HPE Gen11 servers with 4th Gen Intel Xeon Scalable processors
  • − To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required.
  • − For additional information, please see the HPE DDR5 Smart Memory QuickSpecs .

HPE SKU P/N

P62601-B21

P62603-B21

P62604-B21

SKU Description

HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

DIMM Capacity

16GB

32GB

64GB

DIMM Rank

Single Rank (1R)

Dual Rank (2R)

Dual Rank (2R)

Voltage

1.1 V

1.1 V

1.1 V

DRAM Depth [bit]

2G

2G

4G

DRAM Width [bit]

x8

x8

x4

DRAM Density

16Gb

16Gb

16Gb

CAS Latency

40-39-39

40-39-39

40-39-39

DIMM Native Speed

4800 MT/s

4800 MT/s

4800 MT/s

HPE SKU P/N

P62605-B21

P62606-B21

SKU Description

HPE DX 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

HPE DX 256GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

DIMM Capacity

128GB

256GB

DIMM Rank

Quad Rank (4R)

Octal Rank (8R)

Voltage

1.1 V

1.1 V

DRAM Depth [bit]

4G

4G

DRAM Width [bit]

x4

x4

DRAM Density

16Gb

16Gb

CAS Latency

40-39-39

40-39-39

DIMM Native Speed

4800 MT/s

4800 MT/s

Notes:

− The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

− For 12LFF/ 24SFF CTO Server, Max Quantity of 256GB Memory is limited to 16 for 2 Processors and limited to 8 for 1 Processor.

− For 12LFF/ 24SFF/24SFF NVMe CTO Server, Max Quantity of 256GB Memory is limited to 16 for 2 Processors and limited to 8 for 1 Processor.

DDR5 memory options part number decoder

Notes:

− Capacity references are rounded to the common gigabyte (GB) values.

  • 8GB = 8,192 MB
  • 16GB = 16,384 MB
  • 32GB = 32,768 MB
  • 64GB = 65,536 MB
  • 128GB = 131072 MB
  • 256GB = 262144 MB
  • 512GB = 524288 MB

For more information on memory, please see the Memory Quickspecs: HPE DDR5 Smart Memory

Memory Speed Table for HPE ProLiantDL380 Gen Gen11

For details on the HPE Server Memory speed, please visit: https://www.hpe.com/docs/server-memory

  • Storage

Image 5

  • Technical Specifications

    System Unit

    Dimensions

    • − SFF CTO servers:
      • 8.75 x 44.8 x 72.7. cm / 3.44 x 17.64 x 28.62 in
    • − LFF CTO servers:
      • 8.75 x 44.8 x 73.25 cm / 3.44 x 17.64 x 28.84 in
    • Weight (approximate)
    • − Maximum: 8 SFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed)
      • Maximum: 33kg/72.75 lbs.
      • Minimum: 16kg/35.27 lbs.
    • − Maximum: 12 LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed)
      • Maximum:
      • . 37kg/81.57 lbs.
      • Minimum:
      • 18kg/39.68 lbs.

    Input Requirements (per power supply)

    Rated Line Voltage

    • − For 1600W (Platinum) Power Supply: 200-240 VAC
    • − For 800W (Titanium) Power Supply: 200-240 VAC
    • − For 800W (Platinum) Power Supply: 100-240 VAC
    • − For 800W (Universal) Power Supply: 200-277 VAC
    • − For 800W (-48VDC) Power Supply: -40 Vdc to -72 Vdc

    BTU Rating

    Maximum

    • − For 1600W Power Supply: 5918 BTU/hr. (at 200 VAC), 5888 BTU/hr. (at 220 VAC), 5884 BTU/hr. (at 240 VAC)
    • − For 800W (Titanium) Power Supply: 2905 BTU/hr. (at 200 VAC), 2899 BTU/hr. (at 220 VAC), 2893 BTU/hr. (at 240 VAC)
    • − For 800W (Platinum) Power Supply: 3067 BTU/hr. (at 100 VAC), 2958 BTU/hr. (at 200 VAC), 2949 BTU/hr. (at 240 VAC)
    • − For 800W (Universal) Power Supply: 2964 BTU/hr. (at 200 VAC), 2951 BTU/hr. (at 230 VAC), 2936 BTU/hr. (at 277 VAC)
    • − For 800W-(48Vdc) Power Supply: 2983 BTU/hr. (at -40 Vdc), 2951 BTU/hr. (at -48Vdc), 2912 BTU/hr. (at -72Vdc)

    Relative Humidity (non-condensing )

    • − Operating
      • 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
    • − Non-operating
      • 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

    Power Supply Output (per power supply)

    Rated Steady-State Power

    • − For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only
    • − For 800W (Titanium) Power Supply: 800W (at 200 VAC), 800W (at 240 VAC), 800W (at 240 VDC) for China only
    • − For 800W (Platinum) Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only
    • − For 800W (Universal) Power Supply: 800W (at 200 VAC), 800W (at 277 VAC)
    • − For 800W (-48VDC) Power Supply: 800W (at -40 Vdc), 800W (at -72Vdc)

    Maximum Peak Power

    • − For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only
    • − For 800W (Titanium) Power Supply: 800W (at 200 VAC), 800W (at 240 VAC), 800W (at 240 VDC) for China only
    • − For 800W (Platinum) Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only
    • − For 800W (Universal) Power Supply: 800W (at 200 VAC), 800W (at 277 VAC)
    • − For 800W (-48VDC) Power Supply: 800W (at -40 Vdc), 800W (at -72Vdc)

System Inlet Temperature

  • − Standard Operating Temperature
  • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.
  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
  • − Extended Ambient Operating Temperature
  • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae
  • For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL:
  • http://www.hpe.com/servers/ashrae
  • System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
  • − Non-operating
  • -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.).

Altitude

  • − Operating
  • 3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft./min).
  • − Non-operating
  • 9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LwA,m) and declared average bystander position A-Weighted sound pressure levels (LpA,m) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Acoustic Noise

Idle

LwA,m

4.2 B Entry

4.2 B Base

4.2 B Performance

LpAm

28 dBA Entry

27 dBA Base

30 dBA Performance

Operating

LwA,m

4.2 B Entry

4.2 B Base

4.2 B Performance

LpAm

29 dBA Entry

27 dBA Base

29 dBA Performance

Kv

0.4 B Entry

0.4 B Base

0.4 B Performance


Notes:

− The declared mean A-weighted sound power level, LwA,m, is computed as the arithmetic average of the measured.

− A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

− The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

− The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LwA,m, such that there will be a 95 % probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LwA,m + Kv).

− The quantity, LwA,c (formerly called LwAd), can be computed from the sum of LWA,m and Kv.

− All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109.

− B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

− The results in this declaration apply only to the model numbers listed above when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

− System under abnormal conditions may increase the noise level, persons in the vicinity of the product [cabinet] for extended periods of time should consider wearing hearing protection or using other means to reduce noise exposure.


Emissions Classification (EMC) – Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts


Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs , in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

  • Summary of Changes

Date

Version History

Action

Description of Change

10-Nov-2025

Version 11

Changed

Document was modified to comply with HPE Rebranding strategy.

28-Jul-2025

Version 10

Changed

Survey link was updated.

09-Jun-2025

Version 9

Changed

Added

5 th Generation Intel® Xeon® Scalable Processor Family (Platimum and Gold) SKUs, Nutanix Software SKU and OCP 3.0 Adapters.

14-Apr-2025

Version 8

Changed

Configuration Information section was updated.

Added: QuickSpecs Survey.

Removed: CTO Server Drive Cage rule.

02-Dec-2024

Version 7

Changed

Configuration Information section was updated. (CTO Server rule was added).

21-Oct-2024

Version 6

Changed

New SSDs, Memories & processors were added. Configuration information was updated

03-Sep-2024

Version 5

Changed

Overview, Standard Features (Operating Systems and Virtualization Software Support for HPE Servers), Configuration Information, Core Options and Memory sections were updated.

15-Jul-2024

Version 4

Changed

Standard Features and Core Options sections were updated.

01-Jul-2024

Version 3

Changed

Standard Features, Configuration Information and Core Options sections were updated.

04-Mar-2024

Version 2

Changed

Standard Features and Configuration Information sections were updated.

07-Aug-2023

Version 1

New

New QuickSpecs

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

a50006994enw, 17104 - Worldwide - V11 - 10-November-2025

Recommended for you
