HPE SimpliVity 325, based on HPE ProLiant Compute DL325 Gen12 server, is a compact, scalable, 1U rack-mounted building block that delivers integrated server, storage, and storage networking services.
HPE SimpliVity 325 platforms are the secure and versatile, single-socket servers for virtualization and I/O intensive workloads and is ideal for a remote office or space-constrained locations. This 1P (one processor), 1U (one rack unit) platform delivers an exceptional balance of processor, memory and I/O for 2P performance at 1P TCO.
Maximize the potential of your virtualized environment with the HPE SimpliVity 325, a versatile system now offering a choice of two hypervisors. Customers can select Broadcom VMware or the newly available HPE Morpheus VM Essentials Software, delivering a flexible and cost-effective solution for managing IT infrastructure
Overview
What's New
- – HPE SimpliVity 325 now support HPE ProLiant Compute DL325 Gen12 platform
- – HPE SimpliVity 325 Gen12 now supports MR416 Broadcom controller
- – HPE SimpliVity Software 7.0 now supports HPE Morpheus Software — VM Essentials.
- HPE StoreOnce integration
- Stretch Cluster
- Streamlined upgrade operations through HVM
- – HPE SimpliVity Software 7.0 for Broadcom VMware
- – Socket based Term licensing
- – Licensing Unit of Measure (Applies to Gen 12 platform only)- Usable capacity (TiB)
HPE SimpliVity 325 Gen12 now supports HPE Morpheus Software — VM Essentials
Software Features
- – Hyper Efficiency
- – Built-in Data protection
- – 2 Node High Availability
- – Backup & Restore
- – VM provisioning and lifecycle operations
- – HPE SimpliVity Software 7.0 with HPE Morpheus — Software VM Essentials
- HPE StoreOnce Integration
- Stretch Cluster
- Streamlined upgrade operations through HVM
- – HPE SimpliVity management plugin for HPE VM Essentials Management
Notes:
– It is strongly recommended that an HPE SimpliVity 325 Gen12 cluster have a minimum of two nodes to realize the full benefits of the high availability hyperconverged solution.
– A federation cannot contain HPE Morpheus VM Essentials and Broadcom VMware clusters
HPE SimpliVity 325 Gen12 supports Broadcom VMware
Software Features
- – HPE SimpliVity Software 7.0 for Broadcom VMware
- – VMware vSphere (customer to procure from Broadcom).
- – HPE SimpliVity management plugin for VMware vCenter.
- – HPE Backup Archive to HPE Cloud Bank Storage
- – HPE StoreOnce Integration, with HPE StoreOnce Data Immutability.
- – Decoupling of firmware dependency -> our decoupled upgrades allow for VMware ESXi upgrades only, with upgrade manager.
- – Optional RapidDR support
- – HPE SimpliVity for Broadcom VMware must be deployed in a separate federation
Notes:
– It is strongly recommended that an HPE SimpliVity 325 Gen12 cluster have a minimum of two nodes to realize the full benefits of the high availability hyperconverged solution.
– A single cluster supports up to 16 nodes. A single federation supports up to 96 nodes. See product documentation for details.
– A federation cannot contain HPE Morpheus VM Essentials and Broadcom VMware clusters
Broadcom VMware Software
- – HPE SimpliVity 7.0.0 supports VMware ESXi 8.0U3 (refer to HPE SimpliVity interop guide)
- – A valid VMware vSphere license is required for each host (follow Broadcom VMware licensing guidelines for required minimum core licenses.).
- – License types offered by VMware:
- vSphere Foundation
- vSphere Standard
- vSphere Essentials Plus Kit
Common Features and Specifications
Hardware Features
- – MR416 Broadcom Data controller
- – Single disk resiliency on HPE SimpliVity 325 Gen12 nodes
- – Hot-serviceable boot drives
- – Redundant power supplies
- – Integrated storage controller with battery-backed cache
- – HPE ProLiant Integrated Lights-Out Advanced (iLO) 7 Remote Management
- – Cluster expansion without downtime.
- – Integrated storage controller with battery-backed cache
Scalable and Configurable
- – Expandable in 1 node increments up to 96 total nodes for Broadcom VMware
- – 5th Gen AMD® EPYC™ Series Processors
- – Memory – From 192 GB up to 6144 GB (Per node depending on Pro)
- – Network – 1 Gb, 10 Gb/25 Gb, 100 Gb, 200 Gb
- – Redundant Power Supplies
- – All in a compact 1U form factor
- – 3 PCIe expansion slots (PCIe 5.0)
Services
- – HPE Services full suite of support offerings (Tech Care and Complete Care).
- – HPE Services enabled redeploy storage expansion.
- – Remote support technology to provide 24x7 secure remote support
Notes: For the best support experience, HPE Services Installation Services and 24x7x365 support is recommended.
HPE SimpliVity Term Based licensing
- – Every HPE SimpliVity node will now have socket-based term licenses which includes HPE SimpliVity Software, HPE VM Essentials Software and Support.
- – Usable Capacity (TiB) is the standard unit of measure for HPE SimpliVity software licensing (applies to Gen12 only).
Notes: Broadcom VMware licenses must be procured from Broadcom VMware or from an authorized distributor.
HPE SimpliVity 325 Gen12 At-a-Glance | |
|---|---|
| Node Size | 1U |
| Processor | 5th Gen AMD® EPYC™ Processor, 16 to 160 cores selectable, 1 CPU option slot |
| Memory | From 192 GB up to 6144 GB per node selectable (based on the selection of Processor) |
| Hypervisors | HPE Morpheus VM Essentials Software OR Broadcom VMware |
| Storage | 1.92 TB SAS MU SSD Kit, 1.92 TB SAS RI SSD Kit |
| 3.84 TB SAS MU SSD Kit, 3.84 TB SAS RI SSD Kit | |
| 6.4 TB SAS MU SSD Kit, 7.68 TB SAS RI SSD Kit | |
| Network Ports | Embedded Ethernet 4x1 GbE OCP3.0, 10 Gb OCP card, 10/25 GB, 100 GB Notes: HPE 1 GbE 4-port OCP3 Adapter plus choice of OCP or standup card |
| Power Supplies | HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit |
| HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit | |
| HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit | |
| HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit | |
| HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit | |
| HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit | |
| Hardware Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response |
| Hardware Support | 3-year or 5-year HPE SimpliVity 325 Gen12 solution support (required) |
| License | Term based licensing - 3 Year, 5 Year |
| Standard Unit of Measure | Usable Capacity TiB |
Notes:
– Warranty for SSDs is subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for replacement.
– Two power supplies per node are required for redundancy.

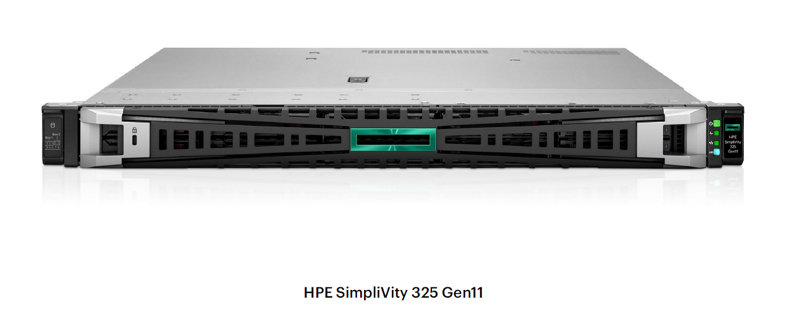

HPE SimpliVity 325 Gen11 At-a-Glance | |
|---|---|
| Node Size | 1U |
| Processor | 4th Gen AMD® EPYC™ Processor, 16 to 128 cores selectable, 1 CPU option slot 5th Gen AMD® EPYC™ Processor, 16 to 160 cores selectable, 1 CPU option slot |
| Memory | From 128 GB up to 3072 GB per node selectable (based on the selection of Processor) Notes: 5th Gen CPUs supports max of 1536 GB |
| Hypervisors | HPE Morpheus VM Essentials Software OR Broadcom VMware |
| Storage | 1.92 TB SATA RI SSD Kit |
| 3.84 TB SATA RI SSD Kit | |
| 7.68 TB SATA RI SSD Kit | |
| Notes: *For SAS Drives support reaches out to HPE representatives | |
| Network Ports | Embedded Ethernet 4x1 GbE OCP3.0, 10 Gb OCP card, 10/25 GB, 100 GB Notes: HPE 1 GbE 4-port OCP3 Adapter plus choice of OCP or standup card |
| Power Supplies | Dual power supplies provide highly available power |
| HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | |
| HPE 1000 W Flex Slot Titanium Hot Plug Power Supply Kit | |
| HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit | |
| HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | |
| HPE 1800 W -2200 W Flex Slot Titanium Hot Plug Power Supply Kit | |
| HPE 1000 W Flex Slot Titanium Hot Plug Power Supply Kit | |
| Hardware Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response |
| Hardware Support | 3-year or 5-year HPE SimpliVity 325 Gen11 solution support (required) |
| License | Term based licensing - 3 Year, 5 Year |
Notes:
– Warranty for SSDs is subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for replacement.
– Two power supplies per node are required for redundancy.
Standard Features
Features and Benefits
HPE InfoSight for HPE SimpliVity enables predictive data analytics
For HPE SimpliVity nodes HPE InfoSight provides system details at the federation, cluster, and host level for historic capacity utilization, trends, resource consumption and prediction. Alleviates support issues and reduces operational expenses with automated wellness alerts and case creation. Provides a unified view of HPE SimpliVity assets such as Datastore, VM, Backups, Capacity, and IOPS.
Fully integrated system
Combines x86 resources, storage, and storage networking in a smaller form factor, single-socket, entry level hyperconverged system. Simplifies management and delivers great cost efficiency and agility with increased visibility and control.
Peak and predictable performance
The all-flash solution provides predictable and linear performance at near‑wire speeds with reduced latency. Software-optimized inline deduplication, compression, and optimization help minimize I/O and network traffic, improving performance while delivering great storage and bandwidth efficiency.
Scale in and scale out
Easily expand or shrink configurations as your needs change. Each node supports a large number of fully protected virtual machines (VMs), with the networked collection of nodes at both local and remote sites managed as a single entity.
VM centricity and mobility
Enables all actions, policies, and management at the VM level. Global unified management and integration with established administrative systems streamline operations and improve IT agility.
TCO reduction
Single AMD EPYC processor architecture allows for a low-cost, 1U 1P, performance solution for your virtualized workloads with core based hypervisor licensing costs (within the VMware Core count guidelines). Drastically reduce the need to purchase multiple discrete components, optimize storage capacity with guaranteed 10:1 data efficiency, and prevent over-provisioning performance and capacity with on‑demand expansion.
Cloud backup / Cloud storage
HPE SimpliVity with HPE Backup Archive with Cloud Bank Storageallows backing up data to 3rd party cloud services via StoreOnce
Secondary backup
HPE SimpliVity with HPE StoreOnce protects data center and distributes edge sites by easily and efficiently replicating applications and data directly to a centralized HPE StoreOnce appliance for compliance and long-term retention requirements. HPE SimpliVity with HPE StoreOnce also supports Data Immutability to protect against ransomware**
Notes: **Planned for HPE Morpheus VM Essentials in future.
Software Overview
Pre-integrated software
- – HPE SimpliVity Startup Wizard
Virtualization Platform Software and Licenses
Broadcom VMware
- – VMware vSphere installation media is required to complete the installation when ordering HPE SimpliVity 325 nodes
- – Valid licenses for the following VMware software components are required when ordering HPE SimpliVity 325 nodes.
- VMware vSphere license(s) per node: customer to procure from authorized distributor.
- VMware vCenter license: customer to procure from authorized distributor.
HPE Morpheus Software - VM Essentials
- – Customer registers and activates license key for HPE SimpliVity Software allowing them to install and deploy HPE Morpheus VM Essentials for 5yr or 3yr terms.
- – HPE Morpheus VM Essentials Software license is embedded as part of the HPE SimpliVity Software license
Management
HPE Morpheus Software - VM Essentials
- – HPE InfoSight for HPE SimpliVity
- – HPE SimpliVity management through VM Essentials Manager
Broadcom VMware
- – HPE InfoSight for HPE SimpliVity
- – VMware vCenter for Broadcom VMware
- – HPE SimpliVity management plugin for VMware vCenter
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.HPE.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.HPE.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- – A complete coverage approach -- edge to cloud
- – An assigned HPE team
- – Modular and fully personalized engagement
- – Enhanced Incident Management experience with priority access
- – Digitally enabled and AI driven customer experience
https://www.HPE.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.HPE.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.HPE.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- – Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- – Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
Consume IT On Your Terms
GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
- – Get faster time to market
- – Save on TCO, align costs to business
- – Scale quickly, meet unpredictable demand
- – Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html
For more information
Configuration Information
HPE SimpliVity 325 Gen12: Overview for New System
Use the following steps to order a new HPE SimpliVity 325 Gen12 system:
- – Step 1: Begin with the selection of Node Quantity & Hypervisor
- – Step 2: Select the license Term
- – Step 3: Select the hardware options to add to the base node: processors, memory, storage, networking, power, other optional HW
- – Step 4: The software license that corresponds to the node configuration will be automatically added
- – Step 5: Select service and support
Step 1: Begin with the Base NodeAction:
| |
| Description | SKU |
| HPE SimpliVity 325 Gen12 EDSFF Configure-to-order Node | S8J34A |
| HPE SimpliVity FIO Software for VMware | S8K52A |
| HPE SimpliVity with Morpheus Software - essentials FIO Software | S8K53A |
Step 2: Select the license Term | |
| Description | SKU |
| HPE SimpliVity 325 Gen12 1 Processor 3-year E-LTU | S8K73AAE |
| HPE SimpliVity 325 Gen12 1 Processor 5-year E-LTU | S8K74AAE |
| Notes: – The E-LTU SKUs are not user selectable, and it will be added by the configurator depending on the year selected – Qty 1 per node will be added automatically | |
Step 3: Select the hardware options | |
| |
| Description | SKU |
| AMD EPYC 9965 2.25GHz 192-core 500W Processor for HPE | P75019-B21 |
| AMD EPYC 9845 2.1GHz 160-core 390W Processor for HPE | P72646-B21 |
| AMD EPYC 9825 2.2GHz 144-core 390W Processor for HPE | P72647-B21 |
| AMD EPYC 9755 2.7GHz 128-core 500W Processor for HPE | P75022-B21 |
| AMD EPYC 9745 2.4GHz 128-core 400W Processor for HPE | P72648-B21 |
| AMD EPYC 9645 2.3GHz 96-core 320W Processor for HPE | P72649-B21 |
| AMD EPYC 9655P 2.6GHz 96-core 400W Processor for HPE | P72662-B21 |
| AMD EPYC 9565 3.15GHz 72-core 400W Processor for HPE | P72651-B21 |
| AMD EPYC 9535 2.4GHz 64-core 300W Processor for HPE | P72652-B21 |
| AMD EPYC 9575F 3.3GHz 64-core 400W Processor for HPE | P72758-B21 |
| AMD EPYC 9555P 3.2GHz 64-core 360W Processor for HPE | P72663-B21 |
| AMD EPYC 9475F 3.65GHz 48-core 400W Processor for HPE | P72666-B21 |
| AMD EPYC 9455P 3.15GHz 48-core 300W Processor for HPE | P72664-B21 |
| AMD EPYC 9365 3.4GHz 36-core 300W Processor for HPE | P72655-B21 |
| AMD EPYC 9335 3.0GHz 32-core 210W Processor for HPE | P72656-B21 |
| AMD EPYC 9375F 3.80GHz 32-core 320W Processor for HPE | P72667-B21 |
| AMD EPYC 9355P 3.55GHz 32-core 280W Processor for HPE | P72665-B21 |
| AMD EPYC 9255 3.20GHz 24-core 200W Processor for HPE | P72658-B21 |
| AMD EPYC 9275F 4.1GHz 24-core 320W Processor for HPE | P72668-B21 |
| |
| Description | SKU |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64985-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64986-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64987-B21 |
| HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64988-B21 |
| HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit | P73446-B21 |
| Notes: – Please select one or more memory from above. – For details on the Memory Population Rules and Guidelines with AMD EPYC™ 9005 series processors, please go to: https://www.hpe.com/psnow/doc/a50012817enw – Minimum 192 GB GB memory must be configured per node – DDR6400 RDIMMs can support up to 6 TB – Mixing of x4 & x8 memory is not allowed | |
| |
| Description | SKU |
| HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device | P78279-B21 |
| HPE ProLiant Compute DL3XX Gen12 NS204i-u Rear Cable Kit | P71433-B21 |
| HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device | P81160-B21 |
| Notes: The Boot device SKU and necessary accessories are not user selectable and will be added by default | |
| |
| Description | SKU |
| HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller | P47781-B21 |
| HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller | P47777-B21 |
| Notes: User must select qty 1 of Storage controller from the above options | |
| |
| Description | SKU |
| HPE SimpliVity 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD | S8J35A |
| HPE SimpliVity 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD | S8J38A |
| HPE SimpliVity 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD | S8J41A |
| HPE SimpliVity 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD | S8J36A |
| HPE SimpliVity 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD | S8J39A |
| HPE SimpliVity 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD | S8J42A |
| HPE SimpliVity 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD | S8J37A |
| HPE SimpliVity 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD | S8J40A |
| HPE SimpliVity 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD | S8J43A |
Drive Configurations:
| Resiliency | SAS MU | SAS RI | Drive Config | Usable Capacity (TiB) |
|---|---|---|---|---|
| FTT1 | 2 | 3 | 2 x 1.92 + 3x 1.92 | 5 |
| FTT1 | 2 | 6 | 2 x 3.84 + 6 x 1.92 | 11 |
| FTT1 | 2 | 3 | 2 x 3.84 + 3 x 3.84 | 9 |
| FTT1 | 2 | 3 | 2 x 6.2 + 6 x 3.84 | 21 |
| FTT1 | 2 | 3 | 2 x 6.2 + 3 x 7.68 | 18 |
| FTT1 | 2 | 3 | 2 x 6.2 + 6 x 7.68 | 36 |
Notes:
– The listed configuration is supported with both HPE VM Essentials and Broadcom VMware environments.
– The usable capacities are approximately and rounded to near zero. For actual capacities please refer to HPE SimpliVity sizer.
– HPE ProLiant 325 Gen12 supports only FTT1 – Single Disk resiliency
| Tracking SKUs | |
| Description | SKU |
| HPE SimpliVity 325 Gen12 1.6/1.92TB 5 SSD FIO Tracking | S8K40A |
| HPE SimpliVity 325 Gen12 1.6/1.92TB 8 SSD FIO Tracking | S8K42A |
| HPE SimpliVity 325 Gen12 3.2/3.84TB 5 SSD FIO Tracking | S8K43A |
| HPE SimpliVity 325 Gen12 3.2/3.84TB 8 SSD FIO Tracking | S8K45A |
| HPE SimpliVity 325 Gen12 6.4/7.68TB 5 SSD FIO Tracking | S8K46A |
| HPE SimpliVity 325 Gen12 6.4/7.68TB 8 SSD FIO Tracking | S8K48A |
| Notes: – FIO tracking SKUs for SSD configurations. – This item is not user-selectable and will be automatically included depending on configuration selected. | |
| |
| Description | SKU |
| HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit | P67240-B21 |
| HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit | P67244-B21 |
| HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit | P67252-B21 |
| Notes: – The power supply requirements can vary based on configuration and environment 800” Power Supply is only Supported with specific configurations. Please refer to HPE Power Advisor for proper power sizing. – All configured nodes whip with a standard 6 foot IEC C-13/C-14 jumper cord (A0K02a). This jumper cord is also included with each standard AC power supply option kit. – If a different power cord is required, please check the HPE ProLiant Power Cables web page: https://h20195.www2.HPE.com/v2/getpdf.aspx/4AA6-6836ENW.pdf | |
| |
| PCIe NIC Adapters | |
| Description | SKU |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P08443-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P08458-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P21112-B21 |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE | P25960-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE | P26253-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | P26259-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P26262-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P26264-B21 |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P42044-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P51178-B21 |
| Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE | P73111-B21 |
| AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter for HPE | P87940-B21 |
| NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE | R8M41A |
| NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE | S2A69A |
| OCP Network Adapters | |
| Description | SKU |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | P10097-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10115-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | P22767-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | P26256-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P26269-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P41614-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P42041-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P51181-B21 |
| Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE | P73114-B21 |
| Fiber Channel | |
| Description | SKU |
| HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter | R2E08A |
| HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter | R2E09A |
| HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter | R7N86A |
| HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter | R7N87A |
| HPE SN1620E 32Gb 2p FC SecureHBA | S4S01A |
| HPE SN1720E 64Gb 2p FC SecureHBA | S4T09A |
| |
| Description | SKU |
| NVIDIA L4 24GB PCIe Accelerator for HPE | S0K89C |
Step 4: The software license that corresponds to the node configuration will be automatically added. | |
| Description | SKU |
| HPE SimpliVity 325 Gen12 1 Processor Low 3-year E-LTU | S8K76AAE |
| HPE SimpliVity 325 Gen12 1 Processor Low 5-year E-LTU | S8K77AAE |
| HPE SimpliVity 325 Gen12 1 Processor High 3-year E-LTU | S8K79AAE |
| HPE SimpliVity 325 Gen12 1 Processor High 5-year E-LTU | S8K80AAE |
| Notes: – License quantity is based on the usable capacity (TiB) of the deployment. – Configurations up to 24 Usable TiB drives are classified as Low Tier; configurations above 24 Usable TiB drives are classified as High Tier. | |
HPE SimpliVity Software
| Drive Config | License Quantity/ Usable Capacity (TiB) | License SKU [ 3 years] | License SKU [5 years] |
|---|---|---|---|
| 2 x 1.92 + 3x 1.92 | 5 | S8K76AAE | S8K79AAE |
| 2 x 3.84 + 6 x 1.92 | 11 | S8K76AAE | S8K79AAE |
| 2 x 3.84 + 3 x 3.84 | 9 | S8K76AAE | S8K79AAE |
| 2 x 6.2 + 6 x 3.84 | 21 | S8K76AAE | S8K79AAE |
| 2 x 6.2 + 3 x 7.68 | 18 | S8K76AAE | S8K79AAE |
| 2 x 6.2 + 6 x 7.68 | 36 | S8K77AAE | S8K80AAE |
Notes: 36TiB configuration may require exception approval
HPE SimpliVity 325 Gen11: Overview for New System
Use the following steps to order a new HPE SimpliVity 325 Gen11 system:
- – Step 1: Begin with the selection of Node Quantity & Hypervisor
- – Step 2: Select the license Term
- – Step 3: Select the hardware options to add to the base node: processors, memory, storage, networking, power, other optional HW
- – Step 4: The software license that corresponds to the node configuration will be automatically added
- – Step 5: Select service and support.
Step 1: Begin with the Base Node | |
| Base Node | |
| Action:
| |
| Description | SKU |
| HPE SimpliVity 325 Gen11 8SFF Configure-to-order Node | S2V31C |
| HPE SimpliVity FIO Software for VMware | S6C61A |
| HPE SimpliVity FIO Software for VM Essentials | S6C62A |
| HPE SimpliVity 325 Gen11 Configure-to-order Solution Tracking | S2V23C |
| HPE SimpliVity 325 Gen11 Configure-to-order Solution Tracking | S2V23B |
| HPE SimpliVity 325 Gen11 1 Processor 3-year E-LTU | S6D38AAE |
| HPE SimpliVity 325 Gen11 1 Processor 5-year E-LTU | S6D37AAE |
| Notes: – The Solution tracking SKU is not user selectable and will be added automatically based on the Hypervisor choice – The E-LTU SKUs are not user selectable, and it will be added by the configurator depending on the year selected | |
Step 2: Select the Hardware Options to Add to the Base Node: | |
| User selection required for Single Disk Resiliency or Dual Disk Resiliency | |
| Disk Resiliency Type | SKU |
| HPE SimpliVity Node Tracking with Single Disk Resiliency | S3B77A |
| HPE SimpliVity Node Tracking with Dual Disk Resiliency | S3B78A |
| Notes: Currently HPE SimpliVity with HPE VM Essentials Software only supports single disk resiliency. | |
Processors | |
| 4th Generation AMD® EPYC™ CPU Action:
| |
| Description | SKU |
| AMD EPYC 9654P 2.4GHz 96-core 360W Processor for HPE | P53697-B21 |
| AMD EPYC 9554P 3.1GHz 64-core 360W Processor for HPE | P53703-B21 |
| AMD EPYC 9354P 3.25GHz 32-core 280W Processor for HPE | P53704-B21 |
| AMD EPYC 9454P 2.75GHz 48-core 290W Processor for HPE | P53709-B21 |
| AMD EPYC 9474F 3.6GHz 48-core 360W Processor for HPE | P53706-B21 |
| AMD EPYC 9374F 3.85GHz 32-core 320W Processor for HPE | P53710-B21 |
| AMD EPYC 9274F 4.05GHz 24-core 320W Processor for HPE | P53711-B21 |
| AMD EPYC 9174F 4.1GHz 16-core 320W Processor for HPE | P53698-B21 |
| AMD EPYC 9754 2.25GHz 128-core 360W Processor for HPE | P60463-B21 |
| AMD EPYC 9634 2.25GHz 84-core 290W Processor for HPE | P53705-B21 |
| AMD EPYC 9534 2.45GHz 64-core 280W Processor for HPE | P53699-B21 |
| AMD EPYC 9334 2.7GHz 32-core 210W Processor for HPE | P53712-B21 |
| AMD EPYC 9254 2.9GHz 24-core 200W Processor for HPE | P53707-B21 |
| AMD EPYC 9224 2.5GHz 24-core 200W Processor for HPE | P58540-B21 |
| AMD EPYC 9124 3.0GHz 16-core 200W Processor for HPE | P53702-B21 |
| AMD EPYC 9684X 2.55GHz 96-core 400W Processor for HPE | P63493-B21 |
| AMD EPYC 9384X 3.1GHz 32-core 320W Processor for HPE | P63492-B21 |
| AMD EPYC 9184X 3.55GHz 16-core 320W Processor for HPE | P63491-B21 |
| 5th Generation AMD® EPYC™ CPU | SKU |
| AMD EPYC 9845 2.1GHz 160-core 390W Processor for HPE | P72646-B21 |
| AMD EPYC 9825 2.2GHz 144-core 390W Processor for HPE | P72647-B21 |
| AMD EPYC 9745 2.4GHz 128-core 400W Processor for HPE | P72648-B21 |
| AMD EPYC 9645 2.3GHz 96-core 320W Processor for HPE | P72649-B21 |
| AMD EPYC 9655P 2.6GHz 96-core 400W Processor for HPE | P72662-B21 |
| AMD EPYC 9565 3.15GHz 72-core 400W Processor for HPE | P72651-B21 |
| AMD EPYC 9535 2.4GHz 64-core 300W Processor for HPE | P72652-B21 |
| AMD EPYC 9575F 3.3GHz 64-core 400W Processor for HPE | P72758-B21 |
| AMD EPYC 9555P 3.2GHz 64-core 360W Processor for HPE | P72663-B21 |
| AMD EPYC 9475F 3.65GHz 48-core 400W Processor for HPE | P72666-B21 |
| AMD EPYC 9455P 3.15GHz 48-core 300W Processor for HPE | P72664-B21 |
| AMD EPYC 9365 3.4GHz 36-core 300W Processor for HPE | P72655-B21 |
| AMD EPYC 9335 3.0GHz 32-core 210W Processor for HPE | P72656-B21 |
| AMD EPYC 9375F 3.80GHz 32-core 320W Processor for HPE | P72667-B21 |
| AMD EPYC 9355P 3.55GHz 32-core 280W Processor for HPE | P72665-B21 |
| AMD EPYC 9255 3.20GHz 24-core 200W Processor for HPE | P72658-B21 |
| AMD EPYC 9275F 4.1GHz 24-core 320W Processor for HPE | P72668-B21 |
| AMD EPYC 9135 3.65GHz 16-core 200W Processor for HPE | P72660-B21 |
| AMD EPYC 9115 2.6GHz 16-core 125W Processor for HPE | P72659-B21 |
| AMD EPYC 9175F 4.2GHz 16-core 320W Processor for HPE | P72669-B21 |
| Notes: Please note 4th Gen CPUs only supports DDR-4800 DIMM and 5th Gen supports DDR-6400 DIMM | |
Memory | |
| DDR5-4800 Registered DIMMs (RDIMMs) | SKU |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit | P50309-B21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit | P50311-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit | P50312-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit | P66676-B21 |
| DDR5-6400 Registered DIMMs (RDIMMs) | |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | SKU |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64984-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64985-B21 |
| HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P64986-B21 |
| Notes: – Please select one or more memory from above. – For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to: https://www.HPE.com/psnow/doc/a50007481enw – Memory DIMM availability with a server platform is dependent upon completion of certification testing. – The maximum memory speed is a function of the memory type, memory configuration, and processor model. – Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for a server model or family and yet occasionally not be supported with limited configurations within that server family. Please consult with the HPE server QuickSpecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE. – Minimum 128 GB GB memory must be configured per node – DDR4800 RDIMMs can support up to 3 TB – DDR6400 RDIMMs can support up to 1.5 TB – Mixing of x4 & x8 memory is not allowed – 8 GB-128 GB memory SKUs can run the transfer rate of 3200 MT/s at both 1 DIMM and 2 DIMM per channel | |
| Boot Device/ Boot RAID controllers | SKU |
| HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device | P48183-B21 |
| HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller | P47789-B21 |
| HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller | P47785-B21 |
| Notes: – User must select qty1 of the same type of controller from the above options – If selecting NS204i-p Controller, there is no need to select boot SSDs since it comes with two 480 GB NVMe drives – If selecting any boot controller other than NS204i-p, user MUST select boot SSDs below. Boot drive cages are required and will be added in OCA when selecting non NS204i-p boot controllers. | |
| Boot SSD Drives | SKU |
| HPE SimpliVity 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD | S1J86A |
| HPE SimpliVity 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD | S1J87A |
| Notes: – User must select qty2 of the same type of HDD/SSD – If selecting NS204i-p Controller, there is no need to select boot SSDs since NS204i-p it comes with NVMe drives | |
| Storage Controllers | SKU |
| HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller | P47184-B21 |
| Notes: User must select qty1 of the same type of Storage controller from the above options | |
| Storage Drives | SKU |
| HPE SimpliVity 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD | S1J88A |
| HPE SimpliVity 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD | S1J89A |
| HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD | P40501-K21 |
1.92 TB SSD Options
- – If S2V31C Broadcom VMware Hypervisor is selected
- Qty 4, 6, 8 of S1J88A is required for HPE SimpliVity 325 Gen11
- If S2V31C HPE Morpheus VM Essentials Software Hypervisor is selected
- Qty 4, 6 of S1J88A is required for HPE SimpliVity 325 Gen11
3.84 TB SSD Options
- – If S2V31C Broadcom VMware Hypervisor is selected
- Qty 4, 6, 8 of S1J89A is required for HPE SimpliVity 325 Gen11
- If S2V31C HPE Morpheus VM Essentials Software Hypervisor is selected
- Qty 4, 6 of S1J89A is required for HPE SimpliVity 325 Gen11
7.68 TB SSD Options
- – If S2V31C Broadcom VMware Hypervisor is selected
- Qty 4, 6, 8 of P40501-K21 is required for HPE SimpliVity 325 Gen11
- – If S2V31C HPE Morpheus VM Essentials Software Hypervisor is selected
- Qty 4, 6, 8 of P40501-K21 is required for HPE SimpliVity 325 Gen11
Notes: Some configurations may require exception approval.
Capacity options for Broadcom VMware
| Drive Config | Resiliency | *Approx. Usable Capacity [TB] |
|---|---|---|
| 4 x1.92 TB | FTT1 | 5.0 |
| 6 x1.92 TB | FTT1 | 8.0 |
| 6 x1.92 TB | FTT2 | 6.0 |
| 8 x1.92 TB | FTT1 | 10.0 |
| 4 x3.84 TB | FTT1 | 10.0 |
| 6 x3.84 TB | FTT1 | 15.0 |
| 6 x3.84 TB | FTT2 | 12.0 |
| 8 x3.84 TB | FTT1 | 21.0 |
| 4 x 7.68 TB | FTT1 | 19.0 |
| 6 x 7.68 TB | FTT1 | 31.0 |
| 6 x 7.68 TB | FTT2 | 23.0 |
| 8 x 7.68 TB | FTT1 | 43.0 |
Capacity options for HPE Morpheus VM Essentials
| Drive Config | Resiliency | *Approx. Usable Capacity [TB] |
|---|---|---|
| 4 x1.92 TB | FTT1 | 5.0 |
| 6 x1.92 TB | FTT1 | 8.0 |
| 4 x3.84 TB | FTT1 | 10.0 |
| 6 x3.84 TB | FTT1 | 15.0 |
| 4 x 7.68 TB | FTT1 | 19.0 |
| 6 x 7.68 TB | FTT1 | 31.0 |
| 8 x 7.68 TB | FTT1 | 43.0 |
Notes:
– Currently HPE VM Essentials only supports FTT1
– For SAS Drive support please reach out to HPE Representative
– Usable capacity is the capacity available after RAID and system overheads have been removed, before deduplication and compression is applied. In the case of Dual Disk Resiliency, the usable capacity will be different
– The usable capacities are approximately and rounded to near zero. For actual capacities please refer to HPE SimpliVity sizer.
| Power Supplies | |
| Description | SKU |
| HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | 865408-B21 |
| HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | P38995-B21 |
| HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit | P03178-B21 |
| HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit | P17023-B21 |
| HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit | P38997-B21 |
| HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit | P44712-B21 |
| Notes: – The power supply requirements can vary based on configuration and environment 800” Power Supply is only Supported with specific configurations. Please refer to HPE Power Advisor for proper power sizing. – All configured nodes whip with a standard 6 foot IEC C-13/C-14 jumper cord (A0K02a). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE ProLiant Power Cables web page: | |
Networking | |
| PCIe NIC Adapters | SKU |
| Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P21106-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P51178-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE | P26253-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | P26259-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P26262-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P26264-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P08443-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P08458-B21 |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P42044-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P21112-B21 |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE | P25960-B21 |
| OCP Network Adapters | SKU |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P42041-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | P10097-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | P26256-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10115-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P26269-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | P22767-B21 |
| Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P08449-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P51181-B21 |
| Fiber Channel Host Bus Adapters | SKU |
| HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter | R2E08A |
| HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter | R2E09A |
| HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter | R2J62A |
| HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter | R2J63A |
| HPE SN1700E 64Gb 1-port Fibre Channel Host Bus Adapter | R7N77A |
| HPE SN1700E 64Gb 2-port Fibre Channel Host Bus Adapter | R7N78A |
| HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter | R7N86A |
| HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter | R7N87A |
| Notes: – Please refer to the HPE ProLiant Gen11 QuickSpecs - https://www.HPE.com/psnow/doc/a50004297enw.pdf?jumpid=in_pdp-psnow-qs – All the HBA cards to be managed outside of HPE SimpliVity manageability and orchestration. | |
Graphics | |
| Description | SKU |
| HPE ProLiant DL3X5 Gen11 OCP1 Upgrade Cable Kit | P56658-B21 |
Step 3: The software license that corresponds to the node configuration will be automatically added.
HPE SimpliVity Software
Action: Based on the number of CPUs in the node, the appropriate software will be included by the configurator.
| Description | SKU | Drive Configs | Qty |
|---|---|---|---|
| HPE SimpliVity 325 Gen11 1 Processor Low 3-year E-LTU | S6D44AAE | 4x 1.92 TB | 4 |
| 6x 1.92 TB | 6 | ||
| 8x 1.92 TB | 8 | ||
| 4x 3.84 TB | 8 | ||
| 6x 3.84 TB | 12 | ||
| 8x 3.84 TB | 16 | ||
| 4x 7.68 TB | 16 | ||
| HPE SimpliVity 325 Gen11 1 Processor High 3-year E-LTU | S6D45AAE | 6x 7.68 TB | 24 |
| 8x 7.68 TB | 32 | ||
| HPE SimpliVity 325 Gen11 1 Processor Low 5-year E-LTU | S6D42AAE | 4x 1.92 TB | 4 |
| 6x 1.92 TB | 6 | ||
| 8x 1.92 TB | 8 | ||
| 4x 3.84 TB | 8 | ||
| 6x 3.84 TB | 12 | ||
| 8x 3.84 TB | 16 | ||
| 4x 7.68 TB | 16 | ||
| HPE SimpliVity 325 Gen11 1 Processor High 5-year E-LTU | S6D43AAE | 6x 7.68 TB | 24 |
| 8x 7.68 TB | 32 |
Notes:
– The License SKU is not user orderable, based on the CPU and Drive Qty selection, HPE configurator adds the corresponding type of license with Qty automatically.
– HPE SimpliVity SW licensing is based on a calculation factor of 1.92 units.
– For every 1 Qty of 1.92 TB SSD 1 Qty of license is added; for every 1 Qty of 3.84 TB SSD 2 Qty of licenses are added; for every 1 Qty of 7.68 TB SSD 4 Qty of licenses are added; Examples on how the license SKUs are derived/denoted:
| Node Configs | Licenses Required |
|---|---|
| 3-Year License Term | |
| 1P 325 Gen 11 4 SSD 1.92 TB | 1 Qty S6D38AAE & 4 Qty S6D44AAE |
| 1P 325 Gen 11 4 SSD 3.84 TB | 1 Qty S6D38AAE & 8 Qty S6D44AAE |
| 1P 325 Gen 11 8 SSD 1.92 TB | 1 Qty S6D38AAE & 8 Qty S6D44AAE |
| 1P 325 Gen 11 8 SSD 3.84 TB | 1 Qty S6D38AAE & 16 Qty S6D44AAE |
| 1P 325 Gen 11 8 SSD 7.68 TB | 1 Qty S6D38AAE & 16 Qty S6D45AAE |
| 5-Year License Term | |
| 1P 325 Gen 11 4 SSD 1.92 TB | 1 Qty S6D37AAE& 4 Qty S6D42AAE |
| 1P 325 Gen 11 4 SSD 3.84 TB | 1 Qty S6D37AAE & 8 Qty S6D42AAE |
| 1P 325 Gen 11 8 SSD 1.92 TB | 1 Qty S6D37AAE & 8 Qty S6D42AAE |
| 1P 325 Gen 11 8 SSD 3.84 TB | 1 Qty S6D37AAE & 16 Qty S6D42AAE |
| 1P 325 Gen 11 8 SSD 7.68 TB | 1 Qty S6D37AAE & 16 Qty S6D43AAE |
HPE SimpliVity 325 Gen11 Storage Expansion Overview fo Broadcom VMware
Notes: Please note that Storage expansion is only for Perpetual licensing. If you need Term licenses, please reach out to HPE representatives
Use the following steps to expand Storage for your existing HPE SimpliVity 325 Gen11 node:
- – Step 1: Start with the HPE SimpliVity 325 Gen11 Node/Tracking SKU & Select the option “HPE SimpliVity 325 Gen11 expansion”
- – Step 2: Select the Disk Resiliency option
- – Step 3: Select the Storage Drive Capacity Expansion
- – Step 4: Service and support will be added automatically to perform the storage upgrade, migration, install and redeployment
Step 1: Start with the Expansion Kit SKU | |
| Action: Select the Expansion SKU | |
| Description | SKU |
| HPE SimpliVity 325 Gen11 8SFF Configure-to-order Node | S2V31A |
Step 2: Select the Disk Resiliency Expansion | |
| Action: Select the option | |
| Description | SKU |
| HPE SimpliVity Node Tracking with Single Disk Resiliency | S3B77A |
| HPE SimpliVity Node Tracking with Dual Disk Resiliency | S3B78A |
| HPE SimpliVity 325 Gen11 1 Processor Expansion E-RTU | S4U94AAE |
| Notes: E-RTU SKU will be automatically added by OCA | |
Step 3: Select the Storage Drive Capacity Expansion | |
| Action: Select the option | |
| Description | SKU |
| HPE SimpliVity 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD | S1J88A |
| HPE SimpliVity 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD | S1J89A |
| Notes: – One of the options can be selected based on the disk resiliency selected
| |
Step 4: Select service and support to perform the storage upgrade, migration, install and redeployment | |
| HPE provides a full range of support offers for these products. Tech Care is the minimum level of support, but Complete Care is also available. Contact your local sales representative or channel partner for more details. Installation services are required for these products. HA124A1#5ZD needs to be ordered in a quantity matching the sum of the software SKUs from Step 2. | |
HPE SimpliVity 325 Gen10 and 325 Gen10 Plus V2: Storage Expansion Overview | |
| Use the following steps to expand Storage for your existing HPE SimpliVity 325 Gen10 or 325 Gen10 Plus v2 node: Step 1: Start with the Expansion SKU Step 2: Add the SW license that correlates to either storage expansion options Step 3: Select the hardware options to add the storage drive kits Step 4: Select service and support to perform the storage upgrade, migration, install and redeployment | |
Step 1: Start with the Expansion Kit SKU | |
| Action: Select the Expansion SKU. | |
| Description | SKU |
| HPE SimpliVity 325 Expansion Kit | S0N29A |
Step 2: If Storage expansion is needed, add the SW license from below that correlates to the desired expansion configuration | |
| Action: Select the appropriate SW license according to the desired storage expansion configuration. Choose from one of the following Redeployment Storage Expansion choices
| |
Step 3: Select the hardware options to add either the storage drive kits or additional CPU and memory | |
| Action: Select quantity 2 of the same SSD type from the following SSD options, based on the desired storage expansion configuration. For example, in the configurator you can only select qty2 of P44009-K21 or qty2 of P40543-K21, you cannot mix and match two different vendor types. | |
Step 4: Select service and support to perform the storage upgrade, migration, install and redeployment | |
| HPE provides a full range of support offers for these products. Tech Care is the minimum level of support, but Complete Care is also available. Contact your local sales representative or channel partner for more details. Installation services are required for these products. HA124A1#5ZD needs to be ordered in a quantity matching the sum of the software SKUs from Step 2. | |
Technical Specifications
Physical Dimensions
- – 1U form factor 1.69 x 17.11 x 25.37 in (4.29 x 43.46 x 64.43 cm)
- – Dimensions 4.29 x 43.46 x 64.43 cm (1.69 x 17.11 x 25.37 in)
- – Weight (approximate)
- – Maximum 10 SFF chassis with 10 SFF hard drives, 1x processors including standard heatsink, 16x DIMMs, 2x power supplies, 1x Smart Array, 2x Risers installed, cables for the above 16.19 kg - 35.68 lb
Notes: For all other DL325 Gen10 Plus v2 Server details, please refer to the:
HPE DL325 Gen10 Plus v2 Server QuickSpecs.
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. To recycle your product, please go to: http://www.HPE.com/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.HPE.com/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
EU Lot9 Regulation
If you require validation for an RFP the Compliance Team has a help desk to support EU compliance inquiries and can be reached at Technical Regulations Europe tre@hpe.com or you may also contact sustainability@hpe.com
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 08-Sep-2026 | Changed | This version represents a major platform refresh rather than a maintenance update. The document transitions the lead platform from HPE SimpliVity 325 Gen11 (DL325 Gen11) to HPE SimpliVity 325 Gen12 (DL325 Gen12), introduces a new storage architecture based on SAS SSDs and MR416 controllers, adds HPE SimpliVity Software 7.0, introduces HPE StoreOnce integration, Stretch Cluster capabilities, HPE VM Essentials enhancements, and reworks licensing from primarily socket-oriented messaging to a new Usable Capacity (TiB) licensing model for Gen12. At the same time, the document retains Gen11 content for installed-base support. The cumulative effect of this version is a strategic repositioning from a Gen11-based hyperconverged platform to a next-generation Gen12 platform.
| |
| Removed | Obsolete or not supported SKUs removed - P50313-B21, P50314-B21 | ||
| 05-Feb-2026 | Added | – Added new content in “What’s New” section. – Added SKUs for HPE SimpliVity FIO SW VMware (S6C61A) and HPE SimpliVity FIO SW VM Essentials (S6C62A) under “Step 1: Begin with the Base Node.” – Added clarifications under “Step 2: Select the Hardware Options to Add to the Base Node.” | |
| Changed | Updated “EU Lot9 Regulation” section; revised copyright year to 2026; updated footer details including document identifier and version. | ||
| Removed | Removed outdated SKUs and references under “Step 1: Begin with the Base Node,” including S2V31B and related text. | ||
| 15-Dec-2025 | Changed | Rebranding applied to document. | |
| 25-Aug-2025 | Changed | Bullet removed from Hardware Features notes in Overview section. | |
| 07-Jul-2025 | Changed | Introducing hypervisor integration of HPE SimpliVity with HPE Morpheus VM Essentials, now supported on both SimpliVity 380 and 325 Gen11 platforms. The update also brings new term-based licensing options for HPE SimpliVity and expanded support for 7.68 TB capacity points | |
| 14-Apr-2025 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 04-Nov-2024 | Changed | Configuration Information section was updated | |
| 05-Aug-2024 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 28-Mar-2024 | Changed | Overview, Standard Features and Configuration Information sections were updated. | |
| 19-Jan-2024 | Changed | Configuration Information section was updated. VMware vSphere SKUs were removed. | |
| 08-Jan-2024 | Changed | Overview and Service and Support sections were updated. | |
| 01-May-2023 | Changed | Overview, Standard Features, Service and Support, Configuration Information and Technical Specifications sections were updated | |
| 23-Jan-2023 | Changed | Update QS name | |
| 07-Nov-2022 | Changed | Added 325 Storage Expansion Options and new SSDs & Boot Controllers | |
| 13-Dec-2021 | Changed | Overview and Configuration Information sections were updated | |
| 06-Dec-2021 | New | QuickSpecs created. |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
AMD and EPYC are US registered trademarks of AMD Corporation.
a50004270enw, - 16874 - Worldwide - V16 - 08-September-2026
