HPE Standard Series G2 Basic Power Distribution Units (PDU) QuickSpecs
Table of Contents
Basic, reliable power distribution for your HPE IT solutions
HPE Standard Series G2 Basic PDUs are designed to work precisely with HPE Infrastructure and Compute solutions and guarantee a compatible fit for use with HPE Standard, Advanced, and Enterprise racks (and compatible with other industry−standard server racks). Built with high−temperature grade premium components, HPE G2 Basic PDUs can operate in temperatures up to 60°C over extended periods of time and provide reliable operation backed by a 5 year warranty.
Overview
HPE offers a range of PDU models with mounting options that promote flexible power configuration in racks. Vertical, Horizontal, and True 0U mounting, giving you the flexibility to efficiently utilize rack space while placing access to power where you need it most. Serviceability is further enhanced with features such as color−coded outlets and low−profile form factors allowing for simple and quick access to IT equipment and power cables in the rear of the rack.
HPE IEC Locking Power Cords are a new supported option available for HPE G2 PDUs. The IEC Locking Power Cords provide secure cable retention to both the PDU and target device against vibration during shipping and ensuring that cables are not dislodged during a service event. HPE’s IEC Locking Power Cords provide a safe and secure solution against the common issues that lead to power−related downtime.
Why HPE Basic PDUs?
All HPE G2 Basic PDUs are rated for operating temperatures up to 60°C (or 140°F).
- − Low−profile PDU form factors providing enhanced IT serviceability in the back of the rack while adhering to the rack keep out zone.
- − HPE G2 PDUs with IEC C19 and C13 receptacles have integrated cord retention.
- − HPE G2 PDUs have color−coded receptacles to easily distinguish between the different load segments/phases.
- − High−density vertical form factor providing 24 outlets in a half−height (22U) and 48 outlets in a full−height (42U).
- − HPE offers multiple PDU form factors that promote efficient use of space in the rack and provide flexibility in mounting and configuration.
- − HPE 1U Horizontal PDUs can support True 0U mounting (between the RETMA rails), minimizing the need to use valuable U space in racks for power distribution.
- − Vertical HPE G2 PDUs use a button mounting system that allows for installation with outlets facing front, rear or center of rack.
- − HPE guarantees 100% compatibility between its Rack and Power Infrastructure products and its industry−standard compute, storage, and networking solutions, backed with a 5−year warranty for all HPE G2 Basic PDU models.
- − HPE Tech Care services purchased for server and storage products, such as extended warranties and premium support services, extend to our Basic PDU products free of charge when purchased together.
Horizontal Form Factors

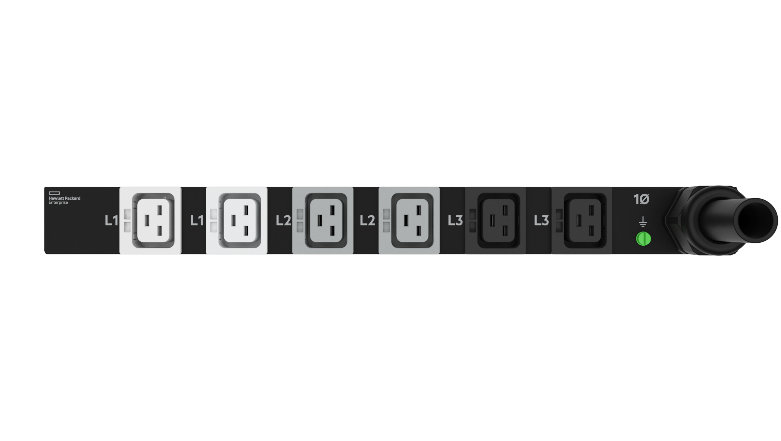

1U Horizontal– P9Q47A
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/c05324691_block1img2?$crimg$ "[IMAGE1]")
Top view
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/c05324691_block1img3?$crimg$ "[IMAGE2]")
Elevated view
2U Horizontal – P9Q35A
![[IMAGE3]](https://assets.ext.hpe.com/is/image/hpedam/c05324691_block1img5?$crimg$ "[IMAGE3]")
Top view
![[IMAGE4]](https://assets.ext.hpe.com/is/image/hpedam/c05324691_block1img6?$crimg$ "[IMAGE4]")
Elevated view
Vertical Form Factors
Quarter−Height – P9Q37A
![[IMAGE5]](https://assets.ext.hpe.com/is/image/hpedam/c05324691_block1img8?$crimg$ "[IMAGE5]")
Top view
![[IMAGE6]](https://assets.ext.hpe.com/is/image/hpedam/c05324691_block1img11?$crimg$ "[IMAGE6]")
Elevated view
Half-Height – P9Q61A
Top view
Elevated view
Mid-Height – P9Q42A
Top view
Elevated view
Full-Height – P9Q65A
Top view
Elevated view
True OU Mounting
Standard Features
Compatibility
- − Designed specifically for use with HPE rack enclosures and IT solutions but can work with most 3rd party IT racks.
Reliability/Durability
- − 5−year warranty with free service/support upgrades matching server purchase.
- − High reliability at elevated operating temperature levels (up to 60°C).
Usability/Serviceability
- − Wide range of mounting options including vertical, 1U/2U horizontal, and True 0U.
- − Modular PDU options supporting True 0U mounting between the RETMA rails of the rack.
- − High−density vertical power outlet configurations with up to 48 outlets on a single PDU.
- − Full range of single and three phase input and output power capabilities.
- − 1.9kVA to 22kVA power distribution to meet the needs of both small and large data centers.
- − Built−in three−sided button mounting system supporting flexible installations.
- − Low−profile PDU form factors providing enhanced IT serviceability in the back of the rack.
- − Color−coded receptacles and circuit breaker banks to easily identify specific outlets.
- − Multiple extension bar options that inexpensively expand outlet configurations.
Safety/Security
- − Optional dual−locking power cords that secure both power connections.
- − Support for integrated individual power cord retention.
True 0U Mounting
All HPE Horizontal PDUs can be installed in any U position in your rack. However, HPE 1U Horizontal PDUs have a unique architecture designed specifically for data center customers who want to maximize space efficiencies in the rack. These models can be installed in the 0U space between the RETMA rails on HPE Advanced and Enterprise Series racks (see diagram below).
Modular PDU Form / Factor
HPE Basic Modular PDUs combine True 0U and 1U Horizontal mounting support with the capability of adding extension bars to expand access to power in the back of the rack. Extension Bars mount directly to the frame of the rack in multiple locations allowing you the flexibility of placing access to power where it is needed most (see diagram above). Multiple extension bar options are available to help you customize the outlet configurations you require.
HPE PDU Extension Bar / Options
HPE PDU extension bar options help expand the availability of power in the rear of the rack. Each extension bar includes a locking input power cord that connects to the PDU and supports HPE’s new IEC Locking Power Cords (for C13/C14 and C19/C20 connections). HPE PDU extension bars can be added to Horizontal and Vertical PDU models with available C20 outlets for additional outlets and are compatible with previous generation PDU models that offer C20 outlets (locking feature only supported on new G2 PDU models). See the Related Options section for more information on G2 Extension Bar models.
High−Density Vertical / PDU Models
High−density vertical PDU models provide 24 outlets in a half−height (22U) form factor and 48 outlets in a full−height (42U) form factor. This density is achieved by placing the power receptacles on one side of the PDU and access to the circuit breakers on the opposite side without significantly impacting the height (profile) of the PDU. See the Model Matrix section for more information on high−density Vertical PDU models.
IEC Locking Power Cords
HPE G2 PDU models support optional IEC Locking Power Cords with an integrated locking technology on both ends of the cable. Locking Power Cords are available for both C13/14 and C19/20 power connections, include multiple cable length options, and can be purchased in single or six−pack kits. One IEC Locking Power Cord has been included with each PDU model that supports either a C13 and/or C19 outlet.
Color−Coded Outlets
All HPE G2 PDU models now include color−coded outlets. Highly visible from the rear of the rack, color−coding helps to easily and clearly identify outlets to simplify cabling and power phase balancing when configuring and maintaining power for your IT equipment.
Rated for High Operating Temperatures
HPE G2 PDUs are rated for operating temperatures up to 60°C (or 140°F). HPE G2 PDUs are designed with high temperature rated premium components and construction that support increased reliability levels at elevated temperatures.
5−Year Warranty
HPE G2 Basic PDU models are supported with a 5−year warranty. The HPE Tech Care Extension program provides additional support and services for your PDU models when purchased with HPE servers, storage, and networking solutions at no additional charge.
Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/connect/s/warrantycheck
Model Matrix – Form Factor/Mounting Options
| Mounting options for Horizontal 1U and 2U PDU models | |||||
|---|---|---|---|---|---|
| Model | W x H x D | Unit Weight | U Height | Horizontal Mounting | True 0U Mounting |
| P9Q31A | 17.461 x 1.633 x 2.087 in | 2.2 lbs. | 1U | ✓ | ✓ |
| P9Q33A | 17.461 x 1.713 x 7.772 in | 9.3 lbs. | 1U | ✓ | ✓ |
| P9Q35A | 17.461 x 3.425 x 1.713 in | 10.2 lbs. | 2U | ✓ | n/a |
| P9Q36A | 17.461 x 1.633 x 2.087 in | 2.0 lbs. | 1U | ✓ | ✓ |
| P9Q37A | 17.461 x 1.633 x 2.087 in | 2.2 lbs. | 1U | ✓ | ✓ |
| P9Q39A | 17.461 x 1.713 x 7.772 in | 9.7 lbs. | 1U | ✓ | ✓ |
| P9Q40A | 17.461 x 1.713 x 7.772 in | 10.2 lbs. | 1U | ✓ | ✓ |
| P9Q43A | 17.461 x 1.713 x 7.772 in | 9.3 lbs. | 1U | ✓ | ✓ |
| P9Q44A | 17.461 x 1.713 x 7.772 in | 8.7 lbs. | 1U | ✓ | ✓ |
| P9Q47A | 17.461 x 1.713 x 7.772 in | 12.1 lbs. | 1U | ✓ | ✓ |
| P9Q51A | 17.461 x 1.713 x 7.772 in | 12.5 lbs. | 1U | ✓ | ✓ |
| P9Q52A | 17.461 x 1.713 x 7.772 in | 9.5 lbs. | 1U | ✓ | ✓ |
| P9Q57A | 17.461 x 1.633 x 2.087 in | 5.1 lbs. | 1U | ✓ | ✓ |
| P9Q59A | 17.461 x 1.713 x 7.772 in | 18.5 lbs. | 1U | ✓ | ✓ |
| P9Q60A | 17.461 x 1.713 x 7.772 in | 19.6 lbs. | 1U | ✓ | ✓ |
| P9Q63A | 17.461 x 1.713 x 7.772 in | 10.6 lbs. | 1U | ✓ | ✓ |
| Mounting options for Vertical PDU models in HPE Advanced and Enterprise racks (1075mm depth) | |||||||
|---|---|---|---|---|---|---|---|
| Model | W x H x D | Unit Weight | Vertical Height | Maximum PDUs Supported Per Side | |||
| | | | | 22U | 36U | 42U | 48U |
| P9Q31A | 17.461 x 1.633 x 2.087 in | 2.2 lbs. | Quarter-Height | 2 | 2 | 6 | 6 |
| P9Q32A | 2.047 x 32.165 x 2.087 in | 4.4 lbs. | Half-Height | 2 | 2 | 4 | 4 |
| P9Q34A | 2.047 x 32.165 x 2.087 in | 8.4 lbs. | Half-Height | 2 | 2 | 4 | 4 |
| P9Q36A | 17.461 x 1.633 x 2.087 in | 2.0 lbs. | Quarter-Height | 2 | 2 | 6 | 6 |
| P9Q37A | 17.461 x 1.633 x 2.087 in | 2.2 lbs. | Quarter-Height | 2 | 2 | 6 | 6 |
| P9Q38A | 2.047 x 32.165 x 2.087 in | 4.5 lbs. | Half-Height | 2 | 2 | 4 | 4 |
| P9Q41A | 2.047 x 32.165 x 2.087 in | 8.1 lbs. | Half-Height | 2 | 2 | 4 | 4 |
| P9Q42A | 2.047 x 58.661 x 2.087 in | 12.0 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q45A | 2.047 x 32.165 x 2.087 in | 7.4 lbs. | Half-Height | 2 | 2 | 4 | 4 |
| P9Q46A | 2.047 x 58.661 x 2.087 in | 11.1 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q48A | 2.047 x 58.661 x 2.087 in | 13.2 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q49A | 2.047 x 58.661 x 2.087 in | 10.0 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q50A | 2.047 x 58.661 x 2.087 in | 14.7 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q53A | 2.047 x 58.661 x 2.087 in | 13.5 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q54A | 2.047 x 32.165 x 2.087 in | 9.3 lbs. | Half-Height | n/a | 2 | 4 | 4 |
| P9Q55A | 2.047 x 58.661 x 2.087 in | 14.0 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q56A | 2.047 x 68.898 x 2.087 in | 17.4 lbs. | Full-Height | n/a | n/a | 2 | 2 |
| P9Q57A | 17.461 x 1.633 x 2.087 in | 5.1 lbs. | Quarter-Height | 2 | 2 | 6 | 6 |
| P9Q58A | 2.047 x 58.661 x 2.087 in | 9.9 lbs. | Mid-Height | n/a | 2 | 2 | 2 |
| P9Q61A* | 2.047 x 36.024 x 4.409 in | 21.3 lbs. | Half-Height | 1 | 1 | 2 | 2 |
| P9Q62A* | 2.047 x 71.654 x 4.409 in | 27.1 lbs. | Full-Height | n/a | n/a | 1 | 1 |
| P9Q64A* | 2.047 x 36.024 x 4.409 in | 12.3 lbs. | Half-Height | 1 | 1 | 2 | 2 |
| P9Q65A* | 2.047 x 71.654 x 4.409 in | 20.3 lbs. | Full-Height | n/a | n/a | 1 | 1 |
| Model Matrix – Input Power | ||||||||
|---|---|---|---|---|---|---|---|---|
| Notes: HPE G2 Advanced and Enterprise 1200mm deep racks include an extra set (2) of PDU trays in the rear of the rack enabling support of up to 2x the number of PDUs listed above for 1075mm deep racks. | ||||||||

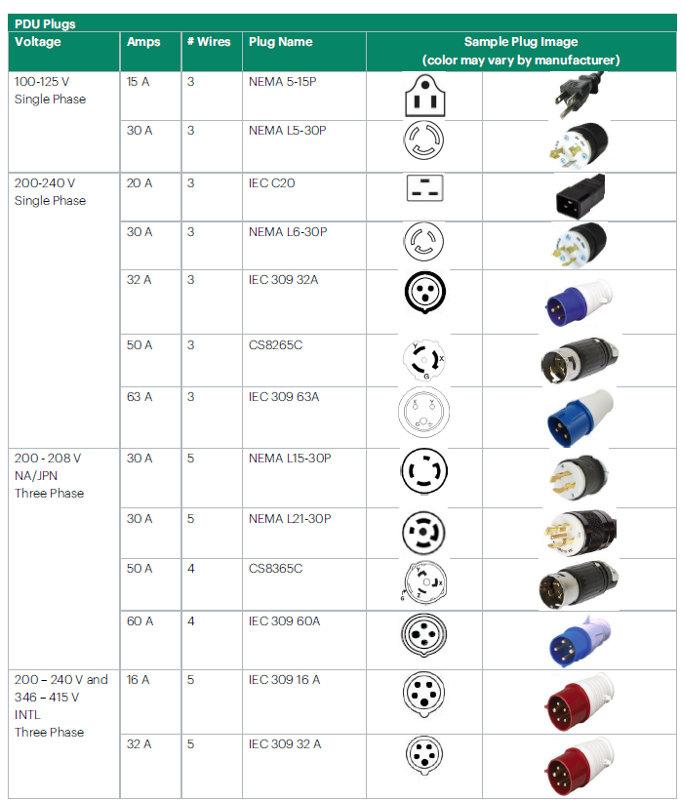

| Model | Region | Power Phase | Input Voltage Range | Input Current | Circuit Breakers | Input Plug Type | Input Cord Length | nput Cord |
| P9Q31A | NA/JP | Single | 100 - 120V | 16A | None | 5-15P | 12’ (Detachable) | |
| P9Q32A | NA/JP | Single | 100 - 120V | 16A | None | 5-15P | 12’ (Detachable) | |
| P9Q33A | NA/JP | Single | 100 - 120V | 24A | (2) 1-pole, 20A | L5-30P | 12’ | |
| P9Q34A | NA/JP | Single | 100 - 120V | 24A | (2) 1-pole, 20A | L5-30P | 10’ | |
| P9Q35A | NA/JP | Single | 100 - 120V | 24A | (2) 1-pole, 20A | L5-30P | 12’ | |
| P9Q36A | WW | Single | 100 - 240V | 16A | None | C20 Inlet | Detachable | |
| P9Q37A | WW | Single | 100 - 240V | 16A | None | C20 Inlet | Detachable | |
| P9Q38A | WW | Single | 100 - 240V | 16A | None | C20 Inlet | Detachable | |
| P9Q39A | NA/JP | Single | 200 - 208V | 24A | (2) 2-pole 20A | L6-30P | 12’ | |
| P9Q40A | NA/JP | Single | 200 - 208V | 24A | (2) 2-pole 20A | L6-30P | 12’ | |
| P9Q41A | NA/JP | Single | 200 - 208V | 24A | (2) 2-pole 20A | L6-30P | 10’ | |
| P9Q42A | NA/JP | Single | 200 - 208V | 24A | (2) 2-pole 20A | L6-30P | 10’ | |
| P9Q43A | INTL | Single | 220 - 240V | 32A | (2) 1-pole, 16A | IEC 32A, 1ph | 12’ | |
| P9Q44A | INTL | Single | 220 - 240V | 32A | (2) 1-pole, 16A | IEC 32A, 1ph | 12’ | |
| P9Q45A | INTL | Single | 220 - 240V | 32A | (2) 1-pole, 16A | IEC 32A, 1ph | 10’ | |
| P9Q46A | INTL | Single | 220 - 240V | 32A | (2) 1-pole, 16A | IEC 32A, 1ph | 10’ | |
| P9Q47A | NA/JP | Single | 200 - 208V | 40A | (3) 2-pole, 20A | CS8265C | 12’ | |
| P9Q48A | NA/JP | Single | 200 - 208V | 40A | (3) 2-pole, 20A | CS8265C | 10’ | |
| P9Q49A | WW | Single | 200 - 240V | 40A | (3) 2-pole, 20A | 50A Terminal Block | Detachable | |
| P9Q50A | INTL | Single | 220 - 240V | 48A | (3) 1-pole, 16A | IEC 63A, 1ph | 10’ | |
| P9Q51A | INTL | Single | 220 - 240V | 63A | (6) 1-pole, 16A | IEC 63A, 1ph | 12’ | |
| P9Q52A | NA/JP | Three | 200 - 208V | 24A | (3) 2-pole, 20A | L15-30P | 12’ | |
| P9Q53A | NA/JP | Three | 200 - 208V | 24A | (3) 2-pole, 20A | L15-30P | 10’ | |
| P9Q54A | NA/JP | Three | 200 - 208V | 24A | (3) 2-pole, 20A | L15-30P | 10’ | |
| P9Q55A | NA/JP | Three | 120/208V | 24A | (3) 2-pole, 20A | L21-30P | 10’ | |
| P9Q56A | NA/JP | Three | 200 - 208V | 28A | (3) 2-pole, 20A | CS8365C | 10’ | |
| P9Q57A | INTL | Three | 200 – 240V/346 – 415V | 16A | None | IEC 16A, 3ph | 12’ | |
| P9Q58A | INTL | Three | 200 – 240V/346 – 415V | 16A | None | IEC 16A, 3ph | 10’ | |
| P9Q59A | NA/JP | Three | 200 - 208V | 40A | (6) 2-pole, 20A | CS8365C | 12’ | |
| P9Q60A | NA/JP | Three | 200 - 208V | 48A | (6) 2-pole, 20A | IEC 60A, 3ph | 12’ | |
| P9Q61A | NA/JP | Three | 200 - 208V | 48A | (6) 2-pole, 20A | IEC 60A, 3ph | 10’ | |
| P9Q62A | NA/JP | Three | 200 - 208V | 48A | (6) 2-pole, 20A | IEC 60A, 3ph | 10’ | |
| P9Q63A | INTL | Three | 200 – 240V/346 – 415V | 32A | (6) 1-pole, 16A | IEC 32A, 3ph | 12’ | |
| P9Q64A | INTL | Three | 200 – 240V/346 – 415V | 32A | (6) 1-pole, 16A | IEC 32A, 3ph | 10’ | |
| P9Q65A | INTL | Three | 200 – 240V/346 – 415V | 32A | (6) 1-pole, 16A | IEC 32A, 3ph | 10’ | |
Nominal Input Voltage Ratings used for calculating output power are as follows:
- 100 – 120V: 120V
- 200 – 208V: 208V
- 100 – 240V: 230V
- 220 – 240V: 230V
- 200 – 240V/346 – 415V: 230V
| Model | Region | Nominal Power (kVA) | Output Voltage Range | Output Receptacles | Support Extension Bar Options | Support Locking Power Cord Options |
|---|---|---|---|---|---|---|
| P9Q31A | NA/JP | 1.9 | 100-125V | (12)5-20R | n/a | n/a |
| P9Q32A | NA/JP | 1.9 | 100-125V | (16)5-20R | n/a | n/a |
| P9Q33A | NA/JP | 2.8 | 100-125V | (6)C19 | ✓ | ✓ |
| P9Q34A | NA/JP | 2.8 | 100-125V | (22)5-20R | n/a | n/a |
| P9Q35A | NA/JP | 2.8 | 100-125V | (16)5-20R | n/a | n/a |
| P9Q36A | WW | 3.6 | 100-240V | (2)C19 | ✓ | ✓ |
| P9Q37A | WW | 3.6 | 100-240V | (12)C13 | n/a | |
| P9Q38A | WW | 3.6 | 100-240V | (20)C13, (2)C19 | ✓ | ✓ |
| P9Q39A | NA/JP | 4.9 | 200-240V | (6)C19 | ✓ | ✓ |
| P9Q40A | NA/JP | 4.9 | 200-240V | (12)C13 | n/a | ✓ |
| P9Q41A | NA/JP | 4.9 | 200-240V | (20)C13 | n/a | ✓ |
| P9Q42A | NA/JP | 4.9 | 200-240V | (36)C13, (6)C19 | ✓ | ✓ |
| P9Q43A | INTL | 7.3 | 220-240V | (6)C19 | ✓ | ✓ |
| P9Q44A | INTL | 7.3 | 220-240V | (12)C13 | n/a | ✓ |
| P9Q45A | INTL | 7.3 | 220-240V | (20)C13 | n/a | ✓ |
| P9Q46A | INTL | 7.3 | 220-240V | (36)C13, (6)C19 | ✓ | ✓ |
| P9Q47A | NA/JP | 8.3 | 200-240V | (6)C19 | ✓ | ✓ |
| P9Q48A | NA/JP | 8.3 | 200-240V | (30)C13, (6)C19 | ✓ | ✓ |
| P9Q49A | WW | 9.2 | 200-240V | (30)C13, (6)C19 | ✓ | ✓ |
| P9Q50A | INTL | 11 | 220-240V | (30)C13, (6)C19 | ✓ | ✓ |
| P9Q51A | INTL | 14.4 | 220-240V | (6)C19 | ✓ | ✓ |
| P9Q52A | NA/JP | 8.6 | 200-240V | (6)C19 | ✓ | ✓ |
| P9Q53A | NA/JP | 8.6 | 200-240V | (30)C13, (6)C19 | ✓ | ✓ |
| P9Q54A | NA/JP | 8.6 | 200-240V | (18)C13 | n/a | ✓ |
| P9Q55A | NA/JP | 8.6 | 120/208V | (24)C13, (3)C19, (3)5-20R | ✓ | ✓ |
| P9Q56A | NA/JP | 10 | 200-240V | (36)C13, (6)C19 | ✓ | ✓ |
| P9Q57A | INTL | 11 | 220-240V | (6)C19 | ✓ | ✓ |
| P9Q58A | INTL | 11 | 220-240V | (36)C13, (6)C19 | ✓ | ✓ |
| P9Q59A | NA/JP | 14.4 | 200-240V | (6)C19 | ✓ | ✓ |
| P9Q60A | NA/JP | 17.3 | 200-240V | (6)C19 | ✓ | ✓ |
| P9Q61A | NA/JP | 17.3 | 200-240V | (18)C13, (6)C19 | ✓ | ✓ |
| P9Q62A | NA/JP | 17.3 | 200-240V | (36)C13, (12)C19 | ✓ | ✓ |
| P9Q63A | INTL | 22 | 220-240V | (6)C19 | ✓ | ✓ |
| P9Q64A | INTL | 22 | 220-240V | (18)C13, (6)C19 | ✓ | ✓ |
| P9Q65A | INTL | 22 | 220-240V | (36)C13, (12)C19 | ✓ | ✓ |
Service and Support
For the most up-to-date information on HPE Services, please refer to the HPE Services – Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.
Configuration Information
| 100-120V Input, Single Phase, North America/Japan | |
| SKU Description | SKU |
| HPE G2 Basic 1.9kVA/IEC C20 Detachable 16A/120V Outlets (12) 5-20R/1U Horizontal NA/JP PDU | P9Q31A |
| Notes: Models P9Q31A and P9Q32A include a C19 to NEMA 5-15 input power cord. | |
| 200-240V Input, Single Phase, Worldwide | |
| HPE G2 Basic 3.6kVA/IEC C20 Detachable 16A/100-240V Outlets (20) C13 (2) C19/Vertical WW PDU | P9Q38A |
| Notes: Worldwide models do not include an input power cord. Please go to the Related Options section and select the appropriate input power cord for your geographic location. | |
| 200-208V Input, Single Phase, North America/Japan | |
| HPE G2 Basic Modular 4.9kVA/L6-30P 24A/208V Outlets (6) IEC C19/1U Horizontal NA/JP PDU | P9Q39A |
| HPE G2 Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU | P9Q41A |
| Notes: P9Q61A and P9Q62A are high density models with circuit breakers on the back side of the unit. | |
| 220-240V Input, Three Phase, International | |
| HPE G2 Basic Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/1U Horizontal INTL PDU | P9Q57A |
| HPE G2 Basic Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/1U Horizontal INTL PDU | P9Q63A |
| HPE G2 Basic 3Ph 22kVA/60309 5-wire 32A/230V Outlets (36) C13 (12) C19/Vertical INTL PDU | P9Q65A |
| Notes: P9Q64A and P9Q65A are high density models with circuit breakers on the back side of the unit. | |
Related Options
| Extension Bars | |
| SKU Description | SKU |
| HPE G2 IEC C20 Input/(8) C13 Expansion Outlets/PDU Extension Bar Kit | P9Q66A |
| Notes: All kits include 2 extension bars with a locking C19 input power cord (1.8m). | |
| IEC Locking Power Cords | |
| HPE C13 - C14 WW 250V 10Amp 0.7m Black Locking Power Cord | Q0P67A |
| HPE C13 - C14 WW 250V 10Amp 0.7m Black 6-pack Locking Power Cord | Q0Q02A |
| HPE C13 - C14 WW 250V 10Amp 1.4m Black Locking Power Cord | Q0P68A |
| HPE C13 - C14 WW 250V 10Amp 1.4m Black 6-pack Locking Power Cord | Q0Q03A |
| HPE C13 - C14 WW 250V 10Amp 2m Black Locking Power Cord | Q0P69A |
| HPE C13 - C14 WW 250V 10Amp 2m Black 6-pack Locking Power Cord | Q0Q04A |
| HPE C13 - C14 WW 250V 10Amp 3m Black Locking Power Cord | Q0P70A |
| HPE C19 - C20 WW 250V 16Amp 0.7m Black Locking Power Cord | Q0R19A |
| HPE C19 - C20 WW 250V 16Amp 2m Black Locking Power Cord | Q0P72A |
| HPE C19 - C20 WW 250V 16Amp 2m 6-pack Black Locking Power Cord | Q0R17A |
| Notes: HPE Locking Power Cords support HPE G2 Standard Series Basic PDUs with C13/14 or C19/20 power receptacles. | |
| IEC Standard Power Cords | |
| HPE C13 - C14 WW 250V 10Amp 1.4m Jumper Cord | 142257-006 |
| HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord | A0K02A |
| HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord | AF573A |
| HPE C13 - C14 WW 250V 10Amp 2.5m Jumper Cord | 142257-002 |
| HPE C13 - C14 WW 250V 10Amp 3.0m Jumper Cord | 142257-003 |
| HPE C20 - C13 WW 250V 15Amp 2.0m Jumper Cord | AF590A |
| HPE C19 - C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord | AF575A |
| HPE C19 - C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord | AF574A |
| HPE C19 - C20 WW 250V 16Amp 2.5m Jumper Cord | 295633-B22 |
Country-Specific Power Cords | |
| SKU Description | SKU |
| HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord | AF556A |
| HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord | AF593A |
| HPE C19 - IEC-309 DK/SE/AR 250V 16Amp 3.6m Power Cord | AF581A |
| HPE C19 - CEE-VII EU 250V 16Amp 3.6m Power Cord | AF576A |
HPE Mounting Brackets | |
| HPE Vertical PDU 10K G2 Mounting Kit | H6L32A |
| Notes: This kit allows for HPE G2 Basic PDU vertical models to be mounted in HPE 10000 G2 series racks and in the HPE Standard Series rack. | |
Technical Specifications
| Operating Temperature | 50° to 140°F (10° to 60°C) |
| Operating Relative Humidity (%) | 10% to 90% |
| Operating Elevation | 0 to 10,000 ft. (0 to 3000 m) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Storage Relative Humidity (%) | 5% to 95% |
| Storage Elevation | 0 to 30,000 ft. (0 to 9144 m) |
| Conformance Standards | UL or CSA, CB Test - NA/JPN models CE, DEMKO, EAC - INTL models UL or CSA, CB Test+CE, DEMKO, EAC - WW models |
| Kit Contents | All G2 Basic PDU models ship with:
(for models with either C13 and/or C19 outlets) Read me first card |
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 21-Sep-2026 | Changed | QuickSpecs maintenance updates. | |
| 16-Feb-2026 | Changed | New branding applied to document. | |
| 04-Dec-2023 | Changed | Service and Support section was updated. | |
| 04-Oct-2021 | Changed | Recommended Services were updated. | |
| 02-Nov-2020 | Changed | Related Options and Technical Specifications sections were updated. | |
| 16-Dec-2019 | Changed | Input Power Model Matrix table was revised. | |
| 05-Mar-2018 | Changed | Relation options SKU description were updated. | |
| 13-Feb-2017 | Changed | Overview, Models, Key Features, Related Options, Model Matrix – Form Factor/Mounting Options, Model Matrix – Input Power, and PDU Plugs were revised. | |
| 09-Dec-2016 | Changed | Technical Specifications section was revised. | |
| 28-Nov-2016 | New | New QuickSpecs. |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
c05324691, - 15755 - Worldwide - V10 - 21-September-2026
