QuickSpecs
HPE Adapters with Intel OPA QuickSpecs
Table of Contents
Designed to provide a high-performance and scalable fabric for high performance computing (HPC) systems built with HPE ProLiant XL and DL servers
Intel Omni-Path Adapters, an element of the Intel Omni-Path Architecture, use an advanced "on-load" design that scales fabric performance with rising server core counts, making these adapters ideal for today's increasingly demanding workloads.
Combined with Intel Omni-Path Switches, Intel Omni-Path Adapters deliver low latency and up to 100 Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC data centers.
Overview
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/c05069314_block1img?$crimg$ "[IMAGE1]")
Models | SKU |

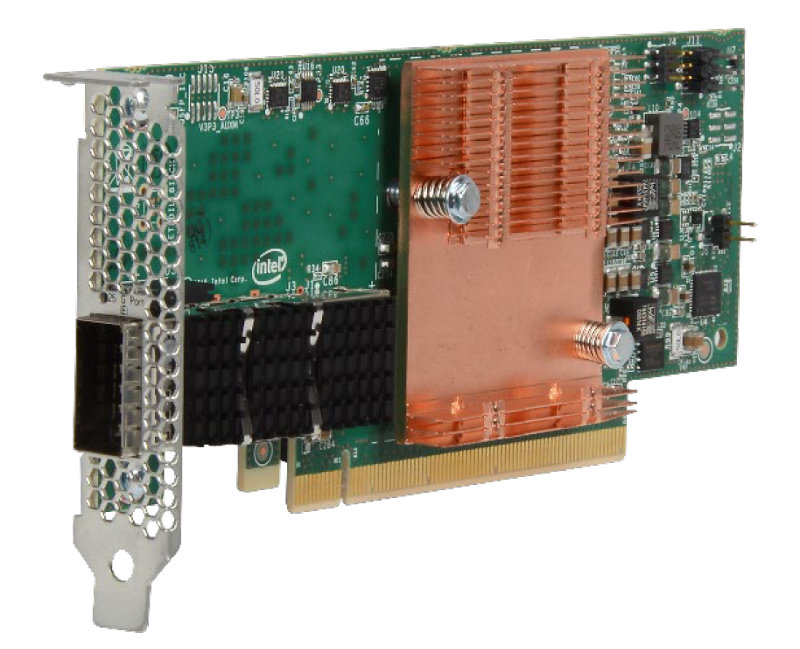

| HPE 100 GB 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter | 829335-B21 |
Kit Contents
- – HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter
- – Low profile bracket on the adapter; full height bracket in the box
- – Read Me First
Servers supported for HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter
HPE ProLiant XL Servers
- – HPE ProLiant XL170r Gen10 for Apollo 2000
- – HPE ProLiant XL190r Gen10 for Apollo 2000
- – HPE ProLiant XL270d Gen10 for Apollo 6500
- – HPE ProLiant Apollo 4510 Gen10
- – HPE ProLiant XL220n Gen10 Plus for Apollo 2000
- – HPE ProLiant XL290n Gen10 Plus for Apollo 2000
- – HPE ProLiant XL225n Gen10 Plus for Apollo 2000 (EPYC 7xx3 processors only)
HPE Servers
- – HPE ProLiant DL320 Gen11
- – HPE ProLiant DL380 Gen11
- – HPE ProLiant DL380a Gen11
- – HPE ProLiant DL385 Gen11
- – HPE ProLiant DL560 Gen11
- – HPE ProLiant DL360 Gen10
- – HPE ProLiant DL380 Gen10
- – HPE ProLiant DL560 Gen10
- – HPE ProLiant DL580 Gen10
- – HPE ProLiant DL380 Gen10 Plus
- – HPE ProLiant DL360 Gen10 Plus
- – HPE ProLiant DL325 Gen10 Plus v2
- – HPE ProLiant DL385 Gen10 Plus v2
- – HPE Cray XD295 Gen11
- – HPE Cray XD220 Gen11
- – HPE Cray XD225 Gen11
Notes: For the HPE ProLiant XL230k Gen10 for Apollo 6000, select the dedicated adapter mezzanine form factor (851226-B21)
Standard Features
Product Features
- − 100 Gbps – PCIe x16 Adapter
- − Optimized for scalable MPI message rate and latency
- − Supports MSI-X interrupt handling optimized for multi-core compute nodes
- − Operates without external memory
- − Improved thermal control with HPE iLO technology
- − Boot over Omni-Path
- − Linux server operating system support
- − Low profile PCIe Gen3 x16
- − HPE Standard warranty, support, and services
Congestion Management
Medium-grained adaptive routing and dispersive routing, explicit congestion backward notification.
Protocol Control Libraries
HPC application-focused protocol control libraries that include Performance Scale Messaging (PSM) and OFED Verbs.
MTU sizes
Maximum Transfer Unit (MTU) sizes can be set to 2048 bytes, 4096 bytes, 8192 bytes, or 10240 bytes.
MSI-X
Message Signaled Interrupt provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
Management Support
The HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter is supported by Hewlett Packard Enterprise Integrated Lights-Out (iLO).
Server Integration
The HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter is validated, tested, and qualified server options for the supported HPE ProLiant XL and DL servers.
This approach provides a more robust and reliable networking solution than offerings from other vendors and provides users with a single point of contact for both their servers and their network adapters.
Configuration Utilities
The HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter is configurable through UEFI.
LED Indicators
The colored LED on HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter indicates link status and link activity.
HPE Sea of Sensors 3D
Support for the HPE Sea of Sensors technology for improved thermal control and energy efficiency.
Warranty
1 year warranty, parts exchange.
For more information
To learn more on services for HPE Options, contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.HPE.com/services/
Configuration Information
Direct Attach Cable (Passive Copper cables) | SKU |
| HPE 0.5 m 100 GB QSFP28 Omni-Path Architecture Copper Cable | 830024-B21 |
| HPE 1 m 100 GB QSFP28 Omni-Path Architecture Copper Cable | 830024-B22 |
| HPE 1.5 m 100 GB QSFP28 Omni-Path Architecture Copper Cable | 830024-B23 |
| HPE 2 m 100 GB QSFP28 Omni-Path Architecture Copper Cable | 830024-B24 |
| HPE 3 m 100 GB QSFP28 Omni-Path Architecture Copper Cable | 830024-B25 |
| Notes: Direct Attach Cable must be purchased separately for copper environments | |
| Active Optic Cables (AOCs) | |
| HPE 3 m 100 GB QSFP28 Omni-Path Optical Power Class 2 Cable | 881204-B21 |
| HPE 5 m 100 GB QSFP28 Omni-Path Optical Power Class 2 Cable | 881204-B22 |
| HPE 10 m 100 GB QSFP28 Omni-Path Optical Power Class 2 Cable | 881204-B24 |
| HPE 15 m 100 GB QSFP28 Omni-Path Optical Power Class 2 Cable | 881204-B26 |
| HPE 20 m 100 GB QSFP28 Omni-Path Optical Power Class 2 Cable | 881204-B27 |
| HPE 30 m 100 GB QSFP28 Omni-Path Optical Power Class 2 Cable | 881204-B28 |
| Notes: Active Optical Cable must be purchased separately for fiber-optic environments. | |
Technical Specifications
General Specifications | ||
|---|---|---|
| Network Processor | Intel OPA HFI ASIC | |
| Data Rate | 100 Gbps – PCIe x16 | |
| Bus Type | PCIe Gen3 x16 | |
| Form Factor | Low profile adapter compliant with the PCIe Gen3 standard | |
| Power and Environmental Specifications | ||
| Operating | Temperature | 32°F to 131°F (0°C to 55°C) |
| Humidity | 10% to 85% non-condensing | |
| Power | PCIe x16 adapter: 7.4 W (typical), 11.7 W (max) with passive copper cable. 10.6 W (typical), 14.9 W (max) with Active Optical Cable (3 Watts Max) | |
| EMC (Emissions) | US/Canada
Europe/International
Japan
Australia/New Zealand
Korea
Taiwan
Customs Union: Russian Federation, Belarus and Kazakhstan
| |
| RoHS/REACH |
| |
| Safety | US/Canada
Europe
International
Customs Union: Russian Federation, Belarus and Kazakhstan
| |
| Operating System Support | The HPE 100 GB 1p OP101 QSFP28 x16 OPA Adapter is supported on the following 64-bit Linux operating systems:
Refer to the firmware/software download page of the device for the latest update. | |
Environment friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site
These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 16-Feb-2026 | Changed | Visual rebranding only—updated typography, colors, and design elements to align with new HPE brand standards. No technical specifications or content were modified. | |
| 20-Jun-2023 | Changed | Overview section was updated. | |
| 03-Apr-2023 | Changed | QS name was changed to the series name. Overview section was updated. | |
| 04-Oct-2021 | Changed | Added HPE ProLiant XL225n, HPE ProLiant DL385, HPE ProLiant DL325 compatibility Overview section was updated. | |
| 06-Jul-2021 | Changed | Overview and Related Options sections were updated. Gen10 Plus servers added, first generation of optical cables removed | |
| 03-Dec-2018 | Changed | Overview section was updated, | |
| 07-May-2018 | Changed | 829334-B21 removed, Supported OS updated, Supported platforms updated | |
| 04-Dec-2017 | Updated | Add SKUs to the related Options section | |
| 26-Sep-2016 | Changed | Add HPE 100 GB 1p OP101 QSFP28 x8 OPA Adapter | |
| 06-Jun-2016 | New | New QuickSpecs |
