QuickSpecs
HPE D3000 Enclosures QuickSpecs
Manage your small and midrange business growing storage needs by deploying the next generation 12Gb SAS low-cost, flexible tiered external storage system.
Ideal for small application environments in SMBs, remote offices and departmental locations as well as Tier 2 or Tier 3 storage for enterprise customers. The 12Gb SAS enclosures - Large Form Factor (LFF) D3610 with 12 drive bays and Small Form Factor (SFF) D3710 with 25 drive bays - offer modular solutions to simplify capacity expansion for HPE Gen10, Gen10+, and Gen11 ProLiant Servers, as well as for the HPE Alletra 4000 Data Storage Servers. The D3610 and the D3710 are aligned with the Gen10 ProLiant branding and industrial design. This allows you to buy what is needed today and purchase additional capacity as data storage needs to grow.
-
The D3000 Enclosures support direct attach storage to HPE Gen10/Gen 10+/Gen11 ProLiant Servers and HPE Alletra 4000 Data Storage Servers with the HPE Smart Array E208e-p SR Gen10 and HPE Smart Array P408e-p SR Gen10 Storage Controllers. Gen11 ProLiant Servers support direct attach only with the HPE Smart Array E208e-p Storage Controller. The D3000 Enclosures also support direct attach storage to HPE solutions including HPE NonStop, HPE Apollo and HPE StoreEasy that support the same storage controllers.
See the Windows Server Catalog for the latest supported configurations. Total support can grow as needed to up to 96 LFF drives or 200 SFF drives.
Models
HPE D3000 Enclosures SKUs
| “B” SKU Disk Enclosures with Lot 9 2023 compliance Power Supplies for HPE Gen10/Gen10+/Gen11 ProLiant Servers, HPE Alletra 4000 | |
| Description | SKU |
| HPE D3610 Enclosure | Q1J09B |
| HPE D3710 Enclosure | Q1J10B |
What's New
- – Addition of HPE Gen11 ProLiant server and HPE Alletra 4000 storage support
- – Updated information on SSD support
-
Affordable, low-cost Storage
- – Purchase only what you need today and avoid up-front costs. Modular platform provides investment protection and by purchasing only what is needed today, allows for growth as storage requirements evolve. Buying storage only when needed simplifies planning and relieves budget pressures.
- – HPE D3710: Maximum storage capacity of 384TB SAS (with 15.36TB SAS RI SSDs) or 60TB SAS (with 2.4TB SAS HDDs) per enclosure scalable to 3072TB with SAS SSDs or 480TB with SAS HDDs (dependent on the Smart Array Controller).
- – HPE D3610: Maximum storage capacity of 240TB SAS or SATA (with 20TB SAS or SATA HDDs) per enclosure scalable to 1,920TB SAS MDL (dependent on Smart Array Controller).
- – Enterprise-class dual port SAS or archival-class SATA drives as the need and budget dictates
- – All D3000 enclosure (LFF and SFF) models also support SAS and SATA Solid State Drives (SSD).
Flexible/Scalable
- – Grow storage capacity easily by daisy-chaining up to eight D3610 or D3710 enclosures from a single Controller port. Up to 96 drives with the D3610 or 200 drives with the D3710, allowing for room to grow as storage demands increase behind a single controller/SAS HBA.
- – The D3610 and D3710 support the Gen10 E208e-p and the P408e-p Gen10 Smart Array SR controllers for Gen10 and Gen10+ ProLiant servers and only the Gen10 E208e-p for Gen11 ProLiant servers.
- – Software-defined storage services such as Microsoft Storage Spaces can be enabled.
Manage
- – Support for HPE Smart Carrier (HPE ProLiant drives)
- – Hassle-free expansion - little IT expertise required.
- – D3610/D3710 compatible with the Gen10 HPE Smart Array SR controllers (E208e-p, and the P408e-p), depending on ProLiant server generation.
- – Easy removal of parts provides better serviceability.
High performance 12Gb SAS host connectivity
- – 12Gb SAS host connectivity enables a higher data transfer rate.
- – End-to-end 12Gb SAS connectivity ensures a high performance storage solution using Gen10 controllers.
- – HPE Smart Cache feature is a controller-based read caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads.
- – HPE SSD Smart Path feature included in the Smart Array software stack improves SSD read for all RAID levels and RAID 0 write operations by optimizing the path to each SSD attached to the controller.
- – Since storage is contained within the rack, latency is reduced as data does not travel over large distances.
HPE Reliability
- – Deploy with confidence. Hewlett Packard Enterprise offers a complete end-to-end storage solution including the D3000 storage enclosures, Smart Array E208e-p or P408e-p controllers and Gen10/Gen10+ HPE ProLiant servers. Only the E208e-p is supported for Gen11 ProLiant servers.
- – Familiar Smart Array technology of the E208e-p or the P408e-p Controllers enable support for multiple RAID levels – see specific HPE SR Gen10 Smart Array QuickSpec for more details. Optional battery-backed write cache.
- – Advanced Data Guarding (RAID 6): This is the highest level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss. Supported on P408e-p controller only.
- – Distributed Data Guarding (RAID 5): This allocates parity data across multiple drives and allows simultaneous write operations.
- – Receive pre-failure alerts with HPE SIM. When drives installed in D3000 disk enclosures are used in conjunction with the E208e-p or the P408e-p Smart Array Controller and Systems Insight Manager, the Smart Array firmware in HPE hard drives enables extensive fault prediction capabilities. If potential problems develop in on of the drives, the Smart Array Controller, Systems Insight Manager and/or Smart hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty.
- – Remove / replace / add components when system is running without service disruption with hot plug drives, power and cooling.
- – Redundant power and cooling provides increased reliability as failure of a power supply or fans does not interrupt system functioning.
- – Dual domain SAS creates redundant pathways from servers to storage devices. The redundant paths created by these configurations reduce or eliminate single points of failure within the storage network. This provides increased levels of high availability with redundant paths from the controller to the drives. Dual domain SAS implementations make it possible to tolerate host bus adapter (HBA) failure, external cable failure, expander failure, failure in a spanned disk (JBOD) environments.

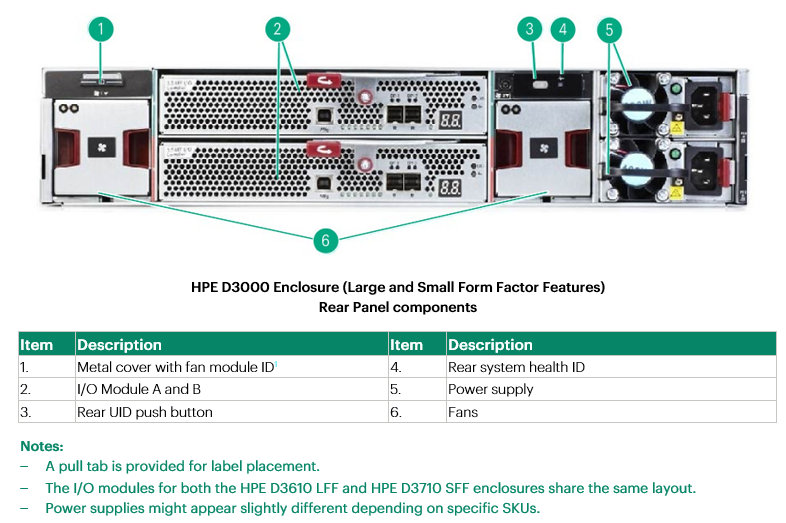

HPE D3000 Enclosures Components
The HPE D3000 Enclosures (hereafter referred to as "D3000") is a family of disk drive storage enclosures with 12Gb SAS host connectivity. The D3000 is a 2U direct attach, external storage solution designed for small to medium size deployments or remote locations. These enclosures deliver industry-leading availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The D3000 delivers the ideal mix of low-cost and high capacity, for minimum I/O workloads such as reference data, archival, and disk-to-disk backup.
High Levels of Storage Density, Data Protection, and Functionality
- – Storage Capacity - The SFF Gen10 D3710 enclosures support up to 25 (twenty five) 12G SFF SAS drives for a maximum capacity of 384TB SAS (with 15.36TB SAS RI SSDs) or 60TB SAS (with 2.4TB SAS HDDs).
- – The LFF Gen10 D3610 disk enclosures support up to 12 (twelve) 12 LFF SAS drives for a maximum capacity of 240TB SAS or SATA (with 20TB SAS or SATA HDDs).
- – Data Protection - D3000 is designed for a high level of data protection. It includes redundant fans and power supplies (standard), and supports various RAID levels including RAID6 with ADG, 50 & 60 (depending upon the Smart Array Controller used).
- – Storage Manageability - The D3000 features familiar configuration and management tools such as Array Configuration Utility (ACU) and HPE Systems Insight Manager (SIM). Online Management Features include: Online Capacity Expansion, Online RAID Level Migration, Online Stripe Size Migration, Online Spares (Global).
- – Computing and Storage Platform Support - The D3000 is designed and qualified for HPE Gen 10, Gen10+, and Gen11 ProLiant servers, as well as the HPE Alletra 4000.Both D3000 enclosures are also supported on other HPE server and storage platforms that have qualified the HPE Smart Array SR Gen10 Controllers.
- – Advanced Data Guarding (RAID 6 with ADG) – supported on P408e-p controller only.
- – Fault Tolerance - It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
Low Total Cost of Ownership
The modular, scalable design of the D3000 disk enclosure family provides an extremely flexible platform. You can buy what you need today and purchase additional capacity as your data storage needs grow, instead of making a large up-front investment. Additional drives and enclosures can be easily added as your needs dictate.
- – Cascading - The D3610 and D3710 have the unique capability of cascading up to eight (8) enclosures behind a single SAS port. The mixing of D3610 and D3710 in one cascade is not supported.
- – Pre-Failure Warranty - Drives installed in either the D3610 or the D3710 and monitored under HPE Systems Insight Manager are supported by a Pre-Failure (replacement) Warranty (3 years for SAS drives). Pre-Failure Warranty allows for the replacement of designated drives in the D3610 or the D3710 before they actually fail when using HPE Systems Insight Manager on HPE ProLiant servers.
- Notes: Some operating systems may not support all of these features.
- – Integrated Configuration and Management Tools - The D3000 family utilizes the standard, integrated set of Smart Array management and utility software for HPE ProLiant Servers. These tools consistently lower the cost of ownership by reducing training and technical expertise necessary to install and maintain HPE server storage.
D3000 Disk Enclosures

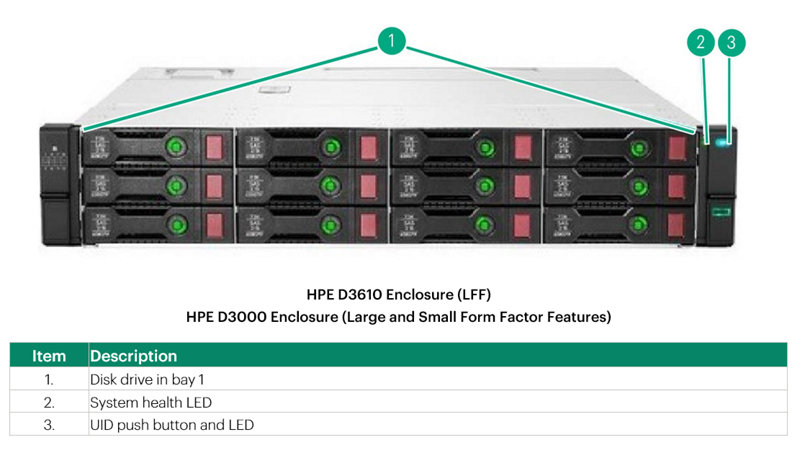

HPE D3610 (LFF) Disk Enclosures
The 2U array houses up to twelve (12) 3.5 inch HPE Smart Carrier (Gen10/Gen10+/Gen11 HPE ProLiant and Alletra 4000) hot pluggable SAS and SATA drives.
Each D3610 includes the following standard components:
- – D3610 base enclosure with redundant power supplies and fan modules
- – Two (2) integrated 12Gb SAS IO Modules
- – Rack mounting hardware kit
- – Two (2) 0.5m HD Mini-SAS cables
- – Two (2) PDU interconnect cords

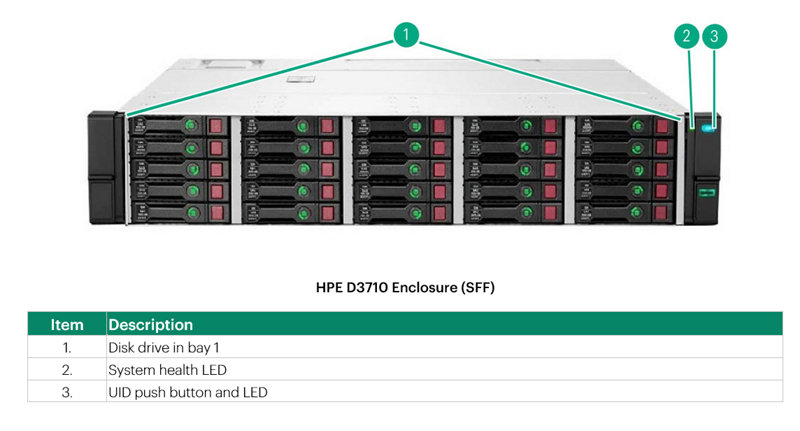

HPE D3710 (SFF) Disk Enclosures
The 2U array houses up to twenty five (25) 2.5 inch HPE Smart Carrier (Gen10/Gen10+/Gen11 HPE ProLiant and Alletra 4000) hot pluggable SAS and SATA drives.
Each D3710 includes the following standard components:
- – D3710 base enclosure with redundant power supplies and fan modules
- – Two (2) integrated 12Gb SAS IO Modules
- – Rack mounting hardware kit
- – Two (2) 0.5m HD Mini-SAS cables
- – Two (2) PDU interconnect cords
HPE Smart Array E208e-p SR Gen10 Controller – For use with Gen10, Gen10+, Gen11 ProLiant, and Alletra 4000
- – Storage interface (SAS/SATA)
- – 8 SAS lanes across 2 x4 external Mini-SAS HD ports
- – 12Gb/s SAS, 6Gb/s SATA technology
- – Mix-and-match SAS and SATA drives to the same controller
- – Support for SAS tape drives
- – PCI Express 3.0 x8 link
- – RAID 0, 1, 5, 10
- – Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
- – Legacy and UEFI boot operation
- – UEFI System Utilities (storage configuration)
- – Up to 238 physical drives
- – Up to 64 logical drives
- – HPE Smart Array SR Secure Encryption (optional license) – only supported on ProLiant Gen10/Gen10+
- – HPE SSD Smart Path
- – Rapid Parity Initialization (RPI)
- – Rapid rebuild
- – Drive Sanitize - only supported on ProLiant Gen10/Gen10+
- – Performance Optimization-Degraded Reads and Read Coalescing
- – Power efficiency
- – Seamless upgrades from HPE Smart Array Software RAID
- – Seamless upgrades to HPE Smart Array P-class Controllers
HPE Smart Array P408e-p SR Gen10 Controller – For use with Gen10 and Gen10+ ProLiant
- – Storage interface (SAS/SATA)
- – 8 SAS lanes across 2 x4 external Mini-SAS HD ports
- – 12Gb/s SAS, 6Gb/s SATA technology
- – Mix-and-match SAS and SATA drives to the same controller
- – Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
- – 4 GB Flash-Backed Write Cache (FBWC)
- – PCI Express 3.0 x8 link
- – RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
- – Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
- – Legacy and UEFI boot operation
- – UEFI System Utilities (storage configuration)
- – Up to 238 physical drives
- – Up to 64 logical drives
- – HPE Smart Array SR SmartCache (optional license)
- – HPE Smart Array SR Secure Encryption (optional license)
- – HPE SSD Smart Path
- – Rapid Parity Initialization (RPI)
- – Rapid rebuild
- – Drive Sanitize
- – Performance Optimization-Degraded Reads and Read Coalescing
- – Power efficiency
- – Seamless upgrades from HPE Smart Array S-class and E-class controllers
- – FIPS 140-2 Level 1 Implementation Under Test (expected validation complete in 2018)
RAID
Depending on Smart Array controller model, several fault tolerant configurations keep data available and servers running while drives are being replaced - RAID levels that offer fault tolerance include:
- – RAID 50 (RAID 5+0) protects against failure of one drive (and failure of particular multiple drives). RAID 50 is a nested RAID method that uses RAID 0 striping across RAID 5 arrays. RAID 50 tolerates one drive failure in each spanned array without loss of data. RAID 50 requires less rebuild time than single RAID 5 arrays RAID 50 requires a minimum of six drives.
- – RAID 60 (RAID 6+0) allows administrators to split the RAID 6 storage across multiple external boxes. RAID 60 requires a minimum of eight drives. RAID 60 is a nested RAID method that uses RAID 0 block-level striping across multiple RAID 6 arrays with dual distributed parity. With the inclusion of dual parity, RAID 60 will tolerate the failure of two disks in each spanned array without loss of data.
- – RAID 6 with ADG: Allocates the equivalent of two parity drives across multiple drives and allows simultaneous write operations Distributed Data Guarding (RAID 5): Allocates parity data across multiple drives and allows simultaneous write operations. Drive Mirroring (RAID 1 and 1+0 Striped Mirroring): Allocates half of the drive array to data and the other half to mirrored data, providing two copies of every file.
Dual Domain
Dual domain SAS creates redundant pathways from servers to storage devices. The redundant paths created by these configurations reduce or eliminate single points of failure within the storage network. This provides increased levels of high availability with redundant paths from the controller to the drives. Dual domain SAS implementations make it possible to tolerate external cable failure, expander failure in spanned disk (JBOD) environments. Requires FW v 3.x.
Power Supply Information
The D3000 “A” SKU Disk Enclosures use a 1200W Common Slot power supply that is used in multiple HPE solutions. The maximum output power of this supply exceeds what is needed by the D3000 Enclosures. The power supply meets multiple Energy Efficiency Initiatives:
- – 1200W, 92%: Climate Savers Computing Initiative GOLD and ECOS Consulting 80PLUS GOLD
The D3000 "B" SKU Disk Enclosures use a 550W power supply designed for the D3000 to meet the needs of the European Union’s Lot 9 2023 power supply regulations which go into effect on January 1, 2023.
- – 550W, 96%: Climate Savers 80PLUS Platinum
Notes: The only hardware difference between the “A” SKU and the “B” SKU is the power supply. The 80 PLUS program is a forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 PLUS independently tests power supply efficiency and publicly posts the results on 80Plus.org.
Utilities
The D3000 disk enclosure family utilizes a single, consistent set of utility software for storage and RAID management, setup, configuration and troubleshooting. This consistency reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HPE server storage solution.
Configuration Utilities
- – Array Configuration Utility (ACU) [On-line for Microsoft and Linux, Remote Web-Based & Off-line]
- – Option ROM Configuration for Arrays (ORCA), NetWare ACU CPQONLIN (only online support no web-based support)
Management/Health Utilities
- – HPE Systems Insight Manager
Array Configuration Utility (ACU)
- – Provides a graphical view of HPE drive array configurations.
- – Easy to use Wizards for configuration.
- – Web Based ACU supports On-Line, Remote Web Based and Off-line configuration.
- – Supports on-line configuration for Microsoft, NetWare and Linux.
HPE Systems Insight Manager (SIM)
- – Powerful storage, server and server option management tool.
- – Monitor storage from a remote central location.
- – Browser based Insight Manager 7 provides full access from anywhere on the Intranet, eliminating the need for a dedicated Insight
- Manager console.
Supported Operating Systems
For latest information on HPE Smart Array Gen10 Controllers for HPE ProLiant DL, ML and Apollo Servers as well as HPE StoreEasy, please refer to their QuickSpecs. (E208e-p and P408e-p)
-
Warranty
Three-year limited parts only warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HPE Services and a worldwide network of resellers and service providers. In addition 90-day getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HPE Services operational services.
Notes: The D3000 family has a limited 3-yea parts only warranty. SAS and Solid-State drives have 3-year warranty. SAS MDL and SATA MDL and SATA Solid State Drives have 1 year warranty.
The D3000 has been designed with customer self-repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Refer to HPE's limited warranty Statement and parts replacement instructions for further details. http://h20564.www2.hpe.com/hpsc/wc/public/home
