HPE LCD8500 1U Rackmount Console Kit QuickSpecs
Table of Contents
The HPE LCD8500 1U Rackmount Console Kit is an ultra-dense, high-performance KVM console that combines a full 18.5-inch LCD monitor with keyboard and touch pad in a 1U form factor.
The 1U rackmount form factor is designed to allow a KVM console switch to be mounted directly behind it. The WXGA TFT LCD brightview display supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.
Standard Features

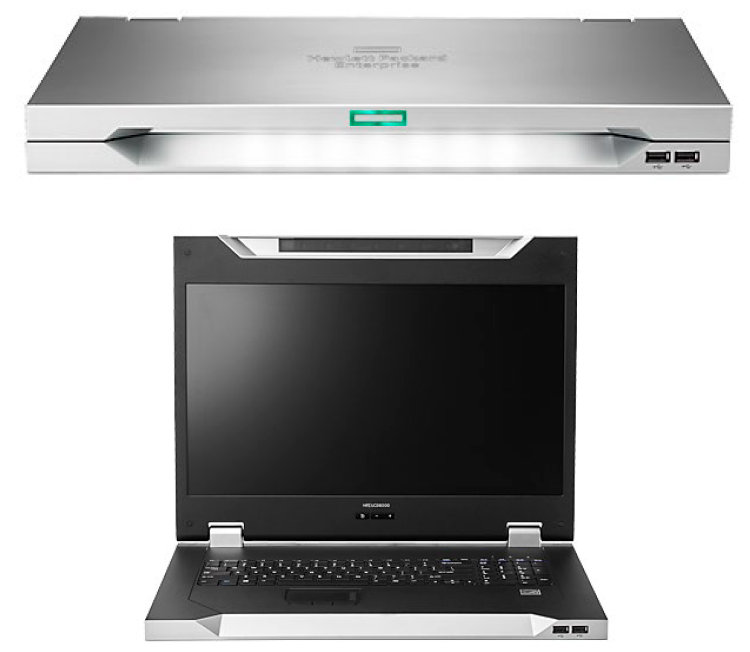

The LCD8500 1U Rackmount Console Kit features a new silver enclosure making identification in the rack much easier. The rackmount keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. The LCD8500 1U Rackmount Console Kit also includes a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/c04154398_block1img?$crimg$ "[IMAGE1]")
Why do you need a KVM Console for your rack?
- − Local access to each server from the data center floor when using a KVM Console Switch.
- − More convenience and faster access than typical “crash cart” server access solutions.
Why HPE?
- − HPE Support Services purchased for servers and storage extend to our rack and power infrastructure products such as racks, power distribution units, uninterruptible power systems, and KVM console switches.
- − What is the HPE advantage for you? You don’t have to spend additional budget to cover extended warranties and services for your rack and power infrastructure as you would with non-Hewlett Packard Enterprise products.
- − HPE rack and power infrastructure products are designed and developed to be used specifically with Hewlett Packard Enterprise servers and storage.
- − What is the HPE advantage for you? You can use HPE rack and power products with non-HPE IT equipment; however, when used with Hewlett Packard Enterprise servers, you are able to take advantage of various server and IP-based tools used for maintaining and managing all the equipment in the rack.
- − While you have many choices for rack and power infrastructure products, Hewlett Packard Enterprise offers and extensive range of rack, power, and KVM products to meet all your needs.
- − What is the HPE advantage for you? HPE can help to simplify IT purchasing, installation, usage, and maintenance for your organization by providing a single point of contact for all your needs.
| HPE LCD8500 1U Rackmount Console Kit Models | |
| HPE LCD8500 1U US Rackmount Console Kit | AF630A |
| HPE LCD8500 1U JP Rackmount Console Kit | AF642A |
| HPE LCD8500 1U INTL Rackmount Console Kit | AF644A |
| Kit Contents: | |
| Item | Quantity |
| HPE LCD8500 1U Console | 1 |
| M6 screws | 2 |
| 6-32 screws | 5 |
| HPE 1UConsole Rails LH/RH | 2 |
| Cable management arm, power adapter with brace rail | 1 |
| CTO Brackets | 2 |
| USB cable | 1 |
| Video cable | 1 |
| Power cord | 1 |
| USB cable label | 1 |
| Notes: This kit might contain extra hardware. This product is supplied with a C5 to C14 power cord. The C14 is a standard connection for PDUs and UPSs. If another power source is used, a region-specific cord must be purchased separately. HPE constantly strives to improve and develop products that are environmentally friendly. In communicating with our customers, we have discovered that 90% use the C5 to C14 jumper cord and discard the C5 to country specific power cords. In effort to reduce landfill, HPE made a Green decision to remove excess waste from our accessory kit. This resulted in removing multiple power cords included in the product. Please see the HPE LCD8500 1U Console User Guidefor additional information including mounting and installation instructions. | |
| HPE LCD8500 1U Rackmount Console Kit Standard Features | |
| High Density KVM Solution | The LCD8500 1U Rackmount Console Kit combines a full 18.5-inch WXGA+ monitor and keyboard with touch pad in a 1U format with enough room to mount an HPE KVM switch behind it. Tool-less rails ease installation. |
| Performance | |
| High-resolution | 1600 x 1200 WXGA TFT LCD BrightView anti-glare display supports most commonly used resolutions. |
| Built-in interface electronics | Offers support of common video resolutions from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates. |
| Color Active Matrix TFT screen | Guarantees a flicker-free picture that is sharper in focus than a CRT monitor. |
| USB connectivity | Allows a variety of connection options. |
| Front USB ports | Provides two USB 2.0 front side pass-through ports for use with KVM Console Switches that support virtual media. |
| Ergonomic Design | |
| Wide format | Display is easier to see and reduces eye fatigue. |
| New silver color | New color and front LEDs ease unit identification when closed in high density racks. |
| 2-Button On-Screen Display (OSD) | Conveniently located on the front/bottom of the display assembly, making screen adjustments easy. |
| Adjustments | A wide array of adjustments can be made, including brightness, contrast, image adjust, OSD settings and factory presets. |
| Lid Switch | Will engage when display assembly is closed to shut off the power to the panel backlight. When opened, display assembly will re-power to current state. This feature is designed to prolong the life of the display panel. |
| Multilingual On-Screen Display (OSD) | Can support 7 languages (English, French, German, Italian, Japanese, Simple Chinese, and Spanish). |
| 3-Button Touchpad with scrolling | Located below the space bar for a centrally located input device. |
| Four scroll keys (inverted T) | Located between the keyboard and numeric keypad for easy access. |
| Warranty | Three-year Limited Warranty for parts only. Notes: Certain restrictions and exclusions apply. Consult the HPE Customer Support Center for details. |
Service and Support
For the most up-to-date information on HPE Services, please refer to the HPE Services – Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.
Related Options
HPE LCD8500 1U Rackmount Console Kit Options | ||
| Display Port Cable | HPE Kit LCD 1.83m Latch Display Port Cable | G7T29A |
| HPE Support Services | HPE Install Rack and Rack Options Service | U2871E |
Technical Specifications
| HPE LCD8500 1U Rackmount Console Kit | ||
| Physical Dimensions | H x W x D | 1.66 x 17.17 x 17.05 in (4.23 x 43.61 x 43.3) cm |
| Weight | 11.43 lb (5.2 kg) | |
| Shipping Dimensions | Package (L x W x D) | 22.9 x 7.9 x 24.5 in (58.1 x 20 x 61.3 cm) |
| Weight | 25.3 lb (11.45 kg) | |
| Display | Type | Flat-panel, active matrix-TFT LCD with anti-glare coating |
| Display | 18.5 in (46.99 cm), 16 x 9 aspect ratio | |
| Viewable (diagonal) | 18.51 in digital display (47.02 cm) 16 x 9 aspect ratio | |
| Maximum Input Graphics Resolution | 1600 x 1200 @ 60 Hz Refresh Rate * Note input devices may limit maximum configurable resolution | |
| Response time | <16 ms | |
| Brightness | >187 (cd/m2) | |
| Contrast ratio | >700:1 | |
| Keys | 101, 102, or 106 layout (depending on country) including inverted T scroll keys, Windows keys | |
| Environmental Temperature | Operating | 0° to 50°C (32° to 122°F) |
| Non-operating | −30° to 60°C (−22° to 140°F) | |
| Storage Temperature | −20° to 60°C (−4° to 140°F) | |
| Humidity (non-condensing) | Operating | 10% to 90% |
| Non-operating | 10% to 90% | |
| Power Source | 90 to 264 VAC, 47 to 63 Hz | |
| Maximum Power Consumption | <36W | |
| Altitude | Operating | 0 to 10,000 ft (0 to 3048 m) |
| Non-operating | 0 to 30,000 ft (0 to 9144 m) | |
| Supported Graphics Mode (Output) | 640 x 480 VGA through 1600 x 1200 WXGA+ | |
| 60, and 75 Hz refresh rates | ||
| Keyboard/Mouse Output | USB 2.0 connectors | |
| OSD Language Selection | English, Spanish, French, German, Italian, Japanese, Simplified Chinese | |
