HPE Flash Media Kits QuickSpecs

Table of Contents

Table of Contents

    Do you need a self-contained resilient boot solution that does not impact overall server storage capacity or consume a PCIe slot?

    HPE Flash Memory Cards and USB Drives are engineered with enterprise-class high endurance NAND for life within non-stop data center environments.

    Overview

    Using the highest industry flash technology to provide a higher level of performance and longer endurance characteristics at an enterprise level, each device undergoes rigorous testing and software validation to verify the highest level of quality and reliability while running on HPE ProLiant servers.

    [IMAGE1]

    Models

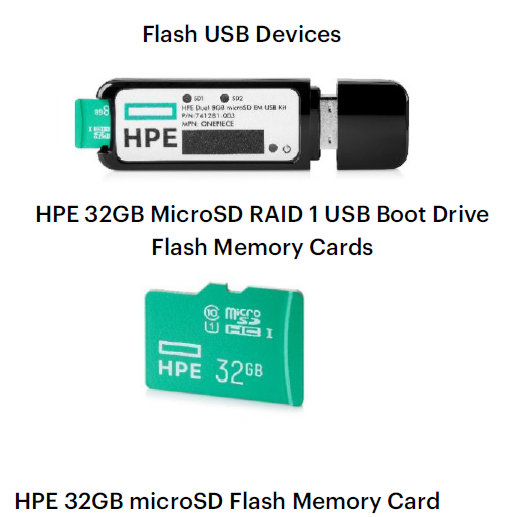

    HPE Flash USB Drives

    HPE 32GB microSD RAID 1 USB Boot Drive

    P21868-B21

    Notes: Supported on Gen9, Gen 10, and Gen10+ ProLiant servers

    HPE Flash Memory Cards

    HPE 32GB microSD Flash Memory Card

    700139-B21

    Notes: Supported on Gen9 and Gen 10 ProLiant servers

    Standard Features

    Why HPE Flash Media?

    • Low-Cost RAID 1 Boot Solution
    • − HPE USB Flash drive with dual 32GB microSD cards and on-board RAID 1
    • − Delivers a redundant OS boot without consuming server storage drive bays or consuming an internal PCIe slot
    • − Lower cost alternative to traditional boot methods that require multiple HDDs or SSDs with an array controller.
    • − 32GB capacity supports VMware® vSphere™ v6.0 and later deployments up to 8TiB (DRAM sizing of solution deployment).
    • − Integrated on-board RAID 1 for customers requiring “dual boot” solution.

    Highly Reliable Enterprise–Class microSD Drives

    • − Utilizes high endurance 3D pSLC NAND.
    • − Qualified and tested for use on HPE ProLiant Gen9, Gen10 and Gen10 Plus servers.

    HPE Qualified Options Meet High Reliability and Performance Demands

    • − HPE tests and qualifies these devices according to stringent guidelines with strict revision control on the controllers and actual flash memory. This provides utmost reliability and performance within HPE customer production environment.

    Read/Write Performance

    HPE Flash Media products offer superior performance with greater than 10+ MB/second Read Transfer Rate, and 5+ MB/second Write Transfer Rate.


    Power

    A typical flash media device draws 1W versus 12W total power on 2 x 300GB SAS 10K SFF hard drives in a RAID configuration.


    OS Support

    Flash USB Drives

    Flash Memory Cards

    HPE 32GB MicroSD Raid 1 USB Boot Drive

    HPE 32GB microSD Flash Memory Card

    VMware ESXi 6.0

    VMware ESXi 6.0

    VMware ESXi 6.5

    VMware ESXi 6.5

    VMware ESXi 6.7

    VMware ESXi 6.7

    VMware ESXi 7.0

    VMware ESXi 7.0

    In vSphere 7.0, VMware made changes that impact the use of an SD Card/USB media as a standalone boot device and will be removing support for them after version 7.x.


    SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory Usage of SD Card/USB Devices As Standalone Boot Devices Has Changed Due to System Storage Changes For VMware ESXi 7.0 (Or Later)


    For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.

    Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.hpe.com/services


    Consulting Services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.hpe.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational Services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.hpe.com/services/operational


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • − A complete coverage approach – edge to cloud
    • − An assigned HPE team
    • − Modular and fully personalized engagement
    • − Enhanced Incident Management experience with priority access
    • − Digitally enabled and AI driven customer experience

    https://www.hpe.com/services/completecare

    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.hpe.com/services/techcare


    HPE Lifecycle Services

    HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

    • − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
    • − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
    • − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
    • − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
    • − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

    Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle


    For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

    Other Related Services from HPE Services:

    HPE Education Services

    Training and certification designed for IT and business professionals across all industries. Broad catalog of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

    https://www.hpe.com/services/training


    Defective Media Retention

    An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.


    Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


    Parts and Materials

    HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


    Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer’s operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


    How to Purchase Services

    Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

    • − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
    • − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

    AI-Powered and Digitally Enabled Support Experience

    Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data-driven customer experience.


    Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

    https://support.hpe.com/hpesc/public/home/signin


    Consume IT On Your Terms

    HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

    • − Get faster time to market
    • − Save on TCO, align costs to business
    • − Scale quickly, meet unpredictable demand
    • − Simplify IT operations across your data centers and clouds

    To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html


    For more information

    http://www.hpe.com/services

    Technical Specifications

    HPE 32GB microSD RAID 1 USB Boot Drive

    P21868-B21

    Usable Capacity

    32GB*

    Performance

    28+ MB/second Read Transfer Rate, 29+ MB/second Write Transfer Rate

    DWPD (64K sequential workload)*

    5.26

    DWPD (4K random workload)*

    0.22

    TBW (4K random workload)

    13TB

    TBW (64K sequential workload)

    307TB

    Class

    UHS I

    Form factor

    63mm(L) x 20mm(W) x 9.3mm(H)

    Voltage

    4.0V (min) – 6.0V (max)

    Compliance

    USB specification 2.0

    Operating Temperature

    0/70°C (Operational), −25°C/85°C (non-operational)

    Notes: * Assumes 5 Year time period for calculation

    HPE 32GB microSD Flash Memory Card

    700139-B21

    Usable Capacity

    32GB*

    Performance

    33+ MB/second Read Transfer Rate, 34+ MB/second Write Transfer Rate

    DWPD (64K sequential workload)*

    5.26

    DWPD (4K random workload)*

    0.22

    TBW (4K random workload)

    13TB

    TBW (64K sequential workload)

    307TB

    Class

    UHS I

    Form factor

    15mm(L) x 11mm(W) x .95mm(H)

    Voltage

    2.7V (min) - 3.6V (max)

    Compliance

    SD Card Association

    Operating Temperature

    0°C /70°C (Operational), −25°C/85°C (non-operational)

    Notes: * Assumes 5 Year time period for calculation

    Environment-friendly Products and Approach - End-of-life Management and Recycling

    Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.


    The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website.


    These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
