HPE ProLiant Compute EL240 Gen12 brings enterprise-class compute and GPU acceleration to demanding edge environments.
Overview
Purpose-built rugged edge compute with the expansion and acceleration capabilities required for demanding edge workloads.
The HPE ProLiant Compute EL240 Gen12 is a ruggedized, expansion-focused compute sled designed for edge environments where traditional datacenter servers are impractical or unable to operate reliably. Installed within the HPE ProLiant Compute EL2000 chassis, the EL240 combines enterprise-class compute, storage, networking, and GPU acceleration capabilities in a compact form factor optimized for Size, Weight, and Power (SWaP) constrained deployments.
Powered by Intel® Xeon® 6 processors and supporting high-speed NVMe storage, the EL240 is designed for compute-intensive edge applications including AI inferencing, video analytics, industrial automation, telecommunications, virtualization, and mission-critical edge computing workloads. Unlike the EL220, the EL240 adds PCIe expansion and GPU support, enabling customers to deploy more demanding acceleration and I/O-intensive workloads at the edge.
The EL240 is engineered for demanding deployment environments and supports configurable thermal operating envelopes, ruggedization options, and enterprise-grade management capabilities. As with all EL2000 family platforms, compute, GPU, thermal, storage, and networking capabilities are configuration dependent and should be aligned with workload and environmental requirements.
Enterprise-class security and remote management for distributed edge deployments.
The HPE ProLiant Compute EL240 Gen12 combines HPE iLO 7, Silicon Root of Trust, HPE OneView, and HPE Compute Ops Management to provide secure lifecycle management for distributed edge environments. Organizations can monitor system health, manage firmware, perform remote administration, and maintain consistent operational control across geographically dispersed deployments without requiring dedicated on-site IT resources.
Designed for remote and infrastructure-constrained installations, the EL240 allows administrators to deploy, update, monitor, and troubleshoot systems using the same enterprise management tools and operational practices used within the datacenter. Flexible GPU, storage, networking, and expansion options enable customers to optimize configurations for their specific workload requirements while maintaining a consistent management and security experience across the environment.
Form Factor
HPE ProLiant Compute EL240 Gen12 plugs into the HPE ProLiant Compute EL2000 Chassis.
Standard Features
Processors

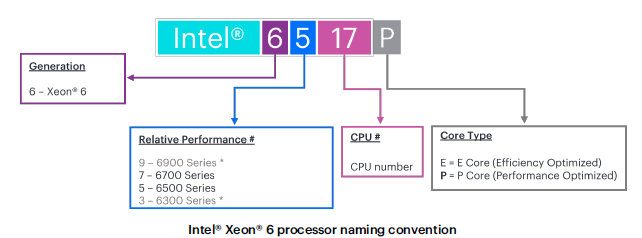

*CPU Series not support on HPE ProLiant Compute Gen12 platforms..
Notes: For more information regarding Intel® Xeon® 6 processors, please see the following:
https://www.intel.com/content/www/us/en/now/xeon-6.html.
The ProLiant EL240 Gen12 platform supports Intel® Xeon® 6 Efficient Core (E-Core) and Performance-Core (P-Core) processors.
The below processors are supported on the ProLiant EL240 Gen12 platform. Select one of the below processors.
| Intel® Xeon 6® Efficient-Core (E-Core) Performance per Watt Processors | ||||||||
|---|---|---|---|---|---|---|---|---|
| Intel Xeon Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI Links | DDR5 (MT/s) | SGX Enclave Size (GB) | Die |
| 6740E | 2.4 | 96 | 96 | 250 | 4 | 6400 | 512 | HDCC |
| 6756E | 1.8 | 128 | 96 | 225 | 4 | 6400 | 512 | HDCC |
| 6780E | 2.2 | 144 | 108 | 330 | 4 | 6400 | 512 | HDCC |
| Intel® Xeon 6® Performance-Core (P-Core) Processors | ||||||||
|---|---|---|---|---|---|---|---|---|
| Intel Xeon Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI Links | DDR5 (MT/s)* | SGX Enclave Size (GB) | Die* |
| 6507P | 3.5 | 8 | 48 | 150 | 4 | 6400 | 512 | LCC |
| 6517P | 3.2 | 16 | 72 | 190 | 4 | 6400 | 512 | LCC |
| 6527P | 3.0 | 24 | 144 | 255 | 4 | 6400 | 512 | HCC |
| 6747P | 2.7 | 48 | 288 | 330 | 4 | 6400 | 512 | XCC |
| 6767P | 2.4 | 64 | 336 | 350 | 4 | 6400 | 512 | XCC |
| 6787P | 2.0 | 86 | 336 | 350 | 4 | 6400 | 512 | XCC |
| Notes: *DDR5 MT/s is 6400 MT/s @ 1 DIMM per channel (DPC). | ||||||||
| Intel® Xeon 6® Mainline Processors | ||||||||
|---|---|---|---|---|---|---|---|---|
| Intel Xeon Models | Base Speed (GHz) | Cores | L3 Cache (MB) | Power (W) | UPI Links | DDR5 (MT/s)* | SGX Enclave Size (GB) | Die* |
| 6505P | 2.2 | 12 | 48 | 150 | 4 | 6400 | 128 | LCC |
| 6515P | 2.4 | 16 | 72 | 150 | 4 | 6400 | 128 | LCC |
| 6520P | 2.4 | 24 | 144 | 210 | 4 | 6400 | 128 | HCC |
| 6530P | 2.3 | 32 | 144 | 225 | 4 | 6400 | 128 | HCC |
| 6740P | 2.1 | 48 | 288 | 270 | 4 | 6400 | 128 | XCC |
Notes: *DDR5 MT/s is 6400 MT/s @ 1 DIMM per channel (DPC).
System Management Chipset
HPE iLO 7 ASIC embedded on system board.
Notes: Read and learn more in the: iLO QuickSpecs.
Memory
| Type | HPE DDR5 Smart Memory Registered (RDIMM) |
| DIMM Slots Available | 8 DIMM Slots, 8 channels, 1 DIMM per channel |
| Maximum capacity (RDIMM) | 2TB 8 x 256 GB RDIMM 6400 MT/s @ 1DPC |
Notes:
– All processors listed support up to 4TB memory.
– The maximum memory speed is limited by the processor selection.
– To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.
– For additional information, please visit:
HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs.
Memory Protection Features
Advanced ECC
Advanced ECC uses device data correction to detect and correct single and all multibit errors within a single DRAM chip.
Adaptive Double DRAM Device Correction (ADDDC)
Advanced Double DRAM Device Correction enables the server to dynacically map out a failing DRAM device. Enabling it can have some impact to system performance under certain workloads. This is set to enabled by default.
Mirroring
Memory Mirroring enables full memory redundancy.
Network Controller
The HPE ProLiant Compute EL240 Gen12 server does not include network controller but offers the customer a variety of OCP and PCIe networking options listed in the Core Options section.
Graphics
Integrated Video Standard
- – USB-C iLO Management Port/Video Display Port
- – Video modes up to 1920 x 1200@60Hz (32 bpp)
- – 16MB Video Memory
M.2 NVMe Drives – direct connect to CPU PCIe 5.0
| M.2 SSD Slot # | Physical Location | Technology | Bus Width | Form Factor | Supported Sizes |
|---|---|---|---|---|---|
| 13-14 | System Board | NVMe, PCIe Gen5 x4 | X4 | M.2 2280 | 480GB 960GB 1.92TB |
Maximum Storage
| Option | Drive Type | Drive Capacity | Total Storage |
|---|---|---|---|
| 2 EDSFF cage option kit (up to 2) | NVMe E3S 2T | 1.92TB-122.8TB | 491.2TB (4x 122.8TB) |
| NVMe M.2 direct attach | M.2 2280 | 480GB-1.92TB | 3.84TB (2x 1.92TB) |
Storage Controllers
NVMe Boot Devices
- – HPE NS204i-MFF NVMe Hot Plug Boot Optimized Storage Device
Notes:
– N204i-MFF Boot device requires selection of 2x M.2 NVMe SSDs and provides preconfigured hardware RAID1.
– Front Hot Plug location option.
– Occupies the front right slot.
– For additional details please see: HPE OS Boot Device QuickSpecs
Software RAID Controller
Intel® Virtual RAID on CPU (Intel® VROC)
Notes:
– Supports up to 8 direct attach NVMe drives
– Intel VROC NVMe is disabled by default. Requires licensing.
– RAID support – 0/1/5/10, depending on licensing options.
– For additional details please see: Intel VROC for HPE ProLiant QuickSpecs
Power Supply
Refer to the ProLiant EL2000 QuickSpecs: https://www.hpe.com/psnow/doc/a50014661enw
European Union Erp Lot 9 Regulation
Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE M-CRPS power supplies are 96% efficient, thus meeting requirements.
| Video | USB-C iLO Management Port/Video Display Port |
| Network Ports | None standard. Choice of OCP or PCIe network card required. |
| HPE iLO Remote Mgmt Port | 1 GbE Dedicated |
| Front iLO Service Port | 1 standard (USB-C, front right ) |
| USB Ports | 2 standard USB-A 3.1 One (1) USB-C port plus one (1) USB-C iLO Management Port/Video Display Port |
Operating Systems and Virtualization Software Support for HPE Servers
HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.
Access the certified and supported servers for each of the OS and Virtualization software:
HPE Servers Support & Certification Matrices
HPE Server UEFI
Unified Extensible Firmware Interface (UEFI) is an industry-standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen12 servers have a UEFI Class 3 implementation to support UEFI Mode.
Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit: https://www.hpe.com/support/hpeuefisystemutilities-quicklinks.
UEFI enables numerous new capabilities specific to HPE ProLiant servers, such as:
- – Secure Boot and Secure Start enabled for enhanced security.
- – Embedded UEFI Shell
- – Operating system-specific functionality
- – Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- – Support for > 2.2 TB (using GPT) boot drives.
- – PXE boot support for IPv6 networks
- – USB 3.0 Stack
- – Workload Profiles for simple performance optimization
- – Embedded TPM Support
UEFI Boot Mode only:
- – iSCSI Software Initiator Support
- – NVMe Boot Support
- – HTTP/HTTPs Boot support as a PXE alternative.
- – Boot support for option cards that only support a UEFI option ROM.
Industry Standard Compliance
- – ACPI 6.3 Compliant
- – Advanced Encryption Standard (AES)
- – Active Directory v1.0
- – ASHRAE A3/A4
- Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit: https://www.hpe.com/support/ASHRAEGen12
- – DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
- – Energy Star
- – EU Lot9 Compliant
- – IPMI 2.0
- – Microsoft® Logo certifications
- – PCIe 3.0 Compliant
- – PCIe 4.0 Compliant
- – PCIe 5.0 Compliant
- – PXE Support
- – Redfish API
- – Secure Digital 4.0
- – SMBIOS 3.2
- – SNMP v3
- – TLS 1.2
- – TPM 2.0 Support
- – Triple Data Encryption Standard (3DES)
- – UEFI (Unified Extensible Firmware Interface Forum) 2.7
- – USB 2.0 Compliant
- – USB 3.0 Compliant
Embedded Management
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).
Learn more at https://www.hpe.com/support/hpeuefisystemutilities-quicklinks.
ILO RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation, such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/support/restfulinterface/docs
Server Utilities
Active Health System
The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.
Active Health System Viewer
Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE selfrepair recommendations, to learn more visit http://www.hpe.com/servers/ahsv.
Smart Update
Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).
Learn more at https://www.hpe.com/us/en/servers/smart-update.html.
HPE iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:http://www.hpe.com/info/ilo/mobileapp.
RESTful Interface Tool
RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.
Scripting Tools
Provision one too many servers, using your scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.
HPE OneView Standard
HPE OneView is an on-premise, multi-generational server monitoring and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.
HPE Compute Ops Management
HPE is intelligently transforming compute management with an intuitive cloud operating experience through GreenLake cloud platform to streamline and secure operations from edge-to-cloud. Automated key lifecycle tasks, for onboarding, updating, managing, and monitoring HPE servers, brings agility and greater efficiencies to wherever compute devices reside via a unified single browser-based interface. Manage single locations or multiple, distributed sites. Keep tens to thousands of servers secure with batch policy controls and automated updates.
Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and fixes. The management application resides in the GreenLake cloud platform (access via https://console.greenlake.hpe.com) and leverages the GreenLake architecture, security, and unified operations.
A 3-year subscription to GreenLake for HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen11 rack, tower, or micro server.
For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw
RESTful Interface Tool
RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 6 to discover and deploy servers at scale.
Learn more at http://www.hpe.com/info/resttool
Notes: This Feature will be available when the server is installed in an HPE EL System.
Security
- – UEFI Secure Boot and Secure Start support.
- – Tamper-free updates – components digitally signed and verified.
- – Immutable Silicon Root of Trust
- – Ability to rollback firmware
- – FIPS 140-2 validation
- – Secure erase of NAND/User data
- – Common Criteria certification
- – Configurable for PCI DSS compliance
- – Embedded TPM (Trusted Platform Module) 2.0. Disabled on shipments to China.
- – Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- – Bezel option with Locking Kit
- – Support for Commercial National Security Algorithms (CNSA)
- – Chassis Intrusion detection option
- – Secure Recovery – recover critical firmware to a known good state on detection of compromised firmware
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard EnterpriseAuthorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical support is available at:
https://www.hpe.com/support/ProLiantServers-Warranties
https://www.hpe.com/us/en/search-results.html?page=1&q=servers warranty&autocomplete=0
Optional Features
HPE iLO Advanced
HPE iLO Advanced licenses offer smart remote functionality for all HPE ProLiant servers without compromise. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
HPE OneView Advanced
HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template-driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OpenView Standard and provides full-featured licenses which can be purchased for managing multiple HPE server generations.
To learn more, visit http://www.hpe.com/info/oneview.
Accelerator and GPU Information
Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high performance computing, large. data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight
integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.
One Config Simple (OCS/SCE)
OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#
Rack and Power Infrastructure
The story may end with servers, but it starts with the foundation that makes compute go – and business grow. ' 'We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, practical, and efficient. In other words, we've created a more robust, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management, and system access.
Learn more about HPE Racks, KVM, PDUs, and UPSs at HPE Rack and Power Infrastructure.
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- − A complete coverage approach -- edge to cloud
- − An assigned HPE team
- − Modular and fully personalized engagement
- − Enhanced Incident Management experience with priority access
- − Digitally enabled and AI driven customer experience
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.hpe.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
Consume IT On Your Terms
GreenLake platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, GreenLake platform accelerates digital transformation in a distributed, edge-to-cloud world.
- − Get faster time to market
- − Save on TCO, align costs to business
- − Scale quickly, meet unpredictable demand
- − Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information: http://www.hpe.com/services
Configuration Information
| This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. If you want to configure a server sled only, proceed to Step 2. | |
Step 1: Base Configuration (Choose System) | |
| HPE ProLiant EL2000 Chassis | |
| Description | SKU |
| HPE ProLiant Compute EL2000 Chassis | P90379-B21 |
| Notes: – Refer to the EL2000 documentation for details on how to configure the chassis. – https://h20195.www2.hpe.com/v2/getdocument.aspx?docname= – Functional systems require a minimum of one (1) power supply. Many supported configurations require two (2) power supplies for normal operation. – The EL2000 chassis does not provide a dedicated power supply redundancy mode. Supported power delivery is dependent upon chassis, sled, and workload configuration. – Due to the power requirements of certain EL220 and EL240 configurations, operation with a single power supply may limit supported hardware options, reduce performance, or prevent normal system operation. – HPE recommends two (2) power supplies for the broadest configuration support and maximum available system power. | |
Step 2: Select ProLiant Server | |
| HPE Proliant EL240 1U Server (Min:1, Max:1) | |
| Description | SKU |
| HPE ProLiant Compute EL240 Gen12 Configure-to-order Server | P90381-B21 |
| Notes: – Each server operates independently. – All EL240 Gen12 CTO Server models require the selection of Processor, Memory, Network Adapter, and Storage. Backplane selections are available for 2x EDSFF drives, OCP3 Slot, or NS204i-MFF boot device. – Optional PCIe riser supports two (2) PCIe slots. | |
Step 3: Choose Required Options (per sled) | |
| Processor Option (Min: 1, Max: 1) | |
| Intel® Xeon 6® Efficient-Core (E-Core) Performance per Watt Processors | SKU |
| Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE | P71119-B21 |
| Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE | P71121-B21 |
| Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE | P71124-B21 |
| Intel® Xeon 6® Mainline Processors | SKU |
| Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE | P74503-B21 |
| Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE | P74506-B21 |
| Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE | P74568-B21 |
| Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE | P74571-B21 |
| Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE | P73829-B21 |
| Intel® Xeon 6® Performance-Core (P-Core) Processors | SKU |
| Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE | P74504-B21 |
| Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE | P74507-B21 |
| Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE | P74570-B21 |
| Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE | P73831-B21 |
| Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE | P73834-B21 |
| Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE | P73837-B21 |
| Notes: – The HPE ProLiant Compute EL240 Gen12 supports a single processor per sled. – Processors with a TDP greater than 255W require the HPE EL240 Gen12 2U Heat Sink Kit (P96794-B21). – Processor Option Kits include the appropriate factory-installed heatsink. The correct heatsink is automatically configured through OCA. – EL240 configurations using processors with a TDP greater than 255W support half-length PCIe cards only due to the 2U heatsink requirement. – Full-length PCIe card support is available only with processor configurations up to 255W TDP. – Processor support is dependent on the selected Thermal Tracking SKU, system operating temperature, and configuration. – In EL240 configurations utilizing the 1U CPU Heatsink without a full-length GPU:
– In EL240 configurations utilizing a full-length GPU:
– In EL240 configurations utilizing the 2U Heat Sink Kit:
– 270W through 350W processor options are supported only in configurations operating at up to 45°C system inlet ambient operating temperature. – Refer to the Thermal Tracking SKU section for additional temperature and configuration requirements. | |
| Choose Memory Options (Min: 1, Max: 8) | |
| Please select one or more memory DIMMs from below. For the new Gen12 memory population rule whitepaper and optimal memory performance guidelines and memory speed table, please go to: http://www.hpe.com/docs/memory-population-rules For memory Reliability, Accessibility, and Serviceability (RAS) features whitepaper like Fast Fault Tolerance and legacy mirrored memory feature, etc., please go to: http://www.hpe.com/docs/memory-ras-feature. | |
| Description | SKU |
| HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69726-B21 |
| HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69727-B21 |
| HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69728-B21 |
| HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69729-B21 |
| HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | P69730-B21 |
| HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit | P73447-B21 |
| Notes: Ensure that the selected processor supports the configured memory footprint of the sled. | |
| Notes: – Total memory selection must be in quantities of 1, 2, 4, or 8. For more detailed information regarding memory population rules, please refer to: HPE Server Memory Guidance. – Memory support is dependent on the selected Thermal Tracking SKU and system configuration. – All listed DDR5 Smart Memory options are supported in configurations operating at up to 45°C system inlet ambient temperature. – At 55°C system inlet ambient operating temperature, only 16GB and 32GB DDR5 Smart Memory options are supported. – 64GB, 96GB, 128GB, and 256GB DDR5 Smart Memory options are supported only in configurations operating at up to 45°C system inlet ambient operating temperature. – The 256GB DDR5 Smart Memory option may require 2x refresh operation when configured in systems operating at temperatures up to 45°C. – Refer to the Accelerator section for GPU-specific operating-temperature restrictions. – For additional information, please see the: HPE DDR5 Smart Memory QuickSpecs. – The maximum memory speed is 6400 MT/S at 1 DPC. | |
| Solid State M.2 NVMe Drives (Direct CPU Attach) | |
| Installed on EL240 System Board (Min: 0, Max: 2) | |
| Description | SKU |
| HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD | P80318-K21 |
| HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD | P80321-B21 |
| HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD | P80324-B21 |
| HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD | P80327-B21 |
| Notes: – Onboard M.2 SSD support is dependent on the selected Thermal Tracking SKU and system operating temperature. – All listed onboard M.2 SSD options are supported in configurations operating at up to 55°C system inlet ambient operating temperature. | |
| Choose OCP Networking (Max:1, optional) | |
| Description | SKU |
| Intel E610-IT4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P79833-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | P22767-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P41614-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P42041-B21 |
| Notes: – OCP NIC selections require the HPE OCP Enablement Kit (P90386-B21). – Supports up to one (1) OCP NIC option per server. – OCP NIC support is dependent on the selected Thermal Tracking SKU and system operating temperature. – All supported OCP NIC options are supported in configurations operating at up to 55°C system inlet ambient operating temperature. | |
| Choose PCIe Networking (Max:2, optional) | |
| Description | SKU |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P08443-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P08458-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P21112-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P51178-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE | P26253-B21 |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P42044-B21 |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE | P25960-B21 |
| NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE | R8M41A |
| Notes: – PCIe card selections require the HPE PCIe Enablement Kit (P90387-B21). – Supports up to two (2) PCIe card options per server. – Network adapter support is dependent on the selected Thermal Tracking SKU and system operating temperature. – All supported PCIe network adapter options are supported in configurations operating at up to 55°C system inlet ambient operating temperature, with the exception of supported DPU options. – The NVIDIA BlueField-3 DPU 200GbE/IB Adapter (P66386-H21) and NVIDIA BlueField-3 DPU 400GbE/IB Adapter (P66387-H21) are supported only in configurations operating at up to 45°C system inlet ambient operating temperature. – DPU support is currently limited to networking use cases. | |
Step 4: Choose Additional Options | |
| Choose additional options for Factory Integration from sections below | |
| HPE Option Enablement Kits | |
| Description | SKU |
| HPE ProLiant Compute EL240 Gen12 PCIe Riser Enablement Kit | P90387-B21 |
| HPE ProLiant Compute EL240 Gen12 OCP Enablement Kit | P90386-B21 |
| HPE ProLiant Compute EL2X0 Gen12 2EDSFF Enablement Kit | P90384-B21 |
| Notes: – Support for two x16 PCIe slots in the PCIe cage requires the HPE ProLiant Compute EL240 Gen12 PCIe Riser Enablement Kit. – OCP NIC selections require the HPE ProLiant Compute EL240 Gen12 OCP Enablement Kit. Supports up to one (1) OCP NIC option per server. – Selection of the NS204-MFF Hot Plug M.2 Boot Device requires a PCIe NIC option. – When the NS204-MFF Hot Plug M.2 Boot Device is configured, the two rightmost EDSFF drive bays are consumed and unavailable for EDSFF drive selections. One EDSFF drive option may still be selected in the remaining left EDSFF drive bay. – The HPE ProLiant Compute EL2X0 Gen12 2EDSFF Enablement Kit is required to support the additional two EDSFF drive bays | |
| HPE Security | |
| Description | SKU |
| HPE iLO Common Password FIO Setting | P08040-B21 |
| HPE ProLiant Compute EL240 Gen12 FIO MIL-STD Kit | P90453-B21 |
| HPE ProLiant Compute EL240 Gen12 MIL-STD GPU FIO Enablement Kit | P90454-B21 |
| Notes: – EL240 FIO MIL-STD Kits will be available after initial product launch. Planned availability: January 2027 – MIL-STD qualification applies only to complete, validated system configurations. – MIL-STD configurations must use the applicable FIO MIL-STD kit and supported processor, memory, storage, networking, expansion, power, thermal, and mounting options. – Selecting a MIL-STD kit does not qualify options outside the approved MIL-STD configuration. – GPU-equipped MIL-STD configurations require the applicable EL240 FIO MIL-STD kit, the MIL-STD GPU FIO Enablement Kit, and a supported third-party ruggedized transport case solution. – Additional MIL-STD configuration guidance will be available in a future release of the HPE ProLiant Compute EL2000 Gen12 MIL-STD Configuration Guide. | |
| HPE Thermal SKUs | |
| Description | SKU |
| HPE ProLiant Compute 35C System Inlet Ambient Operating Temperature Configuration Tracking | P92392-B21 |
| HPE ProLiant Compute 40C System Inlet Ambient Operating Temperature Configuration Tracking | P92389-B21 |
| HPE ProLiant Compute 45C System Inlet Ambient Operating Temperature Configuration Tracking | P92395-B21 |
| HPE ProLiant Compute 55C System Inlet Ambient Operating Temperature Configuration Tracking | P92398-B21 |
| Notes: – Thermal Tracking SKUs define the maximum supported system inlet ambient operating temperature for the configured system. – One (1) Thermal Tracking SKU may be selected for each configuration. – The selected Thermal Tracking SKU determines the processors, memory, storage, networking, and expansion options available for configuration. – Select the Thermal Tracking SKU corresponding to the highest expected operating temperature of the deployment environment. – Configurations supporting elevated operating temperatures may have additional components and configuration restrictions. – Refer to the processor, memory, storage, networking, and accelerator sections for temperature-specific support requirements. | |
| Transceiver Options | |
| Description | SKU |
| HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver | 453151-B21 |
| HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver | 453154-B21 |
| HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver | 455883-B21 |
| HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver | 455886-B21 |
| HPE 25Gb SFP28 SR 100m Transceiver | 845398-B21 |
| HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| HPE 100Gb QSFP28 MPO SR4 100m Transceiver | 845966-B21 |
| HPE BladeSystem c-Class 40Gb QSFP+ MPO SR4 100m Transceiver | 720187-B21 |
| HPE Synergy 100GbE/4x25GbE/4x32GbFC QSFP28 Transceiver | 882251-B21 |
| Accelerators and Associated Accessories | |
| Description | SKU |
| NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB PCIe Accelerator for HPE | S6W30C |
| NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB PCIe Accelerator for HPE | S6A73C |
| NVIDIA RTX PRO 6000D 84GB PCIe Accelerator for HPE | S6W21C |
| Notes: – GPU options are supported only on EL240 Gen12 configurations. – GPU configurations require the HPE ProLiant Compute EL240 Gen12 GPU Fan Kit (P90391-B21) and the applicable GPU power cable option. – The HPE ProLiant Compute EL240 Gen12 Double Wide 600W GPU Power Cable (P90392-B21) is required for supported double-wide GPU configurations. – The HPE ProLiant Compute EL240 Gen12 Single Wide GPU Power Cable Kit (P90393-B21) is required for supported single-wide GPU configurations. – GPU support is dependent on the selected Thermal Tracking SKU and system operating temperature. – The ambient operating temperatures listed above represent the maximum supported system inlet ambient operating temperature for each GPU configuration. – The NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB and NVIDIA RTX PRO 6000D 84GB accelerators are supported only in configurations operating at up to 35°C system inlet ambient operating temperature. – The NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB accelerator is supported only in configurations operating at up to 45°C system inlet ambient operating temperature. – EL240 configurations utilizing a full-length GPU are not supported at 55°C system inlet ambient operating temperature. – GPU-equipped configurations support only processors up to 255W TDP. – Processor configurations greater than 255W TDP require the HPE EL240 Gen12 2U Heat Sink Kit and support only half-length PCIe cards. – NVIDIA qualification testing requires additional thermal margin. To meet NVIDIA qualification requirements, supported operating temperatures may be lower than the platform maximum operating temperature.. – Refer to the Thermal Tracking SKU and Processor sections for additional temperature and configuration requirements. | |
| GPU Accessories and Cables | |
| Description | SKU |
| HPE ProLiant Compute EL240 Gen12 Double Wide 600W GPU Power Cable | P90392-B21 |
| HPE ProLiant Compute EL240 Gen12 Single Wide GPU Power Cable Kit | P90393-B21 |
| HPE ProLiant Compute EL240 Gen12 GPU Fan Kit | P90391-B21 |
| Notes: – Selection of a GPU requires the HPE ProLiant Compute EL240 Gen12 GPU Fan Kit (P90391-B21). – Selection of the NVIDIA RTX PRO 6000 Blackwell Server Edition 96GB PCIe Accelerator for HPE (S6A73C) or NVIDIA RTX PRO 6000D 84GB PCIe Accelerator for HPE (S6W21C) requires the HPE ProLiant Compute EL240 Gen12 Double Wide 600W GPU Power Cable (P90392-B21). – Selection of the NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB PCIe Accelerator for HPE (S6W30C) requires the HPE ProLiant Compute EL240 Gen12 Single Wide GPU Power Cable Kit (P90393-B21). | |
Choose Storage – SSD/NVMe/HDD Drives | |
| Solid State Drives | |
| For SSD selection guidance, please visit https://ssd.hpe.com/ | |
| Pleaserefer to the HPE Solid State Disk Drives QuickSpecs for more detailed information: | |
| Read Intensive – NVMe - EDSFF E3.S 1T | |
| LEVEL 1 | |
| Description | SKU |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77269-B21 |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD | P78914-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77271-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD | P78917-B21 |
| HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77273-B21 |
| HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD | P78919-B21 |
| HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD | P77275-B21 |
| HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD | P78921-B21 |
| HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD | P78923-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD | P70392-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD | P78789-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD | P70395-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD | P78791-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD | P70397-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD | P78793-B21 |
| LEVEL 2 | |
| Description | SKU |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD | P85121-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD | P85124-B21 |
| HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD | P85126-B21 |
| HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD | P85128-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD | P85739-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD | P77057-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD | P85741-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD | P77059-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD | P85743-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD | P77061-B21 |
| HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD | P85745-B21 |
| HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD | P79965-B21 |
| LEVEL 3 | |
| Description | SKU |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91090-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91092-B21 |
| HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91094-B21 |
| HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91096-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | P61179-B21 |
| HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91229-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | P61183-B21 |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91231-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD | P61187-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD | P91233-B21 |
| Read Intensive – NVMe – EDSFF E3.S 1T (SED/FIPS) | |
| LEVEL 1 | |
| Description | SKU |
| HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF Self-encrypting PM9D3a SSD | P79147-B21 |
| LEVEL 2 | |
| Description | SKU |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD | P87719-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD | P87721-B21 |
| HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD | P87723-B21 |
| LEVEL 3 | |
| Description | SKU |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70674-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P79122-B21 |
| LEVEL 1 | |
| Description | SKU |
| HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF Self-encrypting PM9D3a SSD | P79147-B21 |
| LEVEL 2 | |
| Description | SKU |
| HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD | P87719-B21 |
| HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD | P87721-B21 |
| HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD | P87723-B21 |
| LEVEL 3 | |
| Description | SKU |
| HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70674-B21 |
| HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P79122-B21 |
| Mixed Use - NVMe – EDSFF E3.S 1T | |
| LEVEL 1 | |
| Description | SKU |
| HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77262-B21 |
| HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77265-B21 |
| HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD | P77267-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD | P70399-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD | P78784-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD | P70401-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD | P78787-B21 |
| HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD | P70403-B21 |
| LEVEL 2 | |
| Description | SKU |
| HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD | P85114-B21 |
| HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD | P85117-B21 |
| HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD | P85119-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD | P85731-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD | P77050-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD | P85733-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD | P77053-B21 |
| HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD | P85735-B21 |
| HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD | P77055-B21 |
| LEVEL 3 | |
| Description | SKU |
| HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD | P91084-B21 |
| HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD | P91086-B21 |
| HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD | P91088-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD | P61191-B21 |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD | P91098-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD | P61195-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD | P91100-B21 |
| HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD | P91102-B21 |
| Mixed Use – NVMe – EDSFF E3.S 1T (SED/FIPS) | |
| LEVEL 2 | |
| Description | SKU |
| HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD | P87715-B21 |
| HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD | P87717-B21 |
| LEVEL 3 | |
| Description | SKU |
| HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70669-B21 |
| HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD | P70672-B21 |
| Mainstream Performance (VRO / SED) | |
| LEVEL 2 | |
| Notes: – NVMe SSDs are grouped into Thermal Ranking Levels based on device thermal characteristics. – Level 1 SSDs are supported in configurations operating at up to 55°C system inlet ambient temperature. – Level 2 SSDs are supported in configurations operating at up to 45°C system inlet ambient temperature. – Level 3 SSDs are supported in configurations operating at up to 40°C system inlet ambient temperature. – SSD support is dependent on the selected Thermal Tracking SKU and complete system configuration. | |
Technical Specifications
Physical Dimensions
Server Cartridge
- – Dimensions (H x W x D): 3.26 x 6.52 x 14.92 in (82.8 x 165.5 x 378.9 mm)
- – Net Weight: 15.4 lb (7.0 kg), configuration dependent
- – Typical Power Consumption: 1120 W
- – Max Power Consumption: 1300 W
System Inlet Temperature
- – Extended Operating
- HPE EL2000 with HPE ProLiant Compute EL220 Gen12: Depending on hardware configuration, the supported system inlet range can be extended up to 55°C. Compliance with ASHRAE A3 and A4 standards is also available. The approved hardware configurations for this system are listed in the EL system documentation.
- – Standard Operating
- HPE EL2000 Chassis with HPE ProLiant Compute EL220 Gen12: Typical range is 10° to 35°C (50° to 95°F) with altitude derating. Extended Operating Temperature Restrictions
Extended Operating Temperature Restrictions
| Component | Up to 45°C Inlet Temperature | Up to 55°C Inlet Temperature |
|---|---|---|
| CPU | Intel Xeon 6 processors up to 350W TDP* | Intel Xeon 6 processors up to 255W TDP |
| Memory | All supported DDR5 Smart Memory | 16GB and 32GB DDR5 Smart Memory |
| OCP NICs | All supported OCP NIC options | All supported OCP NIC options |
| PCIe NICs | All supported PCIe NIC options, including DPU options | All supported PCIe NIC options except DPU options |
| E3S SSDs | Thermal Ranking Levels 1 and 2 | Thermal Ranking Level 1 |
| EDSFF SSD Thermal Ranking Levels:
| ||
Notes:
– Standard operating range is 10°C to 35°C (50°F to 95°F) with altitude derating.
– Extended operating temperatures up to 55°C are supported only with approved hardware configurations.
– Actual processor and memory support is dependent on the selected thermal operating profile and system configuration.
– EL240 configurations utilizing the 1U CPU heatsink support:
- Processors up to 150W TDP at 55°C.
- Processors from 190W through 210W TDP only up to 45°C.
- Processors from 225W through 255W TDP only up to 40°C.
– EL240 configurations utilizing the 2U CPU heatsink support:
- Processors up to 255W TDP at 55°C.
- Processors from 270W through 350W TDP only up to 45°C.
– EL240 configurations utilizing a full-length GPU support:
- Processors up to 150W TDP only up to 45°C.
- Processors from 190W through 225W TDP only up to 40°C.
- Processors from 250W through 255W TDP only up to 35°C.
- Full-length GPU configurations are not supported at 55°C.
– At 55°C, only 16GB and 32GB DDR5 Smart Memory options are supported.
– PCIe DPU adapters are supported only in configurations operating at up to 45°C system inlet ambient operating temperature.
Emissions Classification (EMC)
- – FCC Rating: Class A
- – Normative Standards
- CISPR 32
- EN55032
- EN55035
- FCC CFR 47, Pt 15
- ICES-003
- CNS15936
- KS C 9832
- KS C 9835
- EN 61000-3-2
- EN 61000-3-3
- EN 62368-1
- IEC 62368-1
Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 08-Sep-2026 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a50014663enw, - 17426 - WorldWide - V1 - 08-September-2026
