Address even the most challenging wireless use cases with a private 5G solution that’s easy to deploy and can be managed like Wi-Fi.
HPE Networking Private 5G makes private cellular simple by masking 3GPP cellular complexity. Our full stack offering is based on leading mobile core technology and includes all the components needed for a private cellular network, with the flexibility to support for both cloud and on-prem deployments. HPE Networking Private 5G includes intuitive management tools that use automation to enable IT teams to provision a private 5G network within minutes. The HPE vision is to bring together private 5G and Wi-Fi to deliver a comprehensive wireless portfolio for pervasive coverage.
Overview
Full stack solution
HPE Networking Private 5G includes all the components needed to deploy a private cellular network, including 4G/5G small cell radios (indoor and outdoor models), 4G/5G mobile core software, a hardware appliance, SIM/eSIMs, and management platform (cloud or on-prem). For customers based in the U.S., our solution includes an integrated spectrum access system (SAS) to enable the use of CBRS spectrum.
Enterprise simplicity
HPE Networking Private 5G is designed specifically to meet the needs of enterprises without the complexity of large public 5G solutions. Intuitive management tools with configuration automation and zero touch provisioning enable network administrators to set up and manage their private 5G network without extensive training and in a very similar way to Wi-Fi. Multiple deployment options are available to enable enterprises to deploy private cellular where and how they need to.
Proven, flexible core technology
Our solution leverages 4G/5G mobile core technology which has been deployed by 500 enterprises and 25 service providers globally over 16 years. Our mobile core software (HPE Networking Private 5G Core) can be deployed as part of the full stack solution, as a pre-integrated appliance from HPE or on third party hardware to support specific requirements and use cases.
Key Features
- − Full stack offering consisting of indoor/outdoor small cell radios (4G and 5G models), 4G/5G mobile core, hardware appliance, SIM/eSIMs, and management tools (cloud or on-prem).
- − Zero touch provisioning and configuration wizards for fast and easy deployment.
- − Comprehensive visibility into subscribers, applications, performance, and service levels.
- − Proven mobile core technology deployed by 500 enterprises.
- − Support for shared/lightly licensed spectrum (country specific).
- − Pre-integrated options for ease of purchasing, deployment, and management.
Standard Features
HPE Networking Private 5G Components
HPE Networking Private 5G Core
HPE Networking Private 5G Core provides a software-based 5G Core and 4G Evolved Packet Core (EPC) solution for private cellular networks as a virtual appliance which can be deployed in fully virtualized environments (NFV), data centers or on standard off-the-shelf servers. The Core is designed for centralized or highly distributed deployments in enterprises, governments, logistics, natural resources, manufacturing, public safety, mission critical applications and vertical markets in general.
The HPE Networking Private 5G Core provides a proven and robust mobile private network platform that allows deployment of 4G EPC and 5G Core networks with Wi-Fi-like simplicity to install and operate. The Core confidently supports current and advanced use cases with high demanding throughput and flexible scalability on standard hardware.
HPE Networking Private 5G Voice Services complements the Core with the support of Voice Services (IMS) to deliver Voice/Video over LTE or NR and supplementary services.
Available both as a virtual appliance for customers willing to select their own HW and be in full control of their solution integration and running on HPE Networking Private 5G appliance bundles:
HPE Networking Private 5G Appliance Bundles
HPE Networking Private 5G Appliance Bundles are pre-integrated sets of HPE Compute and HPE Networking products to run the HPE Networking Private 5G Core. Those product bundles are available in three scalable hardware options:
- − HPE NW P5G M1200 Appliance Bundle up to 1,000 users
- − HPE NW P5G M2200 Appliance Bundle up to 10,000 users
- − HPE NW P5G M3200 Appliance Bundle up to 40,000 users
HPE Networking Private 5G M2000 Appliance (cloud deployments only)
The HPE Networking Private 5G M2000 Appliance is an HPE ProLiant server on which the HPE Networking Private 5G Core has been pre-loaded and pre-configured. The M2000 appliance is a scalable platform that delivers exceptional compute performance, memory density, and scalability plus the high‑speed data transfer rate needed to run mobile core technology. The M2000 appliance is engineered to optimize IT services with a cloud operating experience, built-in security, and optimized performance for workloads to drive business forward. Two appliances can be deployed for high availability.
HPE Networking Private 5G Management Dashboard (cloud deployments only)
HPE Networking Private 5G features an intuitive cloud-based management dashboard, which features zero touch provisioning and wizards for greater automation, provides detailed customer insights, and enables key functions such as subscriber and USIM management, service monitoring, service configuration, and user role management. OpenAPIs can deliver interoperability with service provider portals.

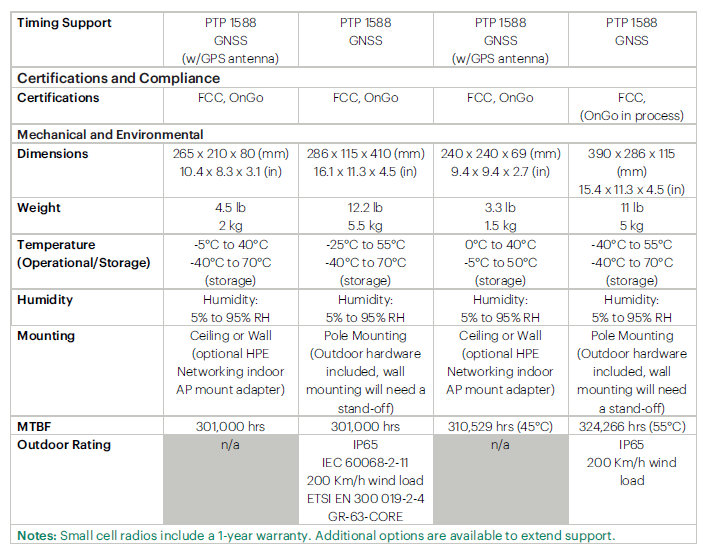

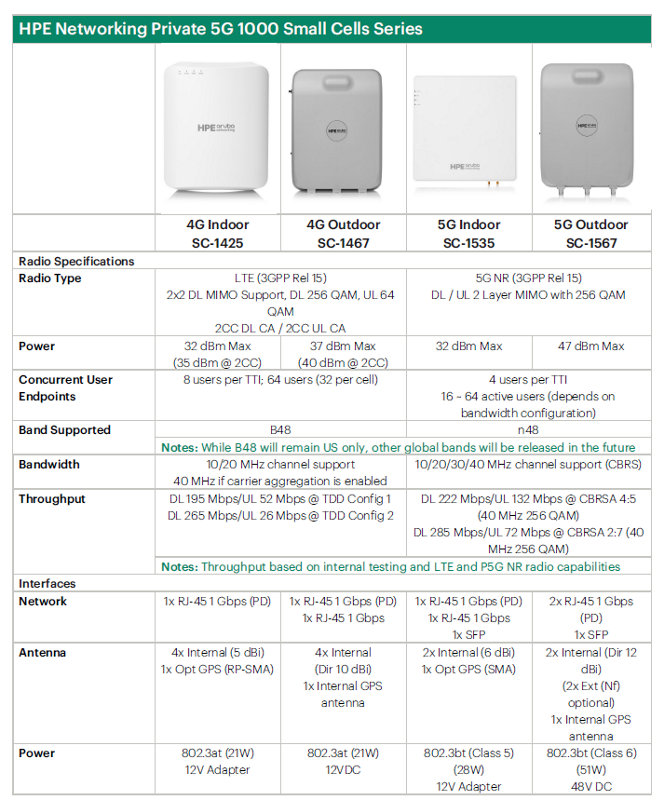

HPE Networking Private 5G 1000 and 2000 Small Cells Series
HPE offers both 4G and 5G small cell radios (indoor and outdoor) to support a variety of enterprise user endpoints and use cases. HPE Networking Private 5G 1000 and 2000 Small Cells Series support the B48/n48, n77, and n78 spectrum bands. The HPE Networking Private 5G 1000 and 2000 Small Cells series can be managed using the HPE Networking Private 5G Management Dashboard. 4G indoor and outdoor options are available for enterprises in the U.S. with 4G device ecosystems.
HPE Networking Private 5G Antennas
HPE Networking Private 5G antennas are used with HPE Networking Private 5G 2000 Outdoor Small Cells Series to extend coverage, sharpen signal quality, and deliver the reliability required to meet the demand of modern enterprise and industrial private cellular deployments. By combining the 2000 series outdoor radios with the right high‑gain, purpose‑built antennas, connectivity is transformed into a strategic advantage—reaching farther, penetrating tougher environments, and keeping critical operations online, without compromise.
HPE Networking Private 5G Cavity Filters
HPE Networking Private 5G cavity filters are used with the HPE Networking Private 5G 2000 Outdoor Small Cells to deliver optimal bandpass performance with low insertion loss, low intermodulation, and high power-handling capability. Their excellent return loss ensures an efficient match with antennas and the base station, preserving transmitted power.
HPE Networking Private 5G SIMs
HPE Networking Private 5G SIM/eSIMs come in either a physical or virtual form factor. They can be provisioned via CSV files, APIs, or manual updates using our cloud-based management interface. Devices must support either a SIM or eSIM to be able to access the private cellular network.
Spectrum Access Service (SAS)
Private cellular networks can work with slices of public networks, or shared spectrum. The HPE Networking Private 5G cloud deployment option can be deployed with shared or lightly licensed spectrum and includes a Spectrum Access Service (SAS). The SAS protects incumbents while using CBRS, shared spectrum in the 3.55-3.7 GHz band and allows U.S. enterprises to deploy a private cellular network without the additional costs and contractual requirements associated with carrier contracts (U.S. market only).
Configuration Information
| HPE Networking Private 5G Cloud-Managed | | |
|---|---|---|
| BTO Models | | |
| 1. Select P5G core server | | |
| Region | Description | SKU |
| WW | HPE Aruba Networking Private 5G M2000 Core Appliance | S3Y79A |
| | Notes: Quantity= 1 or 2 mandatory | |
| 2. Select the 5G small-cell radios needed | | |
| Region | Description | SKU |
| US | HPE Aruba Networking Private 5G SC-1425-B48 2x2 4G Internal Antenna Indoor Small Cell | S3Q77A |
| US | HPE Aruba Networking Private 5G SC-1467-B48 2x2 4G Internal Antenna Outdoor Small Cell | S3Q78A |
| US | HPE Aruba Networking Private 5G SC-1535-n48 2x2 5G Internal Antenna Indoor Small Cell | S3Q79A |
| US | HPE Aruba Networking Private 5G SC-1567-n48 2x2 5G Internal/External Antenna Outdoor Small Cell | S3Q80A |
| WW | HPE Networking SC-2584-n77u 4x4 5G MCRF400-40 Outdoor Small Cell | S3Q81A |
| WW | HPE Networking SC-2545-n48n77n78 4x4 PC401i Indoor Small Cell | S3Q82A |
| WW | HPE Networking SC-2584-n78 4x4 5G MCRF400-36 Outdoor Small Cell | S3Q83A |
| 3. Select the P5G small-cell radios subscriptions and terms needed | | |
| Region | Description | SKU |
| US | HPE Aruba Networking Private 5G Indoor SC 1-year Subscription (US) E-STU | S3Y54AAE |
| US | HPE Aruba Networking Private 5G Indoor SC 3-year Subscription (US) E-STU | S3Y55AAE |
| US | HPE Aruba Networking Private 5G Indoor SC 5-year Subscription (US) E-STU | S3Y56AAE |
| US | HPE Aruba Networking Private 5G Indoor SC 7-year Subscription (US) E-STU | S3Y57AAE |
| US | HPE Aruba Networking Private 5G Indoor SC 10-year Subscription (US) E-STU | S3Y58AAE |
| US | HPE Aruba Networking Private 5G Outdoor SC 1-year Subscription (US) E-STU | S3Y59AAE |
| US | HPE Aruba Networking Private 5G Outdoor SC 3-year Subscription (US) E-STU | S3Y60AAE |
| US | HPE Aruba Networking Private 5G Outdoor SC 5-year Subscription (US) E-STU | S3Y61AAE |
| US | HPE Aruba Networking Private 5G Outdoor SC 7-year Subscription (US) E-STU | S3Y62AAE |
| US | HPE Aruba Networking Private 5G Outdoor SC 10-year Subscription (US) E-STU | S3Y63AAE |
| RW | HPE Networking Private 5G Indoor SC 1-year Subscription (RW) E-STU | S3Y64AAE |
| RW | HPE Networking Private 5G Indoor SC 3-year Subscription (RW) E-STU | S3Y65AAE |
| RW | HPE Networking Private 5G Indoor SC 5-year Subscription (RW) E-STU | S3Y66AAE |
| RW | HPE Networking Private 5G Indoor SC 7-year Subscription (RW) E-STU | S3Y67AAE |
| RW | HPE Networking Private 5G Indoor SC 10-year Subscription (RW) E-STU | S3Y68AAE |
| RW | HPE Networking Private 5G Outdoor SC 1-year Subscription (RW) E-STU | S3Y69AAE |
| RW | HPE Networking Private 5G Outdoor SC 3-year Subscription (RW) E-STU | S3Y70AAE |
| RW | HPE Networking Private 5G Outdoor SC 5-year Subscription (RW) E-STU | S3Y71AAE |
| RW | HPE Networking Private 5G Outdoor SC 7-year Subscription (RW) E-STU | S3Y72AAE |
| RW | HPE Networking Private 5G Outdoor SC 10-year Subscription (RW) E-STU | S3Y73AAE |
| 4A. Select P5G SIM/eSIM provisioning needed | | |
|---|---|---|
| Region | Description | SKU |
| US | HPE Aruba Networking Private 5G CBRS PLMN 315-010 SIM 10-pack Bundle | S3Y51A |
| | Notes: For network ID 315010 | |
| US | HPE Aruba Networking Private 5G CBRS PLMN 315-010 eSIM 10-pack Bundle E-LTU | S4U17AAE |
| | Notes: For network ID 315010 | |
| RW | HPE Aruba Networking Private 5G Lab PLMN 001-01 SIM 10-pack Bundle | S6G79A |
| | Notes: For network ID 99999 | |
| RW | HPE Aruba Networking Private 5G Lab PLMN 001-01 eSIM 10-pack Bundle E-LTU | S6G81AAE |
| | Notes: For network ID 99999 | |
| RW | HPE Aruba Networking Private 5G Generic PLMN 999-99 SIM 10-pack Bundle | S6G78A |
| | Notes: For network ID 00101 | |
| RW | HPE Aruba Networking Private 5G Generic PLMN 999-99 eSIM 10-pack Bundle E-LTU | S6G80AAE |
| | Notes: For network ID 00101 | |
| RW | HPE Networking Private 5G Custom SIM 50-pack Bundle | S6G82A |
| | Notes: For Custom network ID | |
| 4B. Select user device subscription duration and quantity | | |
| Region | Description | SKU |
| WW | HPE Aruba Networking Private 5G Device 1-year Subscription E-STU | S3Y74AAE |
| WW | HPE Aruba Networking Private 5G Device 3-year Subscription E-STU | S3Y75AAE |
| WW | HPE Aruba Networking Private 5G Device 5-year Subscription E-STU | S3Y76AAE |
| WW | HPE Aruba Networking Private 5G Device 7-year Subscription E-STU | S3Y77AAE |
| WW | HPE Aruba Networking Private 5G Device 10-year Subscription E-STU | S3Y78AAE |
| 5. Select P5G accessories | | |
| Notes: SKU list in the “Additional Options” section | | |
HPE Networking Private 5G On-Premises | ||
|---|---|---|
| BTO Models | | |
| 1. Select P5G core server appliance | | |
| Notes: 2 bundles for HA. A bundle includes: – Compute appliance (CPU, RAM, NIC, power supply, power cord) – Networking products (L3 switch, switch power supply, switch power cord, cables to connect compute to switch (iLO, OAM, Cluster, APPs), cables to interconnect switches | | |
| Region | Description | SKU |
| WW | HPE Networking Private 5G M1200 with CX 6300M Switch Appliance Bundle | S8A25A |
| | Notes: Consolidated bundle including the S8A28A DL320 Gen12 server appliance, CX 6300M-24p switch, x371 power supplies, 25G SFP28-28 DAC, Ethernet cables, and IEC-IEC power cords. | |
| WW | HPE Networking Private 5G M2200 with CX 6300M Switch Appliance Bundle | S8A26A |
| | Notes: Consolidated bundle including the S8A28A DL320 Gen12 server appliance, CX 6300M-24SFP+ switch, x371 power supplies, 1G SFP transceiver, 10G SFP+ DACs, 50G SFP56 DAC, Ethernet cable, universal rack mount and IEC-IEC power cords. | |
| WW | HPE Networking Private 5G M3200 with CX 8360 Switch Appliance Bundle | S8A27A |
| | Notes: Consolidated bundle including the S8A32A DL360 Gen12 dual CPU server, CX 8360-32Y4C switch, 1G SFP transceiver, 25G SFP28-28 DAC, 100G QSFP58 DAC, Ethernet cable, universal rack mount and IEC-IEC power cords. | |
| | HPE Networking Private 5G M1200/M2200 Appliance | S8A28A |
| | Notes: Includes appliance Only, includes 2 PDU cables (JL697A), ships with rack mount kit | |
| | HPE Networking Private 5G M3200 Appliance | S8A32A |
| | Notes: Includes appliance Only, includes 2 PDU cables (JL697A), ships with rack mount kit | |
| 2. Select the cables to connect | | |
| Notes: From L3 switches to customer’s network, 1G, 10G and 25 Gbps | | |
| Region | Description | SKU |
| WW | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | J4858D |
| WW | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| WW | HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver | J8177E |
| WW | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| WW | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| WW | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| WW | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| WW | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| WW | HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver | JL563C |
| WW | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | J9281D |
| WW | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | J9283D |
| WW | HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable | J9285D |
| 3. Select the P5G power cord needed | | |
|---|---|---|
| Notes: HPE Networking P5G appliance include a default power cord (HPE C13 - C14 250V 10 Amp 2 m FIO Power Cord). If needed, select C13 wired power cords. | | |
| Region | Description | SKU |
| NA (220V) | HPE Networking 2.3M C13 to NEMA 6-15P Power Cord | J9936A |
| Argentina | HPE Networking 1.9M C13 to IRAM 2073 Power Cord | J9891A |
| Australia | HPE Networking 1.9M C13 to AS/NZS 3112 Power Cord | J9883A |
| Brazil | HPE Networking 1.9M C13 to NBR 14136 Fig13 Power Cord | J9894A |
| Chile | HPE Networking 1.9M C13 to CEI 23-50 Power Cord | J9886A |
| China | HPE Networking 1.9M C13 to GB 1002 90deg Power Cord | J9890A |
| Denmark | HPE Networking 1.9M C13 to DK 2-5A Power Cord | J9888A |
| EU, S.Korea | HPE Networking 1.9M C13 to CEE 7-vii Power Cord | J9885A |
| India | HPE Networking 1.9M C13 to IS 1293 Power Cord | J9892A |
| Israel | HPE Networking 1.9M C13 to SI 32 90deg Power Cord | J9899A |
| Japan | HPE Networking 1.9M C13 to JIS C 8303 Power Cord | J9893A |
| NA/JP/TW & RoW | HPE Networking 2.0m C13 to C14 PDU Power Cord | JL697A |
| India | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| NA US | HPE Networking 1.9M C13 to NEMA 5-15P 125V Power Cord | J9896A |
| Switzerland | HPE Networking 1.9M C13 to SEV 6534-2 TYP12 Power Cord | J9898A |
| Taiwan | HPE Networking 1.9M C13 to CNS 690 TYP2 (1) Power Cord | J9887A |
| Thailand | HPE Networking 1.9M C13 to NEMA 5-15P 250V Power Cord | J9895A |
| UK, Malaysia | HPE Networking 1.9M C13 to BS 1363/A Power Cord | J9884A |
| NA (220V) | HPE Networking 2.3M C13 to NEMA 6-15P Power Cord | J9936A |
| Argentina | HPE Networking 1.9M C13 to IRAM 2073 Power Cord | J9891A |
| 4. Select the P5G appliance subscriptions and terms needed | ||
| Notes: When purchasing perpetual licenses, the customer will need to choose from the following attributes: – HPE Private 5G Core Software - mandatory
– HPE Private 5G Voice Services Software - optional
| | |
| 5. Select P5G accessories | | |
| Notes: SKU list in the “Additional Options” section | | |
Additional Options
HPE Networking Private 5G Accessories | | |
|---|---|---|
| | Small Cell Radios | |
| Region | Description | SKU |
| US | HPE Aruba Networking Private 5G SC-1425-B48 2x2 4G Internal Antenna Indoor Small Cell | S3Q77A |
| US | HPE Aruba Networking Private 5G SC-1467-B48 2x2 4G Internal Antenna Outdoor Small Cell | S3Q78A |
| US | HPE Aruba Networking Private 5G SC-1535-n48 2x2 5G Internal Antenna Indoor Small Cell | S3Q79A |
| US | HPE Aruba Networking Private 5G SC-1567-n48 2x2 5G Internal/External Antenna Outdoor Small Cell | S3Q80A |
| WW | HPE Networking SC-2545-n48n77n78 4x4 PC401i Indoor Small Cell | S3Q82A |
| WW | HPE Networking SC-2584-n77u 4x4 5G MCRF400-40 Outdoor Small Cell | S3Q81A |
| WW | HPE Networking SC-2584-n78 4x4 5G MCRF400-36 Outdoor Small Cell | S3Q83A |
| | Transceivers | |
| WW | HPE Aruba Networking 1G Ind-Temp SFP LC SX 500m MMF Transceiver | JL780A |
| WW | HPE Aruba Networking 1G Ind-Temp SFP LC LX 10km SMF Transceiver | JL781A |
| WW | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| WW | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| WW | HPE Aruba Networking 10G Ind-Temp SFP+ LC SR 300m MMF Transceiver | JL782A |
| WW | HPE Aruba Networking 10G Ind-Temp SFP+ LC LR 10km SMF Transceiver | JL783A |
| WW | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | J4858D |
| WW | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| WW | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| WW | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| WW | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | SC Radio Mount Kit Adapters | |
| | Notes: System (std 0 // max 1) User Selection (min 0 // max 1) per Indoor SC Radio | |
| WW | HPE Aruba Networking Private 5G SC-4G-MNT-ADP 4G Indoor Small Cell Mount Adapter | S3X24A |
| WW | HPE Aruba Networking Private 5G SC-5G-MNT-ADP 5G Indoor Small Cell Mount Adapter | S3X25A |
| | SC Radio Mount Kits | |
| | Notes: – System (std 0 // max 99) User Selection (min 0 // max 99) per SC Radio – Small Cell Radios do not include a Mount or Adapter. Qty 1 Mount kit should be selected if selecting adapter – *Notes: Kit contains mounts for 10 Small Cell Radios | |
| WW | HPE Aruba Networking AP-MNT-U Campus Access Point Type U Universal Mount Bracket Kit | S4K79A |
| WW | HPE Aruba Networking AP-MNT-MP10-U Campus AP Universal 10-pack Mount Bracket Kit | S0J40A |
| WW | HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit | R3J15A |
| WW | HPE Aruba Networking AP-MNT-MP10-A Campus AP 10-Pack 9/16 Flat Ceiling Rail Mount Bracket Kit | JZ370A |
| WW | HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit | R3J16A |
| WW | HPE Aruba Networking AP-MNT-MP10-B Campus AP 10-Pack 15/16 Flat Ceiling Rail Mount Bracket Kit | Q9G69A |
| WW | HPE Aruba Networking AP-MNT-MP10-B1 Campus AP 10-Pack 15/16 Adj Flat Ceiling Rail Mount Bracket Kit | R6T34A |
| WW | HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit | R3J17A |
| WW | HPE Aruba Networking AP-MNT-MP10-C Campus AP 10-Pack Profile 9/16 Ceiling Rail Mount Bracket Kit | Q9G70A |
| WW | HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit | R3J18A |
| WW | HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit | Q9G71A |
| | HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit | R3J19A |
| WW | HPE Aruba Networking AP-MNT-MP10-E Campus AP 10-Pack Wall-box Mount Bracket Kit | R1C72A |
| | Power Options | |
|---|---|---|
| | Notes: System (Min 0 // max 1) User Selection (min 0 // max 1) per SC Radio | |
| WW | HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector | R6P67A |
| WW | HPE Aruba Networking AP-POE-BT10 1-port 10G 60W Midspan 802.3bt PoE Injector | S3J26A |
| WW | HPE Aruba Networking PD-9501-5GCO-AC 60W 802.3bt Smart Rate Otdr Surge Protection Midspan Injector | R7T40A |
| WW | HPE Aruba Networking PD-9501-5GCO-DC 60W 802.3bt Smart Rate Otdr Surge Protection Midspan Injector | R7T41A |
| WW | HPE Networking OUT-P5G-PSU-240W 48VDC 240W Power Supply | S7T19A |
| | Power Option Mount Kit | |
| | Notes: System (Min 0 // max 1) User Selection (min 0 // max 1) per Midspan Injector | |
| | HPE Aruba Networking PD-MOUNT-OD Outdoor PoE Midspan Injectors Pole/Mast Mount Kit | JW620A |
| | Cavity Filters | |
| | Notes: System (Min 0 // max 1) User Selection (min 0 // max 1) per SC Radio | |
| RW | HPE Networking MCRF400-FLTR-3438 n78 3400-3800MHz 4-pack Cavity Filter | S7P37A |
| | Notes: Mandatory, one per SC-2584. For n78 band in EU. | |
| RW | HPE Networking MCRF400-FLTR-3742 n77u 3700-4200MHz 4-pack Cavity Filter | S7P38A |
| | Notes: Mandatory, one per SC-2584. For n77 upper band in EU, Canada, UK. | |
| US | HPE Networking MCRF400-FLTR-3537 n48 3550-3700MHz CBRS 4-pack Cavity Filter | S7P39A |
| | Notes: Mandatory, one per SC-2584. For n48 band in US. | |
| | External Antennas | |
| | Notes: Std(Min 0 // max 1) User Selection (min 0 // max 1) per SC Radio | |
| WW | HPE Networking SC-ANT-4x4-3914 Private 5G 14dbi Outdoor Directional Antenna | S5Q39A |
| | Notes: Optional, One per SC-2584 Radio. | |
| WW | HPE Networking SC-ANT-4x4-3316 Private 5G 16dBi Outdoor Directional Antenna | S5Q40A |
| | Notes: Optional, One per SC-2584 Radio. | |
| WW | HPE Networking SC-ANT-3010 Private 5G 10dBi Outdoor 2-pack Directional Antenna | S5Q41A |
| | Notes: Optional, two per SC-2584 Radio, or one per SC-1567 | |
| | Other Accessories | |
| | Notes: System (Min 0 // max 99) User Selection (min 0 // max 99) per SC Radio | |
| WW | HPE Networking AP-5GETH-SRG 5G 802.3bt Ethernet Surge Protection Device | S4V33A |
| | Notes: Optional, only for Outdoor deployments. | |
| WW | HPE Networking SC-PTP-3260 GPS Network PTP Timing Device | S5Q42A |
| | Notes: Optional. For PTP source. | |
Technical Specifications
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a50009247enw_block5img?$crimg$ "[IMAGE1]")
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/a50009247enw_block5img2?$crimg$ "[IMAGE2]")
HPE Networking Private 5G 2000 Small Cells Series | |||
|---|---|---|---|
| | SC-2545 | SC-2584-n77 | SC-2584-n78 |
| Small Cell Specifications | | | |
| Radio Type | 5G-NR, 3GPP Rel16 4T/4R | 5G-NR, 3GPP Rel16 4T/4R | 5G-NR, 3GPP Rel16 4T/4R |
| Frequency Bands | N48 (3.55 – 3.7 GHz) N78 (3.4 – 3.8 GHz) N77 (3.8 – 4.2 GHz) | N48 (3.55 – 3.7 GHz) N78 (3.4 – 3.8 GHz) | N77 (3.8 – 4.2 GHz) |
| Power | 23 dBm per port (200 mW) | 37 dBm per port (5W) | 37 dBm per port (5W) |
| Certifications (*) | CE, ISED, UK-CA, FCC | CE, FCC | CE, ISED, UK-CA |
| | Notes: *For more country-specific information, contact HPE Networking. | ||
| Connectors | | | |
| Network | 10G Ethernet with PoE++ & 10G SFP+ | 10G RJ45, 10G SFP+ | |
| Power supply | PoE++ (IEEE 802.3bt) | 48V DC Push-pull power connector | |
| PSU | N/A | S7T19A HPE NW OUT-P5G-PSU-240W 240W PS | |
| RF feeder connectors | N/A (embedded antenna) | 4 ports 4.3-10 female | |
| GPS antenna connector | TNC | TNC | |
| Performance | | | |
| Concurrent user endpoints (UEs) supported | Up to 128 | Up to 128 | |
| Channel BW | 10, 20, 30, 40, 60, 80, 100 MHz | 10, 20, 30, 40, 60, 80, 100 MHz | |
| Power adjustment steps | ±1 dBm | ±1 dBm | |
| Internal Antenna Gain | 7 dBi | N/A | |
| Max. Throughput | Up to 2.4 Gbps | Up to 2.4 Gbps | |
| Number of Component Carriers | Up to 2 CCs | Up to 2 CCs | |
| Max. Modulation | DL: 256 QAM / UL: 256 QAM | DL: 256 QAM / UL:256 QAM | |
| Synchronization | GPS/GNSS 1588v2 (including profiles G.8275.1 and G.8275.2) | GPS/GNSS 1588v2 (including profiles G.8275.1 and G.8275.2) | |
| Frame Structures | DDDSUUDDDD (5ms) DDSSUUDDDD (5ms) DDDSUUUUDD (5ms) DDDSU (2.5ms) | DDDSUUDDDD (5ms) DDSSUUDDDD (5ms) DDDSUUUUDD (5ms) DDDSU (2.5ms) | |
| Networking and Security | IPv4, IPv6, VLANs | IPv4, IPv6, VLANs | |
| MOCN Supported | Yes | Yes | |
| Physical Specifications | | | |
| Dimensions (Length x Width x Depth) | 275 x 275 x 101 (mm) 10.8’’ x 10.8’’ x 4.0’’ (in) | 570 x 262 x 129 (mm) 22.4’’ x 10.3’’ x 5.8’’ (in) | |
| Weight | 3.75 kg 8.27 lb | 12 kg 26.4 lb | |
| Power consumption | 42W | 180W | |
| Operational Temperature | Celsius: 0ºC to 50ºC Fahrenheit: 32ºF to 122ºF | Celsius: -40ºC to 60ºC Fahrenheit: -40ºF to 140ºF | |
| Protection | N/A | IP-67 | |
| Notes: Small cell radios include a 1-year warranty. Additional options are available to extend support. | |||
HPE Networking Private 5G Antennas | |||
|---|---|---|---|
| | SC-ANT-4x4-3914 | SC-ANT-4x4-3316 | SC-ANT-4x4-3010 |
| Frequency Range | 3.3 GHz – 5.0 GHz | 3.3 GHz – 5.0 GHz | 3.3 GHz – 5.0 GHz |
| Gain | 14.8 dBi | 17.5 dBi | 9.6 dBi |
| Polarization | ±45° | ±45° | ±45° |
| Input Impedance | 50 Ohms | 50 Ohms | 50 Ohms |
| Maximum input power | 2 Watts | 2 Watts | 2 Watts |
| VSWR | < 2.0:1 | < 2.0:1 | < 2.0:1 |
| Port isolation | Not applicable – single element antenna | Not applicable – single element antenna | Not applicable – single element antenna |
| Dimensions | 285.9 x 129.2 x 622.0 (mm) 11.26 × 5.09 × 24.49 (in) | 285.9 x 129.2 x 622.0 (mm) 11.26 × 5.09 × 24.49 (in) | 71.0 x 582.6 (mm) 2.80 × 22.94 (in) |
| Weight | 3.51 kg 7.74 lb | 3.51 kg 7.74 lb | 730 g 1.61 lb |
| Operating temperature range and relative humidity | -40°C to +75°C (temp) | -40°C to +75°C (temp) | -40°C to +75°C (temp) |
| Relative Humidity Range | 10% - 95% | 10% - 95% | 10% - 95% |
| Water and dust protection (IP rating) | IP67 (upright position) | IP67 (upright position) | IP67 (upright position) |
| Installation hardware | Pipe mounting | Pipe mounting | Pipe mounting |
| RF Connectors (*) | N-type female | N-type female | N-type female |
| HPE Networking Private 5G Cavity Filters (all models) | |
|---|---|
| Power Handling | 20W Avg |
| Impedance | 50 Ω |
| Connectors | 4.3-10 Male (towards HPE Radio) 4.3-10 Female (towards Antenna) |
| Operational Temperature | -4-40ºC t o 85ºC, 0º F to 185º F |
| Dimensions (L x W x D) | Including connectors 135 x 38 x 25 (mm), 5.3’’ x 1.5’’ x 1.0’’ (in) |
| Weight | 0.26 kg, ≤ 0.57 lb |
| IP Rating | IP67 |
HPE Networking Private 5G Appliance (Cloud)
The HPE Networking Private 5G Appliance is pre-installed and pre-configured with the HPE Networking Private 5G Core. (specifications below).
| Model | HPE Networking M2000 |
|---|---|
| CPU | AMD EPYC 9224 2.25GHz 24-core Processor |
| Memory | 64 GB |
| Hard drive Storage | 2 x 960 GB SATA Mixed Use SFF SSD |
| RAID config | RAID 1 |
| RAID controller backup power | HPE Smart Storage Hybrid Capacitor |
| Out-of-band management | HPE Integrated Light-Out (iLO) Advanced |
| Network interfaces | 4 x 10GbE |
| Scaling and performance | |
| Maximum number of associated 4G or 5G small cell radios | 250 |
| Maximum number of concurrent user endpoints (UEs) | 16,000 (connected), 5,000 (active) |
| Maximum aggregate user traffic throughput | 10 Gbps |
| Form factor | |
| Rackmount | HPE DL3XX Gen11 Easy Install Rail 2 Kit |
| Height | 4.28 cm (1.69 in) |
| Depth | 64.94 cm (25.57 in) |
| Width | 43.46 cm (17.12 in) |
| Weight | 17.92 kg (39.51 lb) |
| Power | |
| Power supply | HPE 1000W Flex Slot Titanium Hot Plug Power Supply |
| Power redundancy | Dual power supply |
| Environmental | |
| Standard Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Relative Humidity | 8% to 90% |
| Altitude | 3050 m (10,000 ft.). |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response |
HPE Networking Private 5G SIMs
The HPE Networking Private 5G SIM cards enable connecting devices to the private cellular network when these devices do not support eSIM. The cards are offered in 10 packs.
| Specifications | |
|---|---|
| SIM card type | Industrial-grade 3-in-1 (2FF/3FF/4FF) SIM card |
| Carrier card | CR-80 full card (85.6 mm x 54 mm), 5G |
| Operational ambient temperature range | -40°C to +105°C |
| Supply voltage range | 1.62V to 5.5V |
| Non-volatile memory | 240 kB |
| Data retention | 10-year (at 25°C) |
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 03-Aug-2026 | Changed | QuickSpecs name was updated. Overview, Standard Features, and Technical Specifications sections were updated. New SKUs added in Configuration Information section: S8A25A, S8A26A, S8A27A, S8A28A, S8A32A, S3Y64AAE, S3Y65AAE, S3Y66AAE, S3Y67AAE, S3Y68AAE, S3Y69AAE, S3Y70AAE, S3Y71AAE, S3Y72AAE, S3Y73AAE, S3Q81A, S3Q82A, S3Q83A, S4V33A, S5Q39A, S5Q40A, S5Q41A, S5Q42A, S6G82A, S7P37A, S7P38A, S7P39A, and S7T19A. | |
| 01-Dec-2025 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a50009247enw, 17279 - Worldwide - V2 - 03-August-2026
