HPE ProLiant Compute DL345 Gen12

Powered by 5th Generation AMD EPYC™ Processors with up to 192 cores, increased memory bandwidth (up to 6 TB), high-speed PCIe Gen5 I/O, and EDSFF storage, up to 12 LFF / 24 SFF / 36 EDSFF, and up to 4 double-width GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads.

What’s New

• – All-new DL345 Gen12 server.
• – New 5th Generation AMD EPYC™ Processors, up to 192 cores, 500W, and 512MB of L3 Cache.
• – New memory support: 24 DIMM slots, up to 6 TB.
• – New HPE Integrated Lights-Out 7 (iLO 7) server management.
• – New NS204i-u hot-pluggable NVMe boot device, at the front or rear of the chassis.

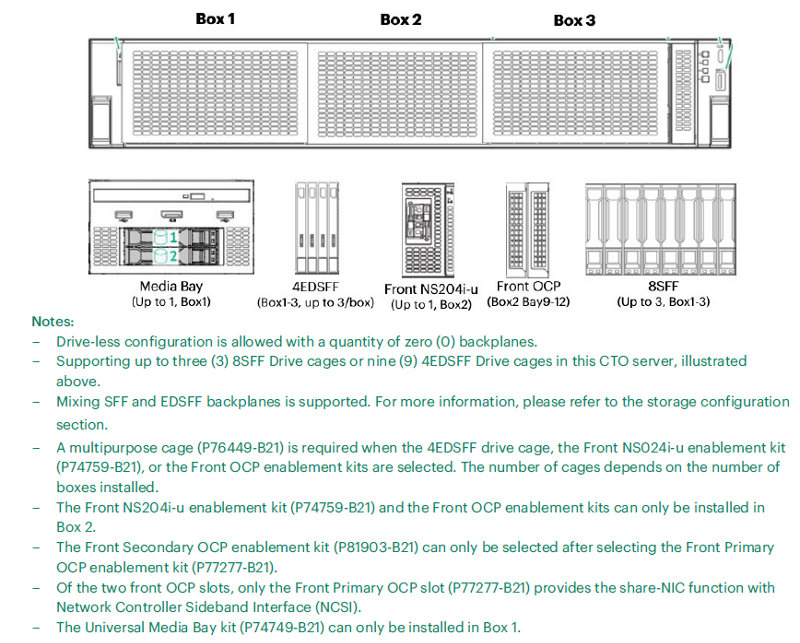

• – New flexible drive cage design, supporting mixing between SFF and EDSFF drive bays.
• – New front OCP 3.0 slots capability.
• – New GPU support, up to six (6) single-width or four (4) double-width GPUs.
• – New direct liquid cooling options.

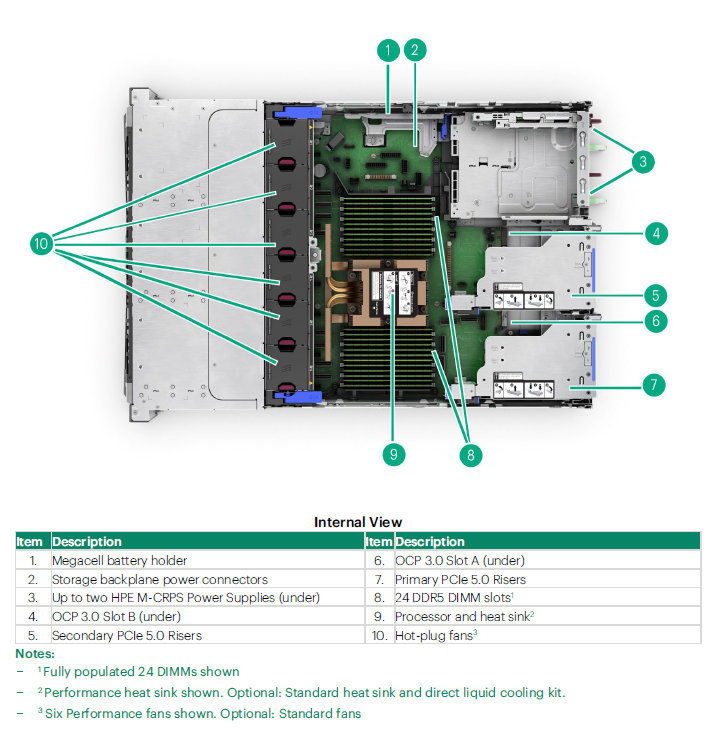

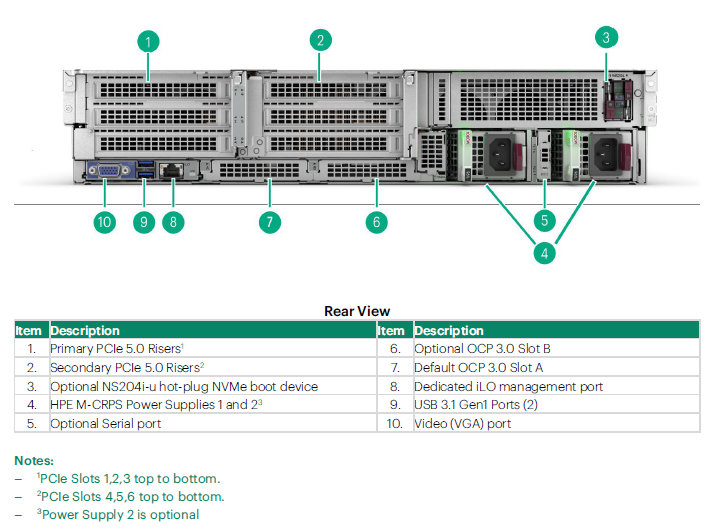

Platform Information

Form Factor

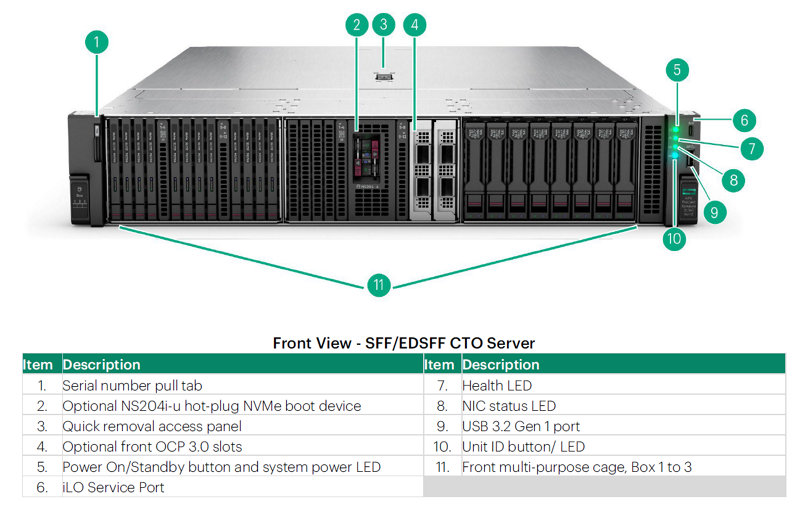

• – 2U rack

Chassis Types

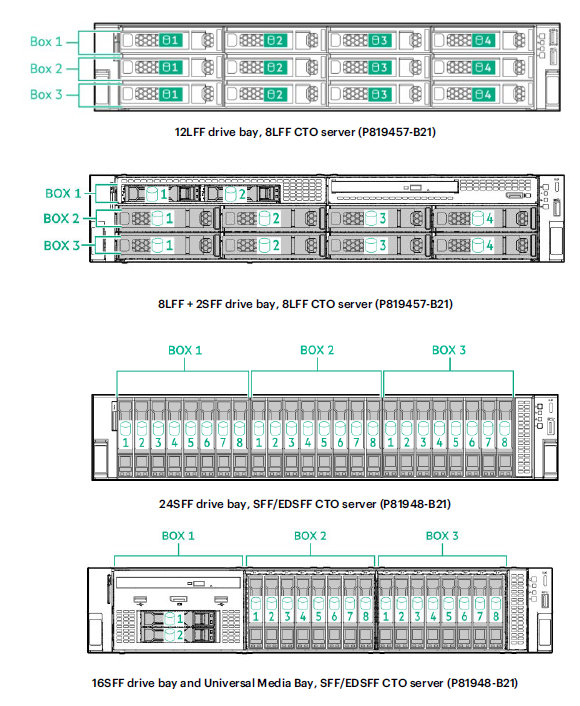

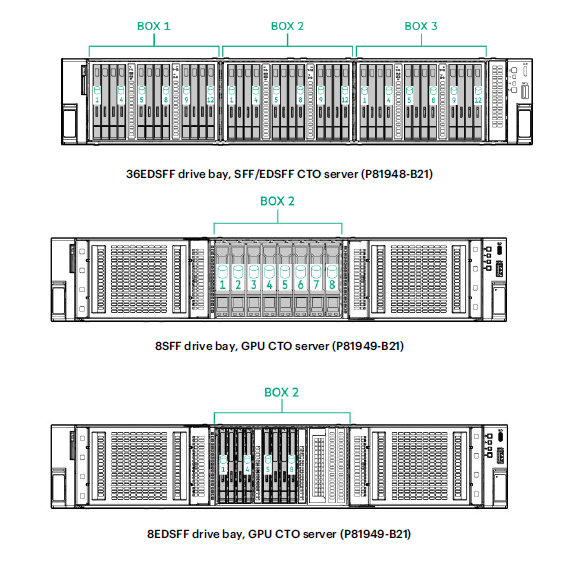

• – 24 SFF Basic Carriers (BC) drive cages, or 36 E3.S 1T drive cages (support mixing configuration).

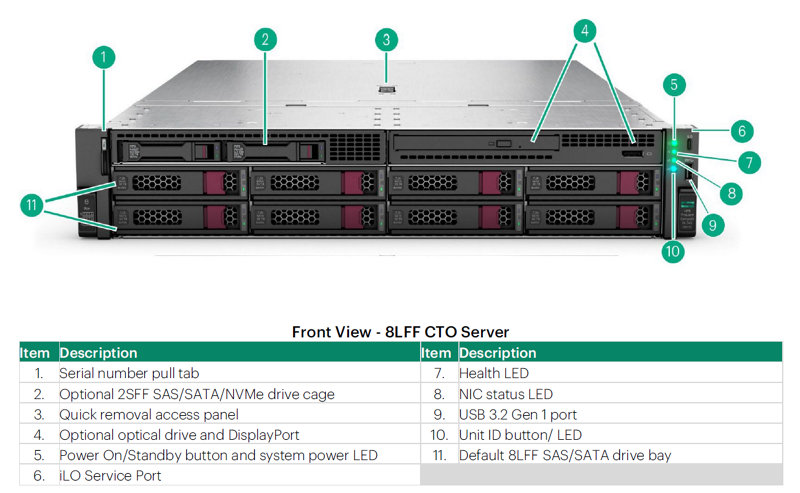

• – 8 LFF with optional 4 LFF drive bay or optical drive.

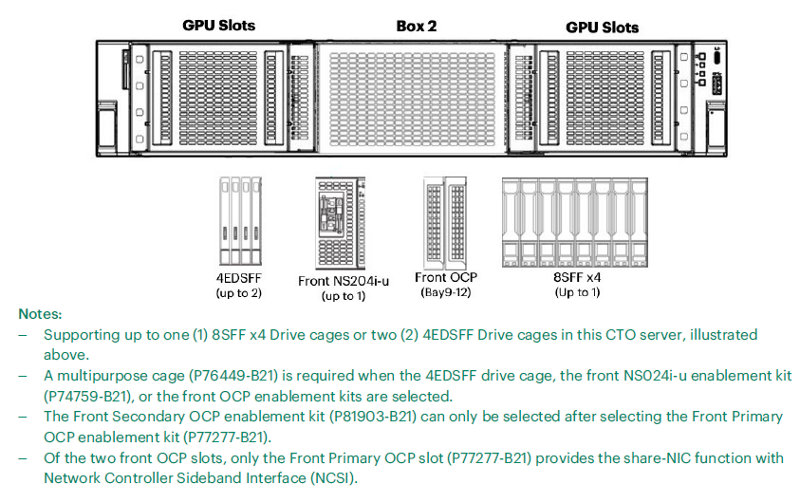

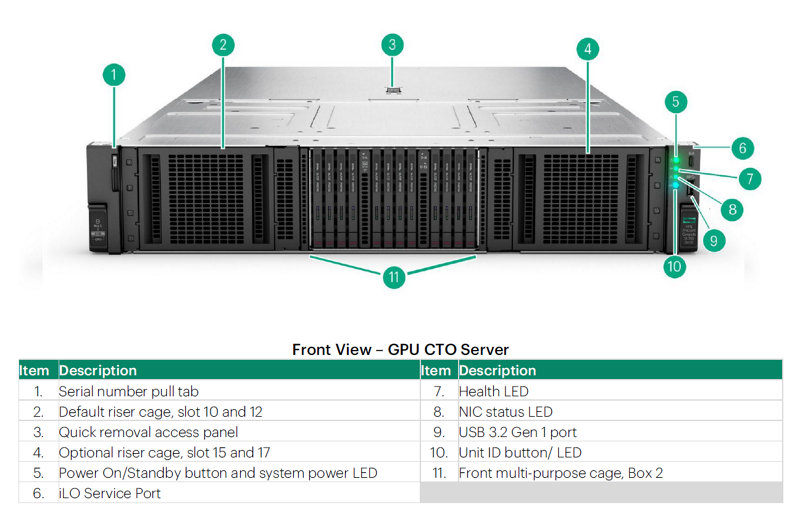

• – 4 Single-Width or 4 Double-Width GPUs with 8 E3.S 1T or 8 SFF drive bays.

System Fans

• – Choice of Standard Fan and Performance Fan Kit.

Notes:

– The HPE DL345 Gen12 supports up to 6 fans with fan redundancy. One fan rotor failure will place the server in degraded mode, but the server will remain fully operational. Two fan rotor failures could provide a warning of an imminent server shutdown.

– Each Fan kit is designed to operate in different configurations. For more information, please refer to the Power and Cooling options portion of the Core Options section.

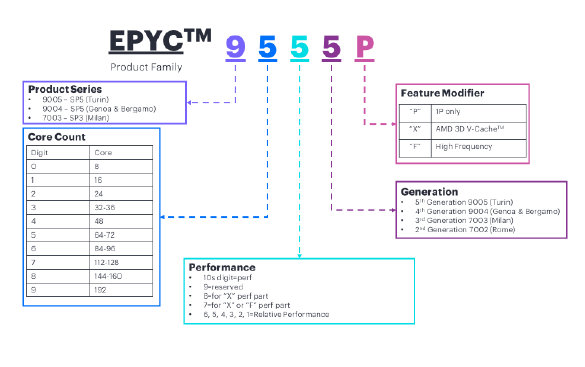

Processors –One of the following, depending on the model.

Notes: For more information regarding AMD EPYC™ processors, refer to the following:

https://www.amd.com/en/products/processors/server/epyc/9005-series.html

Notes:

– 6096-pin LGA SP5 socket type, 128 PCIe 5.0 Lanes per processor.

– All 5th-generation AMD EPYC™ processors can support up to 6 TB of memory each under 2DPC, 12 channels per processor.

– The DL345 Gen12’s maximum memory operating speed is 5200MT/s on 1DPC and 4400MT/s on 2DPC. Please refer to the memory of the core option section for more information.

– The wattage information indicates the processor's default cTDP (Configurable TDP).

Chipset

No chipset – System on Chip (SoC) design.

On System Management Chipset

HPE iLO 7 ASIC

Notes: Read and learn more in the iLO QuickSpecs

Memory

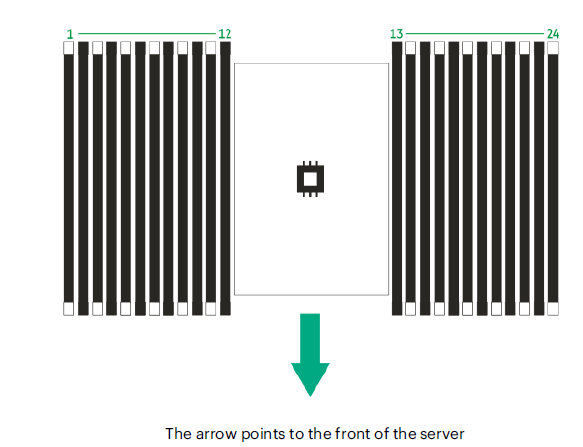

• – 12 channels DDR5 per socket.
• – 2 DIMMs per channel (2DPC), 24 DIMM slots in total.
• – DDR5 – Up to 5200MT/s 1DPC or 4400MT/s 2DPC.
• – 6 TB maximum memory per processor.
• – VR-on-DIMM Architecture.
• – RAS – Advanced ECC.

Notes:

• – All processors support up to 6 TB of memory per server.
• – LRDIMM and Persistent Memory are not supported.
• – For additional information, please refer to the HPE DDR5 Smart Memory QuickSpecs
• – For the Memory Population Rules and Guidelines with AMD EPYC™ 9005 series processors, please refer to:
• https://www.hpe.com/psnow/doc/a50012817enw

Expansion Slots

Notes:

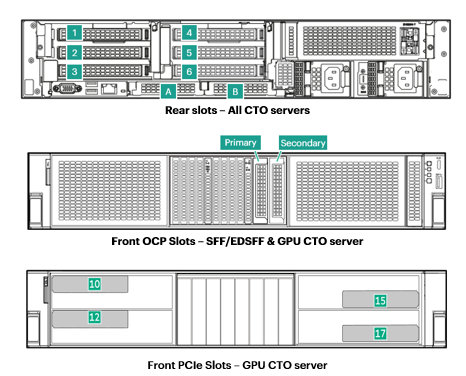

– Both rear OCP slots (slots A and B) and the front Primary OCP slot (Box 2 Bay 9) support shared-NIC and WOL (Wake on LAN) functions. Front Secondary OCP (Box2 Bay11) only supports WOL without the shared-NIC function.

– Bandwidth of the OCP B slot depends on the number of enablement kits selected.

– According to AMD’s CPU limitation, a maximum of 112GB/s bandwidth can be supported for each of the following configurations.

• Slot 5 / 12 and OCP A
• Slot 4 / 10 and Slot 6
• Slot 2 / 17 and Slot 3
• Slot 1 / 15 and OCP B

Storage Controllers

Boot Device Options

• – HPE NS204i-u v2 NVMe Hot Plug Boot Optimized Storage Device
• – HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device
• – HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

Notes:

– x4 PCIe Gen3.0 OS Boot device includes 2x M.2 NVMe SSDs, with preconfigured hardware RAID1

– For additional information, refer to: HPE OS Boot Device Options QuickSpecs or HPE NS204i Boot Device User Guide.

HPE Hardware RAID Controller Options

• – HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller
• – HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller
• – HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• – HPE MR408i-p Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• – HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller
• – HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
• – HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

Notes: For additional details, please visit: HPE Compute MR Controllers QuickSpecs

Internal Storage Devices

Optical Drive

• – Available as an option.

Drives

• – No ship standard

Graphics

Integrated Video Standard

• – Video modes up to 1920 x 1200@60Hz (32 bpp)
• – 16MB Video Memory

Modular Common Redundant Power Supplies (M-CRPS)

HPE’s M-CRPS power supplies are certified for high-efficiency operation and offer multiple power output options—both high-line and low-line—enabling users to right-size the power supply for specific server configurations. In addition to more secure firmware upgrades, and ease of serviceability, their flexibility helps reduce power waste, lower overall energy costs, and prevent "trapped" power capacity in the data center. HPE M-CRPS power supplies are available in two physical design options (73.5mm and 60mm widths), allowing for hot-plug, tool-less installation into select HPE ProLiant Gen12 Performance Servers. This server supports the following power supplies:

• – HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit
• – HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit
• – HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit
• – HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit
• – HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit

Notes: All of the above power supplies, except the 800W M-CRPS kit, are rated for 96% efficiency

For information on power specifications and technical content, visit HPE Server power supplies.

To determine the power requirements for your configuration, please use the HPE Power Advisor Tool. For information on power cords specifications visit the HPE Power Cords and Cables guide.

European Union ErP Lot 9 Regulation

Beginning January 1, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Ireland, Switzerland, or Turkey must include higher-efficiency AC power supplies: 94% efficiency for multi-output and 96% for single-output. HPE M-CRPS power supplies are single-output, and part numbers P67240-B21, P67244-B21, P67248-B21, and P67252-B21 meet the 96% efficiency requirement.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure their products are optimized, certified, and fully supported within your HPE server environment. Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

Notes: Minimum required version includes all future updates of the indicated release unless a maximum is listed in the Notes

Industry Standard Compliance

• – ACPI 6.1 Compliant
• – PCIe 5.0 Compliant
• – WOL Support
• – Microsoft® Logo certifications
• – PXE Support
• – VGA
• – DisplayPort
• Notes: Support from the optional Universal Media Bay
• – USB 3.2 Gen 1 Compliant
• – USB 2.0 Compliant
• – ENERGY STAR® 4.0
• – SMBIOS 3.1
• – UEFI 2.7
• – UEFI Class 3
• – Redfish API
• – IPMI 2.0
• – Secure Digital 2.0
• – Advanced Encryption Standard (AES)
• – Triple Data Encryption Standard (3DES)
• – SNMP v3
• – TLS 1.2
• – DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• – Active Directory v1.0
• – ASHRAE A3/A4
• Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit Extended Ambient Temperature Guidelines
• – APML 1.0

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/iLO.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/hpesc/public/docDisplay?docId=c04465280&docLocale=en_US

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC enablement on HPE ProLiant servers | HPE

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Compute Gen12 servers have a UEFI Class 3 implementation.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as

• – Secure Boot and Secure Start enable enhanced security
• – Operating system specific functionality
• – Support for > 2.2 TB (using GPT) boot drives
• – USB 3.1 Gen1 Stack
• – Embedded UEFI Shell
• – Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
• – PXE boot support for IPv6 networks
• – Workload Profiles for simple performance optimization
• – Embedded TPM Support

UEFI Boot Mode only

• – NVMe Boot Support
• – iSCSI Software Initiator Support.
• – HTTP/HTTPs Boot support as a PXE alternative.
• – Boot support for option cards that only support a UEFI option ROM

Notes:

– For UEFI Boot Mode, boot environment and OS image installation should be configured properly to support UEFI

– TPM is embedded on the DC-SCM and does not require additional option kit selection to enable this function.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations. To learn more, visit http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at https://www.hpe.com/us/en/servers/smart-update.html

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information, please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring, and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at https://www.hpe.com/us/en/software/oneview.html.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen12 rack, tower, or micro server.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

Security

Experience unparalleled security benefits with HPE ProLiant Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

• – HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.
• – Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and Self-Encrypting drives (SED) for enhanced data-at-rest protection.
• – Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.
• – Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.
• – HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.
• – Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.
• – Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle.

Please refer to the HPE ProLiant Gen12 Embedded Security QuickSpecs document for more detailed information at

http://psnow.ext.hpe.com/doc/a50009218enw

• – UEFI Secure Boot and Secure Start support
• – Secure Enclave - Silicon Root of Trust 2.0
• – Quantum resistant (PQC) readiness for signing firmware --- CNSA 2.0
• – FIPS 140-3 validation (Planned)
• – Common Criteria certification (Planned)
• – USGv6 ready (Section 508 --- VPAT)
• – Secure Standard Mode --- default security mode (equivalent of higher security mode in Gen 11)
• – Configurable for PCI DSS compliance
• – Advanced Encryption Standard (AES) on browser
• – Support for Commercial National Security Algorithms (CNSA)
• – Tamper-free updates --- components digitally signed and verified
• – Secure Recovery --- recover critical firmware to known good state on detection of compromised firmware
• – Ability to rollback firmware
• – Secure erase of NAND
• – TPM (Trusted Platform Module) 2.0
• – Front bezel key-lock feature --- standard, available in both Tower and Rack models
• – Padlock slot, standard
• – Kensington Lock slot, standard
• – Chassis Intrusion detection option

HPE Trusted Platform Module

Enabling HPE Trusted Platform Module (TPM) 2.0 no longer requires TPM module option kit for Gen12. It is an embedded feature for global shipments. User may manually disable TPM2.0 from the BIOS setting.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates, and encryption keys.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard and provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit http://www.hpe.com/info/oneview.

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning, and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be completed using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://www.hpe.com/support/ProLiantServers-Warranties

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management, and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with the enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher-density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments, and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs, and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

• – A complete coverage approach
• – An assigned HPE team
• – Modular and fully personalized engagement
• – Enhanced Incident Management experience with priority access
• – Digitally enabled and AI driven customer experience.

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

For more information about memory, please go to HPE DDR5 Smart Memory QuickSpecs

For details on the Memory Population Rules and Guidelines with AMD EPYC™ 9005 series processors, please go to: https://www.hpe.com/psnow/doc/a50012817enw.

Notes:

• – The quantity of DIMMs selected per socket must be 1, 2, 4, 6, 8, 10, 12, 16, 20, or 24.
• – Mixing of x4 memory and x8 memory is not supported
• – Mixing of 3DS memory and non-3DS memory is not supported.
• – 1DPC speed: Quantity of 1/2/4/6/8/10/12 DIMMs installed.
• – 2DPC speed: Quantity of 16/20/24 DIMM installed.
• – Not supporting 5600 MT/s or 4800 MT/s DIMMs with Turin processors.
• – The -B21 memory SKUs shown in this document are to be used when ordering stand -alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs

Storage

Please select the preferred storage configuration for each CTO server and choose the available controller and cable options.

Storage Configurations for each CTO server

Notes: Config ID = Smart Chassis config ID#; DA = Direct Attach; Ctrlr = HPE Storage Controllers; Lanes = number of lanes per drive. For example, x4 NVMe DA means that each NVMe drive has a direct PCIe 4-lane connection to the processor.

8LFF CTO server (P81947-B21)

GPU CTO server (P81949-B21)

SFF/EDSFF CTO server (P81948-B21)

The thermal support matrix for the networking options with the AOC/transceiver is as follows:

PCIe Standup Ethernet and InfiniBand adapters

Notes:

− ­ Options that are not on the list can be supported at 30 °C with AOC.

− ­ If the slot number is not identified in the matrix, then the ambient temperature applies to all available slots of that type (PCIe standup or OCP).

OCP 3.0 Ethernet adapters
