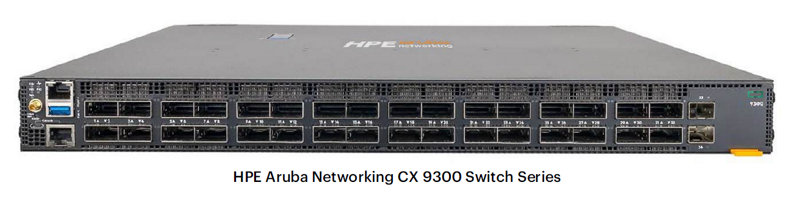

HPE Aruba Networking CX 9300 Switch Series QuickSpecs
High Performance Enterprise Data Center Switch
The HPE Aruba Networking CX 9300 Switch Series is a next-generation 25.6Tbps, 1U fixed configuration switch supporting 32-ports of 100GbE, 200GbE or 400GbE*. The switch is an ideal solution for flexible, cost-effective, high-density 400GbE networking for server, storage, and intra-fabric connectivity. This solution helps protect enterprise’s investment as they transition server farms from 10GbE and 10GbE/25GbE to 100GbE/400GbE EVPN-VXLAN leaf and/or spine configurations at reduced power and a smaller footprint.
The CX 9300 Switch Series supports large Data Center PODS of up to 6,000 x 25GbE servers or up to 2,000 x 100GbE servers. This is an 8x jump in scaling/density over current CX 8325-32C, which scales to 700 x 25GbE servers.
-
CX 9300 Switch Series can be used as a 100GbE Leaf or 100GbE/400GbE Spine switch (128 x 100GbE or 64 x 200GbE ports using breakouts).
When deployed as a Spine, the CX 9300 Switch Series flexibility connects to a range of leaf switches including CX 8325 Switch Series, CX 8360 Switch Series, or CX 10000 Switch Series.
With the most recent AOS-CX release, the CX 9300-32D and CX 8325 switches provide an ideal solution for data center, cloud and storage use cases that support top-of-rack server/storage connectivity and scale-out leaf-spine fabric topologies. These innovative AOS-CX enhancements provide storage‑optimization to ensure low-latency and “lossless” network QoS and connectivity characteristics that storage requires.
Notes: *25GbE or 50GbE split-out feature to be enabled in a future software release
Key Features
- – High performance 25.6Tbps with 5Bpps
- – High Density 32 x 400GbE connectivity in 1RU form factor
- – High availability with industry-leading VSX redundancy, and redundant power supplies and fans
- – Designed for Spine, Core/Aggregation, Top of Rack or Leaf, or End of Row in the data center
- – AOS-CX automation and programmability using built-in REST APIs and Python scripts
- – Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
- – Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
- – Intelligent monitoring, visibility, and remediation with Network Analytics Engine
- – HPE Storage Networking Optimized
- – NetEdit support for automated configuration and verification
-
AOS-CX - A Modern Software System
The HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks. A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks. AOS-CX operating system features are organized into CX Foundation and CX Advanced software licenses.
Every CX switch includes an active, embedded CX Foundation license at no additional cost with the option to upgrade to a CX Advanced license.
The CX Foundation license has everything needed to deploy, connect, and troubleshoot an enterprise network, including:
- – Network Analytics Engine (NAE)
- – Dynamic Segmentation
- – Switch Stacking
- – High Availability and Resiliency
- – Quality of Service (QoS)
- – Layer 2 Switching
- – Layer 3 Services and Routing
- – IP Multicast
- – Network Security
- – Support for NetEdit
The CX Advanced license includes CX Edge Insights, offering deep visibility with application recognition, identification, and flow capture from layer 4 to layer 7.
For more information on the CX Advanced License, read the CX Switch License Ordering Guide.
Because AOS-CX is built on a modular Linux architecture with a stateful database, our operating system provides the following unique capabilities:
- – Easy access to all network state information allows unique visibility and analytics
- – REST APIs and Python scripting for fine-grained programmability of network tasks
- – A micro-services architecture that enables full integration with other workflow systems and services
- – Continual state synchronization that provides superior fault tolerance and high availability
- – Supports Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf- spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
- – All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency and allowing individual software modules to be independently upgraded for higher availability.
HPE Aruba Networking Central, Cloud-Based Network Management
Flexible cloud-based or on-premises management for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Designed to simplify day zero through day two operations with streamlined workflows. Switch management capabilities include configuration, onboarding, monitoring, troubleshooting, and reporting.
A Central Foundation license subscription enables comprehensive switch management capabilities that include configuration, onboarding, monitoring, troubleshooting, and reporting. A Central Advanced license expands these capabilities with premium security and AIOps, including the Central NetConductor Fabric Wizard and Policy Manager to enable dynamic segmentation and distributed enforcement at a global scale.
With the Central Advanced license there is no need to purchase a CX Advanced license. This streamlines operational efficiency, reducing the need for your IT team to keep track of multiple licenses, active terms, and renewal dates. For more information on Central licensing, see the Central SaaS Subscription Ordering Guide.
Network Analytics Engine
For enhanced visibility and troubleshooting, Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact a networks health. Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily, through the use of python agents, CLIbased agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues. The data may also be used to analyze trends, identify anomalies and predict future capacity requirements.
NetEdit – Automated Switch Configuration and Management
The entire CX portfolio empowers IT teams to orchestrate multiple switch configuration changes for smooth end-to-end service rollouts. NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:
- – Centralized configuration with validation for consistency and compliance.
- – Time savings via simultaneous viewing and editing of multiple configurations.
- – Customized validation tests for corporate compliance and network design.
- – Automated large-scale configuration deployment without programming.
- – Network health and topology visibility via NAE integration.
Notes: A separate software license is required to use NetEdit.
HPE Ethernet Storage Fabric Optimized
CX 9300 Switch Series provides an ideal solution for data center, cloud and storage use cases that support top-of-rack server and storage connectivity and scale-out leaf-spine fabrics. AOS-CX adds storage-optimization enhancements to ensure the low-latency, lossless network QoS and connectivity characteristics that storage requires.
Virtual Switching Extension
The ability of AOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Virtual Switching Extension (VSX). VSX is delivered through redundancy gained by deploying two chassis with an inter-switch link, with each chassis maintaining its independent control.
Designed using the best features of existing HA technologies such as Multi-chassis Link Aggregation (MC-LAG) and Virtual Switching Framework (VSF), VSX enables a distributed architecture that is highly available during upgrades or control plane events. Features include:
- – Continuous configuration synchronization via AOS-CX
- – Flexible active-active network designs at Layers 2 and 3
- – Operational simplicity and usability for easy configuration
- – High availability by design during upgrades including support for VSX Live Upgrade with LACP traffic draining.
Product Capabilities
Performance
High-Speed Fully Distributed Architecture
- – Provides 25.6Tbps for bidirectional switching and 5Bpps for forwarding. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future
Scalable System Design
- – Provides investment protection to support future technologies and higher-speed connectivity
Connectivity
High Density Port Options
Choice of compact high density port 1U switches with airflow direction flexibility include model with:
- – 32-ports of 100GbE, 200GbE or 400GbE. 400 Gbps Ports can be configured as 4x100GbE, 2x200GbE, or 1x400GbE.
Jumbo Frames
- – Allows high-performance backups and disaster-recovery systems; supports a maximum frame size of 9K bytes
Unsupported Transceiver Mode (UTM)
- – Allows enabling unsupported transceiver and cable for up to 400G
- – Using unsupported transceiver/cable can void warranty, gets no support, and comes with no guarantee of operating
Loopback
- – Supports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility
Packet Storm Protection
- – Protects against unknown broadcast, multicast, or unicast storms with user-defined thresholds
Quality of Service (QoS)
- – Strict Priority (SP) Queuing and Deficit Weighted Round Robin (DWRR)
- Enable congestion avoidance
- – Data Center Bridging (DCB)
- Supports lossless Ethernet networking standards to eliminate packet loss due to queue overflow
- Priority Flow Control (PFC) 7 priorities per port
- Enhanced Transmission Service (ETS)
- DCB Exchange Protocol (Pre-standard LLDP DCBX IEEE 1.01 version)
- – Flow-Control Guard
- Prevents accumulation of excessive congestion with periodic flushing. Avoids packets buffering for an extended time period
- – ECN with slope
- Marks packets as ECN-CE (Congestion Experienced. Helps TCP to reduce receive window size during congestion)
- – Advanced lossless pool configuration
- – Global buffering statistics
- – Storage Solution Support
- iSCSI, Lossless iSCSI, RDMA over Converged Ethernet version 2 (RoCE v1 and v2) and Non-Volatile Memory Express (NVMeOF)
Resiliency and High Availability
Redundant and Load-Sharing Fans and Power Supplies
- – Increases total performance and power availability
Hot swappable Power Supply and Fan Modules
- – Allows replacement of accessory modules without any operational impact on other modules or the switch operations
Separate Data and Control Paths
- – Separates control from services and keeps service processing isolated; increases security and performance
Virtual Switching Extension (VSX)
- – VSX enables a distributed and redundant architecture by deploying two switches with each switch maintaining independent control yet staying synchronized during upgrades or failover. Also supports upgrades during live operation
Virtual Router Redundancy Protocol (VRRP)
- – VRRP allows a group of switches to dynamically back each other up to create highly available routed environments
- – It also supports route-leaking to/from default VRF
Bidirectional Forward Detection (BFD)
- – Enable sub-second failure detection for rapid routing protocol re-balancing
Ethernet Ring Protection Switching (ERPS)
- – Supports rapid protection and recovery in a ring topology.
Unidirectional Link Detection (UDLD)
- – Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
IEEE 802.3ad LACP
- – Supports up to 128 LAGs, with up to 16 members per LAG (32 for a VSX pair), with a user-selectable L1- 4 hashing algorithm
Management
In addition to the CX Mobile App, NetEdit and Network Analytics Engine, the CX 9300 Switch Series offers the following:
Built-in programmable and easy to use REST API interface
Industry-Standard CLI with a Hierarchical Structure
- – Reduces training time and expenses, and increases productivity in multivendor installations
Management Security
- – Restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide SNMP access; local and remote Syslog capabilities allow logging of all access.
- – Private VLAN (PVLAN) provides traffic isolation between users on the same VLAN. Typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address. This extends network security by restricting peer-peer communication to prevent variety of malicious attacks.
IPSLA
- – Monitors the network for degradation of various services, including voice.
- – Monitoring is enabled via the NAE for history and for immediate automated gathering of additional information when anomalies are detected
SNMP v2c/v3
- – Provides SNMP read and trap support of industry standard Management Information Base (MIB), and private extensions
- – It supports STP TCN Trap, STP New Root and SNMP-Write- Set-Description on Interface.
sFlow® (RFC 3176)
- – Provides scalable ASIC-based wire speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
gNMI support
- – Supports OpenConfig standardized YANG model for gNMI Streaming Telemetry
Remote Monitoring (RMON)
- – Uses standard SNMP to monitor essential network functions and supports events, alarms, history, and statistics groups as well as a private alarm extension group
TFTP and SFTP Support
- – Offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/ IP network
- – Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Debug and Sampler Utility
- – Supports ping and traceroute for IPv4 and IPv6
Network Time Protocol (NTP)
- – Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network
- – Can serve as the NTP server in a customer network
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- – Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
LACP-fallback
- – Enables Zero Touch Provisioning over Link Aggregation Groups.
Dual Flash Images
- – Provides independent primary and secondary operating system files for backup while upgrading
Multiple Configuration Files
- – Stores files easily to the flash image
Layer 2 Switching
VLAN
- – Supports up to 4,040 port-based or IEEE 802.1Q-based VLANs
VLAN Translation
- – Remaps VLANs during transit across a core network
Bridge Protocol Data Unit (BPDU) Tunneling
- – Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
Port Mirroring
- – Duplicates port traffic (ingress and egress) to a local or remote monitoring port; supports 4 mirroring groups, with an unlimited number of ports per group
STP
- – Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Rapid Per-VLAN Spanning Tree Plus (RPVST+)
- – Allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs
Internet Group Management Protocol (IGMP)
- – Controls and manages the flooding of multicast packets in a Layer 2 network
Static VXLAN
- – Allows operators to manually connect two or more VXLAN tunnel endpoints (VTEP)
Dynamic VXLAN with BGP-EVPN
- – Deep segmentation for Spine/Leaf data center networks or Layer 3 campus designs with centralized gateway and symmetric Integrated Routing and Bridging (IRB) based distributed gateways VXLAN tunnels.
- – EVPN and VXLAN features include inbound and outbound route map support, matching L3VNI matching, local-preference setting, ip next-hop, as-path prepend, ip/ipv6 address prefix-list matching.
- – VXLAN DC multi-fabric DCI support.
Multicast
- – PIM Multicast Boundary (v4)
- – VSX Graceful shutdown for IGMP/MLD
- – Multicast NSF
IPv4 Multicast in VXLAN/EVPN Overlay
- – Enable PIM-SM/IGMP snooping in the VXLAN Overlay
IPv6 VXLAN/EVPN Overlay Support
- – Enables IPv6 traffic over the VXLAN overlay
VXLAN Distributed Anycast Gateway
- – Addressing mechanism that enables the use of the same gateway IP addresses across all the leaf switches part of a VXLAN network.
- – It supports VSX active forwarding for VXLAN underlay.
VXLAN ARP/ND Suppression
- – Allows minimization of ARP and ND traffic flooding within individual VXLAN segments, thus optimizing the VXLAN network
Layer 3 Services
Address Resolution Protocol (ARP)
- – Determines the MAC address of another IP host in the same subnet; supports static ARPs
- – Gratuitous ARP allows detection of duplicate IP addresses
- – Proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
IP Directed Broadcast
- – Supports directed broadcast on configured network subnets
Dynamic Host Configuration Protocol (DHCP)
- – DHCP services are offered within a client network to simplify network management
- – DHCP Relay enables DHCP operation across subnets
DHCP Server
- – Supports DHCP Smart Relay services (for IPv4 and IPv6) in customer networks
- – DHCP relay coexistence with server
- – Allows DHCP relay coexistence with DHCP server for both IPv4 and IPv6
Domain Name System (DNS)
- – Provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server
- – It also supports mDNS Gateway.
Generic Routing Encapsulation (GRE)
- – Enables tunneling traffic from site to site over a Layer 3 path
Layer 3 Routing
Static IPv4 routing
- – Provides simple manually configured IPv4 routing
Open shortest path first (OSPF)
- – Delivers faster convergence; uses link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery.
- – Enhanced features include configurable OSPF distance for type-5 LSA and configurable default-metric for OSPF default-information guide.
Loopback IP redistribution in OSPF
- – Allows redistribution of IPv4 and IPv6 addresses of loopback interface in OSPF v2/v3
IP sub-interface
- – IP sub-interface enabled for ingress & egress ACL/Policies, unicast and multicast routing, etc
Border Gateway Protocol 4 (BGP-4)
- – Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
Dynamic BGP Peering
- – Simplifies BGP configuration for ZTP scenarios and enables CX for Azure stack integration Routing Information Protocol version 2 (RIPv2)
- – Easy to configure routing protocol for small networks relying on User Datagram Protocol (UDP)
Routing Information Protocol Next Generation (RIPng)
- – Extension of RIPv2 for support of IPv6 networking
Multiprotocol BGP (MP-BGP) with IPv6 Address Family
- – Enables sharing of IPv6 routes using BGP and connections to BGP peers using IPv6
Policy Based Routing (PBR)
- – Enables using a classifier to select traffic that can be forwarded based on policy set by the network administrator
6in4 Tunnels
- – Supports the tunneling of IPv6 traffic in an IPv4 network
IP Performance Optimization
- – Provides a set of tools to improve the performance of IPv4 networks; includes directed broadcasts, customization of TCP parameters, support of ICMP error packets, and extensive display capabilities
Dynamic Pool Configuration
- – Enables lossless pool configuration without switch reboot
Static IPv6 Routing
- – Provides simple manually configured IPv6 routing
Dual IP Stack
- – Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
OSPFv3
- – Provides OSPF support for IPv6
Equal-Cost Multipath (ECMP)
- – Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
Generic Routing Encapsulation (GRE)
- – Enables tunneling traffic from site to site over a Layer 3 path
Visibility
Customers can choose to upgrade the active, embedded CX Foundation license to the term-based CX Advanced license to unlock the following benefits for their business:
- – Delivers deep visibility with CX Edge Insights for application recognition, identification, and flow capture from layer 4 to layer 7. CX Edge Insights enables granular datapoint collection with search, sort and reporting as well as the ability to recognize 22 categories and more than 3700 applications.
Security
TAA Compliance
- – TAA compliant product, uses FIPS 140-2 validated cryptography for protection of sensitive information
Federal Certification
- – Compliant with DoDIN, APL, NDcPP, FIPS, and USGv6 requirements for federal certifications.
Access control list (ACL) Features
- – Supports powerful ACLs for both IPv4 and IPv6. Supports creation of object groups representing sets of devices like IP addresses. For instance, IT management devices could be grouped in this way
- – ACLs can also protect control plane services such as SSH, SNMP, NTP or web servers Enrollment over Secure Transport (EST)
- – Enables secure certificate enrollment, allowing for easier enterprise management of PKI.
Remote Authentication Dial-In User Service (RADIUS)
- – Eases security access administration by using a password authentication server Terminal Access Controller Access-Control System (TACACS+)
- – Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
RadSec
- – Enable RADIUS authentication and accounting data to be passed safely and reliably across insecure networks such as the internet
Management access security
- – AOS-CX provides for both on-box as well as off- box authentication for administrative access. RADIUS or TACACS+ can be used to provide encrypted user authentication
- – Additionally, TACACS+ can also provide user authorization services Secure shell (SSHv2)
- – Uses external servers to securely log in to a remote device; with authentication and encryption, it protects against IP spoofing and plain-text password interception; increases the security of Secure FTP (SFTP) transfers
Multicast
Internet Group Management Protocol (IGMP)
- – Enables establishing multicast group memberships in IPv4 networks; supports IGMPv1, v2, and v3
Multicast Listener Discovery (MLD)
- – Enable discovery of IPv6 multicast listeners; supports MLDv, v2.
Multicast Service Delivery Protocol (MSDP) for Anycast RP
- – MSDP used for Anycast RP is an intradomain feature that provides redundancy and load-sharing capabilities.
MSDP Mesh Groups
- – Allows to avoid SA messages flood to other mesh group peers.
PIM-Dense Mode
- – Floods multicast traffic to every corner of the network (push-model). Method is for delivering data to receivers without receivers requesting the data. Can be efficient in certain deployments in which there are active receivers on every subnet in the network. Branches without downstream receivers are pruned from the forwarding trees.
FastLeave (FL) and Forced-FastLeave (FFL)
- – FL and FFL for IGMP/MLD speed up the process of blocking unnecessary Multicast traffic to a switch port that is connected to end nodes for IGMP. They help to eliminate the CPU overhead of having to generate an IGMP/MLD Group- Specific Query message.
Protocol Independent Multicast (PIM)
- – Protocol Independent Multicast for IPv4 and IPv6 supports one-to-many and many-to-many media casting use cases such as IPTV over IPv4 and IPv6 networks. Support for PIM Sparse Mode (PIM-SM, IPv4, IPv6), Source- Specific Multicast (SSM), and Dense Mode (DM).
Additional information
- – Green initiative support
- – Provides support for RoHS (EN 50581:2012) regulations
Korea Government Security Features
- – Ensure configuration integrity
- – Limit concurrent users for web access
- – Platforms: All CX platforms
Analytics
- – AIOPS - NAE Agent & Engine Improvements – Unicast Routing
- – AIOPS - NAE Agent & Engine Improvements – Client Services
Customer first, customer last support
When your network is important to your business, then your business needs the backing of Support Services. Partner with product experts to increase your team productivity, keep pace with technology advances, software releases, and obtain break-fix support.
Tech Care for support services include priority access to Technical Assistance Center(TAC) engineers 24x7x365, flexible hardware and onsite support options, and total coverage for products. HPE Aruba Networking switches with assigned Networking Central subscriptions benefit with option for additional hardware support only.
Pro Care adds fast access to senior TAC engineers, who are assigned as a single point of contact for case management, reducing the time spent addressing and resolving issues.
For complete details on Tech Care and Pro Care, please visit: https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html
Warranty, services and support
Limited Lifetime Warranty
- – See https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html for warranty and support information included with your product purchase.
For more detailed information AOS-CX software releases and features AOS-CX Switch Software Documentation Portal.
For Support and Services information, visit https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html
BTO Models | ||
| | AC Bundles | |
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 15, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle | S0F82A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle PDU | S0F82A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle PDU | S0F82A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC 220v Bundle | S0F82A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle NoLoc | S0F82A#AC3 |
| |
| |
| 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle | S0F84A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle PDU | S0F84A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle PDU | S0F84A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC 220v Bundle | S0F84A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle NoLoc | S0F84A#AC3 |
| |
| |
| 1 , 2, 3, 4, 5, 6, 7, 9, 10, 12, 13, 14, 16 | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle | R9A29A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle | R9A29A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle | R9A29A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle | R9A29A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle | R9A29A |
| |
| |
| 1, 2, 3, 4, 5, 6, 7, 9, 12, 10, 13, 14, 16 | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle | R9A30A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle | R9A30A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle | R9A30A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle | R9A30A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle | R9A30A |
| |
| |
| | DC Bundles | |
| 1, 2, 3, 6, 7, 9, 10, 11, 12, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC Bundle | S0F88A |
| |
| |
| | AC TAA Bundles | |
| 1, 2, 3, 6, 7, 9, 10, 11, 12, 15, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bundle | S0F81A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bdl PDU | S0F81A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bdl PDU | S0F81A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA 220v Bdl | S0F81A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bdl NoLoc | S0F81A#AC3 |
| |
| |
| 1, 2, 3, 6, 7, 9, 10, 11, 12, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA Bundle | S0F83A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA Bdl PDU | S0F83A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA Bdl PDU | S0F83A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA 220v Bdl | S0F83A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6Fs 2xAC TAA Bdl No Loc | S0F83A#AC3 |
| |
| |
| | DC TAA Bundles | |
| 1, 2, 3, 6, 7, 9, 10, 11, 12, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC TAA Bundle | S0F87A |
| |
| |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 4x100G DR QSFP-DD SN 500m SMF Transceiver | S3N90A |
| | HPE Aruba Networking 4x100G FR QSFP-DD SN 2km SMF Transceiver | S3N91A |
| | HPE Aruba Networking 4x100G LR QSFP-DD SN 10km SMF Transceiver | S3N92A |
| | HPE Aruba Networking 400G DR4 QSFP-DD MPO12 500m SMF Transceiver | S3N93A |
| | HPE Aruba Networking 400G PLR4 QSFP-DD MPO12 10km SMF Transceiver | S3N94A |
| | HPE Aruba Networking 400G QSFP-DD MPO-16 SR8 100m MMF Transceiver | R9B41A |
| | HPE Aruba Networking 400G QSFP-DD MPO-12 eDR4 2km SMF Transceiver | R9B42A |
| 2 | The following AOC's install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable | R9B60A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable | R9B58A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable | R9B61A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable | R9B59A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3m Active Optical Cable | R9B55A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7m Active Optical Cable | R9B53A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15m Active Optical Cable | R9B57A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30m Active Optical Cable | R9B56A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50m Active Optical Cable | R9B54A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3m Active Optical Cable | R9B50A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7m Active Optical Cable | R9B48A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15m Active Optical Cable | R9B52A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30m Active Optical Cable | R9B51A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50m Active Optical Cable | R9B49A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 3m Active Optical Cable | R9B45A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 7m Active Optical Cable | R9B43A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 15m Active Optical Cable | R9B47A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 30m Active Optical Cable | R9B46A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 50m Active Optical Cable | R9B44A |
| 3 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver | S4B44A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | R9B63A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver | S3N88A |
| | HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver | S3N89A |
| | HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver | S1C93A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| 4 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 5 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:
| |
| 6 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| 7 | If qty1 of the folowing QSA28 Adapter(845970-B21) is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use #0D1 for this XCVR Adapter since switch is factory racked) | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 10G Ind-Temp SFP+ LC SR 300m MMF Transceiver | JL782A |
| | HPE Aruba Networking 10G Ind-Temp SFP+ LC LR 10km SMF Transceiver | JL783A |
| | HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Downstream 1330/1270 Transceiver | R9X54A |
| | HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Upstream 1270/1330 Transceiver | R9X55A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF TAA Transceiver | S2N63A |
| 9 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G FR4 QSFP-DD LC 2km SMF Transceiver | S3N95A |
| | HPE Aruba Networking 400G LR4 QSFP-DD LC 10km SMF Transceiver | S3N96A |
| 10 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R0Z25A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R0Z26A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable | JL307A |
| 11 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | JH234A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | JH235A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | JH236A |
| 13 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE 100GbE QSFP28 500m 1310mm PSM4 Transceiver | Q8J73A |
| 12 | If ANY Option is integrated 0D1 to this Switch, then the Switch requires 0D1. (Box level integration is not allowed) | |
| 14 | The following Transceiver and DACs with 8 split ends install into this Switch with max qty 16: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G PLR8 QSFP-DD 2xMPO12 10km SMF Transceiver | S4B35A |
| | HPE Aruba Networking 200G QSFP-DD to 8x SFP28 2m Direct Attach Cable | S4B39A |
| | HPE Aruba Networking 200G QSFP-DD to 8x SFP28 3m Direct Attach Cable | S4B40A |
| | HPE Aruba Networking 400G QSFP-DD to 8x SFP56 1m Direct Attach Cable | S4B41A |
| | HPE Aruba Networking 400G QSFP-DD to 8x SFP56 2m Direct Attach Cable | S4B42A |
| 15 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G ZR QSFP-DD 80km SMF Digital Coherent Tunable Transceiver | S4B38A |
| 16 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 200G SR4 QSFP56 MPO12 100m MMF Transceiver | S4B43A |
| | HPE Aruba Networking 200G QSFP56 to QSFP56 1m Direct Attach Cable | S4B36A |
| | HPE Aruba Networking 200G QSFP56 to QSFP56 2.5m Direct Attach Cable | S4B37A |
| Notes: | − Drop down under power supply should offer the following options and results:
− Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab − OCA Only Model Selection Form - HPE Aruba Networking > Switches > HPE ANW AOS-CX >9300 Switch Series | |
Rack Level Integration CTO Models | ||
| | AC Bundles | |
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 15, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle | S0F82A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle PDU | S0F82A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle PDU | S0F82A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC 220v Bundle | S0F82A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle NoLoc | S0F82A#AC3 |
| |
| |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle | S0F84A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle PDU | S0F84A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle PDU | S0F84A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC 220v Bundle | S0F84A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC Bundle NoLoc | S0F84A#AC3 |
| |
| |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 13, 14, 16 | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle | R9A29A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle PDU | R9A29A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle PDU | R9A29A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle 220v | R9A29A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle NoLoc | R9A29A#AC3 |
| |
| |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 13, 14, 16 | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle | R9A30A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle PDU | R9A30A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle PDU | R9A30A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle 220v | R9A30A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle NoLoc | R9A30A#AC3 |
| |
| |
| | DC Bundles | |
| 1, 2, 3, 6, 7, 8, 9, 10, 11, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC Bundle | S0F88A |
| |
| |
| | AC TAA Bundles | |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 15, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bundle | S0F81A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bdl PDU | S0F81A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bdl PDU | S0F81A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA 220v Bdl | S0F81A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC TAA Bdl NoLoc | S0F81A#AC3 |
| | – No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P) | |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA Bundle | S0F83A |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA Bdl PDU | S0F83A#B2B |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA Bdl PDU | S0F83A#B2C |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xAC TAA 220v Bdl | S0F83A#B2E |
| |
| |
| | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6Fs 2xAC TAA Bdl No Loc | S0F83A#AC3 |
| |
| |
| | DC TAA Bundles | |
| 1, 2, 3, 5, 7, 8, 10, 11, 16 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC TAA Bundle | S0F87A |
| |
| |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 4x100G DR QSFP-DD SN 500m SMF Transceiver | S3N90A |
| | HPE Aruba Networking 4x100G FR QSFP-DD SN 2km SMF Transceiver | S3N91A |
| | HPE Aruba Networking 4x100G LR QSFP-DD SN 10km SMF Transceiver | S3N92A |
| | HPE Aruba Networking 400G DR4 QSFP-DD MPO12 500m SMF Transceiver | S3N93A |
| | HPE Aruba Networking 400G PLR4 QSFP-DD MPO12 10km SMF Transceiver | S3N94A |
| | HPE Aruba Networking 400G QSFP-DD MPO-16 SR8 100m MMF Transceiver | R9B41A |
| | HPE Aruba Networking 400G QSFP-DD MPO-12 eDR4 2km SMF Transceiver | R9B42A |
| 2 | The following AOCs install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable | R9B60A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable | R9B58A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable | R9B61A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable | R9B59A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3m Active Optical Cable | R9B55A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7m Active Optical Cable | R9B53A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15m Active Optical Cable | R9B57A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30m Active Optical Cable | R9B56A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50m Active Optical Cable | R9B54A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3m Active Optical Cable | R9B50A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7m Active Optical Cable | R9B48A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15m Active Optical Cable | R9B52A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30m Active Optical Cable | R9B51A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50m Active Optical Cable | R9B49A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 3m Active Optical Cable | R9B45A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 7m Active Optical Cable | R9B43A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 15m Active Optical Cable | R9B47A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 30m Active Optical Cable | R9B46A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 50m Active Optical Cable | R9B44A |
| 3 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | R9B63A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver | S3N88A |
| | HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver | S3N89A |
| | HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver | S1C93A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| 4 | OCA Only: Required Custom Choice (Min1/Max1) Switch/Router/Power Supply to PDU Power Cord - B2B in North America, Mexico, Taiwan, and Japan or B2C ROW. (OCA Default B2B or B2C for Rack Level CTO) Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO) High Volt Switch/Router/Power Supply to Wall Power Cord - B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan) No Power Cord - AC3 Option | |
| 5 | If the CTO Switch Chassis needs to be racked, Then the CTO Base Model needs to integrate (with 0D1) to the HPE Network Rack. | |
| 6 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Options, then Display the following:
For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| 7 | If qty1 of the folowing QSA28 Adapter(845970-B21) is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use #0D1 for this XCVR Adapter since switch is factory racked) | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 10G Ind-Temp SFP+ LC SR 300m MMF Transceiver | JL782A |
| | HPE Aruba Networking 10G Ind-Temp SFP+ LC LR 10km SMF Transceiver | JL783A |
| | HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Downstream 1330/1270 Transceiver | R9X54A |
| | HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Upstream 1270/1330 Transceiver | R9X55A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF TAA Transceiver | S2N63A |
| 8 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| 9 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 400G FR4 QSFP-DD LC 2km SMF Transceiver | S3N95A |
| | HPE Aruba Networking 400G LR4 QSFP-DD LC 10km SMF Transceiver | S3N96A |
| 10 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R0Z25A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R0Z26A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable | JL307A |
| 11 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | JH234A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | JH235A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | JH236A |
| 13 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE 100GbE QSFP28 500m 1310mm PSM4 Transceiver | Q8J73A |
| 12 | If ANY Option is integrated 0D1 to this Switch, then the Switch requires 0D1. (Box level integration is not allowed) | |
| 13 | The following Transceiver and DACs with 8 split ends install into this Switch with max qty 16: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G PLR8 QSFP-DD 2xMPO12 10km SMF Transceiver | S4B35A |
| | HPE Aruba Networking 200G QSFP-DD to 8x SFP28 2m Direct Attach Cable | S4B39A |
| | HPE Aruba Networking 200G QSFP-DD to 8x SFP28 3m Direct Attach Cable | S4B40A |
| | HPE Aruba Networking 400G QSFP-DD to 8x SFP56 1m Direct Attach Cable | S4B41A |
| | HPE Aruba Networking 400G QSFP-DD to 8x SFP56 2m Direct Attach Cable | S4B42A |
| 15 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G ZR QSFP-DD 80km SMF Digital Coherent Tunable Transceiver | S4B38A |
| 16 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 200G SR4 QSFP56 MPO12 100m MMF Transceiver | S4B43A |
| | HPE Aruba Networking 200G QSFP56 to QSFP56 1m Direct Attach Cable | S4B36A |
| | HPE Aruba Networking 200G QSFP56 to QSFP56 2.5m Direct Attach Cable | S4B37A |
| Notes: | Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab | |
Transceivers | ||
| | SFP+ Transceivers | |
| Notes: | Compatible with QSA28 adapter only | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 10G Ind-Temp SFP+ LC SR 300m MMF Transceiver | JL782A |
| | HPE Aruba Networking 10G Ind-Temp SFP+ LC LR 10km SMF Transceiver | JL783A |
| | HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Downstream 1330/1270 Transceiver | R9X54A |
| | HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Upstream 1270/1330 Transceiver | R9X55A |
| | SFP28 Transceivers | |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF TAA Transceiver | S2N63A |
| | QSFP+ Transceivers | |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| | QSFP28 Transceivers | |
| | HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver | S4B44A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | R9B63A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver | S3N88A |
| | HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver | S3N89A |
| | HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver | S1C93A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R0Z25A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R0Z26A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable | JL307A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | QSFP56 Transceivers | |
| | HPE Aruba Networking 200G SR4 QSFP56 MPO12 100m MMF Transceiver | S4B43A |
| | HPE Aruba Networking 200G QSFP56 to QSFP56 1m Direct Attach Cable | S4B36A |
| | HPE Aruba Networking 200G QSFP56 to QSFP56 2.5m Direct Attach Cable | S4B37A |
| | QSFP-DD Transceivers | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 400G PLR8 QSFP-DD 2xMPO12 10km SMF Transceiver | |
| 3 | HPE Aruba Networking 400G ZR QSFP-DD 80km SMF Digital Coherent Tunable Transceiver | S4B38A |
| |
| |
| | HPE Aruba Networking 4x100G DR QSFP-DD SN 500m SMF Transceiver | S3N90A |
| | HPE Aruba Networking 4x100G FR QSFP-DD SN 2km SMF Transceiver | S3N91A |
| | HPE Aruba Networking 4x100G LR QSFP-DD SN 10km SMF Transceiver | S3N92A |
| | HPE Aruba Networking 400G DR4 QSFP-DD MPO12 500m SMF Transceiver | S3N93A |
| | HPE Aruba Networking 400G PLR4 QSFP-DD MPO12 10km SMF Transceiver | S3N94A |
| | HPE Aruba Networking 400G QSFP-DD MPO-16 SR8 100m MMF Transceiver | R9B41A |
| | HPE Aruba Networking 400G QSFP-DD MPO-12 eDR4 2km SMF Transceiver | R9B42A |
| | HPE Aruba Networking 400G FR4 QSFP-DD LC 2km SMF Transceiver | S3N95A |
| | HPE Aruba Networking 400G LR4 QSFP-DD LC 10km SMF Transceiver | S3N96A |
| | QSFP-DD DAC/AOC | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 200G QSFP-DD to 8x SFP28 2m Direct Attach Cable | S4B39A |
| | HPE Aruba Networking 200G QSFP-DD to 8x SFP28 3m Direct Attach Cable | S4B40A |
| | HPE Aruba Networking 400G QSFP-DD to 8x SFP56 1m Direct Attach Cable | S4B41A |
| | HPE Aruba Networking 400G QSFP-DD to 8x SFP56 2m Direct Attach Cable | S4B42A |
| 1 | HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable | R9B60A |
| 1 | HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable | R9B58A |
| 1 | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| 1 | HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable | R9B61A |
| 1 | HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable | R9B59A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3m Active Optical Cable | R9B55A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7m Active Optical Cable | R9B53A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15m Active Optical Cable | R9B57A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30m Active Optical Cable | R9B56A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50m Active Optical Cable | R9B54A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3m Active Optical Cable | R9B50A |
| 1 | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7m Active Optical Cable | R9B48A |
| 1 1 1 1 1 1 1 1 | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to QSFP-DD 3m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to QSFP-DD 7m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to QSFP-DD 15m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to QSFP-DD 30m Active Optical Cable HPE Aruba Networking 400G QSFP-DD to QSFP-DD 50m Active Optical Cable | R9B52A R9B51A R9B49A R9B45A R9B43A R9B47A R9B46A R9B44A |
| Notes: | Only the QSFP-DD end of the AOC to the 9300 Switch is supported | |
| | QSA28 Adapter | |
| 2 | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| Notes: | If selecting the 845970-B21 - QSFP28 to SFP28 Adapter, then see Transceiver Guide for details. | |
| | Configuration Rules | |
| Rule# | Description | |
| 1 | Only the QSFP-DD end of the AOC to the 9300 Switch is supported | |
| 2 | If selecting the 845970-B21 - QSFP28 to SFP28 Adapter, then see Transceiver Guide for details. | |
| 3 | Warning if Highline, then max qty is 8, if Lowline then max qty 2 | |
Switch Options | ||
| | Rack Mount Kit | |
| | For 9300 System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure For 9300S System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure | |
| Rule # | Description | SKU |
| 1, 3 | HPE Aruba Networking X474 4-post Rack Kit | JL483C |
| |
| |
| 1, 2 | HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit | J9583B |
| | Configuration Rules | |
| Rule# | Description | SKU |
| 1 | If the switch will be factory racked into an HPE Universal Rack, then (Min 1) of the 4 Post Rack Mount kit is required. | |
| 2 | Compatible with 9300S only: S0F82A | |
| 3 | Compatible with 9300-32D: R9A29A, R9A30A | |
| | India PDU Cable | |
| | For 9300 (std 0 // max 2) User Selection (0 or 2) per enclosure | |
| | For 9300S System (std 0 // max 2) User Selection (0 or 2) per enclosure | |
| Rule # | Description | SKU |
| 1, 3 | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| |
| |
| 1, 2 | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| |
| |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 1 | This cable is intended for India use only. Typically power cord is ordered when power supply option #AC3 is selected. | |
| 2 | Compatible with 9300S only: S0F81A, S0F82A, S0F83A, S0F84A | |
| 3 | Compatible with 9300-32D: R9A29A, R9A30A | |
Accessories | ||
| | Spare Items | |
| Rule # | Description | SKU |
| 8 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G TAA Switch
| S0F95A |
| 7 | HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Switch
| S0F96A |
| 3 | HPE Aruba Networking CX 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G Switch
| R8Z96A |
| 4 | HPE Aruba Networking X3A15 12VDC 1600W 40-75VDC Back-to-Front Input Screw Terminal Power Supply Unit
| S0F90A |
| 1, 2, 5 | HPE Aruba Networking X3A13 12VDC 1600W Front-to-Back C15 AC Power Supply Unit
| S0F91A |
| | HPE Aruba Networking X3A13 12VDC 1600W Front-to-Back C15 AC Power Supply Unit PDU
| S0F91A#B2B |
| | HPE Aruba Networking X3A13 12VDC 1600W Front-to-Back C15 AC Power Supply Unit PDU
| S0F91A#B2C |
| | HPE Aruba Networking X3A13 12VDC 1600W Front-to-Back C15 AC Power Supply Unit 220v
| S0F91A#B2E |
| | HPE Aruba Networking X3A13 12VDC 1600W Front-to-Back C15 AC Power Supply Unit No Loc
| S0F91A#AC3 |
| 1, 2, 6 | HPE Aruba Networking X3A13 12VDC 1600W Back-to-Front C15 AC Power Supply Unit
| S0F92A |
| | HPE Aruba Networking X3A13 12VDC 1600W Back-to-Front C15 AC Power Supply Unit PDU
| S0F92A#B2B |
| | HPE Aruba Networking X3A13 12VDC 1600W Back-to-Front C15 AC Power Supply Unit PDU
| S0F92A#B2C |
| | HPE Aruba Networking X3A13 12VDC 1600W Back-to-Front C15 AC Power Supply Unit 220v
| S0F92A#B2E |
| | HPE Aruba Networking X3A13 12VDC 1600W Back-to-Front C15 AC Power Supply Unit No Loc
| S0F92A#AC3 |
| 1, 2, 3 | HPE Aruba Networking 9300 1500W 100-240VAC Front-to-Back AC Power Supply
| R8Z97A |
| | HPE Aruba Networking 9300 1500W 100-240VAC Front-to-Back AC Power Supply PDU
| R8Z97A#B2B |
| | HPE Aruba Networking 9300 1500W 100-240VAC Front-to-Back AC Power Supply PDU
| R8Z97A#B2C |
| | HPE Aruba Networking 9300 1500W 100-240VAC Front-to-Back AC Power Supply 220v
| R8Z97A#B2E |
| | HPE Aruba Networking 9300 1500W 100-240VAC Front-to-Back AC Power Supply NoLoc
| R8Z97A#AC3 |
| 1, 2, 3 | HPE Aruba Networking 9300 1500W 100-240VAC Back-to-Front AC Power Supply
| R8Z98A |
| | HPE Aruba Networking 9300 1500W 100-240VAC Back-to-Front AC Power Supply PDU
| R8Z98A#B2B |
| | HPE Aruba Networking 9300 1500W 100-240VAC Back-to-Front AC Power Supply PDU
| R8Z98A#B2C |
| | HPE Aruba Networking 9300 1500W 100-240VAC Back-to-Front AC Power Supply 220v
| R8Z98A#B2E |
| | HPE Aruba Networking 9300 1500W 100-240VAC Back-to-Front AC Power Supply NoLoc
| R8Z98A#AC3 |
| 5 | HPE Aruba Networking 9300 1500W 100-240VAC Back-to-Front AC Power Supply | R8Z98A |
| | HPE Aruba Networking X761 Front-to-Back Fan | S0F93A |
| 4,6 | HPE Aruba Networking X762 Back-to-Front Fan | S0F94A |
| 3 | HPE Aruba Networking 9300 Front-to-Back Fan | R8Z99A |
| 3 | HPE Aruba Networking 9300 Back-to-Front Fan | R9A00A |
| 3 | HPE Aruba Networking X472 2-post Rack Kit | JL482C |
| 7, 8 | HPE Aruba Networking X412 1U Universal 2-post Rack Mount Kit | JL602A |
| 3 | HPE Aruba Networking X474 4-post Rack Kit | JL483C |
| | HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit | J9583B |
| | HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable | JL448A |
| | HPE Aruba Networking USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable | R9G48B |
| | HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable | R9J32A |
| | HPE Aruba Networking USB-C to USB-C PC-to-Switch 3m Cable | R9J33A |
| | HPE Aruba Networking CX Switch Bluetooth Adapter | S1H23A |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 1 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 2 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:
For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| 3 | Compatible with 9300-32D: R9A29A, R9A30A. | |
| 4 | Compatible with 9300S DC BF Switch: S0F87A, S0F88A. | |
| 5 | Compatible with 9300S AC FB Switch: S0F81A, S0F82A | |
| 6 | Compatible with 9300S AC BF Switch: S0F83A, S0F84A | |
| 7 | Compatible with 9300S Switches: S0F82A, S0F84A, S0F88A | |
| 8 | Compatible with 9300S TAA Switches: S0F81A, S0F83A, S0F87A | |
| Notes: | – Drop down under power supply should offer the following options and results:
– Locking Power Cord (J9955A) L6-20P is available in the Accessories tab – 2 Power Supplies and 6 Fan Trays are included with the Switch Bundle | |
Software | ||
| | HPE Aruba Fabric Composer | |
| | Single Node Subscription | |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 1y Subscription E-STU | R7G99AAE |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 3y Subscription E-STU | R7H00AAE |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 5y Subscription E-STU | R7H01AAE |
| | Central | |
| Notes: | Add the Central Advanced Service Skus to the Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Advanced | |
| | On-Prem Services / 8XXX/9XXX/10XXX Switch Advanced Subscriptions | |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 1-year Subscription E-STU | R6V08AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 3-year Subscription E-STU | R6V09AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 5-year Subscription E-STU | R6V10AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 7-year Subscription E-STU | R6V11AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 10-year Subscription E-STU | R6V12AAE |
| | Cloud Services / 8XXX/9XXX/10XXX Switch Foundation Subscriptions | |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 1-year Subscription E-STU | R3K03AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 3-year Subscription E-STU | R3K04AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 5-year Subscription E-STU | R3K05AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 7-year Subscription E-STU | R3K06AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 10-year Subscription E-STU | R3K07AAE |
| | Configuration Rules | |
| Rule# | Description | SKU |
| 2 | Add the Central Cloud Skus to the Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services | |
| 3 | Add the Central On-Prem Skus to the Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services | |
| | HPE Aruba OS-CX | |
| | CX Advanced Software Licenses | |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 1-year Subscription E-STU | S0T87AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 3-year Subscription E-STU | S0T88AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 5-year Subscription E-STU | S0T89AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 7-year Subscription E-STU | S0T90AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 10-year Subscription E-STU | S0T86AAE |
As-a-Service | ||
| | HPE Aruba Networking Central | |
| | Cloud Services / Switch Advanced AAS Licenses | |
| | HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS | S0W45AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS | S0W46AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS | S0W62AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS | S0W63AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS | S0W64AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS | S0W65AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS | S0W66AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS | S0W87AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS | S0W88AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS | S0W89AAS |
| Notes: | For IRIS reference only. No action required for OCX and Clic | |
| | HPE Aruba Networking OS-CX Software | |
| | CX Advanced AAS Software Licenses | |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 9x5 Support E-STU | S0T87AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 9x5 Support E-STU | S0T88AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 9x5 Support E-STU | S0T89AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 9x5 Support E-STU | S0T90AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 9x5 Support E-STU | S0T86AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 24x7 Support E-STU | S3M90AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 24x7 Support E-STU | S3M91AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 24x7 Support E-STU | S3M92AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 24x7 Support E-STU | S3M93AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 24x7 Support E-STU | S3M89AAS |
| Notes: | For IRIS reference only. No action required for OCX and Clic | |
| | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle (R9A29A) | HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle (R9A30A) |
|---|---|---|
| Description | The HPE Aruba Networking CX 9300 Switch Series-32D is a next-generation 25.6Tbps, 1U fixed configuration switch supporting 32-ports of 100GbE, 200GbE or 400GbE. The switch is an ideal solution for flexible, cost-effective, high-density networking for server, storage, and intra-fabric connectivity. This solution helps protect enterprises investment as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations at reduced power and a smaller footprint. | |
| Power supplies | 2 redundant power supplies, field-replaceable, hot-swappable | |
| Fans | 6 redundant fans, field-replaceable, hot-swappable | |
| Physical characteristics | ||
| Dimensions | 17.26" x 23.23" x 1.71" (43.84 x 59 x 4.35 cm) | |
| Full configuration weight | 26.12 lb (11.85 kg) | |
| Additional specifications | ||
| CPU | x86 | |
| Memory, Drive and Flash | 128GB m.2 SSD, 4GB mSATA, 16MB SPI Flash, 16GB x2 SODIMM | |
| Packet Buffer | 132MB | |
| Performance* | ||
| Switching Capacity | 25.6Tbps | |
| IPv4 Host Table | 163,840 | |
| IPv6 Host Table | 81,920 | |
| IPv4 Unicast Routes | 65,536 (1,269,760 Unidimensional for Spine) | |
| IPv6 Unicast Routes | 32,768 (624,640 Unidimensional for Spine) | |
| MAC Table Size | 81,920 (32,768 Unidimensional for Spine) | |
| IGMP Groups | 8,192 | |
| MLD Groups | 8,192 | |
| IPv4 Multicast Routes | 8,192 | |
| IPv6 Multicast Routes | 4,096 | |
| Notes: | *Some of these scaling numbers assume shared tables and uni-dimensional traffic. | |
| Environmental | ||
| Operating temperature | 32°F to 113°F (0°C to 45°C) at sea level. Derate -1°C for every 1,000 ft to 10,000 ft. (3.0 km) | 32°F to 95°F (0°C to 35°C) at sea level. Derate -1°C for every 1,000 ft to 10,000 ft. (3.0 km) |
| Non-Operating/ Storage Temperature | -40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft) | |
| Operating relative humidity | 15% to 95% @ 113°F (45°C) non-condensing | 15% to 95% @ 95°F (35°C) non-condensing |
| Non-Operating/ Storage relative humidity | 15% to 90% @ 158°F (70°C) non-condensing | |
| Max operating altitude | Up to 10,000ft (3km) | |
| Max non-operating | Up to 15,000ft (4.6km) | |
| Primary airflow | Front-to-Back | Back-to-Front |
| Acoustic1 | LWad = 8.1 Bel LpAm (Bystander) = 61 dB | LWad = 8.3 Bel LpAm (Bystander) = 62 dB |
| Notes:1Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) | ||
| Electrical characteristics | ||
| Frequency | 50-60Hz | |
| AC Voltage | 100-127 / 220-240 VAC 200-240V required to support 8-32 port production configuration | |
| Current | 12A / 8A | |
| Power consumption (230VAC) | 100% Traffic Rate: 675W; Idle: 210W | 100% Traffic Rate: 688W; Idle: 221W |
| Safety | Safety-EU EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 EN 62368-1:2014 +A11:2017 EN 62368-1:2018+A11:2020 Safety-Worldwide IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2: 2013 IEC 62368-1:2014 (Second Edition) IEC 62368-1:2018 (Third Edition) Safety-North America UL 62368-1 3rd, Ed. CAN/CSA-C22.2 N. 62368-1.19 3rd. Ed. Environmental Drop, Vibration, Shock: IEC 17025, ISTA 3C | |
| EMC | Immunity
Emissions
| |
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 | |
| Management | SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post Rack Mount Kit included with switch, optional 4-post rack mount kit must be ordered separately - JL483C. | |
| | S0F81A HPE Aruba Networking 9300S-32C8D 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back TAA Bundle 6xS0F93A Front-to-Back Fan 2xS0F91A Front-to-Back 1600W 12VDC C15 AC Power Supply | S0F82A HPE Aruba Networking 9300S-32C8D 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back Bundle 6xS0F93A Front-to-Back Fan 2xS0F91A Front-to-Back 1600W 12VDC C15 AC Power Supply | S0F83A HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front TAA Bundle 6xS0F94A Back-to-Front Fan 2xS0F92A Back-to-Front 1600W 12VDC C15 AC Power Supply | S0F84A HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front Bundle 6xS0F94A Back-to-Front Fan 2xS0F92A Back-to-Front 1600W 12VDC C15 AC Power Supply |
|---|---|---|---|---|
| Description | The HPE Aruba Networking CX 9300S-32C8D is a next-generation 16 Tbps, 1U fixed configuration switch supporting 32-ports of 10/25/100/200GbE, 8-port 400GbE. The switch is an ideal solution for flexible, cost-effective, high-density networking for server, storage, and intra-fabric connectivity. This solution helps protect enterprises investment as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations at reduced power and a smaller footprint. | |||
| Power supplies | 2 redundant power supplies, field-replaceable, hot-swappable | |||
| Fans | 6 redundant fans, field-replaceable, hot-swappable | |||
| Notes: Power redundancy may not be available in low line operation (100-127 VAC). See product installation manual for more information. | ||||
| Physical characteristics | ||||
| Dimensions | 17.4" x 24" x 1.73" (44.3 cm x 61 cm x 4.4 cm) | |||
| Full configuration weight | 30.0 lb (13.6 kg) | |||
| Additional specifications | ||||
| CPU | x86 | |||
| Memory, drive and flash | 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM | |||
| Packet buffer | 82 MB | |||
| Performance2 | ||||
| Switching capacity | 16 Tbps | |||
| IPv4 host table | 96K (262K for Spine) | |||
| IPv6 host table | 48K (131K for Spine) | |||
| IPv4 unicast routes | 725K for Spine | |||
| IPv6 unicast routes | 360K for Spine | |||
| MAC table size | 48K | |||
| IGMP groups | 8196 | |||
| MLD groups | 4192 | |||
| IPv4 multicast routes | 8196 | |||
| IPv6 multicast routes | 8196 | |||
| Environmental | ||||
| Operating temperature | 32°F to 113°F (0°C to 45°C) at sea level. Derate— 1°C for every 1000 ft to 10,000 ft. (3.0 km) | 32°F to 104F (0°C to 40°C) at sea level. Derate— 1°C for every 1000 ft to 10,000 ft. (3.0 km) | ||
| Operating relative humidity | 5% to 95% @ 113°F (45°C) non-condensing | 5% to 95% @ 104°F (40°C) non-condensing | ||
| Nonoperating/storage temperature | −40°C to 70°C (−40°F to 158°F) up to 4.6 km (15,000 ft) | |||
| Nonoperating/storage relative humidity | 5% to 95% @ 149°F (65°C) non-condensing | |||
| Max operating altitude | Up to 10,000 ft (3 km) | |||
| Max nonoperating altitude | Up to 15,000 ft (4.6 km) | |||
| Primary Airflow | Front-to-Back | Back-to-Front | ||
| Acoustic3 | LWAd = 6.6B LpAm (bystander) = 48.3 dB | LWAd = 6.4B LpAm (bystander) = 46.0 dB | ||
| Electrical characteristics | ||||
| Frequency | 50–60 Hz | |||
| Voltage | 100–127 VAC 50/60 Hz 12A200–240 VAC 50/60 Hz 10A200–240V required to support >5W transceiver power in any port | |||
| Current | 12A/10A | |||
| Power consumption (240VAC) | Idle: 185W; Max: 920W; Typical: 395W# | |||
Standards and Protocols
The following standards and protocols are supported.
- – IEEE 802.1AB-2009
- – IEEE 802.1ak-2007
- – IEEE 802.1t-2001
- – IEEE 802.1AX-2008 Link Aggregation
- – IEEE 802.1p Traffic Class Expediting and Dynamic Multicast Filtering
- – IEEE 802.1Q VLANs
- – IEEE 802.1s Multiple Spanning Trees
- – IEEE 802.1w Rapid Reconfiguration of Spanning Tree
- – IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- – IEEE 802.3x Flow Control
- – IEEE 802.3z Gigabit Ethernet
- – IEEE 802.3by 25 Gigabit Ethernet
- – IEEE 802.3ba 40 Gigabit Ethernet
- – IEEE 802.3cd 50 Gigabit Ethernet
- – IEEE 802.3ba and 802.3cd 100 Gigabit Ethernet
- – IEEE 802.3bs 200 and 400 Gigabit Ethernet
- – RFC 768 UDP
- – RFC 791 IP
- – RFC 792 ICMP
- – RFC 793 TCP
- – RFC 826 ARP
- – RFC 768 User Datagram Protocol
- – RFC 813 Window and Acknowledgement Strategy in TCP
- – RFC 815 IP datagram reassembly algorithms
- – RFC 879 TCP maximum segment size and related topics
- – RFC 896 Congestion control in IP/TCP internetworks
- – RFC 917 Internet subnets
- – RFC 919 Broadcasting Internet Datagrams
- – RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD)
- – RFC 925 Multi-LAN address resolution
- – RFC 1215 Convention for defining traps for use with the SNMP
- – RFC 1256 ICMP Router Discovery Messages
- – RFC 1393 Traceroute Using an IP Option
- – RFC 1591 Domain Name System Structure and Delegation
- – RFC 1657 Definitions of Managed Objects for BGP-4 using SMIv2
- – RFC 1772 Application of the Border Gateway Protocol in the Internet
- – RFC 1981 Path MTU Discovery for IP version 6
- – RFC 1997 BGP Communities Attribute
- – RFC 1998 An Application of the BGP Community Attribute in Multi-home Routing
- – RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option
- – RFC 2401 Security Architecture for the Internet Protocol
- – RFC 2402 IP Authentication Header
- – RFC 2406 IP Encapsulating Security Payload (ESP)
- – RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
- – RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing
- – RFC 2710 Multicast Listener Discovery (MLD) for IPv6
- – RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol
- – RFC 2918 Route Refresh Capability for BGP-4
- – RFC 2934 Protocol Independent Multicast MIB for IPv4
- – RFC 3137 OSPF Stub Router Advertisement
- – RFC 3176 InMon Corporation’s sFlow: A Method for Monitoring Traffic in Switched and Routed Networks
- – RFC 3484: Default Address Selection for Internet Protocol version 6 (IPv6)
- – RFC 3509 Alternative Implementations of OSPF Area Border Routers
- – RFC 3623 Graceful OSPF Restart
- – RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
- – RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers
- – RFC 4251 The Secure Shell (SSH) Protocol
- – RFC 4271 A Border Gateway Protocol 4 (BGP-4)
- – RFC 4273 Definitions of Managed Objects for BGP-4
- – RFC 4291 IP Version 6 Addressing Architecture
- – RFC 4292 IP Forwarding Table MIB
- – RFC 4293 Management Information Base for the Internet Protocol (IP)
- – RFC 4360 BGP Extended Communities Attribute
- – RFC 4486 Subcodes for BGP Cease Notification Message
- – RFC 4552 Authentication/Confidentiality for OSPFv3
- – RFC 4724 Graceful Restart Mechanism for BGP
- – RFC 4760 Multiprotocol Extensions for BGP-4
- – RFC 5492 Capabilities Advertisement with BGP-4
- – RFC 4940 IANA Considerations for OSPF
- – RFC 5095: Deprecation of Type 0 Routing Headers in IPv6
- – RFC 5187 OSPFv3 Graceful Restart
- – RFC 4861 Neighbor Discovery for IP version 6 (IPv6)
- – RFC 5701 IPv6 Address Specific BGP Extended Community Attribute
- – RFC 6987 OSPF Stub Router Advertisement
- – RFC 7047 The Open vSwitch Database Management Protocol
- – RFC 7059 A Comparison of IPv6-over-IPv4 Tunnel Mechanisms
- – RFC 7313 Enhanced Route Refresh Capability for BGP-4
- – RFC 8201 Path MTU Discovery for IP version 6
-
New HPE Aruba Networking Data Center Networking Solution SKUs for HPE
Hewlett Packard Enterprise and HPE Aruba Networking offer customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety HPE compute, storage, networking that span virtualization, vSAN, HCI, HPC, MCS, Microsoft, SAP HANA, Vmware, Nutanix application and IaaS service offerings. HPE Aruba Networking 10/25 and 40/100G CX switches can be deployed as part of these solutions and is often designed into these integrated solutions along with HPE ProLiant DL/DX servers, SimpliVity, Nimble, Synergy, Cray Shasta, Cray ClusterStor, Superdome Flex and HPE GreenLake. These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.
To ensure that these Hewlett Packard Enterprise and HPE Aruba Networking integrated solutions receive simplified ordering and the highest-level of customer service and support, HPE Aruba Networking has created a special tracking HPE Aruba Networking Data Center SKUs for HPE deployments that identifies these integrated solutions to ensure they receive rapid support triage and streamlines escalation through HPE Services. Please use these new tracking SKUs when CX switches are included in HPE integrated and mixed compute, storage and networking configuration and deployments.
Notes: Current HPE Aruba Networking “J#” SKUs should still be used for all data center network centric (HPE Aruba Networking “only”, Non HPE environments). Please contact your sales representative for additional information and ordering guidance.
Configuration Information | ||
| BTO Models | | |
| | AC Bundles | |
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 6 | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| 1, 2, 3, 4, 5, 6 | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G QSFP-DD MPO-16 SR8 100m MMF Transceiver | S1D18A |
| | HPE Aruba Networking 400G QSFP-DD MPO-12 eDR4 2km SMF Transceiver | S1D19A |
| 2 | The following AOC's install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 3m Active Optical Cable | S1D20A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 7m Active Optical Cable | S1D21A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 15m Active Optical Cable | S1D22A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 30m Active Optical Cable | S1D23A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 50m Active Optical Cable | S1D24A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 3m Active Optical Cable | S1D25A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 7m Active Optical Cable | S1D26A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 15m Active Optical Cable | S1D27A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 30m Active Optical Cable | S1D28A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 50m Active Optical Cable | S1D29A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3m Active Optical Cable | S1D30A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7m Active Optical Cable | S1D31A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15m Active Optical Cable | S1D32A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30m Active Optical Cable | S1D33A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50m Active Optical Cable | S1D34A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3m Active Optical Cable | S1D35A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7m Active Optical Cable | S1D36A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15m Active Optical Cable | S1D37A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30m Active Optical Cable | S1D38A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50m Active Optical Cable | S1D39A |
| 3 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver | R9F75A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | S1D17A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | R9F76A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R9F79A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R9F80A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R9F81A |
| 4 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 5 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:
| |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| | HPE Networking 2.5m C19 to C20 PDU India Power Cord | JL673A |
| | – For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| 6 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver | R9F97A |
| | HPE Aruba Networking 40G QSFP+ MPO eSR4 300M Transceiver | R9F98A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | R9G02A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R9G03A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R9G04A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R9G05A |
| Notes: | – Drop down under power supply should offer the following options and results:
– Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab – OCA Only Model Selection Form – HPE Offering > HPE Aruba Networking > DC Solutions Switches for HPE > AOS-CX: HPE Aruba Networking 9300 DC Switch Series | |
| Rack Level Integration CTO Models | ||
| | AC Bundles | |
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 6, 7 | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl | S1D07A |
| |
| |
| 1, 2, 3, 4, 5, 6, 7 | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl | S1D08A |
| |
| |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 400G QSFP-DD MPO-16 SR8 100m MMF Transceiver | S1D18A |
| | HPE Aruba Networking 400G QSFP-DD MPO-12 eDR4 2km SMF Transceiver | S1D19A |
| 2 | The following AOCs install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 3m Active Optical Cable | S1D20A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 7m Active Optical Cable | S1D21A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 15m Active Optical Cable | S1D22A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 30m Active Optical Cable | S1D23A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 50m Active Optical Cable | S1D24A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 3m Active Optical Cable | S1D25A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 7m Active Optical Cable | S1D26A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 15m Active Optical Cable | S1D27A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 30m Active Optical Cable | S1D28A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 50m Active Optical Cable | S1D29A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3m Active Optical Cable | S1D30A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7m Active Optical Cable | S1D31A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15m Active Optical Cable | S1D32A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30m Active Optical Cable | S1D33A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50m Active Optical Cable | S1D34A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3m Active Optical Cable | S1D35A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7m Active Optical Cable | S1D36A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15m Active Optical Cable | S1D37A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30m Active Optical Cable | S1D38A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50m Active Optical Cable | S1D39A |
| 3 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver | R9F75A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | S1D17A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | R9F76A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R9F79A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R9F80A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R9F81A |
| 4 | OCA Only:
| |
| 5 | If the CTO Switch Chassis needs to be racked, Then the CTO Base Model needs to integrate (with 0D1) to the HPE Network Rack. | |
| 6 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:
| |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| | HPE Networking 2.5m C19 to C20 PDU India Power Cord | JL673A |
| |
| |
| 7 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver | R9F97A |
| | HPE Aruba Networking 40G QSFP+ MPO eSR4 300M Transceiver | R9F98A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | R9G02A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R9G03A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R9G04A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R9G05A |
| Notes: | Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab | |
| Transceivers | ||
| | QSFP+ Transceivers | |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| | QSFP28 Transceivers | |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | R9B63A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | QSFP-DD Transceivers | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 400G QSFP-DD MPO-16 SR8 100m MMF Transceiver | S1D18A |
| | HPE Aruba Networking 400G QSFP-DD MPO-12 eDR4 2km SMF Transceiver | S1D19A |
| | QSFP-DD AOC | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 3m Active Optical Cable | S1D20A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 7m Active Optical Cable | S1D21A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 15m Active Optical Cable | S1D22A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 30m Active Optical Cable | S1D23A |
| | HPE Aruba Networking 400G QSFP-DD to QSFP-DD 50m Active Optical Cable | S1D24A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 3m Active Optical Cable | S1D25A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 7m Active Optical Cable | S1D26A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 15m Active Optical Cable | S1D27A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 30m Active Optical Cable | S1D28A |
| | HPE Aruba Networking 200G QSFP-DD to 2x QSFP28 100G 50m Active Optical Cable | S1D29A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3m Active Optical Cable | S1D30A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7m Active Optical Cable | S1D31A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15m Active Optical Cable | S1D32A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30m Active Optical Cable | S1D33A |
| | HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50m Active Optical Cable | S1D34A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3m Active Optical Cable | S1D35A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7m Active Optical Cable | S1D36A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15m Active Optical Cable | S1D37A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30m Active Optical Cable | S1D38A |
| | HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50m Active Optical Cable | S1D39A |
| Notes: | Only the QSFP-DD end of the AOC to the 9300 Switch is supported | |
| Switch Options | ||
| | Rack Mount Kits | |
| | For 9300 DC System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure | |
| Rule # | Description | SKU |
| | HPE Aruba Networking X474 4-post Rack Kit | JL483C |
| |
| |
| Notes: | If the switch will be factory racked into an HPE Universal Rack, then (Min 1) of the 4 Post Rack Mount kit is required. | |
| | India PDU Cable | |
| | For 9300 DC System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure | |
| Rule # | Description | SKU |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| |
| |
| Notes: | This cable is intended for India use only. Typically power cord is ordered when power supply option #AC3 is selected. | |
| Accessories | ||
| | Spare Items | |
| Rule # | Description | SKU |
| 1, 2 | HPE Aruba Networking 9300 1500W 100-240VAC Port-to-Power Airflow Power Supply Unit | S1D05A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Port-to-Power Airflow Power Supply Unit | S1D05A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Port-to-Power Airflow Power Supply Unit | S1D05A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Port-to-Power Airflow Power Supply Unit | S1D05A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Port-to-Power Airflow Power Supply Unit | S1D05A |
| |
| |
| 1, 2 | HPE Aruba Networking 9300 1500W 100-240VAC Power-to-Port Airflow Power Supply Unit | S1D06A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Power-to-Port Airflow Power Supply Unit | S1D06A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Power-to-Port Airflow Power Supply Unit | S1D06A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Power-to-Port Airflow Power Supply Unit | S1D06A |
| |
| |
| | HPE Aruba Networking 9300 1500W 100-240VAC Power-to-Port Airflow Power Supply Unit | S1D06A |
| |
| |
| | HPE Aruba Networking 9300 Port-to-Power Fan | S1D15A |
| | HPE Aruba Networking 9300 Power-to-Port Fan | S1D16A |
| | HPE Aruba Networking X472 2-post Rack Kit | JL482C |
| | HPE Aruba Networking X474 4-post Rack Kit | JL483C |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 2 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:
| |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| | HPE Networking 2.5m C19 to C20 PDU India Power Cord | JL673A |
| |
| |
| Notes: | – Drop down under power supply should offer the following options and results:
– Locking Power Cord (J9955A) L6-20P is available in the Accessories tab – 2 Power Supplies and 6 Fan Trays are included with the Switch Bundle | |
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 05-Jan-2026 | Changed | Standard Features, Configuration Information, and Technical Specifications sections were updated. | |
| 20-Oct-2025 | Changed | Typo corrected in Standard Features section for “Loopback IP redistribution in OSPF”. | |
| 07-Jul-2025 | Added | New SKU# S5U19A added in BTO and CTO rule 7 and Transceivers in Configuration Information section. | |
| 09-Jun-2025 | Changed | Version links added in Summary of Changes section. | |
| Added | AOS As-a-Service Software Licenses SKUs were added in Configuration Information section: S0T87AAS, S0T88AAS, S0T89AAS, S0T90AAS, S0T86AAS, S3M90AAS, S3M91AAS, S3M92AAS, S3M93AAS, S3M89AAS. | ||
| 05-May-2025 | Changed | Configuration Information section was updated, new transceiver SKUs were added. | |
| 07-Apr-2025 | Changed | Configuration Information section was updated. | |
| 03-Mar-2025 | Changed | Configuration Information section was updated. | |
| 06-Jan-2025 | Changed | Configuration Information section was updated. | |
| 18-Nov-2024 | Changed | QuickSpecs was updated. | |
| 03-Sep-2024 | Changed | Configuration Information section was updated. | |
| 05-Aug-2024 | Changed | Configuration Information section was updated. | |
| 06-May-2024 | Changed | Configuration Information section was updated. | |
| 01-Apr-2024 | Changed | Configuration Information section was updated. | |
| 04-Mar-2024 | Changed | Configuration Information section was updated. | |
| 04-Dec-2023 | Changed | Obsolete SKU was removed. Configuration Information section was updated. | |
| 14-Aug-2023 | Changed | Configuration Information section was updated. | |
| 10-Jul-2023 | Changed | Configuration Information section was updated. | |
| 15-May-2023 | Changed | Configuration Information section was updated. | |
| 13-Mar-2023 | Changed | Configuration Information and HPE Aruba Networking Data Center Solution for HPE sections were updated. | |
| 06-Feb-2023 | Changed | Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 05-Dec-2022 | Changed | Configuration Information section was updated and new SKUs were added. | |
| 07-Nov-2022 | Changed | Overview, Standard Features, Configuration Information and Technical Specifications sections were updated. | |
| 03-Oct-2022 | Changed | Overview, Standard Features, Configuration Information and Technical Specifications sections were updated | |
| 01-Aug-2022 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a50004291enw, 16895 - Worldwide - V24 - 05-January-2026
