HPE Aruba Networking 9200 Series Campus Gateways QuickSpecs

Shape the Future of QuickSpecs - Your Input Matters

Enterprise-Class Wi-Fi Performance and Reliability at Scale

The HPE Aruba Networking 9200 Series Campus Gateway delivers enhanced Wi-Fi scalability and security to meet demands at the Edge. Engineered for mission-critical environments, this series delivers high performance, seamless roaming, 24x7 reliability, and always-on connectivity – even during upgrades. The HPE Aruba Networking 9200 Series Campus Gateway provides consistent policy enforcement across wired and wireless and dynamic segmentation for any user or device – even IoT.

  • Overview

[IMAGE1]

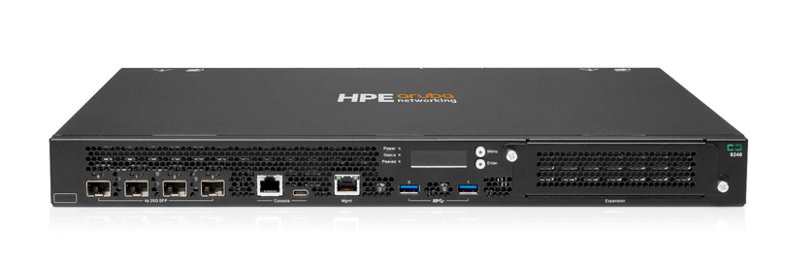

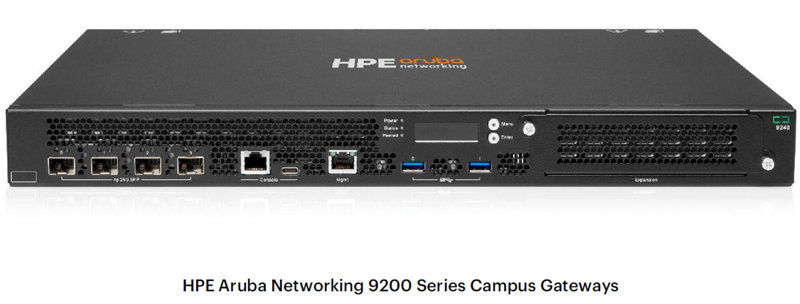

HPE Aruba Networking 9200 Series Campus Gateways

  • Standard Features

    Enterprise-Class Performance

    For medium and large enterprises who require high performance and 24x7 reliability, the HPE Aruba Networking 9200 Series is designed to scale to meet todays and future demands. This gateway builds upon HPE Aruba Networking legacy 7200 Series Gateways to provide next-generation connectivity for up to 2,048 Aps and 32,000 devices.


    To ensure high availability, the gateway supports live upgrades and multiple gateways can be clustered together at each location for business continuity. Zero touch provisioning eliminates the need for on-site IT support.


    Investment Protection

    The HPE Aruba Networking 9200 Series Campus Gateway removes the need for overprovisioning or frequent hardware refreshes with software upgrade licenses that unlock additional capacity with no hardware refresh required. Enterprises can opt for hardware only (20 Gbps total throughput, 512 Aps/16K devices) or for greater capacity they can add silver perpetual licenses (30 Gbps total throughput, 1K Aps/24K devices) or gold perpetual licenses (40 Gbps total throughput, 2K Aps/32K devices).


    Flexible Consumption

    HPE Aruba Networking 9200 Series Campus Gateway supports WLAN and SD-WAN deployments with a choice of HPE Aruba Networking Central subscription licenses. HPE GreenLake for Networking can help with the transition to a subscription-based network consumption model.


    Powerful Security Enforcement

    HPE Aruba Networking 9200 Series Campus Gateway delivers consistent policy enforcement across wired and wireless via dynamic segmentation. Traffic is tunneled to the gateway where granular rules are applied for any user, location, application, or device type – including IoT. For example, traffic can be segmented based on a defined set of user types such as guest, contractor, or employee to provide greater levels of security.


    To deliver unified policy enforcement, these gateways rely on a built-in Layer 4-7 stateful firewall known as the policy enforcement firewall (PEF). It streamlines policy management by working across WLAN, LAN, and WAN. When deployed alongside HPE Aruba Networking ClearPass Policy Manager, policies are automatically enforced to simplify SSID, VLAN, and policy management.

Advanced Capabilities

Seamless Roaming

Users often experience delays and application disconnects when they move from one subnet to another, for example on a large campus. This is caused the designation of a single subnet per building, which restricts the roaming domain to a specific building. When roaming across buildings, application persistence is lost and new sign on are required. The HPE Aruba Networking 9200 Series Campus supports tunneling so that two disparate networks can connect directly to one another, bypassing normal routing rules and allowing a station to maintain the same Layer 3 address when roaming throughout a multi-VLAN network to improve the mobile user experience.


Quality of Service

Deep Packet Inspection provides greater application visibility and control. As a part of the policy enforcement firewall, the gateway consistently evaluates and optimizes performance and usage policies for over 3,000 applications. This ensures the highest possible Quality of Service (QoS) – even for encrypted traffic.


Redundancy and Clustering

HPE Aruba Networking 9000 Series can be deployed with N+1 or NxN redundancy and can also join a controller cluster when deployed as a mobility controller managed by Mobility Conductor. This increases performance and scale for enhanced resiliency.


Simple to use, mobile provisioning

Allows on‑site personnel to use a mobile app to onboard gateways. A central IT team can verify device location, licenses, and status with no additional steps required.


Unified Communications and Collaboration (UCC)

Visualize and troubleshoot networks based on call quality metrics such as MOS, latency, jitter, and packet loss. Supported applications include Teams, Zoom, Skype, Wi-Fi Calling, FaceTime, SIP, Jabber, Spark, and more.


IoT and Integration Ready

To support IoT and integrate with your existing infrastructure, HPE Aruba Networking 9200 Series offers integrated device profiling. This improves client visibility and works with HPE Aruba Networking ClearPass Policy Manager to provide advanced user, device, and IoT policy management and insights.

  • Configuration Information

BTO Models

AC Powered Gateway


HPE Aruba Networking 9240 Gateways

Rule #

Description

SKU

HPE Aruba Networking 9240 (US) 4xSFP28 1 Expansion Slot Campus Gateway

R7H95A

  • – Includes one 550W AC power supply. US regulatory domain (for deployments in USA only).
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (RW) 4xSFP28 1 Expansion Slot Campus Gateway

R7H97A

  • – Includes one 550W AC power supply. Restricted Regulatory Domain.
  • – These products should be considered as ‘Rest of World’ products and MUST NOT be used for deployments in the United States, Israel, Japan or Egypt.
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (IL) 4xSFP28 1 Expansion Slot Campus Gateway

R7H99A

  • – Includes one 550W AC power supply. Restricted regulatory domain (for deployments in Israel only).
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (JP) 4xSFP28 1 Expansion Slot Campus Gateway

R7J00A

  • – Includes one 550W AC power supply. Restricted regulatory domain (for deployments in Japan only).
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (EG) 4xSFP28 1 Expansion Slot Campus Gateway

R7J01A

  • – Includes one 550W AC power supply. Restricted regulatory domain (for deployments in Egypt only).
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers

Notes:

– Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu

– OCA Only Model Selection Form – HPE Aruba Networking > Gateways and Controllers > Mobility Controllers > Campus: HPE Aruba Networking 9200 Series Mobility Controller


TAA Gateways


HPE Aruba Networking 9240 TAA Gateways

Rule #

Description

SKU

HPE Aruba Networking 9240 (US) TAA 4xSFP28 1 Expansion Slot Campus Gateway

R7J02A

  • – Includes one 550W AC power supply. US regulatory domain (for deployments in USA only). US FIPS & TAA Compliant.
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (RW) TAA 4xSFP28 1 Expansion Slot Campus Gateway

R7J03A

  • – Includes one 550W AC power supply. Restricted Regulatory Domain. FIPS & TAA Compliant.
  • – These products should be considered as ‘Rest of World’ products and MUST NOT be used for deployments in the United States, Israel, Japan or Egypt.
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (IL) TAA 4xSFP28 1 Expansion Slot Campus Gateway

R7J04A

  • – Includes one 550W AC power supply. Restricted regulatory domain (for deployments in Israel only). IL FIPS & TAA Compliant.
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (JP) TAA 4xSFP28 1 Expansion Slot Campus Gateway

R7J05A

  • – Includes one 550W AC power supply. Restricted regulatory domain (for deployments in Japan only). JP FIPS & TAA Compliant.
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers


HPE Aruba Networking 9240 (EG) TAA 4xSFP28 1 Expansion Slot Campus Gateway

R7J06A

  • – Includes one 550W AC power supply. Restricted regulatory domain (for deployments in Egypt only). EG FIPS & TAA Compliant.
  • – SFP/SFP+/SFP28 ports min=0 \ max=4 SFP/SFP+/SFP28 Transceivers

Notes:

– Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu

– OCA Only Model Selection Form – HPE Aruba Networking > Gateways and Controllers > Mobility Controllers >Campus: HPE Aruba Networking 9200 Series Mobility Controller

Transceivers

SFP

Rule #

Description

SKU

HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D

HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver

JL745A

HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver

JL746A

Notes:

Supported on the 9240 Models (min0 // max 4)


SFP+

Rule #

Description

SKU

HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver

J9151E

HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D

HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D

HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

Notes:

Supported on the 9240 Models (min0 // max 4)


SFP28

Rule #

Description

SKU

HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver

JL485A

HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver

JL484A

HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver

JL486A

HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Cable

JL487A

HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable

JL488A

HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable

JL489A

HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable

R0M44A

HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable

R0M45A

HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable

R0Z21A

Notes:

Supported on the 9240 Models (min0 // max 4)

Accessories

Gateway Mount Kits


Std (Min 0 // max 1) User Selection (min 0 // max 1)

Rule #

Description

SKU

HPE Aruba Networking 9240 Spare Rack Mount Kit

R9D13A

Notes:

Only supported on the 9240 Models


Fan Trays


Std (Min 0 // max 1) User Selection (min 0 // max 1)

Rule #

Description

SKU

HPE Aruba Networking HW-9240-FT 9240 Series Fan Tray

R7J65A

Notes:

Only supported on the 9240 Models

Spares

For 9240 Std (Min 0 // max 99) User Selection (min 0 // max 99)

Rule #

Description

SKU

HPE Aruba Networking PSU-550-AC 550W AC Power Supply

R7J63A

– Spare 550W PSU

Notes:

Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu

Software

Licenses


Std (Min 0 // max 1) User Selection (min 0 // max 1)

Rule #

Description

SKU

2

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 1-year Subscription E-STU

JZ195AAE

3

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 3-year Subscription E-STU

JZ196AAE

4

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 5-year Subscription E-STU

JZ197AAE

5

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 7-year Subscription E-STU

R0G60AAE

6

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 10-year Subscription E-STU

R0G61AAE

2

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 1-year Subscription E-STU

JZ198AAE

3

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 3-year Subscription E-STU

JZ199AAE

4

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 5-year Subscription E-STU

JZ200AAE

5

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 7-year Subscription E-STU

R0G62AAE

6

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 10-year Subscription E-STU

R0G63AAE

2

HPE Aruba Networking 92/72xx Central On-Premises Gateway WLAN Advanced 1-year Subscription E-STU

S6D96AAE

3

HPE Aruba Networking 92/72xx Central On-Premises Gateway WLAN Advanced 3-year Subscription E-STU

S6D97AAE

4

HPE Aruba Networking 92/72xx Central On-Premises Gateway WLAN Advanced 5-year Subscription E-STU

S6D98AAE

5

HPE Aruba Networking 92/72xx Central On-Premises Gateway WLAN Advanced 7-year Subscription E-STU

S6D99AAE

6

HPE Aruba Networking 92/72xx Central On-Premises Gateway WLAN Advanced 10-year Subscription E-STU

S6E00AAE

2

HPE Aruba Networking 92xx Central On-Premises Gateway WLAN Advanced Plus Security 1-year E-STU

S6E06AAE

3

HPE Aruba Networking 92xx Central On-Premises Gateway WLAN Advanced Plus Security 3-year E-STU

S6E07AAE

4

HPE Aruba Networking 92xx Central On-Premises Gateway WLAN Advanced Plus Security 5-year E-STU

S6E08AAE

5

HPE Aruba Networking 92xx Central On-Premises Gateway WLAN Advanced Plus Security 7-year E-STU

S6E09AAE

6

HPE Aruba Networking 92xx Central On-Premises Gateway WLAN Advanced Plus Security 10-year E-STU

S6E10AAE

2

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 1-year Subscription E-STU

S0V01AAE

3

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 3-year Subscription E-STU

S0V02AAE

4

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 5-year Subscription E-STU

S0V03AAE

5

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 7-year Subscription E-STU

S0V04AAE

6

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 10-year Subscription E-STU

S0V05AAE

2

HPE Aruba Networking 92xx SD-Branch Gateway Foundation Plus Security 1-year Subscription E-STU

S0S50AAE

3

HPE Aruba Networking 92xx SD-Branch Gateway Foundation Plus Security 3-year Subscription E-STU

S0S51AAE

4

HPE Aruba Networking 92xx SD-Branch Gateway Foundation Plus Security 5-year Subscription E-STU

S0S52AAE

5

HPE Aruba Networking 92xx SD-Branch Gateway Foundation Plus Security 7-year Subscription E-STU

S0S53AAE

6

HPE Aruba Networking 92xx SD-Branch Gateway Foundation Plus Security 10-year Subscription E-STU

S0S54AAE

2

HPE Aruba Networking 92xx SD-Branch Gateway Advanced Plus Security 1-year Subscription E-STU

S0S55AAE

3

HPE Aruba Networking 92xx SD-Branch Gateway Advanced Plus Security 3-year Subscription E-STU

S0S56AAE

4

HPE Aruba Networking 92xx SD-Branch Gateway Advanced Plus Security 5-year Subscription E-STU

S0S57AAE

5

HPE Aruba Networking 92xx SD-Branch Gateway Advanced Plus Security 7-year Subscription E-STU

S0S58AAE

6

HPE Aruba Networking 92xx SD-Branch Gateway Advanced Plus Security 10-year Subscription E-STU

S0S59AAE

2

HPE Aruba Networking 92xx Gateway WLAN Advanced Plus Security 1-year Subscription E-STU

S0V06AAE

3

HPE Aruba Networking 92xx Gateway WLAN Advanced Plus Security 3-year Subscription E-STU

S0V07AAE

4

HPE Aruba Networking 92xx Gateway WLAN Advanced Plus Security 5-year Subscription E-STU

S0V08AAE

5

HPE Aruba Networking 92xx Gateway WLAN Advanced Plus Security 7-year Subscription E-STU

S0V09AAE

6

HPE Aruba Networking 92xx Gateway WLAN Advanced Plus Security 10-year Subscription E-STU

S0V10AAE

1

HPE Aruba Networking 92xx Gateway WLAN Advanced plus Security 1-year Subscription SaaS

S3S54AAS

1

HPE Aruba Networking 92xx Gateway WLAN Advanced plus Security 3-year Subscription SaaS

S3S55AAS

1

HPE Aruba Networking 92xx Gateway WLAN Advanced plus Security 5-year Subscription SaaS

S3S56AAS

1

HPE Aruba Networking 92xx Gateway WLAN Advanced plus Security 7-year Subscription SaaS

S3S57AAS

1

HPE Aruba Networking 92xx Gateway WLAN Advanced plus Security 10-year Subscription SaaS

S3S58AAS

1

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 1-year Subscription SaaS

S3S47AAS

1

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 3-year Subscription SaaS

S3S48AAS

1

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 5-year Subscription SaaS

S3S49AAS

1

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 7-year Subscription SaaS

S3S52AAS

1

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 10-year Subscription SaaS

S3S51AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Advanced plus Security 1-year Subscription SaaS

S3S42AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Advanced plus Security 3-year Subscription SaaS

S3S43AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Advanced plus Security 5-year Subscription SaaS

S3S44AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Advanced plus Security 7-year Subscription SaaS

S3S45AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Advanced plus Security 10-year Subscription SaaS

S3S46AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Foundation plus Security 1-year Subscription SaaS

S3S59AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Foundation plus Security 3-year Subscription SaaS

S3S60AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Foundation plus Security 5-year Subscription SaaS

S3S39AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Foundation plus Security 7-year Subscription SaaS

S3S40AAS

1

HPE Aruba Networking 92xx SD-Branch Gateway Foundation plus Security 10-year Subscription SaaS

S3S41AAS

1

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 1-year Subscription SaaS

JZ198AAS

1

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 3-year Subscription SaaS

JZ199AAS

1

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 5-year Subscription SaaS

JZ200AAS

1

HPE Aruba Networking 92/72xx Gateway WLAN Advanced 7-year Subscription SaaS

S3S50AAS

1

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 10-year Subscription SaaS

S3S53AAS

Configuration Rules

Rule#

Description

1

For IRIS reference only. No action required for OCX and Clic

When configuring BTO model, display table of Subscription Type as follows:

Title = ""Select License""

ChoiceA = ""Gateway License""

If user selects ChoiceA, then display table of subscription term as follows:

Title ""Select Gateway License Term""

ChoiceA1 = ""1-Year""

ChoiceA2 = ""3-Year""

ChoiceA3 = ""5-Year""

ChoiceA4 = ""7-Year""

ChoiceA5 = ""10-Year""

2

If ChoiceA1 is selected, then present this sku as a selectable option

3

If ChoiceA2 is selected, then present this sku as a selectable option

4

If ChoiceA3 is selected, then present this sku as a selectable option

5

If ChoiceA4 is selected, then present this sku as a selectable option

6

If ChoiceA5 is selected, then present this sku as a selectable option

  • Technical Specifications

Performance

Base Hardware

w/ Silver License

w/ Gold License

Replaces

7210

7220

7240XM

Firewall throughput (Gbps)

20

30

40

Encrypted throughput GRE (Gbps)

20

30

40

Encrypted throughput AES-CBC-128 (Gbps)

20

30

38

Encrypted throughput AES-CBC-256 (Gbps)

20

30

39

Encrypted throughput AES-GCM-128 (Gbps)

20

30

40

Encrypted throughput AES-GCM-256 (Gbps)

20

30

40

Encrypted throughput AES-CCM (Gbps)

20

28

30

AOS-10

Minimum suppported software version

AOS 10.4

AOS 10.6

AOS 10.6

Cluster size

6

6

6

Maximum clients

32K

48K

64K

Maximum clients per cluster

128K

192K

256K

Max devices (APs)

4K

8K

16K

Max devices (APs) per cluster

8K

16K

32K

Maximum datapath /firewall sessions

4M

4M

4M

Concurrent IPSec tunnels

32K

64K

128K

Total tunnels

40K

80K

160K

ARP

64K

96K

128K

Max DHCP clients

16K

16K

16K

L2 VLAN (IPv4)

4K

4K

4K

L3 VLAN (IPv4)

4K

4K

4K

L3 VLAN (IPv6)

512

512

512

Maximum bridge table

1M

1.5M

2M

Minimum IPv6 neighbors

128K

192K

256K

Max IPv4 static routes

4K

4K

4K

Max IPv6 static routes

1K

1K

1K

OSPF routes

57K

57K

57K

Access control lists

2,678

2,678

2,678

Configurable bandwidth contracts

1K

1k

1K

AOS-8

Replaces

7210

7220

7240XM

Minimum supported software version

AOS 8.10

Cluster size

12

12

12

Maximum campus or remote access points

512

1K

2K

Maximum concurrent users/devices

16K

24K

32K

Active firewall sessions

2M

2M

2M

Concurrent GRE tunnels

8K

16K

32K

L2 VLANs

4K

4K

4K

L3 VLANs (IPv4 interfaces)

4K

4K

4K

L3 VLANs (IPv6 interfaces)

128

128

128

Concurrent IPsec sessions

16K

24K

32K

Concurrent SSL sessions

8K

8K

8K

IAP-VPN

6.5K

8K

8K

Interfaces and Indicators

Form Factor

1 RU

Interface

4x SFP28

Out of Band Management Port

1x RJ45

Console port

USB-C, RJ45

USB 3.0 Type-A

2

LCD Display

1

Power LED

Yes

Status LED

Yes

Peered LED (Reserved for Future Use)

Yes

Expansion Slot (Reserved for Future Use)

1

Power Supply Slots

1 + Redundant

Fan Trays

5

Physical

Dimensions (HxWxD)

1.73” x 17.40” x15.60” (4.4 cm x 44.2cm x 39.6 cm)

Weight

18.08 lbs (8.2 kg)

MTBF (Hours at 25C with Fans and PSU)

185,301

Environmentals

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

–40 °C to 70 °C (–40 °F to 158 °F)

Humidity/Storage Humidity

10% to 90% (RH)/10% to 95% (RH), non-condensing

Operating Altitude

10,000 feet

Acoustic Noise 1

65.2 dBA (Typ)

Maximum Heat Dissipation (BTU/hour)

648 BTU/hr

Maximum Power Consumption

190W

Power Source

550-watt power supply

Notes:1 Sound power per ETSI 300 753 in accordance with ISO 7779

Power Supply Certifications

Input voltage range

100 VAC to 240 VAC

Output Voltage

12V

Input frequency

50-60 Hz

AC line input current (steady state)

7.1A

Operating Temperature

0° C to 55° C

Cooling

Internal fan (Air flow rear to front)

Weight

0.8Kg

Service and Warranty Information

Hardware

1-year parts/ labor, can be extended with support contract


Mobility Controller Software

90 days, can be extended with support contract

  • Summary of Changes

Date

Version History

Action

Description of Change

05-Jan-2026

Version 13

Changed

Overview, Standard Features, and Technical Specifications sections were updated. Software SKUs were added in Configuration Information section.

18-Nov-2024

Version 12

Changed

Overview and Configuration Information sections were updated.

03-Sep-2024

Version 11

Changed

Overview, Standard Features, and Technical Specifications sections were updated

01-Apr-2024

Version 10

Changed

Configuration Information section was updated

04-Mar-2024

Version 9

Changed

Configuration Information section was updated

04-Dec-2023

Version 8

Changed

Series name was updated

06-Nov-2023

Version 7

Changed

Configuration Information section was updated Series name was updated

16-Oct-2023

Version 6

Changed

Configuration Information section was updated

07-Aug-2023

Version 5

Changed

Configuration Information section was updated.

06-Mar-2023

Version 4

Changed

Configuration Information section was updated.

05-Dec-2022

Version 3

Changed

Configuration Information section was updated, new SKUs were also added.

03-Oct-2022

Version 2

Changed

Configuration Information section was updated.

04-Apr-2022

Version 1

New

New QuickSpecs

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit : http://www.hpe.com/networking

a50004272enw, 16876 - Worldwide - V13 - 05-January-2026

Recommended for you
