    The Ultimate x86 based Mission-critical Platform.

    It delivers unmatched reliability, performance, and scale for your mission-critical workloads. The HPE Compute Scale-up Server 3200 is the newest model in the HPE Compute Scale-up family of servers. This highly reliable, scalable and secure server starts with 4 processors and scales up to 32 powerful 4th generation Intel® Xeon® Scalable Processors, in 4-socket increments. Its modular architecture scales cost-efficiently to meet your data growth needs. To support growth of in-memory databases and data-intensive workloads, HPE Compute Scale-up Server 3200 offers large, shared memory capacity ranging from 128 GB to 64 TB.

    Overview

    HPE Compute Scale-up Server 3200

    The HPE Compute Scale-up Server 3200 utilizes ultra-fast DDR5 DIMMs with speeds up to 4800 MT/s and 16 DIMM slots per processor, delivering twice the memory bandwidth compared to prior generations. Its flexible I/O subsystem, based on PCIe5.0, delivers 4x I/O bandwidth compared to prior models. Extreme RAS including advanced memory resiliency, “firmware first”, analysis engine, and self-healing ensures the highest reliability for mission critical apps. Superior security, including HPE Silicon Root of Trust and two TPM modules, protects your workloads and data against firmware attacks and malware. Complementary clustering software, HPE Serviceguard for Linux provides rapid and automatic high application availability and disaster recovery capabilities. Optional deployment with HPE GreenLake provides flexible as-a-service consumption while maintaining on-premises control.

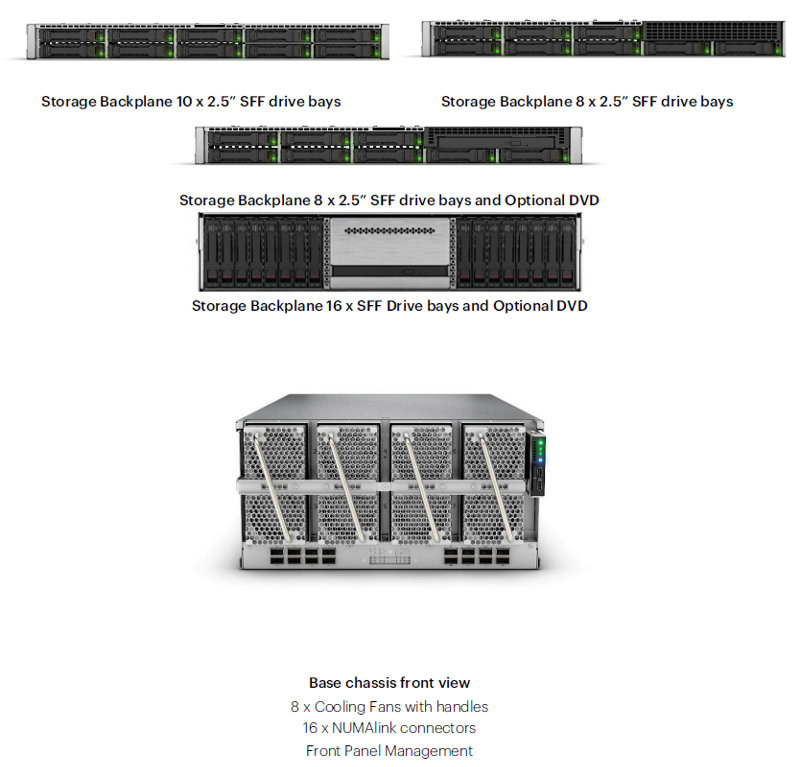

    Image 1

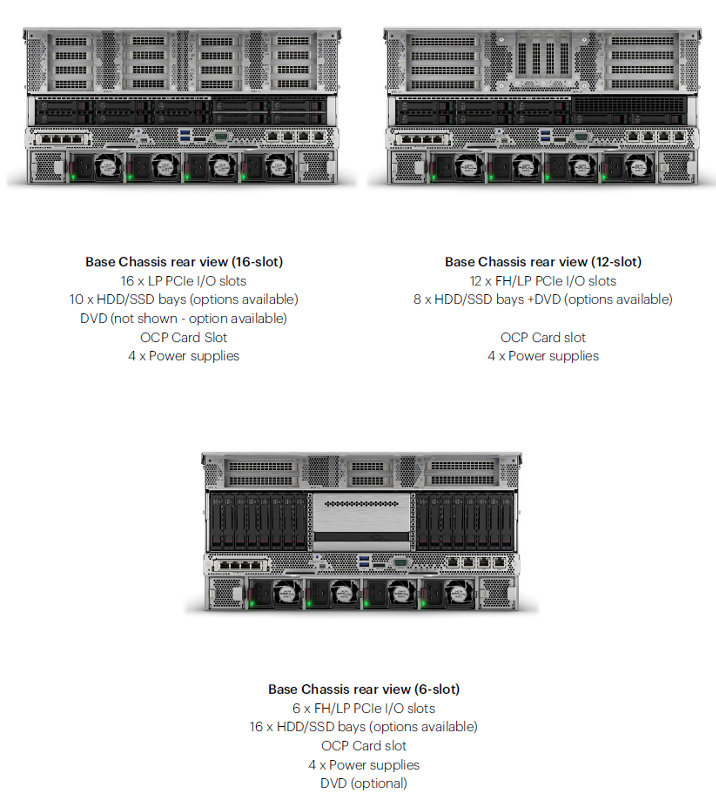

    Image 2
    Image 3

    At a Glance Features

    HPE Compute Scale-up Server 3200 is designed to power mission critical applications and databases, and specialized HPC and AI workloads. It offers:

    • − Support for 4 to 32-sockets of Intel Xeon Scalable processors in a single system with up to 60-cores per socket for a maximum of 1920 cores
    • − Up to 4 UPI links per socket providing unparalleled bandwidth and performance
    • − 64 DIMM slots of DDR5 memory per chassis
    • − 32GB - 128GB DDR5 with up to 64 TB of shared memory
    • − 16 half-height IO slots OR 8 full-height + 4 half-height IO slots, OR 4 full-height + 2 half-height IO slots per four-socket chassis
    • − Base IO includes support for one PCIe Gen 4 x16 OCP slot, 8 SATA drives via VROC, two (2) system USB 3.0 ports on the back, one (1) system USB and one (1) RMC − − USB port on the front panel. The RMC USB can be connected to USB to ethernet adapter as a management LAN connection.
    • − Internal storage up to 24 drive bays and optional DVD, varies based on I/O support selected
    • − HPE Compute Scale-up Server 3200 Error Analysis Engine for better diagnostics, self-healing, and mission-critical reliability

    General

    The HPE Compute Scale-up Server 3200 is built using 4-socket, 5U chassis that are cabled together to create systems from 4-sockets (1 chassis) to 16 sockets (4 chassis). A 32 socket (8 chassis) is also available with limited configurations. Each chassis supports 8 fans, 4 power supplies, associated power cords, and connecting cables.

    Power Supply (2400 W)

    R9P00A - HPE Compute Scale-up Server 3200 2x 2400W Platinum Hot Plug Power Supply Kit (kit of 2)

    80PLUS Platinum Power Supply

    Loading

    100% maximum

    50% of maximum

    Minimum Efficiency@230VAC

    91%

    94%

    Rated Specifications

    Value

    Units

    Input Voltage

    200-240

    Volts

    Input Current (max)

    13.5

    Amps

    Input Frequency (Typical)

    50/60

    Hz

    Rated Output Power

    2400

    Watts

    Notes:

    − Mixing of Power Supplies within a chassis or system is not allowed

    − Each SKU contains 2 power supplies, 2 kits are required per chassis

    Power Supply (2400 W) Optional

    R9P01A - HPE Compute Scale-up Server 3200 2x 2400 W Titanium Hot Plug Power Supply Kit (kit of 2)

    80PLUS Titanium Power Supply



    Loading

    100% maximum

    50% of maximum

    Minimum Efficiency @230VAC

    91%

    96%

    Rated Specifications

    Value

    Units

    Input Voltage

    200-240

    Volts

    Input Current (max)

    13.3

    Amps

    Input Frequency (Typ)

    50/60

    Hz

    Rated Output Power

    2400

    Watts

    Notes:

    − Mixing of Power Supplies within a chassis or system is not allowed

    − Each SKU contains 2 power supplies, 2 kits are required per chassis

    System

    The system can support up to four (4) chassis. An (8) chassis system with limited configurations is offered.

    Notes: Ordering rules can be found in the HPE Compute Scale-up Server 3200 menu and in the ordering and configuration tools.


    Chassis

    Each chassis has the following specifications:

    • − Support for four (4) Intel Xeon Scalable processors
    • − Supports up to 64 DDR5 DIMM slots (16 DIMMs per processor)
    • − Supports up to sixteen (16) PCIe Gen 5 slots
      • Eight (8) x16 PCIe Gen 5 slots and Eight (8) x8 PCIe Gen 5 slots
    • − Supports additional IO capability in a Base IO chassis (OCP Slot)

    Base and expansion chassis

    • − Every HPE Compute Scale-up Server 3200 system starts with one 4-socket capable Base Chassis (with boot support). Up to three (3) Expansion Chassis can be added to expand the system from 4-sockets to 8, 12, or 16-sockets. A 32-socket system with (1) Base Chassis and (7) Expansion Chassis is available in limited configurations.

    Standard Features

    Processors

    Each server chassis supports four (4) Intel® Xeon® Scalable processors:

    • − Intel Xeon-Platinum 8490H 1.9 GHz 60-core 350 W Processor Kit for HPE Compute Scale-up Server 3200
    • − Intel Xeon-Platinum 8468H 2.1 GHz 48-core 330 W Processor Kit for HPE Compute Scale-up Server 3200
    • − Intel Xeon-Platinum 8460H 2.2 GHz 40-core 330 W Processor Kit for HPE Compute Scale-up Server 3200
    • − Intel Xeon-Platinum 8454H 2.1 GHz 32-core 270 W Processor Kit for HPE Compute Scale-up Server 3200
    • − Intel Xeon-Platinum 8450H 2.0 GHz 28-core 250 W Processor Kit for HPE Compute Scale-up Server 3200
    • − Intel Xeon-Platinum 8444H 2.9 GHz 16-core 270 W Processor Kit for HPE Compute Scale-up Server 3200
    • − Intel Xeon-Gold 6434H 3.7 GHz 8-core 195 W Processor Kit for HPE Compute Scale-up Server 3200

    Notes:

    − All processors can be utilized to scale to 32 sockets

    − All processors within a chassis, partition and chassis must be identical


    Chipset

    Intel C741 Chipset

    Notes: For more information regarding Intel® chipsets, please see the following URL:

    https://www.intel.com/content/www/us/en/products/details/chipsets/server-chipsets.html


    Upgradability and scalability

    Scalable from 4-socket configurations to 32-socket configurations.

    A 32-socket system offering is available in limited configurations which can be scaled up to 64 TB of memory.

    • − The 32-socket system is not an option in the OCA configuration tool and will require ‘expert mode’ to quote.
    • − Preferred configuration BOMs are available to build 32-socket systems
    • − 32-socket system configuration will require a CSG approval prior to quoting.
    • − Systems above 16-socket are limited to a 32-socket offering. System configurations of 20, 24, or 28-socket are not available.

    Memory type Registered

    • − HPE Compute Scale-up Server 3200 32 GB (1x32GB) Single Rank x4 DDR5-4800 Registered Std Memory Kit
    • − HPE Compute Scale-up Server 3200 64 GB (1x64GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit
    • − HPE Compute Scale-up Server 3200 96 GB (1x96GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit
    • − HPE Compute Scale-up Server 3200 128 GB (1x128GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit
    • − HPE Compute Scale-up Server 3200 128 GB (1x128GB) Quad Rank x4 DDR5-4800 Registered 3DS Memory Kit

    Memory protection

    • − DDR5 ECC correction with monitoring of Error Check and Scrub
    • − Post Package Repair PPR as needed on power up
    • − ADDDC and memory page retire for online resiliency

    Operating System

    • − Red Hat Enterprise Linux (RHEL)
    • − SUSE Linux Enterprise Server (SLES)
    • − Oracle Linux
    • − VMware
    • − Microsoft Windows Server 2022 Standard and Datacenter
    • − Microsoft Windows Server 2025 Standard and Datacenter

    Notes:

    − HPE Foundation Software is required for all Linux O/S environments

    − SLES, RHEL, and Oracle Linux certifications include KVM certification

    − Minimum OS levels may be required for certain features and hardware options

    Product SKU

    Description

    Windows 2022

    Windows 2025

    RHEL 8.6+

    RHEL 9

    SLES 15

    VMWare 8

    Oracle

    P45641-H23

    HPE InfiniBand NDR/Ethernet 400 Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter

    E

    E

    X

    X

    X

    X

    X

    P21106-B21

    Intel I350-T4 Ethernet 1 Gb 4-port BASE-T Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    P26253-B21

    Broadcom BCM57416 Ethernet 10 Gb 2-port BASE-T Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    P26259-B21

    Broadcom BCM57412 Ethernet 10 Gb 2-port SFP+ Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    P08443-B21

    Intel E810-XXVDA2 Ethernet 10/25 Gb 2-port SFP28 Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    P08458-B21

    Intel E810-XXVDA4 Ethernet 10/25 Gb 4-port SFP28 Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    P21112-B21

    Intel E810-CQDA2 Ethernet 100 Gb 2-port QSFP28 Adapter for HPE

    X

    X

    X

    X

    X

    X


    P26264-B21

    Broadcom BCM57504 Ethernet 10/25 Gb 4-port SFP28 Adapter for HPE

    X

    X

    X

    X

    X

    X


    R4K46A

    HPE Slingshot SA210S Ethernet 200 Gb 1-port PCIe NIC



    X

    X

    X

    X


    P42041-B21

    Mellanox MCX631432AS-ADAI Ethernet 10/25 Gb 2-port SFP28 OCP3 Adapter for HPE

    X

    X

    X

    X

    X

    X


    P08449-B21

    Intel I350-T4 Ethernet 1 Gb 4-port BASE-T OCP3 Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    P10097-B21

    Broadcom BCM57416 Ethernet 10 Gb 2-port BASE-T OCP3 Adapter for HPE

    X

    X

    X

    X

    X

    X

    X

    Product SKU

    Description

    Windows 2022

    Windows 2025

    RHEL 8.6+

    RHEL9

    SLES15

    VMWare 8

    Oracle

    P9D93A

    HPE SN1100Q 16 Gb Single Port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    P9D94A

    HPE SN1100Q 16 Gb Dual Port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    R2J62A

    HPE SN1610E 32 Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    R2J63A

    HPE SN1610E 32 Gb 2-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    R2E08A

    HPE SN1610Q 32 Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    R2E09A

    HPE SN1610Q 32 Gb 2-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    R7N77A

    HPE SN1700E 64 Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X


    R7N78A

    HPE SN1700E 64 Gb 2-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X


    R7N86A

    HPE SN1700Q 64 Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X


    R7N87A

    HPE SN1700Q 64 Gb 2-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X



    R4R52A

    HPE SR3258p-32i/e 32-port 8 GB Cache Tri-Mode 24G PCIe4 x16 Encrypted Controller

    X


    X

    X

    X

    X

    X

    R9P58A

    HPE SR3258p-16i/e 16-port 8 GB Cache Tri-Mode 24G PCIe4 x16 Encrypted Controller

    X


    X

    X

    X

    X

    X

    R9N96A

    HPE MR9660-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller

    X

    X

    X

    X

    X

    X

    X

    R9N97A

    HPE MR9670-24i 24-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller

    X

    X

    X

    X

    X

    X


    R9N98A

    HPE MR9670W-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x16 Controller

    X

    X

    X

    X

    X

    X

    X

    R9N99A

    HPE SR3254-16e/e 16-port 4 GB Cache External 24G PCIe4 x16 Encrypted Controller

    X

    X

    X

    X

    X

    X

    X


    S0K89C

    NVIDIA L4 24 GB PCIe Accelerator for HPE

    X


    X

    X

    X

    X


    S2L70C

    NVIDIA L40S 48 GB PCIe Accelerator

    X


    X

    X

    X

    X


    Notes:

    − X = Supported

    − E = Ethernet Mode Only

    − Minimum OS levels are required for support of some processors and options

    − HPE Compute Scale-up Server 3200 I/O Oracle Linux Support: Hewlett Packard Enterprise only supports the use of in distribution drivers with Oracle Linux and UEK update releases. All controllers tested above used the driver located on the source media for their respective Oracle product. Out of distribution drivers are not supported with Oracle Linux, or UEK.

    − HPE Compute Scale-up Server 3200 I/O VMware Support: I/O configurations with VMware must adhere to the “vSphere Configuration Maximums” as documented by VMware per controller type and manufacturer.

    − For more information on the HPE Certified and Supported Hewlett Packard Enterprise servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hpe.com/info/ossupport

    Partitioning

    • − Multiple electrically isolated HPE nPartitions (HPE nPars) supported per system.

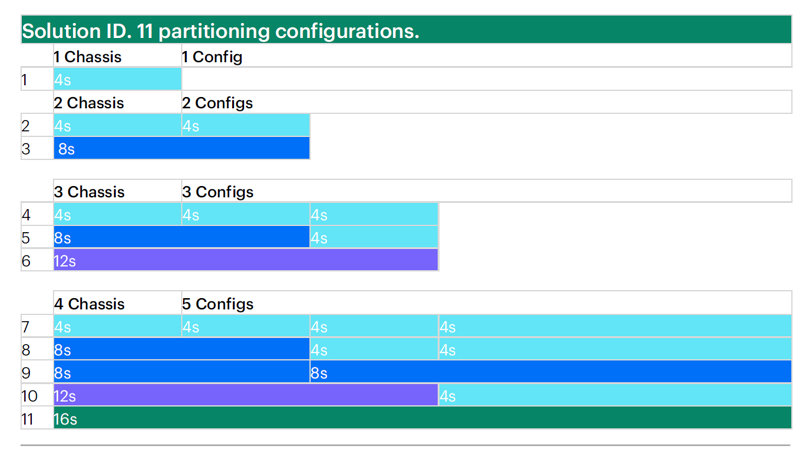

    • − Please refer to the table below for HPE nPars Partition Options.
    • − All Processors and Memory must be the same within a Partition.
    • − Repartitioning does not require recabling
    • − 32-socket configurations are limited to a single HPE nPartition
    Image 4

    I/O Slots

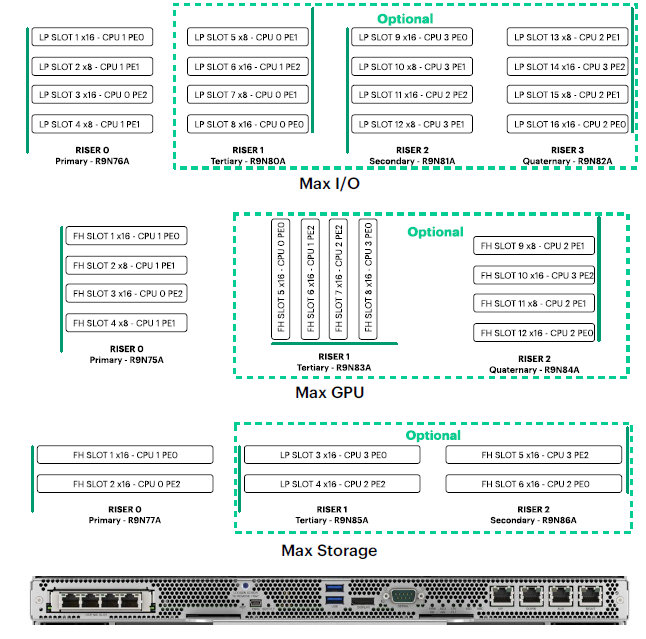

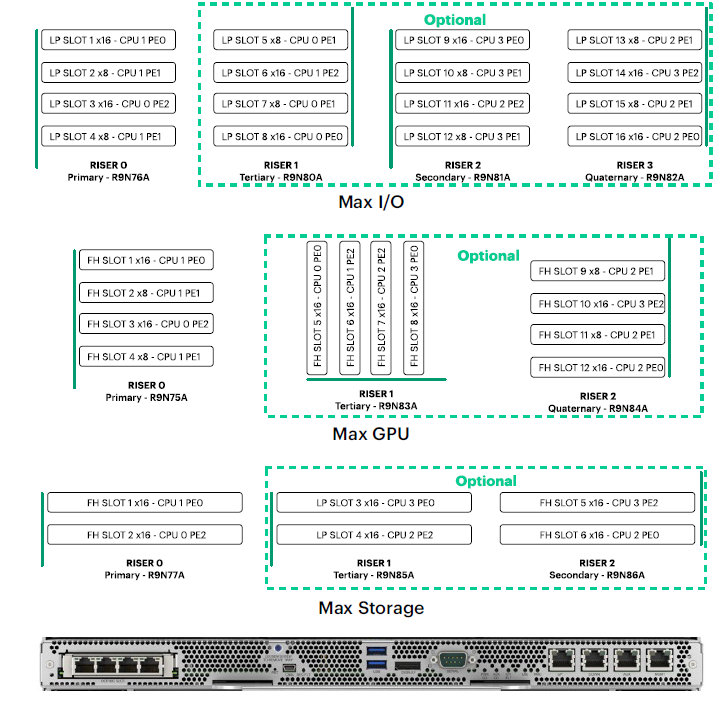

    Chassis support either 16 half-height PCIe slots (8 x16 slots and 8 x8 slots); 12 slots with eight-full height slots (4 x16 slots and 4 x8 slots) + 4 half-height slots (4 x16 slots); 6 slots with four full-height (4 x16) + two half-height (2 x16) or a compute-only configuration (no PCIe slots). The compute-only configuration is only supported with the Expansion Chassis.

    Image 5

    Base Chassis Base I/O

    • − One OCP Card Access
    • − One Reset switch
    • − One RMC console (mini USB-B)
    • − Two external USB 3.0 ports
    • − One Display Port
    • − One serial port (9-pin Dsub)
    • − Set of System Indicator lights
    • − Three RJ45 ports for inter-chassis management connection
    • − One RJ45 RMC Management port

    Notes: HPE Compute Scale-up Server 3200 chassis does not come with embedded networking, hence the requirement to configure with either a FlexibleLOM or select PCIe networking adapter.


    Form Factor

    5U Base Chassis or Expansion Chassis


    High availability-standard server features

    • − 2N (N+N) redundant (2400 W) power supplies
    • − N+1 fans (or greater depending on the load)
    • − Hot-Swappable and redundant fans, power supplies
    • − HPE Analysis Engine Logging and Reporting
    • − Full Support for Fault Resilient boot with indictments and deconfigures
    • − Enhanced MCA Gen2 recovery
    • − Post Package Repair (PPR) with ADDDC memory options
    • − ECC, re-tries, and Link Width Reduction on data paths
    • − Automatic de-configuration of DIMMs. Processor de-configuration
    • − I/O Advanced Error Recovery
    • − Enhanced Downstream Port Containment
    • − PCIe Isolation
    • − Redundant and Failover in Fabric Lanes; Automatic rerouting; Error correction
    • − Resilient Internal Management LAN
    • − Front Panel Management device

    Standard Warranty

    Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Protected by HPE Services operational services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hewlett Packard Enterprise branded hardware and options qualified for the HPE Compute Scale-up Server 3200 are covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners. The HPE branded hardware and options diagnostic support and repair is available for three years from date of purchase, or the warranty length of the server they are attached to, whichever is greater. Additional support may be covered under the warranty or available through additional support packages. Enhancements to warranty services are available through HPE Services operational services or customized service agreements.

    Additional information regarding worldwide limited warranty and technical support is available at:

    https://support.HPE.com/hpsc/doc/public/display?docId=c01865770


    Physical and Environmental Information

    Systems are comprised of the following components: Base chassis plus Expansion chassis.


    Enclosure

    The system can be field racked. However, it is strongly recommended that customers order the systems racked from the factory. This provides the customer the benefit of extensive system testing and avoids possible premium service charges for field racking service. Field racking requires the use of an appropriate material lift capable of lifting 125+ lbs.

    Systems are supported in the HPE 600 mm wide and 800 mm wide racks, and the HPE D-rack. Rack availability is dependent on size of system complex.

    Other products may be placed in the same rack as the system. Placement of these other products must not result in moving the server chassis. All racks in the same order must be the same height and width.

    Hardware Configuration

    Number of chassis per compute system

    1/2/3/4/8

    Number of processor modules per compute system (min/max)

    4/8/12/16/32

    Number of DIMMs (min/max)

    1, 4, 8, 12 or 16 per socket

    Number of I/O slots

    16 Low Profile per chassis

    Or 8 Full Height and 4 Low Profile per chassis

    Or 4 Full Height and 2 Low Profile per chassis

    Or Compute only 0-slot (Expansion Chassis only)

    Number of RMCs

    1 per chassis. Base chassis is primary controller

    Number of Base IO

    1

    SAS/SATA drives per Chassis

    Up to 24 depending on number of IO slots selected

    DVD module per Base IO

    0-1 (depending on number of drives)

    Fans

    8 per chassis front, 2 in rear

    Power Supplies (2400 W)

    2N: 4 per chassis

    The system is supported in the HPE 600 mm and 800 mm series racks and the HPE D-rack with a standard rack door.


    Configuration Rules

    • − The chassis is the basic building block.
    • − A single system can be supported in 1-Chassis to 8-Chassis configurations. An embedded Rack Management Controller is included with Base chassis.
    • − Each system starts with one (1) Base Chassis. Up to three (3) Expansion Chassis can be added to scale the system. A (1) Base Chassis (7) Expansion Chassis system is available in limited configurations.
    • − There are single phase and three phase power distribution options.
    • − Mixing of Power Supplies within a chassis or system is not allowed
    • − All processors within a chassis, partition or system must be of the same processor type
    • − Default boot slots dependent on what IO selection is made and slot is populated with a bootable PCIe card
      • 12-slot/16-slot: 3,1,11
      • 6-slot: 2,1,6
    • − One (1) Additional/Customizable boot slot available for a total of four (4) boot slots

    Racking Choices

    HPE Compute Scale-up Server 3200 can be racked in many of the HPE G2 Enterprise Series and Advanced Series racks, and the HPE D-Rack. Complete ordering rules can be found in the HPE Compute Scale-up Server 3200 menu and in the ordering and configuration tools.


    The HPE Compute Scale-up Server 3200 can also be rack mounted in 3rd party rack. Specific rules and guidelines for this are available here:

    HPE Compute Scale-up Server 3200 Rack Planning Checklist

    HPE Compute Scale-up Server 3200 Rackmounting Guide


    The following racks are supported with HPE Compute Scale-up Server 3200—refer to the server menu for ordering and configuration rules:

    • − HPE 22U 600x1075mm Adv G2 Shock Rack
    • − HPE 36U 600x1075mm Adv G2 Kit Shock Rack
    • − HPE 42U 600x1200mm Adv G2 Kit Shock Rack
    • − HPE 42U 600x1075mm Adv G2 Kit Shock Rack
    • − HPE 42U 600x1075 Ent G2 Shock Rack
    • − HPE 42U 600x1200 Ent G2 Shock Rack
    • − HPE 42U 800x1075 Ent G2 Shock Rack
    • − HPE 42U 800x1200 Ent G2 Shock Rack
    • − HPE 48U 600x1075 Ent G2 Shock Rack
    • − HPE 48U 600x1200 Ent G2 Shock Rack
    • − HPE 48U 800x1200 Ent G2 Shock Rack
    • − HPE 42U 610 mm x 1156 mm D-Rack
    • − HPE D-Rack 42U 610mm x 1156mm Extended

    The default assumption is that chassis are loaded in the rack at the bottom. It is recommended that 1U is left below the bottom of the compute enclosure in the 42U rack to provide PDU and cabling exit space.


    Supported configurations have the system located at the bottom of the rack with peripherals located above all chassis.

    G2 and G3 PDUs supported on HPE Compute Scale-up Server 3200

    P9R80A

    HPE G2 Metered Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208 V Outlets (6) C19/1U Horizontal NA/JP PDU

    P9R81A

    HPE G2 Metered Modular 3Ph 22kVA/60309 5-wire 32A/230 V Outlets (6) C19/1U Horizontal INTL PDU

    P59420-B21

    Enlogic by nVent G3 Basic 1-phase 4.9kVA/24A/200-240 V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE

    P59421-B21

    Enlogic by nVent G3 Basic 1-phase 7.3kVA/32A/200-240 V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE

    PDU Model

    Region

    Power Phase

    Input Voltage Range

    Input Current

    Circuit Breakers

    Input Plug Type

    Input Cord Length

    Outlet

    Dimensions

    S0P01A

    NA/JP

    Three

    200 - 240 V

    48A derated

    6 x 20A

    IEC 60309/ 460P9W

    12'

    6 x IEC320 C19

    22.5"H x 2.0"W x 6.5"D

    S0P02A

    INTL

    Three

    380 - 415 V

    32A

    6 x 16A

    IEC 60309/ 532C6W

    12'

    6 x IEC320 C19

    22.5"H x 2.0"W x 6.5"D

    S0P03A

    NA/JP

    Single

    200 - 240 V

    24A derated

    2 x 20A

    NEMA L6-30

    12'

    2 x IEC320 C19

    11.6"H x 1.8"W x 3.9"D

    S0P04A

    INTL

    Single

    200 - 240 V

    32A

    2 x 20A

    IEC 60309/ 332C6W

    12'

    2 x IEC320 C19

    11.6"H x 1.8"W x 3.9"D

    HPE Destination Rack (D-Rack)

    The HPE D-Rack is available for HPE Compute Scale-up Server 3200 in two models:

    • − HPE 42U 610 mm x 1156 mm D-Rack (H7C27A)
    • − HPE D-Rack 42U 610 mm x 1156 mm Extended (Q2T97A) The extended rack includes a 2U extension for a total of 44 rack units (44U).

    HPE Destination Rack (D-Rack)

    Dimensions for a single 24-inch wide 42U rack

    Height: 78.75 in. (200 cm)

    Width: 24.0 in. (60.9 cm)

    Depth: 46.0 in. (116.8 cm)

    Shipping dimensions

    (single rack)

    Height: 88.88 in. (225.8 cm)

    Width: 44.0 in. (111.8 cm)

    Depth: 62.75 in. (159.4 cm)

    Weight (single rack)

    386 lb. (175.1 kg)

    Shipping weight (single rack)

    856 lb. (388.3 kg)

    Static load (max)

    2400 lb. (1088.6 kg)

    Dynamic load (max rolling)

    2500 lb. (1134 kg)

    42U rack access requirements

    Front: 48 in. (121.9 cm)

    Rear: 48 in. (121.9 cm)

    Top: 18 in. (45.7 cm)

    HPE Power Advisor

    The HPE Power Advisor is a tool provided by Hewlett-Packard to assist in the estimation of power consumption at a system, rack, and multi-rack level.


    Available at: https://poweradvisorext.it.HPE.com/?Page=Index


    Processor Support

    HPE Compute Scale-up Server 3200 systems support Intel® Xeon® 4th Generation 84xXH and 64XXH as specified in the following table.

    Notes:

    − Maximum memory per socket includes DDR5 memory within the system

    − Maximum memory is 2 TB per socket

    − Minimum OS levels are required for support of some processors and options

    Supported Processor Matrix

    Intel® Xeon® Scalable Processor Family 4th Generation

    Processor

    # of cores per processor

    Frequency

    Cache

    Power

    Intel® Xeon® Platinum 8490H Processor

    60c

    1.9 GHz

    112.5 MB

    350 W

    Intel® Xeon® Platinum 8468H Processor

    48c

    2.1 GHz

    105 MB

    330 W

    Intel® Xeon® Platinum 8460H Processor

    40c

    2.2 GHz

    105 MB

    330 W

    Intel® Xeon® Platinum 8454H Processor

    32c

    2.1 GHz

    82.5 MB

    270 W

    Intel® Xeon® Platinum 8450H Processor

    28c

    2.0 GHz

    75 MB

    250 W

    Intel® Xeon® Platinum 8444H Processor

    16c

    2.9 GHz

    45 MB

    270 W

    Intel® Xeon® Gold 6434H Processor

    8c

    3.7 GHz

    22.5 MB

    195 W

    Processor Mixing Support

    Governing rules for mixing processors are as follows:

    • − No mixing of processor types within the same system
    • − All processors within all nPars within a complex must be identical in order to maximize repartitioning options

    DDR5 Memory Support

    Systems will use DDR5 DIMM technology.


    The following DIMMs are supported in the chassis:

    • − 32 GB 1Rx4 DDR5-4800R Registered DIMM
    • − 64 GB 2Rx4 DDR5-4800R Registered DIMM
    • − 96 GB 2Rx4 DDR5-4800R Registered DIMM
    • − 128G 4Rx4 DDR5-4800R 3DS Registered DIMM
    • − 128 GB 2Rx4 DDR5-4800R Registered DIMM

    Notes:

    − Only DIMMs that Hewlett Packard Enterprise has qualified are supported.

    − Each chassis supports up to 64 DIMMs. This breaks down to sixteen DIMMs per socket, 8 memory channels.

    − General memory configuration rules:

    • o For best performance, the amount of memory on each chassis within the system should be the same.
    • o Must use the same amount of memory on each processor module within a partition.

    − 128 GB Quad Rank DDR5 3DS Memory is no longer sold to be configured with new systems. The memory remains available only as an option for upgrade. HPE Does not support mixing 128 GB Dual Rank and Quad Rank (3DS) memory within the same complex/system. Ensure when adding 128 GB DIMMs to an existing system that the same memory type either R9Q20A or S3Q76A as the original system is configured.

    HPE Compute Scale-up Server 3200 Memory DIMM Configurations

    Memory Slot Configuration

    DIMMS per Socket

    Data Rate

    Capacity per Socket

    Total System Memory Capacity (TB)

    4S

    8S

    12S

    16S

    32S

    32 GB RDIMM

    1

    4800 MT/s

    32GB

    128GB

    256GB

    384GB

    512GB

    1TB

    4

    4800 MT/s

    128GB

    512GB

    1TB

    1.5TB

    2TB

    4TB

    8

    4800 MT/s

    256GB

    1.TB

    2.TB

    3TB

    4TB

    6TB

    12

    4400 MT/s

    384GB

    1.5TB

    3TB

    4.5TB

    6TB

    8TB

    16

    4400 MT/s

    512GB

    2TB

    4TB

    6TB

    8TB

    16TB

    64 GB RDIMM

    1

    4800 MT/s

    64GB

    256GB

    512GB

    768GB

    1TB

    2TB

    4

    4800 MT/s

    256GB

    1TB

    2TB

    3TB

    4TB

    4TB

    8

    4800 MT/s

    512GB

    2TB

    4TB

    6TB

    8TB

    8TB

    12

    4400 MT/s

    768GB

    3TB

    6TB

    9TB

    12TB

    24TB

    16

    4400 MT/s

    1TB

    4TB

    8TB

    12TB

    16TB

    32TB

    96 GB RDIMM

    8

    4800 MT/s

    768GB

    3TB

    6TB

    9TB

    12TB

    24TB

    16

    4400 MT/s

    1.5TB

    6TB

    12TB

    18TB

    24TB

    48TB

    128 GB RDIMM

    8

    4800 MT/s

    1TB

    4TB

    8TB

    12TB

    16TB

    32TB

    16

    4400 MT/s

    2TB

    8TB

    16TB

    24TB

    32TB

    64TB

    128 GB RDIMM 3DS

    1

    4800 MT/s

    128GB

    512GB

    1TB

    1.5TB

    2TB

    4TB

    4

    4800 MT/s

    512GB

    2TB

    4TB

    6TB

    8TB

    16TB

    8

    4800 MT/s

    1TB

    4TB

    8TB

    12TB

    16TB

    32TB

    12

    4400 MT/s

    1.5TB

    6TB

    12TB

    18TB

    24TB

    48TB

    16

    4400 MT/s

    2TB

    8TB

    16TB

    24TB

    32TB

    64TB

    Internal storage configurations 1U

    Storage Option

    Backplane SKU

    RAID controller/ SKU

    Lanes / Bay

    Slot usage

    Controller slot to Drive mapping

    Cable SKUs

    Chassis options / Drives

    No internal storage

    N/A

    N/A

    N/A

    N/A

    N/A

    N/A

    Base & Expan, 0, 12 or 16 slots, 0 drives

    8 drive standard 1U storage, Intel® VROC (SATA RAID), No Encryption, SATA only

    R9N87A

    Emmitsburg PCH

    x1


    x1

    No PCIe slots used

    PCH: Box1/Drv 1-8

    1x R9N93A

    Base Only, 0, 12 or 16 slots, 8 drives

    8 drive standard 1U storage, HW RAID, Encryption, x1 NVMe/SAS/SATA

    R9N87A

    R9P58A / 3258p-16i /e

    x1

    1 LP x16 slot and 1 LP x8 slot**

    PCIe 3: Box1/Drv 1-8


    1x R4S25A

    Base & Expan, 12 or 16 slots, 8 drives

    8 drive premium 1U storage, HW RAID, Encryption, x4 NVME/SAS/SATA

    R9N88A

    R4R52A / 3258p-32i /e

    x4

    1 FH x16 slot and 1 LP x8 slot**

    PCIe 3: Box1/Drv 1-8


    2x R4S25A

    2x R4R40A

    Base & Expan, 12 slots, 8 drives

    8 drive premium 1U storage, HW RAID, Encryption, x2 NVME/SAS/SATA

    R9N88A

    R9P58A / 3258p-16i /e

    x2

    1 LP x16 slot and 1 LP x8 slot**

    PCIe 3: Box1/Drv 1-8


    1x R4R41A

    1x R4R42A

    Base & Expan, 12 or 16 slots, 8 drives

    8 drive premium 1U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA

    R9N88A

    R9N96A / 9660-16i

    x2

    2 LP x8 slots**

    PCIe 3: Box1/Drv 1-8


    1x R4R41A

    1x R4R42A

    Base & Expan, 12 or 16 slots, 8 drives

    8 drive premium 1U storage, Intel® CPU Direct-Attach, No Encryption, x4 NVMe

    R9N88A

    Intel CPU

    x4

    No PCIe slots used

    CPU: 0/3 Box1/Drv 1-8

    1x R9Q28A

    Base & Expan, 0 or 12 slots, 8 drives

    10 drive premium 1U storage, HW RAID, Encryption, Intel® VROC (SATA RAID), x4 NVMe / SAS / SATA

    R9N88A

    R9N89A

    R4R52A / 3258p-32i /e Emmitsburg PCH

    x4

    1 FH x16 slot and 1 LP x8 slot**

    PCIe 3: Box1/Drv 1-8 #PCH: Box2/Drv 1-2


    2x R4S25A

    2x R4R40A

    1x R9N94A

    Base Only, 12 slots, 10 drives

    10 drive premium 1U storage, HW RAID, Encryption, x2 NVMe / SAS / SATA

    R9N88A

    R9N89A

    R4R52A / 3258p-32i /e

    x2/x4

    1 FH x16 slot and 1 LP x8 slot**

    PCIe 3: Box1/Drv 1-8 PCIe 3: Box2/Drv 1-2

    1x R4R41A

    1x R4R42A

    1x R4R40A

    Base & Expan, 12 slots, 10 drives

    10 drive premium 1U storage, HW RAID, Encryption with SED drives, Intel® VROC (SATA RAID), x2 NVMe / SAS / SATA

    R9N88A

    R9N89A

    R9N96A / 9660-16i Emmitsburg PCH

    x2/x4

    2 LP x8 slots**

    PCIe 3: Box1/Drv 1-8 #PCH: Box2/Drv 1-2

    1x R4R41A

    1x R4R42A

    1x R9N94A

    Base Only, 12 or 16 slots, 10 drives

    10 drive premium 1U storage, Intel CPU/PCH Direct-Attach, No Encryption, x4 NVMe / SATA

    R9N88A

    R9N89A

    Intel CPU, Emmitsburg PCH

    x4

    No PCIe slots used

    CPU0/3: Box1/Drv 1-8 #PCH: Box2/Drv 1-2

    1x R9Q28A 1x R9N94A

    Base Only, 0 or 12 slots, 10 drives

    Internal storage configurations 2U

    Storage Option

    Backplane SKU

    RAID controller/ SKU

    Lanes / Bay

    Slot usage

    Controller slot to Drive mapping

    Cable SKUs

    Chassis options / Drives

    8 drive standard 2U storage, Intel VROC (SATA RAID), No Encryption, x1 SATA Only

    R9N90A

    Emmitsburg PCH

    x1

    No PCIe slots used

    PCH: Box1/Drv 1-8

    1x R9N95A





    Base Only, 0 or 6 slots, 8 drives

    8 drive standard 2U storage, HW RAID, Encryption, x1 NVMe / SAS / SATA

    R9N90A

    R9P58A / 3258p-16i /e

    x1

    1 LP x16 slot*

    PCIe 2: Box1/Drv 1-8

    1x R4S25A

    Base & Expan, 6 slots, 8 Drives

    16 drive standard 2U storage, HW RAID, Encryption, x1 NVMe / SAS / SATA

    2x R9N90A

    R9P58A / 3258p-16i /e

    x1

    1 LP x16 slot*

    PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8

    1x R4S25A

    1x R4R40A

    Base & Expan, 6 slots, 16 drives

    16 drive standard 2U storage, HW RAID, Encryption with SED drives, x1 NVMe / SAS / SATA

    2x R9N90A

    R9N96A / 9660-16i

    x1

    1 LP x8 slot*

    PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8

    1x R4S25A

    1xR4R40A

    Base & Expan, 6 slots, 16 drives

    24 drive standard 2U storage, HW RAID, Encryption, x1 NVMe / SAS / SATA

    3x R9N90A

    R4R52A / 3258p-32i /e

    X1

    1 FH x16 slot and 1 LP x8 slot**

    PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8 PCIe 3 Box 2/Drv 1-8

    1x R4S25A

    2xR4R40A

    Base & Expan, 6 slots, 24 drives

    8 drive premium 2U storage, HW RAID, Encryption, x4 NVMe / SAS / SATA

    R9N91A

    R4R52A / 3258p-32i /e

    x4

    1 FH x16 slot*

    PCIe 2: Box1/Drv 1-8

    4x R4S25A

    Base & Expan, 6 slots, 8 drives

    8 drive premium 2U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA

    R9N91A

    R9N96A / 9660-16i

    x2

    1 LP x8 slot*

    PCIe 2: Box1/Drv 1-8

    2x R4R41A

    Base & Expan, 6 slots, 8 drives

    8 drive premium 2U storage, Intel® CPU Direct-Attach, No Encryption, x4 NVMe

    R9N91A

    Intel CPU

    x4

    No PCIe slots used

    CPU0/3: Box1/Drv 1-8

    1x R9Q29A

    Base & Expan, 0 or 6 slots, 8 drives

    16 drive premium 2U storage, HW RAID, Encryption, x4 NVMe / SAS / SATA

    2x R9N91A

    2 x R4R52A / 3258p-32i /e

    x4

    2 FH x16 slots*

    #PCIe 2: Box1/Drv 1-8 PCIe 1: Box3/Drv 1-8

    4x R4S25A

    4x R4R40A

    Base & Expan, 6 slots, 16 drives

    16 drive premium 2U storage, HW RAID, Encryption, x2 NVMe / SAS / SATA

    2x R9N91A

    R4R52A / 3258p-32i /e

    x2

    1 FH x16 slot*

    PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8

    2x R4R41A

    2x R4R42A

    Base & Expan, 6 slots, 16 drives (single RAID set)

    16 drive premium 2U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA

    2x R9N91A

    2x R9N98A / 9670 W-16i

    x2

    2 FH x16 slots*

    #PCIe 2: Box1/Drv 1-8 PCIe 1: Box3/Drv 1-8

    2x R4R41A

    2x R4R42A

    Base & Expan, 6 slots, 16 drives

    16 drive premium 2U storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe

    2x R9N91A

    Intel CPU

    x4

    No PCIe slots used

    #CPU0/1: Box1/Drv 1-8 CPU3: Box3/Drv 1-8

    1x R9Q29A

    1x R9Q30A

    Base & Expan, 0 or 6 slots, 16 drives

    24 drive premium 2U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA

    3x R9N91A

    R4R52A / 3258p-32i /e; R9P58A/3258p-16i /e

    x2

    1 FH x16 slot and 1 LP x8 slot**

    1 LP x16

    PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8 PCIe2 Box 2/Drv 1-8

    2x R4R41A

    4x R4R42A

    Base & Expan, 6 slots, 24 drives

    24 drive premium 2U storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe

    3x R9N91A

    Intel CPU

    x4

    No PCIe slots used

    #CPU0/1: Box1/Drv 1-8 CPU3: Box3/Drv 1-8

    1x R9Q29A

    1x R9Q30A

    Base & Expan, 0 slots, 24 drives

    12 drive premium 2U EDSFF storage, HW RAID, Encryption, x2 NVMe

    1x R9N92A

    R4R52A 3258p-32i /e

    X2


    1 FH x16 slot and 1 LP x8 slot**

    PCIe 2: Box1 / Drv1-12

    3x R4R41A

    Base & Expan, 6 slots, 12 drives

    12 drive premium 2U EDSFF storage, HW RAID, Encryption with SED drives, x4 NVMe

    1x R9N92A

    2 x R9N97A MR 9670-24i

    X4

    2 FH x8/x16

    #PCIe 2: Box1 / Drv1-6 PCIe 1: Box1 / Drv7-12

    6x R4S25A

    Base & Expan, 6 slots, 12 drives

    8 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach1, No encryption , x4 NVMe

    1x R9N92A

    Intel CPU

    X4

    No PCIe slots used

    CPU0/1: Box1 / Drv1-8

    1x R9Q29A

    Base & Expan, 6 slots, 8 drives

    12 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach1, No Encryption, x4 NVMe

    1x R9N92A

    Intel CPU

    X4

    No PCIe slots used

    CPU0/1: Box1 / Drv1-12

    1x R9Q29A

    1x R9Q32A

    Base & Expan, 6 slots, 12 drives

    24 drive premium 2U EDSFF storage, HW RAID, Encryption, x2 NVMe

    2x R9N92A

    R4R52A 3258p-32i /e + R9P58A 3258p-16i /e

    X2

    1 FH x16 slot and 1 LP x8 slot**

    1 LP x16

    #PCIe 2: Box1 / Drv1-12 #PCIe 2: Box3 / Drv1-4 PCIe 1: Box3 / Drv5-12

    3x R4R41A

    3x R4R42A

    Base & Expan, 6 slots, 24 drives

    24 drive premium 2U EDSFF storage, HW RAID, Encryption with SED drives,

    x2 NVMe

    2x R9N92A

    2x R9N97A MR9670-24i

    X2

    2 FH x16 slots*

    #PCIe 2: Box1 / Drv1-12 PCIe 1: Box3 / Drv1-12

    3x R4R41A 3x R4R42A

    Base & Expan, 6 slots, 24 drives

    16 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach1, No Encryption , x4 NVMe

    2x R9N92A

    Intel CPU

    X4

    No PCIe slots used

    CPU0/1: Box1 / Drv1-8

    CPU2/3: Box3 / Drv1-8

    1x R9Q29A

    1x R9Q30A

    Base & Expan, 6 slots, 16 drives

    24 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach1, Encryption , x4 NVMe

    2x R9N92A

    Intel CPU

    X4

    No PCIe slots used

    CPU0/1: Box1 / Drv1-12

    CPU2/3: Box3 / Drv1-12

    1x R9Q29A

    1x R9Q32A

    1x R9Q30A

    1x R9Q33A

    Base & Expan, 0 slots, 24 drives

    Notes:

    − Indicates one or two tethered super-caps are mounted in center DVD bay

    − **Indicates adjacent slot used for tethered super-cap in mount PN P0006347-001

    − # If more than one controller, this indicates the primary boot controller.

    1CPU Direct-Attach NVMe optionally supports RAID through the Intel VROC Premium E-RTU SKU - see Intel VROC for HPE QuickSpecs

    Backplane type

    Storage controller

    Drive interface

    Data lanes per drive bay

    Data transfer rate

    Maximum throughput

    Standard

    Emmitsburg PCH

    SATA

    1

    6 Gb/s

    600 MB/s

    Standard

    SmartRAID 32xx or

    MegaRAID 96xx

    SATA

    1

    6 Gb/s

    600 MB/s

    Standard

    SmartRAID 32xx or

    MegaRAID 96xx

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Standard

    SmartRAID 32xx or

    MegaRAID 96xx

    SAS-4

    1

    22.5 Gb/s

    2.4 GB/s

    Standard

    SmartRAID 32xx or

    MegaRAID 96xx

    NVMe (PCIe4)

    1

    16 GT/s

    1.969 GB/s

    Standard

    Emmitsburg PCH or SmartRAID 32xx or

    MegaRAID 96xx

    SATA

    1

    6 Gb/s

    600 MB/s

    Premium

    SmartRAID 32xx or

    MegaRAID 96xx

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Premium

    SmartRAID 32xx or

    MegaRAID 96xx

    SAS-3 wide

    2

    24 Gb/s

    2.4 GB/s

    Premium

    SmartRAID 32xx or

    MegaRAID 96xx

    SAS-4

    1

    22.5 Gb/s

    2.4 GB/s

    Premium

    SmartRAID 32xx or

    MegaRAID 96xx

    SAS-4 wide

    2

    45 Gb/s

    4.8 GB/s

    Premium

    Emmitsburg PCH

    NVMe (PCIe3)

    4

    32 GT/s

    3.938 GB/s

    Premium

    SmartRAID 32xx or

    MegaRAID 96xx

    NVMe (PCIe4)

    2

    32 GT/s

    3.938 GB/s

    Premium

    SmartRAID 32xx or

    MegaRAID 96xx

    NVMe (PCIe4)

    4

    64 GT/s

    7.877 GB/s

    Premium

    Intel CPU Direct-Attach

    NVMe (PCIe4)

    4

    64 GT/s

    7.877 GB/s

    Premium

    Intel CPU Direct-Attach

    NVMe (PCIe4)

    4

    128 GT/s

    15.754 GB/s

    Notes:

    − The speeds above are based on storage interface data transfer rates and are NOT measured performance.

    − When multiple controller cards are used, there will be multiple RAID groups because drives on different controllers can't be in the same RAID group.

    − When multiple controller cards are used, the first controller listed is the default boot controller.

    − RAID 0, 1, 10, 5, 50, 6, and 60 supported

    − The Base I/O includes the embedded Intel® Emmitsburg PCH with VROC (Virtual RAID on Chip) SATA RAID controller for 6 GB SATA support of up to eight (8) 2.5” SATA drives (HDD/SSD). The 8-bay standard backplane or 2-bay premium backplane is connected to the Base I/O for this configuration. VMware does not support the RAID mode of Intel® Emmitsburg SATA AHCI Controller in VMware ESXi. VROC is not supported on WINDOWS 2025 on this platform.

    Security

    HPE Compute Scale-up Server 3200 provides important architectural security features not found in other industry standard servers. HPE Compute Scale-up Server 3200 Mission Critical focus provides unique customer benefits without exposure to many vulnerabilities found in common server firmware.

    • − UEFI Secure Boot and Secure Start support, Enabled by default
    • − Immutable HPE iLO Silicon Root of Trust
    • − IDevID - Factory provisioned server identity
    • − IPv6 self-certified on RMC
    • − Auto secure FW recovery. RMC & PDHC watchdogs are fully enabled allowing RMC and PDHC to automatically reboot to recover from unexpected hangs.
    • − Tamper-free updates – components digitally signed and verified
    • − Secure Recovery – recover critical firmware to a known good state on detection of compromised firmware (per NIST SP800-193)
    • − Firmware rollback protection for critical Vulnerability fixes
    • − System TPM (Trusted Platform Module) 2.0 tamper-resistant and soldered down for all systems
    • − Manageability TPM for RMC
    • − Manageability Flash Encryption
    • − Chassis Intrusion detection standard
    • − FW update protected by RMC Admin authentication
    • − Firewalled Manageability Network
    • − Secure Out-of-Box passwords
    • − Code Signing uses CSNA--level crypto
    • − Directory access control (LDAP/Active Directory)
    • − Alternatives to PXE (Directed LAN Boot, HTTP Boot)
    • − Ability to disable HOST and RMC USB ports

    Platform Management

    The HPE Compute Scale-up Server 3200 delivers system administration, control, and platform management both via a Web GUI, a programmable Redfish API or a comprehensive and concise command-line interface. The Redfish® API can be used in many ways including:

    • − Directly in simple scripts to obtain inventory and monitoring information
    • − With HPE OneView for a graphical user interface, as well as manage multiple HPE systems concurrently in the datacenter at once
    • − With Openstack Ironic for Provisioning the OS

    The Rack Management Controller in HPE Compute Scale-up Server 3200 is an embedded option (the "RMC") running within the Base Chassis.


    The HPE Compute Scale-up Server 3200 has a built-in and always available platform management system. By integrating the management into the server platform, Hewlett Packard Enterprise ensures that every HPE Compute Scale-up Server 3200 comes with the full set of management features, and simplifies the task of integrating HPE Compute Scale-up Server 3200 into the data center. The purpose of the HPE Compute Scale-up Server 3200 management system is to:

    • − Provide built-in tools to manage hardware and provide mission-critical system availability (inventory, monitor, diagnose, configure, maintain, and self-healing)
    • Make it easier for users and applications to manage the system (inventory, start, stop, connect console, and so on)
    • The HPE Compute Scale-up Server 3200 manageability system provides a very powerful control point for the system, and the RMC makes managing the HPE Compute Scale-up Server 3200 much easier by centralizing the control and building the management into the hardware and firmware of the system. It provides the following features:
    • − Web GUI for RMC – Redfish driven. Covers:
      • System inventory, health, configuration
      • Launch vMedia, vKVM (HTML5)
      • Configure UEFI reboot, power
      • RMC security settings
      • RMC LAN settings
    • − CLI for easy access to all RMC functions, providing potential scripting and power user convenience
    • Console, and console logs
    • − Built-in Error Analysis Engine constantly monitors all system hardware, analyzes log and telemetry data, and determines corrective actions for highest system uptime (often performing corrective actions automatically)
    • − HPE Compute Scale-up Server 3200 RMC will interface directly with the HPE Remote Support software for data center wide fault management visibility and tie-in to HPE support services, such as the Insight Online portal
    • − Front Panel Management device functionality that provides, Power Button, System status Indicator LEDs including Power, UID and RMC indicator.
    • − The RMC accepts all valid update requests. FW update will be done immediately if possible. If the update requires power off, but one or more nPARs are powered on, the RMC will perform the update when all nPARs are powered off. In the case of single nPAR, the RMC will also update the complex when the nPAR reboot

    The HPE Compute Scale-up Serer 3200 supports full nPar (Partitioning).:

    • − An nPartition is a set of HPE Compute Scale-up Server chassis defined to work together to form a single computer system, capable of running a bare metal OS. It is electrically isolated from other nPartitions in the complex.
    • − Once created, an nPartition behaves as an independent server, and can also be managed as an independent server. It has its own console for OS and can be independently reset and power-cycled. The RMP or RMC manages all nPartitions in the complex and management access remains the same as nPartitions are created, modified, or deleted.
    • − An HPE Compute Scale-up Server complex contains one or more HPE Compute Scale-up Server chassis in a rack that each contain individual compute, memory, networking, and storage resources. An nPartition is created and managed using the Rack Management Controller (RMC)

    Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.HPE.com/services


    Consulting Services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.HPE.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.HPE.com/services/operational


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • − A complete coverage approach -- edge to cloud
    • − An assigned HPE team
    • − Modular and fully personalized engagement
    • − Enhanced Incident Management experience with priority access
    • − Digitally enabled and AI driven customer experience

    https://www.HPE.com/services/completecare


    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.HPE.com/services/techcare

    HPE Lifecycle Services

    HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

    • − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
    • − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
    • − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
    • − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
    • − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

    Notes: To review the list of Lifecycle Services available for your product go to:

    https://www.hpe.com/services/lifecycle


    For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu


    Other Related Services from HPE Services:


    HPE Education Services

    Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

    https://www.hpe.com/services/training


    Defective Media Retention

    An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

    Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


    Parts and Materials

    HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


    Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


    How to Purchase Services

    Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

    • − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
    • − Customers purchasing from a commercial reseller can find services athttps://ssc.hpe.com/portal/site/ssc/

    AI Powered and Digitally Enabled Support Experience

    Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience


    Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

    https://support.hpe.com/hpesc/public/home/signin

    Consume IT On Your Terms

    HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

    − Get faster time to market

    − Save on TCO, align costs to business

    − Scale quickly, meet unpredictable demand

    − Simplify IT operations across your data centers and clouds


    To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html


    For more information:

    http://www.HPE.com/services

    Configuration Information

    Ordering and Configuration

    This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.

    Notes:

    − Configure-to-order servers must start with a CTO Chassis

    − FIO indicates that this option is a Factory Installable Option.


    Additional Technical documentation may be found at: http://www.HPE.com/support/computescaleup3200-docs

    Configuring HPE Compute Scale-up Server 3200

    Rack choice

    SKU

    If No Rack Option is selected then a Virtual Rack should be selected


    HPE Virtual Rack

    M0S66A

    Base Chassis

    SKU

    HPE Compute Scale-up Server 3200 4-socket XNC Base Chassis

    HPE Compute Scale-up Server 3200 Data Solutions 4-socket XNC Base Chassis

    R9N70A

    R9N71A

    Notes:

    − Every HPE Compute Scale-up Server 3200 system must have min 1/max 1 Base Chassis

    − Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order)

    − Chassis bezel is Optional and is not included

    Expansion Chassis

    SKU

    HPE Compute Scale-up Server 3200 4-socket XNC Expansion Chassis

    HPE Compute Scale-up Server 3200 Data Solutions 4-socket XNC Expansion Chassis

    R9N72A

    R9N73A

    Notes:

    − Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order)

    − Chassis bezel is Optional and is not included

    Scale Activation Kits

    SKU

    HPE Compute Scale-up Server 3200 Internal UPI Cable Kit

    R9Y98A

    HPE Compute Scale-up Server 3200 4-socket Scale Activation Kit

    R9P06A

    HPE Compute Scale-up Server 3200 8-socket Scale Activation Kit

    R9P07A

    HPE Compute Scale-up Server 3200 12-socket Scale Activation Kit

    R9P08A

    HPE Compute Scale-up Server 3200 16-socket Scale Activation Kit

    R9P09A

    Notes: Any chassis configured with Platinum processors requires 1 x R9Y98A per chassis

    Processors

    SKU

    Intel Xeon-Platinum 8490H 1.9 GHz 60-core 350 W Processor Kit for HPE Compute Scale-up Server 3200

    R9P59A

    Intel Xeon-Platinum 8468H 2.1 GHz 48-core 330 W Processor Kit for HPE Compute Scale-up Server 3200

    R9P60A

    Intel Xeon-Platinum 8460H 2.2 GHz 40-core 330 W Processor Kit for HPE Compute Scale-up Server 3200

    R9P61A

    Intel Xeon-Platinum 8454H 2.1 GHz 32-core 270 W Processor Kit for HPE Compute Scale-up Server 3200

    R9P62A

    Intel Xeon-Platinum 8450H 2.0 GHz 28-core 250 W Processor Kit for HPE Compute Scale-up Server 3200

    R9P63A

    Intel Xeon-Platinum 8444H 2.9 GHz 16-core 270 W Processor Kit for HPE Compute Scale-up Server 3200

    R9P64A

    Intel Xeon-Gold 6434H 3.7 GHz 8-core 195 W Processor Kit for HPE Compute Scale-up Server 3200

    R9Q34A

    Notes:

    − No mixing of processors within a single chassis, partition, or system

    − Each Chassis requires minimum four (4) processors


    DDR5 Memory

    SKU

    HPE Compute Scale-up Server 3200 32 GB (1x32GB) Single Rank x4 DDR5-4800 Registered Std Memory Kit

    R9Q18A

    HPE Compute Scale-up Server 3200 64 GB (1x64GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit

    R9Q19A

    HPE Compute Scale-up Server 3200 96 GB (1x96GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit

    S3L10A

    HPE Compute Scale-up Server 3200 128 GB (1x128GB) Dual Rank x4 DDR5-4800 R Standard Memory Kit

    S3Q76A

    Notes:

    − Memory kits contain a single DIMM

    − The 32 GB, 64 GB and 128GB Memory can be loaded either as 1, 4, 8, 12 or 16 per socket

    − The 96 GB Memory can be loaded either as 8 or 16 per socket only.

    − 128 GB Quad Rank DDR5 3DS Memory is no longer sold to be configured with new systems. The memory remains available only as an option for upgrade. HPE Does not support mixing 128 GB Dual Rank and Quad Rank (3DS) memory within the same complex/system. Ensure when adding 128 GB DIMMs to an existing system that the same memory type either R9Q20A or S3Q76A as the original system is configured.

    Optical Drives

    SKU

    HPE Compute Scale-up Server 3200 9.5 mm SATA 1U Internal DVD-RW Optical Drive

    R9P03A

    HPE Compute Scale-up Server 3200 9.5 mm SATA 1U Internal DVD-ROM Optical Drive

    R9Q25A

    HPE Compute Scale-up Server 3200 9.5 mm SATA 2U Internal DVD-ROM Optical Drive

    R9Q26A

    HPE Compute Scale-up Server 3200 9.5 mm SATA 2U Internal DVD-RW Optical Drive

    R9P04A

    Notes:

    − One (1) DVD is optional in Base Chassis and is not available in the Expansion Chassis

    − DVD option is not allowed if optional 3rd Storage backplane is configured to Base Chassis

    Storage Backplanes

    SKU

    HPE Compute Scale-up Server 32X0 1U 8SFF Tri-Mode 24G U.3 BC Standard Backplane Kit

    R9N87A

    HPE Compute Scale-up Server 32X0 1U 8SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit

    R9N88A

    HPE Compute Scale-up Server 32X0 1U 2SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit

    R9N89A

    HPE Compute Scale-up Server 3200 2U 8SFF Tri-Mode 24G U.3 BC Standard Backplane Kit

    R9N90A

    HPE Compute Scale-up Server 3200 2U 8SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit

    R9N91A

    HPE Compute Scale-up Server 3200 2U 12EDSFF NVMe 32Gx4 E3.S Premium Backplane Kit

    R9N92A

    Notes: Internal storage cables will be added to the configuration as required. No user selection is needed.

    Drives

    Internal SATA Solid State Drives

    SKU

    HPE 480 GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40502-H21

    HPE 960 GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40503-H21

    HPE 1.92 TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40504-H21

    HPE 3.84 TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40505-H21

    HPE 960 GB SATA 6G Mixed Use SFF BC Self-encrypting 5400 m SSD

    P58244-B21

    Internal SAS Hard Disk Drives

    SKU

    HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

    P53562-H21

    Internal SAS Solid State Drives

    SKU

    HPE 800 GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49047-H21

    HPE 1.6 TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49049-H21

    HPE 3.2 TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49053-H21

    HPE 6.4 TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49057-H21

    HPE 7.68 TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

    P49041-H21

    HPE 15.36 TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

    P49045-H21

    HPE 1.6 TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

    P83344-B21

    NVMe U.3 Drives

    SKU

    HPE 800 GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P64999-H21

    HPE 1.6 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P65007-H21

    HPE 3.2 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P65015-H21

    HPE 6.4 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P65023-H21

    HPE 1.6 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

    P50227-B21

    HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

    P50230-B21

    HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

    P50233-B21

    HPE 7.68 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

    P64848-H21

    HPE 15.36 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

    P84236-B21

    HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

    P70426-B21

    HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

    P70428-B21

    HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

    P70434-B21

    HPE 15.36 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

    P70436-B21

    NVMe EDSFF Drives

    SKU

    HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

    P57799-B21

    HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

    P57803-B21

    HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

    P57807-B21

    HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

    P61191-B21

    HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

    P61195-B21

    HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

    P61179-B21

    HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

    P61183-B21

    HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

    P61187-B21

    PCIe Infrastructure

    SKU

    Notes:

    − Each chassis requires exactly one (1) PCIe option: R9N75A, R9N76A, R9N77A, R9N78A, or R9N79A

    − The Base Chassis requires either R9N75A, R9N76A, or R9N77A

    HPE Compute Scale-up Server 3200 PCIe Full Height 12-slot Bulkhead with 1x 4-slot 2x8/2x16 Riser Kit

    R9N75A

    HPE Compute Scale-up Server 3200 2x8/2x16 4-slot PCIe Secondary Riser for 2U PCIe 12-slot Bulkhead

    R9N84A

    HPE Compute Scale-up Server 3200 4x16 4-slot PCIe Tertiary Riser for 2U PCIe 12-slot Bulkhead

    R9N83A

    Notes: R9N75A includes two (2) Full Height x8 and two (2) Full Height x16 – Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5”. R9N75A also accommodates both Full Height and Low Profile cards

    HPE Compute Scale-up Server 3200 PCIe Low Profile 16-slot Bulkhead with 1x 4-slot 2x8/2x16 Riser Kit

    R9N76A

    HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Secondary Riser for 2U PCIe 16-slot Bulkhead

    R9N81A

    HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Tertiary Riser for 2U PCIe 16-slot Bulkhead

    R9N80A

    HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Quaternary Riser for 2U PCIe 16-slot Bulkhead

    R9N82A

    Notes: R9N76A includes two (2) Low Profile x8 and two (2) Low Profile x16 - Maximum Length of PCIe card when installed in 16-slot Bulkhead = 6.6”.

    HPE Compute Scale-up Server 3200 PCIe Full Height 6-slot Bulkhead with 1x 2-slot 2x16 Riser Kit

    R9N77A

    HPE Compute Scale-up Server 32X0 2x16 2-slot PCIe Secondary Riser for 1U PCIe 6-slot Bulkhead

    R9N86A

    HPE Compute Scale-up Server 32X0 2x16 2-slot PCIe Tertiary Riser for 1U PCIe 6-slot Bulkhead

    R9N85A

    Notes: R9N77A includes two (2) Full Height x16 – Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5”. R9N75A also accommodates both Full Height and Low Profile cards

    HPE Compute Scale-up Server 3200 PCIe 2U 0-slot Compute Only Bulkhead

    R9N78A

    HPE Compute Scale-up Server 3200 PCIe 1U 0-slot Compute Only Bulkhead

    R9N79A

    RAID Controllers

    SKU

    HPE SR3258p-32i/e 32-port 8 GB Cache Tri-Mode 24G PCIe4 x16 Encrypted Controller

    R4R52A

    HPE SR3258p-16i/e 16-port 8 GB Cache Tri-Mode 24G PCIe4 x16 Encrypted Controller

    R9P58A

    HPE MR9660-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller

    R9N96A

    HPE MR9670-24i 24-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller

    R9N97A

    HPE MR9670W-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x16 Controller

    R9N98A

    HPE SR3254-16e/e 16-port 4 GB Cache External 24G PCIe4 x16 Encrypted Controller

    R9N99A

    Notes: R4R52A and R9P58A require a second PCIe slot for a tethered supercap


    Fibre Channel HBAs

    SKU

    HPE SN1100Q 16 GB Single Port Fibre Channel Host Bus Adapter

    P9D93A

    HPE SN1100Q 16 GB Dual Port Fibre Channel Host Bus Adapter

    P9D94A

    HPE SN1610E 32 GB 1-port Fibre Channel Host Bus Adapter

    R2J62A

    HPE SN1610E 32 GB 2-port Fibre Channel Host Bus Adapter

    R2J63A

    HPE SN1610Q 32 GB 1-port Fibre Channel Host Bus Adapter

    R2E08A

    HPE SN1610Q 32 GB 2-port Fibre Channel Host Bus Adapter

    R2E09A

    HPE SN1700E 64 GB 1-port Fibre Channel Host Bus Adapter

    R7N77A

    HPE SN1700E 64 GB 2-port Fibre Channel Host Bus Adapter

    R7N78A

    HPE SN1700Q 64 GB 1-port Fibre Channel Host Bus Adapter

    R7N86A

    HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter

    R7N87A

    Notes: Max eight (8) per chassis/ Max 16 per system


    Networking Controller cards - PCIe

    SKU

    Intel I350-T4 Ethernet 1 GB 4-port BASE-T Adapter for HPE

    P21106-B21

    Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T Adapter for HPE

    P26253-B21

    Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ Adapter for HPE

    P26259-B21

    Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

    P08443-B21

    Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE

    P08458-B21

    Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 Adapter for HPE

    P21112-B21

    Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE

    P26264-B21

    HPE Slingshot SA210S Ethernet 200 GB 1-port PCIe NIC

    R4K46A

    Notes:

    − Max eight (8) per chassis. Max 16 of any given card per system. Total 32 NICs per system. Exceptions listed below.

    − P08458-B21 which is Max four (4) per chassis/Max 16 per system

    − R4K46A is Max 2 per chassis/Max 8 per system

    − Server networking transceiver and cable compatibility matrix can be found here

    Network Controller cards – OCP

    SKU

    Intel I350-T4 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE

    P08449-B21

    Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE

    P10097-B21

    Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE

    P42041-B21

    Notes:

    − Max one (1) per chassis

    − Server networking transceiver and cable compatibility matrix can be found here


    InfiniBand cards

    SKU

    HPE InfiniBand NDR/Ethernet 400 GB 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter

    P45641-H23

    Notes:

    − Max eight (8) per chassis/Max 16 per system

    − No mixing of InfiniBand card types in the same system


    GPU Accelerators

    SKU

    NVIDIA L4 24 GB PCIe Accelerator for HPE

    S0K89C

    NVIDIA L40S 48 GB PCIe Accelerator

    S2L70C

    HPE Compute Scale-up Server 32X0 12-pin/12-pin PCIe 600 W High Power Accelerator Cable Kit

    S0A88A

    Notes:

    − For L4, Max four (4) per chassis/Max 12 per system. One per PCIe riser

    − For H100 NVL and L40S, Max four (4) per chassis/Max 8 per system

    − No mixing of GPU controller types in the same chassis, system or partition

    − S0A88A is required for each H100 NVL and L40S Accelerator.

    − R9N75A or R9N77A is required to be in the same Chassis for the H100 NVL or L40S

    − Inner node peer-to-peer communication is not supported

    − Depending on total number of GPUs, installed power may be reduced to N+1

    Foundation Software

    SKU

    HPE Foundation Software 2 for Red Hat Enterprise Linux Media FIO LTU

    Q7N13A

    HPE Foundation Software 2 for SUSE Linux Enterprise Server Media FIO LTU

    Q7N14A

    HPE Foundation Software 2 for Red Hat Enterprise Linux Media

    Q7Y82A

    HPE Foundation Software 2 for SUSE Linux Enterprise Server Media

    Q7Y83A

    HPE Foundation Software 2 for Oracle Linux Media

    Q7Y84A

    HPE Foundation Software 2 for Red Hat Enterprise Linux Media License RTU

    Q7N11A

    HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU

    Q7N12A

    HPE Foundation Software 2 for Oracle License RTU

    Q7N16A

    Notes:

    − Exactly one (1) RTU is required per system with a Linux O/S distribution

    − Minimum one (1) Foundation SW FIO or Media is required per system with a Linux O/S distribution

    − Selected RTU must match selected FIO and/or Media option

    System Expansion and Upgrades

    SKU

    System Expansion Kits are utilized when scaling up a HPE Compute Scale-up 3200. When adding Expansion chassis, select the appropriate beginning and ending size of your system

    HPE Compute Scale-up Server 3200 4-socket to 8-socket Scale Activation Kit

    R9P65A

    HPE Compute Scale-up Server 3200 4-socket to 12-socket Scale Activation Kit

    R9P66A

    HPE Compute Scale-up Server 3200 4-socket to 16-socket Scale Activation Kit

    R9P67A

    HPE Compute Scale-up Server 3200 8-socket to 12-socket Scale Activation Kit

    R9P74A

    HPE Compute Scale-up Server 3200 8-socket to 16-socket Scale Activation Kit

    R9P75A

    HPE Compute Scale-up Server 3200 12-socket to 16-socket Scale Activation Kit

    R9P80A

    Chassis Options

    SKU

    HPE Compute Scale-up Server 3200 Chassis Bezel

    R9N74A

    Notes: One per chassis, all chassis should have the same option.


    This section describes the physical and environmental information for a chassis.

    HPE Compute Scale-up Server 3200 chassis

    Physical Information

    Site planning and installation included

    Yes

    Maximum Heat dissipation (fully populated chassis, no GPUs)

    13.5 kBTU/hr

    Depth (handle to handle)

    905 mm / 35.63”

    Width (not including mounting rails)

    445 mm / 17.5"

    Height

    219.2 mm / 8.63" (5U)

    Weight - Maximum (fully populated)

    Range between 40.8 kg / 90 lb to 56.7 kg / 125 lb

    Electrical and Environmental Characteristics

    Single phase (200/240)

    4 x IE320-C19

    Maximum Input Power total

    4.74 KVA (no GPUs)

    Environmental Characteristics

    Cooling airflow (front to back)

    750 CFM (maximum)

    Acoustics

    91 dBA (maximum)

    84 dBA (typical)

    Temperature - Recommended Operating Range1,2

    +18°C to +27°C

    Temperature - Allowable Operating Range1,2

    +5°C to +35°C

    Maximum rate of temperature change

    20°C/hr non-condensing

    Non-operating temperature (storage)

    -40°C to +60°C

    Air quality

    Gaseous contaminants must be at the G1 level or less as defined by ISA Standard ISA-71.04-1985

    Humidity - Recommended Operating Range (non-condensing)1

    -9°C DP to 15°C DP and 60% RH

    Humidity - Allowable Operating Range (non-condensing)1

    -12°C DP and 8% RH to 24°C DP and 85% RH

    Non-operating relative humidity (storage)

    8% RH to 90% RH and 32°C DP

    Maximum Operating altitude

    3050 m (10,000 ft)

    Maximum Non-operating altitude (storage)

    4500 m (15,000 ft) non-pressurized

    Notes:

    − (1) The Recommended Operating Range is recommended for continuous operation. Operating within the Allowable Operating Range is supported but may result in a decrease in system performance.

    − (2) All temperature ratings shown are for sea level. An altitude de-rating of 1°C per 300 m above 1524 m is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft).


    Regulatory model numbers:

    • − Chassis (R9N70A, R9N71A, R9N72A, R9N73A) RMN: CHPF-074

    Additional Power Data

    The maximum power figures given were developed with the maximum configuration running applications designed to draw the maximum power possible. It is highly unlikely that any real-world application will result in this level of power use for any significant period.

    Summary of Changes

    Date

    Version History

    Action

    Description of Change

    16-Mar-2026

    Added

    • − Added updated product entries for Intel Ethernet adapters (PCIe and OCP), Intel Xeon‑Platinum and Xeon‑Gold processor kits, and Networking Controller cards.
    • − Added new 15.36TB NVMe Gen4 Read Intensive SSD (P84236‑B21).

    Changed

    • − Updated drive configuration in “Drives” section (2 to 3). Replaced SKU P63871‑B21 with P83344‑B21.

    Removed

    • − Removed multiple discontinued or obsolete items from Operating System, Networking, InfiniBand, GPU Accelerator, and Memory sections, including SKUs P45642‑H22, P13188‑B21, S2D86C, and R9Q20A per RASKeeper source data.

    28-Jul-2025

    Changed

    • − Update survey link.

    23-Jun-2025

    Removed

    • − This SKU P25960-B21 was removed

    09-Jun-2025

    Removed

    • − These two SKUs were removed from the standard features section on page 7, P23666-H21 and P23665-H21
    • − These SKUs were removed from the Configuration Information section, under Internal SAS Solid State Drives and NVMe U.3 Drives on page 31; P49049-H21,P49053-H21,P49057-H21,P49041-H21,P49045-H21, P65007-H21,P65015-H21,P65023-H21,P69255-B21
    • − These SKUs were removed from the Configuration Information section, under InfiniBand cards on page 34. P23665-H21 and P23666-H21

    12-May-2025

    Changed

    • − Overview and Standard Features sections were updated.

    14-Apr-2025

    Changed

    • − Overview and Standard Features sections were updated.

    13-Jan-2025

    Changed

    • − Standard Features section was updated.

    02-Dec-2024

    Changed

    • − Standard Features and Configuration Information sections were updated.

    09-Sep-2024

    Changed

    • − Standard Features section was updated.

    05-Aug-2024

    Changed

    • − Added new storage and drive options, added additional processor and memory options.
    • − Added partitioning support. Added GPU support. Added additional IO options for NICs, HBAs, Fc and IB.

    18-Mar-2024

    Changed

    • − Overview, Standard Features and Configuration Information sections were updated.

    06-Nov-2023

    Changed

    • − Standard Features, Service and Support, Configuration Information and Technical Specifications sections were updated.

    02-Oct-2023

    Changed

    • − Overview, Standard Features, Configuration Information, and Technical Specifications sections were updated.

    05-Sep-2023

    New

    • − New QuickSpecs

    Recommended for you
