HPE Compute Edge Server e920t outperforms in ruggedized edge environments in Telco, Retail, and more.

The HPE Compute Edge Server e920t is a multi-workload powerhouse designed to drive your business into the next generation with workload support for virtualized radio access network (vRAN) for 5G, multi-access edge computing, virtual cable modem termination systems (vCMTS), or retail video analytics.

Leveraging the 3rd generation Intel® Xeon® Scalable processor family, HPE Compute Edge Server e920t s provide a high-performance system optimized for ruggedized environments.

The system is designed to exceed the rigorous NEBS Level 3 compliance standard and GR-3108 Class 1, while being optimized for size, weight, and power efficiency. High-performance options such as M.2 NVMe storage with secure encrypted drive functionality help enable an operating temperature range of 0°C to 55°C, and a highly performant compute solution.

HPE Compute Edge Server e920t improves Telco customer success right out of the box with a full feature stack.

Partnerships with key network equipment providers (NEPS) and support for operating systems such as Wind River have enabled HPE Compute Edge Server e920t to conquer harsh telco edge environments easily.

I/O options match market needs. Using a vRAN Dedicated Accelerator ACC100 with Intel’s eASIC technology, forward error correction (FEC) is easily accomplished on HPE Compute Edge Server e920t.

Bladed architecture makes upgrades and servicing a breeze. If you already have a previous generation blade, the blades are fully compatible with the HPE Edgeline EL8000t. By mixing blade designs and generations, you can easily run two applications side-by-side or upgrade an existing chassis system.

HPE Compute Edge Server e920t has enhanced manageability & security at the edge.

HPE Compute Edge Server e920t with HPE iLO 5 and Silicon Root of Trust mitigate risk in mission-critical edge environments. With 3 years of iLO Advanced included standard, the HPE Compute Edge Server e920t is readily managed right out of the box.

With reduced IT skillsets in an increasingly vast edge environment, HPE manageability systems improve the ability to configure, monitor, and update your system from any location.

By leveraging iLO 5 capability, managing your system with health monitoring and firmware management is easy. Blade provides a broad range of configuration choices in networking, storage, and I/O for optimizing your unique edge workloads. The Solid-State Drives are TCG Opal Compliant Self-Encrypting Drives (SED).

Processor

3rd Generation Intel® Xeon® Scalable Processor Family

Notes:

– For more information regarding Intel® Xeon® SP, please see the following URL:

https://www.intel.com/content/www/us/en/products/processors/xeon/scalable.html

– Support for Intel Optane Persistent Memory 200 Series.

– The Edgeline e920t 2U server is only available as a single-socket system, so UPI capability is not used

– Processor max memory is within the context of our system, not the theoretical maximum.

Chipset

Intel® C621A Chipset

Notes: For more information regarding chipset, please see the following URL:

https://ark.intel.com/content/www/us/en/ark/products/208266/intel-c621a-chipset.html

Graphics

Integrated Video Standard

• – Video modes up to 1920 x 1200@60 Hz (32 bpp)
• – 16 MB Video Memory

HPE iLO 5 system management memory

• – 32 MB Flash
• – 4 Gbit DDR 3 with ECC protection

On System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs

Memory

Notes:

– Rules under “Memory” section must be followed for Configuring and Mixing of DIMMs.

– Usable system memory is constrained by the configured processor type

– For General Server Memory and Persistent Memory Population Rules and Guidelines for Gen10 Plus see details

here: http://www.hpe.com/docs/memory-population-rules

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit:

http://www.hpe.com/docs/memory-ras-feature.

Network

Intel® I210 1 GbE

• – Accessed through management network port on EL8000 chassis management module.
• – 1 GbE maintenance network link, coming from the blade into the chassis.

PCIe controllers are Integrated in the Intel® Chipset

Maximum Storage

• – M.2 NVMe Solid State Device

  • 8 x 7.2 TB
  • 57.6 TB

Storage Controllers

NVMe Boot Device

• – HPE NS204i-p NVMe PCIe3 OS Boot Device

Essential RAID Controller

• – Intel® Virtual RAID on CPU (Intel® VROC)
• Notes: Integrated RAID with Intel® XEON® Scalable Processors. Intel VROC for HPE ProLiant Gen10 Plus is an enterprise, Integrated RAID solution specifically designed for NVMe SSDs connected directly to the CPU. Intel VROC is an integrated solution utilizing Intel CPU to RAID or HBA directly connected drives and supports both Intel® SFF SSDs and HPE SFF SSDs

Power Supply

Refer to the Edgeline EL8000t QuickSpecs

https://www.hpe.com/psnow/doc/a00073755enw?jumpid=in_lit-psnow-red

System Fans

Refer to the Edgeline EL8000t QuickSpecs

https://www.hpe.com/psnow/doc/a00073755enw?jumpid=in_lit-psnow-red

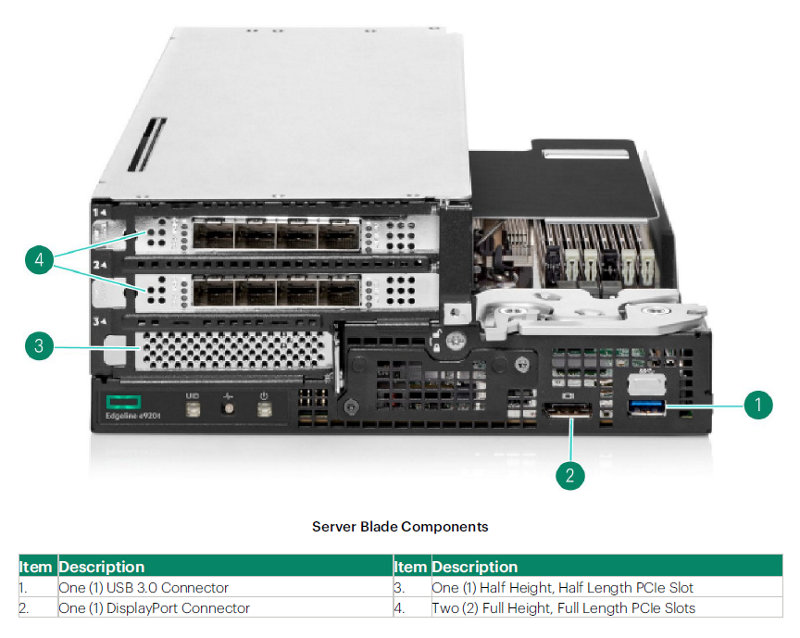

Interfaces

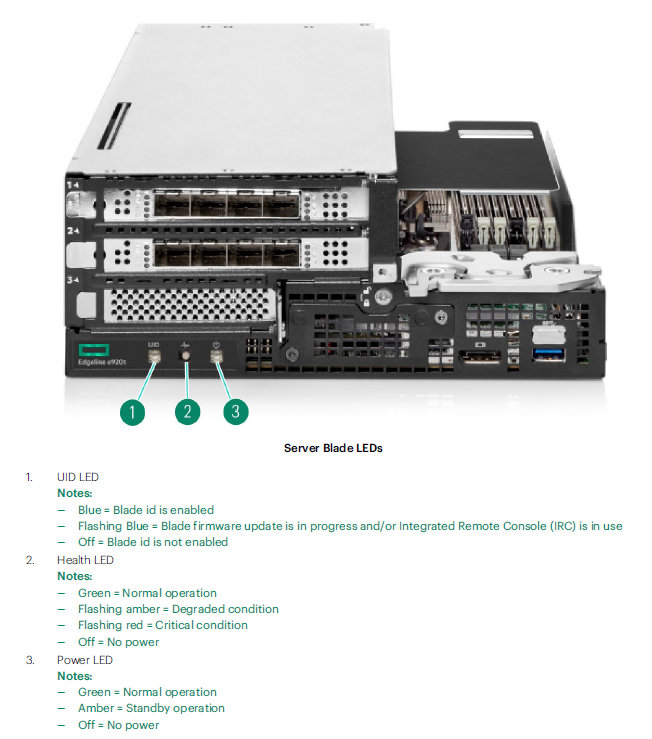

• – Server Blade Power LED/button
• – Server Blade UID LED/button

Operating Systems and Virtualization Software

• – RedHat Enterprise Linux (RHEL)
• – Microsoft Windows Server
• – Ubuntu
• – VMWare
• – WindRiver

Notes:

– Only 64-bit versions of these operating systems are supported

– For more information on the Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and the latest listing of software drivers available for your server, please visit our OS Support Site at: http://www.hpe.com/info/ossupport and our driver download page which can be found at the HPE Support Center: http://www.hpe.com/support/hpesc

Industry Standard Compliance

• – PXE Support
• – PCIe 3.0 Compliant
• – WOL Support
• – Microsoft® Logo certifications
• – USB 2.0 and 3.0 Support
• – ACPI 2.0 Compliant

HPE Server UEFI ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. The HPE Compute Edge Server e920t default to UEFI and do not support Legacy BIOS Boot Mode.

Notes: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• – Secure Boot
• – Operating system-specific functionality
• – Support for > 2.2 TB (using GPT) boot drives
• – USB 3.0 Stack
• – Embedded UEFI Shell
• – Mass Configuration Deployment Tool using RESTful API for iLO 5
• – PXE boot support for IPv6 networks
• – Boot support for option cards that only support a UEFI option ROM
• – Network Stack configurations

Notes: For UEFI Boot Mode, the boot environment and OS image installations should be configured properly to support UEFI.

Form Factor

HPE Compute Edge Server e920t plug into the HPE Edgeline EL8000t System.

Embedded Management

HPE Integrated Lights-Out Advanced (HPE iLO Advanced)

The Edgeline e920t Server Blades come standard with a 3-Year iLO Advanced license. For more details on these features: https://psnow.ext.hpe.com/doc/PSN332279USEN.pdf

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at: http://www.hpe.com/servers/uefi.

RESTful API

RESTful API for iLO 5 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.

Learn more at: http://www.hpe.com/info/restfulapi

Notes: Full REST API is available when the server is installed in an HPE Edgeline System

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning.

Learn more at: http://www.hpe.com/servers/intelligentprovisioning

Server Utilities

HPE Service Pack for Edgeline

The HPE Service Pack for Edgeline is the delivery mechanism for firmware updates on the HPE Edgeline System. Before using your system for the first time, verify that you have the latest drivers, firmware, and system software installed. Update your system with the HPE Service Pack for Edgeline.

For more information, see the HPE Service Pack for Edgeline on the Hewlett Packard Enterprise website:

https://support.hpe.com/connect/s/softwaredetails?language=en_US&collectionId=MTX-14e4e074402c43cf

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. http://www.hpe.com/servers/powershell.

Notes: This Feature will be available when the server is installed in an HPE Edgeline System.

RESTfulInterface Tool

RESTful Interface tool is a scripting tool to provision using RESTful API for iLO5 to discover and deploy servers at scale.

Learn more at: http://www.hpe.com/info/resttool

Notes: This Feature will be available when the server is installed in an HPE Edgeline System.

Security

• – Serial interface control
• – Administrator's password
• – Power-on password
• – TPM2.0
• – UEFI
• – iLO 5 has 12 customizable user accounts and SSL encryption
• – iLO 5 can be disabled via a Global Setting
• – iLO Advanced supports directory services integration

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is embedded in the Server Blade and can be enabled and disabled using the BIOS.

Notes:

– The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates, and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008, 2012/2012 R2. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 2.0. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server has not been tampered with while the system is offline. For more information about TPM, including a white paper, go to: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04939549

– ProLiant OS pre-installed units will come with the partition required for TPM deployment.

– The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

For the most up-to-date information on HPE Services, please refer to the HPE Services – Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

Physical Dimensions

Server Cartridge

• – Dimensions (H x W x D): 3.232x8.390x14.555 in (8.210 x 21.310x 36.970 cm)
• – Net Weight: 4.5 kg
• – Typical Power: 300 W per U
• – Max Power: 400 W per U

System Inlet Temperature

• – Extended Operating
• HPE Edgeline EL8000t with Edgeline e920t Server Blades: Depending on hardware configuration, the supported system inlet range can be extended up to 55°C. Compliance with ASHRAE A3 and A4 standards is also available. The approved hardware configurations for this system are listed in the Edgeline system documentation.
• – Standard Operating
• HPE Edgeline EL8000t Chassis with Edgeline e920t Server Blades: Typical range is 10°C to 35°C (50°F to 95°F) with altitude derating.

Emissions Classification (EMC)

• – FCC Rating: Class A
• – Normative Standards

  • CISPR 22
  • CISPR 32
  • EN55032
  • EN55035
  • FCC CFR 47, Pt 15
  • ICES-003
  • CNS13438
  • KS C 9832
  • KS C 9835
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950-1
  • IEC 60950-1

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
