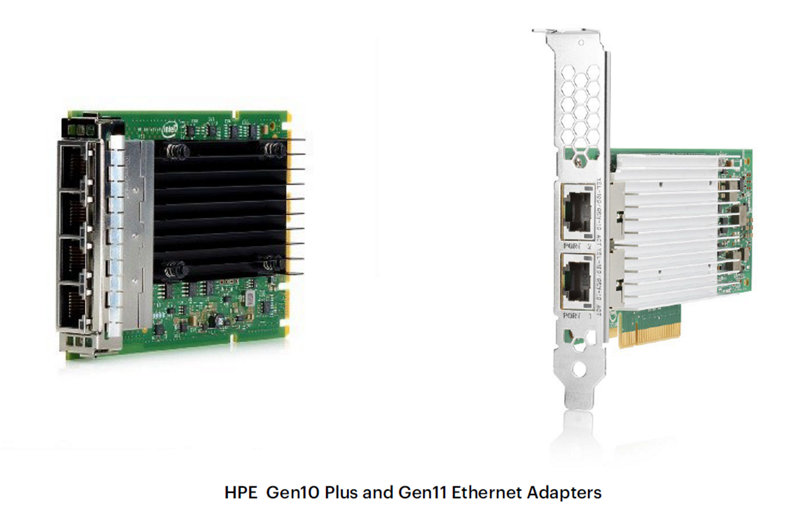

HPE ProLiant DL, ML and Apollo
Driven by hybrid cloud services, mobile data, and streaming video applications, IT professionals are constantly challenged to deliver secure and reliable network bandwidth that cost-effectively scales to demands of the networking traffic. For any given workload, the right mix of performance, efficiency, reliability and security are paramount.
Overview
HPE has your data center infrastructure covered with the latest networking adapters, switches, transceivers and cables for a complete end-to-end solution to support your various workload needs.
With Gen10 Plus ProLiant Servers, HPE offers the industry’s most secure server platform. Through its Root of Trust server design down to the Network Interface Card (NIC), these security features are built-in so you can deploy with confidence. HPE Gen10 Plus servers will help prevent, detect and recover from cyberattacks such as denial of service and malware-infected firmware. Protecting applications, data and infrastructure from security breaches through storage and networking security technologies is first priority for HPE Gen10 Plus Servers. With Gen11 ProLiant Servers, HPE continues to offer industry-leading security and builds on Gen10 Plus features by adding support for SPDM security on select Ethernet Adapters
Gen10 Plus Models | |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P51178-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P51181-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE | P26253-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | P10097-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | P26259-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | P26256-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P26262-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10115-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P26264-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P26269-B21 |
| Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P21106-B21 |
| Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P08449-B21 |
| Intel X710-DA2 Ethernet 10Gb 2-port SFP+ Adapter for HPE | P28787-B21 |
| Intel X710-DA2 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | P28778-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P08443-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P08458-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P41614-B21 |
| Intel E810-XXVDA4T Ethernet 10/25Gb 4-port SFP28 MCLK Adapter for HPE | P41636-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P21112-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | P22767-B21 |
| Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P41611-B21 |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P42044-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P42041-B21 |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE | P25960-B21 |
| Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P21109-B21 |
| Notes: Please go to Technical Specifications Section to visit the hyperlinks. | |
Standard Features
| Gen10 Plus - Table 1 | ||
|---|---|---|
| SKU | P51178-B21 | P51181-B21 |
| Description | Broadcom BCM5719 Ethernet 1Gb 4- port BASE-T Adapter for HPE | Broadcom BCM5719 Ethernet 1Gb 4- port BASE-T OCP3 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 |
| ASIC/Chip | Broadcom BCM5719 | Broadcom BCM5719 |
| PCIe Version | PCIe 2.0 x4 | PCIe 2.0 x4 |
| Power Requirement | 5.78W | 4.69W |
| UEFI PXE Boot | √ | √ |
| Legacy BIOS PXE Boot | √ | √ |
| Wake-on-LAN (WOL) | No | √ |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ |
| Auto Negotiation | 1GbE/100Mb/10Mb | 1GbE/100Mb/10Mb |
| iSCSI Remote Boot | UEFI | UEFI |
| Tunnel Offload | No | No |
| RDMA1 | No | No |
| Receive Side Scaling (RSS) | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | No | No |
| NPAR | No | No |
| Single Root I/O Virtualization (SR-IOV) | No | No |
| Data Plane Development Kit (DPDK) | No | No |
| Root of Trust | Limited root of trust | Limited root of trust |
| Authenticated Updates | Software | Software |
| Secure Boot | No | No |
| Audit Log | No | No |
| Sanitization | No | No |
| Notes: 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid inter operability issue. | ||
| Gen10 Plus - Table 2 | ||||
|---|---|---|---|---|
| SKU | P26256-B21 | P26259-B21 | P10097-B21 | P26253-B21 |
| Description | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Card Type/Profile | OCP 3.0 | Stand up | OCP 3.0 | Stand up |
| ASIC/Chip | Broadcom BCM57412 | Broadcom BCM57412 | Broadcom BCM57416 | Broadcom BCM57416 |
| PCIe Version | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 3.0 x8 |
| Power Requirement | Typical: 11.6 W | Typical: 7.9 W Max: 9.1 W | Typical: 14.6 W Max: 16.1 W | Typical: 16.4 W Max: 16.1 W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | √ | | | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation | 1Gb, 10Gb | 1Gb, 10Gb | 1Gb, 10Gb | 1Gb, 10Gb |
| iSCSI Remote Boot | UEFI | UEFI | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs |
| Single Root I/O Virtualization (SR-IOV) | 128VF(total per chip) | 128VF(total per chip) | 128VF(total per chip) | 128VF(total per chip) |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | √ | √ | √ | √ |
| Sanitization | √ | √ | √ | √ |
| Notes: 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue | ||||
| Gen10 Plus - Table 3 | ||||
|---|---|---|---|---|
| SKU | P10115-B21 | P26262-B21 | P26269-B21 | P26264-B21 |
| Description | Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE |
| Card Type/Profile | OCP 3.0 | Stand up | OCP 3.0 | Stand up |
| ASIC/Chip | Broadcom BCM57414 | Broadcom BCM57414 | Broadcom BCM57504 | Broadcom BCM57504 |
| PCIe Version | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 4.0 x16 | PCIe 4.0 x16 |
| Power Requirement | Typical: 11.6 W | Typical: 9.1 W Max: 9.9 W | Typical 16.0W Max 16.9W | Typical 15.2W Max 16.7W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | √ | | √ | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation | 1Gb, 10Gb, 25Gb | 1Gb, 10Gb, 25Gb, | 10Gb, 25Gb | 10Gb, 25Gb |
| iSCSI Remote Boot | UEFI | UEFI | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 | RoCEv2 | RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs |
| Single Root I/O Virtualization (SR-IOV) | 128VF(total perchip) | 128VF(total per chip) | 1K VF (total per chip) | 1K VF (total per chip) |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | √ | √ | √ | √ |
| Sanitization | √ | √ | √ | √ |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue. – 50G can be supported as either 2x25G NRZ or 1x50G PAM4 when using QSFP56. 100G can be supported as either 4x25G NRZ or 2x50G PAM4 when using QSFP56. – For BCM57414, mixing link speeds of (10Gb/25Gb) between ports on a 2-port 25Gb device is not supported. (1G/10G and 1G/25G port speed mixing is supported). – The 4-port BCM57504 does support mismatched/different (10Gb/25Gb) link speeds on different ports. | ||||
| Gen10 Plus - Table 4 | ||||
|---|---|---|---|---|
| SKU | P08449-B212 | P21106-B212 | P28787-B21 | P28778-B21 |
| Description | Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE | Intel X710-DA2 Ethernet 10Gb 2-port SFP+ Adapter for HPE | Intel X710-DA2 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE |
| Card Type/Profile | OCP 3.0 | Stand up | Stand up | OCP 3.0 |
| ASIC/Chip | Intel® Ethernet Controller I350-AM4 | Intel® Ethernet Controller I350-AM4 | Intel® Ethernet Controller X710-BM2 | Intel® Ethernet Controller X710-BM2 |
| PCIe Version | PCIe 2.1 x4 | PCIe 2.1 x4 | PCIe 3.0 x8 | PCIe 3.0 x8 |
| Power Requirement | Typical: 4.6W Max: 5.2W | Typical: 5W Max: 6W | Typical: 3.3 W Max: 3.7 W | Typical: 2.9 W Max: 4.6 W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | √ | | | √ |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation | √ | √ | √ | √ |
| iSCSI Remote Boot | UEFI | UEFI | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE | VXLAN,NVGRE | VXLAN, GENEVE, NVGRE | VXLAN, GENEVE, NVGRE |
| RDMA1 | | | | |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | | | | |
| Single Root I/O Virtualization (SR-IOV) | 32VF’s total | 32VF’s total | 128 VF’s total | 128 VF’s total |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | | | | |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | | |
| Audit Log | | | | |
| Sanitization | √ | √ | √ | √ |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2I350-T4 Adapter does not support thermal reading, which may result in higher fan noise when this card is installed. Please see customer advisory for additional details:: Document - Notice: (Revision) HPE ProLiant Gen10 Plus Servers - Fans Run At High Speed When the HPE 1GbE 4p BASE-T I350-T4 Adapter Is Installed In a PCI Slot | HPE Support | ||||
| Gen10 Plus - Table 5 | ||||
|---|---|---|---|---|
| SKU | P08443-B21 | P10106-B21 | P08458-B21 | P41614-B21 |
| Description | Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 | Stand up | OCP 3.0 |
| ASIC/Chip | Intel® E810-XXVAM2 | Intel® E810-XXVAM2 | Intel® Ethernet Controller E810-CAM1 | Intel® Ethernet Controller E810-CAM1 |
| PCIe Version | PCIe 4.0 x8 | PCIe 4.0 x8 | PCIe 4.0 x16 | PCIe 4.0 x16 |
| Power Requirement | Typical: 8.9 W Maximum: 9.7 W | Typical: 8.9 W Maximum: 10.1 W | Typical: 14.2 W Maximum: 16.7W | Typical: 14.6W Maximum: 18.2W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | | √ | | √ |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation2 | √ | √ | √ | √ |
| iSCSI Remote Boot | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration |
| Tunnel Offload | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE |
| RDMA1 | (iWARP & RoCEv2) | (iWARP & RoCEv2) | (iWARP & RoCEv2) | iWARP & RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | | | | |
| Single Root I/O Virtualization (SR-IOV) | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | | | | |
| Sanitization | √ | √ | √ | √ |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue. – 2 Intel Ethernet Adapters support mixing different port speeds on different ports of the same card. | ||||
| Gen10 Plus - Table 6 | ||||
|---|---|---|---|---|
| SKU | P21112-B213 | P22767-B213 | P41611-B21 | P41636-B21 |
| Description | Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | Intel E810-XXVDA4T Ethernet 10/25Gb 4-port SFP28 MCLK Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 | Stand up | Stand up |
| ASIC/Chip | Intel® Ethernet Controller E810-CAM2 | Intel® Ethernet Controller E810-CAM2 | Intel® Ethernet Controller E810-CAM1 | Intel® Ethernet Controller E810-CAM1 |
| PCIe Version | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 4.0 x16 2 | PCIe 4.0 x16 |
| Power Requirement | Typical: 16.9W Maximum: 19.2W | Typical:15.9W Maximum: 18.9W | Typical: 21.8W Maximum: 29.6W | Typical: 19.3 W Maximum: 24.9 W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | | √ | | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation4 | √ | √ | √ | √ |
| iSCSI Remote Boot | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration |
| Tunnel Offload | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE |
| RDMA1 | (iWARP & RoCEv2) | iWARP & RoCEv2 | iWARP & RoCEv2 | iWARP & RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | | | | |
| Single Root I/O Virtualization (SR-IOV) | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | | | | |
| Sanitization | √ | √ | √ | √ |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2Bifurcated into two x8 PCIe links; iLO 5 2.55 and ROM 1.40 are needed for bifurcation – 3Maximum total throughput of 100Gb per adapter (across all ports) – 4Intel Ethernet Adapters support mixing different port speeds on different ports of the same card. | ||||
| Gen10 Plus - Table 7 | |
|---|---|
| SKU | P25960-B21 |
| Description | Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE |
| Card Type/Profile | Stand up |
| ASIC/Chip | Mellanox MCX623106AS-CDAT |
| PCIe Version | PCIe 4x16 |
| Power Requirement | Typical: 13W Max: 18.4W |
| UEFI PXE Boot | √ |
| Legacy BIOS PXE Boot | √ |
| Wake-on-LAN (WOL) | |
| Internet Protocol (IP) IPv4, IPv6 | √ |
| Auto Negotiation2 | 1/10/25/40/50/100 Gb |
| iSCSI Remote Boot | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ |
| NPAR | |
| Single Root I/O Virtualization (SR-IOV) | 512 total, variable per port |
| Data Plane Development Kit (DPDK) | √ |
| Root of Trust | Hardware |
| Authenticated Updates | √ |
| Secure Boot | √ |
| Audit Log | √ |
| Sanitization | |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2 Mellanox Ethernet Adapters support mixing different port speeds on different ports of the same card. | |
| Gen10 Plus - Table 8 | ||
|---|---|---|
| SKU | P42044-B21 | P42041-B21 |
| Description | Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 |
| ASIC/Chip | Mellanox MCX631102AS-ADAT | Mellanox MCX631432AS-ADAI |
| PCIe Version | PCIe 4x8 | PCIe 4x8 |
| Power Requirement | Typical: 13W Max: 18.4W | Typical: 13W Max: 18.4W |
| UEFI PXE Boot | √ | √ |
| Legacy BIOS PXE Boot | √ | √ |
| Wake-on-LAN (WOL) | | √ |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ |
| Auto Negotiation2 | 1/10/25Gb | 1/10/25Gb |
| iSCSI Remote Boot | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ |
| NPAR | | |
| Single Root I/O Virtualization (SR- IOV) | 512 total, variable per port | 512 total, variable per port |
| Data Plane Development Kit (DPDK) | √ | √ |
| Root of Trust | Hardware | Hardware |
| Authenticated Updates | √ | √ |
| Secure Boot | √ | √ |
| Audit Log | √ | √ |
| Sanitization | | |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2 Mellanox Ethernet Adapters support mixing different port speeds on different ports of the same card. | ||
| Gen10 Plus - Table 9 | |
|---|---|
| Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P21109-B21 |
| Description | Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE |
| Card Type/Profile | Stand up |
| ASIC/Chip | Solarflare X2522-25G-PLUS |
| PCIe Version | PCIe 3.0 x8 |
| Power Requirement | Typical: 14W Max: 17.5W |
| UEFI PXE Boot | √ |
| Legacy BIOS PXE Boot | √ |
| Wake-on-LAN (WOL) | |
| Internet Protocol (IP) IPv4, IPv6 | √ |
| Auto Negotiation | 10Gb, 25Gb |
| iSCSI Remote Boot | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ |
| NPAR | |
| Single Root I/O Virtualization (SR-IOV) | 240 VF’s total |
| Data Plane Development Kit (DPDK) | √ |
| Root of Trust | Firmware |
| Authenticated Updates | √ |
| Secure Boot | √ |
| Audit Log | √ |
| Sanitization | √ |
| OS Support | Xilinx may have reduced OS support compared to HPE ProLiant servers. Please check Xilinx website for latest OS support: https://www.xilinx.com/support/download/nic-software-and-drivers.html |
| Notes: 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue | |
Gen11 Models | |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P51178-B21 |
| Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P51181-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE | P26253-B21 |
| Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | P10097-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | P26259-B21 |
| Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | P26256-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P26262-B21 |
| Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10115-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P26264-B21 |
| Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P26269-B21 |
| Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE | P21106-B21 |
| Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | P08449-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P08443-B21 |
| Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P10106-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | P08458-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | P41614-B21 |
| Intel E810-XXVDA4T Ethernet 10/25Gb 4-port SFP28 MCLK Adapter for HPE | P41636-B21 |
| Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 MCLK Non-GNSS Adapter for HPE Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P75068-B21 P21112-B21 |
| Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | P22767-B21 |
| Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | P41611-B21 |
| Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P42044-B21 |
| Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | P42041-B21 |
| Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE | P25960-B21 |
| Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P21109-B21 |
| Notes: Please go to Technical Specifications Section to visit the hyperlinks. | |
| Gen11 - Table 10 | ||
|---|---|---|
| SKU | P51178-B21 | P51181-B21 |
| Description | Broadcom BCM5719 Ethernet 1Gb 4- port BASE-T Adapter for HPE | Broadcom BCM5719 Ethernet 1Gb 4- port BASE-T OCP3 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 |
| ASIC/Chip | Broadcom BCM5719 | Broadcom BCM5719 |
| PCIe Version | PCIe 2.0 x4 | PCIe 2.0 x4 |
| Power Requirement | 5.78W | 4.69W |
| UEFI PXE Boot | √ | √ |
| Legacy BIOS PXE Boot | √ | √ |
| Wake-on-LAN (WOL) | No | √ |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ |
| Auto Negotiation | 1GbE/100Mb/1Mb | 1GbE/100Mb/1Mb |
| iSCSI Remote Boot | UEFI | UEFI |
| Tunnel Offload | No | No |
| RDMA1 | No | No |
| Receive Side Scaling (RSS) | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | No | No |
| NPAR | No | No |
| Single Root I/O Virtualization (SR-IOV) | No | No |
| Data Plane Development Kit (DPDK) | No | No |
| Root of Trust | Limited root of trust | Limited root of trust |
| Authenticated Updates | Software | Software |
| Secure Boot | No | No |
| Audit Log | No | No |
| Sanitization | No | No |
| SPDM Support | | |
| Notes: 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid inter operability issue. | ||
| Gen11 - Table 11 | ||||
|---|---|---|---|---|
| SKU | P26256-B21 | P26259-B21 | P10097-B21 | P26253-B21 |
| Description | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Card Type/Profile | OCP 3.0 | Stand up | OCP 3.0 | Stand up |
| ASIC/Chip | Broadcom BCM57412 | Broadcom BCM57412 | Broadcom BCM57416 | Broadcom BCM57416 |
| PCIe Version | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 3.0 x8 |
| Power Requirement | Typical: 11.6 W | Typical: 7.9 W Max: 9.1 W | Typical: 14.6 W Max: 16.1 W | Typical: 16.4 W Max: 16.1 W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | √ | | | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation | 1Gb, 10Gb | 1Gb, 10Gb | 1Gb, 10Gb | 1Gb, 10Gb |
| iSCSI Remote Boot | UEFI | UEFI | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs |
| Single Root I/O Virtualization (SR-IOV) | 128VF(total per chip) | 128VF (total per chip) | 128VF(total per chip) | 128VF (total per chip) |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | √ | √ | √ | √ |
| Sanitization | √ | √ | √ | √ |
| SPDM Support | | | | |
| Notes:1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue | ||||
| Gen11 - Table 12 | ||||
|---|---|---|---|---|
| SKU | P10115-B21 | P26262-B21 | P26269-B21 | P26264-B21 |
| Description | Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE | Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE |
| Card Type/Profile | OCP 3.0 | Stand up | OCP 3.0 | Stand up |
| ASIC/Chip | Broadcom BCM57414 | Broadcom BCM57414 | Broadcom BCM57504 | Broadcom BCM57504 |
| PCIe Version | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 4.0 x16 | PCIe 4.0 x16 |
| Power Requirement | Typical: 11.6 W | Typical: 9.1 W Max: 9.9 W | Typical 16.0W Max 16.9W | Typical 15.2W Max 16.7W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | √ | | √ | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation | 1Gb, 10Gb, 25Gb | 1Gb, 10Gb, 25Gb, | 10Gb, 25Gb | 10Gb, 25Gb |
| iSCSI Remote Boot | UEFI | UEFI | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 | RoCEv2 | RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs | 8PFs or 16PFs |
| Single Root I/O Virtualization (SR- IOV) | 128VF(total per chip) | 128VF(total per chip) | 1K VF (total per chip) | 1K VF (total per chip) |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | √ | √ | √ | √ |
| Sanitization | √ | √ | √ | √ |
| SPDM Support | | | √ | √ |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue. – 50G can be supported as either 2x25G NRZ or 1x50G PAM4 when using QSFP56. 100G can be supported as either 4x25G NRZ or 2x50G PAM4 when using QSFP56. – For BCM57414, mixing link speeds of (10Gb/25Gb) between ports on a 2-port 25Gb device is not supported. (1G/10G and 1G/25G port speed mixing is supported). – The 4-port BCM57504 does support mismatched/different (10Gb/25Gb) link speeds on different ports. | ||||
| Gen11 - Table 13 | ||
|---|---|---|
| SKU | P08449-B212 | P21106-B212 |
| Description | Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE |
| Card Type/Profile | OCP 3.0 | Stand up |
| ASIC/Chip | Intel® Ethernet Controller I350-AM4 | Intel® Ethernet Controller I350-AM4 |
| PCIe Version | PCIe 2.1 x4 | PCIe 2.1 x4 |
| Power Requirement | Typical: 4.6W Max: 5.2W | Typical: 5W Max: 6W |
| UEFI PXE Boot | √ | √ |
| Legacy BIOS PXE Boot | √ | √ |
| Wake-on-LAN (WOL) | √ | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ |
| Auto Negotiation | √ | √ |
| iSCSI Remote Boot | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE | VXLAN,NVGRE |
| RDMA1 | | |
| Receive Side Scaling (RSS) | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ |
| NPAR | | |
| Single Root I/O Virtualization (SR-IOV) | 32VF’s total | 32VF’s total |
| Data Plane Development Kit (DPDK) | √ | √ |
| Root of Trust | | |
| Authenticated Updates | √ | √ |
| Secure Boot | √ | √ |
| Audit Log | | |
| Sanitization | √ | √ |
| SPDM Support | | |
| Notes: – 1HPE recommends using Identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2I350-T4 Adapter does not support thermal reading, which may result in higher fan noise when this card is installed. Please see customer advisory for additional details: -Document - Notice: (Revision) HPE ProLiant Gen10 Plus Servers - Fans Run At High Speed When the HPE 1GbE 4p BASE-T I350-T4 Adapter Is Installed In a PCI Slot | HPE Support | ||
| Gen11 - Table 14 | ||||
|---|---|---|---|---|
| SKU | P08443-B21 | P10106-B21 | P08458-B21 | P41614-B21 |
| Description | Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE | Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE | Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 | Stand up | OCP 3.0 |
| ASIC/Chip | Intel® E810-XXVAM2 | Intel® E810-XXVAM2 | Intel® Ethernet Controller E810-CAM1 | Intel® Ethernet Controller E810-CAM1 |
| PCIe Version | PCIe 4.0 x8 | PCIe 4.0 x8 | PCIe 4.0 x16 | PCIe 4.0 x16 |
| Power Requirement | Typical: 8.9 W Maximum: 9.7 W | Typical: 8.9 W Maximum: 10.1 W | Typical: 14.2 W Maximum: 16.7W | Typical: 14.6W Maximum: 18.2W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | | √ | | √ |
| Internet Protocol (IP)IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation2 | √ | √ | √ | √ |
| iSCSI Remote Boot | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration |
| Tunnel Offload | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE |
| RDMA1 | (iWARP & RoCEv2) | (iWARP & RoCEv2) | (iWARP & RoCEv2) | iWARP & RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | | | | |
| Single Root I/OVirtualization (SR-IOV) | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | | | | |
| Sanitization | √ | √ | √ | √ |
| SPDM Support | | | | |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2Intel Ethernet Adapters support mixing different port speeds on different ports of the same card. | ||||
| Gen11 - Table 15 | ||||
|---|---|---|---|---|
| SKU | P75068-B21 | P22767-B213 | P41611-B21 | P21112-B213 |
| Description | Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 MCLK Non-GNSS Adapter for HPE | Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE | Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE | Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 | Stand up | Stand up |
| ASIC/Chip | Intel® Ethernet Controller E810-CAM1 | Intel® Ethernet Controller E810-CAM2 | Intel® Ethernet Controller E810-CAM1 | Intel® Ethernet Controller E810-CAM2 |
| PCIe Version | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 4.0 x16 2 | PCIe 4.0 x16 |
| Power Requirement | Typical: 19.3 W Maximum: 24.9 W; (w/DAC) | Typical:15.9W Maximum: 18.9W | Typical: 21.8W Maximum: 29.6W | Typical: 16.9W Maximum: 19.2W |
| UEFI PXE Boot | √ | √ | √ | √ |
| Legacy BIOS PXE Boot | √ | √ | √ | √ |
| Wake-on-LAN (WOL) | | √ | | |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ | √ | √ |
| Auto Negotiation4 | √ | √ | √ | √ |
| iSCSI Remote Boot | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration | iSCSI boot supported (UEFI), iSCSI acceleration only supported with TCP acceleration |
| Tunnel Offload | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE | VXLAN, GENEVE, and NVGRE |
| RDMA1 | (iWARP & RoCEv2) | iWARP & RoCEv2 | iWARP & RoCEv2 | iWARP & RoCEv2) |
| Receive Side Scaling (RSS) | √ | √ | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ | √ | √ |
| NPAR | | | | |
| Single Root I/O Virtualization (SR-IOV) | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total | 256VFs/port, 2k Total |
| Data Plane Development Kit (DPDK) | √ | √ | √ | √ |
| Root of Trust | Hardware | Hardware | Hardware | Hardware |
| Authenticated Updates | √ | √ | √ | √ |
| Secure Boot | √ | √ | √ | √ |
| Audit Log | | | | |
| Sanitization | √ | √ | √ | √ |
| SPDM Support | | | | |
| Gen11 - Table 16 | |
|---|---|
| SKU | P25960-B21 |
| Description | Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE |
| Card Type/Profile | Stand up |
| ASIC/Chip | Mellanox MCX623106AS-CDAT |
| PCIe Version | PCIe 4x16 |
| Power Requirement | Typical: 13W Max: 18.4W |
| UEFI PXE Boot | √ |
| Legacy BIOS PXE Boot | √ |
| Wake-on-LAN (WOL) | |
| Internet Protocol (IP) IPv4, IPv6 | √ |
| Auto Negotiation2 | 1/10/25/40/50/100 Gb |
| iSCSI Remote Boot | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ |
| NPAR | |
| Single Root I/O Virtualization (SR-IOV) | 512 total, variable per port |
| Data Plane Development Kit (DPDK) | √ |
| Root of Trust | Hardware |
| Authenticated Updates | √ |
| Secure Boot | √ |
| Audit Log | √ |
| Sanitization | |
| SPDM Support | |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2 Mellanox Ethernet Adapters support mixing different port speeds on different ports of the same card. | |
| Gen11 - Table 17 | ||
|---|---|---|
| SKU | P42044-B21 | P42041-B21 |
| Description | Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE |
| Card Type/Profile | Stand up | OCP 3.0 |
| ASIC/Chip | Mellanox MCX631102AS-ADAT | Mellanox MCX631432AS-ADAI |
| PCIe Version | PCIe 4x8 | PCIe 4x8 |
| Power Requirement | Typical: 13W Max: 18.4W | Typical: 13W Max: 18.4W |
| UEFI PXE Boot | √ | √ |
| Legacy BIOS PXE Boot | √ | √ |
| Wake-on-LAN (WOL) | | √ |
| Internet Protocol (IP) IPv4, IPv6 | √ | √ |
| Auto Negotiation2 | 1/10/25Gb | 1/10/25Gb |
| iSCSI Remote Boot | UEFI | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ | √ |
| NPAR | | |
| Single Root I/O Virtualization (SR-IOV) | 512 total, variable per port | 512 total, variable per port |
| Data Plane Development Kit (DPDK) | √ | √ |
| Root of Trust | Hardware | Hardware |
| Authenticated Updates | √ | √ |
| Secure Boot | √ | √ |
| Audit Log | √ | √ |
| Sanitization | | |
| SPDM Support | | |
| Notes: – 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue – 2Mellanox Ethernet Adapters support mixing different port speeds on different ports of the same card. | ||
| Gen11 - Table 18 | |
|---|---|
| Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE | P21109-B21 |
| Description | Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE |
| Card Type/Profile | Stand up |
| ASIC/Chip | Solarflare X2522-25G-PLUS |
| PCIe Version | PCIe 3.0 x8 |
| Power Requirement | Typical: 14W Max: 17.5W |
| UEFI PXE Boot | √ |
| Legacy BIOS PXE Boot | √ |
| Wake-on-LAN (WOL) | |
| Internet Protocol (IP) IPv4, IPv6 | √ |
| Auto Negotiation | 10Gb, 25Gb |
| iSCSI Remote Boot | UEFI |
| Tunnel Offload | VXLAN, NVGRE, GENEVE |
| RDMA1 | RoCEv1, RoCEv2 |
| Receive Side Scaling (RSS) | √ |
| VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) | √ |
| NPAR | |
| Single Root I/O Virtualization (SR-IOV) | 240 VF’s total |
| Data Plane Development Kit (DPDK) | √ |
| Root of Trust | Firmware |
| Authenticated Updates | √ |
| Secure Boot | √ |
| Audit Log | √ |
| Sanitization | √ |
| OS Support | Xilinx has reduced OS support compared to HPE ProLiant servers. Please check Xilinx website for latest OS support: https://www.xilinx.com/support/download/nic-software-and-drivers.html |
| Platform Support | Supported on Gen 11 DL360, DL380 only |
| Notes: 1HPE recommends using identical network adapters on both ends of the RoCE connection to avoid interoperability issue | |
Feature Definitions:
Audit Logs
Audit Logs are a forensics capability that provides traceability into authenticated firmware updates by capturing changes in standard system logs.
Authenticated Updates
Authenticated Updates brings cryptographic keys onto the NIC (for HW Authentication) to protect user and configuration data from unauthorized access and verify digitally signed firmware.
Auto-negotiation
Automatically senses the speed of the device to which it is attached. It also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or router connected to the adapter.
DPDK
DPDK with benefit for packet processing acceleration and use in NFV deployments.
IPv6
IPv6 uses 128-bit addressing allowing for more devices and users on the internet. IPv4 supported 32-bit addressing.
iWARP RDMA
Delivers RDMA on top of the pervasive TCP/IP protocol. iWARP RDMA runs over standard network and transport layers and works with all Ethernet network infrastructure. TCP provides flow control and congestion management and does not require a lossless Ethernet network. iWARP is a highly routable and scalable RDMA implementation.
Network Partitioning (NPAR)
Network Partitioning (NPAR) allowing administrators to configure a 10 Gb port as four separate partitions or physical functions. Each PCI function is associated with a different virtual NIC. To the OS and the network, each physical function appears as a separate NIC port.
Optimized for Virtualization
I/O Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.
Preboot eXecution Environment (PXE)
Support for PXE enables automatic deployment of computing resources remotely from anywhere. It allows a new or existing server to boot over the network and download software, including the operating system, from a management/ deployment server at another location on the network.
Additionally, PXE enables decentralized software distribution and remote troubleshooting and repairs.
Root of Trust
Root of Trust enables a chain of trust for Authenticating updates to firmware via signature validation. This blocks installation of rogue or corrupted firmware and ensures that the executing firmware is trusted.
RDMA
Remote Direct memory Access (RDMA) is an accelerated I/O delivery mechanism that allows data to be transferred directly from the user memory of the source server to the user memory of the destination server bypassing the operating system (OS) kernel. Because the RDMA data transfer is performed by the DMA engine on the adapter's network processor, the CPU is not used for the data movement, freeing it to perform other tasks such as hosting more virtual workloads (increased VM density). RDMA protocols include RoCEv1, RoCEv2 and iWARP. All of these protocols reduce overall latency to deliver accelerated performance for applications such as Microsoft Hyper-V Live Migration, Microsoft SQL and Microsoft SharePoint with SMB Direct.
Receive Side Scaling (RSS)
RSS resolves the single-processor bottleneck by allowing the receive side network load from a network adapter to be shared across multiple processors. RSS enables packet receive-processing to scale with the number of available processors.
Sanitization
Sanitization (Secure User Data Erase) renders User and configuration data on the NIC irretrievable so that NICs can be safely repurposed or disposed.
Secure Boot
Secure Boot safeguards the system and ensures no rogue drivers are being executed on start-up.
Single-Root I/O Virtualization
Single-Root I/O Virtualization (SR-IOV) provides a mechanism to bypass the host system hypervisor in virtual environments providing near metal performance and server efficiency. SR-IOV provides mechanism to create multiple Virtual Functions (VFs) to share single PCIe resources. The device is capable of SR-IOV, and requires Server BIOS support, controller firmware, and OS support.
TCP/UDP/IP
TCP/IP offloading techniques including: TCP/IP, UDP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network adapter. Large send offload (LSO) or TCP segmentation offload (TSO) allows the TCP segmentation to be handled by the adapter rather than the CPU
Tunnel Offload
Minimize the impact of overlay networking on host performance with tunnel offload support for VXLAN, NVGRE and GENEVE. By offloading packet processing to adapters, customers can use overlay networking to increase VM migration flexibility and virtualized overlay networks with minimal impact to performance. HPE Tunnel Offloading increases I/O throughput, reduces CPU utilization, and lowers power consumption. Tunnel Offload supports VMware's VXLAN, Microsoft's NVGRE solutions and Generic Network Virtualization Encapsulation (GENEVE) solutions.
VMware NetQueue and Microsoft Virtual Machine Queue (VMQ)
VMware NetQueue is technology that significantly improves performance of 10 Gigabit Ethernet network adapters in virtualized environments. Windows Hyper-V VMQ (VMQ) is a feature available on servers running Windows Server 2008 R2 with VMQ-enabled Ethernet adapters. VMQ uses hardware packet filtering to deliver packet data from an external virtual machine network directly to virtual machines, which reduces the overhead of routing packets and copying them from the management operating system to the virtual machine.
Wake-on-LAN
Wake-on-LAN (WoL) support through the PCI Express bus. A system that supports Wake-on-LAN can remain available to the systems administrator during its normal downtime. Once the machine is awakened, the systems administrator can remotely control, audit, debug, or manage the machine.
Server support
Networking Adapters below are supported on select HPE Proliant DL110/325/345/360/365/380/385 & Apollo2000/4200/6500 Servers
- – Broadcom BCM5719 Ethernet 1Gb 4-port Base-T Adapter for HPE
- – Broadcom BCM5719 Ethernet 1Gb 4-port Base-T OCP3 Adapter for HPE
- – Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
- – Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
- – Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE
- – Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE
- – Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
- – Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
- – Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
- – Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE
- – Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE
- – Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
- – Intel X710-DA2 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE
- – Intel X710-DA2 Ethernet 10Gb 2-port SFP+ Adapter for HPE
- – Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
- – Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
- – Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
- – Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE (Only DL360 Gen11, DL380 Gen11, DL110 Gen11 and DL110 Gen10 Plus)
- – Intel E810-XXVDA4T Ethernet 10/25Gb 4-port SFP28 MCLK Adapter for HPE (Only DL110)
- – Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 MCLK Non-GNSS Adapter for HPE (Only DL110)
- – Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE
- – Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE
- – Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE (Only DL110)
- – Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
- – Mellanox MCX562A-ACAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
- – HPE Ethernet 100Gb 2-port QSFP28 MCX516A-CCHT Adapter (Only DL325/385/Apollo 2000 Gen10 Plus)
- – Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE
- – Mellanox MCX623105AS-VDAT Ethernet 200Gb 1-port QSFP56 Adapter for HPE
- – Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
- – Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
- – Xilinx X2522-25G Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
- – Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- – A complete coverage approach – edge to cloud
- – An assigned HPE team
- – Modular and fully personalized engagement
- – Enhanced Incident Management experience with priority access
- – Digitally enabled and AI driven customer experience
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.hpe.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options
Parts and Materials
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- – Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- – Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin
Consume IT On Your Terms
HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
- – Get faster time to market
- – Save on TCO, align costs to business
- – Scale quickly, meet unpredictable demand
- – Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information
Technical Specifications
Operating System and Virtualization Support
The Operating Systems supported by this adapter are based on the server OS support. Please refer to the OS SupportMatrix at https://www.hpe.com/us/en/servers/server-operating-systems.html
Drivers and Software Download (Please use hyperlinks below)
To access Vendor Technical Specifications, please visit the following hyperlinks:
Transceiver and Cable Options
Please refer to matrix: https://psnow.ext.hpe.com/doc/a00002507enw
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.
These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 02-Feb-2026 | Changed | New branding applied to document | |
| 02-Dec-2024 | Changed | Added P75068-B21 | |
| 19-Aug-2024 | Changed | Speeds corrected on SKUs P51178-B21 and P51181-B21 | |
| 06-May-2024 | Changed | Overview section was updated. | |
| 01-Apr-2024 | Changed | Added Xilinx X2 support to Gen11 DL360, DL380, removed OBS products | |
| 04-Dec-2023 | Changed | Introduced new sections for SKUs on Gen11, Service and Support Section was updated | |
| 10-Jul-2023 | Changed | Standard Features, Service and Support Sections were updated | |
| 05-Jun-2023 | Changed | Standard Features section was updated | |
| 14-Nov-2022 | Changed | Updated drivers and support download links | |
| 03-Oct-2022 | Changed | Models were updated | |
| 06-Sep-2022 | Changed | Added P26269-B21, P26264-B21, P41636-B21, and updated links | |
| 06-Jun-2022 | Changed | Added P51178-B21, P51181-B21 | |
| 02-May-2022 | Changed | SKUs were removed and updated | |
| 04-Apr-2022 | Changed | Models were updated | |
| 07-Feb-2021 | Changed | Added P42041 and P42044 CX6-LX 10/25Gb 2-port | |
| 01-Nov-2021 | Changed | Standard Features, Service and Support Sections were updated | |
| 04-Oct-2021 | Changed | Standard Features Section was updated | |
| 02-Aug-2021 | Changed | Models Section and SKUs were updated | |
| 07-Jun-2021 | Changed | Added NPAR and Legacy BIOS PXE Boot features to selected NICs | |
| 17-May-2021 | Changed | Overview Section and Models were updated | |
| 06-Apr-2021 | Changed | Models and Standard Features Sections were updated | |
| 05-Oct-2020 | Changed | Overview and Standard Features Sections were updated | |
| 01-Jun-2020 | Changed | Standard Features Section was updated, added feature definition | |
| 20-Apr-2020 | Changed | Standard Features Section was updated | |
| 06-Apr-2020 | Changed | Added tables for feature, add X2522-25G | |
| 16-Dec-2019 | Changed | Overview and Technical Specifications sections were updated | |
| 02-Dec-2019 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a00073559enw, - 16507 - Worldwide - V27 - 02-February-2026
