HPE Storage Switch M-series SN3700M QuickSpecs

Shape the Future of QuickSpecs - Your Input Matters

With NVIDIA Cumulus® Linux

HPE M-series with NVIDIA Cumulus® Linux family of Ethernet switches are capable of addressing today’s data center’s complex networking requirements, growth, and expansion and are perfect for Top-Of-Rack (TOR) deployments and optimized for virtualized environments, hyperconverged infrastructure, and storage deployments. HPE M-series Ethernet switches give you the right network bandwidth with consistent zero-packet-loss performance for high-performance and storage workloads.

  • Overview

    HPE Storage Switch M-series SN3700M with NVIDIA Cumulus® Linux is based on the 2nd generation of NVIDIA SpectrumTMswitches, purpose-built for leaf/spine/super-spine data center applications. Allowing maximum flexibility, the 1U SN3700M provides port speeds spanning from 1 GbE to 200 GbE, and a port density that enables full rack connectivity to any server. HPE Storage Switch M-series SN3700M provides an on chip fully-shared 42 MB packet buffer, and flexible per port SN3700M PAM-4 and NRZ signaling in addition to advanced hardware capabilities. The uplink ports allow a variety of blocking ratios to suit any application requirement. The HPE Storage Switch M-series SN3700M is ideal for building cloud-scale layer-2 and layer-3 networks. The HPE Storage Switch M-series SN3700M platform delivers high performance, consistent low latency along with support for advanced software defined networking features, making it the ideal choice for web scale IT, cloud, hyperconverged storage and data analytics applications.


    With an increasing need to access data faster and accommodate growing workloads, rising levels of east-west traffic, and new storage arrays based on flash storage technologies, a high bandwidth, low-latency, zero-packet-loss network becomes paramount. The HPE Storage Switch M-series SN3700M with NVIDIA Cumulus® Linux offers either QSFP56 or QSFP28 connectivity for top-of-rack applications requiring matched downlink to uplink bandwidth. NVIDIA Cumulus® network platforms are capable of delivering unbelievable networking speed and agility to keep pace with the most intense workloads small to large scale enterprises can produce. With port speeds spanning 1 Gb/s to 200 Gb/s and a switching capacity of 12.8 Tb/s or 6.4 Tb/s from 32 ports at 200 GbE or 100 GbE. These switches provide non-blocking throughput at wire-speed transfers across all packet sizes. The HPE Storage Switch M-series SN3700M delivers a landmark 8.33 Bpps or 4.76 Bpps processing capacity and uncompromising ultra-low true cut-through latency.


    Delivering the highest feature set at the right price allows you to get the most out of your Ethernet infrastructure to best support a variety of use cases, including media and entertainment; streaming video, financial services industry, virtualized data centers, and next generation storage, including software-defined storage and NVMe® flash. HPE SN3700M switches are available with factory integrated NVIDIA Cumulus® Linux for immediate deployment. With HPE M-series switches, you can:

    • − Optimize Storage— modernize your network to eliminate limitations and bottlenecks that can be caused by the addition of flash storage.
    • − Enjoy efficient network performance— avoid packet loss, provide predictable performance with line-rate packet delivery across all ports and all packet sizes
    • − Realize breakthrough economics— make better use of your data center resources with the highest port density per rack unit and the industry’s lowest power consumption.
    • − Accelerate business innovation— utilize 100 GbE Ethernet connectivity for existing workloads and enhance connectivity utilizing 200 GbE capabilities to respond quickly to business needs and to stay on the leading edge of Ethernet switching technology.

    HPE Storage Switch M-series SN3700M Ethernet switches are based on the high-performance 50 GbE PAM4 and 25 GbE NRZ encoding capable Spectrum-2 ASIC and are ideally suited for both top-of-rack leaf and fixed configuration spines. with capabilities:


    • − Ethernet port speeds from 1 GbE to 200 GbE
    • − All 32 ports support split x4 or x2 mode (32 x4=128 ports)
    • − 42 MB of on-chip fully shared packet buffering
    • − 512K on-chip, dynamically shared forwarding table
    • − Deep visibility with 512k general purpose counters
    • − In-band network telemetry
    • − Feature-rich Layer 2 and Layer 3 forwarding
    • − Ultra-low latency with true cut through performance, Zero-packet-loss performance with NVMe TCP and RoCEV2 RDMA, DCBX, PFC, ECN support

Models

HPE M-series SN3700cM and SN3700M Ethernet Switch Models with NVIDIA Cumulus® Linux

Description

SKU

HPE 200 GbE 32QSFP56 Power to Connector Airflow Switch SN3700M with NVIDIA Cumulus

S2T79A
  • – HPE 200 GbE 32QSFP56 P2C Sw SN3700M w/NVD

HPE 100 GbE 32QSFP28 Power to Connector Airflow Switch SN3700cM with NVIDIA Cumulus

S2T78A
  • – HPE 100G 32QSFP28 P2C Sw SN3700cM w/NVD

Notes:

– HPE switch SKUs with factory installed NVIDIA Cumulus® Linux cannot be converted to HPE ONYX or ONIE switch SKUs

– For HPE Storage Switch M-series SN3700M models R5Z74A, R5Z75A, R3B14A, R3A97A, and R3A98A refer to QuickSpecs Version 13
[IMAGE1]

HPE Storage Switch M-series SN3700McM - Front (Connector) View

Item

Description

Item

Description

1.

Status LEDs (System; Fan; Power Supply; Unit Identifier)

5.

Password Reset Button - refer to the Single User Mode Boot Recovery section in the Cumulus Linux User Guide

2.

Micro USB 2.0 (USB 1.0 not supported)

6.

Port LEDs

3.

MGMT0 100 Mb/s to 1 Gb/s Port

7.

LED Breakout Control

4.

IOIOI RS232 Serial Console Port: 115200 BAUD

8.

1-32 1 GbE to 200 GbE QSFP+/QSFP28/QSFP56 ports
image 2

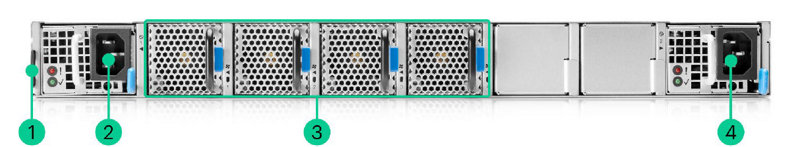

HPE Storage Switch M-series SN3700McM – Rear (Power) View

Item

Description

Item

Description

1.

Inventory Information Pull-Out Tab

3.

FANs (1 left to 4 right)

2.

Power Supply 1

4.

Power Supply 2
image 3

HPE Storage Switch M-series SN3700M - Front (Connector) View

Item

Description

Item

Description

1.

Status LEDs (System; Fan; Power Supply; Unit Identifier)

5.

Password Reset Button - refer to the Single User Mode Boot Recovery section in the Cumulus Linux User Guide

2.

Micro USB 2.0 (USB 1.0 not supported)

6.

Port LEDs

3.

MGMT0 100 Mb/s to 1 Gb/s Port

7.

LED Breakout Control

4.

IOIOI RS232 Serial Console Port: 115200 BAUD

8.

1-32 1 GbE to 200 GbE QSFP+/QSFP28/QSFP56 ports
image 4

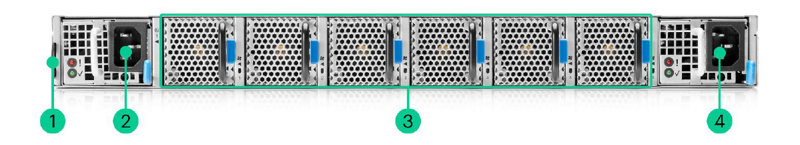

HPE Storage Switch M-series SN3700M – Rear (Power) View

Item

Description

Item

Description

1.

Inventory Information Pull-Out Tab

3.

FANs (1 left to 6 right)

2.

Power Supply 1

3.

Power Supply 2

Notes: the SN3700M and SN3700cM chassis, power supplies and fans are included as a field replaceable switch.

  • Standard Features

    Key Features and Benefits

    • – SN3700cM and SN3700M switches are ideal for modern server and storage networks, supporting DAC, AOC, and optical breakout cables. The 32 ports deliver predictable performance and zero-packet-loss at line-rate across each port and packet size.

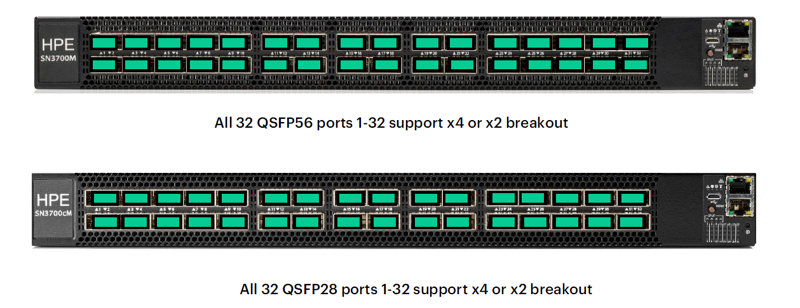

    • – The 200 GbE PAM4 encoded ports in the SN3700M switches can be split to two (split-2) 100 GbE ports, or to four (split-4) (or less) 50 GbE PAM4 encoded ports or 1/10/25 GbE NRZ encoded ports, using a splitter cable.
    • – The 100 GbE NRZ encoded ports in the SN3700cM switches can be split to two (split-2) 50 GbE ports, or to four (or less) 1/10/25 GbE NRZ encoded ports, using a splitter cable.
image 5
  • – SN3700cM and SN3700M can be deployed to support 1 GbE and 10 GbE ports, including 10 Gbase-T RJ45 transceivers utilizing the QSA28 adapter, and is designed to be able to evolve over time to support 25, 40, 50, 100, and 200 GbE speeds. This helps future-proof your network architecture and allows for implementing significant speed upgrades to the architecture over time.
  • – SN3700cM and SN3700M provide ultra-low cut-through latency port-to-port. This is advantageous for flash storage which moved the latency bottleneck from storage media to the network, as well as for the bursty nature of today’s software-defined and cloud-driven data center traffic flows.
  • – M-series SN3700cM and SN3700M provide high port density in a single rack unit, allowing for higher capacity and efficiency, simplifying scale-out environments and saving on total cost of ownership. Unique breakout cables fan out individual switch ports to multiple device ports.
  • – Provides wire-rate performance with zero-packet-loss across all frame sizes, avoiding any negative impact on applications that could occur with frame loss as unexpected packet loss is unacceptable in modern data centers, especially within a storage network.
  • – Capable of forwarding 100% capacity wire rate performance with zero-packet-loss across all ports concurrently at 100 GbE or 200 GbE speeds while transferring data across both Layer 2 and Layer 3 networks.
  • – Designed to use less electric power than competing switches, providing one of the industry’s lowest power draws, producing less heat than competing products, providing reduced OPEX cost.
  • – Provides enough switching bandwidth to transport all ports at 100 GbE or 200 GbE bandwidth concurrently.
  • This allows the switches to avoid head-of-line blocking which can reduce a switches overall performance and throughput.

HPE Storage Switch M-series SN3700M Ethernet Switch Models

  • – 32 200/40 GbE and 64 x100 GbE QSFP56 ports, all ports break-out by 2 for up to 64 x100 GbE or by 4 for up to 128 1/10/25/50 GbE connections with breakout cables.
  • – Extremely Flexible with support for 1, 10, 25, 40, 50, 100, and 200 GbE speeds in a 1U enclosure.
  • – Ultra-low latency with true cut through performance, Zero-packet-loss performance with DCBX, PFC, ECN support

HPE Storage Switch M-series SN3700cM Ethernet Switch Models

  • – 32 100/40G QSFP28 ports, all ports break-out by 4 for up to 128 1/10/25 GbE connections with breakout cables.
    • Notes: x2 breakout (2 x25 GbE NRZ) is not support with HPE cables
  • – Extremely Flexible with support for 1, 10, 25, 40, and 100 GbE speeds in a 1U enclosure.
  • – Ultra-low latency with true cut through performance, Zero-packet-loss performance with DCBX, PFC, ECN support

NVIDIA® Cumulus Linux

Cumulus Linux is a powerful open network operating system enabling advanced automation, customization and scalability using web-scale principles like the world’s largest data centers. It accelerates networking functions and provides choice from an extensive list of supported switch models including NVIDIA SpectrumTMbased switches. Cumulus Linux was built for automation, scalability and flexibility, allowing you to build data center and campus networks that ideally suits your business needs. Cumulus Linux is the only open network OS that allows you to build affordable and efficient network operations like the world’s largest data center operators, unlocking webscale networking for businesses of all sizes.


The Ideal Solution for Your Network Challenges, Cumulus Linux enables modern data center architectures, while providing a transition path for traditional data center architectures, with support for layer 2, layer 3, and overlay networks. This open approach enables a wide range of solutions. Centralized, remote management of AI deployments enables over-the-air software updates, remote debugging, and system monitoring, as well as other features like self-healing systems. These remote management features make maintenance and upkeep easier, and AI more accessible and practical for locations that are difficult to access or far from headquarters. This results in faster, more comprehensive insights that can drive real-time decisions.


  • – Deployment Models:
    • L3 network, L2 network, Clos, Out-of-band management, Overlay network,

  • – Use cases:
    • Containers, Big data, Private cloud, Network virtualization, DevOps / automation, Monitoring and analytics, Hyperconverged infrastructure

Key Features

Unnumbered Interfaces: Automation gets even easier with this simplified Internet Protocol (IP) approach for Border Gateway Protocol (BGP) and Open Shortest Path First (OSPF). All you need is one IP template for leaf nodes and one for spine nodes. BGP Unnumbered, the only difference between a BGP unnumbered configuration and the BGP numbered configuration is that the BGP neighbor is as an interface (instead of an IP address). There is no need to configure an IP address on the interface between the two peers on each side.


Redistribute Neighbor (RDNBR): Get virtual machine (VM) and host mobility by plugging your server into any RDNBR switch and making it layer-3 discoverable on the fabric. If you need to move the server, there’s no need to reconfigure.


Prescriptive Topology Manager (PTM): Efficiently go from whiteboard to physical cable. With PTM, you can program your data center to verify connections and resolve issues faster.


Virtual Routing and Forwarding: Run multiple network paths without the need for multiple switches, giving you traffic isolation and network segmentation for multiple devices.


Ethernet Virtual Private Networks (EVPN): The most advanced capabilities available for EVPN allow legacy layer-2 applications to operate over next-generation layer-3 networks.


NVIDIA User Experience (NVUE): A full command-line interface (CLI) object model of Cumulus Linux enables advanced programmability, extensibility, and usability.


Digital twins:NVIDIA Air makes physical deployments seamless by validating and simplifying deployments and upgrades in a virtual network.

[IMAGE7]

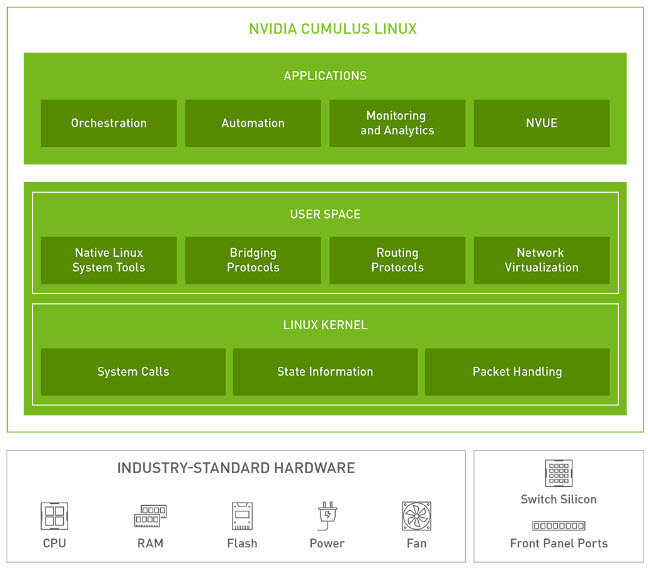

NVIDIA Cumulus® Linux Interface

User Interface: Command Line

With the NVIDIA User Experience (NVUE) object-oriented management tool, Cumulus Linux customers can go beyond the CLI and unify their network management with the rest of the data center management. NVUE enables any APIs to tie into NOS management, including REST, gRPC, RestConf, NetConf, and OpenConfig. Additionally, NVUE is Git-based, enabling Diff, revert, apply, branch, and stash behaviors. NVUE’s configuration is simple: one YAML file ties all Linux configurations together, making it easy to copy configurations from switch to switch.


Operating System Install and Upgrade

  • – Server-style upgrade/patching across minor releases, server-style process restart/termination
  • – Support for zero touch OS installation using ONIE loaded on industry-standard switches
  • – Standard mechanism for authentication, authorization, and accounting with TACACS+

Extensibility

  • – Cumulus Linux works with any language supported in Linux today, including scripting with Bash, Perl, Python, and Ruby

Hardware Management

  • – The switch hardware abstraction layer accelerates Linux kernel networking constructs in hardware, including the routing table, ARP table, bridge FOB, IP/EB tables, bonds, VLANs, and VXLAN bridges
  • – Hardware management also includes jumbo frames support and environmental management
  • – Forwarding table profiles on the ASIC provide flexible partitioning of resources

Layer 3 Features

  • − IPv4/v6 routing suite including OSPFv2, OSPFv3, and BGPv4/v6
  • − RDMA over Converged Ethernet (RoCEv2) support for Layer 2 and Layer 3
  • − Virtual routing and forwarding (VRF) and VRF route leaking
  • − Equal-cost multi-path (ECMP) and ECMP resilient hashing for IPv4 and IPv6 traffic
  • − Bidirectional forwarding detection (BFD) across all platform and interface types, IPv4 and IPv6, BGP and OSPF, VXLAN, BGP conditional route advertisement
  • − Protocol-independent multicast (PIM, PIM-SM, PIM-SSM)
  • − Policy-based routing
  • − Generic routing encapsulation (GRE) tunneling
  • − Precision time protocol (PTP) Boundary Clock
  • − VNI scaling: supports 6 bridges with up to 1,000 VNls
  • − GTP Hashing
  • − Adaptive Routing with RoCEv2

Layer 2 features

  • − Bridge management with STP (IEEE 802.1d). RSTP (IEEE 802.1 W), PVRST, PVST, bridge assurance, BPDU guard, and BPDU filter
  • − VLANs. VLAN trunks (IEEE 802.1q). LACP (IEEE 802.3adl. LACP bypass, unicast/broadcast storm control, LLDP, CDP, IPv6 neighbor discovery, and IPv6 route advertisement
  • − MLAG (Multi-Chassis Link Aggregation)
  • − IGMPv2/v3 snooping, MLDv1/v2 snooping, Optimized Multicast Flooding (OMF)
  • − Virtual router redundancy (VRR - active-active first hop redundancy protocol)
  • − LLDP DCB IEEE TLVs

Network Virtualization

  • − VXLAN support
  • − VXLAN Routing - symmetric and asymmetric
  • − L2 gateway services integration with VMware NSX
  • − VXLAN head end replication
  • − VXLAN active-active bridging with MLAG
  • − Controller-less network virtualization with EVPN

Management

  • − Object-oriented APl-compatible switch management with NVIDIA User Experience (NVUE)
  • − ISSU: in-service software upgrades
  • − Warm boot on bonds
  • − Native Linux management tools, such as OpenSSH, SCP, and FTPS
  • − Automated install and provisioning: zero touch install and zero touch provisioning
  • − Management VRF
  • − DHCP and v4/v6 DHCP relays
  • − Authentication with LDAP and authorization with sudo NTP
  • − Interface configuration management (ifupdown2)
  • − Advanced management/orchestration through third-party add-on packages
  • − Snapshot and rollback of the entire system to eliminate risk from system updates

Monitoring and Troubleshooting

  • – Monitor traffic patterns and preemptive capacity planning with buffer monitoring
  • – Traditional monitoring with SNMPv2 and SNMPv3 and network-specific MIBs, hardware monitoring via watchdog, analytics with SPAN, ERSPAN, ACL-based counters, DOM optics data, thermal sensors, real time queue­depth, and buffer utilization reporting
    • • HPE recommends use of SNMPv3 username and password instead of the read-only community; SNMPv3 does not expose the password in the GetRequest and GetResponse packets and can also encrypt packet contents. You can configure multiple usernames for different user roles with different levels of access to various MIBs.
    • • The /usr/share/snmp/mibs/Cumulus-Snmp-MIB.txt file defines the overall Cumulus Linux MIB.
  • – Troubleshooting with dnsutils, syslog, reachability tools, hardware inventory, log files, server-style filesystem, and Spectrum ASIC commands
  • – The cl-support script generates a compressed archive file (.txz) of useful information for troubleshooting. The system either creates the archive file automatically or you can create the archive file manually. The system creates the cl-support archive file automatically for the following reasons:
    • • When there is a core dump file for any application (not specific to Cumulus Linux, but something all Linux distributions support), located in /var/support/core
    • • When one of the monitored services fails for the first time after you reboot or power cycle the switch – sFlow monitoring for system statistics and network traffic
  • – The NVIDIA Firmware Tool (MFT) mlxlink tool is integrated into Cumulus and is used to check and debug link status and related issues. The tool can be used on different links and cables (passive, active, transceiver and backplane).
  • – What Just Happened (WJH) provides real time visibility into network problems and has two components:
    • • The WJH agent enables you to stream detailed and contextual telemetry for off-switch analysis with tools such as NVIDIA NetQ.
    • • The WJH service (what-just-happened) enables you to diagnose network problems by looking at dropped packets. WJH can monitor layer 1, layer 2, layer 3, tunnel, buffer and ACL related issues. Cumulus Linux enables and runs the WJH service by default.
    • • You can choose which packet drops you want to monitor and show by creating channels and setting the packet drop categories (layer 1, layer 2, layer 3, tunnel, buffer and ACL) you want to monitor.
    • • NVUE does not provide commands to set the buffer and ACL packet drop categories. You must edit the /etc/what-just-happened/what-just-happened.json file. NVUE supports WJH show commands.

Security

  • – Access control lists (ACLs) L2-L4 classification through IP/EP tables and CPU protection through hardware enforced ACL-based rate limiting DoS control
  • – Authenticate and authorize attached devices with 802.1x
  • – Kernel Address Space Randomization

QoS

  • – Link PAUSE
  • – Classification based on Class of Service (CoS) (IEEE 802.1p) or DSCP (queuing, scheduling-DWRR and Strict Priority - and buffer allocation)
  • – Ingress ACL-based classification/policing
  • – Priority flow control and explicit congestion notification (ECN)
  • – Dynamic buffer configuration as default

Cumulus VX and NVIDIA AIR

  • – Getting started with Cumulus Linux is easy. Customers can explore, test, and prototype the technology.
    • • To build a data center digital twin or mock-up a deployment with Cumulus, visit NVIDIA Air
  • – Download the free NVIDIA Cumulus VX appliance, supported virtual appliance to test and stage production rollouts

Third-party Packages

  • – Orchestration: Ansible, CFEngine, Chef, and Puppet
  • – Monitoring: Collectd, Ganglia, Graphite, Nagios/lcinga, and NetSNMP
  • – You can use Cumulus Linux to run the Docker container platform. You can install Docker Engine directly on a Cumulus Linux switch and run Docker containers natively on the switch.

  • Service and Support

    Warranty

    (3-3-3) Hardware Warranty: 3-year parts, 3-year on-site (standard business hours, next business day response), and 3-year labor.

    Notes:

    − The hardware warranty covers firmware. For extended hardware support and installation information, please see the “Services and Support” Section.

    − The HPE Storage Switch M-series SN3700M is the replaceable service unit. HPE does not spare the SN3700M power supply and fan. The SN3700M supports power supply and fan hot swap as documented in nvidia-spectrum-2-sn3000-1u-and-2u-switch-systems-hardware-user-manual. A self-sparing customer would utilize NVIDIA power supply and fan part numbers:

    930-9BPSU-00JZ-000 MTEF-PSFAC-C Power-Supply Unit, 1100 W AC, P2C Airflow, Power cord included 930-9BFAN-00IN-000 MTEFFANF-C 200G 1U systems FAN MODULE W/ P2C air flow


    HPE Services

    No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.HPE.com/services


    Consulting services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.HPE.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.HPE.com/services/operational


    Recommended Services

    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.HPE.com/services/techcare


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • – A complete coverage approach—edge to cloud
    • – An assigned HPE team
    • – Modular and fully personalized engagement
    • – Enhanced Incident Management experience with priority access
    • – Digitally enabled and AI-driven customer experience

    https://www.HPE.com/services/completecare

Other related services from HPE Services

HPE Installation and Start-up Service

Provides for the hardware installation and startup of HPE branded M-series switches with operating system, according to the product specifications. The HPE service delivery technician will assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.HPE.com/h20195/v2/Getdocument.aspx?docname=a00025816enw


HPE Hardware Installation

Provides for the basic hardware installation of HPE branded M-series ONIE switches to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.HPE.com/h20195/v2/Getdocument.aspx?docname=5981-9356enw


HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

  • – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
  • – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
  • – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
  • – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
  • – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
  • https://www.HPE.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu


HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.HPE.com/services/training


Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.


Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


How to purchase services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

  • − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
  • − Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.


Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.HPE.com/hpesc/public/home/signin


Consume IT on your terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

  • − Get faster time to market
  • − Save on TCO, align costs to business
  • − Scale quickly, meet unpredictable demand
  • − Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html


For more information: http://www.HPE.com/services

  • Configuration Information

    Model Description

HPE Storage Switch M-series SN3700M (P2C) 200 GbE 32QSFP28 Switch

HPE Storage Switch M-series SN3700cM (P2C) 100 GbE3 2QSFP28 Switch
  • – 2 x 1100 W Power Supply with Intake Fan
  • – 6 x Intake Fan Tray
  • – 1 x Fixed Rack Mount Kit MTEF-KIT-J 600-800 mm
  • – 2 x Power cord, 1.83 m, C14-C13
  • – 1 x Serial cable (DB9 to RJ45)
  • – 2 x PSU CABLE RETAINER KIT
  • – 1 x HPE Warranty and Installation instructions
  • – 2 x 1100 W Power Supply with Intake Fan
  • – 4 x Intake Fan Tray
  • – 1 x Fixed Rack Mount Kit MTEF-KIT-J 600-800 mm
  • – 2 x Power cord, 1.83 m, C14-C13
  • – 1 x Serial cable (DB9 to RJ45)
  • – 2 x PSU CABLE RETAINER KIT
  • – 1 x HPE Warranty and Installation instructions

Notes: SN3700M with NVIDIA Cumulus® Linux requires transceivers listed below

Step 1 - Base Configuration. Select one Model:

Description

SKU

HPE 200 GbE 32QSFP56 Power-to-Connector Airflow Switch SN3700M with NVIDIA Cumulus

S2T79A
  • − HPE 200 GbE 32QSFP56 P2C Sw SN3700M w/NVD, AC power

HPE 100 GbE 32QSFP28 Power-to-Connector Airflow Switch SN3700cM with NVIDIA Cumulus

S2T78A
  • − HPE 100 GbE 32QSFP28 P2C Sw SN3700cM w/NVD, AC power

Step 2 – Options

Refer to HPE M-series Switches SPOCKConnectivity Stream for latest SN3700M with NVIDIA Cumulus® Linux interconnect support matrix


Transceivers – for M-series SN3700M switches

Note #

Descriptions

SKU

HPE 100 GbE QSFP28 SR4 100 m Transceiver

Q2F19A

HPE Storage 100 GbE QSFP28 SR4 Extended Temperature Pull Tab Transceiver

S2T35A

HPE Aruba Networking 100G SR1.2 QSFP28 LC 100 m MMF Transceiver

S4B44A

HPE 100 GbE QSFP28 500 m 1310 mm PSM4 Transceiver

Q8J73A

5, 6

HPE 100 GB QSFP28 LC SWDM4 Multi-mode 100 m Transceiver

R0R40A

2

HPE 10 GbE SFP+ SR Multi-mode 300 m Transceiver

Q6M30A

2

HPE 10 GB SFP+ Short Wave 1-pack Pull Tab Optical Transceiver

Q2P65A

2, 7, 8

HPE 10GBASE-T SFP+ RJ45 30 m 1-pack Transceiver

R0R41B

2

HPE 25 GB SFP28 SR 30 m Transceiver

R0R42A

2

HPE BladeSystem c-Class 10 GB SFP+ SR Transceiver

455883-B21

2

HPE Aruba Networking 1G SFP RJ45 T 100 m Cat5e TAA Transceiver

R9Q45A

2

HPE Aruba Networking 25G SFP28 LC LR 10 km SMF Transceiver

JL486A

2

HPE 25 GbE SFP28 LR 10 km 1-pack Extended Temperature Pull Tab Transceiver

S6B58A

2

HPE Aruba Networking 10G SFP+ LC LR 10 km SMF Transceiver

J9151E

2

HPE Aruba Networking 10G SFP+ LC ER 40 km SMF Transceiver

J9153D

2

HPE 10 GbE SFP+ LR 10 km 1-pack Extended Temperature Pull Tab Transceiver

S6B57A

2

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

2

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

Note #

Descriptions

SKU

2

HPE Networking X130 10G SFP+ LC ER 40 km Transceiver

JG234A

1, 2

HPE Networking X130 10G SFP+ LC LH 80 km Transceiver

JG915A

HPE Networking X140 40G QSFP+ CSR4 300 m Transceiver

JG709A

HPE Networking X140 40G QSFP+ LC LR4L 2 km SM Transceiver

JL286A

HPE Networking X140 40G QSFP+ LC LR4 SM 10 km 1310nm Transceiver

JG661A

HPE Aruba Networking 40G QSFP+ LC ER4 40 km SMF Transceiver

Q9G82A

HPE BladeSystem c-Class 40 GB QSFP+ MPO SR4 100 m Transceiver

720187-B21

HPE Networking X140 40G QSFP+ LC BiDi 100 m MM Transceiver

JL251A

HPE 40 GB QSFP+ Bidirectional Transceiver

841716-B21

2

HPE Networking X190 25G SFP28 LC SR 100 m MM Transceiver

JL293A

2

HPE 25 GB SFP28 Short Wave Extended Temperature 1-pack Pull Tab Optical Transceiver

Q2P64B

2

HPE Aruba Networking 25G SFP28 LC eSR 400 m MMF Transceiver

JL485A

HPE Networking X140 40G QSFP+ MPO SR4 Transceiver

JG325B

2

HPE 25 GB SFP28 SR 100 m Transceiver

845398-B21

2

HPE Aruba Networking 25G SFP28 LC LR 10 km SMF Transceiver

JL486A

2

HPE QSFP28 to SFP28 Adapter

845970-B21

HPE Networking X150 100G QSFP28 LC LR4 10 km SM Transceiver

JL275A

HPE Networking X150 100G QSFP28 CWDM4 2 km SM Transceiver

JH673A

5, 6

HPE Networking X150 100G QSFP28 LC SWDM4 100 m MM Transceiver

JH419A

5

HPE 100 GB QSFP28 Bidirectional Transceiver

845972-B21

12

HPE 100 GbE QSFP28 LC DR1 500 m 1-pack Transceiver

R8M61A

HPE Alletra 6000 2x100Gb QSFP28 MPO SR4 100 m FIO Transceiver

R7D08A

HPE Alletra 6000 2x100Gb QSFP28 MPO SR4 100 m Transceiver

R7D12A

2

HPE Alletra 6000 2x10Gb SFP+ SR FIO Transceiver

R7D05A

2

HPE Alletra 6000 2x10Gb SFP+ SR Transceiver

R7D09A

2

HPE Alletra 6000 2x25Gb SFP28 SR 100 m FIO Transceiver

R7D07A

2

HPE Alletra 6000 2x25Gb SFP28 SR 100 m Transceiver

R7D11A

HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver

R9F97A

Direct Attach Copper Cables (DAC)

Note #

Descriptions

SKU

4

HPE 7.6 m /25ft CAT5 RJ45 M/M Ethernet C/O Cable

C7539A

HPE Networking Comware X240 40G QSFP+ QSFP+ 1 m Direct Attach Copper Cable

JG326A

HPE Networking Comware X240 40G QSFP+ QSFP+ 3 m Direct Attach Copper Cable

JG327A

HPE Networking Comware X240 40G QSFP+ QSFP+ 5 m Direct Attach Copper Cable

JG328A

3

HPE 100 GbE QSFP28 to 4x25GbE SFP28 1 m Direct Attach Copper Cable

Q9S72A

3

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 1 m Direct Attach Copper Splitter Cable

JG329A

3

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3 m Direct Attach Copper Splitter Cable

JG330A

3

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5 m Direct Attach Copper Splitter Cable

JG331A

2

HPE BladeSystem c-Class 10 GbE SFP+ to SFP+ 3 m Direct Attach Copper Cable

487655-B21

HPE Networking X242 40G QSFP+ to QSFP+ 1 m Direct Attach Copper Cable

JH234A

HPE Networking X242 40G QSFP+ to QSFP+ 3 m Direct Attach Copper Cable

JH235A

HPE Networking X242 40G QSFP+ to QSFP+ 5 m Direct Attach Copper Cable

JH236A

3

HPE Networking X240 QSFP28 4xSFP28 1 m Direct Attach Copper Cable

JL282A

3

HPE Networking X240 QSFP28 4xSFP28 3 m Direct Attach Copper Cable

JL283A

Note #

Descriptions

SKU

3

HPE Networking X240 QSFP28 4xSFP28 5 m Direct Attach Copper Cable

JL284A

2

HPE Aruba Networking 25G SFP28 to SFP28 0.65 m Direct Attach Cable

JL487A

2

HPE Aruba Networking 25G SFP28 to SFP28 3 m Direct Attach Copper Cable

JL488A

2

HPE Aruba Networking 25G SFP28 to SFP28 5 m Direct Attach Copper Cable

JL489A

2

HPE 25 GB SFP28 to SFP28 3 m Direct Attach Copper Cable

844477-B21

HPE Aruba Networking 100G QSFP28 to QSFP28 3 m Direct Attach Copper Cable

JL307A

HPE 100 GB QSFP28 to 4x25Gb SFP28 3 m Direct Attach Copper Cable

845416-B21

HPE 100 GB QSFP28 to QSFP28 5 m Direct Attach Copper Cable

845408-B21

HPE 25 GB SFP28 to SFP28 5 m Direct Attach Copper Cable

844480-B21

HPE Aruba Networking 25G SFP28 to SFP28 3 m Direct Attach Copper Cable

R9F92A

HPE Aruba Networking 25G SFP28 to SFP28 5 m Direct Attach Copper Cable

R9F93A

HPE Aruba Networking 100G QSFP28 to QSFP28 1 m Direct Attach Copper Cable

R0Z25A

HPE Aruba Networking 100G QSFP28 to QSFP28 5 m Direct Attach Copper Cable

R0Z26A

HPE Networking X240 100G QSFP28 1 m DAC Cable

JL271A

HPE Networking X240 100G QSFP28 3 m DAC Cable

JL272A

HPE Networking X240 100G QSFP28 5 m DAC Cable

JL273A

HPE 100 GB QSFP28 to QSFP28 3 m Direct Attach Copper Cable

845406-B21

HPE 100 GB QSFP28 to QSFP28 0.5 m Direct Attach Copper Cable

R8M59A

2

HPE Alletra 6000 2x10Gb SFP+ to SFP+ 3 m Direct Attach Copper Cable

R7D16A

2

HPE Alletra 6000 2x25Gb SFP28 to SFP28 3 m Direct Attach Copper Cable

R7D17A

HPE Alletra 6000 2x100Gb QSFP28 to QSFP28 3 m Direct Attach Copper Cable

R7D18A

Active Optical Cable (AOC)

Note #

Descriptions

SKU

3

HPE 40 GbE QSFP+ to 4x10GbE SFP+ 5 m Active Optical Cable

Q9S66A

2

HPE 25 GbE SFP28 to SFP28 3 m Smart Active Optical Cable

Q9S67A

2

HPE 25 GbE SFP28 to SFP28 5 m Smart Active Optical Cable

Q9S68A

2

HPE 25 GbE SFP28 to SFP28 10 m Smart Active Optical Cable

Q9S69A

2

HPE 25 GbE SFP28 to SFP28 15 m Smart Active Optical Cable

Q9S70A

HPE 100 GbE QSFP28 to QSFP28 5 m Active Optical Cable

Q9S71A

HPE Aruba Networking 100G QSFP28 to QSFP28 7 m Active Optical Cable

R9F79A

HPE Aruba Networking 100G QSFP28 to QSFP28 15 m Active Optical Cable

R9F80A

HPE Aruba Networking 100G QSFP28 to QSFP28 30 m Active Optical Cable

R9F81A

HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15 m Active Optical Cable

720211-B21

HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15 m Active Optical Cable

721076-B21

HPE 100 GB QSFP28 to QSFP28 7 m Active Optical Cable

845410-B21

HPE 100 GB QSFP28 to QSFP28 15 m Active Optical Cable

845414-B21

HPE QSFP28 to 4x25Gb SFP28 7 m Active Optical Cable

845420-B21

HPE QSFP28 to 4x25Gb SFP28 15 m Active Optical Cable

845424-B21

HPE 100 GbE QSFP28 2 m Extended Temperature Active Optical Cable

S6B63A

17

Aruba 100G QSFP28 LC FR1 SMF 2 km Transceiver

S1D17A/R9B63A

HPE Aruba Networking 100G QSFP28-QSFP28 3 m Direct Attach Copper Cable

R9F74A

HPE Aruba Networking 100G QSFP28 to QSFP28 2 m Active Optical Cable

R9F76A

HPE Aruba Networking 100G QSFP28 to QSFP28 1 m Direct Attach Copper Cable

R9F77A

HPE Aruba Networking 100G QSFP28 to QSFP28 5 m Direct Attach Copper Cable

R9F78A

Note #

Descriptions

SKU

HPE Aruba Networking 10G SFP+ to SFP+ 3 m Direct Attach Copper Cable

R9F84A

HPE Storage 100 GbE QSFP28 to QSFP28 5 m Extended Temperature Active Optical Cable

S2T38A

HPE Storage 100 GbE QSFP28 to QSFP28 10 m Extended Temperature Active Optical Cable

S2T39A

HPE Storage 100 GbE QSFP28 to QSFP28 15 m Extended Temperature Active Optical Cable

S2T40A

HPE Storage 100 GbE QSFP28 to QSFP28 25 m Extended Temperature Active Optical Cable

S2T41A

M-series 200 GbE pluggables – DAC/AOC/Optical transceivers

Note #

Descriptions

SKU

9

HPE 200 GB QSFP56 to QSFP56 0.5 m Direct Attach Copper Cable

R5Z76A

9

HPE 200 GB QSFP56 to QSFP56 1 m Direct Attach Copper Cable

R5Z77A

9

HPE 200 GB QSFP56 to QSFP56 2 m Direct Attach Copper Cable

R5Z78A

9

HPE 200 GB QSFP56 to QSFP56 2.5 m Direct Attach Copper Cable

R5Z79A

9

HPE Aruba Networking 10G SFP+ to SFP+ 7 m Direct Attach Copper Cable

J9285D

9

HPE 200 GB QSFP56 to QSFP56 5 m Active Optical Cable

R5Z80A

9

HPE 200 GB QSFP56 to QSFP56 10 m Active Optical Cable

R5Z81A

9

HPE 200 GB QSFP56 to QSFP56 15 m Active Optical Cable

R5Z82A

9,10

HPE 200 GB QSFP56 MPO SR4 100 m Transceiver

R5Z83A

9,11

HPE 200 GB QSFP56 LC CWDM4 FR4 Transceiver

R5Z84A

9,14

HPE 200 GB QSFP56 to 2x100Gb QSFP56 3 m Active Optical Cable

R6F24A

9,14

HPE 200 GB QSFP56 to 2x100Gb QSFP56 5 m Active Optical Cable

R6F25A

9,14

HPE 200 GB QSFP56 to 2x100Gb QSFP56 15 m Active Optical Cable

R6F26A

9,13

HPE 200 GB QSFP56 to 4x50/25 GB SFP56 2.5 m Direct Attach Copper Cable

R6F27A

16

HPE 200 GB QSFP56 MPO12 VR2 APC 50 m Transceiver

S6B56A

9,14

HPE 200 GbE QSFP56 to 2xQSFP56 2 m Direct Attach Copper Cable

R8M57A

9,14

HPE 200 GbE QSFP56 to 2xQSFP56 2.5 m Direct Attach Copper Cable

R8M58A

13

HPE 400 GbE QSFP-DD to 2xQSFP56 1 m Direct Attach Copper Cable

R8M51A

13

HPE 400 GbE QSFP-DD to 2xQSFP56 2 m Direct Attach Copper Cable

R8M52A

13

HPE 400 GbE QSFP-DD to 4xQSFP56 1 m Direct Attach Copper Cable

R8M55A

13

HPE 400 GbE QSFP-DD to 4xQSFP56 2 m Direct Attach Copper Cable

R8M56A

13

HPE 400 GbE QSFP-DD to 2xQSFP56 5 m Active Optical Cable

R8M49A

13

HPE 400 GbE QSFP-DD to 2xQSFP56 15 m Active Optical Cable

R8M50A

13

HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 3 m Active Optical Cable

S1D30A

13

HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 7 m Active Optical Cable

S1D31A

13

HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 15 m Active Optical Cable

S1D32A

13

HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 30 m Active Optical Cable

S1D33A

Note #

Descriptions

SKU

13

HPE Aruba Networking 400G QSFP-DD to 2x QSFP56 200G 50 m Active Optical Cable

S1D34A

13

HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 3 m Active Optical Cable

S1D35A

13

HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 7 m Active Optical Cable

S1D36A

13

HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 15 m Active Optical Cable

S1D37A

13

HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 30 m Active Optical Cable

S1D38A

13

HPE Aruba Networking 400G QSFP-DD to 4x QSFP56 100G 50 m Active Optical Cable

S1D39A

Notes:

1. JG915A - Storage connectivity support for this transceiver is limited to 40 km

2. HPE QSA28 (QSFP28 to SFP28) adapter (845970-B21) is compatible with all M-series switches and is required with this transceiver to convert a QSFP+/QSFP28 slot to a single SFP+/SFP28 slot for 25G or 10G operation with this switch model.

3. The SN2010M 25G DAC connectivity to another M-series switch or 3rd party switch is limited to a 0.5 m DAC cable. End device connectivity may use 1 m or a 3 m (26 gauge) DAC.

4. This RJ45 crossover cable is compatible and supported for use when directly connecting the two M-series switch MGMT ports. When configuring MLAG and also utilizing in-band management, the MGMT0 ports of the two switches shall be connected with MLAG the MGMT0 ports shall be reachable from each switch.

5. The 845972-B21 HPE 100 Gb QSFP28 Bidirectional XCVR does not interoperate with the JH419A and R0R40A HPE 100 Gb QSFP28 LC SWDM4 MM 100 m transceivers.

6. 100 Gbe SWDM4 LC transceivers JH419A and R0R40A are interoperable.

7. 10 Gbase-T SFP+ RJ45 transceiver supports maximum length 30 m CAT6a cable. This 10Gbase-T transceiver is not qualified for use at 1 GbE and shall be operated only at 10 GbE.

8. Cumulus 5.6 and later revisions are required for support of R0R41B in a QSA28, in SN3700CM, SN3700M, and SN4600cM switches. R0R41B transceiver supports maximum length 30 m CAT6a cable. R0R41B 10Gbase-T transceiver is not qualified for use at 1 GbE and shall be operated only at 10 GbE.

9. Cumulus 5.9.2 and later revisions are required for support of the QSA28 and QSFP56 200G pluggables with the SN3700M, SN3700cM, and SN4600cM switches.

10. R5Z83A operates at 200 Gb, 100 Gb, and 4x50 Gb breakout. Operation at 4 x25/10G breakout is not supported. Use a 100 Gb transceiver for this breakout application.

11. R5Z84A requires a single mode duplex LC cable

12. The R8M61A class 6 power requirements limit use in the SN3700cM to ports 1, 2, 31, 32; SN3700M has no power transceiver class 6 port use limit.

13. All cable ports must be set as NRZ or PAM4. A mix between the two technologies is not supported.

14. All cable ports must be set as PAM4, NRZ is not supported.

15. The OSFP transceiver is not compatible with Nvidia’s SN5600M 800 GbE switch which requires a finned top OSFP transceiver.

16. APC connectors are not interchangeable with MPO connectors. APC connector inserted into an MPO connector will damage the APC connection alignment.

17. The S1D17A/R9B63A power requirements support use in the SN4700 ports swp1-32; SN3700M ports swp1-32; SN3700cM ports swp1-2, swp31-32; SN3420M ports swp53, swp55, swp57, swp59; SN4600cM ports swp49-64

Supported Optical Cables for all M-series switch models

Descriptions

SKU

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 10 m Fiber Cable

QK729A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 50 m Fiber Cable

QK731A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1 m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2 m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5 m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15 m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30 m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50 m Cable

QK737A

HPE LC to LC Multi-mode OM3 2-Fiber 0.5 m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0 m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0 m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0 m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0 m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0 m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0 m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 100 m Fiber Cable

H6Z30A

HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 5 m Fiber Cable

K2Q46A

HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 15 m Fiber Cable

K2Q47A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 1 m Fiber Cable

Q1H63A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 2 m Fiber Cable

Q1H64A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 5 m Fiber Cable

Q1H65A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 15 m Fiber Cable

Q1H66A

HPE Premier Flex MPO12/MPO12 Multi-mode OM4 30 m Fiber Cable

Q1H67A

HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 30 m Fiber Cable

Q1H68A

HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 50 m Fiber Cable

Q1H69A

HPE 5 m Single-Mode LC/LC Fibre Channel Cable

AK346A

HPE Premier Flex MPO12/MPO12 APC Single-mode 50 m 1-pack Cable

R6F28A

HPE Premier Flex MPO12/MPO12 APC Single-mode 100 m 1-pack Cable

R6F29A

HPE Premier Flex MPO12/MPO12 APC Single-mode 300 m 1-pack Cable

R6F30A

HPE Premier Flex MPO12/MPO12 APC Single-mode 500 m 1-pack Cable

R6F31A

HPE Premier Flex Wide Band LC/LC Multi-mode OM5 100 m Fiber Cable

R9M64A

HPE Premier Flex Wide Band LC/LC Multi-mode OM5 150 m Fiber Cable

R9M65A

HPE Premier Flex Wide Band MPO8/MPO8 Multi-mode OM5 100 m Fiber Cable

R9M62A

HPE Premier Flex MPO16 APC/2xMPO8 MM 5 m Cable

S1H57A

HPE Premier Flex MPO16 APC/2xMPO8 MM 10 m Cable

S1H58A

HPE Storage Premier Flex MPO16 APC/4xMPO4 MM 5 m Cable

S2T36A

HPE Storage Premier Flex MPO16 APC/4xMPO4 MM 10 m Cable

S2T37A

HPE Premier Flex MPO16/MPO16 APC Multi-mode OM4 2 m Fiber Cable

R4D51A

HPE Premier Flex MPO16/MPO16 APC Multi-mode OM4 5 m Fiber Cable

R4D52A

HPE Premier Flex MPO16/MPO16 APC Multi-mode OM4 10 m Fiber Cable

R4D53A

HPE Premier Flex MPO16/MPO16 APC Multi-mode OM4 15 m Fiber Cable

R4D54A

HPE Premier Flex MPO16/MPO16 APC Multi-mode OM4 30 m Fiber Cable

R4D55A

HPE Premier Flex MPO16 APC to 8xLC Multi-mode OM4 5 m Fiber Cable

R4D56A

HPE Premier Flex MPO16 APC to 8xLC Multi-mode OM4 10 m Fiber Cable

R4D57A

Descriptions

SKU

HPE Premier Flex MPO16 APC/8xLC MM 15 m Cable

R4D58A

HPE Premier Flex MPO16 APC/8xLC MM 30 m Cable

R4D59A

HPE Premier Flex MPO8 APC/4xLC Single-mode 15 m Cable

R4D60A

HPE Premier Flex MPO8 APC/4xLC Single-mode 30 m Cable

R4D61A

HPE Premier Flex MPO8 APC/4xLC Single-mode 2 m Cable

R4D62A

HPE Premier Flex MPO8 APC/4xLC Single-mode 5 m Cable

R4D63A

HPE Premier Flex MPO8 APC/4xLC Single-mode 10 m Cable

R4D64A

Note:

The following 4 single-mode cables have APC connectors for use with the S6B55A and R8M60B transceivers. They are not compatible with the S6B51A or S6B53A.

HPE Premier Flex MPO8/MPO8 APC Single-mode 2 m Cable

S6B70A

HPE Premier Flex MPO8/MPO8 APC Single-mode 5 m Cable

S6B71A

HPE Premier Flex MPO8/MPO8 APC Single-mode 15 m Cable

S6B72A

HPE Premier Flex MPO8/MPO8 APC Single-mode 30 m Cable

S6B73A

Note:

The following 6 multi-mode cables have APC connectors for use with the S6B51A, S6B56A, and S6B53A transceivers. Connector damage occurs if they are inserted into a transceiver’s MPO connector.

HPE Premier Flex MPO8/MPO8 APC MM 1 m Cable

S6B64A

HPE Premier Flex MPO8/MPO8 APC MM 2 m Cable

S6B65A

HPE Premier Flex MPO8/MPO8 APC MM 5 m Cable

S6B66A

HPE Premier Flex MPO8/MPO8 APC MM 15 m Cable

S6B67A

HPE Premier Flex MPO8/MPO8 APC MM 30 m Cable

S6B68A

HPE Premier Flex MPO8/MPO8 APC MM 50 m Cable

S6B69A

Note:

– The following 2 multi-mode splitter cables have APC connectors for use with the S6B51A, S6B56A, and S6B53A transceivers. Connector damage occurs if they are inserted into a transceiver’s MPO connector.

– These 2x splitter cables are configured for the following use cases:

  • • MPO8 end: (S6B51A) HPE 400 GbE QSFP-DD VR4 50 m Transceiver
  • • MPO4 end: (S6B56A) HPE 200 GbE QSFP56 VR2 50 m Transceiver

HPE Premier Flex MPO8/2xMPO4 APC MM 5 m Cable

S6B74A

HPE Premier Flex MPO8/2xMPO4 APC MM 15 m Cable

S6B75A

  • Technical Specifications

Family Information (M-series with NVIDIA Cumulus® Linux)

HPE SN2010M 100 GbE x4QSFP28 + x18 1/10/25 GbEswitch S2T75A

HPE SN2100M 100 GbE 16QSFP28 switch S2T76A

HPE SN3420M 100 GbE x12QSFP28 + x48 1/10/25 GbE switch S2T77A

HPE SN3700cM 100 GbE 32QSFP28 switch S2T78A

Description

Ideal ½ width ToR

1/10/25/40/100 GbE

Ideal ½ width ToR

1/10/25/40/100 GbE

1/10/25 GbE ToR

40/100 GbE

40/100 GbE ToR

Ports Speeds

18 x 1/10/25 GbE + 4

x40/100 GbE

Breakout - 16 x1/10/25

GbE

16 x40/100 GbE

Breakout –

64 x1/10/25 GbE

48 x1/10/25 GbE

+ 12 x40/100 GbE

Breakout -

48 x1/10/25 GbE

32 x40/100 GbE

Breakout -

128 x1/10/25 GbE

Minimum Configuration

18 + 4 Ports

16 Ports

48 + 12 Ports

32 ports

Size

1U ( ½ 19” wide)

1U ( ½ 19” wide)

1U

1U

Switching Capacity

1.7 Tb/s

3.2 Tb/s

4.8 Tb/s

6.4 Tb/s

Processing Capacity

1.26 Bpps

2.38 Bpps

3.58 Bpps

4.76 Bpps

Forwarding Technology

Cut Through

Cut Through

Cut Through

Cut Through

Latency

300 ns

300 ns

425 ns

42 5ns

Typical Power Consumption (ATIS)

66 W

74 W

202 W

242 W

Energy Efficiency

full load:

91.3% @ 115 Vac/60

Hz, 92.6% @ 230

Vac/50 Hz

full load:

91.3% @ 115 Vac/60 Hz,

92.6% @ 230 Vac/50

Hz

80 Plus Gold

80 Plus Gold

Supported NOS**

NVIDIA Cumulus®

Linux

NVIDIA Cumulus®

Linux

NVIDIA Cumulus®

Linux

NVIDIA Cumulus®

Linux

System Memory

8 GB

8 GB

8 GB

8 GB

SSD Memory

16 GB

16 GB

32 GB

32 GB

Packet Buffer

16 MB

16 MB

42 MB

42 MB

1 GbE Mgmt Port

1 RJ45

1 RJ45

1 RJ45

1 RJ45

Serial Port

1 RJ45

1 RJ45

1 RJ45

1 RJ45

USB Port

1 Mini USB 2.0

1 Mini USB 2.0

1 Type A USB 3.0

1 Micro USB 2.0

Airflow

Power-to-Connector

(P2C) airflow

Power-to-Connector

(P2C) airflow

Power-to-Connector

(P2C) airflow

Power-to-Connector

(P2C) airflow

Power Supplies

2 (1+1 redundant)

not replaceable

2 (1+1 redundant)

not replaceable

2 (1+1 redundant)

2 (1+1 redundant)

Fans

2 fans not

replaceable

2 fans not replaceable

5 (N+1 redundant)

4 (N+1 redundant)

Power Supplies with integrated fans

Frequency: 50-60 Hz

Input range:

100-264 Vac

Input current 4.5A-

2.9A IEC C14 To C13

Frequency: 50-60 Hz

Input range:

100-264 Vac

Input current 4.5A-2.9A

IEC C14 To C13

Frequency: 50-60 Hz

Input range:

100-264 Vac

Input current 7.1A-2.8A

IEC C14 To C13

Frequency: 50-60 Hz

Input range:

100–264 Vac

Input current 13A-7A

IEC C14 To C13

Size

1.72’’ x 7.87’’ x 20’’ (43.9 mm x 200 mm x 508 mm)

1.72’’ x 7.87’’ x 20’’

(43.9 mm x 200 mm x 508 mm)

1.72’’ x 17.24’’ x 18.29’’ (44 mm x 438 mm x 464.6 mm)

1.72’’ x 16.84’’ x 22’’ (44 mm x 428 mm x 559 mm)

Weight

4.5 Kg (9.9 lbs)

4.54 Kg (10 lbs)

8.5 Kg (18.8 lbs)

14 Kg (30.9 lbs)

Model

HPE SN4600cM 100 GbE

64QSFP28 Switch S2T80A

HPE SN3700M 200 GbE

32QSFP56 Switch S2T79A

HPE SN4700M 400 GbE

32QSFP-DD Switch S2T81A

Description

40/100 GbE

Aggregation/ToR/EoR/

Super Spine

40/50/100/200 GbE

Aggregation/ToR/

Super Spine

40/50/100/200/400 GbE

Aggregation/ToR/EoR/

Super Spine

Ports Speeds

64 x40/100 GbE

Breakout –

128 x 1/10/25 GbE

32 x40/100/200 GbE

Breakout –

128 x1/10/25/50 GbE

32 x40/100/200/400 GbE

Breakout –

128 x1/10/25/50 GbE

Minimum Configuration

64 QSFP28 Ports

32 QSFP56 Ports

32 QSFP-DD Ports

Size

2U

1U

1U

Switching Capacity

12.8 Tb/s

12.8 Tb/s

25.6 Tb/s

Processing Capacity

8.4 Bpps

8.33 Bpps

8.4 Bpps

Forwarding Technology

Cut Through

Cut Through

Cut Through

Latency

500ns

425ns

500ns

Typical Power Consumption (ATIS)

466 watts

250 watts

630 watts

Supported NOS**

NVIDIA Cumulus® Linux

NVIDIA Cumulus® Linux

NVIDIA Cumulus® Linux

System Memory

8 GB

8 GB

16 GB

SSD Memory

30 GB

32 GB

60 GB

Packet Buffer

64 MB

42 MB

64 MB

1 GbE Mgmt Port

1 RJ45

1 RJ45

1 RJ45

Serial Port

1 RJ45

1 RJ45

1 RJ45

USB Port

1 Type A USB 2.0

1 Micro USB 2.0

1 Type A USB 2.0

Airflow

Power-to-Connector airflow

(P2C) airflow

Power-to-Connector airflow

(P2C) airflow

Power-to-Connector airflow

(P2C) airflow

Power Supplies

2 (1+1 redundant)

2 (1+1 redundant)

2 (1+1 redundant)

Energy Efficiency

80 Plus Gold

80 Plus Gold

80 Plus Gold

Fans

3 (N+1 redundant)

6 (N+1 redundant)

6 (N+1 redundant)

Power Supplies with integrated fans

Frequency: 50-60 Hz

Input range: 100-264 Vac

Input current 10A–6A

@200 Vac-240 Vac

C14 TO C15 EUR + CCC

C14 TO C15 UL

Frequency: 50-60 Hz

Input range: 100–264 Vac

Input current 13A-7A

@200 Vac- 240 Vac

IEC C14 To C13

Frequency: 50-60 Hz

Input range: 100–264 Vac

Input current 15A-10A

@200 Vac-240 Vac

C14 TO C15 EUR + CCC

C14 TO C15 UL

Size

3.46’’ x 16.85’’ x 22.3’’

(88 mm x 428 mm x 568.5

mm)

1.72’’ x 16.84’’ x 22’’ (44 mm x

428 mm x 559 mm)

1.72” x 16.85” x22.3”

(44 mm x 428 mm x 568.5

mm)

Weight

14.64 Kg (32.3 lbs)

14 Kg (30.9 lbs)

11.6 Kg (25.6 lbs)

Environment

Operating temperature

0°C to 40°C - Notes: SN4700M 0°C to 35°C

Non-Operating temperature

-40ºC to 70ºC

NEBs and ETSI operating temperature

-5°C to 55°C

Operating relative humidity (operational)

Noncondensing

5% to 85%

Operating Altitude

0 - 3050 m

Compliant

RoHS

Safety/ EMC

CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC

Notes: **There are separate M-series SKUs for ONIE, ONYX™ and NVIDIA Cumulus® switch models.

Electrical characteristics

Frequency

50/60 Hz

Voltage

100 - 264 Vac

Ethernet Ports Maximum High-Power Support

  • – SN3420M
    • • Ports 1-6 Power Class 3 (2.5 W)
    • • Ports 7-48 Power Class 1 (1.5 W)
    • • Ports 49-52, 54, 56, 58, 60 Power Class 4 (3.5 W)
    • • Ports 53, 55, 57, 59 Power Class 7 (5 W)
  • – SN3700cM
    • • Ports 1, 2, 31, 32 Power class 7 (5 W)
    • • Ports 3-30 Power class 4 (3.5 W)
  • – SN3700M
    • • Ports 1-32 Power class 7 (5 W)
    • • Ports 1, 2, 21, 22 Power class 8 (6.5 W)
  • – SN4600cM
    • • Ports 1-48 Power Class 4 (3.5 W)
    • • Ports 49-64 Power Class 7 (5 W)
  • – SN4700M
    • • All Ports 1-32 Power Class 48 (12 W) – QSFP-DD new method Watt *4
  • – SN2010M
    • • Ports 1,2,17,18 Power Class 3 (2.5 W)
    • • Ports 3-16 Power Class 1 (1.5 W)
    • • Ports 19-22 Power Class 6 (4.5 W)
  • – SN2100M
    • • Ports 1,2,15,16 Power Class 7 (5 W)
    • • Ports 3-14 Power Class 4 (3.5 W)

Safety CB, CE, cTUVus, CU

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, IEC 60950-1:2005 (Second Edition) + AMD 1:2009 + AMD 2:2013 and EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013, UL 60950-1:2007 R10.14, CAN/CSA C22.2 No. 60950 -1-07+A1:2011+A2:2014, IEC 60950-1 Ed. 2.0:2005 + Am 1:2009+ Am 2:2013, LV CU TR 004/2011 and EMC CU TR 020/2011


EMC CE, ICES, FCC, RCM, VCCI

EN 55032:2012 + AC(13) class A, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3: 2013, EN 61000-4-2: 2002, EN 61000-4-3: 2006+A1(08)+A2(10), EN 61000-4-4: 2004+A1(10), EN 61000-4-5: 2006, EN 61000-4-6: 2014 EN 61000-4-11:2004, CFR 47, FCC Part 15:2017, Sub-part B:2019 Class A, ICES-003, Issue 6: 2016 Class A, VCCI-CISPR 32: 2016, Class A, AZ/NZS CISPR 32:2015 Class A, KN22:2009 class A/ KN24:2009


Acoustic

High-speed fan:

  • − SN3700cM – 67.6 dB(A)
  • − SN3700M - 73.2 dB(A)

Typical power with passive cables (ATIS):

  • − SN3700cM (100 GbE)
    • − 825.74 BTUs per Hour (242 watts)
  • − SN3700M (200 GbE)
    • − 853.04 BTUs per Hour (250 watts)

HPE Power Advisor

To address a need to accurately estimate power requirements and to ensure the appropriate levels of power and cooling and power-related operating costs, HPE created the HPE Power Advisor utility. The HPE Power Advisor utility provides accurate and meaningful estimates of the power needs for HPE servers, storage, and switches including M-series Ethernet switches.


Standards

  • − 802.1D Bridging and Spanning Tree
  • − 802.1p QOS
  • − 802.1Q VLAN Tagging
  • − 802.1 W Rapid Spanning Tree
  • − 802.1s Multiple Spanning Tree Protocol
  • − 802.1AB Link Layer Discovery Protocol
  • − 802.1Qaz ETS
  • − 802.1Qbb PFC
  • − 802.3ad Link Aggregation with LACP
  • − 802.3ba
  • − 802.3x Flow Control
  • − 1000BASE-KX
  • − 802.3ae 10 Gigabit Ethernet

SNMP MIBs

Due to licensing restrictions, Cumulus Linux does not install all MIBs. For the MIBs that Cumulus Linux does not install, you must add the “non-free” archive to /etc/apt/sources.list. To see which MIBs are on your switch, run ls /usr/share/snmp/mibs/.

BGP4-MIB OSPFv2-MIB OSPFv3-MIB RIPv2-MIB

You can enable FRR SNMP support to provide support for OSPF-MIB (RFC-1850), OSPFV3-MIB (RFC-5643), and BGP4-MIB (RFC-1657).

CUMULUS-BGPVRF-MIB

Cumulus Linux also includes its own BGP unnumbered MIB for BGP unnumbered peers, defined in /usr/share/snmp/mibs/Cumulus-BGPUN-MIB.txt, which has the OID 1.3.6.1.4.1.40310.7.

CUMULUS-COUNTERS-MIB

Discard counters: Cumulus Linux also includes its own counters MIB, defined in /usr/share/snmp/mibs/Cumulus-Counters-MIB.txt. It has the OID.1.3.6.1.4.1.40310.2.

CUMULUS-RESOURCE-QUERY-MIB

Cumulus Linux includes its own resource utilization MIB, which is similar to using cl-resource-query. This MIB monitors layer 3 entries by host, route, nexthops, ECMP groups, and layer 2 MAC/BDPU entries. /usr/share/snmp/mibs/Cumulus-Resource-Query- MIB.txt defines this MIB, which has the OID .1.3.6.1.4.1.40310.1.

CUMULUS-SNMP-MIB

SNMP counters. For information on exposing CPU and memory information with SNMP, see this knowledge base article.

DISMAN-EVENT-MIB

Trap monitoring

ENTITY-MIB

Cumulus Linux supports the temperature sensors, fan sensors, power sensors, and ports from RFC 4133.


Notes: The ENTITY-MIB does not show the chassis information in Cumulus Linux.

ENTITY-SENSOR-MIB

Physical sensor information (temperature, fan, and power supply) from RFC 3433.

HOST-RESOURCES-MIB

Users, storage, interfaces, process info, run parameters.

BRIDGE-MIB

Q-BRIDGE-MIB

The dot1dBasePortEntry and dot1dBasePortIfIndex tables in the BRIDGE-MIB and dot1qBase, dot1qFdbEntry, dot1qTpFdbEntry, dot1qTpFdbStatus, and dot1qVlanStaticName tables in the Q-BRIDGE-MIB tables. You must uncomment the bridge_pp.py pass_persist script in /etc/snmp/snmpd.conf.

IEEE8023-LAG-MIB

Implementation of the IEEE 8023-LAG-MIB includes the dot3adAggTable and dot3adAggPortListTable tables. To enable this, edit /etc/snmp/snmpd.conf and uncomment or add the following lines:


view systemonly included

.1.2.840.10006.300.43

pass_persist.1.2.840.10006.300.43

/usr/share/snmp/ieee8023_lag_pp.py

IF-MIB

Interface description, type, MTU, speed, MAC, admin, operation status, counters.


Notes: Cumulus Linux disables the IF-MIB cache by default.

The non-caching code path in the IF-MIB treats 64-bit counters like 32-bit counters (a 64-bit counter rolls over after the value increments to a value that extends beyond 32 bits). To enable the counter to reflect traffic statistics using 64-bit counters, remove the -y option from the SNMPDOPTS line in the /etc/default/snmpd file. The example below first shows the original line, commented out, then the modified line without the -y option:

cumulus@switch:~$ cat /etc/default/snmpd # SNMPDOPTS='-y -LS 0-4 d -Lf /dev/null -u snmp -g snmp -I -smux -p /run/snmpd.pid'

SNMPDOPTS='-LS 0-4 d -Lf /dev/null -u snmp -g snmp -I -smux -p /run/snmpd.pid

IP-FORWARD-MIB

IP routing table.

IP-MIB (includes ICMP)

IPv4, IPv4 addresses counters, netmasks.

IPv6-MIB

IPv6 counters.

LLDP-MIB

Layer 2 neighbor information from lldpd (you need to enable the SNMP subagent in

LLDP). You need to start lldpd with the -x option to enable connectivity to snmpd

(AgentX).

LM-SENSORS MIB

Fan speed, temperature sensor values, voltages. The ENTITY-SENSOR MIB replaces

this MIB.

NET-SNMP-AGENT-MIB

Agent timers, user, group config.

NET-SNMP-VACM-MIB

Agent timers, user, group config.

NOTIFICATION-LOG-MIB

Local logging.

SNMP-FRAMEWORK-MIB

Users, access.

SNMP-MPD-MIB

Users, access.

SNMP-TARGET-MIB

SNMP-TARGET-MIB.

SNMP-USER-BASED-SM-MIBS

Users, access.

SNMP-VIEW-BASED-ACM-MIB

Users, access.

TCP-MIB

TCP-related information.

UCD-SNMP-MIB

System memory, load, CPU, disk IO.

UDP-MIB

UDP-related information.

  • Summary of Changes

Date

Version History

Action

Description of Change

02-Feb-2026

Version 20

Added
  • – Added new entries for supported optical cables across multiple OM4/OM5, MPO8/MPO12, and LC/LC cable variants; removed legacy cable descriptions to align with current HPE Premier Flex naming.
  • – Added updated 200Gb QSFP56 MPO12 VR2 APC 50m transceiver and corrected naming for SWDM4, SR4, and PSM4 transceivers.
  • – Added clarifications to Step 2 – Options covering S1D17A/R9B63A optical power requirements across supported switch port configurations.
  • – Added APC single-mode MPO12/MPO12 cable listings (50m,
  • 100m, 300m, 500m) and removed redundant fiber cable descriptions to align with updated cable taxonomy.
  • – Added MPO16 APC and MPO8 APC breakout cables (2×MPO8, 4×LC, 4×MPO4) in multiple lengths; removed outdated multi-mode and single-mode entries replaced by the updated
  • Premier Flex series.

Removed
  • – Removed outdated transceiver descriptions superseded by updated temperature-rated and pull-tab variants.

01-Dec-2025

Version 19

Added
  • – Added new transceivers and cables including S6B58A, S6B57A, S6B63A, S1D17A/R9B63A, and S6B56A.
  • – Added compatibility notes for OSFP transceivers and APC connectors.
  • – Updated Supported Optical Cables table with new MPO16, MPO12, and MPO8 cable SKUs and APC connector notes.
  • – Added Electrical Characteristics section.

Removed

Step 2 – Options section updated: removed obsolete SKUs JW148A

and P26659-B22

02-Jun-2025

Version 18

Changed

Configuration Information section was updated

Obsolete SKUs were removed - 720199-B21 / 720202-B21

02-Dec-2024

Version 17

Changed

Service and Support section was updated

03-Jun-2024

Version 16

Changed

Overview, Standard Features, Configuration Information and Technical Specifications sections were updated

06-May-2024

Version 15

Changed

Overview, Standard Features, Service and Support, Configuration Information and Technical Specifications sections were updated

Rebranding Series Name applied

26-Feb-2024

Version 14

Changed

Networking product names were updated

13-Nov-2023

Version 13

Changed

HPE Services Rebranding

19-Sep-2022

Version 12

Changed

Standard Features, Configuration Information and Technical Specifications sections were updated

06-Jun-2022

Version 11

Changed

Overview, Standard Features and Service and Support sections were

updated

07-Feb-2022

Version 10

Changed

Configuration Information section was updated

04-Oct-2021

Version 9

Changed

Service and Support section was updated

02-Aug-2021

Version 8

Changed

Service and Support section was updated

04-May-2021

Version 7

Changed

Configuration Information and Technical Specification were updated

01-Mar-2021

Version 6

Changed

Overview, Standard Features, Configuration Information and Technical Specification were updated

03-Aug-2020

Version 5

Changed

Overview, Standard Features and Configuration Information sections were updated

06-Jul-2020

Version 4

Changed

Configuration Information section was updated

18-May-2020

Version 3

Changed

Standard Features, Configuration Information and Technical Specification were updated

06-Apr-2020

Version 2

Changed

Overview, Configuration Information and Technical Specification were updated

03-Feb-2020

Version 1

New

New QuickSpecs

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

a00067749enw, 16435 - Worldwide - V20 - 02-February-2026

Recommended for you
