HPE Aruba Networking 9000 Series Branch Gateways QuickSpecs
Table of Contents
Versatile, cost-effective branch networking, SD-WAN, and security
HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the HPE Aruba Networking 9000 series serves a key role within HPE Aruba Networking’s SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises.
Overview
The HPE Aruba Networking 9000 series can be easily configured and managed using HPE Aruba Networking Central, a cloud-based network operations, assurance, and security platform. Onsite deployment is accomplished with a simplemobile installer application.
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a00062180enw_block1img?$crimg$ "[IMAGE1]")
![[IMAGE2]](https://assets.ext.hpe.com/is/image/hpedam/a00062180enw_block1img2?$crimg$ "[IMAGE2]")

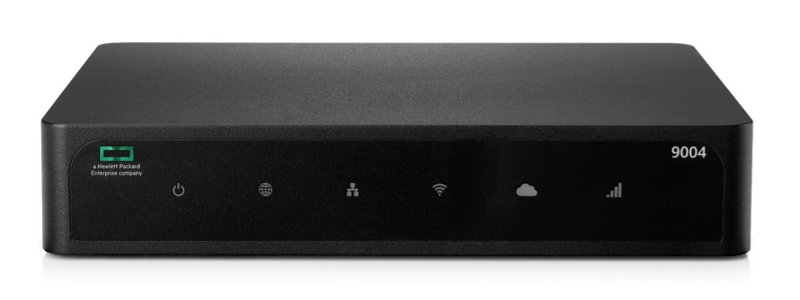

HPE Aruba Networking 9004 Branch Gateway
![[IMAGE3]](https://assets.ext.hpe.com/is/image/hpedam/a00062180enw_block1img4?$crimg$ "[IMAGE3]")
![[IMAGE4]](https://assets.ext.hpe.com/is/image/hpedam/a00062180enw_block1img5?$crimg$ "[IMAGE4]")
HPE Aruba Networking 9012 Branch Gateway
Key Features
- – Cloud-managed and purpose-built for branch SDWAN requirements.
- – Up to 10 times the performance and 80 times the client density of typical SD-WAN appliances.
- – Unified policy enforcement for wired and wireless traffic through Dynamic Segmentation.
- – Visibility into over 3,000 applications with no added hardware.
Standard Features
High Performance and Reliability
For distributed enterprises with increasing performance and bandwidth needs, the HPE Aruba Networking 9000 Series Branch Gateways is designed with scale and flexibility and equipped with plenty of horsepower at a competitive price-point.
This series provides connectivity for up to 2,048 users or client devices at up to 6 Gbps of firewall throughput. These capabilities are up to 80 times the client density and 10 times the maximum throughput of typical SD-WAN appliances.
For enhanced resiliency and high availability, multiple HPE Aruba Networking 9000 series can be clustered together at each branch.
Flexible Consumption
The gateway supports WLAN and SD-WAN deployments with HPE Aruba Networking Central subscription licenses. HPE GreenLake for Networking can help with the transition to a subscription-based network consumption model.
Iot and Integration Ready
The HPE Aruba Networking 9000 Series Branch Gateways includes flexible connectivity options, with up to 12 Ethernet ports (6x PoE+) that can be used as access/WAN uplinks, a USB 3.0 port for cellular connectivity, and an IoT radio that supports Bluetooth 5, Zigbee, and Near Field Communication (NFC) wireless protocols.
The gateway also uses integrated device profiling to improve client visibility and works with HPE Aruba Networking Central, HPE Aruba Networking ClearPass Policy Manager or HPE Aruba Networking ClearPass Device Insight to provide advanced user, device and IoT policy management and insights.
SD-WAN Deployment
For organizations that are now managing multiple WAN connections, HPE Aruba Networking 9000 Series Branch Gateways can be connected to the HPE Aruba Networking SD-WAN fabric right out of the box. SD-WAN is a rich WAN management solution that is used to simplify management of traffic entering and exiting branch sites. Role-based intrusion detection and prevention (IDS/IPS), dynamic segmentation, and stateful firewall deliver integrated security requirements. Please refer to the SD-WAN datasheet for more information.
Branch and Campus Deployment
HPE Aruba Networking 9000 Series Branch Gateways can also be re-purposed as mobility controllers starting with HPE Aruba Networking AOS 8.5 software to provide WLAN and LAN services such as dynamic segmentation, stateful firewall and live upgrades. In this mode, the HPE Aruba Networking 9000 series cannot simultaneously be used for SD-WAN.
Integrated LTE
The 9004-has an integrated LTE module that can use high speed LTE as a dedicated or redundant WAN uplink. The LTE operations are managed via HPE Aruba Networking Central.
Dynamic segmentation and policy enforcement
Protecting and delivering network access across enterprise branch and campus sites is critical and complex. To improve security and simplify management, Dynamic Segmentation eliminates the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated. IT can centrally configure with automatic enforcement of role-based policies that define proper access privileges for employees, guests, contractors, and other user groups– no matter where users connect on wired and WLANs. Additionally, the HPE Aruba Networking 9000 Series relies on a built-in Layer 4-7 stateful firewall known as the policy enforcement firewall (PEF). It streamlines policy management by working across WLAN, LAN, and WAN and policies are automatically enforced to simplify SSID, VLAN and policy management.
Microsoft Features
HPE Aruba Networking’s integration with Microsoft enables unique application intelligence that detects Microsoft 365 (Office 365), Teams, and Skype for Business traffic and then prioritizes them over less critical applications. Through management interfaces on HPE Aruba Networking Central, HPE Aruba Networking AOS, and HPE Aruba Networking Management Software (AirWave), IT can visualize call quality metrics such as MOS, latency, jitter, and packet loss for additional insights.
Enhanced Capabilities
Policy Enforcement Firewall
The HPE Aruba Networking 9000 Series Branch Gateways includes a Layer 4-7 stateful firewall with PEF to deliver a consistent user, device, and application awareness across WLAN, LAN, and WAN. When deployed alongside HPE Aruba Networking ClearPass Policy Manager, policies are automatically enforced to simplify SSID, VLAN and policy management.
Threat Defense with IDS/IPS
To improve security against a growing attack surface, gateways deployed in SD-WAN mode add role and identity-based intrusion detection and prevention capabilities (IDS/IPS) on top of existing security features. The threat defense function is further augmented with one-click integration with third-party cloud-based security solutions.
Application Visibility Control
Deep Packet Inspection (DPI) technology, which is a component of PEF, consistently evaluates and optimizes performance and usage policies for over 3,800 applications. This ensures the highest possible Quality of Service (QoS) – even for encrypted traffic.
High Availability
This series can be deployed with N+1 or NxN redundancy, and can also join a controller cluster when deployed as a mobility controller managed by HPE Aruba Networking Mobility Conductor. This increases performance and scale for enhanced resiliency.
Simple To Use, Mobile Provisioning
Allows on-site personnel to use a mobile app to onboard gateways. A central IT team can verify device location, licenses, and status with no additional steps required. Available for iOS and Android.
Unified Communications and Collaboration (UCC)
Visualize and troubleshoot networks based on call quality metrics such as MOS, latency jitter and packet loss. Supported applications include: Teams, Wi-Fi Calling, FaceTime, SIP, Jabber, Spark and more.
Streaming API
Enables you to subscribe to a select set of topics, instead of polling the NB API to get continuous state and stats messages. Also enables you to write value-added applications based on the aggregated context.
HPE Aruba Networking Central NetConductor
Enables the creation of EVPN/VXLAN overlays with an intuitive, graphical user interface to streamline the adoption of role-based access policies and Dynamic Segmentation at global scale with distributed enforcement.
AIOps for IT Efficiency
AI-powered HPE Aruba Networking Central insights for improved troubleshooting and optimization with AI Search, AI Insights, and AI Assist.
Configuration Information
BTO Models | ||
| Remarks | Description | SKU |
| | HPE Aruba Networking 9004 Gateway | |
| | HPE Aruba Networking 9004 (US) 4-Port GbE RJ45 2K Clients - 32 APs Gateway | R1B20A |
| | HPE Aruba Networking 9004 (RW) 4-Port GbE RJ45 2K Clients - 32 APs Gateway | R1B21A |
| | HPE Aruba Networking 9004 (JP) 4-Port GbE RJ45 2K Clients - 32 APs Gateway | R1B22A |
| | HPE Aruba Networking 9004 (IL) 4-Port GbE RJ45 2K Clients - 32 APs Gateway | R1B23A |
| | HPE Aruba Networking 9004 (EG) 4-Port GbE RJ45 2K Clients - 32 APs Gateway | R1B24A |
| | HPE Aruba Networking 9004 TAA Gateway | |
| | HPE Aruba Networking 9004 (US) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs Gateway | R1B25A |
| | HPE Aruba Networking 9004 (RW) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs Gateway | R1B26A |
| | HPE Aruba Networking 9004 (JP) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs Gateway | R1B27A |
| | HPE Aruba Networking 9004 (IL) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs Gateway | R1B28A |
| | HPE Aruba Networking 9004 (EG) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs Gateway | R1B29A |
| | HPE Aruba Networking 9004 LTE Gateway | |
| | HPE Aruba Networking 9004 (US) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway | R3V91A |
| | HPE Aruba Networking 9004 (RW) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway | R3V90A |
| | HPE Aruba Networking 9004 (JP) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway | R3V89A |
| | HPE Aruba Networking 9004 (IL) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway | R3V88A |
| | HPE Aruba Networking 9004 (EG) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway | R3V87A |
| | HPE Aruba Networking 9004 LTE TAA Gateway | |
| | HPE Aruba Networking 9004 (US) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch Gateway | R3V96A |
| | HPE Aruba Networking 9004 (RW) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch Gateway | R3V95A |
| | HPE Aruba Networking 9004 (JP) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch Gateway | R3V94A |
| | HPE Aruba Networking 9004 (IL) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch Gateway | R3V93A |
| | HPE Aruba Networking 9004 (EG) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch Gateway | R3V92A |
| | HPE Aruba Networking 9012 Gateway | |
| | HPE Aruba Networking 9012 (US) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B31A |
| | HPE Aruba Networking 9012 (RW) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B32A |
| | HPE Aruba Networking 9012 (JP) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B33A |
| | HPE Aruba Networking 9012 (IL) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B34A |
| | HPE Aruba Networking 9012 (EG) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B35A |
| | HPE Aruba Networking 9012 TAA Gateway | |
| | HPE Aruba Networking 9012 (US) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B36A |
| | HPE Aruba Networking 9012 (RW) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B37A |
| | HPE Aruba Networking 9012 (JP) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B38A |
| | HPE Aruba Networking 9012 (IL) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B39A |
| | HPE Aruba Networking 9012 (EG) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway | R1B40A |
| Notes: | Each HPE Aruba Networking 9000 model includes a JX990A power adapter Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu OCA Only Model Selection Form – HPE Aruba Networking > Gateways and Controllers > Mobility Controllers > Branch / Standalone > HPE Aruba Networking 9000 Series Mobility Controller HPE Aruba Networking > Gateways and Controllers > SD-WAN Gateways > Branch / Standalone > HPE Aruba Networking 9000 Series Branch Gateway | |
Power Options | ||
| Remarks | Description | SKU |
| | Power Cord for Power Supply | |
| | HPE Aruba Networking PC-AC-ARG 250V/10A 1.8m C13 to IRAM 2073 (AR) AC Power Cord | JW113A |
| | HPE Aruba Networking PC-AC-AUS 250V/10A 1.8m C13 to AS3112 (AU) AC Power Cord | JW114A |
| | HPE Aruba Networking PC-AC-BR 250V/10A 1.8m C13 to NBR 14136 (BR) AC Power Cord | JW115A |
| | HPE Aruba Networking PC-AC-CHN 250V/10A 1.8m C13 to GB2099 (CH) AC Power Cord | JW116A |
| | HPE Aruba Networking PC-AC-DEN 250V/10A 1.8m C13 to AFSNIT 107-2-D1 (DK) AC Power Cord | JW117A |
| | HPE Aruba Networking PC-AC-EC 250V/10A 1.8m C13 to CEE7/7 (EU) AC Power Cord | JW118A |
| | HPE Aruba Networking PC-AC-IN 250V/6A 1.8m C13 to IS1293 (IN) AC Power Cord | JW119A |
| | HPE Aruba Networking PC-AC-IL 250V/10A 1.8m C13 to SI32 (IL) AC Power Cord | JW120A |
| | HPE Aruba Networking PC-AC-IT 250V/10A 1.8m C13 to CEI 23-50 (IT) AC Power Cord | JW121A |
| | HPE Aruba Networking PC-AC-JPN 125V/12A 1.8m C13 to JISC 8303 (JP) AC Power Cord | JW122A |
| | HPE Aruba Networking PC-AC-KOR 250V/7A 1.8m C13 to KSC 8305 (KR) AC Power Cord | JW123A |
| | HPE Aruba Networking PC-AC-NA 125V/10A 1.8m C13 to NEMA 5-15P (NA) AC Power Cord | JW124A |
Accessories | ||
| Remarks | Description | SKU |
| | Rack Mount Kit | |
| 1, 2 | HPE Aruba Networking 9004-MNT-19 9004 Series 19-inch Rack Mount Kit | R1B30A |
| 2, 4 | HPE Aruba Networking 9004-LTE-MNT-19 9004-LTE Series 19-inch Rack Mount Kit | R3W17A |
| | Antenna Extender Kit | |
| 4, 5 | HPE Aruba Networking 90xx-LTE Indoor Antennas Extender Kit 20 ft with Indoor LTE and GPS Antennas | R4Y91A |
| 4, 5 | HPE Aruba Networking 90xx-LTE Indoor Antennas Extender Kit 40 ft with Indoor LTE and GPS Antennas | R4Y92A |
| 4, 5 | HPE Aruba Networking 90xx-LTE Outdoor Extender Kit 35 ft with Outdoor LTE and GPS Antennas | R4Y93A |
| | Configuration Rules | |
| 1 | This is only available on the HPE Aruba Networking 9004/9004 TAA Branch Gateway | |
| 2 | Min 0 / Max 1 | |
| 4 | This Rack Mount Kit is only available on the HPE Aruba Networking 9004 LTE/9004 LTE TAA Gateway | |
| 5 | Min 0 // Max 2 | |
| Notes: | – HPE Aruba Networking 9004-MNT-19 can hold up to qty 2 Gateways – HPE Aruba Networking 9004-LTE-MNT-19 can hold up to qty 1 Gateways | |
Spares | ||
| Rule # | Description | SKU |
| | Std (Min 0 // max 99) User Selection (min 0 // max 99) | |
| 1, 2 | HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector | R3K00A |
| | HPE Aruba Networking 90xx-LTE Spare Indoor Antennas Replacement and GPS Antennas | R4Y94A |
| | HPE Aruba Networking 90xx-LTE Spare SIM Tray Kit with Ejector Pin | R4Y95A |
| 3 | HPE Aruba Networking 9012-MNT-19 9012 Gateway Spare 19-inch Rack Mount Kit | R4X13A |
| | HPE Aruba Networking 90xx-LTE Spare Outdoor Replacement and GPS Antennas | R6M37A |
| | Configuration Rules | |
| 1 | Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu | |
| 2 | This is only available on the 9004/9004 TAA Branch Gateway series | |
| 3 | This Rack Mount Kit is only available on the 9012/9012 TAA Series Branch Gateway | |
| Notes: | Power Adapter is included with HPE Aruba Networking 9004/9004 TAA Branch Gateway series. Internal Power Supply Unit is included with HPE Aruba Networking 9012/9012 TAA Branch Gateway series. Localized power cord is systematically added as a line item on the bill of materials. | |
Software | ||
| | Gateway License | |
| | Std (Min 0 // max 1) User Selection (min 1 // max 1) | |
| Rule # | Description | SKU |
| 1 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 1-year Subscription E-STU | JZ118AAE |
| 2 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 3-year Subscription E-STU | JZ119AAE |
| 3 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 5-year Subscription E-STU | JZ120AAE |
| 4 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 7-year Subscription E-STU | R0G52AAE |
| 5 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 10-year Subscription E-STU | R0G53AAE |
| 1 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 1-year Subscription E-STU | JZ124AAE |
| 2 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 3-year Subscription E-STU | JZ125AAE |
| 3 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 5-year Subscription E-STU | JZ126AAE |
| 4 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 7-year Subscription E-STU | R0G56AAE |
| 5 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 10-year Subscription E-STU | R0G57AAE |
| 1 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 1-year Subscription E-STU | JZ121AAE |
| 2 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 3-year Subscription E-STU | JZ122AAE |
| 3 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 5-year Subscription E-STU | JZ123AAE |
| 4 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 7-year Subscription E-STU | R0G54AAE |
| 5 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 10-year Subscription E-STU | R0G55AAE |
| 1 | HPE Aruba Networking 90/70xx Central On-Premises Gateway WLAN Advanced 1-year Subscription E-STU | S6D86AAE |
| 2 | HPE Aruba Networking 90/70xx Central On-Premises Gateway WLAN Advanced 3-year Subscription E-STU | S6D87AAE |
| 3 | HPE Aruba Networking 90/70xx Central On-Premises Gateway WLAN Advanced 5-year Subscription E-STU | S6D88AAE |
| 4 | HPE Aruba Networking 90/70xx Central On-Premises Gateway WLAN Advanced 7-year Subscription E-STU | S6D89AAE |
| 5 | HPE Aruba Networking 90/70xx Central On-Premises Gateway WLAN Advanced 10-year Subscription E-STU | S6D90AAE |
| | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 1-year Subscription E-STU | S0U81AAE |
| | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 3-year Subscription E-STU | S0U82AAE |
| | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 5-year Subscription E-STU | S0U83AAE |
| | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 7-year Subscription E-STU | S0U84AAE |
| | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 10-year Subscription E-STU | S0U85AAE |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 1-year Subscription SaaS | JZ118AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 3-year Subscription SaaS | JZ119AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 5-year Subscription SaaS | JZ120AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 1-year Subscription SaaS | JZ121AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 3-year Subscription SaaS | JZ122AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 5-year Subscription SaaS | JZ123AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 1-year Subscription SaaS | JZ124AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 3-year Subscription SaaS | JZ125AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 5-year Subscription SaaS | JZ126AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 7-year Subscription SaaS | R0G52AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 10-year Subscription SaaS | R0G53AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 7-year Subscription SaaS | R0G54AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 10-year Subscription SaaS | R0G55AAS |
| 11 | HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 7-year Subscription SaaS | R0G56AAS |
| | Gateway License w/ Threat Defense | |
| 6 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 1-year Subscription E-STU | R4D93AAE |
| 7 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 3-year Subscription E-STU | R4D94AAE |
| 8 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 5-year Subscription E-STU | R4D95AAE |
| 9 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 7-year Subscription E-STU | R4D96AAE |
| 10 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 10-year Subscription E- STU | R4D97AAE |
| 6 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 1-year Subscription E-STU | R4D98AAE |
| 7 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 3-year Subscription E-STU | R4D99AAE |
| 8 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 5-year Subscription E-STU | R4E00AAE |
| 9 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 7-year Subscription E-STU | R4E01AAE |
| 10 | HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 10-year Subscription E-STU | R4E02AAE |
| 6 | HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 1-year Subscription E-STU | R4E03AAE |
| 7 | HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 3-year Subscription E-STU | R4E04AAE |
| 8 | HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 5-year Subscription E-STU | R4E05AAE |
| 9 | HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 7-year Subscription E-STU | R4E06AAE |
| 10 | HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 10-year Subscription E-STU | R4E07AAE |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 1-year Subscription SaaS | R4D93AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 3-year Subscription SaaS | R4D94AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 5-year Subscription SaaS | R4D95AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 7-year Subscription SaaS | R4D96AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 10-year Subscription SaaS | R4D97AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 1-year Subscription SaaS | R4D98AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 3-year Subscription SaaS | R4D99AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 5-year Subscription SaaS | R4E00AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 7-year Subscription SaaS | R4E01AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 10-year Subscription SaaS | R4E02AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 1-year Subscription SaaS | R4E03AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 3-year Subscription SaaS | R4E04AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 5-year Subscription SaaS | R4E05AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 7-year Subscription SaaS | R4E06AAS |
| 11 | HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 10-year Subscription SaaS | R4E07AAS |
| | Configuration Rules | |
| Rule # | Description | |
| Notes: | − When configuring BTO model, display table of Subscription Type as follows:
− If user selects ChoiceA, then display table of subscription term as follows:
− If user selects ChoiceB, then display table of subscription term as follows:
| |
| 1 | If ChoiceA1 is selected, then present this SKU as a selectable option | |
| 2 | If ChoiceA2 is selected, then present this SKU as a selectable option | |
| 3 | If ChoiceA3 is selected, then present this SKU as a selectable option | |
| 4 | If ChoiceA4 is selected, then present this SKU as a selectable option | |
| 5 | If ChoiceA5 is selected, then present this SKU as a selectable option | |
| 6 | If ChoiceB1 is selected, then present this SKU as a selectable option | |
| 7 | If ChoiceB2 is selected, then present this SKU as a selectable option | |
| 8 | If ChoiceB3 is selected, then present this SKU as a selectable option | |
| 9 | If ChoiceB4 is selected, then present this SKU as a selectable option | |
| 10 | If ChoiceB5 is selected, then present this SKU as a selectable option | |
| 11 | For IRIS reference only. No action required for OCX and Clic | |
| | HPE Aruba Networking Central | |
| | Cloud Web Policy Enforcement / IAP | |
| 1 | HPE Aruba Networking SUB1-WE-IAP-1 Cloud Web Policy Enforcement 1 Instant AP 1y Subscription E-STU | JW455AAE |
| 1 | HPE Aruba Networking SUB3-WE-IAP-1 Cloud Web Policy Enforcement 1 Instant AP 3y Subscription E-STU | JW456AAE |
| 1 | HPE Aruba Networking SUB5-WE-IAP-1 Cloud Web Policy Enforcement 1 Instant AP 5y Subscription E-STU | JW457AAE |
| Notes: | Cloud web policy enforcement for 1 AP (NOT required for Access Points with Central Subscription) | |
| | Cloud Services / WLAN Gateway Subscriptions | |
| 2 | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 1-year Subscription E-STU | S0U81AAE |
| 2 | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 3-year Subscription E-STU | S0U82AAE |
| 2 | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 5-year Subscription E-STU | S0U83AAE |
| 2 | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 7-year Subscription E-STU | S0U84AAE |
| 2 | HPE Aruba Networking 90/70xx Gateway WLAN Advanced 10-year Subscription E-STU | S0U85AAE |
| | On-Prem Services / Gateway and Controller Foundation Subscriptions | |
| 3 | HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 1 yr Subscription E-STU | R6U58AAE |
| 3 | HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 3 yr Subscription E-STU | R6U59AAE |
| 3 | HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 5 yr Subscription E-STU | R6U60AAE |
| 3 | HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 7 yr Subscription E-STU | R6U61AAE |
| 3 | HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 10 yr Subscription E-STU | R6U62AAE |
| | On-Prem Services / Gateway and Controller Foundation Government Subscriptions | |
| 3 | HPE Aruba Networking COP Controller Foundation 1-year Government Subscription E-STU | S1P61AAE |
| 3 | HPE Aruba Networking COP Controller Foundation 3-year Government Subscription E-STU | S1P62AAE |
| 3 | HPE Aruba Networking COP Controller Foundation 5-year Government Subscription E-STU | S1P63AAE |
| 3 | HPE Aruba Networking COP Controller Foundation 7-year Government Subscription E-STU | S1P64AAE |
| 3 | HPE Aruba Networking COP Controller Foundation 10-year Government Subscription E-STU | S1P65AAE |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 1 | For use with iQuote. Do not model in OCx as it is already visible in the HPE Aruba Networking Catalog under Network Management. | |
| 2 | Add the Central Cloud SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services | |
| 3 | Add the Central On-Prem SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services | |
Mobility Controller Licenses (Alternate) | ||
| Remarks | Description | SKU |
| | HPE Aruba Networking LIC-AP Controller per AP Capacity License E-LTU | JW472AAE |
| | HPE Aruba Networking LIC-PEF Controller Policy Enforcement Firewall Per AP License E-LTU | JW473AAE |
| | HPE Aruba Networking LIC-RFP Controller RFProtect Per AP License E-LTU | JW474AAE |
| | HPE Aruba Networking LIC-ENT Enterprise (LIC-AP LIC-PEF LIC-RFP and LIC-AW) License Bundle E-LTU | JW471AAE |
| | HPE Aruba Networking LIC-ACR Controller Advanced Cryptography 1 Session License E-LTU | Q9B90AAE |
| | HPE Aruba Networking Controller Web Content Classification 1-year Subscription E-STU | JY028AAE |
| | HPE Aruba Networking Controller Web Content Classification 3-year Subscription E-STU | JY029AAE |
| | HPE Aruba Networking Controller Web Content Classification 5-year Subscription E-STU | JY030AAE |
| | HPE Aruba Networking Controller Web Content Classification 7-year Subscription E-STU | JY031AAE |
| | HPE Aruba Networking Controller Web Content Classification 10-year Subscription E-STU | JY032AAE |
| Notes: | − A single HPE Aruba Networking 9004 Branch Gateway cannot be simultaneously used for SD-WAN and Mobility Controller functionality. − For each AP attached to the gateway, the minimal configuration is 1 x LIC-AP per AP. − LIC-AW is a device license for the AirWave network management system. − For dynamic segmentation, the per-AP license count must equal the sum of APs and switches that are tunneling traffic. For virtual switch stacks, one AP license will be consumed per stack. − LIC-VIA license is a per-user session license that can be transferred from one gateway/controller to another. − LIC-VIA supports centralized licensing and can be managed by Mobility Master or a master controller in an HPE Aruba Networking AOS 8 deployment. | |
Technical Specifications
| 9000 Series Technical Specifications | |||
|---|---|---|---|
| | 9004 | 9004-LTE | 9012 |
| Interfaces | 4x GbE1 | 4x GbE + 4G cellular | 12x GbE |
| Notes:1The 9004 was originally released (8.5) to operate in an Auto/Auto configuration. A software fix was introduced in 8.7.1.5, 8.8.0.2, 10.2.0.3, and SDWAN‑2.3.0.2, which allows users to configure the speed and duplex of the interfaces on the 9004 to: Auto/Auto, 1000/Full, or 100/Full.
| |||
| Power over Ethernet | x | x | 120W |
| Firewall throughput (Gbps) | 4 | 4 | 6 |
| Encrypted throughput GRE (Gbps) | 4 | 4 | 6 |
| Encrypted throughput AES-CBC-128 (Gbps) | 4 | 4 | 4 |
| Encrypted throughput AES-CBC-256 (Gbps) | 4 | 4 | 4 |
| Encrypted throughput AES-GCM-128 (Gbps) | 4 | 4 | 6 |
| Encrypted throughput AES-GCM-256 (Gbps) | 4 | 4 | 6 |
| AOS-10 Specifications | |||
| Minimum supported software version | AOS 10.4 | ||
| Cluster size | 4 | 4 | 4 |
| Maximum clients (User MAC) | 2K | 2K | 2K |
| Maximum clients per cluster | 8K | 8K | 8K |
| Maximum devices (APs) | 128 | 128 | 256 |
| Maximum devices (APs) per cluster | 512 | 512 | 768 |
| Maximum datapath / firewall sessions | 128K | 128K | 128K |
| Maximum bridge table | 64K | 64K | 64K |
| Firewall session creation rate (1000 sessions per sec) | 130 | 130 | 130 |
| L2 VLANs | 4K | 4K | 4K |
| L3 VLANs (IPv4 interfaces) | 128 | 128 | 128 |
| L3 VLANs (IPv6 interfaces) | 128 | 128 | 128 |
| Concurrent IPSec tunnels | 2K | 2K | 2K |
| ARP | 2K | 2K | 2K |
| Maximum DHCP clients | 4K | 4K | 4K |
| IPv4 static routes | 2K | 2K | 2K |
| IPv6 neighbours | 7K | 7K | 7K |
| IPv6 static routes | 577 | 577 | 577 |
| Maximum OSPF routes | 8K | 8K | 8K |
| ACLs | 2678 | 2678 | 2678 |
| Configurable bandwidth contracts | 1024 | 1024 | 1024 |
| AOS-8 | |||
| Minimum supported software version | AOS 8.5 | Not supported | AOS 8.7 |
| Cluster size | 4 | | 4 |
| Maximum campus or Remote Access Points | 32 | | 641 |
| Notes:1On software versions lower than AOS 8.12, the 9012 will only support 32 APs. | |||
| Maximum concurrent users | 2K | | 2K |
| Maximum BSSIDs | 512 | | 512 |
| Maximum datapath / firewall sessions | 64K | | 64K |
| Maximum bridge table | 64K | | 64K |
| IPv4 static routes | 2K | | 2K |
| IPV6 neighbours | 7K | | 7K |
| IPV6 static routes | 577 | | 577 |
| Maximum VLANs | 4K | | 4K |
| Concurrent IPsec sessions | 2K | | 2K |
| Concurrent SSL sessions | 2K | | 2K |
| Concurrent GRE tunnels | 544 | | 544 |
| Maximum IAP-VPNs | 129 | | 129 |
| Maximum DHCP clients | 2K | | 2K |
Interfaces and Indicators | ||
|---|---|---|
| Features | 9004/9004-LTE | 9012 |
| Form factor/footprint | Desktop/fanless2 Optional mount rack tray | Rack mount |
| Notes:21RU can support two 9004 gateways side‑by‑side using an optional mount kit. | ||
| 100/1000BASE-T | 4 | 12 (6x PoE+ ports) |
| Bluetooth 5 | Yes | Yes |
| USB 3.0 Type-A | 1 | 2 |
| System status LED | Yes | Yes |
| WAN ports status LED | Yes | Yes |
| LAN ports status LED | Yes | Yes |
| Gateway mode LED | Yes | Yes |
| Central connectivity status LED1 | Yes | Yes |
| Notes: 1LED utilized by the SD-WAN solution | ||
| Cellular (LTE) status LED | Yes | Yes |
| Console port | micro USB, RJ45 | micro USB, RJ45 |
Integrated LTE | |
| Available on the 9004-LTE only | |
| Downlink/uplink speed | 600/150 Mbps |
| LTE category | 12 |
| Connectors | 2xSMA connectors for main and diversity antenna 1xSMA connector for GPS antenna |
| Bands Supported | |
| Regions supported | Global Worldwide LTE-A and UMTS/HSPA+ coverage |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B 32/B66 |
| LTE-TDD | B38/39/B40/B41 |
| 2 x CA | B1+B3/B5/B18/B19/B20/B21/B26; B2+B2/B4/B5/B12/B13/B17/B29/B30/B66; B3+B3/B5/B7/B8/B19/B20/B28; B4+B4/B5/B12/B13/B17/B29/B30; B5+B7/B25/B30/B66; B7+B7/B20/B28; B12+B25/B30; B13+B66; B20+B32; B25+B25/B26/B41; B29+B30; B38+B38; B40+B40; B41+B41; B66+B66 |
| 3 x CA | DL inter-band 3CA: B1+B3+B7; B1+B3+B19; B1+B3+B20; B1+B19+B21; B2+B4+B5; B2+B4+B13; B2+B5+B30; B2+B12+B30; B2+B29+B30; B3+B7+B20; B3+B7+B28; B4+B5+B30; B4+B12+B30; B4+B29+B30; B5+B66+B2; B13+B66+B2 DL 2 contiguous plus inter-band 3CA: B2+B2+B5; B2+B2+B13; B3+B3+B7; B3+B7+B7; B3+B3+B20; B4+B4+B5; B4+B4+B13; B5+B66+B66; B13+B66+B66; B66+B66+B2; B66+B66+B66 |
| UMTS | B1/B2/B3/B4/B5/B8/B19 |
| Certifications | CE/ FCC/ IC/ NCC/ RCM/ GCF*/ PTCRB*/ ICASA* / WHQL AT&T, Verizon, T-Mobile |
Physical | ||
|---|---|---|
| | 9004/9004‑LTE | 9012 |
| Dimensions (H x W x D) | 3.82 cm x 19.85 cm x 15.31 cm (1.5” x 7.815” x 6.03”) | 4.37 cm x 39.5 cm x 26.00 cm (1.72” x 15.55” x 10.24”) |
| Weight | 1.143 kg (2.519 lbs) | 3.42 kg (7.54 lbs) |
Environmental Range | ||
|---|---|---|
| Specification | 9004/9004-LTE | 9012 |
| Operating temperature | 0° C to 40° C (32° C to 104° F) | 0° C to 40° C (32° C to 104° F) |
| Storage temperature | -40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) |
| Operating humidity | 10% to 90% (RH), non-condensing | 10% to 90% (RH), non-condensing |
| Storage humidity | 10% to 95% (RH), non-condensing | 10% to 95% (RH), non-condensing |
| Operating altitude | 10,000 feet | 10,000 feet |
| Acoustic noise | 0 dBA (fan less) | 29.1 – 63.5 dBA |
| Cooling | Conduction cooling | Forced cooling |
| Maximum power consumption | 25W (with USB) | 160W (with 120W of PoE) |
| Power source | 12v DC, 2.5A AC-to-DCpower adapter | Internal Power Supply 90VAC – 264VAC 47-63Hz 3A at 100Vrms |
Power Adapter Specifications | |
|---|---|
| Features | 9004/9004-LTE |
| Input voltage range | 90 VAC to 264 VAC |
| Output voltage | +12VDC, 2.5A |
| Input frequency | 47-63 Hz |
| AC line input current (steady state) | 1.0A |
| Operating temperature | -0° to +40° C |
| Cooling | – |
| Weight | 0.28 kg (.61 lbs) |
Regulatory and Safety Compliance | ||
|---|---|---|
| Description | 9004/9004-LTE | 9012 |
| Minimum supported software version | ||
| AOS-10 | AOS 10.3.1.1 (SSR) AOS 10.3.1.1 (SSR) | AOS 10.3.1.1 (SSR) AOS 10.3.1.1 (SSR) |
| AOS-8 (WLAN gateway mode) | 9004: 8.5.0.5 9004-LTE: Not Supported | 8.7.1.1 or 8.8.0.0 |
| SD-Branch | 9004: SD-WAN R1.7 and Central 2.5.x in SD-WAN mode 9004-LTE: SD-WAN R2.2.0.2 or R2.3.0.0 and Central 2.51.x in SD-WAN mode | SD-WAN R2.2.0.2 or R2.3.0.0 and Central 2.5.x in SD-WAN mode |
| Regulatory SKU information | ARCN9004 / ARCN9004LTE | ARCN9012 |
| Safety certifications | UL 60950-1 Second Edition | UL 60950-1 Second Edition |
| CAN/CSA-C22.2 No. 60950-1 Second Edition | CAN/CSA-C22.2 No. 60950-1 Second Edition | |
| EN 60950-1 Second Edition | EN 60950-1 Second Edition | |
| EN 60950:2005 | EN 60950:2005 | |
| IEC 60950-1 Second Edition | IEC 60950-1 Second Edition | |
| EN/IEC 62368-1 2nd Edition | EN/IEC 62368-1 2nd Edition | |
| NOM (obtained by partners and distributors) | NOM (obtained by partners and distributors) | |
| Electromagnetic emissions certifications | FCC Part 15 Class B | FCC Part 15 Class A |
| CISPR32 Class B | CISPR32 Class A | |
| EN55032 Class B | EN55032 Class A | |
| ICES-003 Class B | ICES-003 Class A | |
| EN61000-3-2 | EN61000-3-2 | |
| EN61000-3-3 | EN61000-3-3 | |
| EN55024, EN301 489-1/-17, EN301 489-52 (9004-LTE) | EN55024, EN301 489-1/-17 | |
| KN32 Class B , KN35, KN301 489-1/-17, KN301 489–52 (9004-LTE) | KN32 Class A, KN35, KN301 489-1/-17 | |
| CNS13438 Class B | CNS13438 Class A | |
| Telco | Common Language Equipment Identifier (CLEI) Code | Common Language Equipment Identifier (CLEI) Code |
| Wireless certifications | FCC/ISED | FCC/ISED |
| RED Directive 2014/53/EU | RED Directive 2014/53/EU | |
| Others: MIC, NCC, ANATEL, COFTEL, CCC | Others: MIC, NCC, ANATEL, COFTEL, CCC | |
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 05-Jan-2026 | Changed | SKUs added in Configuration Information section. | |
| 16-Dec-2024 | Changed | Standard Features section was updated | |
| 18-Nov-2024 | Changed | Overview, Standard Features, Configuration Information, sections were updated. | |
| 03-Sep-2024 | Changed | Overview, Standard Features, Configuration Information, and Technical Specifications sections were updated. | |
| 04-Dec-2023 | Changed | Series name was updated. | |
| 06-Nov-2023 | Changed | Configuration Information section was updated. Series name was updated. | |
| 16-Oct-2023 | Changed | Configuration Information section was updated | |
| 05-Dec-2022 | Changed | Configuration Information section was updated, and new SKUs were added. | |
| 15-Mar-2021 | Changed | SKUs added in Configuration Information section. | |
| 14-Dec-2020 | Changed | The Standard Features section was updated. | |
| 03-Aug-2020 | Changed | The Configuration Information section was updated New SKUS were added, | |
| 06-Jul-2020 | Changed | The Configuration Information section was updated. New SKUS were added, | |
| 01-Jun-2020 | Changed | Configuration Information section was updated. | |
| 04-May-2020 | Changed | Configuration Information section was updated. | |
| 06-Apr-2020 | Changed | Configuration Information section was updated. | |
| 03-Feb-2020 | Changed | Overview, Configuration Information and Technical Specifications sections were updated. New SKUs for 9012 models were added. Product Name was updated. | |
| 02-Dec-2019 | Changed | Configuration Information sections was updated. | |
| 04-Nov-2019 | Changed | Standard Features, Configuration Information and Technical Specification sections were updated. | |
| 03-Sep-2019 | New | New QuickSpecs |
a00062180enw, a00062180enw - 16380 - Worldwide - V19 - 05-January-2026
