QuickSpecs
HPE Smart Array Hybrid Capacitors QuickSpecs
Table of Contents
The HPE Smart Storage Hybrid Capacitor is a battery-free technology for power storage that provides data protection for cached data while eliminating costs and environmental impact of lithium-ion batteries.
For those running HPE Gen10 servers, the HPE Smart Hybrid Capacitor is a centralized backup power source supporting multiple controllers where the NAND flash memory on HPE Smart Array Performance Class controllers and the HPE Smart Hybrid Capacitor work together to save cached data in the event of unplanned server power loss.
Overview
When the hybrid capacitor module detects power loss it keeps critical parts of the controller active long enough to allow data to be copied from the onboard controller cache to the flash memory.
Please note, although the hybrid capacitor module is mechanically compatible with the 96W Smart Storage Battery (P01366-B21 and P01367-B21), the module cannot be used in combination with the Smart Storage Battery. In most cases, only a single Smart Storage Battery or a single Smart Hybrid Capacitor can be used per system. Please check your server platform QuickSpecs for details.
| Models | |
| HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit | P02377-B21 |
| HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit | P02381-B21 |
| Notes: The HPE Smart Storage Hybrid Capacitor is only supported on Gen10 servers or later. Before installing the HPE Smart Storage Hybrid Capacitor, verify that the system BIOS meets the minimum firmware requirements to support the hybrid capacitor module. | |

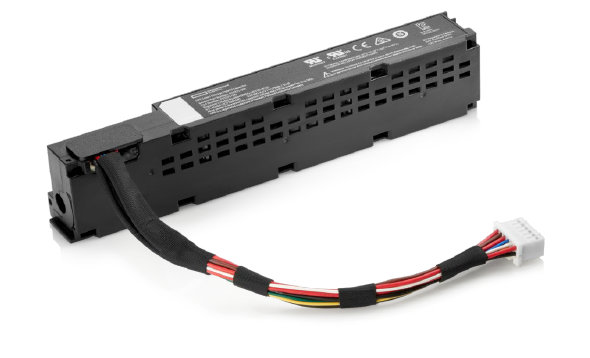

![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a00061623enw_block1img2?$crimg$ "[IMAGE1]")
XXXXXX -X21 is SKU designation formed by a common six digit part number and a -X21 suffix that identifies a SKU that is available across multiple server family lines. Refer to the table below to find the SKU suffix that applies to the specific server product line this option can be ordered with.
| -B21 | -H21 | -K21 |
|---|---|---|
| COMPUTE Server Line | SPECIALIZED COMPUTE Server Line | STORAGE Line |
| HPE Cloudline CL2100/CL2200/CL2800/CL3100/CL4100/CL5200/CL5800 Servers HPE Composable Cloud for ProLiant DL HPE ProLiant BL460c/BL660c Servers HPE ProLiant DL20/DL160/DL180 Servers HPE ProLiant DL325/DL360/DL380/DL385/DL560/DL580 Servers HPE ProLiant DX360/DX380 Servers HPE ProLiant MicroServer HPE ProLiant for Microsoft Azure Stack HPE ProLiant ML30/ML110/ML350 Servers HPE Synergy 480/660 Systems HPE ProLiant DX170r/DX190r, DX2000 Servers HPE ProLiant DX560 Gen10 server HPE ProLiant DX4200 Gen10 server | HPE Apollo 35/40/70 Systems HPE Apollo 2000/6000 Servers HPE XL170r/XL190r/XL270d (Apollo 6500) Gen10 Server for BlueData Software HPE Converged System 300/500/700/750 HPE Edgeline Systems and Servers HPE Integrity BL860c i6/BL870c i6/BL890c i6 Server Blades HPE Integrity MC990 X Server HPE Integrity rx2800 i6 Server HPE Integrity Superdome HPE SGI 8600 System HPE Solutions for SAP HANA (TDI) | HPE Apollo 4200 Gen9/Gen10 Servers HPE Apollo 4200 Gen10 LFF Server for BlueData Software HPE Apollo 4510 Gen10 System HPE D2220sb/D2500sb Storage Blade HPE D3000/D6020/D8000 Disk Enclosures HPE Scalable Object Storage with Scality RING HPE SimpliVity 2600 HPE SimpliVity 325/380 Gen10 HPE Storage File Controllers HPE StoreEasy 1460/1560/1650/1660/1860 Disclaimer: This may not be a complete listing of applicable servers |
Standard Features
Ideal for
The HPE Smart Storage Hybrid Capacitor is ideal for:
- − Environments with higher operating temperatures.
- − Customers who have a “no battery“ requirement or applications/environments such as ASHRAE, NEBs, Telco and certain data center or system environments where elevated internal system temperatures are experienced.
Key Features
- − High reliability, even in higher temperature environments
- − No batteries, not a Class 9 Dangerous Good product (no hazardous material disposal, no battery shipping requirements)
- − A single module supports up to three (3) Smart Array Controllers
- − Charges to full capacity in ~3 minutes after discharge
- − Capable of operating in higher temperatures with no impact to service life
The HPE Smart Storage Hybrid Capacitor is used to provide backup power to the HPE storage array controller in the event of power loss. The hybrid capacitor module starts up automatically and charges the capacitors when charge is required. In the event of a power loss, the capacitor pack will switch to discharge mode and supply energy to write the cache contents to NAND memory.
For more information on best practices see HPE Smart Array Controller User Guide .
Notes:
− The HPE Smart Storage Hybrid Capacitor is only supported on Gen10 servers or newer. Before installing the hybrid capacitor module, verify that the system BIOS meets the minimum firmware requirements to support the capacitor pack.
− Not for use with Server that use NVDIMMs.
− For more information on updating firmware, see the Intelligent Provisioning User Guide on the Hewlett Packard Enterprise website http://www.hpe.com/info/intelligentprovisioning/docs .
− To get the latest firmware and software updates, download the Service Pack for ProLiant (SPP) from the Hewlett Packard Enterprise website http://www.hpe.com/servers/spp/download
HPE 96W Smart Storage Battery or Smart Storage Hybrid Capacitor? | |||
|---|---|---|---|
| | 96W Battery | Smart Storage Hybrid Capacitor | |
| Gen 10 or newer | Yes | Yes | |
| Controller Support | Yes | Yes | |
| NVDIMM Support | Yes | No | |
| Max. Device Support | Up to 24 NVDIMM and/or Smart Array Controllers | Up to 3 HPE Smart Array Controllers | |
| Discharge to > Charge | Hours | Minutes | |
| Operating Environments | Climate controlled environments | Higher temperature environments such as NEBs, ASHRAE, or Telco | |
| Class 9 Dangerous Goods | Yes | No | |
| | | | |
Configuration Information
| Smart Array Controller support Supports up to 3 HPE Smart Array P-class Controllers | Description | Part Number |
| HPE Smart Array P816i-a SR Gen10 (16 Int Lanes/4GB Cache/SmartCache) 12G SAS Modular LH Controller | 869083-B21 | |
| HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular LH Controller | 869081-B21 | |
| HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller | 830824-B21 | |
| HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller | 804405-B21 | |
| HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller | 804338-B21 | |
| HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller | 804331-B21 |
| Server support For up to (3) controllers | Family | Gen | Module cable | Description |
| P02377-B21 | ||||
| DL360 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| DL380 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| DL560 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| DL385 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| DL325 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| ML30 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| DL160 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| DL180 | G10 | 145mm | HPE Smart Storage Hybrid Capacitor with 145mm Cable | |
| P02381-B21 | ||||
| ML110 | G10 | 260mm | HPE Smart Storage Hybrid Capacitor with 260mm Cable | |
| ML350 | G10 | 260mm | HPE Smart Storage Hybrid Capacitor with 260mm Cable | |
| Synergy 480 | G10 | 260mm | HPE Smart Storage Hybrid Capacitor with 260mm Cable | |
| Synergy 660 | G10 | 260mm | HPE Smart Storage Hybrid Capacitor with 260mm Cable | |
| Firmware Support | | |
| Minimum requirements for your HPE Server. | Product | Minimum firmware version |
| | HPE servers with Intel processors (BIOS) | 2.00 |
| | HPE servers with AMD processors (BIOS) | 1.40 |
| | HPE Smart Array SR controllers (firmware) | 1.90 |
| | HPE Smart Array MR controllers (firmware) | 24.23.0-0041 |
| For more information on updating firmware, see the Intelligent Provisioning User Guide on the Hewlett Packard Enterprise website ( http://www.hpe.com/info/intelligentprovisioning/docs ). To get the latest firmware and software updates, download the Service Pack for ProLiant (SPP) from the Hewlett Packard Enterprise website ( http://www.hpe.com/servers/spp/download ). | ||
Technical Specifications
| Storage element | Hybrid capacitor | |
| Voltage | 2.5-3.6v | |
| Discharge/charge | Full capacity in approx. 3 minutes after discharge | |
| Maintenance | Maintenance-free | |
| Operating Temperature | 10°C to 60°C environment | |
| Storage Temperature | 1 0°C to 35°C, less than 65% relative humidity | |
| | Notes: Sudden temperature change or high humidity may cause deterioration of its characteristics. | |
| Shelf Life | When stored at 10 ~ 35°C and less than 65% relative humidity, shelf life is 20 months minimum. (100% State of Charge) | |
| Relative Humidity | 65% or less (non-condensing) for storage | |
| Operating Altitude | from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft). | |
| Non-operating Altitude | Up to 15,240m (50,000 feet) above sea level | |
| Leakage Current | <2.0 uA in Ship/Storage mode | |
| Safety Conformance or Certifications | UL, CB, KCC, CE | |
| EMC (Class A) | FCC 47 CFR Part 15 Subpart B and AS/NZS CISPR 32 | |
| Unit Dimensions (WxDxH) | 5.46”(138.65mm)x1.13”(28.8mm)x0.76”(19.36mm) | |
| Unit Weight | P02377-B21 | 85g (+5/-10) |
| P02381-B21 | 90g (+5/-10) | |
| Warranty | 3 years parts only | |
| Warranty Upgrade Options |
Warranty upgrade options can come in the form of Care Packs HPE Services operational, which are sold at the HPE System level to which this product attaches. | |
