HPE Superdome Flex 280 Server QuickSpecs

Shape the Future of QuickSpecs - Your Input Matters

Table of Contents

Table of Contents

    The Ultimate x86 based Mission-critical Platform

    The HPE Superdome Flex 280 is a new model in the HPE Superdome Flex family of servers. It is a highly scalable, reliable and secure server that starts at 2 and scales up to 8 powerful 3rd generation Intel® Xeon® Scalable Processors. Its modular architecture scales cost-efficiently to meet future growth. With 6 UPI links per processor, it provides higher bandwidth and faster data rates than prior generations1. Designed to support 64GB–24TB of shared memory, it is an ideal choice for in-memory data analytics. Customers can choose between high-performance all-DRAM systems or a combination of DRAM and Persistent Memory with Intel® OptaneTM persistent memory 200 series, depending on workload requirements.

    Overview

    Extreme Superdome RAS including advanced memory resiliency, “firmware first”, analysis engine, and auto self-healing ensures the highest reliability for mission critical apps. Superior security, including Silicon Root of Trust, protects your workloads and data against firmware attacks and malware. Optional deployment with HPE GreenLake provides flexible as-a-service consumption while maintaining on-premise control.


    Notes: The 3rd generation Intel Xeon Scalable processorarchitecture delivers six UPI links, twice than the 2nd generation Intel Xeon Scalable processor architecture. Maximum data rate is 3200 MT/s @ 1DPC, 9% higher than with 2nd generation Intel Xeon Scalable processors

    image 1
    image 2

    At a Glance Features

    HPE Superdome Flex 280 is designed to power data-intensive departmental and edge applications, critical applications in the core, and specialized HPC and AI workloads. It offers:

    • − Support for 2 to 8-sockets of Intel Xeon Scalable processors in a single system with up to 28-cores per socket for a maximum of 224 cores
    • − 6 UPI links per socket providing unparalleled bandwidth and performance
    • − 48 DIMM slots of DDR4 memory per chassis
    • − 64GB – 24TB of shared memory
    • − Choice of high performance DRAM only, or with a combination of DRAM and Persistent Memory available in 128GB,256GB and 512GB kits featuring Intel® Optane™ Persistent Memory Series 200 to meet individual workload requirements. Superdome Flex 280 supports only App-direct Mode for Persistent Memory
    • − 16 half-height IO slots, or 8 full-height + 4 half-height IO slots, per four-socket chassis
    • − Base IO includes support for 8 SATA drives via VROC, two 1GbE NIC ports, four USB ports, Management LAN
    • − Internal storage up to 10 drive bays, or 8 drives and optional DVD
    • − Superdome Flex 280 Error Analysis Engine for better diagnostics and mission-critical reliability

    General

    The Superdome Flex 280 system is built using 4-socket capable, 5U chassis that are cabled together to create systems from 2/4-sockets (1 chassis) to 6/8 sockets (2 chassis). Each chassis supports 8 fans, 4 power supplies, associated power cords, and connecting UPI cables


    Power Supply (1600W)

    80PLUS Titanium Power Supply

    Loading

    100% maximum

    50% of maximum

    Minimum Efficiency

    91%

    96%

    Rated Specifications

    Value

    Units

    Input Voltage

    100-127/200-240

    Volts

    Input Current

    12/9.5

    Amps

    Input Frequency

    47-63

    Hz

    Rated Output Power

    1600

    Watts

    Notes:

    − Absolute minimum efficiency at 50% of load = 96%

    − System configuration defaults to a kit of that contains 2 power supplies. Additional kit with 2 power supplies is available and recommended if N=N is required

    − Optional 2130W Premium Power Supply is available

    System

    The system can support up to two (2) chassis.

    Notes: Ordering rules can be found in the Superdome Flex 280 server menu and in the ordering and configuration tools.


    Chassis

    Each chassis has the following specifications:

    • − Support for four (4) Intel Xeon Scalable processors
    • − Supports 48 DDR4 DIMM slots (12 DIMMs per processor)
    • − Supports up to 16 PCIe Gen 3 slots
    • − Supports additional IO capability in a Base IO chassis

    Base and expansion chassis

    • − Every Superdome Flex 280 system starts with one 4-socket capable Base Chassis (with boot support). Up to one (1)
    • − Expansion Chassis can be added to expand the system from 2/4-sockets to 6/8-sockets.

    Standard Features

    Processors

    Each server chassis supports four (4) Intel® Xeon® Scalable processors:

    • − Intel Xeon-Platinum 8380H (2.9GHz/28-core/250W) Processor
    • − Intel Xeon-Platinum 8380HL (2.9GHz/28-core/250W) Processor
    • − Intel Xeon-Platinum 8376H (2.6GHz/28-core/205W) Processor
    • − Intel Xeon-Platinum 8376HL (2.6GHz/28-core/205W) Processor
    • − Intel Xeon-Platinum 8360H (3.0GHz/24-core/225W) Processor
    • − Intel Xeon-Platinum 8360HL (3/0GHz/24-core/225W) Processor
    • − Intel Xeon-Platinum 8356H (3.9GHz/8-core/190W) Processor
    • − Intel Xeon-Platinum 8354H (3.1GHz/18-core/205W) Processor
    • − Intel Xeon-Platinum 8353H (2.5GHz/18-core/150W) Processor
    • − Intel Xeon-Gold 6348H (2.3GHz/24-core/165W) Processor
    • − Intel Xeon-Gold 6330H (2.0GHz/24-core/150W) Processor
    • − Intel Xeon-Gold 6328H (2.8GHz/16-core/165W) Processor
    • − Intel Xeon-Gold 6328HL (2.8GHz/16-core/165W) Processor
    • − Intel Xeon-Gold 5320H (2.4GHz/20-core/150W) Processor
    • − Intel Xeon-Gold 5318H (2.5GHz/18-core/150W) Processor

    Notes:

    − Platinum processors are required to scale to 8 sockets

    − All processors within a system and chassis must be identical

    − “H” designation signifies maximum memory capacity is 1.125TB per socket. “HL” designation is used for memory maximum greater than 1.125TB per socket and up to 4.5TB per socket


    Chipset

    Intel C621 Chipset

    Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/


    Upgradability and scalability

    Scalable from 2-socket configurations to 8-socket configurations.


    Memory type Registered

    • − 32GB 2Rx4 DDR4-3200 Registered DIMM
    • − 64GB 2Rx4 DDR4-3200 Registered DIMM
    • − 64GB 4Rx4 DDR4-2933 Load Reduced DIMM
    • − 128GB 4Rx4 DDR4-3200 Load Reduced DIMM
    • − 256GB 8Rx4 DDR4-3200 3DS Load Reduced DIMM

    Memory protection

    • − Error checking and correcting (ECC) on memory and caches; ADDDC is supported.
    • − Fast Fault Tolerance (custom enhanced ADDDC)

    Operating System

    • − Red Hat Enterprise Linux (RHEL) including KVM support
    • − SUSE Linux Enterprise Server (SLES) including KVM Support
    • − Oracle Linux/Oracle UEK
    • − VMware
    • − Microsoft Windows Server 2016 Standard and Datacenter including Hyper-V Support
    • − Microsoft Windows Server 2019 Standard and Datacenter including Hyper-V Support
    • − Microsoft Windows Server 2022 Standard and Datacenter including Hyper-V Support
    • − Microsoft Windows Server 2025 Standard and Datacenter including Hyper-V Support

    Notes:

    − HPE Foundation Software is required for all Linux O/S environments

    − SLES, RHEL, and Oracle Linux certifications include KVM certification

    − Minimum OS levels may be required for certain features and hardware options


    For I/O support by Operating System see below table:

    Product SKU

    Description

    Windows 2019

    Windows 2022

    Windows 2025

    RHEL 8

    RHEL 9

    RHEL 10

    SLES 15/16

    VMWare

    Oracle/UEK

    P51178-B21

    HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    P26253-B21

    HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    P06250-H21

    HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe3 x16 MCX653105A-ECAT Adapter

    -

    E

    E

    X

    X

    X

    X

    -

    -

    P06251-H21

    HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter

    -

    E

    E

    X

    X

    X

    X

    -

    -

    817753-B21

    HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    -

    P26262-B21

    HPE Ethernet 10/25Gb 2-port SFP28 BCM57414 Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    811546-B21

    HPE Ethernet 1GbE 4p BASE-T I350 Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    874253-B21

    HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    -

    Q0L13A

    HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    P9D93A

    HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    P9D94A

    HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    Q0L14A

    HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R2J62A

    HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    Product SKU

    Description

    Windows 2019

    Windows 2022

    Windows 2025

    RHEL 8

    RHEL 9

    RHEL 10

    SLES 15/16

    VMWare

    Oracle/UEK

    R2E08A

    HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R2J63A

    HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R2E09A

    HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R7N77A

    HPE SN1700E 64Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R7N86A

    HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R5Y72A

    HPE SD Flex 280 SR3162-8i/e Controller

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R4R47A

    HPE SD Flex 280 SR3154-16i Controller

    X

    X

    X

    v

    X

    X

    X

    X

    X

    R4R48A

    HPE SD Flex 280 SR3154-24i Controller

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R4R52A

    HPE SR3258p-32i/e PCIe4 Controller

    X

    X

    X

    X

    X

    X

    X

    X

    X

    Q6M15A

    HPE 3154-8e RAID Controller (external)

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R4R49A

    Broadcom MR 9560-16i Ctrl SD Flex 280

    X

    X

    X

    X

    X

    X

    X

    X

    X

    R5Y74A

    Broadcom MR 9560-8i Ctrl SD Flex 280

    X

    X

    X

    X

    X

    X

    X

    X

    X

    S0K90C

    NVIDIA L40 48GB PCIe Accelerator

    -

    X

    -

    -

    X

    X

    X

    -

    -

    S0K89C

    NVIDIA L4 24GB PCIe Accelerator

    -

    X

    -

    -

    X

    X

    X

    -

    -

    S2D86C

    NVIDIA H100 NVL 94GB PCIe Accelerator for HPE

    -

    X

    -

    -

    X

    X

    X

    X

    -

    Notes:

    − X = Supported

    − E = Ethernet Mode Only

    − Minimum OS levels are required for support of some processors and options

    − HPE Superdome Flex 280 I/O Oracle Linux Support: Hewlett Packard Enterprise only supports the use of in distribution drivers with Oracle Linux and UEK update releases. All controllers tested above used the driver located on the source media for their respective Oracle product. Out of distribution drivers are not supported with Oracle Linux, or UEK.

    − HPE Superdome Flex 280 I/O VMware Support: I/O configurations with VMware must adhere to the “vSphere Configuration Maximums” as documented by VMware per controller type and manufacturer.

    − For more information on the HPE Certified and Supported Hewlett Packard Enterprise servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport

    I/O Slots

    Chassis support either 16 half-height PCIe slots (8 x16 slots and 8 x8 slots); 12 slots with eight-full height slots (4 x16 slots and 4 x8 slots) + 4 half-height slots (4 x16 slots); or a compute-only configuration (no PCIe slots). The compute-only configuration is only supported with the Expansion Chassis.


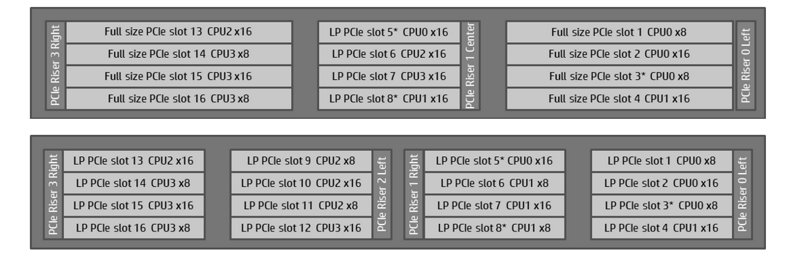

    image 3

    Base I/O

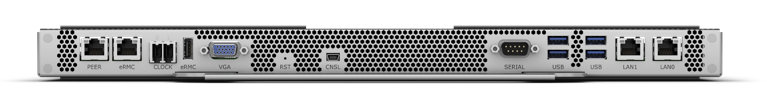

    image 4

    Base Chassis Base I/O

    • − One RJ45 GigE management port (PEER)
    • − One Reset switch
    • − One RJ45 GigE eRMC port
    • − One BMC console (mini USB-B)
    • − Two RJ.5 Clock ports
    • − One serial port (9-pin Dsub)
    • − One eRMC USB port
    • − Four external USB 3.0 ports
    • − One VGA port (15-pin Dsub
    • − Two 1GigE ports (LAN0 and LAN1)

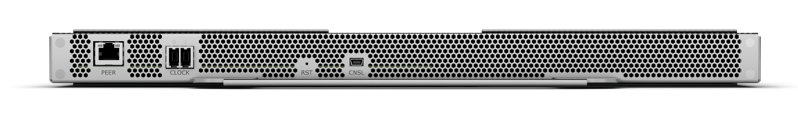

    image 5

    Expansion Chassis BMC Tray

    • − One RJ45 RMC management port (PEER)
    • − One RST Port
    • − Two RJ.5 Clock ports
    • − One SMC/BMC console (mini USB-B)

    Form Factor

    5U Base Chassis or Expansion Chassis


    High availability-standard server features

    • − 2N (N+N) redundant (1600W) power supplies reduced to N+1 when GPUs are included Notes: When using the 2130W Premium power supply N+N with GPU is available
    • − N+1 fans (or greater depending on the load)
    • − Hot-Swappable and redundant fans, power supplies
    • − Enhanced MCA Gen2 recovery
    • − ADDDC memory options
    • − SATA RAID 5 support
    • − ECC, re-tries, and Link Width Reduction on data paths
    • − Automatic de-configuration of DIMMs. Processor de-configuration
    • − I/O Advanced Error Recovery, and Live Error Recovery
    • − Redundant network paths
    • − Redundant Fibre Channel paths

    Standard Warranty

    Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty.

    Protected by HPE Services operational services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners.

    Hewlett Packard Enterprise branded hardware and options qualified for the HPE Superdome Flex 280 Server are covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners. The HPE branded hardware and options diagnostic support and repair is available for three years from date of purchase, or the warranty length of the server they are attached to, whichever is greater. Additional support may be covered under the warranty or available through additional support packages. Enhancements to warranty services are available through HPE Services operational services or customized service agreements.

    Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/doc/public/display?


    Physical and Environmental Information

    Systems are comprised of the following components: Base chassis plus Expansion chassis.


    Enclosure

    The system can be field racked. However, it is strongly recommended that customers order the systems racked from the factory. This provides the customer the benefit of extensive system testing and avoids possible premium service charges for field racking service. Field racking requires the use of an appropriate material lift capable of lifting 80+ lbs.

    Systems are supported in the HPE 600mm wide and 800mm wide racks, and the HPE D-rack. Rack availability is dependent on size of system complex.

    Other products may be placed in the same rack as the system. Placement of these other products must not result in moving the server chassis.

    All racks in the same order must be the same height and width.

    Hardware Configuration

    Number of chassis (min/max)

    per compute system

    1/2

    Number of processor modules per compute system (min/max)

    2/4/6/8

    Number of DIMMs (min/max)

    1, 4, 6 or 12 per socket

    Number of I/O slots

    16 Low Profile per chassis

    Or 8 Full Height and 4 Low Profile per chassis

    Or Compute only 0-slot (Expansion Chassis only)

    Number of eRMCs

    1

    Number of Base IO

    1

    SAS/SATA drives per Chassis

    Up to 10

    DVD module per Base IO

    1 (depending on number of drives)

    Fans

    8 per chassis

    Power Supplies (1600W or 2130W)

    2N: 4 per chassis

    The system is supported in the HPE 600mm and 800mm series racks and the HPE D-rack with a standard rack door.

    Configuration Rules

    The chassis is the basic building block.

    • − A single system can be supported in 1-Chassis to 2-Chassis configurations. An embedded Rack Management Controller (eRMC) is included with Base chassis.
    • − Each system starts with one (1) Base Chassis. Up to one (1) Expansion Chassis can be added to scale the system.
    • − There are single phase and three phase power distribution options.
    • − All processors within a system must be of the same processor type
    • − Boot devices should be in slot 3
    • − Alternate boot devices should be in slot 5 or 8

    Racking Choices

    Superdome Flex 280 can be racked in many of the HPE G2 Enterprise Series and Advanced Series racks, and the HPE D-Rack. Complete ordering rules can be found in the Superdome Flex 280 server menu and in the ordering and configuration tools.

    The Superdome Flex 280 can also be rack mounted in 3rd party rack. Specific rules and guidelines for this are available here: https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-a00043156en_us&docLocale=en_US


    The following racks are supported with Superdome Flex 280—refer to the server menu for ordering and configuration rules:

    • − HPE 22U 600x1075mm Adv G2 Shck Rack
    • − HPE 36U 600x1075mm Adv G2 Kit Shock Rack
    • − HPE 42U 600x1200mm Adv G2 Kit Shock Rack
    • − HPE 42U 600x1075mm Adv G2 Kit Shck Rack
    • − HPE 42U 600x1075 Ent G2 Shock Rack
    • − HPE 42U 600x1200 Ent G2 Shock Rack
    • − HPE 42U 800x1075 Ent G2 Shock Rack
    • − HPE 42U 800x1200 Ent G2 Shock Rack
    • − HPE 48U 600x1075 Ent G2 Shock Rack
    • − HPE 48U 600x1200 Ent G2 Shock Rack
    • − HPE 48U 800x1075 Ent G2 Shock Rack
    • − HPE 48U 800x1200 Ent G2 Shock Rack
    • − HPE 42U 610mm x 1156mm D-Rack
    • − HPE D-Rack 42U 610mm x 1156mm Extended

    The default assumption is that chassis are loaded in the rack at the bottom. It is recommended that 1U is left below the bottom of the compute enclosure in the 42U rack to provide PDU and cabling exit space.

    Supported configurations have the system located at the bottom of the rack with peripherals located above all chassis.

    Notes: On some rack and PDU combinations, a power bar rack mounting bracket (R9H01A or R9H02A) will be added automatically


    HPE G2 Enterprise Series Racks QuickSpecs: https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00002907enw


    HPE G2 Advanced Series Racks QuickSpecs: https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c05324689

    PDU Model

    Region

    Power Phase

    Input Voltage Range

    Input Current

    Circuit Breakers

    Input Plug Type

    Input Cord Length

    Outlet

    Dimensions

    H7C28A

    NA/JP

    Three

    200 - 240 V

    48A

    derated

    9 x 20A

    IEC 60309/ 460P9 W

    12'

    21 x IEC320 C13

    32.5"H x 2.5"W x 6.25"D

    H7C29A

    INTL

    Three

    380 - 420 V

    32A

    9 x 20A

    IEC 60309/ 532C6 W

    12'

    21 x IEC320 C13

    32.5"H x 2.5"W x 6.25"D

    H7C30A

    NA/JP

    Single

    200 - 240 V

    24A

    derated

    2 x 20A

    NEMA L6-30

    12'

    8 x IEC320 C13

    15"H x 1.75"W x 2.5"D

    H7C31A

    INTL

    Single

    200 - 240 V

    32A

    2 x 20A

    IEC 60309/ 332C6 W

    12'

    8 x IEC320 C13

    15"H x 1.75"W x 2.5"D

    H7C32A

    AUS

    Single

    200 - 240 V

    32A

    2 x 20A

    56PA332

    12'

    8 x IEC320 C13

    15"H x 1.75"W x 2.5"D

    HPE D-Rack

    The HPE D-Rack is available for Superdome Flex 280 in two models:

    • − HPE 42U 610mm x 1156mm D-Rack (H7C27A)
    • − HPE D-Rack 42U 610mm x 1156mm Extended (Q2T97A) The extended rack includes a 2U extension for a total of 44 rack units (44U).

    The following PDUs are supported with the HPE D-Rack:

    • − HPE D-Rack 21 x 3-Phase 240V NA/JP PDU (H7C28A) Order 2 PDUs for 1-4 SD Flex 280 chassis in rack; Order 4 PDUs for 5-8 SD Flex 280 chassis in rack
    • − HPE D-Rack 21 x 3-Phase 400V INTL PDU (H7C29A) Order 2 PDUs for 1-4 SD Flex 280 chassis in rack; Order 4 PDUs for 5-8 SD Flex 280 chassis in rack
    • − HPE D-Rack 8 x Single-Phase 240V NA PDU (H7C30A) Order 2 PDUs per chassis for 1-4 SD Flex 280 chassis in rack; Order 1 PDU per chassis for 5-8 SD Flex 280 chassis in rack
    • − HPE D-Rack 8 x Single-Phase 240V INTL PDU (H7C31A) Order 2 PDUs per chassis for 1-4 SD Flex 280 chassis in rack; Order 1 PDU per chassis for 5-8 SD Flex 280 chassis in rack
    • − HPE D-Rack 8 x Single-Phase 240V AU PDU (H7C32A) Order 2 PDUs per chassis for 1-4 SD Flex 280 chassis in rack; Order 1 PDU per chassis for 5-8 SD Flex 280 chassis in rack
    • − HPE/EN G3 B 1P 4.9kVA 0U/1U NA/JP PDU (P59420-B21), configuration specific rules apply
    • − HPE/EN G3 B 1P 7.3kVA 0U/1U INTL PDU (P59421-B21), configuration specific rules apply

    Dimensions for a single 24-inch wide 42U rack

    Height: 78.75 in. (200 cm)

    Width: 24.0 in. (60.9 cm)

    Depth: 46.0 in. (116.8 cm)

    Shipping dimensions (single rack)

    Height: 88.88 in. (225.8 cm)

    Width: 44.0 in. (111.8 cm)

    Depth: 62.75 in. (159.4 cm)

    Weight(singlerack)

    386 lb. (175.1 kg)

    Shippingweight(singlerack)

    856 lb. (388.3 kg)

    Static load (max)

    2400 lb. (1088.6 kg)

    Dynamic load (max rolling)

    2500 lb. (1134kg)

    42U rack access requirements

    Front: 48 in. (121.9 cm)

    Rear: 48 in. (121.9 cm)

    Top: 18 in. (45.7 cm)

    HPE Power Advisor

    The HPE Power Advisor is a tool provided by Hewlett-Packard to assist in the estimation of power consumption at a system, rack, and multi-rack level.

    Available at: https://poweradvisorext.it.hpe.com/


    Processor Support

    Superdome Flex 280 systems support Intel® Xeon® 3 rd Generation 83XX, 63XX and 53xx processors as specified in the following table.

    Notes: Minimum OS levels are required for support of some processors and options

    Processor suffix

    Description

    Offering

    H

    Standard Memory Tier

    Up to 1.125TB memory per socket

    HL

    Large Memory Tier

    Up to 4.5TB memory per socket

    Notes: Maximum memory per socket includes DDR4 memory + Persistent memory within the system

    Supported Processor Matrix

    Intel® Xeon® Scalable Processor Family 3rd Generation

    Processor

    # of cores per processor

    Frequency

    Cache

    Power

    Intel® Xeon® Platinum 8380H Processor

    28 C

    2.9 GHz

    38.5 MB

    250 W

    Intel® Xeon® Platinum 8380HL Processor

    28 C

    2.9 GHz

    38.5 MB

    250 W

    Intel® Xeon® Platinum 8376H Processor

    28 C

    2.6 GHz

    38.5 MB

    205 W

    Intel® Xeon® Platinum 8376HL Processor

    28 C

    2.6 GHz

    38.5 MB

    205 W

    Intel® Xeon® Platinum 8360H Processor

    24 C

    3.0 GHz

    33 MB

    225 W

    Intel® Xeon® Platinum 8360HL Processor

    24 C

    3.0 GHz

    33 MB

    225 W

    Intel® Xeon® Platinum 8356H Processor

    8 C

    3.9GHz

    35.75 MB

    190 W

    Intel® Xeon® Platinum 8354H Processor

    18 C

    3.1 GHz

    24.75 MB

    205 W

    Intel® Xeon® Platinum 8353H Processor

    18 C

    2.5 GHz

    24.75 MB

    150 W

    Intel® Xeon® Gold 6348H Processor

    24 C

    2.3 GHz

    33 MB

    165 W

    Intel® Xeon® Gold 6330H Processor

    24 C

    2.0 GHz

    33 MB

    150 W

    Intel® Xeon® Gold 6328H Processor

    16 C

    2.8 GHz

    22 MB

    165 W

    Intel® Xeon® Gold 6328HL Processor

    16 C

    2.8 GHz

    22 MB

    165 W

    Intel® Xeon® Gold 5320H Processor

    20 C

    2.4 GHz

    27.5 MB

    150 W

    Intel® Xeon® Gold 5318H Processor

    18 C

    2.5 GHz

    24.75 MB

    150 W

    Processor Mixing Support

    Governing rules for mixing processors are as follows:

    • − No mixing of processor types within the same system

    DDR4 Memory Support

    Systems will use DDR4 DIMM technology.


    The following DIMMs are supported in the chassis:

    • − 32GB 2Rx4 DDR4-3200 Registered DIMM
    • − 64GB 2Rx4 DDR4-3200 Registered DIMM
    • − 64GB 4Rx4 DDR4-2933 Load Reduced DIMM
    • − 128GB 4Rx4 DDR4-3200 Load Reduced DIMM
    • − 256GB 8Rx4 DDR4-3200 Load Reduced DIMM

    Notes: Mixing of 64GB LRDIMM and 128GB LRDIMM is allowed. Each socket must be fully populated with ½ of each memory size


    Only DIMMs that Hewlett Packard Enterprise has qualified are supported.

    Each chassis supports up to 48 DIMMs. This breaks down to twelve DIMMs per socket.

    General memory configuration rules:

    • − For best performance, the amount of memory on each chassis within the system should be the same.

    Persistent Memory Support

    Designed to support the following Persistent Memory DIMMs:

    • − Intel Optane 128GB persistent memory 200 series for HPE Superdome Flex 280
    • − Intel Optane 256GB persistent memory 200 series for HPE Superdome Flex 280
    • − Intel Optane 512GB persistent memory 200 series for HPE Superdome Flex 280

    Notes:

    − Chassis must be ½ populated with DDR4 DIMMs before Persistent Memory can be added

    − No mixing of DDR4 memory sizes is supported when Persistent Memory is utilized

    − Minimum OS levels are required for support of Persistent Memory

    − Superdome Flex 280 supports only App-direct Mode for Persistent Memory

    − Persistent Memory DIMMS must be populated across each socket with 6 per socket

    − Persistent Memory supported only on 4 socket systems

    Superdome Flex 280 Memory DIMM Configurations

    Memory Slot Configuration

    DIMMS per Socket

    Data Rate

    Capacity per Socket

    Total System Memory Capacity (TB)

    2S

    4S

    6S

    8S

    32 GB RDIMM

    1

    3200 MT/s

    32 GB

    64GB

    128 GB

    192GB

    256GB

    4

    3200 MT/s

    128 GB

    256 GB

    512 GB

    768 GB

    1 TB

    6

    3200 MT/s

    192 GB

    384 GB

    768 GB

    1.125 TB

    1.5 TB

    12

    2933 MT/s

    384 GB

    768 GB

    1.5 TB

    2.25 TB

    3 TB

    64 GB RDIMM

    1

    3200 MT/s

    64 GB

    128 GB

    256 GB

    384 GB

    512 GB

    4

    3200 MT/s

    256 GB

    512 GB

    1 TB

    1.5 TB

    2 TB

    6

    3200 MT/s

    384 GB

    768 GB

    1.5 TB

    2.25 TB

    3 TB

    12

    2933 MT/s

    768 GB

    1.5 TB

    3 TB

    4.5 TB

    6 TB

    64 GB RDIMM

    1

    2933 MT/s

    64 GB

    128 GB

    256 GB

    384 GB

    512 GB

    4

    2933 MT/s

    256 GB

    512 GB

    1 TB

    1.5 TB

    2 TB

    6

    2933 MT/s

    384 GB

    768 GB

    1.5 TB

    2.25 TB

    3 TB

    12

    2933 MT/s

    768 GB

    1.5 TB

    3 TB

    4.5 TB

    6 TB

    128 GB LRDIMM

    1

    3200 MT/s

    1258 GB

    256 GB

    512 GB

    768 GB

    1 TB

    4

    3200 MT/s

    512 GB

    1 TB

    2 TB

    3 TB

    4 TB

    6

    3200 MT/s

    768 GB

    1.5 TB

    3 TB

    4.5 TB

    6 TB

    12

    2933 MT/s

    1536 GB

    3 TB

    6 TB

    6 TB

    12 TB

    256 GB LRDIMM

    1

    3200 MT/s

    256 GB

    512 GB

    1 TB

    1.5 TB

    2 TB

    4

    3200 MT/s

    1024 GB

    2 TB

    4 TB

    6 TB

    8 TB

    6

    3200 MT/s

    1536 GB

    3 TB

    6 TB

    9 TB

    12 TB

    12

    2933 MT/s

    3072 GB

    6 TB

    12 TB

    18 TB

    24 TB

    64 GB LRDIMM

    6

    2933 MT/s

    1152 GB

    2.25 TB

    4.5 TB

    6.75 TB

    9 TB

    128 GB LRDIMM

    6

    2933 MT/s

    128 GB PMEM

    6

    2667 MT/s

    960 GB

    -

    3.75 TB

    -

    -

    32 GB RDIMM

    6

    2667 MT/s

    128 GB PMEM

    6

    2667 MT/s

    1152 GB

    -

    4.5 TB

    -

    -

    64 GB RDIMM

    6

    2667 MT/s

    128 GB PMEM

    6

    2667 MT/s

    1536 GB

    -

    6 TB

    -

    -

    128 GB LRDIMM

    6

    2667 MT/s

    256 GB PMEM

    6

    2667 MT/s

    1920 GB

    -

    7.5 TB

    -

    -

    64 GB RDIMM

    6

    2667 MT/s

    256 GB PMEM

    6

    2667 MT/s

    2304 GB

    -

    9 TB

    -

    -

    128 GB LRDIMM

    6

    2667 MT/s

    256 GB PMEM

    6

    2667 MT/s

    3072 GB

    -

    12 TB

    -

    -

    256 GB 3DS LRDIMM

    6

    2667 MT/s

    512 GB PMEM

    6

    2667 MT/s

    3840 GB

    -

    15 TB

    -

    -

    128 GB LRDIMM

    6

    2667 MT/s

    512 GB PMEM

    6

    2667 MT/s

    4608GB

    -

    18 TB

    -

    -

    256 GB 3DS LRDIMM

    6

    2667 MT/s

    Notes: Maximum memory capacity per socket for 83xxH, 63xxH and 53xxH is 1.125TB. For larger memory capacity up to 4.5TB per socket the ‘HL’ version of a processor must be used.

    Networking

    • − HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter (requires transceivers or DAC)
    • − HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter
    • − HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter (requires transceivers or DAC)
    • − HPE Ethernet 1GbE 4 port BASE-T I350 Adptr
    • − HPE Ethernet 1Gb 2-port BASE-T I350-T2V2 Adapter
    • − HPE Ethernet 10/25Gb 2-port SFP28 BCM57414 Adapter
    • − HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter (requires transceivers or DAC)
    • − HPE Ethernet 10/25Gb 2-port SFP28 QL41401-A2G Adapter (requires transceivers or DAC)
    • − HPE Ethernet 10Gb 2-port BASE-T QL41401-A2G Adapter
    • − HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter
    • − HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

    Notes: Server networking transceiver and cable compatibility matrix can be found here


    Superdome Flex 280 Storage Support

    For HPE Storage solutions, please see: https://www.hpe.com/storage/spock


    Storage and boot support

    • − HPE SN1200E 16Gb 1p FC HBA
    • − HPE SN1100Q 16Gb 1p FC HBA
    • − HPE SN1200E 16Gb 2p FC HBA
    • − HPE SN1100Q 16Gb 2p FC HBA
    • − HPE SN1610E 32Gb 1p FC HBA
    • − HPE SN1610Q 32Gb 1p FC HBA
    • − HPE SN1610E 32Gb 2p FC HBA
    • − HPE SN1610Q 32Gb 2p FC HBA
    • − HPE SN1700E 64Gb 1p FC HBA
    • − HPE SN1700Q 64Gb 1p FC HBA
    • − HPE Superdome Flex 280 SR3162-8i/e 8-port 2GB Cache SAS 12G Encrypted Controller
    • − HPE Superdome Flex 280 SR3154-16i 16-port 4GB Cache SAS 12G PCIe3 x8 Controller
    • − HPE Superdome Flex 280 SR3154-24i 24-port 4GB Cache SAS 12G PCIe3 x8 Controller
    • − HPE SR3258p-32i/e 32-port 8GB Cache Tri-Mode 24G PCIe4 x16 Encrypted Controller
    • − HPE Superdome Flex 280 MegaRAID 9560-16i 16-port Internal 8GB Cache Tri-Mode 12G PCIe4 x8 Controller
    • − HPE Superdome Flex 280 MegaRAID 9560-8i 8-port Internal 4GB Cache Tri-Mode 12G PCIe4 x8 Controller
    • − HPE 9300-8e 12Gb 8-port External SAS Controller
    • − HPE 3154-8e External RAID Controller

    RAID Options

    Chassis type

    Storage Option

    Backplane(s)

    Controller card(s)

    Max. RAID group(s)

    Base or Expansion

    No storage

    none

    none

    none

    Base chassis only

    8 drive standard storage, Intel VROC (SATA RAID) no encryption

    R4S21A 8SFF Standard

    none

    8 drives

    Base or Expansion

    8 drive standard storage, HW RAID, encryption option

    R4S21A 8SFF Standard

    R5Y72A SR 3162-8i /e

    8 drives

    Base or Expansion

    8 drive standard storage, HW RAID, no encryption

    R4S21A 8SFF Standard

    R5Y74A MR 9560-8i

    8 drives

    Base or Expansion

    8 drive premium storage, HW RAID, no encryption

    R4S22A 8SFF Premium

    R4R47A SR 3154-16i OR

    R4R49A MR 9560-16i

    8 drives

    Base or Expansion

    8 drive premium storage, HW RAID, encryption option

    R4S22A 8SFF Premium

    R4R52A SR 3258p-32i /e

    R4R49A MR 9560-16i

    8 drives

    Base or Expansion

    8 drive premium storage, HW RAID, no encryption

    R4S22A 8SFF Premium

    R4R49A MR 9560-16i

    R5Y72A SR 3162-8i /e

    4 drives

    4 drives

    Base or Expansion

    8 drive premium storage, HW RAID, encryption option

    R4S22A 8SFF Premium

    R5Y72A SR 3162-8i /e

    R4R48A SR 3154-24i

    4 drives

    4 drives

    Base or Expansion

    10 drive premium storage, HW RAID, no encryption

    R4S23A 2SFF Premium R4S22A 8SFF Premium

    R5Y72A SR 3162-8i /e

    10 drives

    Base or Expansion

    10 drive premium storage, HW RAID, encryption option

    R4S23A 2SFF Premium R4S22A 8SFF Premium

    R5Y72A SR 3162-8i /e

    R5Y72A SR 3162-8i /e

    2 drives

    4 drives

    4 drives

    Base or Expansion

    10 drive premium storage, HW RAID, separate boot controller

    R4S23A 2SFF Premium R4S22A 8SFF Premium

    R5Y72A SR 3162-8i /e

    R4R47A SR 3154-16i

    2 drives

    8 drives

    Base or Expansion

    10 drive premium storage, HW RAID, separate boot controller

    R4S23A 2SFF Premium R4S22A 8SFF Premium

    R5Y74A MR 9560-8i

    R4R49A MR 9560-16i

    2 drives

    8 drives

    Base or Expansion

    10 drive premium storage, HW RAID, encryption option x4 NVMe

    R4S23A 2SFF Premium R4S22A 8SFF Premium

    R4R52A SR 3258p-32i /e R5Y72A SR 3162-8i /e

    2 drives

    8 drives

    Base or Expansion

    10 drive premium storage, HW RAID, separate boot controller

    R4S23A 2SFF Premium

    R4S22A 8SFF Premium

    R5Y74A MR 9560-8i

    R4R49A MR 9560-16i

    R4R49A MR 9560-16i

    2 drives

    4 drives

    4 drives

    Backplane type

    Controller

    Drive type

    Data lanes per drive bay

    Raw bandwidth

    Maximum throughput

    Standard

    SmartRAID 31xx

    SATA

    1

    6 Gb/s

    600 MB/s

    Standard

    SmartRAID 31xx

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Standard

    MegaRAID 9560

    SATA

    1

    6 Gb/s

    600 MB/s

    Standard

    MegaRAID 9560

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Standard

    MegaRAID 9560

    NVMe

    1

    8 Gb/s

    985 GB/s

    Premium

    SmartRAID 31xx

    SATA

    1

    6 Gb/s

    600 MB/s

    Premium

    SmartRAID 31xx

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Premium

    SmartRAID 31xx

    SAS-3 wide

    2

    24 Gb/s

    2.4 GB/s

    Premium

    MegaRAID 9560

    SATA

    1

    6 Gb/s

    600 MB/s

    Premium

    MegaRAID 9560

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Backplane type

    Controller

    Drive type

    Data lanes per drive bay

    Raw bandwidth

    Maximum throughput

    Premium

    MegaRAID 9560

    SAS-3 wide

    2

    24 Gb/s

    2.4 GB/s

    Premium

    MegaRAID 9560

    NVMe

    2

    16 Gb/s

    1.970 GB/s

    Premium

    MegaRAID 9560

    NVMe

    4

    32 Gb/s

    3.940 GB/s

    Premium

    SmartRAID 3258p

    SATA

    1

    6 Gb/s

    600 MB/s

    Premium

    SmartRAID 3258p

    SAS-3

    1

    12 Gb/s

    1.2 GB/s

    Premium

    SmartRAID 3258p

    SAS-3 wide

    2

    24 Gb/s

    2.4 GB/s

    Premium

    SmartRAID 3258p

    SAS-4

    1

    22.5 Gb/s

    2.4 GB/s

    Premium

    SmartRAID 3258p

    SAS-4 wide

    2

    45 Gb/s

    4.8 GB/s

    Premium

    SmartRAID 3258p

    NVMe

    4

    32 Gb/s

    3.940 GB/s

    Notes:

    − When multiple controller cards are used, there will be multiple RAID groups because drives on different controllers can't be in the same RAID group

    − When multiple controller cards are used, the first controller listed is the default boot controller

    − RAID 0, 1,5 and 10 supported

    − The Base IO includes the embedded Intel VROC (Virtual RAID on Chip) SATA controller with 6Gb SATA support for up to eight (8) 2.5” SATA drives (HDD/SSD). The 8-bay standard backplane is cabled to the Base IO. VMware does not support the RAID mode of Intel Corporation Lewisburg SATA AHCI Controller in VMware ESXi

    Security

    HPE Superdome Flex 280 provides important architectural security features not found in other industry standard servers. Superdome Flex 280 Mission Critical focus provides unique customer benefits without exposure to vulnerabilities found in common server firmware.

    • − UEFI Secure Boot and Secure Start support
    • − Immutable Silicon Root of Trust, A Cyber Catalyst by Marsh sm -designated solution
    • − Tamper-free updates – components digitally signed and verified
    • − Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
    • − Firmware rollback protection for critical Vulnerability fixes
    • − TPM (Trusted Platform Module) 2.0 tamper-resistant and soldered down for all systems
    • − Chassis Intrusion detection (optional)
    • − FW update protected by RMC Admin authentication
    • − Air-Gapped Manageability
    • − Secure Out-of-Box passwords
    • − Directory access control (LDAP/Active Directory)
    • − Alternatives to PXE (Directed LAN Boot, HTTP Boot)
    • − Ability to disable HOST USB ports

    Platform Management

    The HPE Superdome Flex 280 delivers system administration, control, and platform management both via a programmable Redfish API and also in a comprehensive and concise command-line interface. The Redfish® API can be used in many ways including:

    • − Directly in simple scripts to obtain inventory and monitoring information
    • − With HPE OneView for a graphical user interface, as well as manage multiple HPE systems concurrently in the datacenter at once
    • − With Openstack Ironic for Provisioning the OS

    The Rack Management Controller in Superdome Flex 280 is an embedded option (the "eRMC") running within the Base Chassis.


    The HPE Superdome Flex 280 has a built-in and always available platform management system. By integrating the management into the server platform, Hewlett Packard Enterprise ensures that every Superdome Flex 280 comes with the full set of management features, and simplifies the task of integrating Superdome Flex 280 into the data center. The purpose of the HPE Superdome Flex 280 management system is to:

    • − Provide built-in tools to manage hardware and provide mission-critical system availability (inventory, monitor, diagnose, configure, maintain, and self-healing)
    • − Make it easier for users and applications to manage the system (inventory, start, stop, connect console, and so on)

    The HPE Superdome Flex 280 manageability system provides a very powerful control point for the system, and the RMC makes managing the HPE Superdome Flex 280 much easier by centralizing the control and building the management into the hardware and firmware of the system. It provides the following features:

    • − Web GUI for eRMC – Redfish driven. Covers:
      • System inventory, health, configuration
      • Launch vMedia, vKVM (HTML5)
      • Configure UEFI reboot, power
      • eRMC security settings
      • eRMC LAN settings
    • − CLI for easy access to all eRMC functions, providing potential scripting and power user convenience
    • − Console, and console logs
    • − Built-in Error Analysis Engine constantly monitors all system hardware, analyzes log and telemetry data, and determines corrective actions for highest system uptime (often performing corrective actions automatically)

    HPE Superdome Flex 280 eRMC will interface directly with the HPE Remote Support software for data center wide fault management visibility and tie-in to HPE support services, such as the Insight Online portal


    HPE Foundation Software (HFS)

    HFS (HPE Foundation Software) consists of software packages specifically designed to ensure the smooth operation of the HPE Superdome Flex and HPE Superdome Flex 280 servers. It includes Data Collection Daemon (DCD) for Linux, an agentless service that proactively monitors the health of hardware components on the HPE Superdome Flex and HPE Superdome Flex 280 servers.


    This bundle contains a collection of HFS (HPE Foundation Software) ISO images to be installed on HPE Superdome Flex Family Servers running with RHEL, SLES or Oracle Linux (there is no HFS for other OS’es).

    Service and Support

    HPE Services

    No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

    https://www.hpe.com/services


    Consulting Services

    No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

    https://www.hpe.com/services/consulting


    HPE Managed Services

    HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

    HPE Managed Services | HPE


    Operational services

    Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

    https://www.hpe.com/services/operational


    HPE Complete Care Service

    HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

    • − A complete coverage approach -- edge to cloud
    • − An assigned HPE team
    • − Modular and fully personalized engagement
    • − Enhanced Incident Management experience with priority access
    • − Digitally enabled and AI driven customer experience

    https://www.hpe.com/services/completecare


    HPE Tech Care Service

    HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

    https://www.hpe.com/services/techcare


    HPE Lifecycle Services

    HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

    • − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
    • − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
    • − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
    • − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
    • − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

    Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle


    For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

    Other Related Services from HPE Services:

    HPE Education Services

    Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

    https://www.hpe.com/services/training


    Defective Media Retention

    An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.


    Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.


    Parts and Materials

    HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


    Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


    How to Purchase Services

    Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

    • − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
    • − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

    AI Powered and Digitally Enabled Support Experience

    Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience


    Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

    https://support.hpe.com/hpesc/public/home/signin


    Consume IT On Your Terms

    HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

    • − Get faster time to market
    • − Save on TCO, align costs to business
    • − Scale quickly, meet unpredictable demand
    • − Simplify IT operations across your data centers and clouds

    To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

    For more information

    http://www.hpe.com/services

    Other related Services

    HPE Server Hardware Installation

    Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.


    HPE Installation and Startup of HPE Servers

    Provides for the installation of your new server and operating system. This service will assist in bringing your new HPE server and operating system into operation in a timely and professional manner. This service provides a trained Hewlett Packard Enterprise service specialist to perform an installation that meets Hewlett Packard Enterprise quality standards. The service highlights include: planning, deployment on site, Installation verification tests, and customer orientation session.


    HPE Support Credits

    Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

    Configuration Information

    Ordering and Configuration

    This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.

    Notes:

    − Configure-to-order servers must start with a CTO Chassis

    − FIO indicates that this option is a Factory Installable Option.


    Additional Technical documentation may be found at: http://www.hpe.com/support/superdomeflex280-docs

    Configuring Superdome Flex 280

    Rack choice

    If No Rack Option is selected then a Virtual Rack should be selected

    Description

    SKU

    HPE Virtual Rack

    M0S66A

    Base Chassis

    HPE Superdome Flex 280 4-socket Base Chassis

    R4R03A

    Notes:

    − Every Superdome Flex 280 system must have min 1/max 1 Base Chassis

    − Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order)

    − Chassis bezel is Optional and is not included

    Expansion Chassis

    HPE Superdome Flex 280 4-socket Expansion Chassis

    R4R05A

    Notes:

    − Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order)

    − Chassis bezel is Optional and is not included

    Power Supply Options for Base and Expansion Chassis

    HPE Superdome Flex 280 2x 1600W Titanium Hot Plug Power Supply

    S0A91A

    HPE Superdome Flex 280 2x 1600W Titanium Hot Plug Additional Power Supply

    S0A92A

    HPE Superdome Flex 280 2x 2130W Titanium Hot Plug Power Supply

    S0A93A

    HPE Superdome Flex 280 2x 2130W Titanium Hot Plug Additional Power Supply

    S0A94A

    Notes: Each chassis requires a minimum of one (1) of the above kits. Maximum is two (2) per chassis. No mixing within a system is allowed


    Scale Activation Kits

    HPE Superdome Flex 280 2-4 Sockets UPI Internal Enablement Kit

    R4R08A

    HPE Superdome Flex 280 6-8 Sockets UPI Internal Interconnect and Scale Activation Kit

    R4R09A

    HPE Superdome Flex 280 6-8 Sockets UPI External Interconnect and Scale Activation Kit

    R4R10A

    Notes:

    − 2/4 socket system requires 1 x R4R08A

    − 8 socket system requires 2 x R4R09A and 1 x R4R10A

    Processors

    Notes:

    − Each Base chassis requires minimum two (2) processors

    − Each Expansion chassis requires minimum two (2) processors

    Description

    SKU

    Intel Xeon-Platinum 8380H (2.9GHz/28-core/250W) Processor Kit for HPE Superdome Flex 280

    R4R13A

    Intel Xeon-Platinum 8380HL (2.9GHz/28-core/250W) Processor Kit for HPE Superdome Flex 280

    R4R14A

    Intel Xeon-Platinum 8376H (2.6GHz/28-core/205W) Processor Kit for HPE Superdome Flex 280

    R4R15A

    Intel Xeon-Platinum 8376HL (2.6GHz/28-core/205W) Processor Kit for HPE Superdome Flex 280

    R4R16A

    Intel Xeon-Platinum 8360H 3.0GHz 24-core 225W Processor Kit for HPE Superdome Flex 280

    R4R17A

    Intel Xeon-Platinum 8360HL 3.0GHz 24-core 225W Processor Kit for HPE Superdome Flex 280

    R4R18A

    Intel Xeon-Platinum 8356H 3.9GHz 8-core 190W Processor Kit for HPE Superdome Flex 280

    R4R24A

    Intel Xeon-Platinum 8354H (3.1GHz/18-core/205W) Processor Kit for HPE Superdome Flex 280

    R4R20A

    Intel Xeon-Platinum 8353H (2.5GHz/18-core/150W) Processor Kit for HPE Superdome Flex 280

    R4R19A

    Intel Xeon-Gold 6348H (2.3GHz/24-core/165W) Processor Kit for HPE Superdome Flex 280

    R4R21A

    Intel Xeon-Gold 6330H (2.0GHz/24-core/150W) Processor Kit for HPE Superdome Flex 280

    R6W53A

    Intel Xeon-Gold 6328H (2.8GHz/16-core/165W) Processor Kit for HPE Superdome Flex 280

    R4R22A

    Intel Xeon-Gold 6328HL (2.8GHz/16-core/165W) Processor Kit for HPE Superdome Flex 280

    R4R23A

    Intel Xeon-Gold 5320H (2.4GHz/20-core/150W) Processor Kit for HPE Superdome Flex 280

    R6A26A

    Intel Xeon-Gold 5318H (2.5GHz/18-core/150W) Processor Kit for HPE Superdome Flex 280

    R6A25A

    Notes:

    − No mixing of processors types within a single chassis or system

    − Maximum memory capacity per socket for 83xxH, 63xxH and 53xxH is 1.125TB. For larger memory capacity per socket the ‘HL’ version of a processor must be used

    DDR4 Memory

    HPE Superdome Flex 280 32GB (1x32GB) Dual Rank x4 DDR4-3200 Registered Standard Memory Kit

    R4S26A

    HPE Superdome Flex 280 64GB (1x64GB) Dual Rank x4 DDR4-3200 Registered Standard Memory Kit

    R4S27A

    Notes:

    − Memory kits contain a single DIMM

    − DDR4 Memory mixing of 64GB LRDIMM DDR4 and 128GB LRDIMM DDR4 is allowed. Populate with ½ each type.

    − Memory can be loaded either as 1, 4, 6 or 12 per socket

    Intel Optane 128GB persistent memory 200 Series for HPE Superdome Flex 280

    R4S31A

    Intel Optane 256GB persistent memory 200 Series for HPE Superdome Flex 280

    R4S32A

    Intel Optane 512GB persistent memory 200 Series for HPE Superdome Flex 280

    R4S33A

    Notes:

    − Chassis must be ½ populated with DDR4 DIMMs before Persistent Memory can be added

    − No mixing of DDR4 memory sizes is supported when Persistent Memory is utilized

    − Persistent Memory DIMMS must be populated across each socket with 6 per socket

    − Minimum OS levels are required for support of Persistent Memory

    − Superdome Flex 280 supports only App-direct Mode for Persistent Memory

    − Persistent Memory supported only on 4 socket systems

    Optical Drives

    Description

    SKU

    HPE Superdome Flex 280 9.5mm SATA Internal DVD-RW Optical Drive

    R4S34A

    HPE Superdome Flex 280 9.5mm SATA Internal DVD-ROM Optical Drive

    R4S35A

    Notes:

    − One (1) DVD is optional in Base Chassis and is not available in the Expansion Chassis

    − DVD option is not allowed if optional 2 drive Premium Storage backplane is configured to Base Chassis

    Storage Backplanes

    HPE Superdome Flex 280 8SFF Standard Storage Backplane Kit

    R4S21A

    HPE Superdome Flex 280 8SFF Premium Storage Backplane Kit

    R4S22A

    HPE Superdome Flex 280 2SFF Premium Storage Backplane Kit

    R4S23A

    Drives

    Internal SATA Solid State Drives

    HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40502-H21

    HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40503-H21

    HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40504-H21

    HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

    P40505-H21

    HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

    P58244-B21

    Internal SAS Hard Disk Drives

    HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

    P28586-H21

    HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

    P53562-H21

    HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

    P28352-H21

    Internal SAS Solid State Drives

    HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49047-H21

    HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49049-H21

    HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49053-H21

    HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

    P49057-H21

    HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

    P49041-H21

    HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

    P49045-H21

    HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-2 PM7 SSD

    P63871-B21

    NVMe U.3 Drives

    HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P64999-H21

    HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P65007-H21

    HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P65015-H21

    HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

    P65023-H21

    HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

    P50227-H21

    HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

    P50230-H21

    HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

    P50233-H21

    Notes: SED Drives are only supported with Broadcom based storage controllers: R4R49A and R5Y74A

    PCIe Infrastructure

    Notes:

    − Each chassis requires exactly one (1) PCIe option: R4S36A, R4S37A or R4S38A

    − The Base Chassis requires either R4S36A or R4S37A

    HPE Superdome Flex 280 PCIe Full Height 12-slot Bulkhead with 1x 4-slot Riser Kit

    R4S36A

    Notes: R4S36A includes two (2) Full Height x8 and two (2) Full Height x16 – Left Riser. Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5”. R4S36A also accommodates both Full Height and Low Profile cards


    HPE Superdome Flex 280 PCIe Low Profile 16-slot Bulkhead with 1x 4-slot Riser Kit

    R4S37A

    Notes: R4S37A includes two (2) Low Profile x8 and two (2) Low Profile x16 – Left Riser. Maximum Length of PCIe card when installed in 16-slot Bulkhead = 6.6”.


    HPE Superdome Flex 280 PCIe 0-slot Compute Only Bulkhead

    R4S38A

    HPE Superdome Flex 280 4-slot 2x8/2x16 PCIe Left Riser

    R4S12A

    Notes:

    − Additional riser not available with R4S36A. Functionality included with R4S36A

    − One (1) available with R4S37A with 4 processors per chassis

    − Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5”. Maximum length of PCIe card when installed in 16-slt Bulkhead = 6.6”

    HPE Superdome Flex 280 4-slot 2x8/2x16 PCIe Right Riser

    R4S39A

    Notes:

    − One (1) available with R4S36A with 4 processors per chassis.

    − One (1) available with R4S37A with 2 processors per Base chassis, two (2) available with 4 processors per chassis.

    − Accommodates both Full Height and Low Profile cards when used with R4S36A

    − Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5”. Maximum length of PCIe card when installed in 16-slt Bulkhead = 6.6”

    HPE Superdome Flex 280 4-slot 4x16 PCIe Center Riser

    R4S13A

    Notes:

    − One (1) available with R4S36A. When only two (2) processors are present then only (2) x16 are active.

    − When four (4) processors are present then four (4) x16 are active.

    − Maximum length of PCIe card = 6.6”

    RAID Controllers

    HPE Superdome Flex 280 SR3154-16i 16-port 4GB Cache SAS 12G PCIe3 x8 Controller

    R4R47A

    HPE Superdome Flex 280 SR3154-24i 24-port 4GB Cache SAS 12G PCIe3 x8 Controller

    R4R48A

    HPE SR3258p-32i/e 32-port 8GB Cache Tri-Mode 24G PCIe4 x16 Encrypted Controller

    R4R52A

    Broadcom MegaRAID 9560-16i 16-port 8GB Cache Tri-Mode 12G PCIe4 x8 Cntrl for HPE Superdome Flex 280

    R4R49A

    Description

    SKU

    Broadcom MegaRAID 9560-8i 8-port 4GB Cache Tri-Mode 12G PCIe4 x8 Cntrl for HPE Superdome Flex 280

    R5Y74A

    HPE 3154-8e 8-port External RAID Controller

    Q6M15A

    Notes:

    − HPE 3154-8e is equivalent to HPE P408e-p (804405-B21)

    − Q6M15A, R4R47A, R4R48A, R4R49A, R4R52A and R5Y74A require a second PCIe slot for a tethered supercap

    − HPE SR3258p-32i/e is a full-height card (requires 12-slot PCIe backplane) and will be slotted 2,4,or 13 with full functionality and bootable through UEFI driver. Additional slots may be used and still have the card be bootable. This selection requires a second PCIe slot for the tethered supercap.

    Fibre Channel HBAs

    HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

    Q0L13A

    HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

    P9D93A

    HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

    P9D94A

    HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

    Q0L14A

    HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter

    R2J62A

    HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

    R2E08A

    HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter

    R2J63A

    HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

    R2E09A

    HPE SN1700E 64Gb 1-port Fibre Channel Host Bus Adapter

    R7N77A

    HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

    R7N86A

    Notes: Max eight (8) per chassis/ Max 16 per system


    Networking cards

    Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

    P26262-B21

    HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

    811546-B21

    HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter

    874253-B21

    Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

    P26253-B21

    Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

    P51178-B21

    Notes:

    − Max eight (8) per chassis/Max 16 per system. Exception is Pensando card and 874253-B21

    − The 640SFP28 Adapter (817753-B21) require transceivers or direct attached copper (DAC) cables (min 1/max2)

    − Pensando Distributed Services Platform DSC-25 Enterprise 10/25Gb 2-port SFP28 Card requires RTU license. Max 2 per chassis/4 per system

    − 874253-B21. Max four (4) per chassis/Max 8 per system

    − Server networking transceiver and cable compatibility matrix can be found here

    InfiniBand cards

    Description

    SKU

    HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe3 x16 MCX653105A-ECAT Adapter

    P06250-H21

    HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter

    P06251-H21

    Notes:

    − Max four (4) P06250-H21, or P06251-H21 per chassis/Max 8 per system

    − No mixing of InfiniBand card types in the same system

    − P06251-H21 is supported with VMWare in Ethernet Only mode

    GPU Accelerators

    NVIDIA L4 24GB PCIe Accelerator for HPE

    S0K89C

    NVIDIA H100 NVL 94GB PCIe Accelerator for HPE

    S2D86C

    HPE Superdome Flex 8 Pin GPU Cable Kit

    Q6M17A

    HPE Superdome Flex 6+2 Pin GPU Cable Kit

    Q6M16A

    HPE Superdome Flex/280 PCIe 8-pin/16-pin 310W Accelerator Cable Kit

    S2A41A

    Notes:

    − Max four (4) H100 NVL, A30 or A40 per chassis, 8 per system

    − No mixing of GPU controller types in the same chassis or system

    − GPU Controllers require the R4S36A (12-slot PCIe riser) to be in the same Chassis. It is recommended that all three risers be present whenever GPU controllers are added to the config

    − GPU Controllers are ‘double-wide’ and therefore utilize two adjacent PCIe slots A30 and A40 GPU Accelerator requires one Q6M17A cable kit for each Accelerator

    − Inner node, peer-to-peer communication is not supported with Superdome Flex 280

    − H100, H100 NVL and L40 GPU Accelerator requires one S2A41A cable Kit for each Accelerator.

    − H100, H100 NVL max operation power is limited to 310 Watts

    Foundation Software

    HPE Foundation Software 2 for Red Hat Enterprise Linux Media FIO LTU

    Q7N13A

    HPE Foundation Software 2 for SUSE Linux Enterprise Server Media FIO LTU

    Q7N14A

    HPE Foundation Software 2 for Red Hat Enterprise Linux Media

    Q7Y82A

    HPE Foundation Software 2 for SUSE Linux Enterprise Server Media

    Q7Y83A

    HPE Foundation Software 2 for Oracle Linux Media

    Q7Y84A

    HPE Foundation Software 2 for Red Hat Enterprise Linux Media License RTU

    Q7N11A

    HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU

    Q7N12A

    HPE Foundation Software 2 for Oracle License RTU

    Q7N16A

    Notes:

    − Exactly one (1) RTU is required per system with a Linux O/S distribution

    − Minimum one (1) Foundation SW FIO or Media is required per system with a Linux O/S distribution

    − Selected RTU must match selected FIO and/or Media option

    System Expansion and Upgrades

    System Expansion Kits are utilized when scaling up a Superdome Flex 280. When adding an Expansion chassis internal UPI, connections will need to be ordered as well as external UPI cabling

    Description

    SKU

    HPE Superdome Flex 280 2-4 Sockets Upgrade Kit

    R7Q03A

    HPE Superdome Flex 280 6-8 Sockets Upgrade Kit

    R7Q04A

    HPE Superdome Flex 280 6-8 Sockets UPI Internal Interconnect and Scale Activation Kit

    R4R09A

    HPE Superdome Flex 280 6-8 Sockets UPI External Interconnect and Scale Activation Kit

    R4R10A

    Notes:

    − One (1) R7Q03A is required when upgrading a Base chassis from 2 processors to 4 processors

    − One (1) R7Q04A is required when upgrading a Expansion chassis (6 socket system) from 2 processors to 4 processors

    − One (1) R4R09A is required for the existing Base Chassis for field upgrade.

    − One (1) R4R09A is required for Expansion Chassis

    − One (1) R4R10A is required for field upgrade

    Additional Options

    Power Distribution Options

    The following PDUs are supported with Superdome Flex 280—refer to the server menu for ordering & configuration rules.

    Description

    SKU

    HPE G2 IEC C20 Input/(8) C13 Expansion Outlets/PDU Extension Bar Kit

    P9Q66A

    Notes: Two are required.


    Enlogic by nVent G3 Basic 1-phase 4.9kVA/24A/200-240V Outlets (16) C13 (4) Combo C13/C19 PDU for HPE

    P59519-B21

    Enlogic by nVent G3 Basic 1-phase 4.9kVA/24A/200-240V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE

    P59420-B21

    Enlogic by nVent G3 Basic 1-phase 7.3kVA/32A/200-240V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE

    P59421-B21

    For more information please go to HPE Standard Series G2 Basic Power Distribution Units (PDU) QuickSpecs &

    Enlogic by nVent G3 Enterprise Power Distribution Units for HPE QuickSpecs:

    Chassis Options

    HPE Superdome Flex 280 Chassis Bezel

    R4R07A

    HPE Superdome Flex 280 Chassis Intrusion Detection Kit

    R4S20A

    Notes: One per chassis, if 8 socket system, both chassis must have the same options.


    Memory

    Superdome Flex DDR4 DIMM loading rules and numbering (top-down view of chassis)

    image 6

    Superdome Flex 280 DDR4 DIMM loading rules

    Chan0 DIMM Slots

    Chan1 DIMM Slots

    Chan2 DIMM Slots

    Chan3 DIMM Slots

    Chan4 DIMM Slots

    Chan5 DIMM Slots

    CPU0

    A0

    A1

    B0

    B1

    C0

    C1

    D0

    D1

    E0

    E1

    F0

    F1

    CPU1

    G0

    G1

    H0

    H1

    J0

    J1

    K0

    K1

    L0

    L1

    M0

    M1

    CPU2

    N0

    N1

    P0

    P1

    Q0

    Q1

    R0

    R1

    S0

    S1

    T0

    T1

    CPU3

    U0

    U1

    V0

    V1

    W0

    W1

    X0

    X1

    Y0

    Y1

    Z0

    Z1

    1 DIMM/CPU

    X

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    4 DIMMs/CPU

    X

    -

    X

    -

    -

    -

    X

    -

    X

    -

    -

    -

    6 DIMMs/CPU

    X

    -

    X

    -

    X

    -

    X

    -

    X

    -

    X

    -

    12 DIMMs/CPU

    X

    X

    X

    X

    X

    X

    X

    X

    X

    X

    X

    X

    12 DIMMs/CPU (Mixed) 128GB and 64GB LRDIMMs only

    128

    64

    128

    64

    128

    64

    128

    64

    128

    64

    128

    64

    Memory Mirroring Rules

    • − Memory mirroring is supported in the 4, 6, and 12 DDR4 DIMMs/CPU configurations.
    • − Memory mirroring is NOT supported in the 1 DDR4 DIMM/CPU configuration.
    • − Memory mirroring is NOT supported when Persistent Memory DIMMs are installed.

    Technical Specifications

    This section describes the physical and environmental information for a chassis.

    Superdome Flex 280 chassis

    Physical Information

    Site planning and installation included

    Yes

    Maximum Heat dissipation (fully populated system)

    17.40 kBTU/hr

    Depth (handle to handle)

    879.5 mm / 34.63”

    Width (not including mounting rails)

    445 mm / 17.5"

    Height

    218.2 mm / 8.59" (5U)

    Weight - Maximum (fully populated)

    Range between 40.8 kg / 90 lb to 56.7 kg / 125 lb

    Electrical Characteristics

    Single phase (200/240)

    4 IE320-C13

    Maximum Input Power total

    5.27 KVA

    Environmental Characteristics

    Cooling airflow (front to back)

    Without GPUs: 300 CFM typical; 650 CFM max

    With GPUs: 475 CFM typical; 650 CFM max

    Acoustics

    88 dBA (maximum)

    77 dBA (typical, fans at 50%)

    Temperature - Recommended Operating Range1,2

    +18°C to +27°C

    Temperature - Allowable Operating Range1,2

    +5°C to +35°C

    Maximum rate of temperature change

    20°C/hr non-condensing

    Non-operating temperature (storage)

    -40°C to +60°C

    Air quality

    Gaseous contaminants must be at the G1 level or less as defined by ISA Standard ISA-71.04-1985

    Humidity - Recommended Operating Range (non-condensing)1

    -9°C DP to 15°C DP and 60% RH

    Humidity - Allowable Operating Range (non-condensing)1

    -12 °C DP and 8% RH to 24 °C DP and 85% RH

    Non-operating relative humidity (storage)

    8% RH to 90% RH and 32 °C DP

    Maximum Operating altitude

    3050m (10,000 ft)

    Maximum Non-operating altitude (storage)

    4500m (15,000 ft) non-pressurized

    Notes:

    − The Recommended Operating Range is recommended for continuous operation. Operating within the Allowable Operating Range is supported but may result in a decrease in system performance.

    − All temperature ratings shown are for sea level. An altitude de-rating of 1°C per 300 m above 1524 m is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft).

    Environmental Info

    Regulatory model numbers:

    • − Chassis (R4R03A, R4R04A, R4R05A, R4R06A) RMN: CHPF-071

    Additional Power Data

    The maximum power figures given were developed with the maximum configuration running applications designed to draw the maximum power possible. It is highly unlikely that any real-world application will result in this amount of power use for any significant time period.

    Summary of Changes

    Date

    Version History

    Action

    Description of Change

    15-Dec-2025

    Version 37

    Changed

    Operating Systems table was updated in Standard Features section.

    28-Jul-2025

    Version 36

    Changed

    Update survey link.

    23-Jun-2025

    Version 35

    Changed

    Standard Features and Configuration Information sections were updated – Changes in these sections reflects 727055-B21 Ethernet SKU removal.

    Removed

    Obsolete SKUs were removed - 727055-B21, R4S30A

    05-May-2025

    Version 34

    Changed

    Standard Features and Configuration Information sections were updated.

    07-Apr-2025

    Version 33

    Changed

    Standard Features section was updated

    13-Jan-2025

    Version 32

    Changed

    Standard Features section was updated

    16-Dec-2024

    Version 31

    Changed

    Standard Features and Configuration Information sections were updated.

    05-Aug-2024

    Version 30

    Changed

    Standard Features and Configuration Information sections were updated.

    08-Apr-2024

    Version 29

    Changed

    Standard Features section was updated

    01-Apr-2024

    Version 28

    Changed

    Standard Features and Configuration Information sections were updated.

    26-Feb-2024

    Version 27

    Changed

    Overview, Standard Features and Configuration Information sections were updated.

    22-Jan-2024

    Version 26

    Changed

    Configuration Information section was updated

    04-Dec-2023

    Version 25

    Changed

    Service and Support section was updated.

    06-Nov-2023

    Version 24

    Changed

    Configuration Information section was updated. Obsolete SKU was removed.

    05-Sep-2023

    Version 23

    Changed

    Configuration Information section was updated.

    01-May-2023

    Version 22

    Changed

    Configuration Information and Technical Specifications sections were updated

    03-Apr-2023

    Version 21

    Changed

    Configuration Information section was updated.

    Obsolete SKU was removed from Drives menu.

    New SKU was added in GPU Accelerators menu

    19-Dec-2022

    Version 20

    Changed

    Configuration Information section was updated

    05-Dec-2022

    Version 19

    Changed

    Overview, Standard Features and Configuration Information sections were updated

    10-Oct-2022

    Version 18

    Changed

    Configuration Information section was updated

    Obsolete SKU was removed

    06-Sep-2022

    Version 17

    Changed

    Standard Features section was updated.

    18-Jul-2022

    Version 16

    Changed

    Standard Features and Configuration Information sections were updated

    Obsolete SKU – 878038-H21 was removed

    06-Jun-2022

    Version 15

    Changed

    Standard Features and Configuration Information sections were updated

    SKU – R6B53A was removed

    14-Mar-2022

    Version 14

    Changed

    Standard Features and Configuration Information sections were updated

    SKUs – R7E31A and R8T79A were removed

    07-Mar-2022

    Version 13

    Changed

    Overview, Standard Features and Configuration Information sections were updated

    06-Dec-2021

    Version 12

    Changed

    Standard Features and Configuration Information sections were updated

    Obsolete SKU was removed

    01-Nov-2021

    Version 11

    Changed

    Standard Features and Configuration Information sections were updated

    Service and Support Pointnext Tech Care and Complete Care information updated

    07-Sep-2021

    Version 10

    Changed

    Standard Features and Configuration Information sections were updated

    Service and Support Pointnext Tech Care information added

    Obsolete SKUs were removed

    06-Jul-2021

    Version 9

    Changed

    Standard Features and Configuration Information sections were updated

    04-May-2021

    Version 8

    Changed

    Overview, Standard Features, Service and Support and Configuration Information sections were updated

    15-Mar-2021

    Version 7

    Changed

    Overview, Standard Features, Configuration Information and Technical Specifications sections were updated

    15-Feb-2021

    Version 6

    Changed

    Standard Feature and Technical Specifications were updated.

    Obsolete SKUs were removed

    07-Dec-2020

    Version 5

    Changed

    Overview, Standard Features, Configuration Information, and Technical Specifications sections were updated.

    02-Nov-2020

    Version 4

    Changed

    Overview, Standard Features and Configuration Information sections were updated.

    05-Oct-2020

    Version 3

    Changed

    Standard Features and Configuration Information sections were updated.

    08-Sep-2020

    Version 2

    Changed

    Overview, Standard Features, and Configuration information sections were updated.

    03-Aug-2020

    Version 1

    New

    New QuickSpecs

    Shape the Future of QuickSpecs - Your Input Matters

    © Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein

    a00059763enw, 16530 - Worldwide - V37 - 15-December-2025

    Recommended for you
