Simple and Secure Access

To simplify policy enforcement, the 570 series uses HPE Aruba Networking’s Policy Enforcement Firewall (PEF) to encapsulate all traffic from the access point to the Mobility Controller (gateway) for end-to-end encryption and inspection. Policies are applied based on context including user role, device type, application, and location. This reduces the manual configuration of SSIDs, VLANs, and ACLs. PEF also serves as the underlying technology for HPE Aruba Networking Dynamic Segmentation.

Flexible Operation and Management

Our unified access points can operate as standalone access points or with a gateway for greater scalability, security, and manageability. Access points can be deployed using Zero Touch Provisioning—without on-site technical expertise—for ease of implementation in branch offices and for remote work.

HPE Aruba Networking access points can be managed using cloud-based or on-premises solutions for any campus, branch, or remote work environment.

HPE Aruba Networking Central provides a single pane of glass for overseeing every aspect of wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution.

Additional Wi-Fi Features

• Transmit Beamforming (TxBF)
• Increased signal reliability and range
• Dynamic Frequency Selection (DFS)
• Optimized use of available RF spectrum
• Maximal Ratio Combining (MRC)
• Improved receiver performance for multi antenna access points
• Cyclic Delay/Shift Diversity (CDD/CSD)
• Enable use of multiple transmit antennas
• Space-Time Block Coding (STBC)
• Increased connection robustness
• Low-Density Parity Check (LDPC)
• High performance error detection and correction coding for enhanced receiver performance.

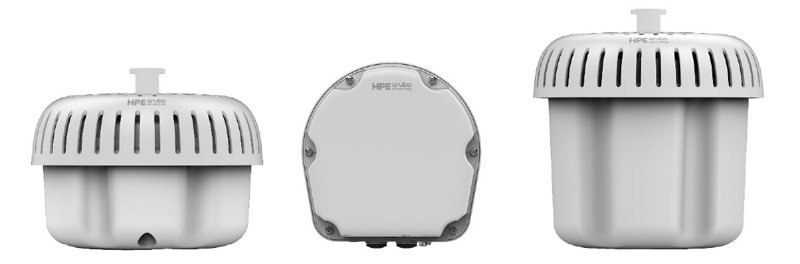

AP-570 Series specifications

Hardware Variants

• AP-574

  • − 5 GHz: Four Nf connectors for external antenna operation
  • − 2.4 GHz Two Nf connectors for external antenna operation
  • − BLE/Zigbee: Integrated omnidirectional antenna and peak gain of 4.2dBi
• AP-575

  • − Built in Omni Directional Antennas
  • − 5 GHz Antennas 5dBi
  • − 2.4 GHz Antennas 3.4dBi
  • − BLE/Zigbee: Integrated omnidirectional antenna and the peak gain of 6dBi
• AP-577

  • − Built in 90°H x 90°V Directional Antennas
  • − 5 GHz Antennas 5.6dBi
  • − 2.4 GHz Antennas 6.8dBi
  • − BLE/Zigbee: Integrated omnidirectional antennas with peak gain of 8.4dBi

WI-FI Radio Specifications

• AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz.
• Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max)
• Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 Wi-Fi 6 client device (typical)
• Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (max)
• Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (typical) 2.4 GHz
• Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max)
• Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 Wi-Fi 6 client device (typical)
• Support for up to 512 associated client devices per radio, and up to 16 BSSIDs per radio
• − Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz (ISM)
• − 5.150 to 5.250 GHz (U-NII-1)
• − 5.250 to 5.350 GHz (U-NII-2A)
• − 5.470 to 5.725 GHz (U-NII-2C)
• − 5.725 to 5.850 GHz (U-NII-3/ISM)
• − 5.850 to 5.875 GHz (U-NII-4)
• Available channels: Dependent on configured regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
• Supported radio technologies:
• − 802.11b: Direct-sequence spread-spectrum (DSSS)
• − 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
• − 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
• Supported modulation types:
• − 802.11b: BPSK, QPSK, CCK
• − 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256‑QAM (proprietary extension)
• − 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256‑QAM, 1024 QAM (proprietary extension)
• − 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256‑QAM, 1024 QAM
• 802.11n high-throughput (HT) support: HT20/40
• 802.11ac very high throughput (VHT) support: VHT20/40/80/160
• 802.11ax high efficiency (HE) support: HE20/40/80/160
• Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11
• − 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• − 802.11n (2.4 GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
• − 802.11n (5 GHz): 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)
• − 802.11ac: (5 GHz): 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4 for VHT20 to VHT160)
• − 802.11ax (2.4 GHz): 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
• − 802.11ax (5 GHz): 8.6 to 4803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
• 802.11n/ac/ax packet aggregation: A-MPDU, A-MSDU
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (conducted) transmit power (limited by local regulatory requirements):
• − 2.4 GHz band: +22 dBm per chain, +25 dBm aggregate (2x2)
• − 5 GHz band: +22 dBm per chain, +28 dBm aggregate (2x2)

  • Note: conducted transmit power levels exclude antenna gain.
• Maximum EIRP (limited by local regulatory requirements):
• − 2.4 GHz band: 574: 25 + Antenna Gain + TxBF Gain
• − 5 GHz band: 574: 28 + Antenna Gain + TxBF Gain
• Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas
• Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal reliability and range
• 802.11mc Fine Timing Measurement (FTM) for precision distance ranging

Power

• Maximum (worst-case) power consumption:
• PoE powered (dual ports): 32.0W
• PoE powered (single port, full function): 26.1W
• Maximum (worst-case) power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE)
• Maximum (worst-case) power consumption in deep‑sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)
• The access points supports Power over Ethernet (PoE; on port E0 and/or E1)
• When PoE power is supplied to both Ethernet ports, the access points can be configured to combine or prioritize power sources
• Power sources are sold separately; see the ordering Information section below for details
• When powered by 1x 802.3at (class 4) PoE and with the IPM feature disabled, the AP will disable the other Ethernet port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. The feature restrictions and order can be programmed.
• Operating the AP with single or dual 802.3af (class 3 or lower) PoE source is not supported.

Additional Interfaces

• E0: HPE SmartRate port (RJ-45)
• − Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDIX
• − 2.5Gbps speed complies with NBase-T and 802.3bz specifications
• − PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
• − 802.3az Energy Efficient Ethernet (EEE)
• E1: 100/1000BASE-T (RJ-45)
• − Auto-sensing link speed and MDI/MDIX
• − 802.3az Energy Efficient Ethernet (EEE)
• − PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
• Link Aggregation (LACP) support between both network ports for redundancy and increased capacity
• Bluetooth 5 and 802.15.4 radio
• − 2.4 GHz
• − Bluetooth 5: up to 8dBm transmit power and -95dBm receive sensitivity
• − Zigbee: up to 8 dBm transmit power and -97dBm receive sensitivity
• − Up to 4dBm transmit power (class 2) and -91 dBm receive sensitivity
• Visual indicator (multi-color LED): For system and radio status
• Reset button: Factory reset (during device power up)
• USB-C console interface

Mounting

• Optional mounting kits:
• − AP-OUT-MNT-V1A: Outdoor Pole/Wall Long Mount Kit
• − AP-270-MNT-V2: Outdoor Pole/Wall Short Mount Kit
• − AP-270-MNT-H1: Outdoor AP Hanging or Tilt Install Mount Kit
• − AP-270-MNT-H2: Outdoor Flush Wall or Ceiling Mount
• − AP-270-MNT-H3: Outdoor AP Hanging or Dual-Tilt Install Mount Kit

Mechanical

• AP-574
• − Dimensions/weight (excluding mount):
• − 24 cm (W) x 24 cm (D) x 19 cm (H)/9.4" (W) x 9.4" (D) x 7.5" (H)
• − 2.7 kg/6.0 lbs
• AP-575
• − Dimensions/weight (excluding mount):
• − 24 cm (W) x 24 cm (D) x 27 cm (H)/9.4" (W) x 9.4" (D) x 10.6" (H)
• − 2.5 kg/5.6 lbs
• AP-577
• − Dimensions/weight (excluding mount):
• − 23 cm (W) x 22 cm (D) x 14 cm (H)/9.0" (W) x 8.7" (D) x 5.6" (H)
• − 2.1 kg/4.6 lbs

Environmental

• Operating:
• − Temperature: -40° C to +65° C (-40° F to +149° F) with full solar loading
• − Humidity: 5% to 93% non-condensing internal
• − Rated for operation in all weather conditions
• Storage and transportation:
• − Temperature: -40° C to +70° C (-40° F to +158° F)
• Operating Altitude: 3,000 m
• Water and Dust
• − IP66/67
• Salt Tolerance
• − Tested to ASTM B117-07A Salt Spray 200hrs
• Wind Survival: Up to 165 Mph
• Shock and Vibration ETSI 300-19-2-4

Regulatory

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• IEC/EN/UL 62368-1
• EN 60601-1-1, EN60601-1-2
• Railway Certs:
• − EN 50155:2017—Railway Applications
• − EN 50121-1:2017—Railway EMC
• − EN 50121-3-2—Railway EMC
• − EN 50121-4:2016—Railway Immunity
• − IEC 61373 ed2:2008—Railway Shock and Vibration

For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative.

Regulatory model numbers

• AP-574: APEX0574
• AP-575: APEX0575
• AP-577: APEX0577

Certifications

• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance certified 802.11a/b/g/n/
• Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
• Wi-Fi CERTIFIED™ ac (with wave 2 features)
• Wi-Fi CERTIFIED Location™

Warranty

HPE Aruba Networking's hardware limited lifetime warranty.

Minimum operating system software

• HPE Aruba Networking Operating System and HPE Aruba Networking InstantOS 8.7.0.0
• HPE Aruba Networking Operating System 10.2.0.0

Antenna Patterns AP-575

Horizontal Planes (Azimuth, Top View)

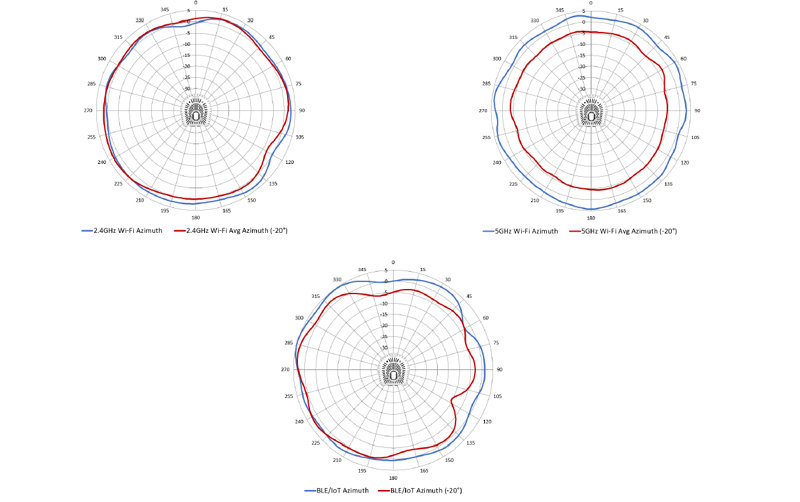

Showing top-view azimuth (0 degrees) and 20 degree downtilt patterns (averaged patterns for all applicable antennas and frequencies within the bands)

Vertical Planes (Elevation, Side View Radome Facing Down)

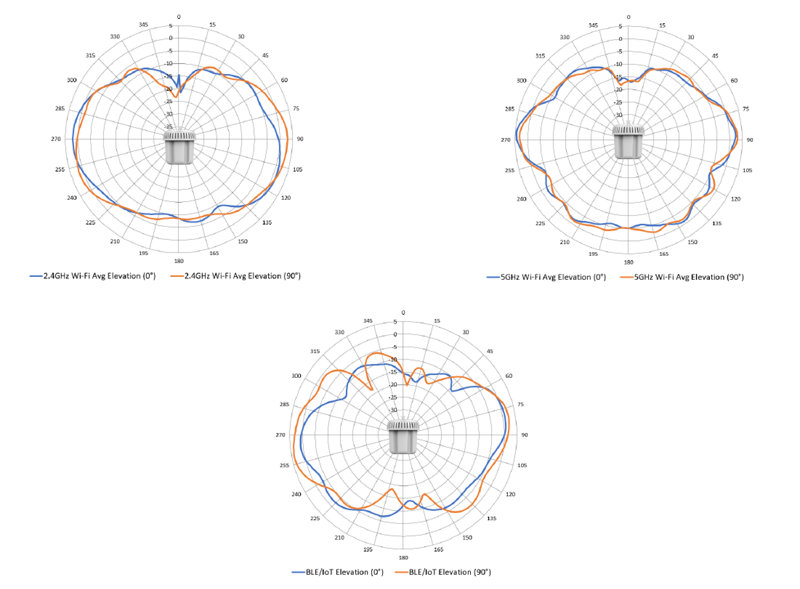

Showing side-view with access point rotated 0 and 90 degrees (averaged patterns for all applicable antennas and frequencies within the bands)

Antenna Patterns AP-577

Horizontal Planes (Azimuth, Top View, Radome Facing Left)

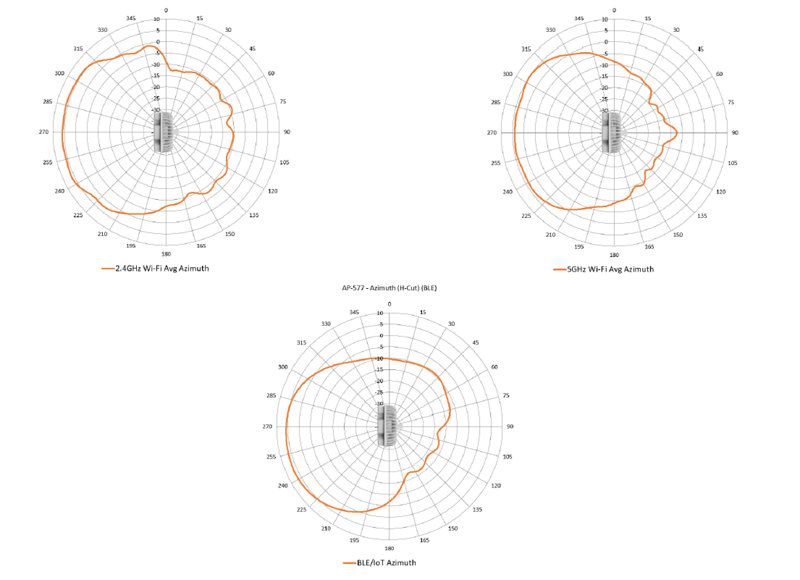

Showing top-view patterns (averaged patterns for all applicable antennas and frequencies within the bands)

Vertical Planes (Elevation, Side View, Radome Facing Left)

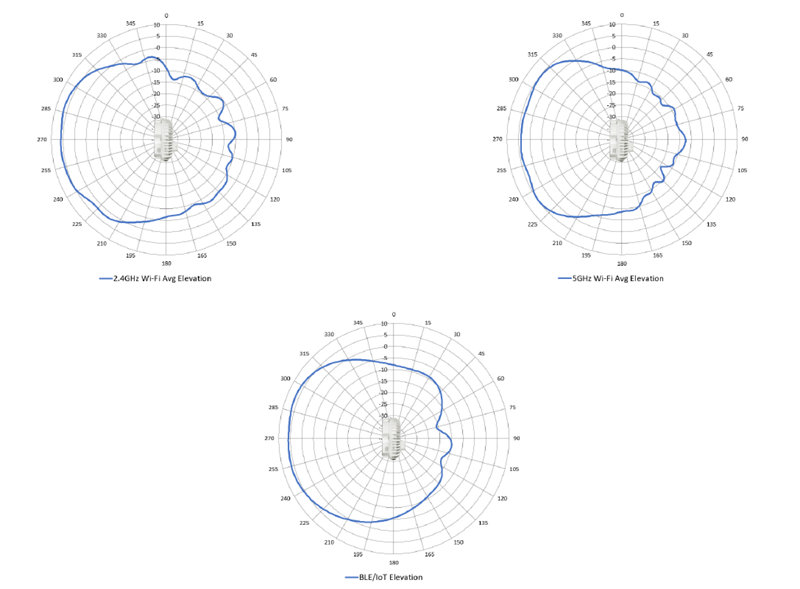

Showing side-view patterns (averaged patterns for all applicable antennas and frequencies within the bands)
