HPE Aruba Networking CX 8325 Switch Series QuickSpecs
Table of Contents
The HPE Aruba Networking CX 8325 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era.
These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR). They provide up to 6.4 Tbps of bidirectional switching capacity, with line-rate gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
Overview
The HPE Aruba Networking CX 8325 Switch Series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports.

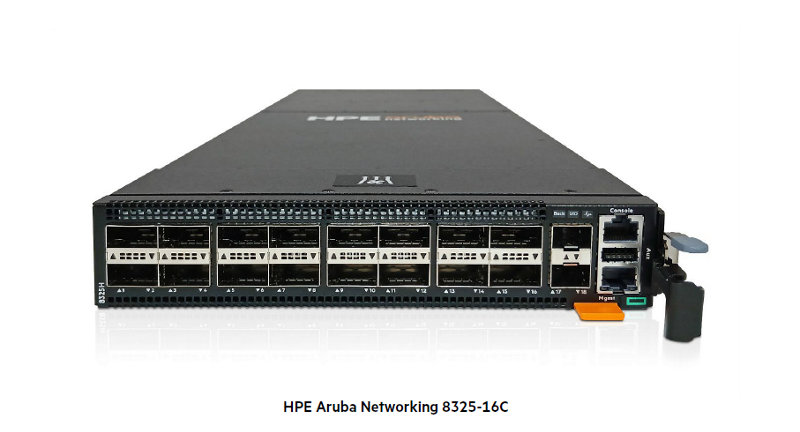

HPE Aruba Networking CX 8325H Switch Series
HPE Aruba Networking CX 8325H switches are designed to provide high-performance, high-density 1/10/25/40/100G connectivity with fixed redundancy on power and cooling in a half-width, single RU form factor, while meeting the requirements of a wide array of compute and storage lossy and lossless networking use cases. These half-width switches help organizations balance density, high availability, and affordability which helps to save space and costs on server, storage and HCI connectivity.
HPE Aruba Networking CX 8325H are also ideal for smaller, edge or colocation data centers that require limited port density and/or have limited rack space. The CX 8325H can be used in small campus and branch locations where space is at a premium (e.g., retail locations, healthcare facilities, media, financial and enterprise branches) and do not always have IT racks but often have storage closets being used to store servers and IT equipment).
HPE Aruba Networking CX 8325H leverages the same high-performance ASIC and fully featured operating system that the full-width CX 8325 provides. This AOS-CX operating system provides a modern, database driven OS that automates and simplifies critical and complex network tasks and includes an advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, IPv6, dynamic VXLAN and intelligent monitoring, visibility, and remediation with our network analytics engine.
The switch can be managed with HPE Aruba Networking Central, our cloud-based network management solution or on-premises management via HPE Aruba Networking Fabric Composer, NetConductor or CLI based management.
HPE Aruba Networking CX 8325P Switch Series
The HPE Aruba Networking CX 8325P, a part of the HPE Aruba Networking CX 8325 family, delivers key solutions for providers in their 5G (Radio Access Network) and edge computing deployments. Greater flexibility is built to ensure a range of deployment models by allowing 1G(1 superscript), 10G, 25G, 40G and 100G computing deployments, while ensuring greater interoperability with key HPE Telco solutions. More importantly, the CX 8325P includes key features such as PTP (1588v2), SMPTE, Telecom Profiles G.8275.1 and G.8275.2 with Class C performance, Synchronous Ethernet (SyncE, G.8262.1), and Global Navigation Satellite System (GNSS) to support Telco Boundary Clock and, in the future, Telco Grand Master Clock(2 superscript).
When deployed as a platform for mobile backhaul, the CX 8325P can aggregate cell sites as a transport for Radio Access Network (RAN) backhaul traffic. It also provides the timing services required in today’s converged access networks by offering integrated support for 10 MHz and 1 Pulse Per Second (1PPS) using SubMiniature version B (SMB) connectors, Time of Day (TOD) using RJ45 connectors, and GNSS using SubMiniature version A (SMA) connectors. In addition, CX 8325P is NEBS compliant to support AC or DC power inputs.
The CX 8325 switch series is designed with Quality of Service (QoS) features, full-featured Layer 2 and Layer 3, and advanced EVPN-VXLAN features. For enhanced visibility and troubleshooting, the HPE Aruba Networking Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact a network’s health. Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily, using python agents, CLI-based agents and REST APIs.
Key Features
CX 8325
High availability with industry-leading VSX redundancy, and redundant power supplies and fans
Designed for core/aggregation in the campus or Top of Rack (ToR) or End of Row (EoR) in the data center
HPE Aruba Networking CX Operating System automation and programmability using built-in REST APIs and Python scripts
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine
HPE Aruba Networking Storage Optimized with validated Ethernet Storage Fabric solutions with HPE Storage and HCI solutions
HPE Aruba Networking NetEdit support for automated.
Compact 1U switch with 1/10/25GbE and 40/100GbE connectivity
High hardware scale, including key data center and DCBx features including NEBS certification, N+1 fan tray redundancy with Front to Back or Back to Front airflow, N+1 redundant and hot swappable AC or DC power supplies, supporting a variety of deployment models
CX 8325H
High-performance, high density 1/10/25/40/100G connectivity with fixed, redundant power (1+1) and fans (3+1).
Enables low-latency and lossless network QoS and connectivity characteristics that storage requires.
CX 8325H-18Y4C is designed to support any combination of 1/10/25G interfaces on its 18 ports – no port grouping necessary. The 4 ports of 100G can be split using breakout cabling depending on your needs.
CX 8325H-16C allows for different port speeds with breakout cabling, allowing for a single 100G to be split into 4x25G.
Supports VXLAN-EVPN, BGP, OSPF, Multicast.
CX 8325P-32C
Supports PTP (1588v2), SMPTE, Telecom Profiles G.8275.1 and G.8275.2 with Class C performance, Synchronous Ethernet (SyncE, G.8262.1)
- PTP timing interfaces: 1PPS, 10 Mhz, and ToD + 1PPS input and output clocks GNSS module with antenna input interface
Supports Global Navigation Satellite System (GNSS) to support Telco Boundary Clock and, in the future, Telco Grand Master Clock(2 superscript)
Standard Features
HPE Aruba Networking CX Operating System—A Modern Software System
The HPE Aruba Networking CX 8325 Switch Series is based on HPE Aruba Networking CX Operating System, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.
A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks. HPE Aruba Networking CX Operating System operating system features are organized into HPE Aruba Networking CX Foundational and HPE Aruba Networking CX Advanced software licenses.
Every HPE Aruba Networking CX switch includes AOS-CX at no cost and with an active, perpetual set of native features which has everything needed to deploy, connect, and troubleshoot an enterprise network, including:
HPE Aruba Networking Network Analytics Engine (NAE)
Dynamic Segmentation
Switch Stacking
High Availability and Resiliency
Quality of Service (QoS)
Layer 2 Switching
Layer 3 Services and Routing
IP Multicast
Network Security
Support for HPE Aruba Networking Switch Multi-Edit Software
In addition to the native features available in AOS-CX, we offer an optional, term-based HPE Aruba Networking CX Advanced Feature Pack that unlocks container infrastructure that can host HPE certified applications for flexible and reliable IT services.
For more information, read the HPE Aruba Networking CX Feature Pack Ordering Guide.
Because HPE Aruba Networking CX1 is built on a modular Linux architecture with a stateful database, our operating system provides the following unique capabilities:
Easy access to all network state information allows unique visibility and analytics
REST APIs and Python scripting for fine-grained programmability of network tasks
A micro-services architecture that enables full integration with other workflow systems and services
Continual state synchronization that provides superior fault tolerance and high availability
Supports HPE Aruba Networking Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and dayto-day operations across rack-scale compute and storage infrastructure.
All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency and allowing individual software modules to be independently upgraded for higher availability
Notes:1Supported in a future software release.
HPE Aruba Networking Central, Cloud-Based Network Management
Flexible cloud-based or on-premises management for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Designed to simplify day zero through day two operations with streamlined workflows. Switch management capabilities include configuration, onboarding, monitoring, troubleshooting, and reporting.
An HPE Aruba Networking Central Advanced license expands these capabilities with premium security and AIOps, including the HPE Aruba Networking Central NetConductor Fabric Wizard and Policy Manager to enable dynamic segmentation and distributed enforcement at a global scale.
The HPE Aruba Networking Central Advanced license now comes with all HPE Aruba Networking CX Advanced features so there is no need to purchase a CX Advanced license. This streamlines operational efficiency, reducing the need for IT teams to keep track of multiple licenses, active terms, and renewal dates. For more information on HPE Aruba Networking Central licensing, see the HPE Aruba Networking Central SaaS Subscription Ordering Guide.
HPE Aruba Networking Network Analytics Engine
For enhanced visibility and troubleshooting, HPE Aruba Networking Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact a network's health. Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application and security related issues easily, through the use of Python agents, CLI-based agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues. The data may also be used to analyze trends, identify anomalies and predict future capacity requirements.
HPE Aruba Networking NetEdit – Automated Switch Configuration and Management
The entire HPE Aruba Networking CX portfolio empowers IT teams to orchestrate multiple switch configuration changes for smooth end-to-end service rollouts. HPE Aruba Networking NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:
Centralized configuration with validation for consistency and compliance
Time savings via simultaneous viewing and editing of multiple configurations
Customized validation tests for corporate compliance and network design
Automated large-scale configuration deployment without programming
Network health and topology visibility via HPE Aruba Networking NAE integration
Notes: A separate software license is required to use HPE Aruba Networking NetEdit.
Ethernet Storage Optimized, Validated
HPE Aruba Networking CX 8325 Switch Series provides an ideal solution for data center, cloud and storage use cases that support top-of-rack server and storage connectivity and scale-out leaf-spine fabrics. AOS-CX adds storage-optimization enhancements to insure the low-latency, lossless network QOS and connectivity characteristics that storage requires.
The HPE Aruba Networking CX 8325 Switch Series is SPOCK (Single Point of Connectivity Knowledge) validated as part of HPE’s comprehensive portfolio of servers and storage arrays, which ensure end-to-end solution interoperability validated by HPE Labs. This validation takes guesswork out of SAN design, configuration, deployment, and management – helping to speed deployment and reduce risk/expertise needed to deploy complex solutions.
HPE Aruba Networking Virtual Switching Extension
The ability of AOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called HPE Aruba Networking Virtual Switching Extension (VSX). VSX is delivered through redundancy gained by deploying two chassis with an inter-switch link, with each chassis maintaining its independent control.
Designed using the best features of existing HA technologies such as Multi-chassis Link Aggregation (MC-LAG) and Virtual Switching Framework (VSF), HPE Aruba Networking VSX enables a distributed architecture that is highly available during upgrades or control plane events. Features include:
Continuous configuration synchronization via AOS-CX
Flexible active-active network designs at Layers 2 and 3
Operational simplicity and usability for easy configuration
High availability by design during upgrades including support for VSX Live Upgrade with LACP traffic draining.
Performance
Performance High-speed fully distributed architecture
- Provides 6.4 Tbps of bidirectional switching and 2,000 Mpps for forwarding. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future.
Scalable system design
- Provides investment protection to support future technologies and higher-speed connectivity
Connectivity
- High-density port options
- Choice of compact high density port 1U switches with airflow direction flexibility include model with:
- − CX 8325-32C model has 32 ports of 40GbE/100GbE (QSFP+/QSFP28) [optional 4x10 and 4x25 breakout]
- − CX 8325-48Y8C model has 48 ports of 1GbE/10GbE/25GbE (SFP/SFP+/ SFP28) [1GBASE-T transceiver support and 10GBASE-T transceiver limited support] +8 ports of 40GbE/100GbE (QSFP+/QSFP28) [optional 4x10 and 4x25 breakout]
- − CX 8325P-32C model has 32 ports of 40GbE/100GbE (QSFP+/QSFP28) [optional up to 31 ports of 4x10 and 4x25 breakout]
Jumbo frames
- Supports high-performance backups and disaster-recovery systems; provides a maximum frame size of 9K bytes
Unsupported Transceiver Mode (UTM)
- Allows to insert and enable all unsupported 1G and 10G transceiver and cable. No warranty nor support for the transceiver/cable when used
Loopback
- Supports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility
Packet storm protection
- Protects against unknown broadcast, unknown multicast, or unicast storms with user-defined thresholds
Quality of Service (QoS)
- Strict Priority (SP) Queuing and Deficit Weighted Round Robin (DWRR)
- − Enables congestion avoidance
Data Center Bridging (DCB)
- − Supports lossless Ethernet networking standards to eliminate packet loss due to queue overflow
- − Priority Flow Control (PFC) 7 priorities per port
- − Enhanced Transmission Service (ETS)
- − DCB Exchange Protocol (Pre-standard LLDP DCBX IEEE 1.01 version)
- gNMI support
- − Supports OpenConfig standardized YANG model for gNMI Streaming Telemetry
Flow-Control Guard
- − Prevents accumulation of excessive congestion with periodic flushing. Avoids packets buffering for an extended time period
ECN with Slope
- − Marks packets as ECN-CE (Congestion Experienced), helps TCP to reduce receive window size during congestion
Advanced Lossless Pool Configuration
Global Buffering Statistics
Storage Solution Support
- − iSCSI, Lossless iSCSI, RDMA over Converged Ethernet version 2 (RoCE v1 and v2) and Non-Volatile Memory Express (NVMeOF)
Resiliency and High Availability
Redundant and load-sharing fans and power supplies
- Increases total performance and power availability while providing hitless, stateful failover
Hot swappable power supply and fan modules
- Allows replacement of modules without any operational impact on other modules
Separate data and control paths
- Separates control from services and keeps service processing isolated; increases security and performance
HPE Aruba Networking Virtual Switching Extension (VSX)
- VSX enables a distributed and redundant architecture by deploying two switches with each switch maintaining independent control yet staying synchronized during upgrades or failover. Also supports upgrades during live operation.
Virtual Router Redundancy Protocol (VRRP)
- Allows a group of switches to dynamically back each other up to create highly available routed environments
Bidirectional Forward Detection (BFD)
- Enables sub-second failure detection for rapid routing protocol re-balancing
Ethernet Ring Protection Switching (ERPS)
- Supports rapid protection and recovery in a ring topology.
Unidirectional Link Detection (UDLD)
- Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
IEEE 802.3ad LACP
- Supports up to 54 link aggregation groups (LAGs), each with eight links per group, with a user-selectable hashing algorithm
LACP-Fallback
- Enables Zero Touch Provisioning over Link Aggregation Groups.
- IP to Role mapping:
- Enables role-based policy support for data center platforms
- EBGP Overlay:
- Supports overlay EBGP-EVPN for multi-fabric DC deployments with CX 8325H
Management
In addition to the HPE Aruba Networking CX Mobile App, HPE Aruba Networking NetEdit and HPE Aruba Networking Network Analytics Engine, the 8325 series offers the following:
- Built-in programmable and easy to use REST API interface
- Management interface control
- Enables or disables each of the following interfaces depending on security preferences: console port, or reset button
- Industry-standard CLI with a hierarchical structure
- Reduces training time and expenses, and increases productivity in multivendor installations
- Management security
- Restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide SNMP access; local and remote Syslog capabilities allow logging of all access.
- Private VLAN (PVLAN)
- Provides traffic isolation between users on the same VLAN. Typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address. This extends network security by restricting peer-peer communication to prevent a variety of malicious attacks.
- IPv6 RA
- guard without ND Guard for preventing clients to advertise themselves as routers
- IPSLA
- Monitor the network for degradation of various services, including monitoring voice. Monitoring is enabled via the NAE for history and for automated gathering of additional information when anomalies are detected.
- SNMP v2c/v3
- Provides SNMP read and trap support of industry standard Management Information Base (MIB), and private extensions
- sFlow® (RFC 3176)
- Provides scalable ASIC-based wire speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes.
- Remote monitoring (RMON)
- Uses standard SNMP to monitor essential network functions and supports events, alarms, history, and statistics groups as well as a private alarm extension group
- Supportability
- Job scheduler framework
TFTP and SFTP support
- Offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/ IP network; Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Debug and sampler utility
- Supports ping and traceroute for IPv4 and IPv6
Network Time Protocol (NTP)
- Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network. Can serve as the NTP server in a customer network.
- Precision Time Protocol (PTP)*
- − Enables precise clock synchronization across distributed devices
- − Needed for precision timing for critical applications and financial systems
- − Support for transparent clock E-E and P-P (2 superscript)
- − Support for boundary clock
- o Supports Telecom Profiles G.8275.1 and G8.2752, Class C performance
- o Supports G.8262.1 Enhanced Synchronous Ethernet Equipment clock
- o Supports PTP Default/1588 profile
- o Supports SMPTE profile
- o Support for PTP and SyncE when used with breakout ports and LAG
- o HW support for Global Navigation Satellite Systems (GNSS) (2 superscript)
- − Timing Interface(2 superscript)
- o Time of Day + 1 Pulse Per Second (PPS) Input/Output
- o Global Navigation Satellite System (GNSS) SubMiniature version A (SMA) connector Input
- o Pulse Per Second (PPS) SubMiniature version B (SMB) connector Input/Output
- o 10 MHz SMB Input/Output
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
- Dual flash images
- Provides independent primary and secondary operating system files for backup while upgrading
- Multiple configuration files
- Stores easily to the flash image
Layer 2 Switching
VLAN
- Supports up to 4,040 port-based or IEEE 802.1Q-based VLANs
VLAN Translation
- Remaps VLANs during transit across a core network
Bridge Protocol Data Unit (BPDU) tunneling
- Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
Port mirroring
- Duplicates port traffic (ingress and egress) to a local or remote monitoring port; supports 4 mirroring groups, with an unlimited number of ports per group
STP
- Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Rapid Per-VLAN spanning tree plus (RPVST+)
- Allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs.
Internet Group Management Protocol (IGMP) Controls and manages the flooding of multicast packets in a Layer 2 network
Static VXLAN
- Supports static VXLAN. Allows operators to manually connect two or more VXLAN tunnel endpoints (VTEP).
Dynamic VXLAN with BGP-EVPN
- Deep segmentation for Spine/Leaf data center networks or Layer 3 campus designs
IPv4 Multicast in VXLAN/EVPN Overlay
- Enable PIM-SM/IGMP snooping in the VXLAN Overlay
IPv6 VXLAN/EVPN Overlay Support
- Enables IPv6 traffic over the VXLAN overlay
VXLAN DC Multi-Fabric DCI Support
- VXLAN distributed anycast gateway
- Addressing mechanism that enables the use of the same gateway IP addresses across all the leaf switches part of a VXLAN network. It supports VSX active forwarding for VXLAN underlay.
VXLAN ARP/ND suppression
- Allows minimization of ARP and ND traffic flooding within individual VXLAN segments, thus optimizing the VXLAN network
Layer 3 Services
- Address Resolution Protocol (ARP)
- Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
IP Directed Broadcast
- Supports directed broadcast on configured network subnets.
- Dynamic Host Configuration Protocol (DHCP)
- DHCP services are offered within a client network to simplify network management. DHCP Relay enables DHCP operation across subnets. DHCP Smart Relay.
Multicast
- PIM Multicast Boundary (v4), VSX Graceful shutdown for IGMP/MLD, Multicast NSF.
DHCP Server
- Supports DHCP services (for IPv4 and IPv6) in customer networks
DHCP Relay Coexistence with Server
- Allows DHCP relay coexistence with DHCP server for both IPv4 and IPv6
Domain Name System (DNS)
- Provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server. It also supports mDNS Gateway
Generic Routing Encapsulation (GRE)
- Enables tunneling traffic from site to site over a Layer 3 path.
Layer 3 Routing
- Static IPv4 routing
- Provides simple manually configured IPv4 routing
- Open shortest path first (OSPF)
- Delivers faster convergence; uses link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
- Loopback IP redistribution in OSPF
- Allows redistribution of IPv4 and IPv6 addresses of loopback interface in OSFPv2/v3
- Border Gateway Protocol 4 (BGP-4)
- Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
- Dynamic BGP Peering
- Simplifies BGP configuration for ZTP scenarios and enables CX for Azure stack integration
- Multiprotocol BGP (MP-BGP) with IPv6 Address Family
- Enables sharing of IPv6 routes using BGP and connections to BGP peers using IPv6
- Routing Information Protocol Next Generation (RIPng)
- Extension of RIPv2 for support of IPv6 networking
- Policy Based Routing (PBR)
- Enables using a classifier to select traffic that can be forwarded based on policy set by the network administrator.
- 6in4 tunnels
- Supports the tunneling of IPv6 traffic in an IPv4 network.
- IP Performance Optimization
- Provides a set of tools to improve the performance of IPv4 networks; includes directed broadcasts, customization of TCP parameters, support of ICMP error packets, and extensive display capabilities
- IP Sub-Interface –
- Enables IP sub-interface for ingress & egress ACL/Policies, routing, VSX-keep alive
- Dynamic Pool Configuration
- Enables lossless pool configuration without switch reboot
- Static IPv6 routing
- Provides simple manually configured IPv6 routing
- Dual IP stack
- Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
- OSPFv3
- Provides OSPF support for IPv6
- Equal-Cost Multipath (ECMP)
- Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
- Generic Routing Encapsulation (GRE)
- Enables tunneling traffic from site to site over a Layer 3 path
Visibility CX Edge Insights
Upgrade the active, perpetual CX Foundation license to the term based CX Advanced license to unlock deep visibility with CX Edge Insights for application recognition, identification, and flow capture from layer 4 to layer 7. CX Edge Insights enables granular data point collection with search, sort and reporting as well as the ability to recognize 22 categories and more than 3700 applications.
Security
- TAA Compliance
- The HPE Aruba Networking CX 8325 Switch Series, a TAA-compliant product, with the AOS-CX uses FIPS 140-2 validated cryptography for protection of sensitive information
- Federal Certification
- Compliant with DoDIN, APL, NDcPP, FIPS, and USGv6 requirements for federal certifications.
- Access control list (ACL) Features
- Supports powerful ACLs for both IPv4 and IPv6. Supports creation of object groups representing sets of devices like IP addresses. For instance, IT management devices could be grouped in this way. ACLs can also protect control plane services such as SSH, SNMP, NTP or web servers.
- Remote Authentication Dial-In User Service (RADIUS)
- Eases security access administration by using a password authentication server
- Enrollment over Secure Transport (EST)
- Enables secure certificate enrollment, allowing for easier enterprise management of PKI.
- Terminal Access Controller Access-Control System (TACACS+)
- Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
- RadSec
- Enable RADIUS authentication and accounting data to be passed safely and reliably across insecure networks such as the internet
- Management access security
- HPE Aruba Networking OS-CX provides for both on-box as well as off- box authentication for administrative access. RADIUS or TACACS+ can be used to provide encrypted user authentication. Additionally, TACACS+ can also provide user authorization services
- Secure port access
- 802.1x, Mac-auth, LUR, DUR, Port-Access Policy, Static Port Filtering
- Secure shell (SSHv2)
- Uses external servers to securely log in to a remote device; with authentication and encryption, it protects against IP spoofing and plain-text password interception; increases the security of Secure FTP (SFTP) transfers
Multicast
- Internet Group Management Protocol (IGMP)
- Enables establishing multicast group memberships in IPv4 networks; supports IGMPv1, v2, and v3
- Multicast Listener Discovery (MLD)
- Enable discovery of IPv6 multicast listeners; supports MLDv1 and v2 and L3-Multicast.
- Multicast Service Delivery Protocol (MSDP) for Anycast RP
- MSDP used for Anycast RP is an intradomain feature that provides redundancy and load-sharing capabilities.
- MSDP Mesh Groups
- MSDP used for Anycast RP is an intradomain feature that provides redundancy and load-sharing capabilities. When MSDP mesh groups are used, SA messages are not flooded to other mesh group peers. When MSDP peer in group receives SA message from another MSDP peer in the group, it assumes that this SA message was sent to all the other MSDP peers in the group. It also eliminates RPF checks on arriving SA messages. With MSDP mesh group configured, SA messages are always accepted from mesh group peer.
- PIM-Dense Mode
- Floods multicast traffic to every corner of the network (push-model). Method is for delivering data to receivers without receivers requesting the data. Can be efficient in certain deployments in which there are active receivers on every subnet in the network. Branches without downstream receivers are pruned from the forwarding trees.
- FastLeave (FL) and Forced-FastLeave (FFL)
- IGMP FL and FFL for IGMP/MLD speed up the process of blocking unnecessary Multicast traffic to a switch port that is connected to end nodes. They help to eliminate the CPU overhead of having to generate an IGMP/MLD Group-Specific Query message.
- Support for Microsoft Network Load Balancer (NLB) for server applications
- IGMP/MLD Snooping
- Prevent flooding of multicast traffic to non-listening ports.
- Protocol Independent Multicast (PIM)
- PIM for IPv4 and IPv6 supports one-to-many and many-to-many media casting use cases such as IPTV over IPv4 and IPv6 networks. Support for PIM Sparse Mode (SM), Source-Specific Multicast (SSM), and Dense Mode(DM)
Additional Information
Green initiative support
Provides support for RoHS (EN 50581:2012) regulations
Korea Government Security Features
- − Ensure configuration integrity
- − Limit concurrent users for web access
- − Platforms: All CX platforms
Analytics
- − AIOPS - NAE Agent & Engine Improvements – Unicast Routing
- − AIOPS - NAE Agent & Engine Improvements – Client Services
Warranty, Services and Support
Limited Lifetime Warranty
HPE Aruba Networking AOS-CX Software Releases and Features
Support and services information
Configuration Information
BTO Models
| | Standard Switch Enclosures | |
|---|---|---|
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 6, 7, 8,10, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle
| JL624A |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle PDU | JL624A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle PDU | JL624A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle 220v | JL624A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle NoLoc | JL624A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8,10, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle
| JL625A |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle PDU | JL625A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle PDU | JL625A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle 220v | JL625A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle NoLoc | JL625A#AC3 |
| 4, 5, 6, 7, 8, 10, 11 | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
| JL626A |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl PDU | JL626A#B2B |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl PDU | JL626A#B2C |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl 220v | JL626A#B2E |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl NoLoc | JL626A#AC3 |
| 4, 5, 6, 7, 8, 10, 11 | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
| JL626A |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl PDU | JL626A#B2B |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl PDU | JL626A#B2C |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl 220v | JL626A#B2E |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl NoLoc | JL626A#AC3 |
| 4, 5, 6, 7, 8, 10, 11 | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bundle
| S4A51A |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl PDU | S4A51A#B2B |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl PDU | S4A51A#B2C |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl 220v | S4A51A#B2E |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl NoLoc | S4A51A#AC3 |
| 4, 5, 6, 7, 8,10, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU Bundle
| S4A52A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU Bundle PDU | S4A52A#B2B |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU 220v Bundle | S4A52A#B2C |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU 220v Bundle | S4A52A#B2E |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU Bundle No Loc | S4A52A#AC3 |
| 4, 5, 6, 7, 8, 10, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle
| S0G09A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle PDU | S0G09A#B2B |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle PDU | S0G09A#B2C |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA 220v Bundle | S0G09A#B2E |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle No Loc | S0G09A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU Switch
| S4B20A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B20A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B20A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU 220v Switch | S4B20A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU Switch No Loc | S4B20A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU Switch
| S4B21A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU PDU Switch | S4B21A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU PDU Switch | S4B21A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU 220v Switch | S4B21A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU Switch No Loc | S4B21A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU Switch Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
| S4B22A |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B22A#B2B |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B22A#B2C |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU 220v Switch | S4B22A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU Switch No Loc | S4B22A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA Switch
| S2T42A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA PDU Switch | S2T42A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA PDU Switch | S2T42A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA 220v Switch | S2T42A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA Sw No Loc | S2T42A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA Switch
| S2T46A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA PDU Switch | S2T46A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA PDU Switch | S2T46A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA 220v Switch | S2T46A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA Sw No Loc | S2T46A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA Switch
| S2T47A |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA PDU Switch | S2T47A#B2B |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA PDU Switch | S2T47A#B2C |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA 220v Switch | S2T47A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA Switch No Loc | S2T47A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA Switch
| S2T48A |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA PDU Switch
| S2T48A#B2B |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA PDU Switch
| S2T48A#B2C |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA 220v Switch | S2T48A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA Switch No Loc | S2T48A#AC3 |
| | DC Bundles | |
|---|---|---|
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/SFP+/SFP28 8p 100G QSFP+/QSFP28 FB 6 Fans 2 DC Bdl
| JL857A |
| 1, 2, 3, 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/SFP+/SFP28 8p 100G QSFP+/QSFP28 BF 6 Fans 2 DC Bdl
| JL858A |
| 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325-32C 32-port 100G QSFP+/QSFP28 Front-to-Back 6 Fans and 2 DC Bundle
| JL859A |
| 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325-32C 32-port 100G QSFP+/QSFP28 Back-to-Front 6 Fans and 2 DC Bundle
| JL860A |
| 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xDC PSU Bundle
| S4A49A |
| 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xDC PSU Bundle
| S4A50A |
| 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xDC PSU TAA Bundle
| S0G07A |
| 4, 5, 7, 8, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xDC PSU TAA Bundle
| S0G08A |
| | Configuration Rules | |
| 1 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | J4858D |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver | J4860D |
| | HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver | J8177E |
| | HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver | JL745A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver | JL746A |
| | HPE Aruba Networking 1G SFP RJ45 100m Cat5e TAA Transceiver | JL747B |
| 2 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver | JL563C |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | J9281D |
| | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | J9283D |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| 3 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Cable | JL487A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable | JL488A |
| | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable | JL489A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable | R0M44A |
| | HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable | R0M45A |
| | HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable | R0Z21A |
| | HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable | 844477-B21 |
| | HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable | 844480-B21 |
| 4 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | JH234A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | JH235A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | JH236A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| | HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | 721064-B21 |
| 5 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver | S3N88A |
| | HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver | S3N89A |
| | HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver | S1C93A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | R9B63A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R0Z25A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable | JL307A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R0Z26A |
| | HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable | 845416-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable | 845420-B21 |
| | HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable | 845424-B21 |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| 6 | Localization required on orders without #B2B, #B2C, #B2E or #AC3 options | |
| 7 | If qty 1 of the following QSA28 Adapter(845970-B21) is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the ""Additional Info"" sections: (Use BTO only when adding this QSA28 Adapter) | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| 8 | The following AOCs install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked): | |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable | R9B60A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable | R9B58A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable | R9B61A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable | R9B59A |
| 10 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: | |
| | For BTO shipments to India: Please replace #B2C option with #AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: | |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| | HPE Networking 2.5m C19 to C20 PDU India Power Cord | JL673A |
| | For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| 11 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver | S4B44A |
| Notes: | - Drop down under power supply should offer the following options and results: - Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO) - Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO) - High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan) - No Power Cord - #AC3 Option - OCA Blue Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab. - OCA Only Model Selection Form - - HPE Offering > HPE Aruba Networking > Switches - HPE Aruba Networking OS: HPE Aruba Networking CX 8325 Switch Series | |
Rack Level Integration CTO Models
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle
| JL624A |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle PDU | JL624A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle PDU | JL624A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle 220v | JL624A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 FB 6 Fans 2 PSU Bundle NoLoc | JL624A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle
| JL625A |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle PDU | JL625A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle PDU | JL625A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle 220v | JL625A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle NoLoc | JL625A#AC3 |
| 4, 5, 6, 7, 8, 10, 11 | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
| JL626A |
| Rule # | Description | SKU |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl PDU | JL626A#B2B |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl PDU | JL626A#B2C |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl 220v | JL626A#B2E |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bdl NoLoc | JL626A#AC3 |
| 4, 5, 6, 7, 8, 10, 11 | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bundle
| JL627A |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl PDU | JL627A#B2B |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl PDU | JL627A#B2C |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl 220v | JL627A#B2E |
| | HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bdl NoLoc | JL627A#AC3 |
| 4, 5, 6, 7, 8, 9, 10, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU Bundle
| S4A51A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU Bundle PDU | S4A51A#B2B |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU 220v Bundle | S4A51A#B2C |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU 220v Bundle | S4A51A#B2E |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU Bundle No Loc | S4A51A#AC3 |
| 4, 5, 6, 7, 8, 9, 10, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU Bundle S4A52A
| |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU Bundle PDU | S4A52A#B2B |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU 220v Bundle | S4A52A#B2C |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU 220v Bundle | S4A52A#B2E |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU Bundle No Loc | S4A52A#AC3 |
| 4, 5, 6, 7, 8, 9, 10, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle
| S0G09A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle PDU
| S0G09A#B2B |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle PDU
| S0G09A#B2C |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA 220v Bundle
| S0G09A#B2E |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle No Loc
| S0G09A#AC3 |
| 4, 5, 6, 7, 8, 9, 10, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU TAA Bundle
| S0G10A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU TAA Bundle PDU | S0G10A#B2B |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU TAA Bundle PDU | S0G10A#B2C |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU TAA 220v Bundle | S0G10A#B2E |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xAC PSU TAA Bundle No Loc | S0G10A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU Switch
| S4B20A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B20A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B20A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU 220v Switch | S4B20A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU Switch No Loc | S4B20A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU Switch
| S4B21A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU PDU Switch | S4B21A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU PDU Switch | S4B21A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU 220v Switch | S4B21A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU Switch No Loc | S4B21A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU Switch S4B22A
| |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B22A#B2B |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU PDU Switch | S4B22A#B2C |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU 220v Switch | S4B22A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU Switch No Loc | S4B22A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU Switch
| S4B23A |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU PDU Switch | S4B23A#B2B |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU PDU Switch | S4B23A#B2C |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU 220v Switch | S4B23A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU Switch No Loc | S4B23A#AC3 |
| 1, 2, 3, 4, 5,6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA Switch
| S2T42A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA PDU Switch | S2T42A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA PDU Switch | S2T42A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA 220v Switch | S2T42A#B2E |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU TAA Sw No Loc | S2T42A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA Switch
| S2T46A |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA PDU Switch | S2T46A#B2B |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA PDU Switch | S2T46A#B2C |
| | HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Back-to-Front 4xFan 2xPSU TAA 220v Switch | S2T46A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA Switch No Loc | S2T47A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 10 | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA Switch
| S2T48A |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA PDU Switch | S2T48A#B2B |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA PDU Switch | S2T48A#B2C |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA 220v Switch | S2T48A#B2E |
| | HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU TAA Switch No Loc | S2T48A#AC3 |
| | DC Bundles | |
| Rule # | Description | SKU |
| 1, 2, 3, 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/SFP+/SFP28 8p 100G QSFP+/QSFP28 FB 6 Fans 2 DC Bdl
| JL857A |
| 1, 2, 3, 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325-48Y8C 48p 25G SFP/SFP+/SFP28 8p 100G QSFP+/QSFP28 BF 6 Fans 2 DC Bdl
| JL858A |
| 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325-32C 32-port 100G QSFP+/QSFP28 Front-to-Back 6 Fans and 2 DC Bundle
| JL859A |
| 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325-32C 32-port 100G QSFP+/QSFP28 Back-to-Front 6 Fans and 2 DC Bundle
| JL860A |
| 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xDC PSU Bundle
| S4A49A |
| 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xDC PSU Bundle
| S4A50A |
| 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xDC PSU TAA Bundle
| S0G07A |
| 4, 5, 7, 8, 9, 11 | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Back-to-Front 6xFan 2xDC PSU TAA Bundle
| S0G08A |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 1 | The following Transceivers install into this Switch: (Use #0D1 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | J4858D |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver | J4860D |
| | HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver | J8177E |
| 2 | The following Transceivers install into this Switch: (Use #0D1 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | J9281D |
| | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | J9283D |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| 3 | The following Transceivers install into this Switch: (Use #0D1 or #B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Cable | JL487A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable | JL488A |
| | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable | JL489A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable | R0M44A |
| | HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable | R0M45A |
| | HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable | R0Z21A |
| | HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable | 844477-B21 |
| | HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable | 844480-B21 |
| 4 | The following Transceivers install into this Switch: (Use #0D1 or #B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | JH234A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | JH235A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | JH236A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| | HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | 721064-B21 |
| 5 | The following Transceivers install into this Switch: (Use #0D1 or #B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver | S3N88A |
| | HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver | S3N89A |
| | HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver | S1C93A |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable | JL307A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R0Z26A |
| | HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable | 845416-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable | 845420-B21 |
| | HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable | 845424-B21 |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| 6 | – OCA Only: Required Custom Choice (Min1/Max1) – Switch/ Router/Power Supply to PDU Power Cord - B2B in North America, Mexico, Taiwan, and Japan or B2C ROW. (OCA Default B2B or B2C for Rack Level CTO) – Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO) – High Volt Switch/Router/Power Supply to Wall Power Cord - B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan) – No Power Cord - AC3 Option | |
| 7 | If the CTO Switch Chassis needs to be racked, Then the CTO Base Model needs to integrate (with #0D1) to the HPE Network Rack. | |
| 8 | If qty1 of the following QSA28 Adapter(845970-B21) is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use #0D1 for this XCVR Adapter since switch is factory racked) | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| 9 | The following AOCs install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable | R9B60A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable | R9B58A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable | R9B61A |
| | HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable | R9B59A |
| 10 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: | |
| | For BTO shipments to India: Please replace #B2C option with #AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: | |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| | HPE Networking 2.5m C15 to C14 PDU India Power Cord | JL672A |
| | HPE Networking 2.5m C19 to C20 PDU India Power Cord | JL673A |
| | For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| 11 | The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked): | |
| | HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver | S4B44A |
| Notes: | Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab | |
Transceivers
| Rule # | Description | SKU |
| | SFP Transceivers | |
| | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | J4858D |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver | J4860D |
| 1 | HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver | J8177E |
| | HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver | JL745A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver | JL746A |
| 1 | HPE Aruba Networking 1G SFP RJ45 100m Cat5e TAA Transceiver | JL747B |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 1 | − min 0 // max 32 of this RJ45 XCVR can be installed into the following Switches: JL624A, JL625A, JL857A, JL858A − Max of 32 RJ45 XCVRs in either the JL624A/JL625A/JL857A/JL858A and can be installed into ports 1-48 excluding 3rd row of ports. | |
| | SFP+ Transceivers | |
| | HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver | JL563C |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | J9150D |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | JL748A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | JL749A |
| | HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver | S2P30A |
| | HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver | S2P31A |
| | HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver | S2P32A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | J9281D |
| | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | J9283D |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| | SFP28 Transceivers | |
| Notes: | − The 48 x SFP28 Ports function in port groups of 12 ports. Each port group must operate at the same speed (ie. Group 1 = qty12 of 1G or 10G or 25G transceivers).
| |
| | HPE Aruba Networking 25G ER LC 40km SMF Transceiver | S0V69A |
| | HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver | S1C96A |
| | HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver | S1C98A |
| | HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver | S0V70A |
| | HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver | S0V71A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | JL485A |
| | HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver | S5U19A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver | S2P33A |
| | HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver | S2P34A |
| | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Cable | JL487A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable | JL488A |
| | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable | JL489A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable | R0M44A |
| | HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable | R0M45A |
| | HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable | R0Z21A |
| | HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable | 844477-B21 |
| | HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable | 844480-B21 |
| | QSFP+ Transceivers | |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Networking X142 40G QSFP+ MPO SR4 Transceiver | JH231A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver | JH233A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | JL308A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | JH234A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | JH235A |
| | HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | JH236A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R0Z22A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R0Z23A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R0Z24A |
| | HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | 721064-B21 |
| | QSFP28 Transceivers | |
| | HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver | S4B44A |
| | HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver | S3N88A |
| | HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver | S3N89A |
| | HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver | S1C93A |
| * | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver | JL309A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver | R9B63A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable | JL307A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R0Z25A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R0Z26A |
| | HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable | 845416-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | JL856A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R0Z27A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R0Z28A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R0Z29A |
| | HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable | 845420-B21 |
| | HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable | 845424-B21 |
| ** | HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable | R9B60A |
| ** | HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable | R9B58A |
| ** | HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable | R9B62A |
| ** | HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable | R9B61A |
| ** | HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable | R9B59A |
| Notes: | - * Min 0 // max 4 XCVRs (JL743A) can be installed into the following Switches: JL624A, JL625A, JL626A, JL627A, JL857A, JL858A, JL859A, JL860A. - *JL743A Max of 4 in either the JL624A/JL625A/JL857A/JL858A and only allowed in ports 49, 51, 53, 55. - * JL743A Max of 4 in either the JL626A/JL627A/JL859A/JL860A and only allowed in ports 29-32. - ** Only the QSFP28 end of the AOC to the 8325 Switch is supported | |
| | QSA28 Adapter | |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| Notes: | If selecting the 845970-B21 - QSFP28 to SFP28 Adapter, then see HPE Aruba Networking Transceiver Guide for details. | |
Switch Options
| | Rack Mount Kits | |
| | For 8325 System (std 0 // max 1) User Selection (min 1 // max 1) per enclosure | |
| | For 8325P System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure | |
| | For 8325H System (std 0 // max 2) User Selection (min 0 // max 2) per enclosure | |
| 2 | HPE Aruba Networking X472 2-post Rack Kit | JL482C |
| 1, 2 | HPE Aruba Networking X474 4-post Rack Kit
| JL483C |
| 1, 3, 4 | HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit
| J9583B |
| 3, 4, 7 | HPE Aruba Networking X414 4-post 610-687mm (24-27 inch) Depth Rack Mount Kit | S6X67A |
| 4, 6 | HPE Aruba Networking CX 8325H 2-post Rack Mount Shelf Kit
| S2T44A |
| 1, 4, 5, 6 | HPE Aruba Networking CX 8325H 4-post Rack Mount Shelf Kit
| S2T43A |
| | Configuration Rules | |
| Rule # | Description | SKU |
| 1 | If the switch will be factory racked into an HPE Universal Rack, then (Min 1) of the 4 Post Rack Mount kit (J9583B) is required. | |
| 2 | Compatible with 8325 only: JL624A, JL625A, JL626A, JL627A, JL857A, JL858A, JL859A, JL860A. | |
| 3 | Compatible with 8325P only: S4A51A, S4A52A, SG09A, S0G10A, S4A49A, S4A50A, S0G07A, S0G08A | |
| 4 | Compatible with 8325H only: S2T42A, S2T46A, S2T47A, S2T48A, S4B20A, S4B21A, S4B22A, S4B23A | |
| 5 | If ordering 8325H Factory Integrated, then must select Universal Rack kit J9583B. If ordering 8325H Standalone, then must select either four post rack kit S6X67A or Universal Rack kit J9583B. | |
| 6 | Each Rack Kit can hold two switches. The quantity should = the number of Switches divided by 2, rounding up (ceil). | |
| 7 | OCA Display Note: This Rack Mount Kit is only used for Racks that have depths between 24-27 inches, otherwise use J9583B | |
| Notes: | − For 8325: Switch Bundle doesn't include 2-post Rack Kit − For 8325P: Switch Bundle includes 2-post Rack Kit − For 8325H: Switch does not include Rack Kit. Must select 2 or 4 post Rack Kit | |
| India PDU Cable | | |
| | For AC Switches System (std 0 // max 2) User Selection (min 0 // max 2) per enclosure | |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| Notes: | − This Power Cord is only available when the #AC3 option is selected for the supported power supply and intended for India. − C13 India PDU Cable for Factory Racked Systems Only | |
| Accessories | | |
| Rule # | Description | SKU |
| | Blank Panel For 8325H System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure | |
| 1 | HPE Aruba Networking 8325H Rack Mount Blank Panel | S5D79A |
| Notes: | Can only be selected when either of the following 8325H 2 or 4-Post Rack Kits are selected: S2T43A, S2T44A. | |
| | USB Console Cables System (std 0 // max 99) User selection (min 0 // max99) per enclosure | |
| | HPE Aruba Networking USBA-RJ45 PIN3TX-6RX 2.5m Cable | R8Z87A |
| | HPE Aruba Networking USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable | R9G48B |
| | HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable | R9J32A |
| | HPE Aruba Networking USB-C to USB-C PC-to-Switch 3m Cable | R9J33A |
| Notes: | This cable is only compatible with the following Switches; JL624A, JL625A, JL626A, JL627A, JL857A, JL858A, JL859A, JL860A, S2T42A, S2T46A, S2T47A, S2T48A, S4B20A, S4B21A, S4B22A, S4B23A. | |
| | Spare Items System (std 0 // max 99) User Selection (min 0 // max 99) per enclosure | |
| | HPE Aruba Networking CX 8325-48Y8C 48-port 25G SFP/SFP+/SFP28 and 8-port 100G QSFP+/QSFP28 Switch
| JL635A |
| | HPE Aruba Networking CX 8325-32C 32-port 100G QSFP+/QSFP28 Switch
| JL636A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Switch
| S4A48A |
| | HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G TAA Switch
| S0G12A |
| 1 | HPE Aruba Networking 8325 650W 100-240VAC Front-to-Back Power Supply | JL632A |
| | HPE Aruba Networking 8325 650W 100-240VAC Front-to-Back Power Supply PDU | JL632A#B2B |
| | HPE Aruba Networking 8325 650W 100-240VAC Front-to-Back Power Supply PDU | JL632A#B2C |
| | HPE Aruba Networking 8325 650W 100-240VAC Front-to-Back Power Supply 220v | JL632A#B2E |
| | HPE Aruba Networking 8325 650W 100-240VAC Front-to-Back Power Supply NoLoc | JL632A#AC3 |
| 1 | HPE Aruba Networking 8325 650W 100-240VAC Back-to-Front Power Supply | JL633A |
| | HPE Aruba Networking 8325 650W 100-240VAC Back-to-Front Power Supply PDU | JL633A#B2B |
| | HPE Aruba Networking 8325 650W 100-240VAC Back-to-Front Power Supply PDU | JL633A#B2C |
| | HPE Aruba Networking 8325 650W 100-240VAC Back-to-Front Power Supply 220v | JL633A#B2E |
| | HPE Aruba Networking 8325 650W 100-240VAC Back-to-Front Power Supply NoLoc | JL633A#AC3 |
| | HPE Aruba Networking 8325 850W 48VDC Front-to-Back Power Supply | JL861A |
| | HPE Aruba Networking 8325 850W 48VDC Back-to-Front Power Supply | JL862A |
| | HPE Aruba Networking X3B1 650W 100-240VAC Front-to-Back Power Supply | S0G27A |
| | HPE Aruba Networking X3B1 650W 100-240VAC Front-to-Back PDU Power Supply | S0G27A#B2B |
| | HPE Aruba Networking X3B1 650W 100-240VAC Front-to-Back Power Supply Unit | S0G27A#B2C |
| | HPE Aruba Networking X3B1 650W 100-240VAC Front-to-Back 220v Power Supply | S0G27A#B2E |
| | HPE Aruba Networking X3B1 650W 100-240VAC Front-to-Back Power Supply No Loc | S0G27A#AC3 |
| | HPE Aruba Networking X3B1 650W 100-240VAC Back-to-Front Power Supply | S0G28A |
| | HPE Aruba Networking X3B1 650W 100-240VAC Back-to-Front PDU Power Supply | S0G28A#B2B |
| | HPE Aruba Networking X3B1 650W 100-240VAC Back-to-Front Power Supply Unit | S0G28A#B2C |
| | HPE Aruba Networking X3B1 650W 100-240VAC Back-to-Front 220v Power Supply | S0G28A#B2E |
| | HPE Aruba Networking X3B1 650W 100-240VAC Back-to-Front Power Supply No Loc | S0G28A#AC3 |
| | HPE Aruba Networking X3B1 48VDC 850W Front-to-Back Power Supply Unit | S0G29A |
| | HPE Aruba Networking X3B1 48VDC 850W Back-to-Front Power Supply Unit | S0G30A |
| | HPE Aruba Networking 8325-48Y8C Front-to-Back Fan | JL628A |
| | HPE Aruba Networking 8325-48Y8C Back-to-Front Fan | JL629A |
| | HPE Aruba Networking 8325-32C Front-to-Back Fan | JL630A |
| | HPE Aruba Networking 8325-32C Back-to-Front Fan | JL631A |
| | HPE Aruba Networking X472 2-post Rack Kit | JL482C |
| | HPE Aruba Networking X474 4-post Rack Kit | JL483C |
| | HPE Aruba Networking X414 4-post 610-687mm (24-27 inch) Depth Rack Mount Kit | S6X67A |
| | HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit | J9583B |
| | HPE Aruba Networking CX 8325H 4-post Rack Mount Shelf Kit | S2T43A |
| | HPE Aruba Networking CX 8325H 2-post Rack Mount Shelf Kit | S2T44A |
| | HPE Aruba Networking 8325H Rack Mount Blank Panel | S5D79A |
| | HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable | JL448A |
| | HPE Aruba Networking CX Switch Bluetooth Adapter | S1H23A |
| | Configuration Rules | |
| Rule# | Description | |
| 1 | Localization required on orders without #B2B, #B2C, #B2E or #AC3 options. | |
| Notes: | – Drop down under power supply should offer the following options and results: – Switch/ Router to PDU Power Cord - #B2B in NA, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO) – Switch/ Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO) – High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan) – No Localized Power Cord Selected - #AC3 Option – Locking Power Cord (J9955A) L6-20P is available in the Accessories tab – 2 Power Supply is included with the Switch Bundle | |
Software
| Remarks | Description | SKU |
| | NetEdit NetEdit / Single Node Subscription | |
| | HPE Aruba Networking NetEdit Single Node 1yr Subscription E-STU | JL639AAE |
| | HPE Aruba Networking NetEdit Single Node 3yr Subscription E-STU | JL640AAE |
| | Fabric Composer | |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 1y Subscription E-STU | R7G99AAE |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 3y Subscription E-STU | R7H00AAE |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 5y Subscription E-STU | R7H01AAE |
| | HPE Aruba Networking Central Cloud Services / 8XXX Switch Foundation Subscriptions | |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 1-year Subscription E-STU | R3K03AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 3-year Subscription E-STU | R3K04AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 7-year Subscription E-STU | R3K06AAE |
| 2 | HPE Aruba Networking Central Switch Class5 Foundation 10-year Subscription E-STU | R3K07AAE |
| | On-Prem Services / 8XXX Switch Foundation Subscriptions | |
| 3 | HPE Aruba Networking Central on Prem Switch Class-5 Foundation 1 year Subscription E-STU | R6U88AAE |
| 3 | HPE Aruba Networking Central on Prem Switch Class-5 Foundation 3 year Subscription E-STU | R6U89AAE |
| 3 | HPE Aruba Networking Central on Prem Switch Class-5 Foundation 5 year Subscription E-STU | R6U90AAE |
| 3 | HPE Aruba Networking Central on Prem Switch Class-5 Foundation 5 year Subscription E-STU | R6U91AAE |
| 3 | HPE Aruba Networking Central on Prem Switch Class-5 Foundation 10 year Subscription E-STU | R6U92AAE |
| | On-Prem Services / 8XXX/9XXX/10XXX Switch Advanced Subscriptions | |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 1-year Subscription E-STU | R6V08AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 3-year Subscription E-STU | R6V09AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 5-year Subscription E-STU | R6V10AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 7-year Subscription E-STU | R6V11AAE |
| 3 | HPE Aruba Networking Central On-Premises Switch Class5 Advanced 10-year Subscription E-STU | R6V12AAE |
| | Configuration Rules | |
| Rules # | Description | SKU |
| 2 | Add the Central Cloud Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services | |
| 3 | Add the Central On-Prem Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services | |
| 6 | Add the Central FedRAMP Service Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > FedRAMP | |
| | HPE Aruba Networking OS-CX Software CX Advanced Software Licenses | |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 1-year Subscription E-STU | S0T87AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 3-year Subscription E-STU | S0T88AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 5-year Subscription E-STU | S0T89AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 7-year Subscription E-STU | S0T90AAE |
| | HPE Aruba Networking CX Software 8/9xxx Switch Advanced 10-year Subscription E-STU | S0T86AAE |
| | CX Advanced AAS Software Licenses | |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 9x5 Support E-STU | S0T87AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 9x5 Support E-STU | S0T88AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 9x5 Support E-STU | S0T89AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 9x5 Support E-STU | S0T90AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 9x5 Support E-STU | S0T86AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 24x7 Support E-STU | S3M90AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 24x7 Support E-STU | S3M91AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 24x7 Support E-STU | S3M92AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 24x7 Support E-STU | S3M93AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 24x7 Support E-STU | S3M89AAS |
| Notes: | For IRIS reference only. No action required for OCX and Clic | |
As-a-Service | ||
| | HPE Aruba Networking CentralCloud Services / 8XXX Switch Foundation Subscriptions | |
| 2 | HPE Aruba Networking Central Switch Class-5 Foundation 1 year Subscription SaaS | R3K03AAS |
| 2 | HPE Aruba Networking Central Switch Class-5 Foundation 3 year Subscription SaaS | R3K04AAS |
| 2 | HPE Aruba Networking Central Switch Class-5 Foundation 5 year Subscription SaaS | R3K05AAS |
| 2 | HPE Aruba Networking Central Switch Class-5 Foundation 7 year Subscription SaaS | R3K06AAS |
| 2 | HPE Aruba Networking Central Switch Class-5 Foundation 10 year Subscription SaaS | R3K07AAS |
| Notes: | Add the Central Cloud Skus to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services | |
| | Cloud Services / Switch Advanced AAS Licenses | |
| | HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS | S0W45AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS | S0W46AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS | S0W62AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS | S0W63AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS | S0W64AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS | S0W65AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS | S0W66AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS | S0W87AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS | S0W88AAS |
| | HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS | S0W89AAS |
| Notes: | For IRIS reference only. No action required for OCX and Clic | |
| | HPE Aruba Networking OS-CX Software CX Advanced AAS Software Licenses | |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 24x7 Support E-STU | S3M90AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 9x5 Support E-STU | S0T87AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 9x5 Support E-STU | S0T88AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 9x5 Support E-STU | S0T89AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 9x5 Support E-STU | S0T90AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 9x5 Support E-STU | S0T86AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 24x7 Support E-STU | S3M91AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 24x7 Support E-STU | S3M92AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 24x7 Support E-STU | S3M93AAS |
| | HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 24x7 Support E-STU | S3M89AAS |
| Notes: | For IRIS reference only. No action required for OCX and Clic | |
Technical Specifications
| | JL624A 8325-48Y8C front-to-back AC switch bundle | JL625A 8325-48Y8C back-to-front AC switch bundle | JL626A 8325-32C front-to-back AC switch bundle | JL627A 8325-32C back-to-front AC switch bundle |
| Description | 1 x JL635A base 8325-48Y8C switch
Power Supply | 1 x JL635A base 8325-48Y8C switch
Power Supply | 1 x JL636A base 8325-32C switch
Power Supply | 1 x JL636A base 8325-32C switch
Power Supply |
| | Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/ SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) [optional 1GBASE-T and 10GBASE-T transceivers, 4x10G and 4x25G breakout cables] | Supports 48 ports of 1G/10G/25GbE (SFP/ SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/ QSFP28) [optional 1GBASE-T and 10GBASE-T transceivers, 4x10G and 4x25G breakout cables] | Supports 32 ports of 40G/100GbE (QSFP+/ QSFP28) [optional 4x10G and 4x25G breakout cables] | Supports 32 ports of 40G/100GbE (QSFP+/QSFP28) [optional 4x10G and 4x25G breakout cables] |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. | | ||
| Fans | | Field-replaceable, hot-swappable, and up to 6 fans. | ||
| Physical characteristics | | | | |
| Dimensions | (H) 4.35 cm x (W) 43.84 cm x (D) 53.6 cm (1.71” x 17.26” x 21.1”) | (H) 4.35 cm x (W) 43.84 cm x (D) 53.6 cm (1.71” x 17.26” x 21.1”) | (H) 4.395 cm x (W) 44.25 cm x (D) 47.3 cm (1.73” x 17.42” x 18.62”) | (H) 4.395 cm x (W) 44.25 cm x (D) 47.3 cm (1.73” x 17.42” x 18.62”) |
| Full configuration weight | 10 kg (22.05 lb) | 10 kg (22.05 lb) | 10.87 kg (23.96 lb) | 10.87 kg (23.96 lb) |
| Additional specifications | ||||
| CPU | | 2.2 GHz | | |
| Memory, drive and flash | | 16 GB RAM, 64 GB SSD, 8 GB flash | | |
| Packet buffer | | 32 MB | | |
| Performance* | | | | |
| Switching capacity | 4 Tbps | | 6.4 Tbps | |
| IPv4 host table 120,000 | | 120,000 | | |
| IPv6 host table 52,000 | | 52,000 | | |
| Performance* | ||||
| IPv4 unicast routes | | 131,072 | | |
| IPv6 unicast routes | | 32,732 | | |
| MAC table size | | 98,304 | | |
| IGMP groups | | 4,094 | | |
| MLD groups | | 4,094 | | |
| IPv4 multicast routes | | 8,192 | | |
| IPv6 multicast routes | | 8,192 | | |
| Environment | | | | |
| Operating temperature | | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) | | |
| Operating relative humidity | | 5% to 95% at 40°C (104°F) non-condensing | | |
| Non-operating temperature | | -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | | |
| Non-operating/ storage relative humidity | | 5% to 95% @ 65°C (149°F) | | |
| Max operating altitude | | Up to 10,000 ft (3.048 km) | | |
| Max non-operating | | Up to 15,000 ft (4.6km) | | |
| Primary airflow | | Front-to-back or back-to-front | | |
| Electrical characteristics | ||||
| Power supplies | | 50-60Hz | | |
| AC voltage | | 100-240 VAC | | |
| Current | | 6.2A (low voltage)–3.1A (high voltage) | | |
| Power consumption* | Max: 586W, 2000 BTU/hr Idle: 209W, 714 BTU/hr | Max: 586W, 2000 BTU/hr Idle: 209W, 714 BTU/hr | Max: 618W, 2110 BTU/hr Idle: 143W, 489 BTU/hr | Max: 618W, 2110 BTU/hr Idle: 143W, 489 BTU/hr |
| | JL857A 8325-48Y8C front-to-back DC switch bundle | JL858A 8325-48Y8C back-to-front DC switch bundle | JL859A 8325-32C front-to-back DC Switch Bundle | JL860A 8325-32C back-to-front DC switch bundle |
|---|---|---|---|---|
| 8325 DC power bundle options | | | | |
| Electrical characteristics | | | | |
| DC input (nominal) | | | | 48VDC |
| DCinput(maxrange) | | | 36VDC to -72VDC | |
| Maximumcurrent | 14.3 A | 15.3 A | 15.1 A | 16.4 A |
| Powerconsumption* | Max: 520W, 1777 BTU/hr Idle: 198W, 674 BTU/hr | Max: 520W, 1777 BTU/hr Idle: 198W, 674 BTU/hr | Max: 558W, 1907 BTU/hr Idle: 135W, 462 BTU/hr | Max: 558W, 1907 BTU/hr Idle: 135W, 462 BTU/hr |
| Safety | EN/IEC 62368-1, 2nd. Ed. UL 62368-1, 2nd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. Ed. | | ||
| EMC | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KS C 9832 Class A AS/NZS CISPR 32 Class A EN 55035, CISPR 35, KS KS C 9835 | | ||
| NEBS | SR-3580, Level 3, NEBS Criteria Levels GR-1089-CORE, EMC & Electrical Safety GR-63-CORE, Physical Protections ETSI EN 300 386, Class A, EMC ETSI EN 300 019-2-1, Class 1.2, Storage ETSI EN 300 019-2-2, Class 2.3, Transportation ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationary Use at Weather Protected Locations ETSI 300 132, Power Supply Interface to Telecom Equipment, -48VDC ETSI ETS 300 753, Acoustic Noise | | ||
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 | |||
| Management | REST SNMP RJ-45 serial USB micro USB console RJ-45 Ethernet port | | | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; order 2-post or 4-post mounting kit separately | |||
| | HPE Aruba Networking CX 8325P-32C front-to-back DC switch bundle | HPE Aruba Networking CX 8325P-32C back-to-front DC switch bundle | HPE Aruba Networking CX 8325P-32C front-to-back AC switch bundle | HPE Aruba Networking CX 8325P-32C back-to-front AC switch bundle |
|---|---|---|---|---|
| Description | HPE Aruba Networking 8325P-32C 32p 100G QSFP+/28 Front-to-Back 6 Fans 2 DC PSU TAA Bundle (S0G07A) HPE Aruba Networking 8325P 32p QSFP28 40G/100G Front-to-Back 6 Fans 2 DC PSU Bundle (S4A49A) HPE Aruba Networking X3B4 850W 48VDC Front-to-Back Power Supply Unit (S0G29A) | HPE Aruba Networking 8325P-32C 32p 100G QSFP+/28 Back-to-Front 6 Fans 2 DC PSU TAA Bundle (S0G08A) HPE Aruba Networking 8325P 32p QSFP28 40G/100G Back-to-Front 6 Fans 2 DC PSU Bundle (S4A50A) - HPE Aruba Networking X3B4 850W 48VDC Back-to-Front Power Supply Unit (S0G30A) | HPE Aruba Networking 8325P-32C 32p 100G QSFP+/28 Front-to-Back 6 Fans 2 AC PSU TAA Bundle (S0G09A) HPE Aruba Networking 8325P 32p QSFP28 40G/100G Front-to-Back 6 Fans 2 AC PSU Bundle (S4A51A) - HPE Aruba Networking X3B1 650W 100-240VAC Front-to-Back Power Supply Unit (S0G27A) | HPE Aruba Networking 8325P-32C 32p 100G QSFP+/28 Back-to-Front 6 Fans 2 AC PSU TAA Bundle (S0G10A) HPE Aruba Networking 8325P 32p QSFP28 40G/100G Back-to-Front 6 Fans 2 AC PSU Bundle (S4A52A) - HPE Aruba Networking X3B1 650W 100-240VAC Back-to-Front Power Supply Unit (S0G28A) |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. | | ||
| Fans | | Field-replaceable, hot-swappable, and up to 6 fans. | | |
| Physical characteristics | | | | |
| Dimensions | (H) 4.3 cm x (W) 44.2 cm x (D) 56.5 cm (1.69” x 17.42” x 22.24”) | (H) 4.3 cm x (W) 44.2 cm x (D) 56.5 cm (1.69” x 17.42” x 22.24”) | (H) 4.3 cm x (W) 44.2 cm x (D) 55.3 cm (1.69” x 17.42” x 21.77”) | (H) 4.3 cm x (W) 44.2 cm x (D) 55.3 cm (1.69” x 17.42” x 21.77”) |
| Full configuration weight | 9.3 kg (20.5 lb) | 9.3 kg (20.5 lb) | 9.51 kg (21 lb) | 9.51 kg (21 lb) |
| Additional specifications | | | | |
| CPU | | 2.2 GHz | | |
| Memory, drive and flash | | 32 GB RAM, 128 GB SSD, 4 GB flash | | |
| Packet buffer | | 32 MB | | |
| Performance* | ||||
| Switching capacity | 6.4 Tbps | |||
| IPv4 host table 120,000 | | 120,000 | | |
| IPv6 host table 52,000 | | 52,000 | | |
| Performance* | | | | |
| IPv4 unicast routes | | 131,072 | | |
| IPv6 unicast routes | | 32,732 | | |
| MAC table size | | 98,304 | | |
| IGMP groups | | 4,094 | | |
| MLD groups | | 4,094 | | |
| IPv4 multicast routes | | 8,192 | | |
| IPv6 multicast routes | | 8,192 | | |
| Environment | | | | |
| Operating temperature | | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) | | |
| Operating relative humidity | | 5% to 95% at 40°C (104°F) non-condensing | | |
| Non-operating temperature | | -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | | |
| Non-operating/storage relative humidity | | 5% to 95% @ 65°C (149°F) | | |
| Max operating altitude | | Up to 10,000ft (3.048 km) | | |
| Max non-operating | | Up to 15,000ft (4.6km) | | |
| Primary airflow | | Front-to-back or back-to-front | | |
| Acoustics1 | LWAd = 7.3 Bel LpAm (Bystander) = 57 dB | LWAd = 7.5 Bel LpAm (Bystander) = 57 dB | ||
| Electrical characteristics | ||||
| Power supplies | N/A | 50–60 Hz | ||
| Voltage | -36 – -72voltsDC | 100–240 volts AC | ||
| Current | 28–14 A | 7.8 – 3.8 A | ||
| Power consumption* | Max: 632W Idle: 160W | Max: 632W Idle: 179W | ||
| Safety | EN/IEC 62368-1 2nd, & 3rd, Edition. UL 62368-1 3rd, Edition. CSA C22.2 No. 62368-1:19, 3rd. Edition. | | ||
| EMC | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: Class A VCCI-CISPR 32, Class A CNS 15936, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A EN 55035, CISPR 35, KS C 9835 ETSI EN 301 489-1 ETSI EN 301 489-19 TEC/EMI/TEL-001/FEB-09 TEC-SD-DD-EMC-221-05-OCT-16 | | ||
| NEBS | SR-3580, Level 3, NEBS Criteria Levels GR-1089-CORE, EMC & Electrical Safety GR-63-CORE, Physical Protections ETSI EN 300 386, Class A, EMC ETSI EN 300 019-2-1, Class 1.2, Storage ETSI EN 300 019-2-2, Class 2.3, Transportation ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationary Use at Weather Protected Locations ETSI 300 132, Power Supply Interface to Telecom Equipment, -48VDC ETSI ETS 300 753, Acoustic Noise | | ||
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 | |||
| Management | REST SNMP RJ-45 serial USB-C console RJ-45 Ethernet port | | | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; order 2-post or 4-post mounting kit separately | |||
Standards and protocols
The following standards and protocols are supported.
- IEEE 802.1AB-2009
- IEEE 802.1ak-2007
- IEEE 802.1t-2001
- IEEE 802.1AX-2008 Link Aggregation
- IEEE 802.1p Traffic Class Expediting and Dynamic Multicast Filtering
- IEEE 802.1Q VLANs
- IEEE 802.1s Multiple Spanning Trees
- IEEE 802.1w Rapid Reconfiguration of Spanning Tree
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- IEEE 802.3x Flow Control
- IEEE 802.3z Gigabit Ethernet
- IEEE 802.3ae 10 Gigabit Ethernet
- IEEE 802.3by 25 Gigabit Ethernet
- IEEE 802.3ba 40 and 100 Gigabit Ethernet Architecture
- RFC 768 UDP
- RFC 791 IP
- RFC 792 ICMP
- RFC 793 TCP
- RFC 826 ARP
- RFC 768 User Datagram Protocol
- RFC 813 Window and Acknowledgement Strategy in TCP
- RFC 815 IP datagram reassembly algorithms
- RFC 879 TCP maximum segment size and related topics
- RFC 896 Congestion control in IP/ TCP internetworks
- RFC 917 Internet subnets
- RFC 919 Broadcasting Internet Datagrams
- RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD)
- RFC 925 Multi-LAN address resolution
- RFC 1215 Convention for the defining traps for use with SNMP
- RFC 1256 ICMP Router Discovery Messages
- RFC 1393 Traceroute Using an IP Option
- RFC 1591 Domain Name System Structure and Delegation
- RFC 1657 Definitions of Managed Objects for BGP-4 using SMIv2
- RFC 1772 Application of the Border Gateway Protocol in the Internet
- RFC 1981 Path MTU Discovery for IP version 6
- RFC 1997 BGP Communities Attribute
- RFC 1998 An Application of the BGP Community Attribute in Multi-home Routing
- RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option
- RFC 2401 Security Architecture for the Internet Protocol
- RFC 2402 IP Authentication Header
- RFC 2406 IP Encapsulating Security Payload (ESP)
- RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
- RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter- Domain Routing
- RFC 2710 Multicast Listener Discovery (MLD) for IPv6
- RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol
- RFC 2918 Route Refresh Capability for BGP-4
- RFC 2934 Protocol Independent Multicast MIB for IPv4
- RFC 3137 OSPF Stub Router Advertisement
- RFC 3176 InMon Corporation’s sFlow: A Method for Monitoring Traffic in Switched and Routed Networks
- RFC 3484: Default Address Selection for Internet Protocol version 6 (IPv6)
- RFC 3509 Alternative Implementations of OSPF Area Border Routers
- RFC 3623 Graceful OSPF Restart
- RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
- RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers
- RFC 4251 The Secure Shell (SSH) Protocol
- RFC 4271 A Border Gateway Protocol 4 (BGP-4)
- RFC 4273 Definitions of Managed Objects for BGP-4
- RFC 4291 IP Version 6 Addressing Architecture
- RFC 4292 IP Forwarding Table MIB
- RFC 4293 Management Information Base for the Internet Protocol (IP)
- RFC 4360 BGP Extended Communities Attribute
- RFC 4486 Subcodes for BGP Cease Notification Message
- RFC 4552 Authentication/Confidentiality for OSPFv3
- RFC 4724 Graceful Restart Mechanism for BGP
- RFC 4760 Multiprotocol Extensions for BGP-4
- RFC 4861 Neighbor Discovery for IP version 6 (IPv6)
- RFC 4940 IANA Considerations for OSPF
- RFC 5095: Deprecation of Type 0 Routing Headers in IPv6
- RFC 5187 OSPFv3 Graceful Restart
- RFC 5492 Capabilities Advertisement with BGP-4
- RFC 5701 IPv6 Address Specific BGP Extended Community Attribute
- RFC 6987 OSPF Stub Router Advertisement
- RFC 7047 The Open vSwitch Database Management Protocol
- RFC 7059 A Comparison of IPv6-over-IPv4 Tunnel Mechanisms
- RFC 7313 Enhanced Route Refresh Capability for BGP-4
- RFC 8201 Path MTU Discovery for IP version 6
- PTP (1588v2), Telecom Profiles G.8275.1 and G.8275.2 with Class C performance, Synchronous Ethernet (SyncE, G.8262.1)*
Notes: *Supported with CX 8325P-32C only
HPE Aruba Networking Data Center Networking Solution for HPE
New HPE Aruba Networking Data Center Networking Solution SKUs for HPE
Hewlett Packard Enterprise and HPE Aruba Networking offer customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety HPE compute, storage, networking that span virtualization, vSAN, HCI, HPC, MCS, Microsoft, SAP HANA, VMware, Nutanix application and IaaS service offerings. HPE Aruba Networking 10/25 and 40/100G CX switches can be deployed as part of these solutions and is often designed into these integrated solutions along with HPE ProLiant DL/DX servers, SimpliVity, Nimble, Synergy, Cray Shasta, Cray ClusterStor, Superdome Flex and HPE GreenLake. These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.
To ensure that these Hewlett Packard Enterprise and HPE Aruba Networking integrated solutions receive simplified ordering and the highest-level of customer service and support, HPE Aruba Networking has created a special tracking HPE Aruba Networking Data Center networking SKUs for HPE deployments that identifies these integrated solutions to ensure they receive rapid support triage and streamlines escalation through HPE Services. Please use these new tracking SKUs when HPE Aruba Networking CX switches are included in HPE integrated and mixed compute, storage and networking configuration and deployments, refer to this page for HPE Aruba Networking Switches qualification with Storage solutions:
Notes: Current HPE Aruba Networking “J#” SKUs should still be used for all data center network centric (HPE Aruba Networking “only”, Non HPE environments). Please contact your sales representative for additional information and ordering guidance.
HPE Aruba Networking 8325 DC Switch Series
| BTO Models | | |
| Rule # | Description | SKU |
| | AC Bundles | |
| 1, 2, 3, 4, 5, 6, 7, 8 | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle
| R9F64A |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F64A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F64A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle 220v | R9F64A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle NoLoc | R9F64A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8 | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle
| R9F65A |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle 220v | R9F65A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F65A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle 220v | R9F65A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle NoLoc | R9F65A#AC3 |
| 4, 5, 6, 7, 8 | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle
| R9F66A |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F66A#B2B |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F66A#B2C |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle 220v | R9F66A#B2E |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle NoLoc | R9F66A#AC3 |
| 4, 5, 6, 7, 8 | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle
| R9F67A |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F67A#B2B |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle PDU | R9F67A#B2C |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle 220v | R9F67A#B2E |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle NoLoc | R9F67A#AC3 |
| | DC Bundles | |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D09A |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D10A |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D11A |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D12A |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | R9F86A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver | J4860D |
| | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver | R9F87A |
| | HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver | R9Q43A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver | R9Q44A |
| | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver | R9Q45A |
| | HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver | 453154-B21 |
| | HPE Networking X120 1G SFP RJ45 T Transceiver | JD089B |
| 2 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver | R9F85A |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | R9F82A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | R9Q46A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | R9Q47A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | R9F83A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | R9F84A |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| | HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable | JG081C |
| | HPE Networking X130 10G SFP+ LC SR Transceiver | JD092B |
| | HPE 10GbE SFP+ SR Multi-mode 300m Transceiver | Q6M30A |
| | HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver | 455883-B21 |
| | HPE 10Gb SFP+ Short Wave 1-pack Pull Tab Optical Transceiver | Q2P65A |
| 3 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | R9F89A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | R9F90A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable | R9F91A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable | R9F92A |
| | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable | R9F93A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable | R9F94A |
| | HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable | R9F95A |
| | HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable | R9F96A |
| | HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable | 844477-B21 |
| | HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable | 844480-B21 |
| | HPE 25GbE SFP28 to SFP28 5m Smart Active Optical Cable | Q9S68A |
| | HPE 25GbE SFP28 to SFP28 15m Smart Active Optical Cable | Q9S70A |
| | HPE 25Gb SFP28 SR 30m Transceiver | R0R42A |
| | HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver | JL293A |
| | HPE 25Gb SFP28 Short Wave Extended Temperature 1-pack Pull Tab Optical Transceiver | Q2P64B |
| | HPE 25Gb SFP28 SR 100m Transceiver | 845398-B21 |
| | HPE Alletra 6000 2x25Gb SFP28 SR 100m FIO Transceiver | R7D07A |
| | HPE Alletra 6000 2x25Gb SFP28 SR 100m Transceiver | R7D11A |
| 4 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver | R9F97A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ MPO eSR4 300M Transceiver | R9F98A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | R9G02A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | R9F99A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | R9G00A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | R9G01A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R9G03A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R9G04A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R9G05A |
| | HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | 721064-B21 |
| | HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | JG330A |
| | HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable | JG331A |
| | HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable | 720211-B21 |
| | HPE 40GbE QSFP+ to 4x10GbE SFP+ 5m Active Optical Cable | Q9S66A |
| 5 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver | R9F75A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28-QSFP28 3m Direct Attach Copper Cable | R9F74A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R9F77A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R9F78A |
| | HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable | 845416-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | R9F76A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R9F79A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R9F80A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R9F81A |
| | HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable | 845420-B21 |
| | HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable | 845424-B21 |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| | HPE Networking X240 100G QSFP28 1m DAC Cable | JL271A |
| | HPE Networking X240 100G QSFP28 3m DAC Cable | JL272A |
| | HPE 100Gb QSFP28 to QSFP28 3m Direct Attach Copper Cable | 845406-B21 |
| | HPE 100Gb QSFP28 to QSFP28 5m Direct Attach Copper Cable | 845408-B21 |
| | HPE Networking X240 100G QSFP28 5m DAC Cable | JL273A |
| | HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable | JL284A |
| | HPE 100GbE QSFP28 to QSFP28 5m Active Optical Cable | Q9S71A |
| | HPE 100GbE QSFP28 SR4 100m Transceiver | Q2F19A |
| | HPE 100Gb QSFP28 MPO SR4 100m Transceiver | 845966-B21 |
| 6 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 7 | If qty1 of the following QSA28 Adapter(845970-B21) is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use BTO only when adding this QSA28 Adapter) | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | R9F82A J9151E J9153D R9Q46A R9Q47A R9F89A R9F90A |
| 8 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: For BTO shipments to India: Please replace #B2C option with #AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: JL671A - HPE 2.0m C13 to C14 PDU IN Power Cord JL672A - HPE 2.5m C15 to C14 PDU IN Power Cord JL673A - HPE 2.5m C19 to C20 PDU IN Power Cord For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| Notes: | − Drop down under power supply should offer the following options and results:
− Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab − OCA Only Model Selection Form - HPE Offering > HPE Aruba Networking > DC Solutions Switches for HPE > AOS-CX: HPE Aruba Networking 8325 DC Switch Series | |
| Rack Level Integration CTO Models | | |
| Rule # | Description | SKU |
| | AC Bundles | |
| 1, 2, 3, 4, 5, 6, 7, 8, 9 | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle
| R9F64A |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F64A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F64A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle 220v
| R9F64A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle NoLoc
| R9F64A#AC3 |
| 1, 2, 3, 4, 5, 6, 7, 8, 9 | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle
| R9F65A |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle 220v
| R9F65A#B2B |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F65A#B2C |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle 220v
| R9F65A#B2E |
| | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle NoLoc
| R9F65A#AC3 |
| 4, 5, 6, 7, 8, 9 | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle
| R9F66A |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F66A#B2B |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F66A#B2C |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle 220v
| R9F66A#B2E |
| | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle NoLoc
| R9F66A#AC3 |
| 4, 5, 6, 7, 8, 9 | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle
| R9F67A |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F67A#B2B |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle PDU
| R9F67A#B2C |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle 220v
| R9F67A#B2E |
| | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle NoLoc
| R9F67A#AC3 |
| | DC Bundles | |
| 1, 2, 3, 4, 5, 7, 8 | HPE Aruba Networking CX 8325-48Y8C Port-to-Power Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D09A |
| 1, 2, 3, 4, 5, 7, 8 | HPE Aruba Networking CX 8325-48Y8C Power-to-Port Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D10A |
| 4, 5, 7, 8 | HPE Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D11A |
| 4, 5, 7, 8 | HPE Aruba Networking CX 8325-32C Power-to-Port Airflow 6 Fans 2 DC PSU Switch Bundle
| S1D12A |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | R9F86A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver | J4860D |
| | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver | R9F87A |
| | HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver | R9Q43A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver | R9Q44A |
| | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver | R9Q45A |
| | HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver | 453154-B21 |
| | HPE Networking X120 1G SFP RJ45 T Transceiver | JD089B |
| 2 | The following Transceivers install into this Switch: (Use 0D1 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver | R9F85A |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | R9F82A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | R9Q46A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | R9Q47A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | R9F83A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | R9F84A |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| | HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable | JG081C |
| | HPE Networking X130 10G SFP+ LC SR Transceiver | JD092B |
| | HPE 10GbE SFP+ SR Multi-mode 300m Transceiver | Q6M30A |
| | HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver | 455883-B21 |
| | HPE 10Gb SFP+ Short Wave 1-pack Pull Tab Optical Transceiver | Q2P65A |
| 3 | The following Transceivers install into this Switch: (Use BTO only when adding to switch) | |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | JL484A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | R9F89A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | R9F90A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable | R9F91A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable | R9F92A |
| | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable | R9F93A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable | R9F94A |
| | HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable | R9F95A |
| | HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable | R9F96A |
| | HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable | 844477-B21 |
| | HPE 25GbE SFP28 to SFP28 5m Smart Active Optical Cable | Q9S68A |
| | HPE 25GbE SFP28 to SFP28 15m Smart Active Optical Cable | Q9S70A |
| | HPE 25Gb SFP28 SR 30m Transceiver | R0R42A |
| | HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver | JL293A |
| | HPE 25Gb SFP28 Short Wave Extended Temperature 1-pack Pull Tab Optical Transceiver | Q2P64B |
| | HPE 25Gb SFP28 SR 100m Transceiver | 845398-B21 |
| 4 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver | R9F97A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ MPO eSR4 300M Transceiver | R9F98A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | R9G02A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | R9F99A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | R9G00A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | R9G01A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R9G03A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R9G04A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R9G05A |
| | HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | 721064-B21 |
| | HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | JG330A |
| | HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable | JG331A |
| | HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable | 720211-B21 |
| | HPE 40GbE QSFP+ to 4x10GbE SFP+ 5m Active Optical Cable | Q9S66A |
| 5 | The following Transceivers install into this Switch: (Use 0D1 or B01 quoted to switch if switch is CTO) - if applicable: | |
| | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver | R9F75A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28-QSFP28 3m Direct Attach Copper Cable | R9F74A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R9F77A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R9F78A |
| | HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable | 845416-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | R9F76A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R9F79A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R9F80A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R9F81A |
| | HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable | 845420-B21 |
| | HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable | 845424-B21 |
| | HPE QSFP28 to SFP28 Adapter | 845970-B21 |
| | HPE Networking X240 100G QSFP28 1m DAC Cable | JL271A |
| | HPE Networking X240 100G QSFP28 3m DAC Cable | JL272A |
| | HPE 100Gb QSFP28 to QSFP28 3m Direct Attach Copper Cable | 845406-B21 |
| | HPE 100Gb QSFP28 to QSFP28 5m Direct Attach Copper Cable | 845408-B21 |
| | HPE Networking X240 100G QSFP28 5m DAC Cable | JL273A |
| | HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable | JL284A |
| | HPE 100GbE QSFP28 to QSFP28 5m Active Optical Cable | Q9S71A |
| | HPE 100GbE QSFP28 SR4 100m Transceiver | Q2F19A |
| | HPE 100Gb QSFP28 MPO SR4 100m Transceiver | 845966-B21 |
| 6 | OCA Only: Required Custom Choice (Min1/Max1)
| |
| 7 | If the CTO Switch Chassis needs to be racked, Then the CTO Base Model needs to integrate (with 0D1) to the HPE Network Rack. | |
| 8 | If qty1 of the following QSA28 Adapter(845970-B21) is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use #0D1 for this XCVR Adapter since switch is factory racked) | |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | R9F82A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | R9Q46A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | R9Q47A |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | R9F89A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | R9F90A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| 9 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: For BTO shipments to India: Please replace #B2C option with #AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: JL671A - HPE 2.0m C13 to C14 PDU IN Power Cord JL672A - HPE 2.5m C15 to C14 PDU IN Power Cord JL673A - HPE 2.5m C19 to C20 PDU IN Power Cord For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| Notes: | Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab | |
Transceivers | | |
| | SFP Transceivers | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver | R9F86A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver | J4859D |
| | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver | J4860D |
| 1 | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver | R9F87A |
| | HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver | R9Q43A |
| | HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver | R9Q44A |
| 1 | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver | R9Q45A |
| 1 | HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver | 453154-B21 |
| | HPE Networking X120 1G SFP RJ45 T Transceiver | JD089B |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | − min 0 // max 32 of this XCVR can be installed into the following Switches: R9F64A, R9F65A, S1D09A, S1D10A − Max of 32 RJ45 XCVRs in either the R9F64A/R9F65A/S1D09A/S1D10A and can be installed into ports 1-48 excluding 3rd row of ports. | |
| | SFP+ Transceivers | |
| Rule # | Description | SKU |
| 1 | HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver | R9F85A |
| | HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver | R9F82A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver | J9151E |
| | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver | J9153D |
| | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver | R9Q46A |
| | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver | R9Q47A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable | R9F83A |
| | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable | R9F84A |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable | 487655-B21 |
| | HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable | 537963-B21 |
| | HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable | JG081C |
| | HPE Networking X130 10G SFP+ LC SR Transceiver | JD092B |
| | HPE 10GbE SFP+ SR Multi-mode 300m Transceiver | Q6M30A |
| | HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver | 455883-B21 |
| | HPE 10Gb SFP+ Short Wave 1-pack Pull Tab Optical Transceiver | Q2P65A |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | − min 0 // max 12 XCVRs (R9F85A) can be installed into the following Switches: R9F64A, R9F65A − R9F85A Max of 12 in either the R9F64A/R9F65A and only allowed in ports 1-17 excluding 3rd row of ports. | |
| | SFP28 Transceivers | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver | R9F89A |
| | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver | R9F90A |
| | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver | JL486A |
| | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable | R9F91A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable | R9F92A |
| | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable | R9F93A |
| | HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable | R9F94A |
| | HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable | R9F95A |
| | HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable | R9F96A |
| | HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable | 844477-B21 |
| | HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable | 844480-B21 |
| | HPE 25GbE SFP28 to SFP28 5m Smart Active Optical Cable | Q9S68A |
| | HPE 25GbE SFP28 to SFP28 15m Smart Active Optical Cable | Q9S70A |
| | HPE 25Gb SFP28 SR 30m Transceiver | R0R42A |
| | HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver | JL293A |
| | HPE 25Gb SFP28 Short Wave Extended Temperature 1-pack Pull Tab Optical Transceiver | Q2P64B |
| | HPE 25Gb SFP28 SR 100m Transceiver | 845398-B21 |
| | Configuration Rules | |
| Rule # | Description | |
| Notes: | − The 48 x SFP28 Ports function in port groups of 12 ports. Each port group must operate at the same speed (ie. Group 1 = qty12 of 1G or 10G or 25G transceivers).
| |
| | QSFP+ Transceivers | |
| Rule # | Description | SKU |
| | HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver | Q9G82A |
| | HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver | R9F97A |
| | HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver | JH232A |
| | HPE Aruba Networking 40G QSFP+ MPO eSR4 300M Transceiver | R9F98A |
| | HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver | R9G02A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable | R9F99A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable | R9G00A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable | R9G01A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable | R9G03A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable | R9G04A |
| | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable | R9G05A |
| | HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | 721064-B21 |
| | HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable | JG330A |
| | HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable | JG331A |
| | HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable | 720211-B21 |
| | HPE 40GbE QSFP+ to 4x10GbE SFP+ 5m Active Optical Cable | Q9S66A |
| | QSFP28 Transceivers | |
| Rule # | Description | SKU |
| 1 | HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver | JL743A |
| | HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver | R9F75A |
| | HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver | JL310A |
| | HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver | R0Z30A |
| | HPE 100Gb QSFP28 Bidirectional Transceiver | 845972-B21 |
| | HPE Aruba Networking 100G QSFP28-QSFP28 3m Direct Attach Copper Cable | R9F74A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable | R9F77A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable | R9F78A |
| | HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable | 845416-B21 |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable | R9F76A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable | R9F79A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable | R9F80A |
| | HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable | R9F81A |
| | HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable | 845420-B21 |
| | HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable | 845424-B21 |
| | HPE Networking X240 100G QSFP28 1m DAC Cable | JL271A |
| | HPE Networking X240 100G QSFP28 3m DAC Cable | JL272A |
| | HPE 100Gb QSFP28 to QSFP28 3m Direct Attach Copper Cable | 845406-B21 |
| | HPE 100Gb QSFP28 to QSFP28 5m Direct Attach Copper Cable | 845408-B21 |
| | HPE Networking X240 100G QSFP28 5m DAC Cable | JL273A |
| | HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable | JL284A |
| | HPE 100GbE QSFP28 to QSFP28 5m Active Optical Cable | Q9S71A |
| | HPE 100GbE QSFP28 SR4 100m Transceiver | Q2F19A |
| | HPE 100Gb QSFP28 MPO SR4 100m Transceiver | 845966-B21 |
| | QSA28 Adapter | |
| 2 | HPE QSFP28 to SFP28 Adapter | |
| | Configuration Rules | |
| Rule # | Description | |
| | − min 0 // max 4 XCVRs (JL743A) can be installed into the following Switches: R9F64A, R9F65A, R9F66A, R9F67A, S1D09A, S1D10A, S1D11A, S1D12A. − JL743A Max of 4 in either the R9F64A/R9F65A and only allowed in ports 49, 51, 53, 55. − JL743A Max of 4 in either the R9F66A/R9F67A and only allowed in ports 29-32. | |
| 2 | If selecting the 845970-B21 - QSFP28 to SFP28 Adapter, then see HPE Aruba Networking Transceiver Guide for details. | |
Cables | | |
| | Multi-Mode Cables | |
| | HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable HPE 5m Single-Mode LC/LC Fibre Channel Cable | AJ833A AJ834A AJ835A AJ836A AJ837A AJ838A AJ839A QK732A QK733A QK734A QK735A QK736A QK737A AK346A |
| | MPO Cables | |
| | HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 5m Fiber Cable HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 15m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 10m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 50m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 100m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 1m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 2m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 5m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 15m Fiber Cable HPE Premier Flex MPO12/MPO12 Multi-mode OM4 30m Fiber Cable HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 30m Fiber Cable HPE Premier Flex MPO8 to 4xLC Multi-mode OM4 50m Fiber Cable HPE Premier Flex MPO12/MPO12 APC Single-mode 50m Fiber Cable HPE Premier Flex MPO12/MPO12 APC Single-mode 100m Fiber Cable HPE Premier Flex MPO12/MPO12 APC Single-mode 300m Fiber Cable HPE Premier Flex MPO12/MPO12 APC Single-mode 500m Fiber Cable | K2Q46A K2Q47A QK729A QK731A H6Z30A Q1H63A Q1H64A Q1H65A Q1H66A Q1H67A Q1H68A Q1H69A R6F28A R6F29A R6F30A R6F31A |
Switch Options | | |
| | Rack Mount Kits | |
| | For 8325 DC System (std 0 // max 1) User Selection (min 1 // max 1) per enclosure | |
| Rule # | Description | SKU |
| | HPE Aruba Networking X472 2-post Rack Kit | JL482C |
| 1 | HPE Aruba Networking 4-post Rack Kit | R9F59A |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | If the switch will be factory racked into an HPE Universal Rack, then (Min 1) of the 4 Post Rack Mount kit is required. | |
| | India PDU Cable | |
| | For 8325 DC (std 0 // max 1) User Selection (min 0 // max 1) per enclosure | |
| | HPE Networking 2.0m C13 to C14 PDU India Power Cord | JL671A |
| |
| |
| Notes: | This Power Cord is only available when the #AC3 option is selected for the supported Switch Enclosure and intended for India | |
| Accessories | | |
| | Spare Items | |
| Rule # | Description | SKU |
| 1, 2 | HPE Aruba Networking 8325 650W 100-240VAC Port-to-Power Airflow Power Supply Unit
| R9F72A |
| | HPE Aruba Networking 8325 650W 100-240VAC Port-to-Power Airflow Power Supply Unit PDU
| R9F72A#B2B |
| | HPE Aruba Networking 8325 650W 100-240VAC Port-to-Power Airflow Power Supply Unit PDU
| R9F72A#B2C |
| | HPE Aruba Networking 8325 650W 100-240VAC Port-to-Power Airflow Power Supply Unit 220v
| R9F72A#B2E |
| | HPE Aruba Networking 8325 650W 100-240VAC Port-to-Power Airflow Power Supply Unit NoLoc
| R9F72A#AC3 |
| 1, 2 | HPE Aruba Networking 8325 650W 100-240VAC Power-to-Port Airflow Power Supply Unit
| R9F73A |
| | HPE Aruba Networking 8325 650W 100-240VAC Power-to-Port Airflow Power Supply Unit PDU
| R9F73A#B2B |
| | HPE Aruba Networking 8325 650W 100-240VAC Power-to-Port Airflow Power Supply Unit PDU
| R9F73A#B2C |
| | HPE Aruba Networking 8325 650W 100-240VAC Power-to-Port Airflow Power Supply Unit 220v
| R9F73A#B2E |
| | HPE Aruba Networking 8325 650W 100-240VAC Power-to-Port Airflow Power Supply Unit NoLoc
| R9F73A#AC3 |
| | HPE Aruba Networking 8325 850W 48VDC Port-to-Power Airflow Power Supply Unit HPE Aruba Networking 8325 850W 48VDC Power-to-Port Airflow Power Supply Unit HPE Aruba Networking 8325-48Y8C Port-to-Power Airflow Fan HPE Aruba Networking 8325-48Y8C Power-to-Port Airflow Fan HPE Aruba Networking 8325-32C Port-to-Power Airflow Fan HPE Aruba Networking 8325-32C Power-to-Port Airflow Fan HPE Aruba Networking 4-post Rack Kit HPE Aruba Networking RJ45 to DB9 Console Cable | S1D13A S1D14A R9F68A R9F69A R9F70A R9F71A R9F59A R9F58A |
| | Configuration Rules | |
| Rule # | Description | |
| 1 | Localization required on orders without B2B, B2C, B2E or AC3 options. | |
| 2 | Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: For BTO shipments to India: Please replace #B2C option with #AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: JL671A - HPE 2.0m C13 to C14 PDU IN Power Cord JL672A - HPE 2.5m C15 to C14 PDU IN Power Cord JL673A - HPE 2.5m C19 to C20 PDU IN Power Cord For Factory Integration of Power Cord, please add "#0D1" to the Power Cord Sku suffix. (Ex. JL671A#0D1) | |
| Notes: | − Drop down under power supply should offer the following options and results:
− Locking Power Cord (J9955A) L6-20P is available in the Accessories tab − 2 Power Supply is included with the Switch Bundle | |
Software | | |
| Remarks | Description | SKU |
| | NetEdit | |
| | HPE Aruba Networking NetEdit Single Node 1-year Subscription E-STU | R9G36AAE |
| | HPE Aruba Networking NetEdit Single Node 3-year Subscription E-STU | R9G37AAE |
| | HPE Aruba Networking Fabric Compos | |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 1y Subscription E-STU | R9G26AAE |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 3y Subscription E-STU | R9G27AAE |
| | HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 5y Subscription E-STU | R9G28AAE |
| HPE Aruba Networking 8325-48Y8C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle (R9F64A) | ||
| I/O ports and slots | Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) SFP+ ports (with an optional 10GBASE-T transceiver) | |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. | |
| Fans | Field-replaceable, hot-swappable, and up to 6 fans. | |
| Physical characteristics | Dimensions | (H) 4.3 cm x (W) 43.8 cm x (D) 53.6 cm (1.69” x 17.26” x 21.1”) |
| Weight | 10 kg (22.05 lb) | |
| Memory and processor | CPU | 2.2GHz |
| Memory, drive and Flash | 16 GB RAM, 64 GB SSD, 8 GB Flash | |
| Packet buffer | 32 MB | |
| Performance | Switching capacity | 6.4 Tbs |
| IPv4 Host Table | 120,000 | |
| IPv6 Host Table | 52,000 | |
| IPv4 Unicast Routes | 131,072 | |
| IPv6 Unicast Routes | 32,732 | |
| MAC address table size | 98,304 | |
| IGMP Groups | 4,094 | |
| MLD Groups | 4,094 | |
| IPv4 Multicast Routes | 7,000 | |
| IPv6 Multicast Routes | 7,000 | |
| Environment | Operating temperature | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) |
| Operating relative humidity | 5% to 95% at 40°C (104°F) non-condensing | |
| Non-operating temperature | -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | |
| Non-operating/storage relative humidity | 5% to 95% @ 65°C (149°F) | |
| Max operating altitude | Up to 10,000 ft (3.048 km) | |
| Max non-operating altitude | Up to 15,000 ft (4.6km) | |
| Primary airflow | Front-to-Back or Back-to-Front | |
| Electrical characteristics | Frequency | 50/60 Hz |
| AC voltage | 100-240 volts | |
| Current | 6.2A (low voltage) – 3.1A (high voltage) | |
| Power consumption* | Max: 586 W, 2000 BTU/hr Idle: 209 W, 714 BTU/hr | |
| Notes: *Power Consumption measured in 40°C thermal chamber considers all supported input voltages specified for each product. Idle measurement is collected with no network traffic or modules, Max measurement is collected under 100% line rate with all network ports populated under worst case power conditions | ||
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. Ed. UL 62368-1, 2rd. Ed. CAN/CSA C22.2 No. 62368-1, 2rd. Ed | |
| EMC | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KS C 9832 Class A AS/NZS CISPR 32 Class A EN 55035, CISPR 35, KS KS C 9835 | |
| NEBs | SR-3580, Level 3, NEBS Criteria Levels GR-1089-CORE, EMC & Electrical Safety GR-63-CORE, Physical Protections ETSI EN 300 386, Class A, EMC ETSI EN 300 019-2-1, Class 1.2, Storage ETSI EN 300 019-2-2, Class 2.3, Transportation ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationary Use at Weather Protected Locations ETSI 300 132, Power Supply Interface to Telecom Equipment, -48VDC ETSI ETS 300 753, Acoustic Noise | |
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1, Class 1 Laser Products/Laser Klasse 1 | |
| Management | SNMP RJ-45 serial USB micro USB console RJ-45 Ethernet port | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet (2-post or 4-post kit ordered separately); horizontal surface mounting only | |
| HPE Aruba Networking 8325-48Y8C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle (R9F65A) | ||
| I/O ports and slots | Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) SFP+ ports (with an optional 10GBASE-T transceiver) | |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. Bundles (R9F64A, R9F65A, R9F66A, and R9F67A) include 2 power supplies. | |
| Fans | Field-replaceable, hot-swappable, and up to 6 fans. Bundles (R9F64A, R9F65A, R9F66A, and R9F67A) include 6 fans. | |
| Physical characteristics | Dimensions | (H) 4.3 cm x (W) 43.8 cm x (D) 53.6 cm (1.71” x 17.26” x 21.1”) |
| Weight | 10 kg (22.05 lb) | |
| Memory and processor | CPU | 2.2GHz |
| Memory, drive and Flash | 16GB RAM, 64GB SSD, 8GB Flash Packet buffer: 32MB | |
| Performance | Switching capacity | 6.4Tbs |
| IPv4 Host Table | 120,000 | |
| IPv6 Host Table | 52,000 | |
| IPv4 Unicast Routes | 131,072 | |
| IPv6 Unicast Routes | 32,732 | |
| MAC address table size | 98,304 | |
| IGMP Groups | 4,094 | |
| MLD Groups | 4,094 | |
| IPv4 Multicast Routes | 7,000 | |
| IPv6 Multicast Routes | 7,000 | |
| Environment | Operating temperature | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) |
| Operating relative humidity | 5% to 95% at 40°C (104°F) non-condensing | |
| Non-operating temperature | -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | |
| Non-operating/storage relative humidity | 5% to 95% @ 65°C (149°F) | |
| Max operating altitude | Up to 10,000 ft (3.048 km) | |
| Max non-operating altitude | Up to 15,000 ft (4.6km) | |
| Primary airflow | Front-to-Back or Back-to-Front | |
| Electrical characteristics | Frequency | 50/60 Hz |
| AC voltage | 100-240 volts | |
| Current | 6.2A (low voltage) – 3.1A (high voltage) | |
| Power consumption* | Max: 586 W, 2000 BTU/hr Idle: 209 W, 714 BTU/hr | |
| Notes: *Power Consumption measured in 40°C thermal chamber considers all supported input voltages specified for each product. Idle measurement is collected with no network traffic or modules, Max measurement is collected under 100% line rate with all network ports populated under worst case power conditions | ||
| 8325 DC Power Bundle Option | Electric characteristics | S1D10A 8325-48Y8C Back-to-Front DC Switch Bundle |
| DC Input (nominal) | -48V | |
| DC input (max range) | -36V to -72V | |
| Maximum current | 14.3A | |
| Power Consumption | 501W | |
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. Ed. UL 62368-1, 2rd. Ed. CAN/CSA C22.2 No. 62368-1, 2rd. Ed | |
| EMC | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KS C 9832 Class A AS/NZS CISPR 32 Class A EN 55035, CISPR 35, KS KS C 9835 | |
| NEBs | SR-3580, Level 3, NEBS Criteria Levels GR-1089-CORE, EMC & Electrical Safety GR-63-CORE, Physical Protections ETSI EN 300 386, Class A, EMC ETSI EN 300 019-2-1, Class 1.2, Storage ETSI EN 300 019-2-2, Class 2.3, Transportation ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationary Use at Weather Protected Locations ETSI 300 132, Power Supply Interface to Telecom Equipment, -48VDC ETSI ETS 300 753, Acoustic Noise | |
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 | |
| Management | SNMP RJ-45 serial USB micro USB console RJ-45 Ethernet port | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet (2-post or 4-post kit ordered separately); horizontal surface mounting only | |
| HPE Aruba Networking 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle (R9F66A) | ||
|---|---|---|
| I/O ports and slots | Supports 32 ports of 40G/100GbE (QSFP+/QSFP28) | |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. Bundles (R9F64A, R9F65A, R9F66A, and R9F67A) include 2 power supplies. | |
| Fans | Field-replaceable, hot-swappable, and up to 6 fans. Bundles (R9F64A, R9F65A, R9F66A, and R9F67A) include 6 fans. | |
| Physical characteristics | Dimensions | (H) 4.4 cm x (W) 44.3 cm x (D) 47.3 cm (1.69” x 17.26” x 20.28”) |
| Weight | 10.9 kg (24.0 lb) | |
| Memory and processor | CPU | 2.2GHz |
| Memory, drive and Flash | 16GB RAM, 64GB SSD, 8GB Flash | |
| Packet buffer: 32MB | ||
| Performance | Switching capacity | 6.4Tbs |
| IPv4 Host Table | 120,000 | |
| IPv6 Host Table | 52,000 | |
| IPv4 Unicast Routes | 131,072 | |
| IPv6 Unicast Routes | 32,732 | |
| MAC address table size | 98,304 | |
| IGMP Groups | 4,094 | |
| MLD Groups | 4,094 | |
| IPv4 Multicast Routes | 7,000 | |
| IPv6 Multicast Routes | 7,000 | |
| Environment | Operating temperature | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) |
| Operating relative humidity | 5% to 95% at 40°C (104°F) non-condensing | |
| Non-operating temperature | -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | |
| Non-operating/storage relative humidity | 5% to 95% @ 65°C (149°F) | |
| Max operating altitude | Up to 10,000 ft (3.048 km) | |
| Max non-operating altitude | Up to 15,000 ft (4.6km) | |
| Primary airflow | Front-to-Back or Back-to-Front | |
| Electrical characteristics | Frequency | 50/60 Hz |
| AC voltage | 100-240 volts | |
| Current | 6.2A (low voltage) – 3.1A (high voltage) | |
| Power consumption* | Max: 618W | |
| Notes: *Power Consumption measured in 40°C thermal chamber considers all supported input voltages specified for each product. Idle measurement is collected with no network traffic or modules, Max measurement is collected under 100% line rate with all network ports populated under worst case power conditions | ||
| 8325 DC power bundle option | Electric characteristics | S1D11A 8325-32C Front-to-Back DC Switch Bundle |
| DC Input (nominal) | -48V | |
| DC input (max range) | -36V to -72V | |
| Maximum current | 16.4A | |
| Power Consumption | Max: 618 W, 2110 BTU/hr Idle: 143 W, 489 BTU/hr | |
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. Ed. UL 62368-1, 2rd. Ed. CAN/CSA C22.2 No. 62368-1, 2rd. Ed | |
| EMC | SR-3580, Level 3, NEBS Criteria Levels GR-1089-CORE, EMC & Electrical Safety GR-63-CORE, Physical Protections ETSI EN 300 386, Class A, EMC ETSI EN 300 019-2-1, Class 1.2, Storage ETSI EN 300 019-2-2, Class 2.3, Transportation ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationary Use at Weather Protected Locations ETSI 300 132, Power Supply Interface to Telecom Equipment, -48VDC ETSI ETS 300 753, Acoustic Noise | |
| NEBs | SR-3580, Level 3, NEBS Criteria Levels GR-1089-CORE, EMC & Electrical Safety GR-63-CORE, Physical Protections ETSI EN 300 386, Class A, EMC ETSI EN 300 019-2-1, Class 1.2, Storage ETSI EN 300 019-2-2, Class 2.3, Transportation ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationary Use at Weather Protected Locations ETSI 300 132, Power Supply Interface to Telecom Equipment, -48VDC ETSI ETS 300 753, Acoustic Noise | |
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 | |
| Management | SNMP RJ-45 serial USB micro USB console RJ-45 Ethernet port | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet (2-post or 4-post kit ordered separately); horizontal surface mounting only | |
| HPE Aruba Networking 8325-32C Power-to-Port Airflow 6 Fans 2 Power Supply Units Bundle (R9F67A) | ||
|---|---|---|
| I/O ports and slots | Supports 32 ports of 40G/100GbE (QSFP+/QSFP28) | |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. Bundles (R9F64A, R9F65A, R9F66A, and R9F67A) include 2 power supplies. | |
| Fans | Field-replaceable, hot-swappable, and up to 6 fans. Bundles (R9F64A, R9F65A, R9F66A, and R9F67A) include 6 fans. | |
| Physical characteristics | Dimensions | (H) 4.4 cm x (W) 44.3 cm x (D) 47.3 cm (1.69” x 17.26” x 20.28”) |
| Weight | 10.9 kg (24.0 lb) | |
| Memory and processor | CPU | 2.2GHz |
| Memory, drive and Flash | 16GB RAM, 64GB SSD, 8GB Flash | |
| Packet buffer 32MB | ||
| Performance | Switching capacity | 6.4Tbs |
| IPv4 Host Table | 120,000 | |
| IPv6 Host Table | 52,000 | |
| IPv4 Unicast Routes | 131,072 | |
| IPv6 Unicast Routes | 32,732 | |
| MAC address table size | 98,304 | |
| IGMP Groups | 4,094 | |
| MLD Groups | 4,094 | |
| IPv4 Multicast Routes | 7,000 | |
| IPv6 Multicast Routes | 7,000 | |
| Environment | Operating temperature | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) |
| Operating relative humidity | 5% to 95% at 40°C (104°F) non-condensing | |
| Non-operating temperature | -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | |
| Non-operating/storage relative humidity | 5% to 95% @ 65°C (149°F) | |
| Max operating altitude | Up to 10,000 ft (3.048 km) | |
| Max non-operating altitude | Up to 15,000 ft (4.6km) | |
| Primary airflow | Front-to-Back or Back-to-Front | |
| Electrical characteristics | Frequency | 50/60 Hz |
| AC voltage | 100-240 volts | |
| Current | 6.2A (low voltage) – 3.1A (high voltage) | |
| Power consumption | Max: 618W | |
| Safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013, UL 60950-1, CSA 22.2 No 60950-1, EN 60825-1:2007/IEC 60825-1:2007 Class 1 | |
| EMC | EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014, Class A EN 61000-3-3:2013, FCC CFR 47 Part 15:2010, Class A, VCCI Class A CNS 13438 | |
| Lasers | EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 | |
| Management | SNMP RJ-45 serial USB micro USB console RJ-45 Ethernet port | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch rack or other equipment cabinet (2-post or 4-post kit ordered separately); horizontal surface mounting only | |
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 05-Jan-2026 | Changed | Overview, Standard Features, and Technical Specifications sections were updated. | |
| 01-Dec-2025 | Changed | Technical Specifications section was updated. | |
| Added | SKU added in Configuration Information section: S6X67A | ||
| 07-Jul-2025 | Added | New SKU# S5U19A added in BTO rules 3 and 7, CTO rules 3 and 8, and Transceiver in Configuration Information section. | |
| 09-Jun-2025 | Changed | Version links added in Summary of Changes section. | |
| Added | AOS As-a-Service Software Licenses SKUs were added in Configuration Information section: S0T87AAS, S0T88AAS, S0T89AAS, S0T90AAS, S0T86AAS, S3M90AAS, S3M91AAS, S3M92AAS, S3M93AAS, S3M89AAS. | ||
| 05-May-2025 | Changed | Configuration Information section was updated. | |
| 03-Mar-2025 | Changed | Configuration Information section was updated. | |
| 06-Jan-2025 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 02-Dec-2024 | Changed | Overview, Standard Features, Configuration Information and summary of changes sections were updated. | |
| 07-Oct-2024 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 03-Sep-2024 | Changed | Configuration Information section was updated. | |
| 08-Apr-2024 | Changed | Technical Specification section was updated. | |
| 01-Apr-2024 | Changed | Configuration Information section was updated. | |
| 04-Dec-2023 | Changed | Obsolete SKU was removed. Configuration Information section was updated. Series name was updated. | |
| 05-Sep-2023 | Changed | Configuration Information section was updated. | |
| 10-Jul-2023 | Changed | Configuration Information section was updated. | |
| 15-May-2023 | Changed | Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 13-Mar-2023 | Changed | Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 06-Feb-2023 | Changed | Standard Features, Configuration Information, and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 05-Dec-2022 | Changed | Configuration Information section was updated and new SKUs were added. | |
| 07-Nov-2022 | Changed | Standard Features, Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 03-Oct-2022 | Changed | Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 01-Aug-2022 | Changed | Configuration Information section was updated. | |
| 06-Jun-2022 | Changed | Standard Features, Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 02-May-2022 | Changed | Configuration Information and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. | |
| 07-Mar-2022 | Changed | Configuration Information and Technical Specifications sections were updated. New SKUs were added in Configuration Information section. | |
| 06-Dec-2021 | Changed | New HPE Aruba Networking Data Center Networking Solution for HPE section added to QuickSpecs. | |
| 07-Sep-2021 | Changed | Overview, Standard Features, and Configuration Information sections were updated. | |
| 07-Jun-2021 | Changed | Configuration Information section was updated. | |
| 08-Mar-2021 | Changed | SKUs added in Configuration Information. | |
| 07-Dec-2020 | Changed | Standard Features, Configuration Information and Technical Specifications sections were updated. | |
| 05-Oct-2020 | Changed | Configuration Information section was updated. | |
| 08-Sep-2020 | Changed | Configuration Information section was updated. | |
| 10-Aug-2020 | Changed | Standard Features and Configuration Information sections were updated. | |
| 06-Jul-2020 | Changed | Configuration Information section was updated. | |
| 06-Apr-2020 | Changed | Configuration Information was updated. | |
| 06-Jan-2020 | Changed | Configuration Information and Related Options sections were updated. | |
| 04-Nov-2019 | Changed | Overview and Standard Features sections were updated. | |
| 19-Aug-2019 | Changed | Technical Specification section was updated. | |
| 01-Jul-2019 | Changed | BTO Transceivers SKUs were removed from Configuration Information Section. SKU description updates. | |
| 17-Jun-2019 | Changed | Transceivers SKUs were removed in Related Options Section. SKU descriptions were updated. | |
| 06-May-2019 | Changed | Overview, Standard Features, Technical Specification and Accessories sections were updated Obsolete SKUs were removed SKU added: J8177D | |
| 18-Feb-2019 | Changed | Technical Specifications updated | |
| 04-Feb-2019 | Added | SKU added: J9151E | |
| 10-Dec-2018 | Changed | Overview and Technical Specifications were revised | |
| 05-Dec-2018 | Changed | Transceivers updated on the Accessories section | |
| 03-Dec-2018 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a00056519enw, 16332 - Worldwide -V46 -05-January-2026
