QuickSpecs

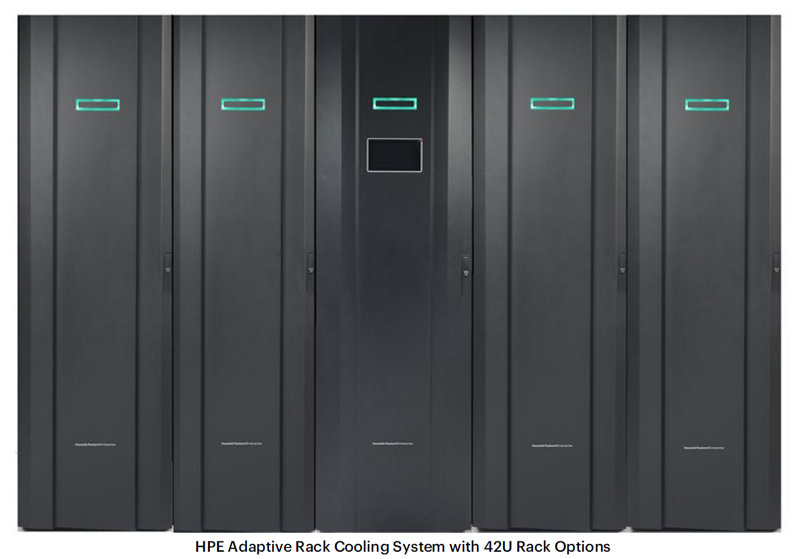

HPE Adaptive Rack Cooling System QuickSpecs
A closed loop cooling system that removes the high levels of heat generated by today’s servers, mass storage, and core networking hardware
The HPE Adaptive Rack Cooling System allows for simultaneous cooling of up to four racks and 150 kW of IT capacity when used in conjunction with the HPE Adaptive Rack Cooling System 42U or 48U racks.
-
HPE Adaptive Rack Cooling System is designed to complement any new or existing data center by enabling computing power growth without adding to the heat load in the data center. In addition, by allowing equivalent cooling capacity as commodity DLC, the HPE Adaptive Rack Cooling System will extend, considerably, the life of your data center. The horizontal air flow of the HPE Adaptive Rack Cooling System fully supports industry-standard front-to-back cooling designs and standard server dimensions. Additionally, the implementation of variable speed fans within the system enables improved energy efficiencies while providing all devices the right volume of airflow, regardless of the mounting position or workload.
-
Key Features
General Solution
- – Self-contained, (closed-coupled) solution that supports up to 4 ull racks of IT

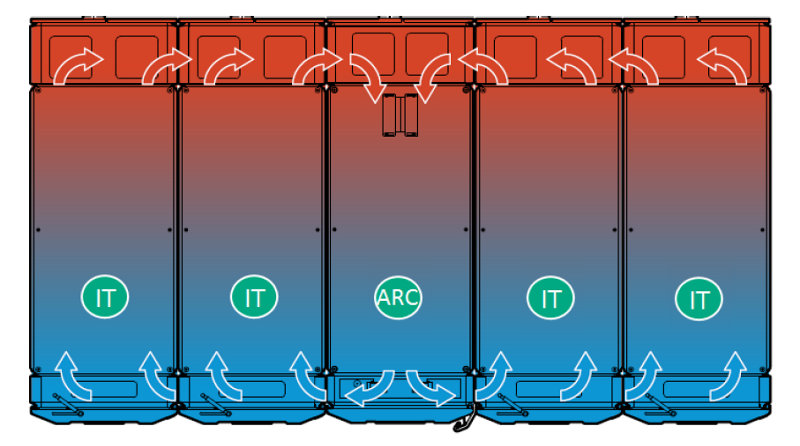

- – Closed-coupled cooling ensures uniform horizontal airflow
Cooling Capacity
- – Up to 150 kW cooling capacity or 110 kW in an N+1 fan configuration
Water
- – Supports 7°C to 32°C Facility inlet water temp
Efficiency
- – Warm water cooling ready: support IT loads up to 75 kW at 30°C inlet water with 70 gallons per minute (GPM) and a server supply air temperature of 35°C.
- – Includes four front-swappable fans per high-efficiency heat exchanger resulting in a pPUE as low as 1.05
Power
- – Input power support for 380 V / 480 VAC (3-phase)
- – Automatic Transfer Switch providing redundant power input
Availability and Reliability
- – Advanced condensate management
- – Integrated automatic door opening system (optional) and remote environmental monitor
- – Supports HPCM
Flexibility
- – Extend cooling up to four racks with optional HPE Apollo 42U or 48U ARCS racks for IT equipment (optional)
- – HPE Apollo 42U or 48U racks for IT equipment are supporting shipping of fully integrated rack solutions (HPE Factory Express or Partner rack integration) as these are delivered on shock pallet
- – Underfloor and overhead plumbing capabilities
- – Full services offering available, including planning, deployment and maintenance
For site prep guide please visit link: https://www.HPE.com/psnow/doc/a00046603en_us
Agency Certifications
- – UL certification for Canada, Americas, and Japan
- – CE certification for European countries.
| Models | |
| HPE ARCS v2 Cooling Unit Rack | R8N93A |
| Notes: – V2 Cooling Unit Rack is introduced to accommodate new agency requirements; functionally the same as P9E36A; only difference is new fan and transfer switch inside the Cooling Unit Rack for agency requirements – Will become orderable in November 2021, and shippable in January, 2022 timeframe. | |
| HPE ARC v2 Unit (R8N93A) includes
| |
-
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.HPE.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.HPE.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- – A complete coverage approach -- edge to cloud
- – An assigned HPE team
- – Modular and fully personalized engagement
- – Enhanced Incident Management experience with priority access
- – Digitally enabled and AI driven customer experience
https://www.HPE.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- – Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- – HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- – HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- – Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- – HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.HPE.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services:
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.HPE.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- – Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- – Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
Consume IT On Your Terms
HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
- – Get faster time to market
- – Save on TCO, align costs to business
- – Scale quickly, meet unpredictable demand
- – Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html
For more information
| HPE ARCS 42U 600x1660mm Rack | SKU |
| HPE ARCS 42U 600x1600mm Rack | Q8L41A |
| Notes: – Optional IT Rack (42U) for the HPE ARC System – ships on shock pallet – ships separately from the Cooling unit – 1 vertical PDU bracket included | |
| HPE ARCS 48U 600x1660mm Rack | |
| HPE ARCS 48U 600x1600mm Rack | Q7G92A |
| Notes: – Optional IT Rack (48U) for the HPE ARC System – ships on shock pallet – ships separately from the Cooling unit – 1 vertical PDU bracket included. | |
| HPE ARCS 48U 800x1660mm Rack | |
| HPE ARCS 48U 800x1600mm Rack | R8N95A |
| Notes: – Optional IT Rack (48U) for the HPE ARC System – ships on shock pallet – ships separately from the Cooling unit – 1 vertical PDU bracket included. | |
| HPE ARCS 42U 800x1660mm Rack | |
| HPE ARCS 42U 800x1600mm Rack | S4J53A |
| Notes: – Optional IT Rack (42U) for the HPE ARC System – ships on shock pallet – ships separately from the Cooling unit – 1 vertical PDU bracket included. | |
| HPE ARCS Auto Door Controller Kit | |
| HPE ARCS Auto Door Controller Kit | P06116-B21 |
| Notes: – Requires 1 kit per cooling unit (P9E36A) which supports up to 4 racks. – Requires 1 HPE ARCS Auto Door Release Kit (P00674-B21) per rack. – In redundant cooling unit configs, only 1 cooling unit controls the Auto Door Release. – Controller will be installed in the IT rack closest to the cooling unit. | |
| HPE ARCS Auto Door Release Kit | |
| HPE ARCS Auto Door Release Kit | P00674-B21 |
| Notes: Requires 1 Kit per ARCS rack and 1 Auto Door Controller Kit per cooling unit (P06116-B21). In redundant cooling unit configs, only 1 cooling unit controls the Auto Door Release. | |
| HPE ARCS 42U Air Rack Installation Kit | |
| HPE ARCS 42U Air Rack Installation Kit | P04444-B21 |
| Notes: 1 Rack installation Kit per continuous ARCS system row. The same kit is used for both 42U and 48U racks | |
| HPE ARCS 48U Air Rack Installation Kit | |
| HPE ARCS 48U Air Rack Installation Kit | P05408-B21 |
| Notes: 1 Kit needed per ARCS cooling rack if 48U IT racks are joined to the 42U cooling unit. Includes façade above the 42U cooling unit to match the 48U racks on either side. A P04444-B21 Kit is also needed per continuous ARCS row in addition to this kit | |
| HPE ARCS Water Hookup Kit | |
| HPE ARCS Water Hookup Kit | P00675-B21 |
| Notes: – Requires 1 kit per cooling unit (P9E36A). – Kit includes (qty. 2) 6 foot hoses for facility water connection which terminate to 2 inch sanitary fitting for facility connection. Optional stainless steel adapters include S0B11A, (qty. 2) 2 inch sanitary fitting to 2 inch female BSPT and R9K45A, (qty. 2) 2 inch sanitary fitting to 2 inch female NPT Customer required to provide 2 inch male BSPT or NPT fitting. | |
| HPE ARCS INTL Power Cords | |
| HPE ARCS IEC 60309 IP67 415 V 5 m INTL Power Cord | R7H41A |
| Notes: Select 1 kit per cooling unit. Each kit comes with 2 power cords | |
| HPE ARCS NA Power Cords | |
| HPE ARCS NEMA L22-20 4P/5 W 277-480 V 4.5 m NA Power Cord | 872174-B21 |
| HPE ARCS IEC 60309 IP67 480 V 5 m Power Cord | R7H40A |
| Notes: Select 1 kit per cooling unit. Each kit comes with 2 power cords | |
HPE Universal 1U Filler PanelsBlanking panels are made from high-grade molded plastic, and designed to be installed without tools. Using blanking panels is recommended to ensure proper airflow in unused rack U space. | |
| HPE 1U 10-pack Black Universal Filler Panel | BW928A |
| Notes: Pack of 10 | |
| HPE 1U 100-pack Black Universal Filler Panel | BW929A |
| Notes: Pack of 100 | |
| HPE ARCS Side Panel Kits | |
| HPE ARCS IT Rack 48U Single Side Panel Kit | R8F94A |
| HPE ARCS IT Rack 42U Side Panel Kit | R8F95A |
| HPE ARCS Cooling Unit Side Panel Kit | R8F96A |
| HPE ARCS Extension Space Bracket Kit | |
| HPE ARCS Extension Space FIO Bracket Kit | S6C55A |
| HPE Install ARCS SVC Flexible Support | |
| HPE Install ARCS SVC | HA113A1#5CW |
| HPE Install ARCS SVC Fixed Support | |
| HPE Installation Adaptive Rack Cooling System Service | UE005E |
| Notes: Service Deployment activities for HPE Adaptive Rack Cooling System may include:
| |
Notes: Rack count dependent on configuration
| | ARCS Cooling Unit | 42U Rack (600 mm wide) | 48U Rack (600 mm wide) | 48U Rack (800 mm wide) | 42U Rack (800 mm wide) |
|---|---|---|---|---|---|
| Dimensions | |||||
| Height | 78.7 in. (2,007 mm) | 78.7 in. (2,007 mm) | 90.4 in. (2,295 mm) | 90.4 in. (2,295 mm) | 78.7 in. (2,007 mm) |
| Width | 23.6 in. (600 mm) | 23.6 in. (600 mm) | 23.6 in. (600 mm) | 31.5 in. (800 mm) | 31.5 in. (800 mm) |
| Depth | 65.4 in. (1,660 mm) | 65.4 in. (1,660 mm) | 65.4 in. (1,660 mm) | 65.4 in. (1,660 mm) | 65.4 in. (1,660 mm) |
| Shipping Height (on skid) | 86.5 in. (2,197 mm) | 86.5 in. (2,197 mm) | 97.44 (2,475 mm) | 97.44 (2,475 mm) | 86.5 in. (2,197 mm) |
| Shipping Width (on skid) | 48 in. (1,220 mm) | 48 in. (1,220 mm) | 48 in. (1,220 mm) | 48 in. (1,220 mm) | 48 in. (1,220 mm) |
| Shipping Depth (on skid) | 72 in. (1,829 mm) | 72 in. (1,829 mm) | 72 in. (1,829 mm) | 72 in. (1,829 mm) | 72 in. (1,829 mm) |
| Ramp Length | 109 in. (2,769 mm) | 109 in. (2,769 mm) | 109 in. (2,769 mm) | 109 in. (2,769 mm) | 109 in. (2,769 mm) |
| Offloading Ramp Clearance | 21.5 ft. | 21.5 ft. | 21.5 ft. | 21.5 ft. | 21.5 ft. |
| Weight | |||||
| Net | 1,423 lbs (645 kg) | 387 lbs (79.62 kg) | 398 lbs (180.5 kg) | 425 lbs (192.8 kg) | 413 lbs (187.3 kg) |
| Shipping | 1,614 lbs (732 kg) | 748 lbs (339.3 kg) | 803 lbs (364.2 kg) | 828 lbs (375.6 kg) | 771 lbs (349.7 kg) |
| Load | |||||
| Static | N/A | 3,000 lbs (1,364) | 3,000 lbs (1,364 kg) | 3,000 lbs (1,364 kg) | 3,000 lbs (1,364 kg) |
| Dynamic | N/A | 3,000 lbs (1,364) | 3,000 lbs (1,364 kg) | 3,000 lbs (1,364 kg | 3,000 lbs (1,364 kg) |
| Color | |||||
| Doors | Black | Black | Black | Black | Black |
| Frame | Black | Black | Black | Black | Black |
| Warranty | |||||
| ARCS 42U and 48U Rack | 3-3-3 | 3-0-0 | 3-0-0 | 3-0-0 | 3-0-0 |
Environment-friendly Products and Approach End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 16-Feb-2026 | Changed | Visual rebranding only—updated typography, colors, and design elements to align with new HPE brand standards. No technical specifications or content were modified. | |
| 02-Sep-2025 | Added | New SKU added S6C55A. | |
| 04-Aug-2025 | Changed | Configuration Information section was updated. | |
| Added | SKU S6C55A was added. (HPE ARCS Extension Space Bracket Kit). | ||
| 27-May-2025 | Changed | Updated facility water connection SKUs. Configuration Information section was updated | |
| 03-Mar-2025 | Changed | Added 42U IT Rack SKU Standard Features and Configuration Information sections were updated | |
| 04-Dec-2023 | Changed | HPE Services Rebranding | |
| 16-Oct-2023 | Changed | Service and Support, Configuration Information and Technical Specifications sections were updated | |
| 07-Aug-2023 | Changed | Standard Features and Configuration Information sections were updated. Obsolete SKUs were removed. | |
| 11-Oct-2021 | Changed | Service and Support section was updated. | |
| 07-Sep-2021 | Changed | Standard Features and Configuration Information sections were updated. | |
| 19-Apr-2021 | Changed | Configuration Information section was updated. | |
| 01-Feb-2021 | Changed | Configuration Information section was updated. | |
| 03-Feb-2020 | Changed | Standard Features section was updated | |
| 03-Sep-2019 | Changed | Configuration Information section was updated. | |
| 15-Jul-2019 | Changed | Configuration Information section was updated | |
| 01-Jul-2019 | Changed | Standard Features section was updated | |
| 15-Apr-2019 | Changed | Overview section was updated | |
| 07-Jan-2019 | Changed | Overview and configuration information sections were updated | |
| 03-Dec-2018 | New | New QuickSpecs |
