QuickSpecs

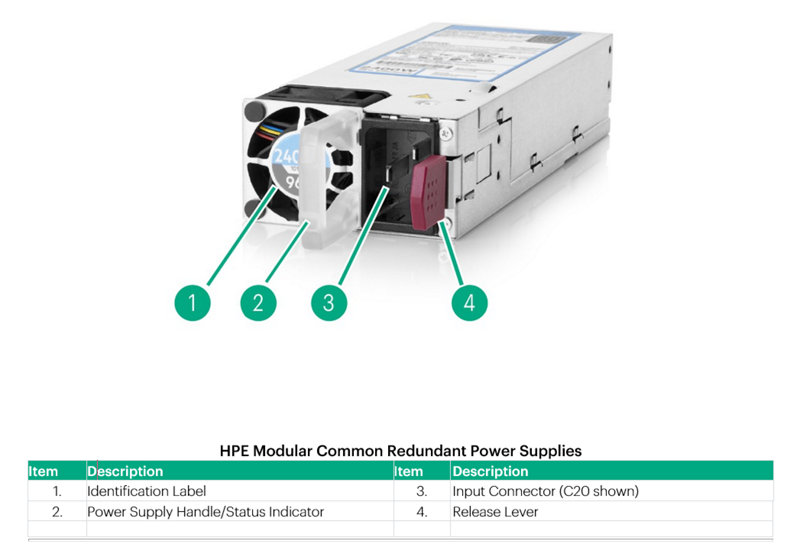

HPE Modular Common Redundant Power Supplies QuickSpecs
HPE Modular Common Redundant (M-CRPS) Power Supplies are newly designed to comply with Open Compute Project (OCP) specifications.
They feature new form factors, increased power output, and enhanced serviceability and manageability features.
-
HPE M-CRPS Power Supplies are Platinum-rated (94% efficient) and offer capacities up to 800W, or Titanium-rated (96% efficient) with capacities up to 3200W, allowing users to right-size the power supplies for their specific server configurations. This flexibility helps reduce power waste, lower overall energy costs, and avoid trapped power capacity in the data center.
What’s New
− Expanding the HPE M-CRPS Compute Power Supply portfolio which consists of Platinum and Titanium rated Power Supplies, by adding a -48VDC Power Supply
− HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit
Models
HPE Power Supplies
Modular Common Redundant Power Supplies
Notes:
- Mixing different power supplies on servers with multiple power domain, such as the HPE ProLiant Compute DL380a Gen12, is allowed, provided that all power supplies within a domain are identical.
- Mixing different power supplies within a server’s power domain may limit or disable some power supply features, including support for power redundancy. To ensure access to all available features, all power supplies within the same power domain in a server should have the same output and efficiency ratings.
- Capable of low-line (100V – 127V) and high-line (200V – 240V) AC input.
- Power supply output is a result of input voltage.
| HPE M-CRPS Titanium Power Supply Kits Notes: - M-CRPS Titanium power supplies deliver efficiencies of up to 96%. - Compliant with EU Lot 9 2024 minimum efficiency requirements. | |
| HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit Notes: - 60mm wide, C14 input connector. - 1000W at 200V AC and higher, 800W at 100V to 120V AC. | P67240-B21 |
| HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit Notes: - 60mm wide, C14 input connector. - 1500W at 200V AC and higher, 1000-1100W at 100V to 120V AC. | P67244-B21 |
| HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit Notes: - 73.5mm wide, C20 input connector. - 2400W at 200V AC and higher, 1200W at 100V to 127V AC. | P67252-B21 |
| HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit Notes: - 73.5mm wide, C20 input connector. - 2900W-3200W at 200V AC and higher, 1400W-1600W at 100V to 127V AC. | P67248-B21 |
| HPE M-CRPS Platinum Power Supply Kits Notes: - M-CRPS Platinum power supplies deliver efficiencies of up to 94%. - Not compliant with EU Lot 9 2024 minimum efficiency requirements. | |
| HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit Notes: - 60mm wide, C14 input connector. - 800W at 200V AC and higher, 650W at 100V to 120V AC | P73190-B21 |
| HPE M-CRPS -48VDC Power Supply Kits Notes: − M-CRPS -48VDC power supplies deliver efficiencies of up to 94%. − Excluded from EU Lot 9 2024 minimum efficiency requirements scope. − M-CRPS -48VDC power supplies may require separate purchase of power cords or lugs | |
| HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit | P82412-B21 |
| HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit | P73210-B21 |
-
Features/Benefits
Titanium-Certified Power Efficiency
- - Titanium (96%) power efficiency certification from 80PLUSprogram – one of the highest power efficiency certifications available in the IT industry.
- - Reduces data center operating costs related to power by reducing server power requirements and energy waste.
M-CRPS Design
- - New form factor, compliant with Open Compute Project (OCP) base specification. Not compatible with servers prior to Gen12.
- - Two widths: 73.5mm and 60mm.
- - Enhanced serviceability through an enlarged handle that illuminates to indicate power supply status.
- - Robust firmware security with advanced features to protect servers and enhance the end-user experience.
- - Tool-less hot plug design improves serviceability by allowing quick and easy access to system power supplies.
- - Common form factor across supported ProLiant Compute Gen12 servers allows multiple platforms to share power supply spares, reducing costs and space requirements for replacements.
Wide range of Power Output Options
- - Multiple output options allowing users to right-size their power needs and avoid trapped power capacity in their data centers caused by over-subscribing power needs.
- - Support for both low-line and high-line AC input voltages, providing additional flexibility to operate in multiple IT environments and geographical locations.
Power Management
- - Supports multiple operating modes to maximize power efficiency when configuring servers with redundant power supplies.
80PLUS Certification
The 80PLUS test protocol was developed by Ecova Plug Load Solutions and the Electric Power Research Institute (EPRI) in 2003 and formally launched in 2004.
The 80PLUS performance specification requires power supplies in servers to be 80% or greater energy efficient at 20%, 50% and 100% of rated load with a true power factor of 0.9 or greater. This makes an 80PLUS certified power supply more efficient than typical power supplies found in many other electrical devices.
Who benefits from the 80PLUS power supply program?
- - Commercial/Residential Consumers - empowered with information regarding energy efficient IT options that help them cut energy costs and reduce their environmental impact.
- - Utility/Power Providers - participation in a program that focuses on reducing power demands on overburdened grids as well as reducing power waste and its associated environmental impact.
What are the efficiency requirements for each certification level?
| 80PLUS Certification | 230V Internal | ||
|---|---|---|---|
| % of Rated Load | 20% | 50% | 100% |
| 80PLUS Bronze | 81% | 85% | 81% |
| 80PLUS Silver | 85% | 89% | 85% |
| 80PLUS Gold | 88% | 92% | 88% |
| 80PLUS Platinum | 90% | 94% | 91% |
| 80PLUS Titanium | 94% | 96% | 91% |
What level of certification does HPE Modular Common Redundant Power Supplies meet?
HPE's Platinum power supply options meet 80PLUS requirements for Platinum certification. HPE’s Titanium power supply options meet 80PLUS requirements for Titanium certification. To review 80PLUS certification reports for each HPE M-CRPS Power Supply, please refer to the 80PLUS website at: https://www.plugloadsolutions.com/.
European Union ErP Lot 9 Regulation
Beginning on January 1st, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Switzerland or Turkey must include more efficient AC power supplies: 96% for single output type. HPE Modular Common Redundant Power Supplies are single-output, and are 96% efficient, thus meeting requirements.
Support for Redundant Power Supplies
A power domain configured with identical M-CRPS Power Supplies on an HPE ProLiant server solution supports the following three scenarios:
- - Operation with N-1 power supplies.
- - Operation with redundant power supplies in load-balanced mode.
- - Operation with redundant power supplies in high-efficiency mode.
For redundant M-CRPS Power Supplies operating in load-balanced mode (the default mode when adding redundant power supplies), the load on a domain is shared equally between the power supplies.
When high-efficiency mode is enabled for redundant supplies (via the server's ROM-based setup utility under System Options -> Redundancy Options), power supplies within a server domain are designated as either primary or secondary, and the entire server load is shifted to the primary power supplies. This allows the primary power supplies to operate at higher efficiency points on the load curve while the secondary power supplies operate in idle mode, providing no output power and consuming little energy. The user can also specify that odd or even power supplies are designated manually or automatically as secondary supplies. This flexibility allows users to balance the load across a rack manually or automatically.
Compatibility
HPE M-CRPS power supplies are compatible with the following HPE ProLiant Compute families:
- - HPE ProLiant Compute DL320 Gen12
- - HPE ProLiant Compute DL325 Gen12
- - HPE ProLiant Compute DL345 Gen12
- - HPE ProLiant Compute DL340 Gen12
- - HPE ProLiant Compute DL380a Gen12
- - HPE ProLiant Compute XD230
Notes: To check for power supply compatibility, please review the appropriate HPE Server QuickSpecs at http://www.hpe.com/info/qs.
-
HPE Services
No matter where you are on your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- - A complete coverage approach
- - An assigned HPE team.
- - Modular and fully personalized engagement.
- - Enhanced Incident Management experience with priority access.
- - Digitally enabled and AI-driven customer experience.
https://www.hpe.com/services/completecare
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- - Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- - HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.
- - HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.
- - Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- - HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.hpe.com/services/training
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin
GreenLake
GreenLake is the cloud to run and manage your entire hybrid landscape—private, public, and edge. It helps you to:
- Streamline IT Operations across compute, storage, and networking without the chaos
- Unify and secure data, as you move faster
- Accelerate AI, from pilot to production
The result: greater operational efficiency, lower TCO, and faster AI delivery—all from one unified, intelligent platform built for today’s hybrid enterprise.
| Notes: - Cables listed below are to be used exclusively with the 800W, 1000W and 1500W power supplies (P73190-B21, P67240-B21, and P67244-B21). - Worldwide use except India, unless otherwise noted. | |
| HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord HPE C13-C14 IN 250V 10Amp 2m Black Jumper Cord | A0K02A AF573A R1C65A |
| Notes: For India use only. | |
C13 Country-Specific Jumper Cords
| Notes: Cables listed below are to be used exclusively with the 800W, 1000W and 1500W power supplies (P73190-B21, P67240-B21, and P67244-B21). | |
| HPE C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord HPE C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord HPE C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord HPE C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord HPE C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord HPE C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord HPE C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord HPE C13 - SI-32 IL 250V 10Amp 1.83m Power Cord HPE C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord HPE C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord HPE C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord HPE C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord | AF572A AF569A AF556A A0N33A AF557A AF561A AF558A AF591A AF566A AF568A AF564A AF560A AF567A AF565A AF559A AF570A AF562A |
| Notes: For India use only. Visit HPE Power Cords and Cables for details of optional power cords | |
C19 – C20 Jumper Cords
| Notes: - Cables listed below are to be used exclusively with the 2400W and 3200W power supplies (P67252-B21 and P67248-B21). - Worldwide use except India, unless otherwise noted. | |
| HPE C19 - C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord HPE C19 - C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord HPE C19-C20 IN 250V 16Amp 2.5m Black Jumper Cord | AF575A AF574A R1C66A |
| Notes: For India use only. | |
C19 Country-Specific Jumper Cords
| Notes: Cables listed below are to be used exclusively with the 2400W and 3200W power supplies (P67252-B21 and P67248-B21). | |
| HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord HPE C19 - CEE-VII EU 250V 16Amp 3.6m Power Cord HPE 240 VAC 4.5M Unterminated End NA Power Cord HPE C19 - IEC-309 DK/SE/AR 250V 16Amp 3.6m Power Cord | AF593A AF576A E7806A AF581A |
| Notes: For India use only. Visit HPE Power Cords and Cables for details of optional power cords | |
-48VDC Power Cables and Lugs | |
| HPE Hardwire -48VDC 3.5m 1000-1300W Power Cord | P79842-B21 |
| HPE 1000-1300W -48VDC Power Lug Kit | P79845-B21 |
| Notes: − P79842-B21 and P79845-B21 are to be used with HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit − Only one power cable kit or power cable lug kit needs to be selected with the power supply | |
| HPE Hardwire -48VDC 3.5m 2000-2200W Power Cord | P73874-B21 |
| HPE 2000-2200W -48VDC Power Lug Kit | P79839-B21 |
| Notes: − P73874-B21 and P79839-B21 are to be used with HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit − Only one power cable kit or power cable lug kit needs to be selected with the power supply | |
| HPE 1000W M-CRPS Titanium Hot Plug Power Supply (P67240-B21) | HPE's Generic Part Number | P67242-001 | |||||
| HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit | P67240-B21 | ||||||
| SPS-PS,1U,1000W,12V,HTPLG,HE-P | P68455-001 | ||||||
| Input connector | C14 | ||||||
| Input Voltage Range (V rms) | 100-240 | ||||||
| Frequency Range (Nominal) (Hz) | 50-60 | ||||||
| Nominal Input Voltage (V rms) | 100 | 110 | 120 | 200 | 208 | 230 | 240 |
| Maximum Rated Output Wattage Rating (Watts) | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 |
| Nominal Input Current (A rms) | 9.0 | 8.1 | 7.4 | 5.4 | 5.2 | 4.7 | 4.5 |
| Maximum Rated Input Wattage Rating (Watts) | 892 | 884 | 878 | 1078 | 1077 | 1074 | 1073 |
| Maximum Rated VA (Volt-Amp) | 901 | 893 | 887 | 1089 | 1088 | 1085 | 1084 |
| Efficiency (%) | 89.7 | 90.5 | 91.2 | 92.7 | 92.9 | 93.1 | 93.2 |
| Power Factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
| Leakage Current (mA) | 0.33 | 0.36 | 0.40 | 0.66 | 0.69 | 0.76 | 0.80 |
| Maximum Inrush Current (A peak) | 30 | ||||||
| Maximum Inrush Current duration (mS) | 10 | ||||||
| Maximum British Thermal Unit Rating (BTU-Hr) | 3044 | 3016 | 2995 | 3680 | 3675 | 3666 | 3662 |
| HPE 1500W M-CRPS Titanium Hot Plug Power Supply (P67244-B21) | HPE's Generic Part Number | P67246-001 | |||||
| HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit | P67244-B21 | ||||||
| SPS-PS,1U,1500W,12V,HTPLG,HE-P | P68456-001 | ||||||
| Input connector | C14 | ||||||
| Input Voltage Range (V rms) | 100-240 | ||||||
| Frequency Range (Nominal) (Hz) | 50-60 | ||||||
| Nominal Input Voltage (V rms) | 100 | 110 | 120 | 200 | 208 | 230 | 240 |
| Maximum Rated Output Wattage Rating (Watts) | 1000 | 1100 | 1100 | 1500 | 1500 | 1500 | 1500 |
| Nominal Input Current (A rms) | 11.2 | 11.2 | 10.2 | 8.2 | 7.9 | 7.1 | 6.8 |
| Maximum Rated Input Wattage Rating (Watts) | 1111 | 1220 | 1212 | 1630 | 1628 | 1624 | 1622 |
| Maximum Rated VA (Volt-Amp) | 1123 | 1233 | 1225 | 1646 | 1644 | 1640 | 1638 |
| Efficiency (%) | 90.0 | 90.1 | 90.7 | 92.1 | 92.2 | 92.4 | 92.5 |
| Power Factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
| Leakage Current (mA) | 0.33 | 0.36 | 0.40 | 0.66 | 0.69 | 0.76 | 0.80 |
| Maximum Inrush Current (A peak) | 30 | ||||||
| Maximum Inrush Current duration (mS) | 10 | ||||||
| Maximum British Thermal Unit Rating (BTU-Hr) | 3792 | 4164 | 4137 | 5560 | 5554 | 5539 | 5534 |
| HPE 2400W M-CRPS Titanium Hot Plug Power Supply (P67252-B21) | HPE's Generic Part Number | P67254-001 | ||||||
| HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit | P67252-B21 | |||||||
| SPS-PS, 1U, 2400W, 12V, HTPLG, HE-P | P68454-001 | |||||||
| Input connector | C20 | |||||||
| Input Voltage Range (V rms) | 100-240 | |||||||
| Frequency Range (Nominal) (Hz) | 50-60 | DC | ||||||
| Nominal Input Voltage (V rms) | 100 | 120 | 127 | 200 | 208 | 230 | 240 | 240 |
| Maximum Rated Output Wattage Rating (Watts) | 1200 | 1200 | 1200 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Nominal Input Current (A rms) | 13.0 | 10.8 | 10.1 | 12.9 | 12.4 | 11.2 | 10.7 | 10.7 |
| Maximum Rated Input Wattage Rating (Watts) | 1290 | 1279 | 1275 | 2551 | 2549 | 2541 | 2539 | 2541 |
| Maximum Rated VA (Volt-Amp) | 1303 | 1292 | 1288 | 2577 | 2574 | 2567 | 2564 | 2567 |
| Efficiency (%) | 93.0 | 93.9 | 94.1 | 94.1 | 94.2 | 94.4 | 94.5 | 94.4 |
| Power Factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
| Leakage Current (mA) | 0.33 | 0.40 | 0.42 | 0.66 | 0.69 | 0.76 | 0.80 | 0.80 |
| Maximum Inrush Current (A peak) | 30 | |||||||
| Maximum Inrush Current duration (ms) | 10 | |||||||
| Maximum British Thermal Unit Rating (BTU-Hr) | 4403 | 4364 | 4349 | 8705 | 8696 | 8671 | 8662 | 8672 |
| HPE 3200W M-CRPS Titanium Hot Plug Power Supply (P67248-B21) | HPE's Generic Part Number | P67250-001 | |||||
| HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit | P67248-B21 | ||||||
| SPS-PS,1U,3200W,12V,HTPLG,HE-P | P68453-001 | ||||||
| Input connector | C20 | ||||||
| Input Voltage Range (V rms) | 100-240 | ||||||
| Frequency Range (Nominal) (Hz) | 50-60 | ||||||
| Nominal Input Voltage (V rms) | 100 | 120 | 127 | 200 | 208 | 230 | 240 |
| Maximum Rated Output Wattage Rating (Watts) | 1400 | 1600 | 1600 | 2900 | 3000 | 3200 | 3200 |
| Nominal Input Current (A rms) | 15.2 | 14.5 | 13.7 | 15.7 | 15.6 | 15.1 | 14.4 |
| Maximum Rated Input Wattage Rating (Watts) | 1504 | 1727 | 1723 | 3100 | 3207 | 3433 | 3429 |
| Maximum Rated VA (Volt-Amp) | 1519 | 1745 | 1740 | 3131 | 3239 | 3468 | 3464 |
| Efficiency (%) | 93.1 | 92.6 | 92.9 | 93.5 | 93.6 | 93.2 | 93.3 |
| Power Factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
| Leakage Current (mA) | 0.33 | 0.40 | 0.42 | 0.66 | 0.69 | 0.76 | 0.80 |
| Maximum Inrush Current (A peak) | 30 | ||||||
| Maximum Inrush Current duration (mS) | 10 | ||||||
| Maximum British Thermal Unit Rating (BTU-Hr) | 5132 | 5894 | 5878 | 10577 | 10941 | 11713 | 11699 |
| HPE 800W M-CRPS Platinum Hot Plug Power Supply (P73190-B21) | HPE's Generic Part Number | P73192-001 | ||||||
| HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit | P73190-B21 | |||||||
| SPS-PS,1U,800W,12V,HTPLG,HE-P | P77518-001 | |||||||
| Input connector | C14 | |||||||
| Input Voltage Range (V rms) | 100-240 | |||||||
| Frequency Range (Nominal) (Hz) | 50-60 | |||||||
| Nominal Input Voltage (V rms) | 100 | 110 | 120 | 200 | 208 | 230 | 240 | 240 |
| Maximum Rated Output Wattage Rating (Watts) | 650 | 650 | 650 | 800 | 800 | 800 | 800 | 800 |
| Nominal Input Current (A rms) | 7.3 | 6.6 | 6.0 | 4.3 | 4.2 | 3.8 | 3.6 | 3.6 |
| Maximum Rated Input Wattage Rating (Watts) | 720 | 715 | 710 | 860 | 859 | 856 | 855 | 856 |
| Maximum Rated VA (Volt-Amp) | 728 | 722 | 717 | 868 | 867 | 865 | 864 | 865 |
| Efficiency (%) | 90.2 | 91.0 | 91.5 | 93.1 | 93.2 | 93.4 | 93.5 | 93.4 |
| Power Factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
| Leakage Current (mA) | 0.33 | 0.36 | 0.40 | 0.66 | 0.69 | 0.76 | 0.80 | 0.80 |
| Maximum Inrush Current (A peak) | 30 | |||||||
| Maximum Inrush Current duration (mS) | 10 | |||||||
| Maximum British Thermal Unit Rating (BTU-Hr) | 2458 | 2438 | 2423 | 2933 | 2930 | 2922 | 2919 | 2922 |
| HPE 1300W M-CRPS -48VDC Hot Plug Power Supply (P82412-B21) | HPE Generic Part Number | P82414-001 | ||||||
| HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit | P82412-B21 | |||||||
| SPS-PS,1U, 1300W, -48VDC,HTPLG,HE-P | P84329-001 | |||||||
| Input Voltage Range ( V rms ) | 40 - 72 | |||||||
| Frequency Range (Nominal) ( Hz ) | DC | |||||||
| Nominal Input Voltage ( V rms ) | 40 | 48 | 72 | |||||
| Maximum Rated Output Wattage Rating ( Watts ) | 1300 | 1300 | 1300 | |||||
| Nominal Input Current ( A rms ) | 36.5 | 30.2 | 19.9 | |||||
| Maximum Rated Input Wattage Rating ( Watts ) | 1447 | 1435 | 1417 | |||||
| Maximum Rated VA ( Volt-Amp ) | 1461 | 1449 | 1432 | |||||
| Efficiency ( % ) | 89.9 | 90.6 | 91.7 | |||||
| Power Factor | 0.99 | 0.99 | 0.99 | |||||
| Leakage Current ( mA ) | Not applicable for DC model | |||||||
| Maximum Inrush Current ( A peak ) | 55.50 | |||||||
| Maximum Inrush Current duration ( mS ) | 10 | |||||||
| Maximum British Thermal Unit Rating ( BTU-Hr ) | 4936 | 4895 | 4836 | |||||
| HPE 2200W M-CRPS -48VDC Hot Plug Power Supply (P73210-B21) | HPE Generic Part Number | P73212-001 | ||||||
| HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit | P73210-B21 | |||||||
| SPS-PS,1U, 2200W, -48VDC,HTPLG,HE-P | P77519-001 | |||||||
| Input Voltage Range ( V rms ) | 40 - 72 | |||||||
| Frequency Range (Nominal) ( Hz ) | DC | |||||||
| Nominal Input Voltage ( V rms ) | 40 | 48 | 72 | |||||
| Maximum Rated Output Wattage Rating ( Watts ) | 2200 | 2200 | 2200 | |||||
| Nominal Input Current ( A rms ) | 61.1 | 50.3 | 33.1 | |||||
| Maximum Rated Input Wattage Rating ( Watts ) | 2420 | 2393 | 2360 | |||||
| Maximum Rated VA ( Volt-Amp ) | 2445 | 2417 | 2384 | |||||
| Efficiency ( % ) | 90.9 | 92.0 | 93.2 | |||||
| Power Factor | 0.99 | 0.99 | 0.99 | |||||
| Leakage Current ( mA ) | Not applicable for DC model | |||||||
| Maximum Inrush Current ( A peak ) | 30 | |||||||
| Maximum Inrush Current duration ( mS ) | 10 | |||||||
| Maximum British Thermal Unit Rating ( BTU-Hr ) | 8258 | 8163 | 8052 | |||||
| All AC Power Supplies | |
|---|---|
| Operating Temperature | 41° to 131°F (5° to 55°C) |
| Operating Relative Humidity (%) | 5% to 95%, non-condensing |
| Operating Elevation | The maximum ambient temperature of the power supply shall have an altitude de-rating, from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft). |
| Storage Temperature | -40° to 185°F (-40 to 85°C) |
| Storage Relative Humidity (%) | 5% to 95%, non-condensing |
| Storage Elevation | 0 to 50,000ft (0 to 15,240m) |
| Input Voltage | Low Line - Rated: 100V - 127V; Min 90V to Max 132V High Line - Rated: 200 - 240V; Min 180V to Max 264V 240VDC Support - Rated 240VDC; Min 192VDC to Max 310VDC (models P73190-B21, P67240-B21, P67244-B21, P67252-B21, and P67248-B21 only) |
| Input Frequency | Rated: 50 - 60Hz; Min 47Hz to Max 63Hz |
| FCC EMI Certification | CE Mark, UL, cUL, IEC, EN, KCC, BSMI, CCC, TUV, C-tick, CISPR Class A |
| Mechanical Dimensions (WxHxD) | - 800W PSU (P73190-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 1000W PSU (P67240-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 1500W PSU (P67244-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 2400W PSU (P67252-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) - 3200W PSU (P67248-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) |
| Unit Weight | - 800W PSU (P73190-B21): 1.64 lbs. (0.75 kg) - 1000W PSU (P67240-B21): 1.64 lbs. (0.75 kg) - 1500W PSU (P67244-B21): 1.64 lbs. (0.75 kg) - 2400W PSU (P67252-B21): 2.34 lbs. (1.06 kg) - 3200W PSU (P67248-B21): 2.34 lbs. (1.06 kg) |
| Shipping Dimensions (WxHxD) | 14.75 x 7.5 x 5.75 in (37.47 x 19.05 x 14.61 cm) |
| Shipping Weight | - 800W PSU (P73190-B21): 3.14 lbs. (1.43 kg) - 1000W PSU (P67240-B21): 3.14 lbs. (1.43 kg) - 1500W PSU (P67244-B21): 3.14 lbs. (1.43 kg) - 2400W PSU (P67252-B21): 3.84 lbs. (1.75 kg) - 3200W PSU (P67248-B21): 3.84 lbs. (1.75 kg) |
| Kit Contents | Ships with (1) Power supply unit, (1) IEC jumper cable: IEC C13-C14 on P73190-B21, P67240-B21, and P67244-B21, IEC C19-C20 on P67248-B21 and P67252-B21, and installation/safety guide |
| Power Supply Hold-Up time in the event of AC loss | |
| Condition: 100% rated output power (Time in Milliseconds – Minimum) | Non-Redundant (1+0) – 10ms |
| Redundant (1+1) – 20ms | |
| Condition: 50% rated output power (Time in Milliseconds – Minimum) | Non-Redundant (1+0) – 20ms |
| Redundant (1+1) – 30ms | |
| All DC Power Supplies | |
| Operating Temperature | 41° to 131°F (5° to 55°C) |
| Operating Relative Humidity (%) | 5% to 95%, non-condensing |
| Operating Elevation | 0 to 5,000ft (1,524m) with no derating; The maximum ambient temperature of the power supply shall have an altitude derating from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft). |
| Storage Temperature | -40° to 185°F (-40 to 85°C) |
| Storage Relative Humidity (%) | 5% to 95%, non-condensing |
| Storage Elevation | 0 to 50,000ft (0 to 15,240m) |
| Input Voltage | 48VDC to 54VDC (nominal); Min 40VDC to Max 72VDC (model P82412-B21 and P73210-B21 only) |
| Input Frequency | DC input |
| Conformance Standards | CE Mark, UL, CSA, IEC, EN, CNS, KC, CCC, C-tick, TUV, CISPR Class A |
| Mechanical Dimensions (WxHxD) | - 1.58 x 2.67 x 7.20 in (4.03 x 6.80 x 18.29 cm) |
| Unit Weight | - 2.5 lb (1.13 kg) |
| Shipping Dimensions (WxHxD) | 14.87 x 7.25 x 5.63 in (37.77 x 18.42 x 14.30 cm) |
| Shipping Weight | - 3.5 lb (1.59 kg) (for model P82412-B21 and P73210-B21 only ) |
| Kit Contents | Models P82412-B21 and P73210-B21 ship with: (1) Power supply unit, installation/safety guide |
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of responsibly.
The EU Waste from Electrical and Electronic Equipment (WEEE) Directive requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the
Hewlett Packard Enterprise web site
These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 02-Mar-2026 | Changed | Service and Support and Technical Specifications sections were updated. | |
| Added | Updated GreenLake statement. HPE 2200W M-CRPS -48VDC Hot Plug Power Supply (P73210-B21) and All AC Power Supplies specifications. | ||
| 02-Feb-2026 | Changed | Overview, Related Options and Technical Specifications sections were updated. | |
| Added | HPE M-CRPS -48VDC Power Supply Kits SKU and rules. | ||
| Removed | C19 Country-Specific Jumper Cords obsolete SKU. | ||
| 08-Dec-2025 | Changed | Technical Specifications section was updated. | |
| Added | Power Supply matrices. | ||
| 06-Oct-2025 | Changed | Standard Features and Technical Specifications sections were updated. Imagery and AC Power Supplies specifications tables were updated. | |
| 28-Jul-2025 | Changed | Survey link was updated. | |
| 23-Jun-2025 | Changed | Input Voltage on Specified models (Page 12) | |
| Removed | Obsolete SKU AF582A | ||
| 10-Mar-2025 | Changed | What’s new, Compatibility, and Technical Specifications were revised. | |
| 24-Feb-2025 | Changed | Added new Power Supply Kits: 1000W and 3200W Overview, Models, Standard Features, Compatibility, Related Options and Technical Specifications were revised. | |
| 04-Nov-2024 | Created | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a00039982enw, 16144 - Worldwide - V9 - 02-March-2026
