HPE Hard Disk Drives (HDDs) are engineered to deliver optimum performance, reliability, compatibility, and data security across HPE server and storage platforms making them the preferred choice for workloads ranging from small businesses to large enterprise.
HPE HDDs are available for three types of workloads: Enterprise high-performance (Mission Critical), Midline high-capacity (Business Critical) and Entry-level storage solutions.
Overview
HPE Hard Disk Drives
Performance
- − HPE HDDs are tuned and tested with on-going quality monitoring throughout their lifecycle
- − HPE optimizes HDD firmware for predictable and consistent HDD performance
- − Full portfolio of high-performance Mission Critical and high-capacity Business Critical drive solutions
Reliability
- − Hewlett Packard Enterprise’s industry-leading rigorous testing and qualification program, backed by 2.4 million test hours
- − Pre-failure Alerts with HPE Smart Array Controller, Systems Insight Manager, and HPE Smart firmware
- − 3x faster firmware and software updates with HPE Service Pack for ProLiant (HPE SPP)
- − Best-in-class supply assurance program reduces downtime due to product delays
Compatibility
- − Simplify HDD planning and standardize HDDs across HPE server and storage solutions
- − Common HDD carriers mean re-purposing drives in other servers is a snap
Security
- − HPE Digitally Signed Firmware helps prevent malicious attacks
- − HPE Smart Array SR Secure Encryption is a FIPS 140-2 Level 1 validated enterprise class controller-based encryption solution for data-at-rest on all SAS/SATA drives
- − HPE Smart Carriers report drive activity and health
- − Self-Encrypting Drives (SEDs) provide hardware-based data encryption. All data that is committed to the media is encrypted with either a 128-bit or 256-bit key.
HPE HDDs are available for three types of workloads: Enterprise high-performance (Mission Critical), Midline high-capacity (Business Critical) and Entry-level storage solutions.
| HPE HDD portfolio: Proven performance for every workload | |||
|---|---|---|---|
| Class | Mission Critical (Enterprise) | Business Critical (Midline) | Entry* |
| Workload | High | Medium | Low |
| Usage | Mission-critical, high I/O: Email, enterprise resource planning (ERP), customer relationship management (CRM) | Business Critical, High capacity, high availability storage: Backup, archive, reference | Low I/O: Boot and backup |
| Interface | SAS 12 Gb | SAS 12 Gb SATA 6 Gb | SATA 6 Gb |
| RPM | 10000 | 7200 | 7200 |
| Form factor | SFF | LFF | LFF |
| Capacities | Up to 2.4 TB | Up to 26 TB | Up to 4 TB |
| Warranty | 3 years | 1 year | 1 year |
Notes: * Supported on select HPE ProLiant servers only.
What's New
- − Introduced largest capacity 26 TB in Business Critical 7.2K LFF Low-Profile Carrier Portfolio.

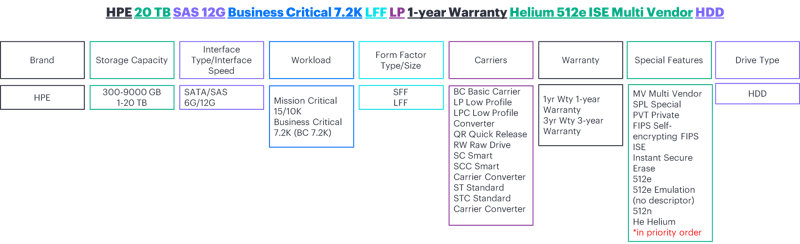

- • P80577-B21HPE 26 TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD
- • P80578-B21HPE 26 TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD
Notes: A -B21 suffix may be replaced with -H21 and -K21 to support across different server family lines. Please refer to the appropriate Server QuickSpecs for full compatibility details
Firmware Updates
Digitally Signed Firmware – Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.
For advanced data protection and encryption, customers should consider HPE Smart Array Controllers with HPE Smart Array Secure SR Encryption. It is a controller-based data encryption solution for HPE servers that protect data-at-rest on any bulk attached storage. This solution meets stringent compliance regulations such as HIPAA and Sarbanes-Oxley.
Standard Features
Models | |||||||
|---|---|---|---|---|---|---|---|
| Category | Interface SAS 12G | Form Factor | Format | Capacity | HDD Carrier | ||
| | | | Smart Carrier SKU | Low Profile SKU | Basic Carrier SKU | ||
| SFF | | | | | | ||
| Mission Critical (10K rpm) | 512n | 300GB | 872475-B21 | | P40430-B21 | ||
| 600GB | 872477-B21 | | P53561-B21 | ||||
| 1.2TB | 872479-B21 | | P28586-B21 | ||||
| SFF | 512e | 1.8TB | 872481-B21 | | P53562-B21 | ||
| | 2.4TB | 881457-B21 | | P28352-B21 | |||
| Mission Critical (10K rpm) Self-Encrypting Drives (SED) | SFF | 512n | 1.2TB | | | P28622-B21 | |
| SFF | 512e | 2.4TB | | | P28618-B21 | ||
Models | |||||||
|---|---|---|---|---|---|---|---|
| Category | Interface | Form Factor | Format | Capacity | HDD Carrier | ||
| Business Critical (7.2K rpm) | SAS 12G | | | | Smart Carrier SKU | Low Profile SKU | Basic Carrier SKU |
| LFF | 512n | 2TB | | 833926-B21 | | ||
| 4TB | 872487-B21 | 833928-B21 | | ||||
| LFF | 512e | 6TB | | 861746-B21 | | ||
| 8TB | 819201-B21 | 834031-B21 | | ||||
| 12TB | 881779-B21 He | 881781-B21 He | | ||||
| | | | | ||||
| 16TB | | P23608-B21 He | | ||||
| 20TB | | P53553-B21He | | ||||
| 24TB | | P68583-B21He | | ||||
| 26TB | | P80577-B21He | | ||||
| | SATA 6G | LFF | 512n | 1TB | | 861686-B21 | |
| 2TB | | 861681-B21 | | ||||
| 4TB | 872491-B21 | 861683-B21 | | ||||
| 512e | 6TB | | 861742-B21 | | |||
| 8TB | 819203-B21 | 834028-B21 | | ||||
| 12TB | 881785-B21 He | 881787-B21He | | ||||
| 16TB | | P23449-B21 He | | ||||
| 20TB | | P53554-B21He | | ||||
| 24TB | | P68585-B21He | | ||||
| 26TB | | P80578-B21He | | ||||
Models | |||||
|---|---|---|---|---|---|
| Category | Interface | Form Factor | Format | Capacity | HDD Carrier |
| Entry (7.2K) | SATA 6G | Non-Hot Plug Carrier SKU | |||
| 512n | HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD | 801882-B21 | |||
| HPE 4TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD | 801888-B21 | ||||
What is HPE Hard disk drive?
Hewlett Packard Enterprise drives are tuned to deliver optimum performance for HPE Servers. They undergo an intense qualification process to eliminate firmware and O/S incompatibilities. HPE drive firmware is designed to maximize both functionality and compatibility with HPE ProLiant Rack and Tower Servers, Apollo family, Blade and Synergy Platforms.
Drive Quality and Performance
While selecting the drives in our HPE portfolio, only those drives with a performance level suitable for an enterprise environment are selected through the Hewlett Packard Enterprise qualification process and are labeled "best-in-class."
Pre-Failure Alert
When used in conjunction with a SMART Array Controller and Systems Insight Manager, the SMART capable firmware in HPE hard drives enables extensive fault prediction capabilities. If potential problems develop in one of the drives, the Smart Array Controller, Systems Insight Manager and/or SMART hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty
Notes: All drives are protected by a Pre-Failure Alert when used with a HPE Smart Array controller and Systems Insight Manager, allowing hard drives to be replaced before failure under warranty. In addition, all drives are covered by a one or three-year limited on-site warranty period for the system in which they are installed. The drive warranty is automatically uplifted when used in a server or MSA for which a HPE Services service contract is purchased. Please see the Support Services section below for additional services.
Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray’s eject button lights up to warn users when the removal of the drive would cause data loss.
Helium Drives
Although hard drives are sealed, they have air inside. Air can create turbulence-induced risk vibrations which can limit the storage density of HDDs. Newer helium-filled drives virtually eliminate turbulence because helium is 1/7th as dense as air. This lower density allows the read/write mechanism to spin more easily and precisely, with less drag. Less internal turbulence means the drive platters can be closer together, allowing more platters and increasing the capacity potential in the same space. Less turbulence also means helium drives tend to use less power, and run cooler and quieter.
Support Matrix
Please see the following URL for the latest list of supported servers and enclosures:
https://www.hpe.com/us/en/servers/server-options.html
Warranty
Enterprise hard drives have a 3 year limited warranty regardless of the warranty period for the system in which they are installed.
Midline hard drives have a 1 year limited warranty regardless of the warranty period for the system in which they are installed.
Service and Support
HPE Services
No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.
https://www.hpe.com/services/consulting
HPE Managed Services
HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.
https://www.hpe.com/services/operational
HPE Complete Care Service
HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
- − A complete coverage approach -- edge to cloud
- − An assigned HPE team
- − Modular and fully personalized engagement
- − Enhanced Incident Management experience with priority access
- − Digitally enabled and AI driven customer experience
HPE Tech Care Service
HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Lifecycle Services
HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
- − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
- − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
- − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
- − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
- − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
Notes: To review the list of Lifecycle Services available for your product go to: https://www.hpe.com/services/lifecycle
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
Other Related Services from HPE Services
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
Defective Media Retention
An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.
Parts and Materials
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to Purchase Services
Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
- − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
- − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/
AI Powered and Digitally Enabled Support Experience
Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin
Consume IT On Your Terms
GreenLakeis the cloud delivering a unified platform experience that allows enterprises to simplify IT, reduce costs, and transform faster.
- − Get faster time to market
- − Save on TCO, align costs to business
- − Scale quickly, meet unpredictable demand
- − Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
For more information, please refer to http://www.hpe.com/services
Technical Specifications
HDD Specifications
| Mission Critical (10K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | SFF (2.5”) | | | Carrier | Smart Carrier (SC) | | | | |
| Rotational Speed | 10000 rpm | | | Dimensions | | | | | |
| Interface | SAS | | | Height | 0.62 in (15.6 mm) | | | | |
| Transfer Rate Synchronous (Max) | 12Gb/sec | | | Width | 2.98 in (75.7 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 4.67 in (118.7 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| 872475-B21 | HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD | 195 | 170 | 170 | 170 | 4.7 | 6.1 | 6.3 | 6.4 |
| 872477-B21 | HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD | 195 | 165 | 165 | 165 | 4.7 | 6.1 | 6.3 | 6.4 |
| 872479-B21 | HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD | 195 | 165 | 165 | 165 | 4.0 | 7.5 | 6.5 | 5.9 |
| 872481-B21 | HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD | 230 | 165 | 170 | 185 | 4.6 | 6.9 | 6.0 | 5.8 |
| 881457-B21 | HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD | 255 | 160 | 180 | 195 | 4.8 | 6.0 | 7.8 | 6.6 |
| Mission Critical (10K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | SFF (2.5”) | | | | Carrier | Basic Carrier (BC) | | | |
| Rotational Speed | 10000 rpm | | | | Dimensions | | | | |
| Interface | SAS | | | | Height | 0.62 in (15.6 mm) | | | |
| Transfer Rate Synchronous (Max) | 12Gb/sec | | | | Width | 2.98 in (75.7 mm) | | | |
| Bytes/Sector | 512 | | | | Depth | 4.67 in (118.7 mm) | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| P40430-B21 | HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD | 195 | 170 | 170 | 170 | 4.7 | 6.9 | 6.3 | 6.4 |
| P53561-B21 | HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD | 200 | 165 | 165 | 165 | 4.7 | 6.1 | 6.3 | 6.4 |
| P28586-B21 | HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD | 195 | 165 | 165 | 165 | 4.1 | 7.5 | 6.5 | 6.1 |
| P53562-B21 | HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD | 260 | 165 | 180 | 190 | 2.6 | 3.6 | 4.4 | 3.9 |
| P28352-B21 | HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD | 255 | 160 | 180 | 190 | 4.8 | 6 | 7.8 | 6.6 |
| Mission Critical (10K rpm) Self-Encrypting Drives (SED) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | SFF (2.5”) | | | Carrier | Basic Carrier (BC) | | | | |
| Rotational Speed | 10000 rpm | | | Dimensions | | | | | |
| Interface | SAS | | | Height | 0.62 in (15.6 mm) | | | | |
| Transfer Rate Synchronous (Max) | 12Gb/sec | | | Width | 2.98 in (75.7 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 4.67 in (118.7 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| P28622-B21 | HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Self-encrypting HDD | 250 | 170 | 170 | 170 | 2.6 | 3.6 | 4.4 | 3.9 |
| P28618-B21 | HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Self-encrypting HDD | 255 | 160 | 180 | 195 | 4.8 | 6.0 | 7.8 | 6.6 |
| Business Critical (7.2K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | | Carrier | Smart Carrier (SC) | | | |
| Rotational Speed | 7200 rpm | | | | Dimensions | | | | |
| Interface | SAS | | | | Height | 1.06 in (26.8 mm) | | | |
| Transfer Rate Synchronous (Max) | 12Gb/sec | | | | Width | 4.16 in (105.8 mm) | | | |
| Bytes/Sector | 512 | | | | Depth | 6.69 in (170.0 mm) | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| 872485-B21 | HPE 2TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 190 | 100 | 100 | 100 | 8.8 | 12.2 | 10.8 | 10.5 |
| 872487-B21 | HPE 4TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 190 | 100 | 100 | 100 | 8.8 | 12.2 | 10.8 | 10.5 |
| 861754-B21 | HPE 6TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD | 200 | 100 | 105 | 110 | 8.8 | 12.2 | 10.8 | 10.5 |
| 819201-B21 | HPE 8TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD | 230 | 100 | 110 | 110 | 8.3 | 11.3 | 10.6 | 10.2 |
| 881779-B21 | HPE 12TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e Multi Vendor HDD | 235 | 105 | 115 | 125 | 6.3 | 8.7 | 8.0 | 8.7 |
| P23863-B21 | HPE 16TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e ISE Multi Vendor HDD | 250 | 105 | 115 | 125 | 5.7 | 9.6 | 8.7 | 9.1 |
| P53552-B21 | HPE 20TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e ISE Multi Vendor HDD | 260 | 105 | 118 | 130 | 6.1 | 9.9 | 8.6 | 8.9 |
| Business Critical (7.2K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | Carrier | Low Profile (LP) | | | | |
| Rotational Speed | 7200 rpm | | | Dimensions | | | | | |
| Interface | SAS | | | Height | 1.028 in (26.1 mm) | | | | |
| Transfer Rate Synchronous (Max) | 12Gb/sec | | | Width | 4.15 in (105.5 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 6.16 in (156.58 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKUDescription | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| 833926-B21 | HPE 2TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 195 | 100 | 100 | 100 | 8.8 | 12.2 | 10.8 | 10.5 |
| 833928-B21 | HPE 4TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 195 | 100 | 100 | 100 | 8.8 | 12.2 | 10.8 | 10.5 |
| 861746-B21 | HPE 6TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD | 215 | 100 | 110 | 110 | 8.8 | 12.2 | 10.8 | 10.5 |
| 834031-B21 | HPE 8TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD | 230 | 100 | 110 | 110 | 8.3 | 11.3 | 10.6 | 10.2 |
| 881781-B21 | HPE 16TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e ISE Multi Vendor HDD | 235 | 105 | 115 | 125 | 6.3 | 8.7 | 8.0 | 8.7 |
| P23608-B21 | HPE 20TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e ISE Multi Vendor HDD | 250 | 105 | 115 | 125 | 5.7 | 9.6 | 8.7 | 9.1 |
| Business Critical (7.2K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | Carrier | Low Profile (LP) | | | | |
| Rotational Speed | 7200 rpm | | | Dimensions | | | | | |
| Interface | SAS | | | Height | 1.028 in (26.1 mm) | | | | |
| Transfer Rate Synchronous (Max) | 12Gb/sec | | | Width | 4.15 in (105.5 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 6.16 in (156.58 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| P53553-B21 | HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 260 | 105 | 118 | 130 | 6.1 | 9.9 | 8.6 | 8.9 |
| P68583-B21 | HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 271 | 106 | 135 | 164 | 5.9 | 9.6 | 8.7 | 9.3 |
| P80577-B21 | HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 278 | 117 | 152 | 197 | 5.9 | 9.6 | 8.0 | 7.9 |
| Business Critical (7.2K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | | Carrier | Smart Carrier (SC) | | | |
| Rotational Speed | 7200 rpm | | | | Dimensions | | | | |
| Interface | SATA | | | | Height | 1.06 in (26.8 mm) | | | |
| Transfer Rate Synchronous (Max) | 6Gb/sec | | | | Width | 4.16 in (105.8 mm) | | | |
| Bytes/Sector | 512 | | | | Depth | 6.69 in (170.0 mm) | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| 861691-B21 | HPE 1TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 185 | 90 | 90 | 90 | 8.8 | 12.2 | 10.8 | 10.5 |
| 872489-B21 | HPE 2TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 185 | 90 | 90 | 90 | 8.8 | 12.2 | 10.8 | 10.5 |
| 872491-B21 | HPE 4TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty Multi Vendor HDD | 190 | 100 | 100 | 100 | 8.8 | 12.2 | 10.8 | 10.5 |
| 861750-B21 | HPE 6TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD | 215 | 100 | 100 | 105 | 8.8 | 12.2 | 10.8 | 10.5 |
| 819203-B21 | HPE 8TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD | 230 | 100 | 110 | 110 | 7.2 | 10.8 | 10.1 | 9.8 |
| 881785-B21 | HPE 12TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e Multi Vendor HDD | 235 | 105 | 115 | 125 | 6.3 | 8.5 | 8.2 | 8.1 |
| P23857-B21 | HPE 16TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e ISE Multi Vendor HDD | 258 | 105 | 115 | 125 | 5.5 | 9.1 | 7.8 | 8.4 |
| P53555-B21 | HPE 20TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty Helium 512e ISE Multi Vendor HDD | 249 | 110 | 118 | 130 | 5.8 | 9.3 | 8.1 | 8.6 |
| Business Critical (7.2K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | Carrier | Low Profile (LP) | | | | |
| Rotational Speed | 7200 rpm | | | Dimensions | | | | | |
| Interface | SATA | | | Height | 1.028 in (26.1 mm) | | | | |
| Transfer Rate Synchronous (Max) | 6Gb/sec | | | Width | 4.15 in (105.5 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 6.16 in (156.58 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| 861686-B21 | HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD | 185 | 90 | 90 | 90 | 8.8 | 12.2 | 10.8 | 10.5 |
| 861681-B21 | HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD | 185 | 90 | 90 | 90 | 8.8 | 12.2 | 10.8 | 10.5 |
| 861683-B21 | HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD | 195 | 100 | 100 | 100 | 8.8 | 12.2 | 10.8 | 10.5 |
| 861742-B21 | HPE 6TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD | 215 | 100 | 100 | 105 | 8.8 | 12.2 | 10.8 | 10.5 |
| 834028-B21 | HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD | 230 | 100 | 110 | 110 | 7.2 | 10.8 | 10.1 | 9.8 |
| 881787-B21 | HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD | 235 | 105 | 115 | 125 | 6.3 | 8.5 | 7.7 | 8.1 |
| P23449-B21 | HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 258 | 105 | 115 | 125 | 5.5 | 9.1 | 7.8 | 8.4 |
| P53554-B21 | HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 249 | 110 | 118 | 130 | 5.8 | 9.3 | 8.1 | 8.6 |
| Business Critical (7.2K rpm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | Carrier | Low Profile (LP) | | | | |
| Rotational Speed | 7200 rpm | | | Dimensions | | | | | |
| Interface | SATA | | | Height | 1.028 in (26.1 mm) | | | | |
| Transfer Rate Synchronous (Max) | 6Gb/sec | | | Width | 4.15 in (105.5 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 6.16 in (156.58 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| P68585-B21 | HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 273 | 111 | 140 | 171 | 5.6 | 9.4 | 8.6 | 8.7 |
| P80578-B21 | HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | 277 | 116 | 154 | 199 | 5.6 | 9.4 | 7.7 | 7.6 |
| Entry | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Form Factor | LFF (3.5”) | | | Carrier | Non Hot Plug Carrier (RW) | | | | |
| Rotational Speed | 7200 rpm | | | Dimensions | | | | | |
| Interface | SATA | | | Height | 1.028 in (26.1 mm) | | | | |
| Transfer Rate Synchronous (Max) | 6Gb/sec | | | Width | 4.00 in (101.6 mm) | | | | |
| Bytes/Sector | 512 | | | Depth | 5.75 in (146.0 mm) | | | | |
| Operating Temperature | 50° to 95° F (10° to 35°C) | ||||||||
| SKU | SKU Description | OD Media Rate, Max Sequential Throughput (MiB/s) | 128Kib Random Rd (IOPs) | 128Kib Random 70% RD/ 30% WT (IOPs) | 128Kib Random 50% RD/ 50% WT (IOPs) | Power Idle Time (Watts) | Power Random R/W (Watts) | Power Sequential Read (Watts) | Power Sequential Write (Watts) |
| 801882-B21 | HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD | 160 | 95 | 95 | 95 | 8.8 | 12.2 | 10.8 | 10.5 |
| 801888-B21 | HPE 4TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD | 160 | 95 | 95 | 95 | 8.8 | 12.2 | 10.8 | 10.5 |
Carrier Decoder
HPE Hard Disk Drives (HDDs) utilize a wide variety of carriers, which houses the HDD and also enables a specific chassis fit to support a broad range of HPE server and storage products. The table below summarizes the various form factors, plug types, and carrier attributes.
| Server Family | Server Model | Generation | SFF Carriers | LFF Carriers | |||
|---|---|---|---|---|---|---|---|
| | | | Smart Carrier (SC) | Basic Carrier (BC) | Smart Carrier (SC) | Low Profile (LP) | Raw Carrier(RW)/(AKA NPH) |
| HPE ProLiant | HPE ProLiant DL | ||||||
| HPE ProLiant DL20 Gen10 Plus Server | Gen10 Plus | | Yes | | Yes | Yes | |
| HPE ProLiant DL160 Gen10 Server | Gen10 | Yes | | | Yes | | |
| HPE ProLiant DL180 Gen10 Server | Gen10 | Yes | | | Yes | | |
| HPE ProLiant DL320 Gen11 | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL325 Gen10 Plus Server | Gen10 Plus | Yes | | | Yes | | |
| HPE ProLiant DL325 Gen10 Plus V2 Server | Gen10 Plus V2 | | Yes | | Yes | | |
| HPE ProLiant DL325 Gen11 Server | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL345 Gen10 Plus Server | Gen10 Plus | | Yes | | Yes | | |
| HPE ProLiant DL345 Gen11 Server | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL360 Gen10 Server | Gen10 | Yes | | Yes | | | |
| HPE ProLiant DL360 Gen10 Plus Server | Gen10 Plus | | Yes | | Yes | | |
| HPE ProLiant DL360 Gen11 | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL365 Gen10 Plus Server | Gen10 Plus | | Yes | | Yes | | |
| HPE ProLiant DL365 Gen11 Server | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL380 Gen10 Server | Gen10 | Yes | | Yes | | | |
| HPE ProLiant DL380 Gen10 Plus Server | Gen10 Plus | | Yes | | Yes | | |
| HPE ProLiant DL380 Gen11 | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL385 Gen10 Plus Server | Gen10 Plus | Yes | | | Yes | | |
| HPE ProLiant DL385 Gen10 Plus V2 Server | Gen10 Plus V2 | | Yes | | Yes | | |
| HPE ProLiant DL385 Gen11 Server | Gen11 | | Yes | | Yes | | |
| HPE ProLiant DL 560 Gen10 Server | Gen10 | Yes | | | | | |
| HPE ProLiant DL 580 Gen10 Server | Gen10 | Yes | | | | | |
| HPE ProLiant ML | |||||||
| HPE ProLiant MicroServer Gen10 Plus | Gen10 Plus | | | | | | |
| HPE ProLiant ML30 Gen10 Plus Server | Gen10 Plus | | Yes | | Yes | | |
| HPE ProLiant ML110 Gen10 Server | Gen10 | Yes | | | Yes | | |
| HPE ProLiant ML350 Gen10 Server | Gen10 | Yes | | | Yes | | |
| HPE ProLiant ML350 Gen11 Server | Gen11 | Yes | | | Yes | | |
| Server Family | Server Model | Generation | SFF Carriers | LFF Carriers | |||
|---|---|---|---|---|---|---|---|
| | | | Smart Carrier (SC) | Basic Carrier (BC) | Smart Carrier (SC) | Low Profile (LP) | Raw Carrier(RW)/(AKA NPH) |
| HPE Synergy | HPE Synergy | ||||||
| HPE Synergy 480 Gen10 Compute Module | Gen10 | Yes | | | | | |
| HPE Synergy 480 Gen10 Compute Module | Gen10 Plus | Yes | | | | | |
| HPE Synergy 660 Gen10 Compute Module | Gen10 | Yes | | | | | |
| HPE Synergy D3940 Storage Module | | Yes | | | | | |
HDD SKU Description Decoder
Longer Name
![[IMAGE1]](https://assets.ext.hpe.com/is/image/hpedam/a00001287enw_block4img15?$crimg$ "[IMAGE1]")
Environment friendly Products and Approach End-of life Management and Recycling
Hewlett Packard Enterprise offers end-of-life, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
| Date | Version History | Action | Description of Change |
|---|---|---|---|
| 02-Feb-2026 | Changed | verview, Standard Features and Technical Specifications sections were updated. | |
| Added | HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD | ||
| 23-Jun-2025 | Changed | Technical Specifications information was updated for the following SKUs (IOPs – Watts): P68585-B21, P68583- B21, P40430-B21, 872475-B21 | |
| 17-Mar-2025 | Changed | Models and Service and Support Sections were updated | |
| 03-Sep-2024 | Changed | Models Section was updated | |
| 22-Jan-2024 | Changed | Models Section was updated | |
| 04-Dec-2023 | Changed | Service and Support Section was updated | |
| 15-May-2023 | Changed | Technical Specifications Sections was updated | |
| 07-Nov-2022 | Changed | SKUs Names were updated | |
| 01-Aug-2022 | Changed | Tables were fixed, Overview and Technical Specifications Sections were updated | |
| 06-Jun-2022 | Changed | Technical Specifications Section was updated | |
| 17-Jan-2022 | Changed | Technical Specifications Section was updated | |
| 06-Dec-2021 | Changed | Technical Specifications Section was updated | |
| 15-Nov-2021 | Changed | Service and Support Section was updated | |
| 04-Oct-2021 | Changed | SKUs Names were updated | |
| 12-Jul-2021 | Changed | Technical Specifications Section was updated | |
| 06-Jul-2021 | Changed | Overview and Technical Specifications Sections were updated | |
| 06-Apr-2021 | Changed | Tables were fixed, Overview and Technical Specifications Sections were updated | |
| 01-Feb-2021 | Changed | Overview and Technical Specifications Sections were updated | |
| 20-Jul-2020 | Changed | Overview and Technical Specifications Sections were updated | |
| 01-Jun-2020 | Changed | SKUs were Added in Overview Section | |
| 03-Feb-2020 | Changed | Overview Section was updated | |
| 09-Dec-2020 | Changed | Added new HPE 16TB Midline 7.2K LFF (3.5in) Helium 512e Digitally Signed Firmware HDD models. | |
| 02-Dec-2019 | Changed | Technical Specifications and Overview Sections were updated | |
| 03-Jun-2019 | Changed | Technical Specifications and Overview Sections were updated | |
| 04-Feb-2019 | Changed | Technical Specifications and Overview Sections were updated | |
| 15-Oct-2018 | Changed | Technical Specifications was revised. | |
| 01-Oct-2018 | Changed | Overview, Standard Features, Service and Support, and Technical Specifications were revised. | |
| 04-Sep-2018 | Changed | Technical Specifications Section was updated | |
| 04-Jun-2018 | Changed | P04695-B21 HPE 600GB Enterprise 15K SAS 12G LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware HDD P04693-B21 HPE 300GB Enterprise 15K SAS 12G LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware HDD Power specs for all drives | |
| Seek time specs to IOPs From Recommended to Extended: 861590-B21, 861594-B21, 861596-B21 From Extended to Recommended: 801882-B21, 881787-X21 | |||
| 05-Mar-2018 | Changed | Overview, Service and Support, and Technical Specifications were revised. | |
| 05-Feb-2018 | Changed | Added new HPE 12TB Midline 7.2K SAS LFF (3.5in) Helium 512e Digitally Signed Firmware HDD models: 881779-B21, 881781-X21, 881783-B21 | |
| Change format to breakout recommended and extended portfolios. | |||
| Obsolete SKUs | |||
| 04-Dec-2017 | Changed | Added new HPE 12TB Midline 7.2K LFF (3.5in) Helium 512e Digitally Signed Firmware HDD models. | |
| Overview, Service and Support, and Technical Specifications were revised. | |||
| Obsolete SKUs were removed from the QuickSpecs. | |||
| 23-Oct-2017 | Changed | Part number 881458-B21 was changed to 881457-X21. Care Pack references changed to HPE Services operational services. | |
| 25-Sep-2017 | Changed | Added 881458-B21 HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD | |
| Overview, Standard Features, Service and Support, and Technical Specifications were revised. | |||
| 12-Jun-2017 | Changed | Overview and Technical Specifications were revised. | |
| 27-Mar-2017 | Changed | Added new HDD offering. | |
| 13-Feb-2017 | New | New QuickSpecs |
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
a00001287enw, 15825 - Worldwide - V38 - 02-February-2026
