Config Set Create/Update Process

Defines how the cfgset command takes configuration content from installed service packages and merges it with site-supplied content to create or update a config set.

Config sets are created and updated using the cfgset command with the create and update subcommands, respectively. Invoking cfgset with one of those subcommands initiates the following process, which defines how configuration content is discovered from service packages installed on the management node and used, along with site-supplied content, to create or update a config set.
  1. cfgset searches for service packages in /opt/cray/imps_config.
  2. cfgset copies to the config set (for create) or overwrites in the config set (for update) ansible and dist content from each service package. Note that it is only content from service packages that is overwritten; content placed in those directories manually is unchanged.
    Note: Manual changes to service package content in this directory will be overwritten!
  3. cfgset runs pre-configuration callback scripts from each service package. Scripts act on the config set to create content necessary for system configuration, which they place into the files subdirectory of the config set.
  4. cfgset invokes the configurator to do steps 4 through 6.

    Configurator finds configuration templates from each service package that match the config set type, and then copies them into the config set (for create) or merges them with the templates already in the config set (for update).

  5. Configurator takes one of these actions to further modify config set template data, depending on the command-line options used:
    interacts with user
    Initiates an interactive session with the user and modifies config set template data based on the values supplied by the user.

    Occurs when --mode interactive option used or no mode option used, which defaults to auto mode.

    does not interact with user
    Does not initiate an interactive session and does no further modification to config set template data beyond the copy/merge of service package data already done in step 4.

    Occurs when --mode prepare option used. Note that although this action is associated with preparing worksheets, all three actions result in worksheets being written in step 6.

    imports worksheets
    Imports configuration worksheets and modifies config set template data based on the values in each service worksheet.

    Occurs when --worksheet-path FILEPATH option used.

  6. Configurator writes configuration template data, configuration worksheets, and a changelog to the config set. Note that the configurator never modifies the configuration templates in service packages, which are found in /opt/cray/imps_config/SERVICE PACKAGE for each service package.
  7. cfgset runs post-configuration callback scripts from each service package.
  8. cfgset autosaves the config set to a time-stamped clone.

The following three figures illustrate how this eight-step process is used to create a CLE config set. They differ in how configuration data in a config set is further modified in step 5, corresponding to the three different actions: interacting with the user (modification through user interaction), not interacting with the user (no further modification), and importing worksheets (modification through bulk import of configuration worksheets). Black lines indicate cfgset actions, and red lines indicate actions taken by the configurator when invoked by cfgset.

This first figure shows how the configurator creates config set templates (in the config subdirectory) from service package templates in step 4, enables the user to enter new or modify existing configuration data in step 5, and then saves the new/modified data to the config set templates and worksheets in step 6.

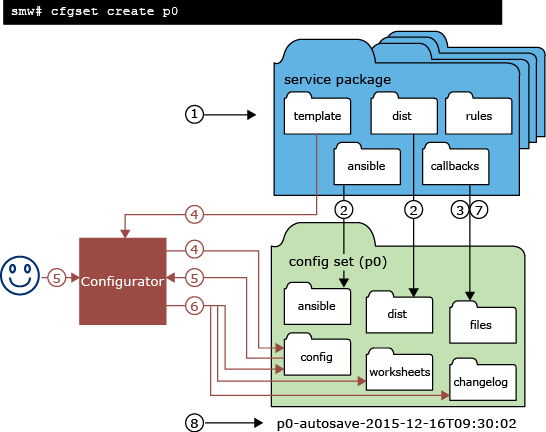

Figure: Process to Create a Config Set Interactively

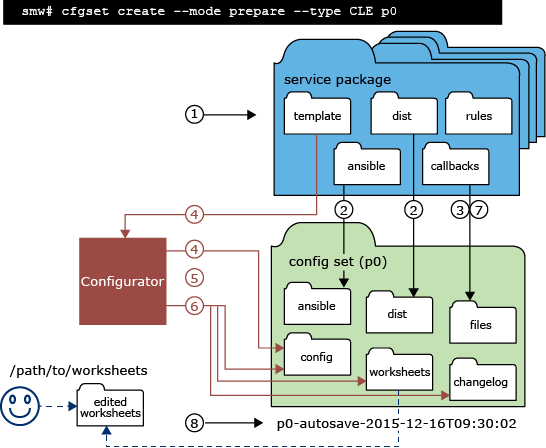

Figure: Process to Create a Config Set and Prepare Worksheets
The prepare-mode figure shows how the configurator creates config set templates from service package templates in step 4, does nothing to that configuration data in step 5, and then saves the data from step 4 to config set templates and worksheets in step 6. The blue dashed line indicates an action taken by the user after cfgset has completed the create/update process to prepare worksheets. The user (usually an installer or system administrator) copies the worksheets prepared by the configurator to a location outside the config set and edits them (or has other site staff edit them) with site-specific configuration values. It is these edited worksheets that are used when creating (or updating) a config set from worksheets (shown in worksheets figure).
Figure: Process to Create a Config Set from Worksheets
The worksheets figure shows how the configurator creates config set templates from service package templates in step 4, imports new or modified configuration data from worksheets in step 5, and then saves the new/modified data to the config set templates and worksheets in step 6.
